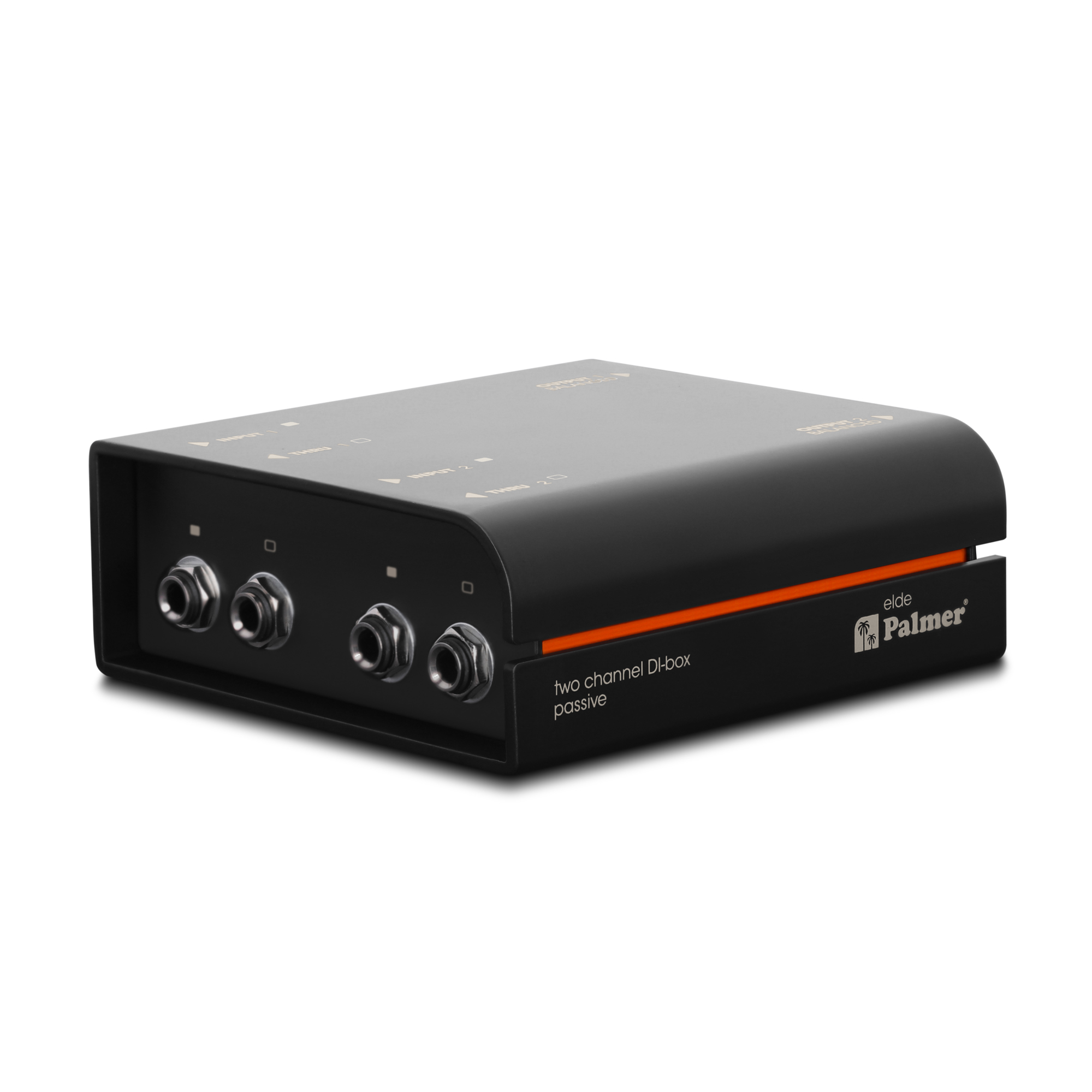

RIVER Elde
Are you looking to pick up the raw signal from a guitar, bass or keyboard without noise and tonal loss, even over long cable runs? That's exactly what the Palmer Elde does - simply and reliably. Especially since the Elde is a classic passive DI box, and it even has a dual-channel design. This means you can use it for stereo signals as well as for two different instruments.The inputs are each looped to a THRU Out, allowing the signal to be passed on to the guitar/bass amplifier. For very high level signals, each channel has its own pad switch (-30 dB), so you can also insert the Elde between the amplifier output and the loudspeaker. The output signals are balanced and with low impedance, so that they can withstand even longer cable runs without damage. Impedance conversion and balancing is done passively via a transformer, which also provides galvanic isolation. Each channel has its own ground lift switch to eliminate ground loops.The Palmer Elde is a high-quality two-channel DI box that is extremely easy to use. Due to its passive design, it requires neither batteries nor phantom power. This makes it extremely reliable and failure-proof. With its robust aluminium/steel housing, the Palmer Elde easily withstands rough everyday use on stage, and with its clean, unaltered sound, it also excels perfectly in the recording studio.

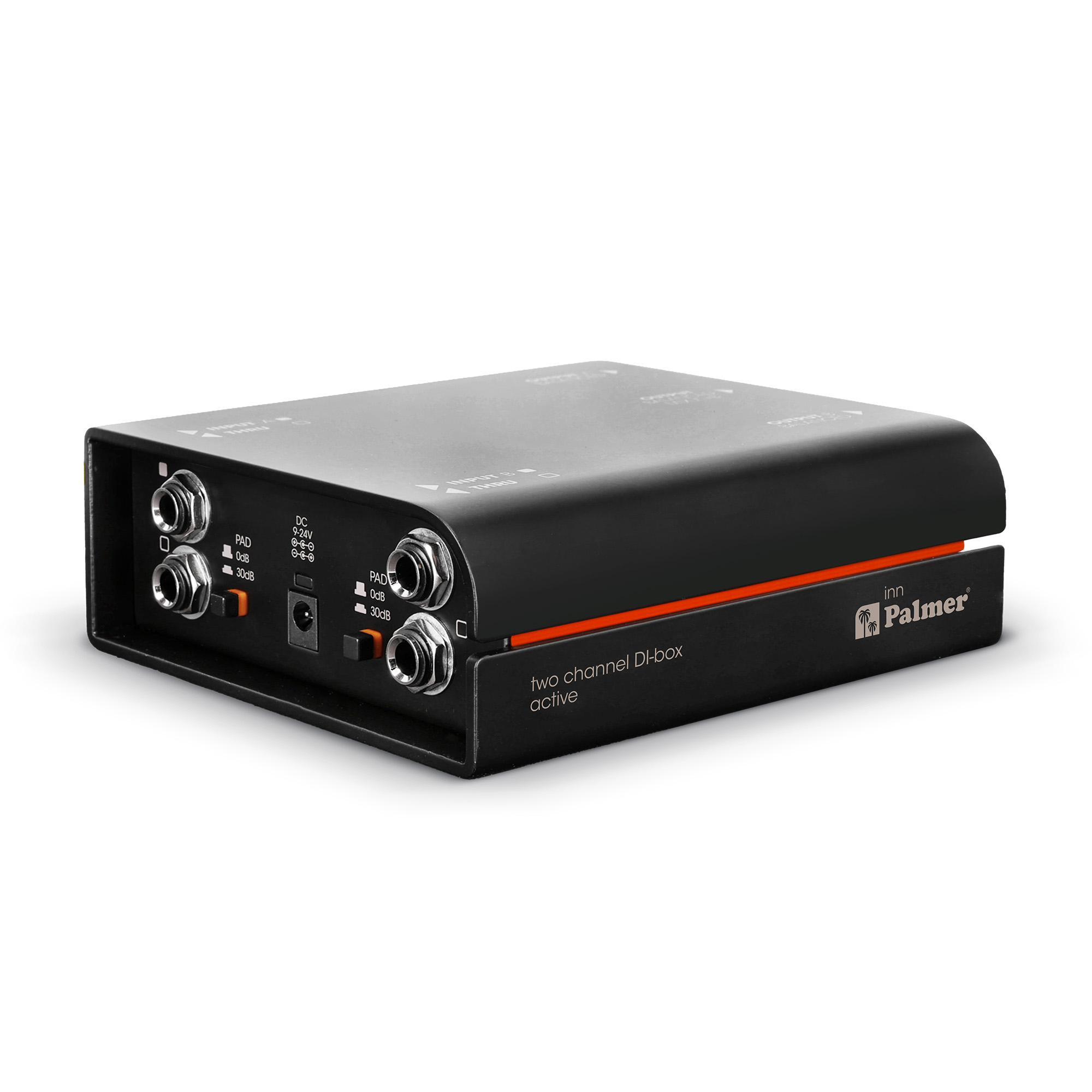

RIVER inn
If you're looking to pick up a pure guitar, bass, or electric piano signal with all its brilliance and without any tonal shift - even stereo sources, or two instruments simultaneously - the Palmer inn active DI box provides the ideal solution. Its low-noise active circuitry allows a higher input impedance than a passive DI box. This means the sound of the instruments is captured without treble or bass losses. High-level input impedance is especially important in interaction with the magnetic pickups in electrical guitar, electric bass and electromechanical electric pianos (e.g. Rhodes), as well as with (passive) piezo pickups for acoustic instruments. The Palmer inn is also very well suited to synthesisers and other electronic keyboards as it also offers sufficient headroom to handle high-level sources without unwanted distortion. In addition, the inn is two-channel, meaning it can process stereo signals or two instruments simultaneously.Naturally, the Palmer inn has a THRU output to transmit the input signal to the instrument amplifier. With 30 dB pre-attenuation activated, the Palmer inn is also optionally looped in between the amplifier output and loudspeaker unit if the sound shaping from the amplifier is to be recorded too, instead of the “raw” instrument signal. An especially practical feature is that - in addition to the individual outputs for both channels - it also offers a sum output with the signal of both channels. This saves on mixer channels.The balanced, low-impedance output signals from the Palmer inn are resistant to interference, which enables long cable runs without loss of sound quality. Thanks to the integrated transformer, the XLR outputs are galvanically isolated and have individual Ground Lift switches to eliminate ground loop hum without fuss. For a power supply, 48V phantom power or a standard PSU (9-24V) can be used.You’ve probably spent a long time searching for YOUR sound and invested a lot of time and money to get your instrument to sound the way it should. The Palmer inn transmits that sound faithfully and free of interference - across two channels! This means your sound reaches the listener exactly as nature intended.

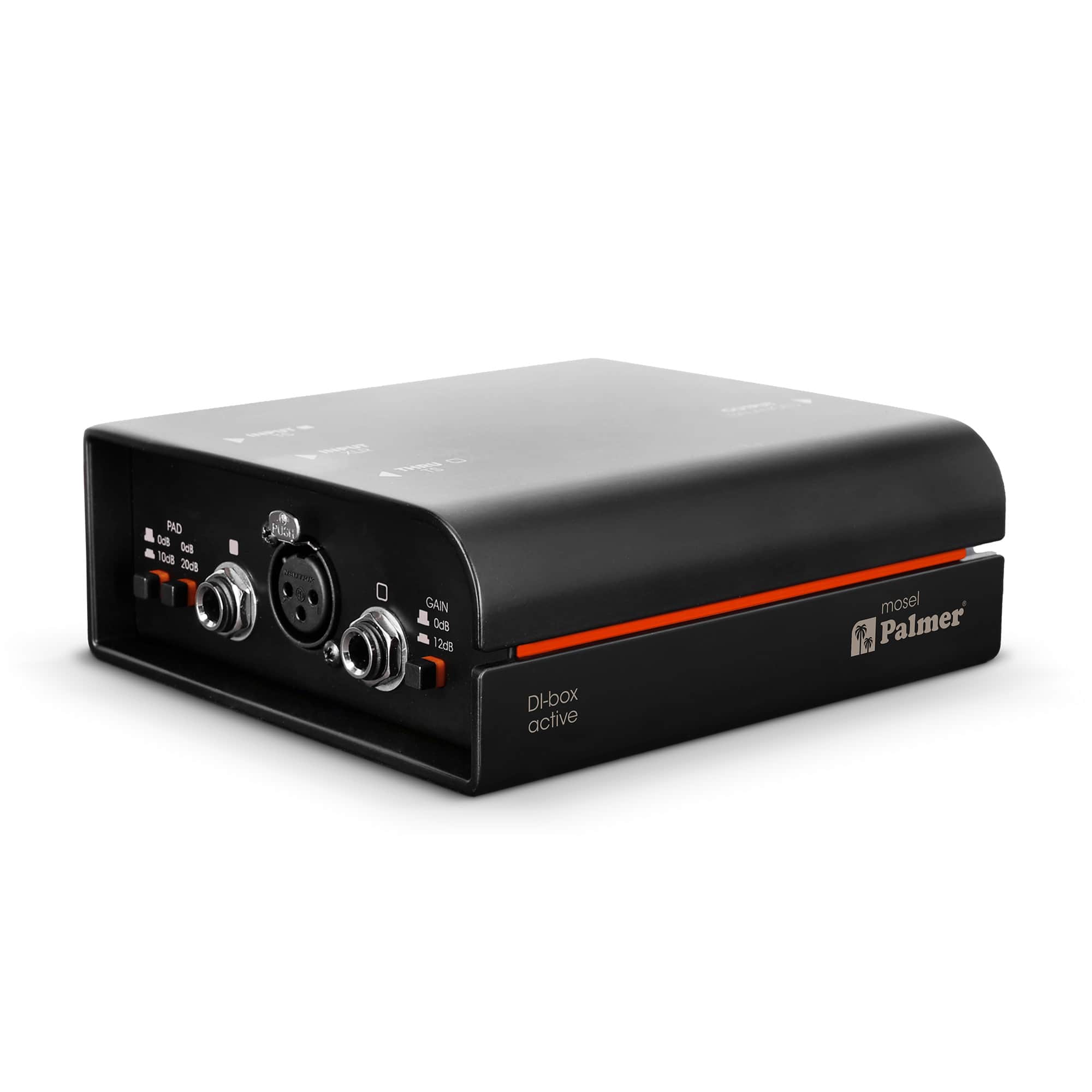

RIVER mosel
Need a little more? Are you looking for a DI box that's not just great for the stage, but that also exploits the full sound potential of your instrument in the studio? The Palmer mosel is a DI box of uncompromising premium quality with useful additional features. Its active switching guarantees a particularly high input impedance for punchy, pure sound. The unbalanced, high impedance signal from magnet and piezo pickups is changed to a low impedance, balanced output signal with no loss of brilliance - even on longer cable runs. The Palmer mosel is also suitable for synthesisers and other electronic keyboards, since it is extraordinarily stable.The output transformer - which offers galvanic separation to eliminate ground loops - can process studio levels of up to +20 dBu. In addition, the mosel is enclosed in Mu-metal to eliminate electromagnetic interference. The Palmer mosel offers two extra special features: a variable pad (-10/20/30 dB) and a boost function (+12 dB). These features allow you to always achieve the optimal level for noise-free recordings. The mosel is also extemely practical because the unbalanced input exists not only in jack format, but also as XLR sockets. This makes unstable adapters unnecessary. The ground lift switch - to separate from ground lifts - also has a soft lift setting. Power for the mosel can be provided either by a 48V phantom power unit or a 9V battery.The Palmer mosel is a high-end active DI box for studio use and demanding PA work. And for times when good is just not good enough! Choose the best - choose the mosel.

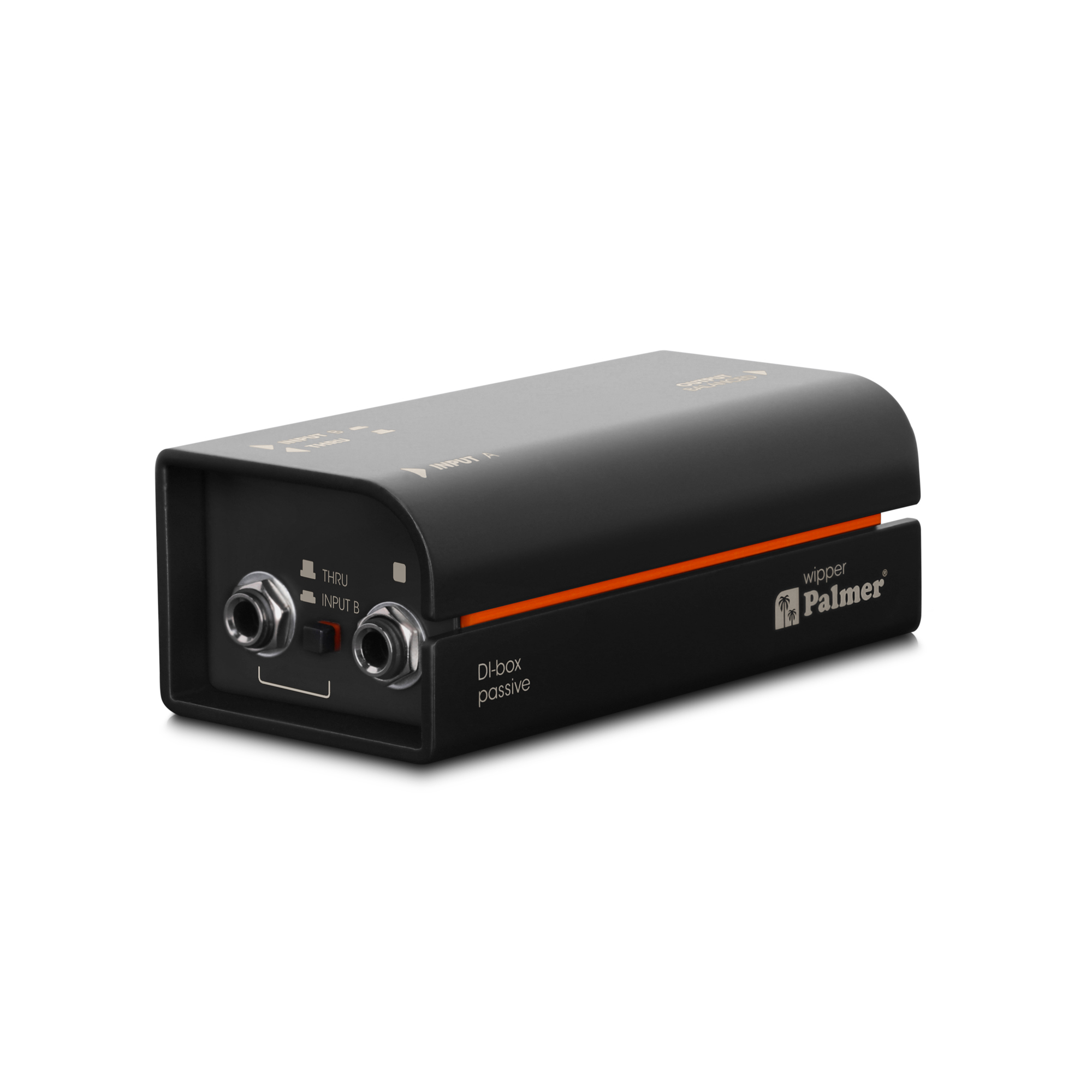

RIVER Wipper
If you need to pick up the pure sound of your guitar, bass or keyboard, you need a high-quality DI box which does not alter the natural sound or add any noise.The Palmer Wipper is a single channel passive DI box with a high-quality transformer, which also handles high levels without distorting or losing the pure sound of your instrument. With a ratio of 10:1, it can be used for optimal impedance and level adjustment to connect instrument signals from guitars, bass, keyboards or synthesisers to a balanced microphone input. At the same time galvanic isolation prevents ground loop hum, so that the signal remains pure, clear and ultra-low noise, without any interference. Thanks to a switchable 30 dB pre-attenuation, the Wipper can also be looped in between amplifier output and the loudspeaker.The Palmer Wipper is an easy-to-use problem solver. Its passive construction means it does not need any batteries or a phantom power. This makes it extremely fail-safe and also virtually indestructible thanks to its aluminum and steel casing. With its ability to retain the natural sound of your instrument, it also cuts a fine figure studio and live environments. This way you can simply be true to your sound.

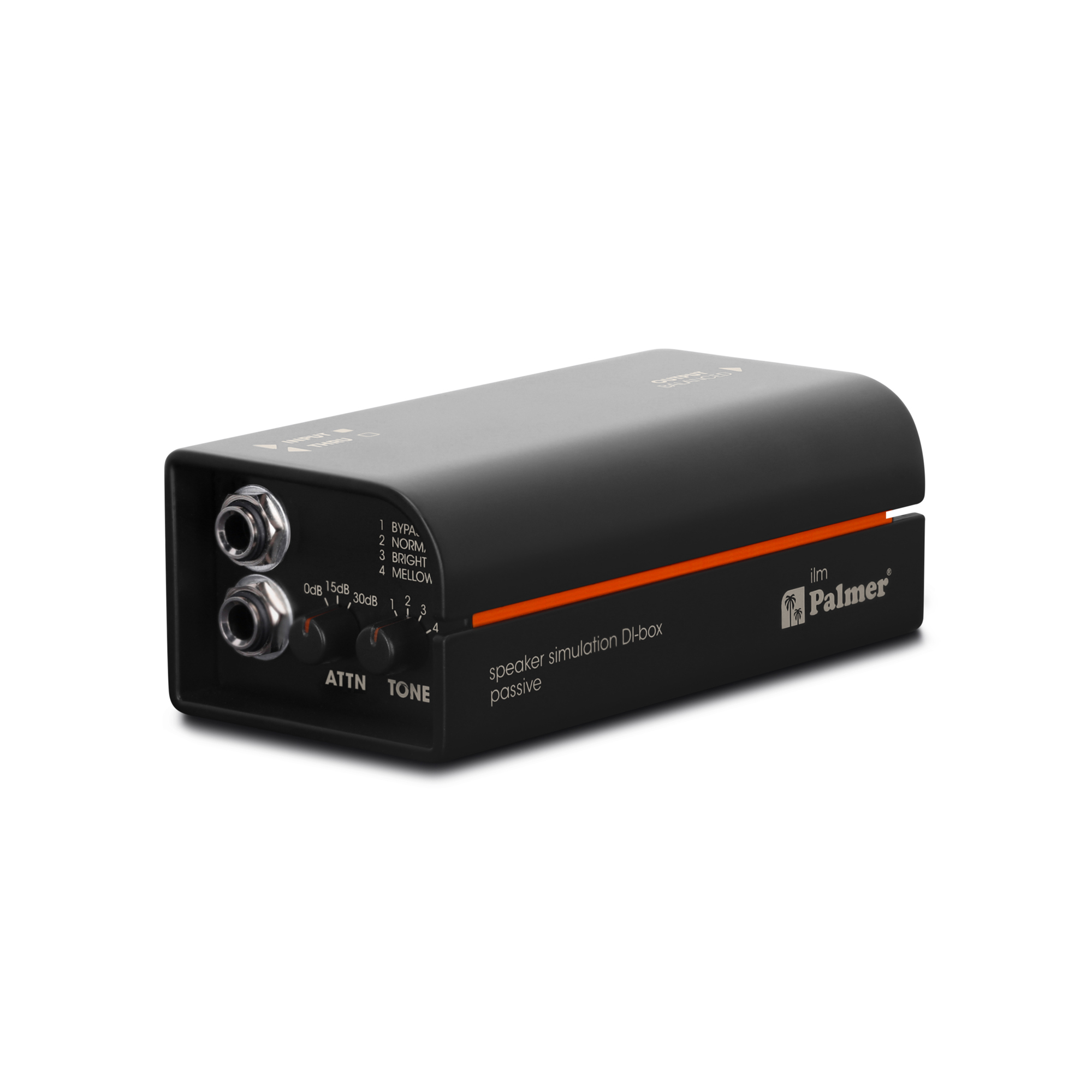

RIVER ilm
You've found your perfect amp sound, but somehow it sounds different on every stage?The Palmer ilm speaker simulation DI box removes all the uncertainties of amp micing such as microphone choice, acoustic environment and positioning. With a sophisticated filter switch simulating the sound behaviour of a real guitar speaker, it captures your authentic sound, even without a microphone. Its direct signal always sounds the same, whether at home, in the (home) studio, during rehearsals, or on stage, whatever the room size.The Palmer ilm offers three analog guitar speaker simulation settings, which represent typical guitar speaker models. We'll leave the flowery names to the others; on the Palmer ilm , they are called "normal", "mellow" and "bright".Generally, the Palmer ilm is looped in between the guitar amp output and guitar speaker; but it can also be operated on the amplifier's line out. For input-level adjustment, the ilm has a pad switch with three settings: 0, -15 and -30 dB.The output of the Palmer ilm is balanced and transformer isolated which means there is no interference or ground loop hum when connecting it to a mixing console or audio interface. With the Palmer ilm, you can always rely on what really matters: Your music, your instrument and your sound.

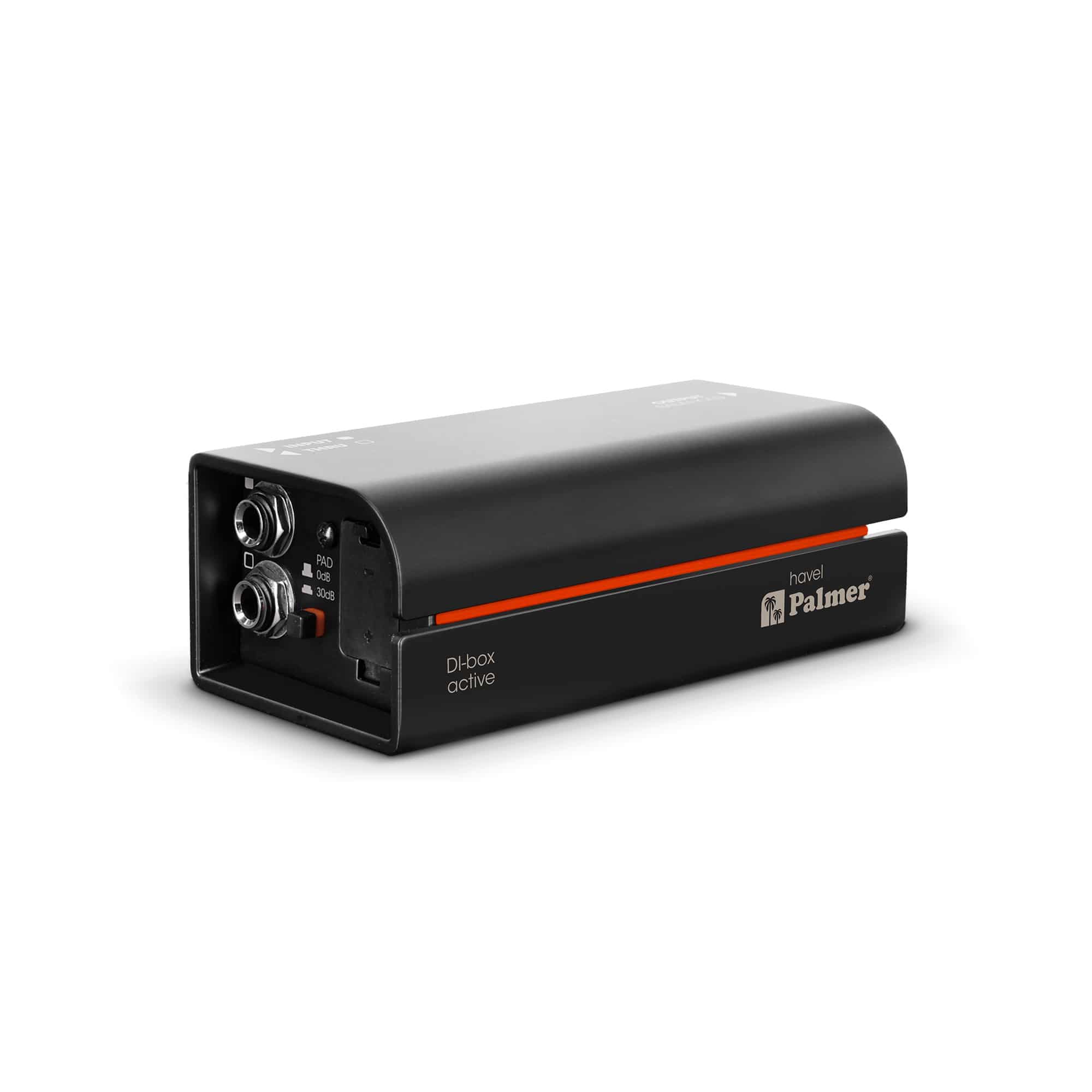

RIVER havel
Are you looking to pick up a pure guitar, bass, or electric piano signal with all its brilliance and without any tonal alterations? An active DI box offers the best solution - as long as it has the same high-quality construction as the Palmer havel. The havel's low-noise active circuitry allows a higher input impedance than a passive DI box. This means the sound of the instrument is captured without treble or bass losses. High-level input impedance is especially important in interaction with the magnetic pickups in electrical guitars, electric basses and electromechanical electric pianos (e.g. Rhodes), as well as with (passive) piezo pickups for acoustic instruments. However, the Palmer havel is also very well suited to synthesisers and other electronic keyboards, since it offers enough headroom to handle even high-level inputs without unwanted distortion. Of course, the Palmer havel features a THRU output to pass the input signal on to the instrument amplifier. With 30 dB of pre-attenuation activated, the Palmer havel can also be looped in between the amplifier output and the loudspeaker, if you want to include the sound of the amplifier instead of the “raw” instrument signal. The balanced, low-impedance output signal from the Palmer havel is resistant to interference, which enables long cable runs without any loss of sound quality. Thanks to the built-in transformer, the XLR output is galvanically isolated. Any hum loops that may occur can easily be remedied by pressing the ground lift switch. For a power supply, a 48V phantom power unit or a standard 9V battery can be used. We're sure you’ve spent a long time searching for YOUR sound, and have invested a lot of time and money to get your instrument to sound the way it should. The Palmer havel transmits your sound faithfully and free of interference. This means your sound reaches the listener exactly as nature intended!

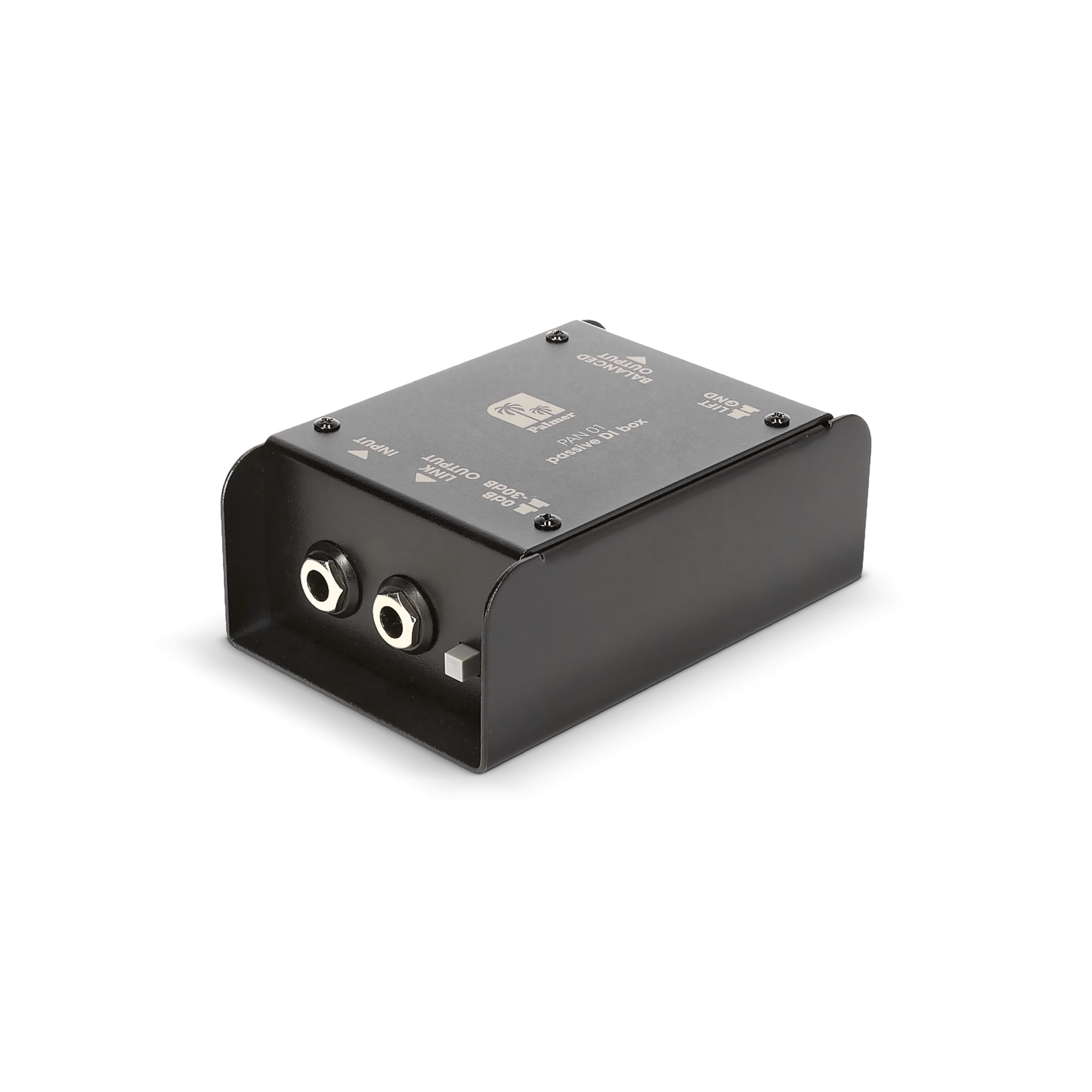

PAN 01
Passive DI box. Jack input with paralell "THRU" output, transformer balanced XLR output. Attenuable input sensitivity, can handle both line level and speaker level signals.

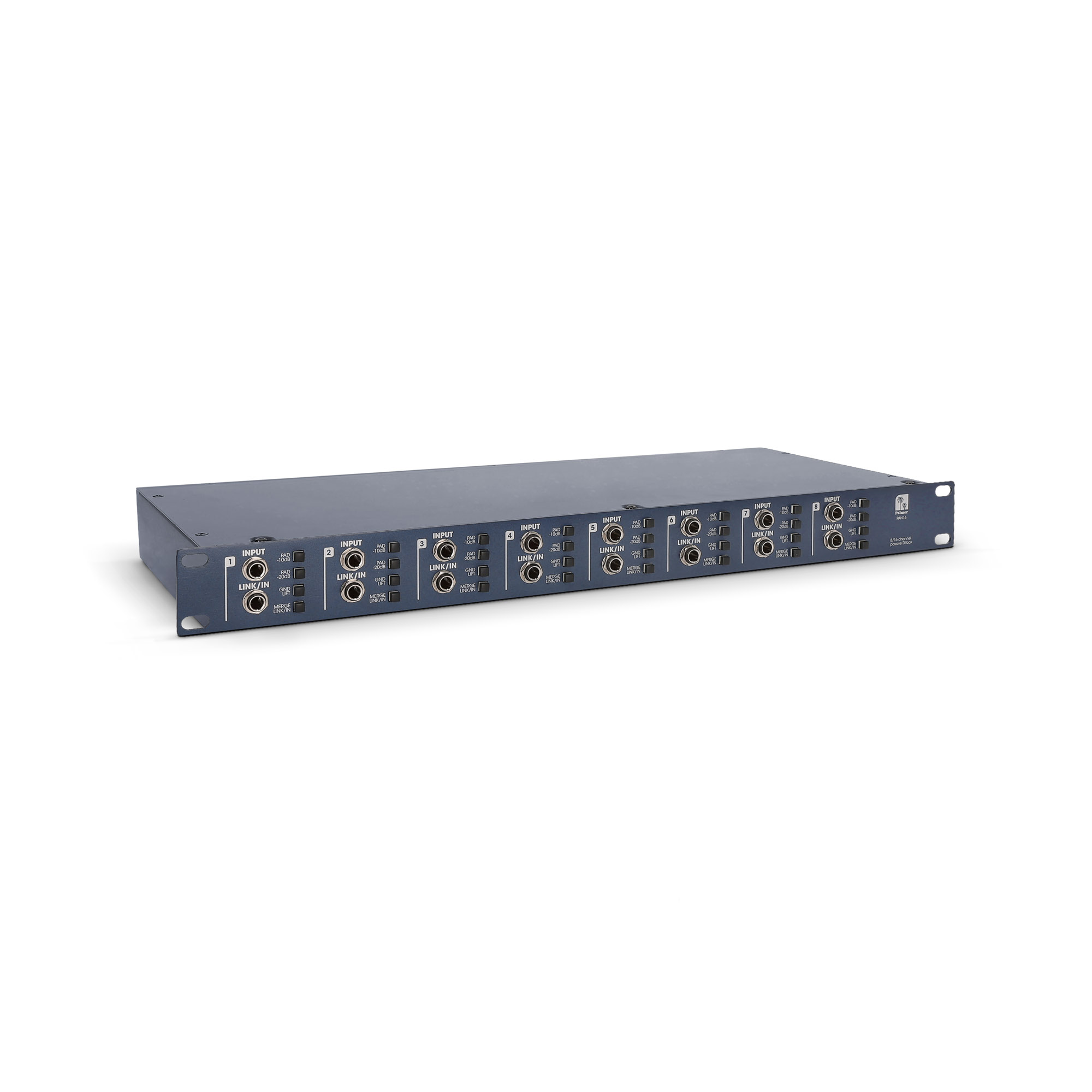

PAN 16
The Palmer PAN16 is an 8 channel passive DI box in a 19" 1U rack format. Through the special MERGE LINK/IN function, the front LINK output can be used as a second input.The signal is then mono merged with the one from the INPUT jack through to the output. Thus, the PAN16 offers a maximum of 16 inputs. Two PAD buttons enable an attenuation of 10, 20 or 30 dB. The XLR outputs are electrically isolated and balanced via transformer. 8 additional LINK-sockets are also available on the rear panel of the device.

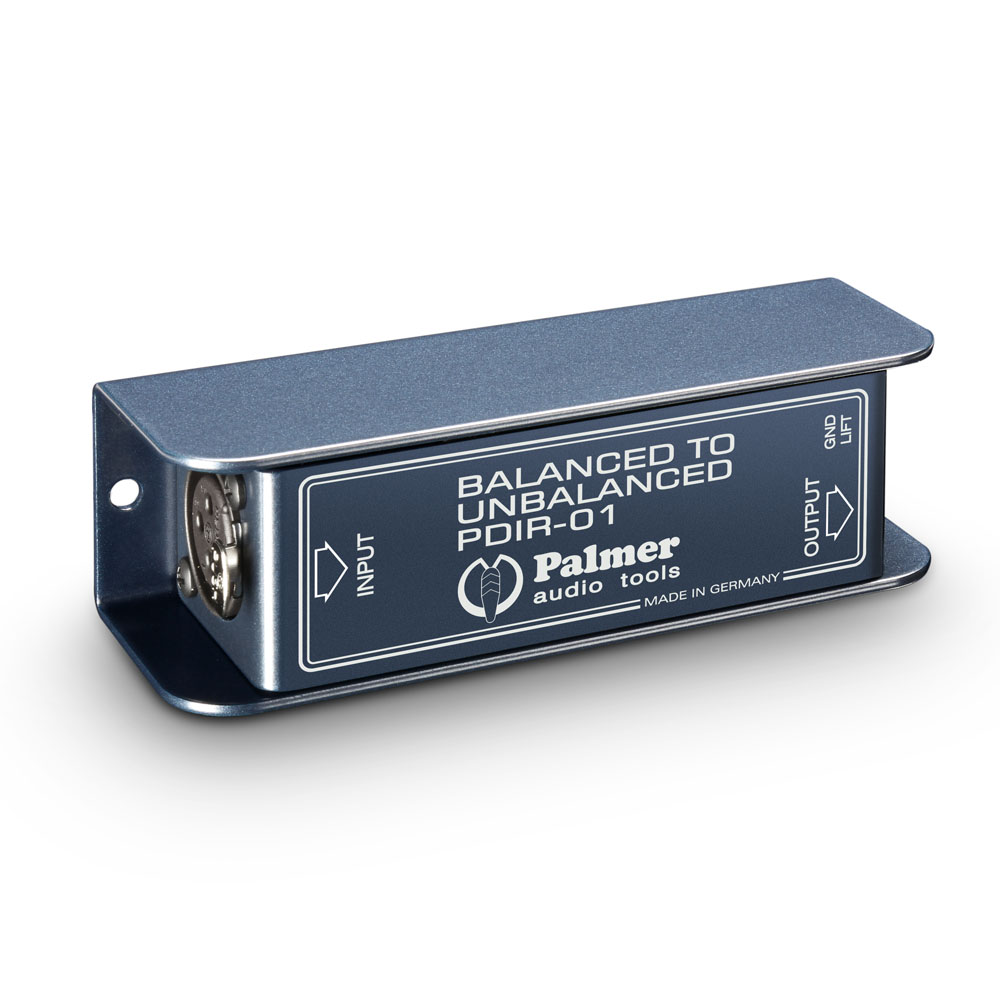

DI-REVERSE
People often try to connect a DI box in reverse, aiming to supply a balanced signal into an unbalanced input. Nevertheless, this approach often results in suboptimal outcomes due to mismatching. Enter the PDIR01 (DI-REVERSE), a solution designed to address this issue seamlessly, eliminating the need for adapters and ensuring optimal performance.

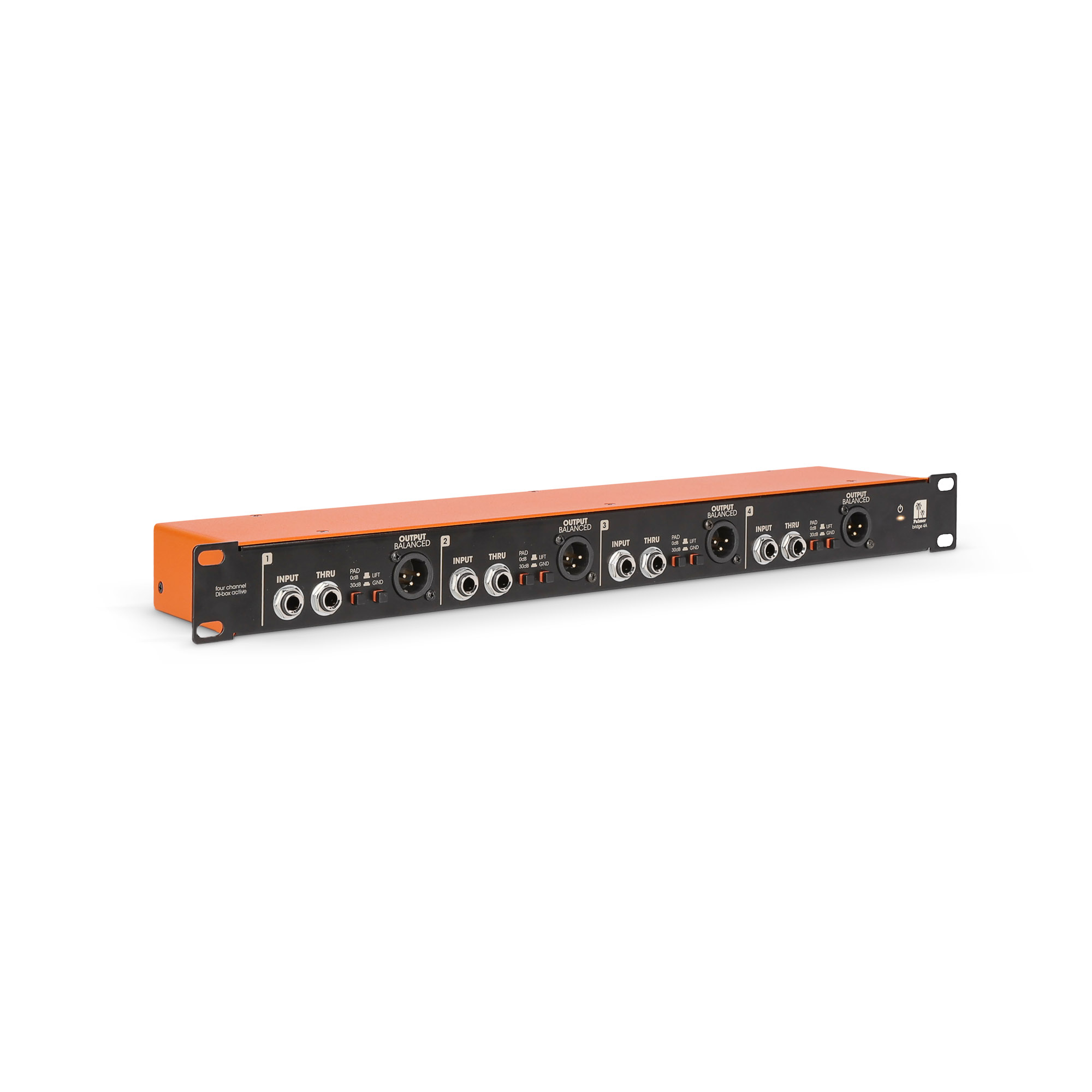

BRIDGE 4A
Are you aiming to capture the pure signal from a guitar, bass, or keyboard without any noise and tonal loss, even over long cable runs? In that case, you need a DI box - and a high-quality one at that - to ensure your sound won't be compromised.The BRIDGE 4A from Palmer is a 4-channel, active DI box in 19" rack format for feeding the unbalanced and high-impedance signals of electric instruments such as guitar, bass, keyboard or synthesiser into the microphone inputs of a mixing console. It provides a transformer-balanced, low-impedance signal at the outputs and eliminates mains hum and interference caused by ground loops. This keeps the sound unadulterated: brilliant, low-noise and without interference.Each channel is equipped with a 6.3 mm jack input, a THRU-Out (for forwarding the input signals to an amplifier, for example), and two transformer-balanced XLR outputs - one at the front and one at the rear.Thanks to a switchable 30dB pre-attenuation, the BRIDGE 4A can be fed with extremely high input levels in addition to line signals, which means it can even be looped in between the amplifier output and speakers, for example. The Audio-Over-Cat output enables the signals of all 4 channels to be routed via a single Cat (Cat5e or higher) cable. This saves material, space and time. The active circuit leaves the frequency response unaffected, achieves a high dynamic range and delivers a higher output level than a passive DI box.The BRIDGE 4A is the ideal solution for audio technicians, semi-professional and professional musicians as well as recording studios that value reliable and durable products.

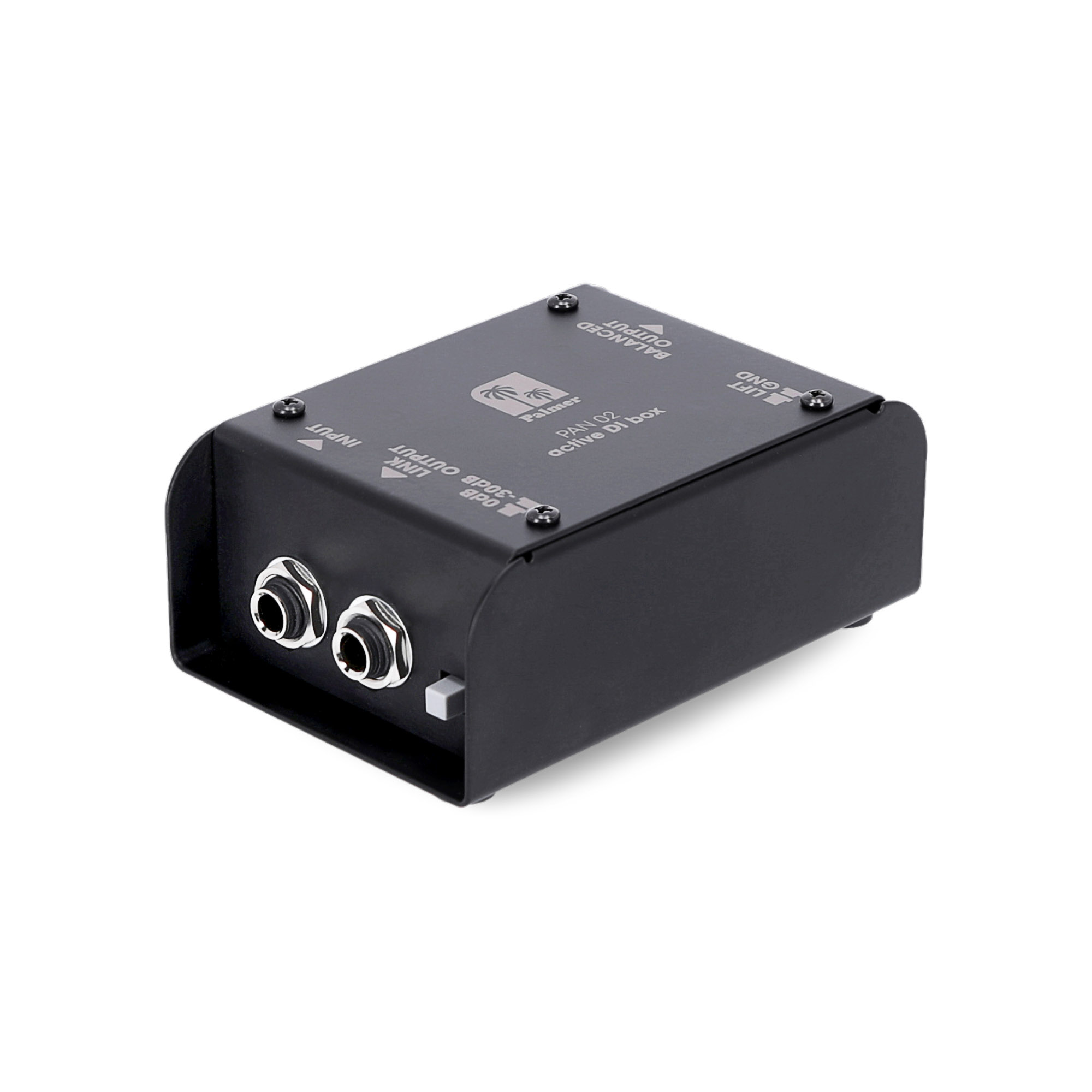

PAN 02
Standard active DI box. Can be operated with 9 V batteries or 48 V phantom power. High-impedance input; higher output level than with a passive DI box. Active circuitry allows for high input impedance ( 1 meg. ohm) and higher input sensitivity (typical difference between in and out -4 dB). Maximum output impedance with phantom power operation +10 dB. Output: transformer balanced. The special "floating ground" circuitry enables ground lift even during phantom power operation. Metal case 110 x 73 x 42 mm.

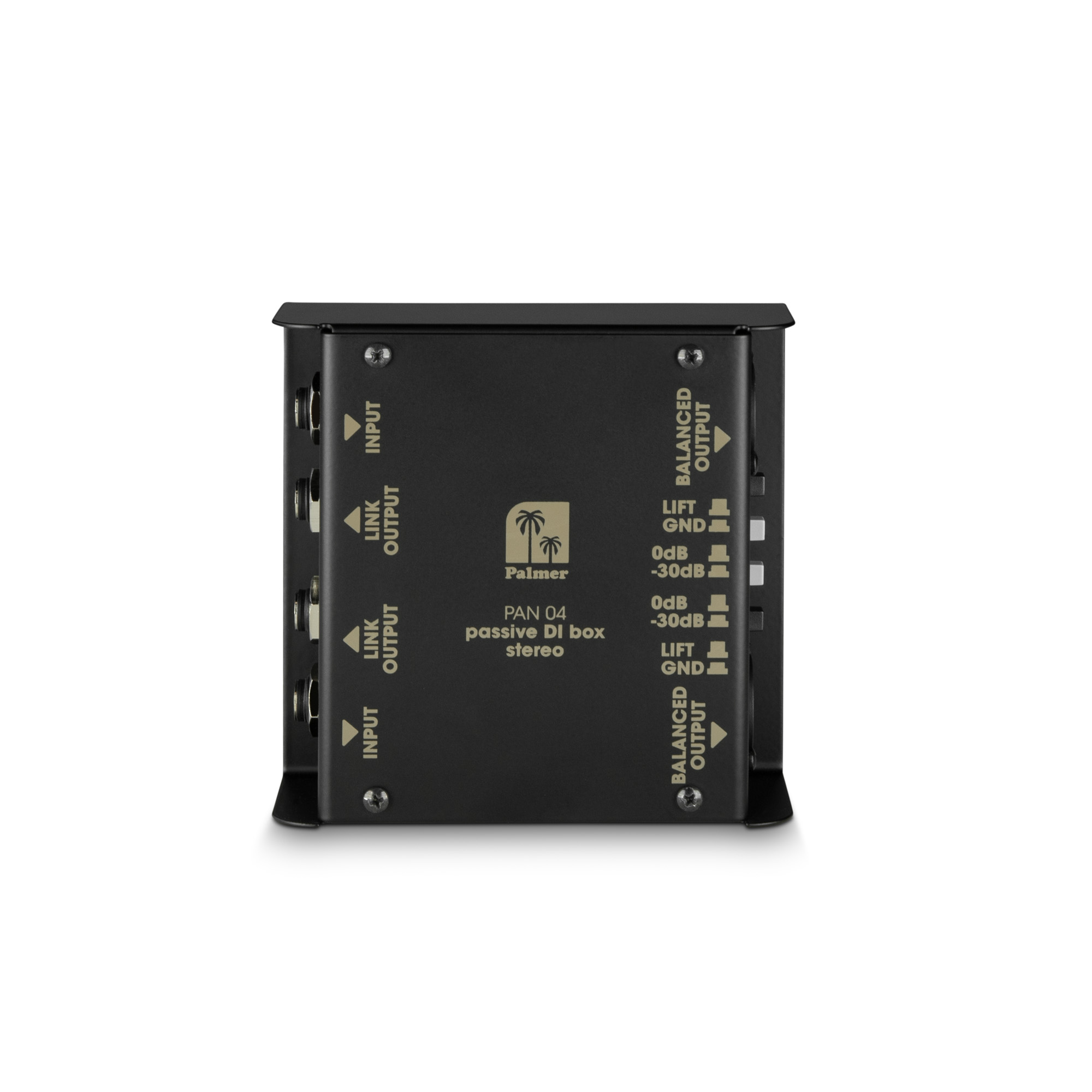

PAN 04
The PAN-04 consists of a housing containing the equivalent of two PAN-01s, making it a dual channel passive DI box. This „stereo" configuration makes it ideally suited for use with certain keyboards and devices which have several outputs.ive DI box. Jack input with paralell „THRU" output, transformer balanced XLR output. Attenuable input sensitivity, can handle both line level and speaker level signals.

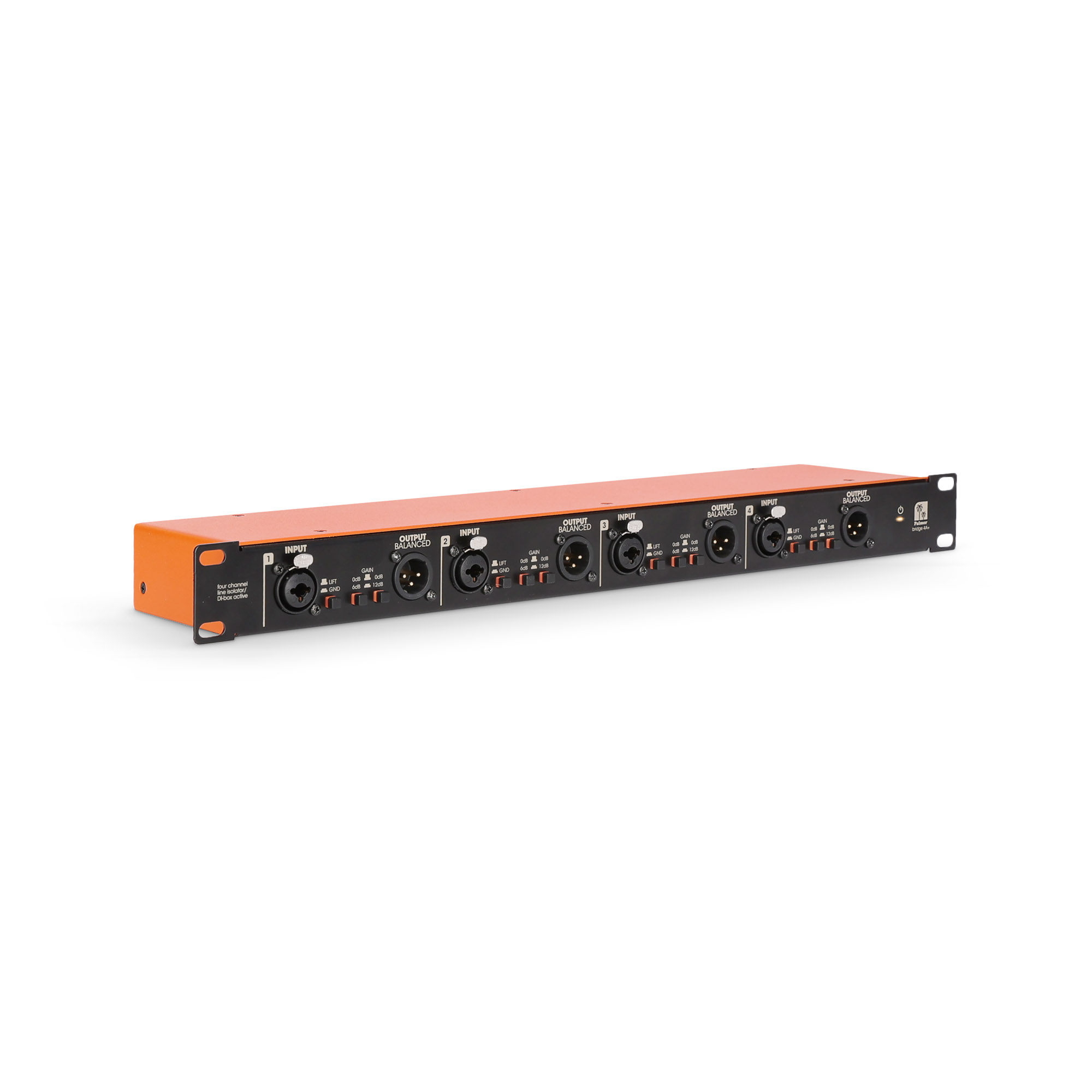

BRIDGE 4A+
The BRIDGE 4A+ is a multifunctional device: each of the four channels can be used independently as an active DI box, a line isolation box, or a booster. The input combo socket accepts unbalanced and balanced signals. The outputs are designed as two transformer-balanced XLR sockets per channel (one on the front and one on the rear).The galvanic isolation via transformer eliminates hum loops, and the ground lift switch can also be used to eliminate noise and interference that occurs with already balanced input signals. The Palmer BRIDGE 4A+ reliably eliminates any hum - and when connecting unbalanced equipment, the signal is also balanced.If necessary, the signal level can be raised in three stages by 6dB, 12dB or 18dB. The audio over Cat output allows the signals of all 4 channels to be routed via a single Cat cable. This saves material, space, and time.The BRIDGE 4A+ line isolation box is a universal problem solver for eliminating ground loops. Whether it's at home, at lectures, in the rehearsal room, on stage, in clubs, or at large events - the Palmer BRIDGE 4A+ ensures a clean sound without interference anywhere.

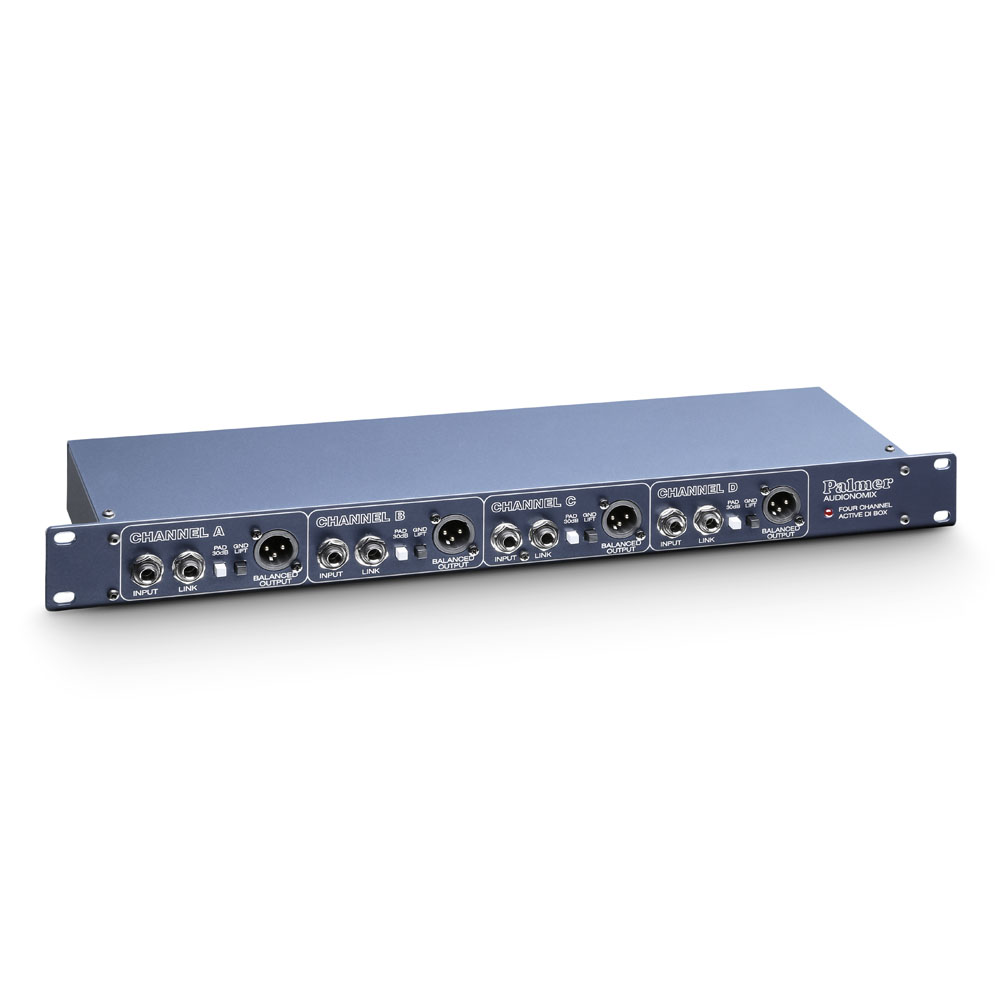

PAN 03
Active 4-channel DI box. Each channel has a jack input with a parallel output for passing through the signal. An attenuation switch (-30 dB) allows either a line or loudspeaker signal to be connected.Active 4 x DI box, 19" format. Technical specitications identicl to the PAN-02, however, the PAN-03 is built for mains operation. All connections and switches are located on the front panel, an additional parallel XLR output is located in back. 19 inch rack-mount format, 1 rack space, 90 mm front to back.

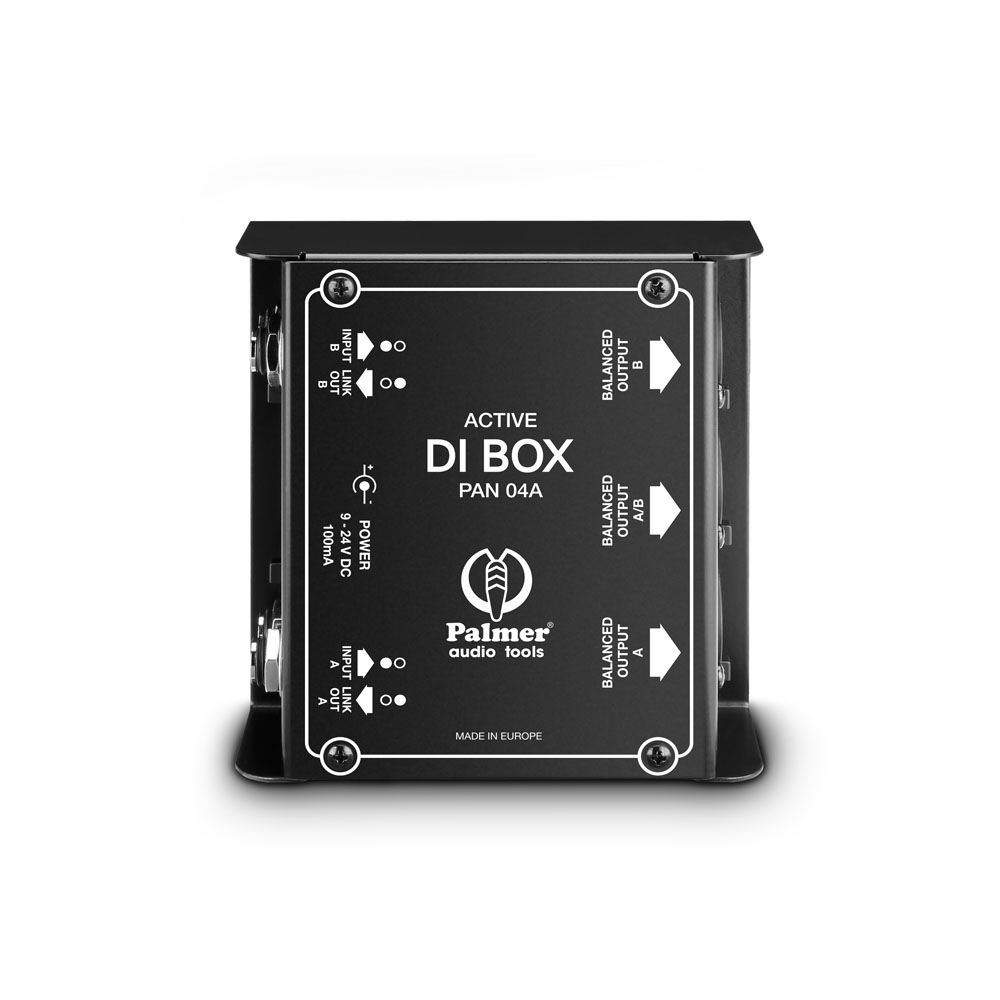

PAN 04 A
The Palmer PAN04A is 2-channel DI box for feeding asymmetrical and high impedance electric instrument signals into a mixing desk’s microphone inputs. It delivers a transformer balanced, low impedance signal to the outputs and eliminates mains hum and interference caused by ground loops. The active switch leaves the frequency response unaffected and achieves a high dynamic range. In addition to 6.35 mm direct outputs and -30 dB switchable input attenuation, the DI box also features a mono output that sums both channels. The PAN04A is designed to be exceptionally robust and is suitable for both stage and studio. It can be powered with 9 to 24 V DC mains adapters or phantom power when two outputs are connected to a mixer.
BRIDGE 4P
Are you aiming to capture the pure signal from a guitar, bass, or keyboard without any noise and tonal loss, even over long cable runs? In that case, you need a DI box - and a high-quality one at that - to ensure your sound won't be compromised.The BRIDGE 4P from Palmer is a 4-channel passive DI box in 19" rack format with high-quality transformers that handle even high levels without distorting or losing the pure sound of your instrument. Each channel is equipped with a 1/4" jack input, a THRU output (for forwarding the input signals to an amplifier, for example), and two transformer-balanced XLR outputs - one at the front and one at the rear.With a transformation ratio of 10:1, the transformers ensure optimum impedance and level matching for connecting instrument signals from guitar, bass, keyboard or synthesizer to a balanced microphone input. At the same time galvanic isolation prevents ground loop hum, so that the signal remains pure, clear and ultra-low noise, without any interference.Thanks to a switchable 30dB pre-attenuation, the BRIDGE 4P can be fed with extremely high input levels in addition to line signals, which means it can even be looped in between the amplifier output and speakers, for example. The Audio-Over-Cat output enables the signals of all 4 channels to be routed via a single Cat (Cat5e or higher) cable. This saves material, space and time. Due to its passive design, the BRIDGE 4P requires no power supply, which makes it extremely fail-safe.The BRIDGE 4P is the ideal solution for audio technicians, semi-professional and professional musicians as well as recording studios that value reliable and durable products.

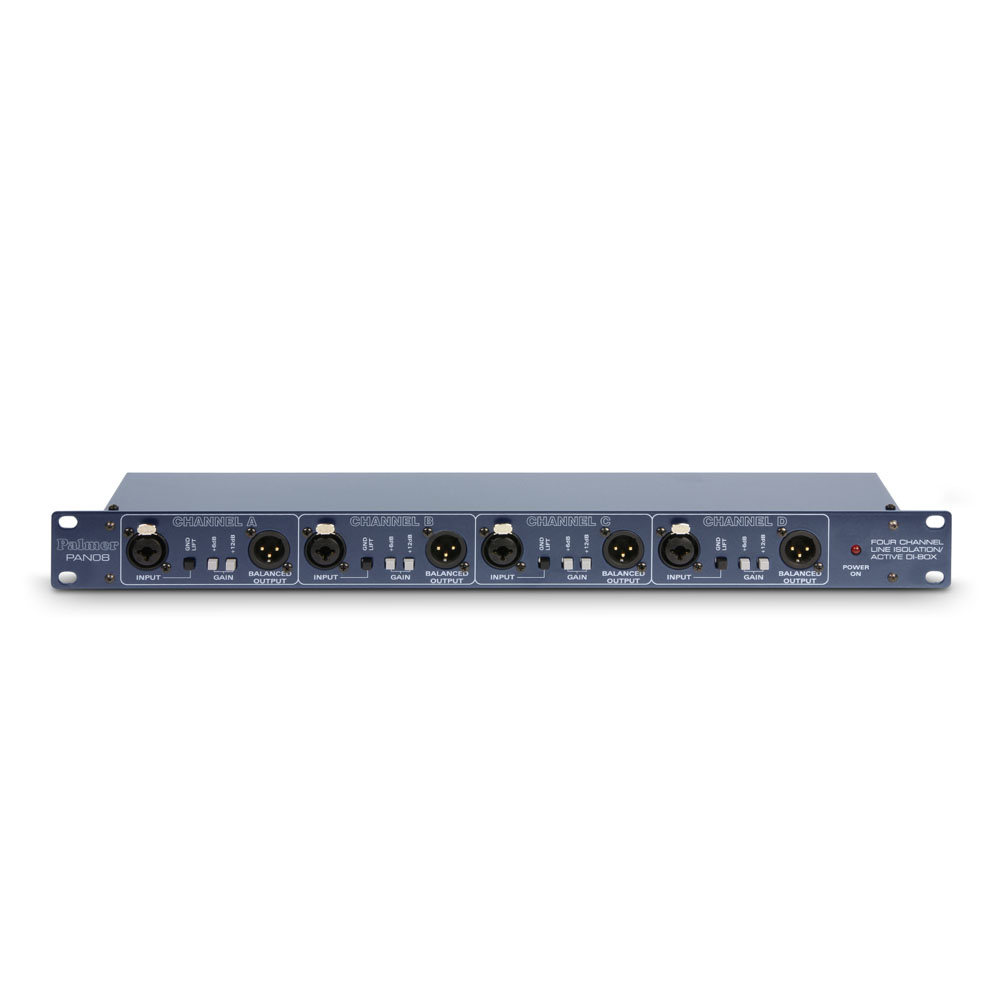

PAN 08
The PAN08 is a multifunctional device. Each of the four channels can be used independently as an active DI box, line isolation box or booster. The combination socket input accepts unbalanced and balanced signals. The output has dual transformer balanced XLR jacks (front and rear).The signal level can be attenuated by 20 dB for microphone inputs, but can also be boosted in three stages by up to 18 dB for LINE inputs if necessary. With an output level of +12 dBu on a load of 600 Ohms with 0.05 % THD / 40 Hz and an output noise level of less than -110 dBu, the unit meets even high professional standards. One special feature that is worthy of mention is battery power. The supply voltage may range from 9 to 18 V. Thus the PAN08 can also be used without mains power outdoors.

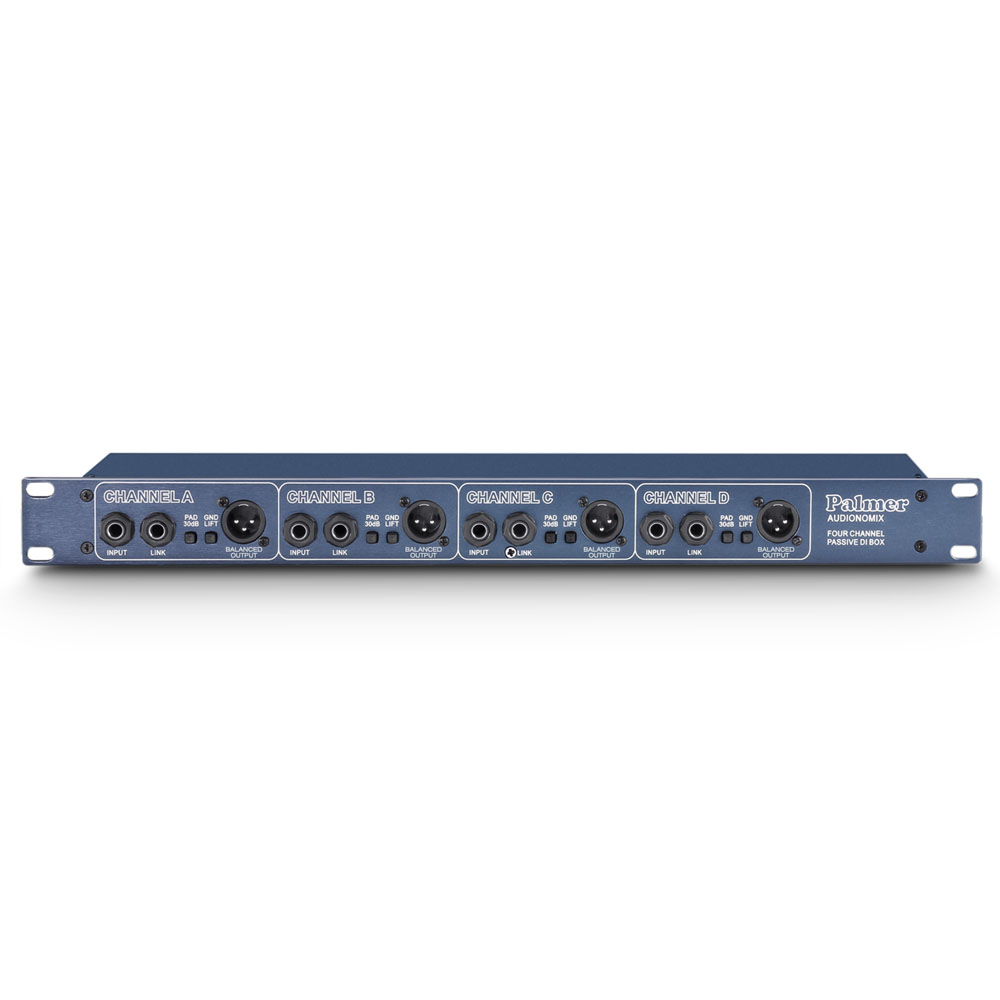

PAN 03 PASS
Passive 4-channel DI box in a 19" housing. Each channel has a jack input with a parallel output for looping the signal through. An attenuation switch (-30 dB) permits connection of a line or speaker signal at the user's choice. The specifications are identical with those of the PAN 01. All connections and switches are on the 1 U front panel; the XLR output is additionally present as a parallel socket on the rear panel.

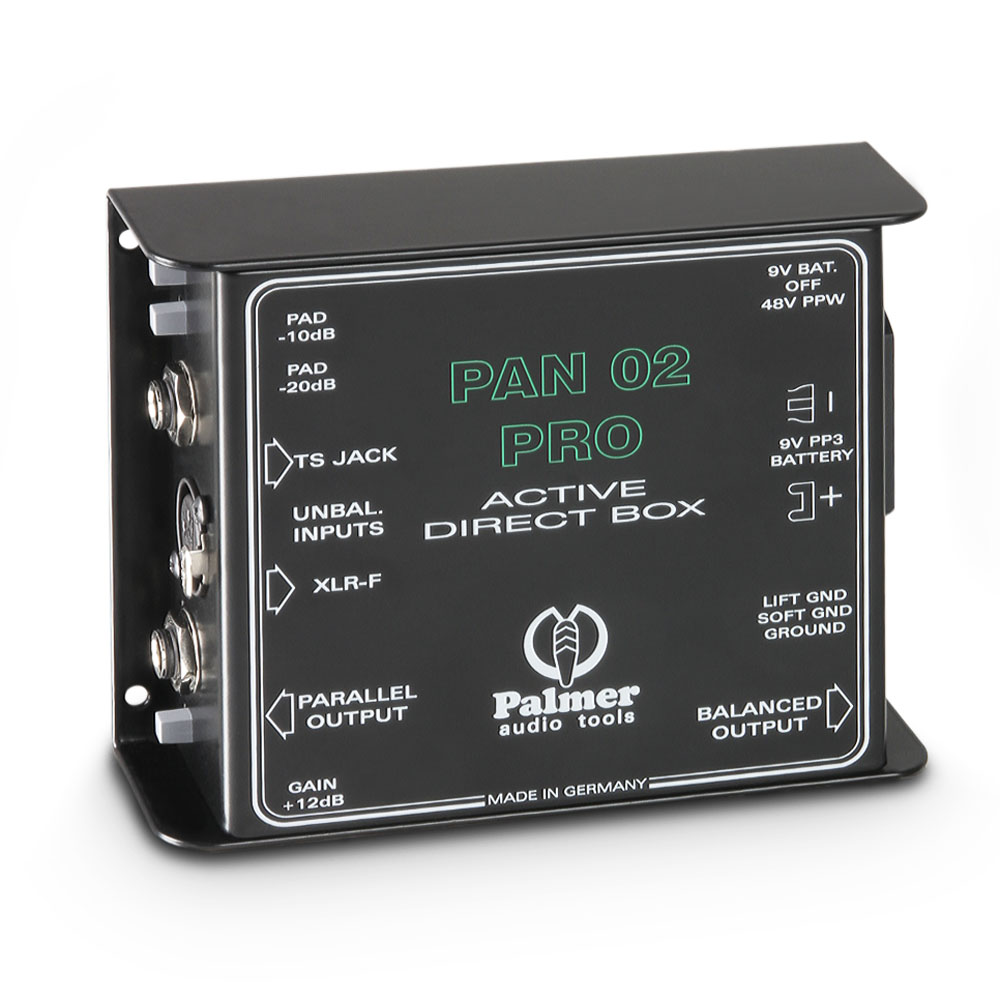

PAN 02 PRO
The Palmer PAN02 PRO is an active DI box with outstanding additional functions. These include an unbalanced XLR input, in addition to the 3-way attenuator -10, -20, -30 dB and a switchable gain of 12 dB, connected with a maximum output voltage of +20 dBu. The ground lift switch has a "lift" position allowing adjustments between a "soft and hard grounding" . The balanced output is achieved with a high quality transformer in the Mumetall housingthat was specially developed for this purpose. The PAN02 PRO can be powered either with a 9 V battery or 48 V phantom power. A two-colour LED indicates which source supplies the power.

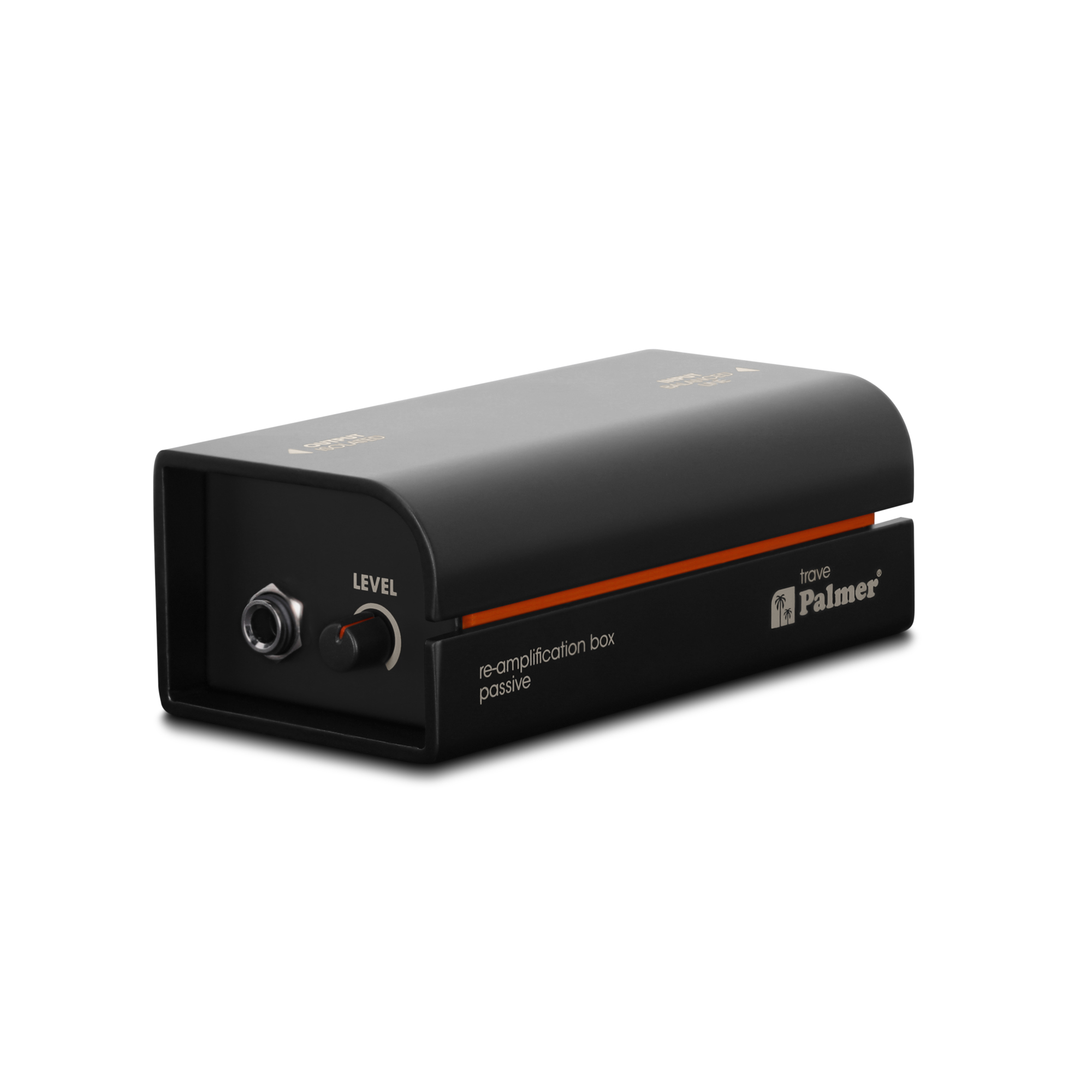

RIVER trave
Reamping is a valuable recording technique used by many sound engineers.It lets you experiment at leisure by running guitar, bass, keyboard, drum and even vocal tracks through amplifiers and effects pedals. As with many other techniques, you need the right tools.The Palmer trave is a passive reamping box that requires no external power supply. Inside is a specially developed transformer that converts the balanced line signal into an unbalanced Hi-Z signal with perfectly matched impedance for your guitar amplifier or effect pedal. At the same time, the trave prevents ground loops, which are otherwise almost unavoidable when you combine an audio interface or mixer output with a guitar amp or effects pedal. The input of this reamping box allows you to switch between consumer (-10 dBV) and professional (+4 dBu) levels, and the output level is continuously adjustable, so you can drive your amp or pedals just the way you like it.With the Palmer trave passive re-amplification box, you can add new creative sounds and timbres to your music and ultimately be true to your sound.
