PAN 01
DI box passive
$79.99
Backordered – More on the Way!
Product information "PAN 01"

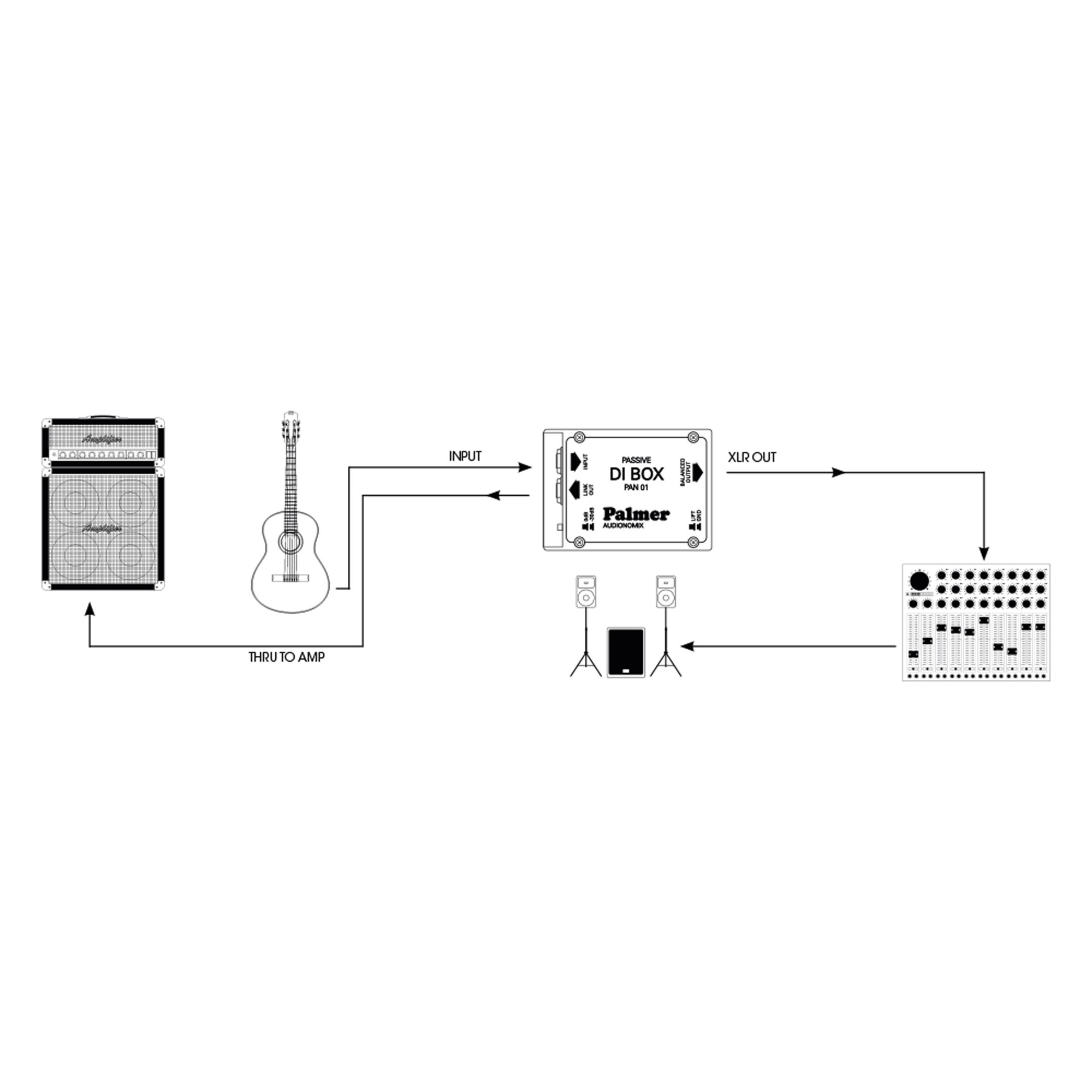

Passive DI box. Jack input with paralell "THRU" output, transformer balanced XLR output. Attenuable input sensitivity, can handle both line level and speaker level signals.
| Frequency response: | 20 - 20000 |
|---|---|
| Input pad: | 0 / -30 dB |
| Type: | passive |
| Input impedance: | (@ 60 Hz) 60k |
| Cabinet surface: | Powder coated |
| Output connectors: | XLR, 6.3 mm jack |
| Depth: | 2.87 in |
| Height: | 1.65 in |
| THRU outputs/channel: | 1 |
| Transformer balanced: | Yes |
| Controls: | attenuator, ground lift |
| Product type: | DI boxes |
| Ratio: | 10 : 1 |
| Max. output level: | + 4 dBu |
| Output impedance: | 600 |
| Channels: | 1 |
| Cabinet material: | sheet steel |
| Width: | 4.33 in |
| Max. input level: | + 54 dBu |
| Input connectors: | 6.3 mm jack |
| Inputs: | 1 |
| Number of outputs: | 1 |
Login
accessories

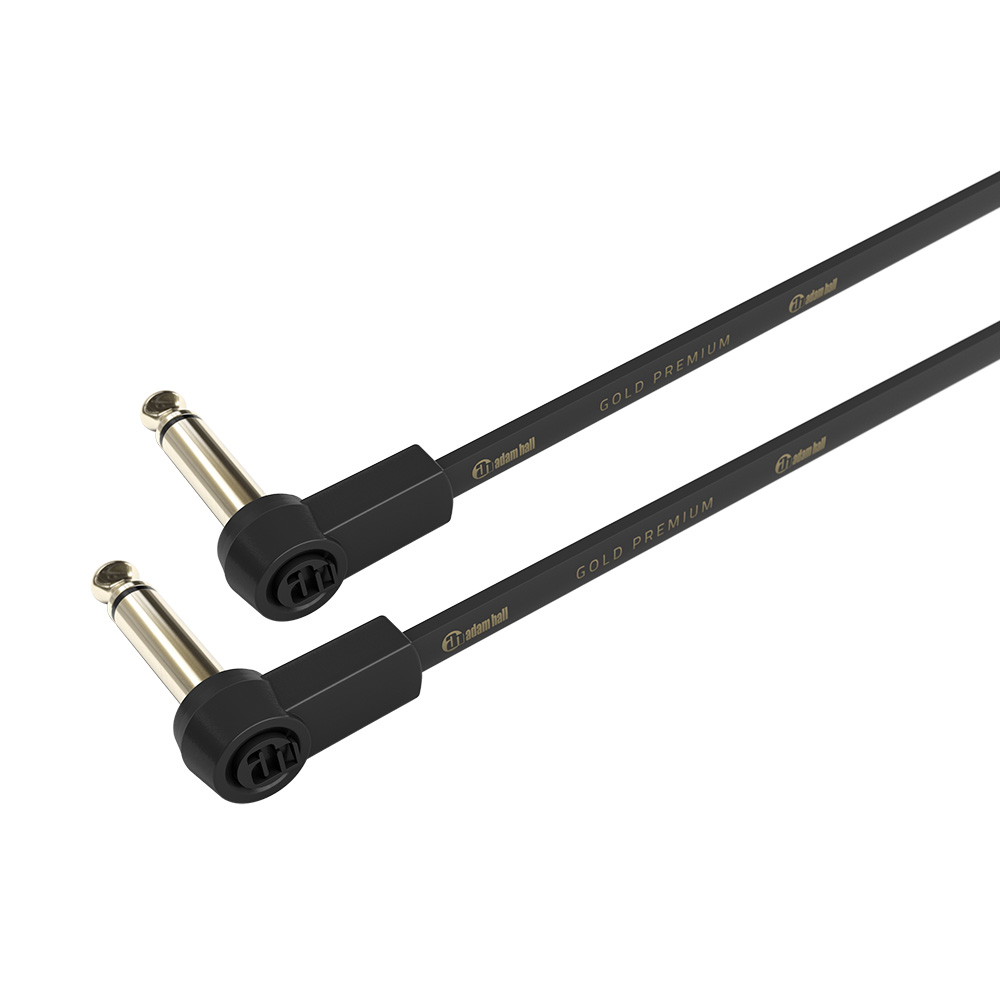

This patch cable, available in different versions, is ideal for space-saving connection of effects on the pedalboard due to its extra flat 6.3 mm angle jack plugs with gold-plated tip. The ultra-flexible, flat cable with fine-stranded 0.16 mm² inner conductor and very low capacitance, ensures detailed, colouration-free signal transmission over the entire frequency range. Mercilessly save space on the permanently installed board!
