5 STAR IPP 0300 PALMER® CABLE

Are you aiming to capture the pure signal from a guitar, bass, or keyboard without any noise and tonal loss, even over long cable runs? In that case, you need a DI box - and a high-quality one at that - to ensure your sound won't be compromised.The BRIDGE 4P from Palmer is a 4-channel passive DI box in 19" rack format with high-quality transformers that handle even high levels without distorting or losing the pure sound of your instrument. Each channel is equipped with a 1/4" jack input, a THRU output (for forwarding the input signals to an amplifier, for example), and two transformer-balanced XLR outputs - one at the front and one at the rear.With a transformation ratio of 10:1, the transformers ensure optimum impedance and level matching for connecting instrument signals from guitar, bass, keyboard or synthesizer to a balanced microphone input. At the same time galvanic isolation prevents ground loop hum, so that the signal remains pure, clear and ultra-low noise, without any interference.Thanks to a switchable 30dB pre-attenuation, the BRIDGE 4P can be fed with extremely high input levels in addition to line signals, which means it can even be looped in between the amplifier output and speakers, for example. The Audio-Over-Cat output enables the signals of all 4 channels to be routed via a single Cat (Cat5e or higher) cable. This saves material, space and time. Due to its passive design, the BRIDGE 4P requires no power supply, which makes it extremely fail-safe.The BRIDGE 4P is the ideal solution for audio technicians, semi-professional and professional musicians as well as recording studios that value reliable and durable products.

Are you aiming to capture the pure signal from a guitar, bass, or keyboard without any noise and tonal loss, even over long cable runs? In that case, you need a DI box - and a high-quality one at that - to ensure your sound won't be compromised.The BRIDGE 4A from Palmer is a 4-channel, active DI box in 19" rack format for feeding the unbalanced and high-impedance signals of electric instruments such as guitar, bass, keyboard or synthesiser into the microphone inputs of a mixing console. It provides a transformer-balanced, low-impedance signal at the outputs and eliminates mains hum and interference caused by ground loops. This keeps the sound unadulterated: brilliant, low-noise and without interference.Each channel is equipped with a 6.3 mm jack input, a THRU-Out (for forwarding the input signals to an amplifier, for example), and two transformer-balanced XLR outputs - one at the front and one at the rear.Thanks to a switchable 30dB pre-attenuation, the BRIDGE 4A can be fed with extremely high input levels in addition to line signals, which means it can even be looped in between the amplifier output and speakers, for example. The Audio-Over-Cat output enables the signals of all 4 channels to be routed via a single Cat (Cat5e or higher) cable. This saves material, space and time. The active circuit leaves the frequency response unaffected, achieves a high dynamic range and delivers a higher output level than a passive DI box.The BRIDGE 4A is the ideal solution for audio technicians, semi-professional and professional musicians as well as recording studios that value reliable and durable products.

Providing extensive sound shaping options for active and passive bass guitars, the Pocket Bass Amp is a multi-purpose effects pedal and preamp that‘s perfect for gigging, recording and practising. It features clean, overdrive and fuzz modes with adjustable drive and saturation, a 3-band EQ with semi-parametric mid control that is specifically tuned for bass guitar and vintage or modern cabinet simulation. A blend control allows you to mix the direct and effected signals.The Pocket Bass Amp provides an insert for external effects, 3.5 mm stereo line input and headphones output for quiet play-along practice and a footswitch-assignable thru jack for silent tuning. Enabling DI applications, the balanced XLR output is pre or post effect switchable. The Pocket Bass Amp requires a 9 volt battery or power adapter and comes in a rugged diecast enclosure with heavy duty long-life footswitch, convenient LED status indicators and ground lift.

Are you looking to pick up the raw signal from a guitar, bass or keyboard without noise and tonal loss, even over long cable runs? That's exactly what the Palmer Elde does - simply and reliably. Especially since the Elde is a classic passive DI box, and it even has a dual-channel design. This means you can use it for stereo signals as well as for two different instruments.The inputs are each looped to a THRU Out, allowing the signal to be passed on to the guitar/bass amplifier. For very high level signals, each channel has its own pad switch (-30 dB), so you can also insert the Elde between the amplifier output and the loudspeaker. The output signals are balanced and with low impedance, so that they can withstand even longer cable runs without damage. Impedance conversion and balancing is done passively via a transformer, which also provides galvanic isolation. Each channel has its own ground lift switch to eliminate ground loops.The Palmer Elde is a high-quality two-channel DI box that is extremely easy to use. Due to its passive design, it requires neither batteries nor phantom power. This makes it extremely reliable and failure-proof. With its robust aluminium/steel housing, the Palmer Elde easily withstands rough everyday use on stage, and with its clean, unaltered sound, it also excels perfectly in the recording studio.

So, you want to play your guitar or your bass through two amps at the same time? Great idea! The problem is, it hums. And not just a little bit either. In fact, it makes a real racket. Thankfully, the Palmer saar Guitar Splitter box is here to save the day. The saar separates the ground potentials of both amplifiers and prevents ground loop hum when interconnecting multiple amps. The Palmer saar loops through the input signal passively to amp out 1, while an active FET switch branches off the signal for amp out 2. This happens without sound loss, as the FET input level is extremely high impedance. Amp out 2 is also decoupled from the ground circuit by a transformer. Ground loops can be separated by pressing the ground lift switch.  The signal from amp out 2 is low impedance and reliable, so that longer cable runs without sound loss are also possible. An important feature is the phase reverse switch for the second output. The signal polarity of guitar/bass amplifiers is not standardised. Two amps operated simultaneously can be in-phase or out-of-phase. In the latter case, the sound is unpleasantly thin - which can be resolved by pressing the phase reverse switch on the Palmer saar. Of course, you can also use the phase reverse feature as a sound design tool if you wish: the out-of-phase sound can sometimes be a great creative option! The Palmer saar is a simple and effective tool that lets you enjoy the larger-than-life sound of two amps simultaneously - without any hum or interference.

Standard active DI box. Can be operated with 9 V batteries or 48 V phantom power. High-impedance input; higher output level than with a passive DI box. Active circuitry allows for high input impedance ( 1 meg. ohm) and higher input sensitivity (typical difference between in and out -4 dB). Maximum output impedance with phantom power operation +10 dB. Output: transformer balanced. The special "floating ground" circuitry enables ground lift even during phantom power operation. Metal case 110 x 73 x 42 mm.

Passive 4-channel DI box in a 19" housing. Each channel has a jack input with a parallel output for looping the signal through. An attenuation switch (-30 dB) permits connection of a line or speaker signal at the user's choice. The specifications are identical with those of the PAN 01. All connections and switches are on the 1 U front panel; the XLR output is additionally present as a parallel socket on the rear panel.

If you need to pick up the pure sound of your guitar, bass or keyboard, you need a high-quality DI box which does not alter the natural sound or add any noise.The Palmer Wipper is a single channel passive DI box with a high-quality transformer, which also handles high levels without distorting or losing the pure sound of your instrument. With a ratio of 10:1, it can be used for optimal impedance and level adjustment to connect instrument signals from guitars, bass, keyboards or synthesisers to a balanced microphone input. At the same time galvanic isolation prevents ground loop hum, so that the signal remains pure, clear and ultra-low noise, without any interference. Thanks to a switchable 30 dB pre-attenuation, the Wipper can also be looped in between amplifier output and the loudspeaker.The Palmer Wipper is an easy-to-use problem solver. Its passive construction means it does not need any batteries or a phantom power. This makes it extremely fail-safe and also virtually indestructible thanks to its aluminum and steel casing. With its ability to retain the natural sound of your instrument, it also cuts a fine figure studio and live environments. This way you can simply be true to your sound.

The PAN-04 consists of a housing containing the equivalent of two PAN-01s, making it a dual channel passive DI box. This „stereo" configuration makes it ideally suited for use with certain keyboards and devices which have several outputs.ive DI box. Jack input with paralell „THRU" output, transformer balanced XLR output. Attenuable input sensitivity, can handle both line level and speaker level signals.

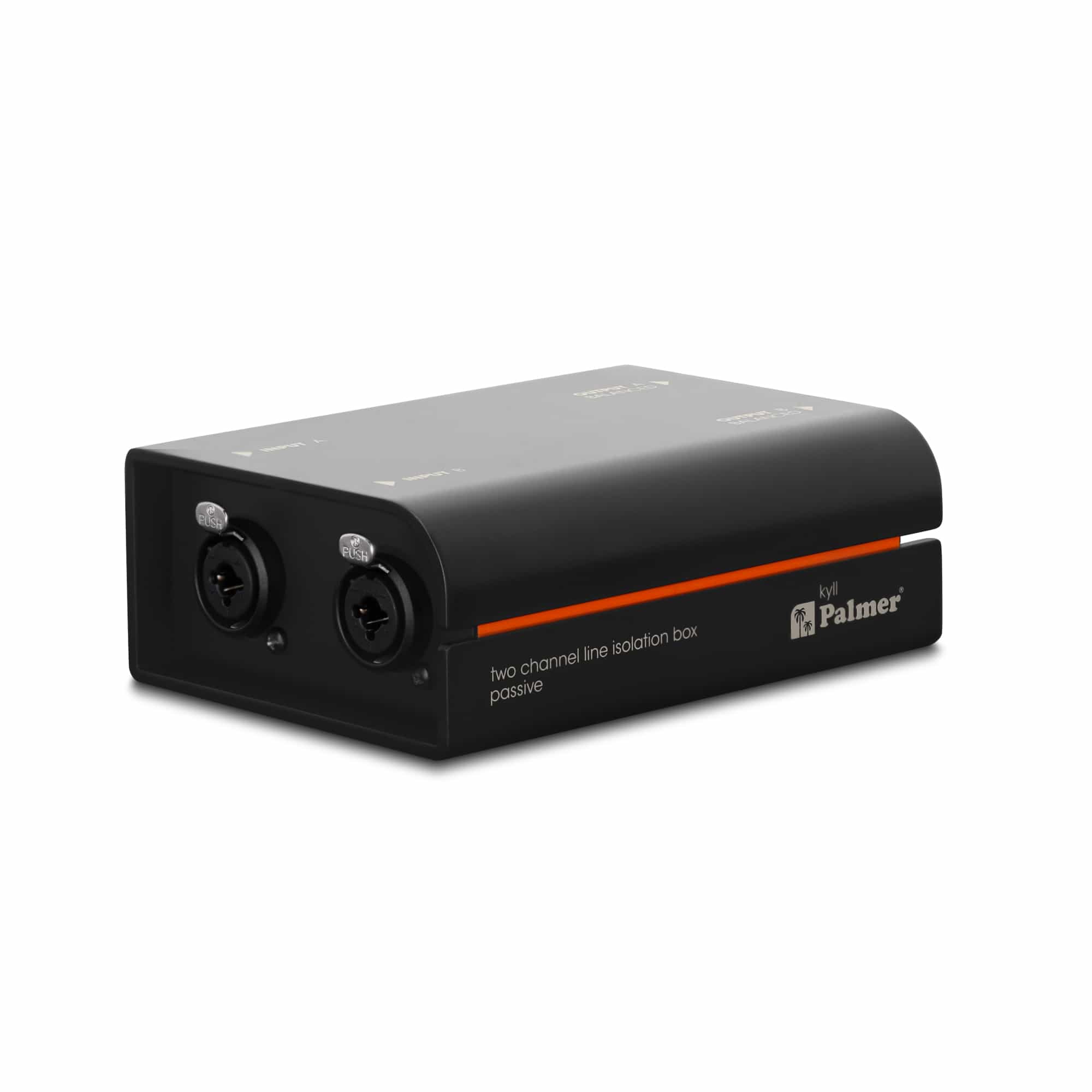

Consumer devices, as well as many professional keyboards such as synthesisers and digital pianos as well as some small mixers have unbalanced outputs. In order to connect them to a professional sound system and to avoid interfering noise over long cable runs, balanced signal routing is needed. For this purpose, the Palmer kyll handles the necessary signal balancing.Due to the galvanic isolation via a transformer, the kyll also eliminates ground loops. To do this, simply engage the ground lift switch. Devices that already have balanced outputs also benefit from this, since noise can occur even here. The Palmer kyll reliably eliminates hum and buzz.The Palmer kyll is capable of very high levels. Compared to conventional line isolators for media applications, it can process much "hotter" input signals without unwanted distortion being audible: up to + 20 dBu! But the kyll can also process quieter signals without causing any sound alteration or noise, because it works purely passively with large isolating transformers. This makes the Palmer kyll extremely easy to use and fail-safe, as it requires neither batteries nor phantom power. Conveniently, the inputs are designed as combo sockets that accept jack or XLR connectors. Adapters are unnecessary! The balanced outputs are designed as professional XLR sockets.The kyll line isolation box is a universal problem solver for eliminating humming ground loops. When connecting unbalanced equipment, the signal is simultaneously balanced. Whether at home, at lectures, in the rehearsal room, on stage, in clubs or at large events, the Palmer kyll ensures a clean sound without noise.

In its new incarnation, the Palmer Pocket Amp MK 2 delivers an extended range of authentic tube amplifier tones from high headroom ultra clean to maxed out high gain distortion. With 3-position selector switches for amplifier design, gain structure and loudspeaker miking simulation the MK 2's hot rodded circuitry lets you easily configure vintage and modern sounds as well as your own while high performance op amps provide superior S/N ratio. For even more flexibility the Pocket Amp MK 2 sports master controls for drive and output level plus a 2-band EQ that has been carefully tailored for guitar applications.Featuring a durable die cast aluminium enclosure with balanced XLR and unbalanced 6.35 mm outputs in addition to 3.5 mm AUX input and headphones jacks the Palmer Pocket Amp MK 2 is more than just the go-to tool for direct recording. It doubles as a practice amp, overdrive and distortion pedal, standard guitar DI box when bypassed and replaces your stage amp when used with a sound and monitor system. The Pocket Amp MK 2 works on a 9V battery or optional power adapter, e.g. Palmer PW9V.

Need a little more? Are you looking for a DI box that's not just great for the stage, but that also exploits the full sound potential of your instrument in the studio? The Palmer mosel is a DI box of uncompromising premium quality with useful additional features. Its active switching guarantees a particularly high input impedance for punchy, pure sound. The unbalanced, high impedance signal from magnet and piezo pickups is changed to a low impedance, balanced output signal with no loss of brilliance - even on longer cable runs. The Palmer mosel is also suitable for synthesisers and other electronic keyboards, since it is extraordinarily stable.The output transformer - which offers galvanic separation to eliminate ground loops - can process studio levels of up to +20 dBu. In addition, the mosel is enclosed in Mu-metal to eliminate electromagnetic interference. The Palmer mosel offers two extra special features: a variable pad (-10/20/30 dB) and a boost function (+12 dB). These features allow you to always achieve the optimal level for noise-free recordings. The mosel is also extemely practical because the unbalanced input exists not only in jack format, but also as XLR sockets. This makes unstable adapters unnecessary. The ground lift switch - to separate from ground lifts - also has a soft lift setting. Power for the mosel can be provided either by a 48V phantom power unit or a 9V battery.The Palmer mosel is a high-end active DI box for studio use and demanding PA work. And for times when good is just not good enough! Choose the best - choose the mosel.

Reamping is a valuable recording technique used by many sound engineers.It lets you experiment at leisure by running guitar, bass, keyboard, drum and even vocal tracks through amplifiers and effects pedals. As with many other techniques, you need the right tools.The Palmer trave is a passive reamping box that requires no external power supply. Inside is a specially developed transformer that converts the balanced line signal into an unbalanced Hi-Z signal with perfectly matched impedance for your guitar amplifier or effect pedal. At the same time, the trave prevents ground loops, which are otherwise almost unavoidable when you combine an audio interface or mixer output with a guitar amp or effects pedal. The input of this reamping box allows you to switch between consumer (-10 dBV) and professional (+4 dBu) levels, and the output level is continuously adjustable, so you can drive your amp or pedals just the way you like it.With the Palmer trave passive re-amplification box, you can add new creative sounds and timbres to your music and ultimately be true to your sound.

Passive DI box. Jack input with paralell "THRU" output, transformer balanced XLR output. Attenuable input sensitivity, can handle both line level and speaker level signals.

The more complex the setup, the higher the chance of ground loops. With the Palmer iller Line Isolation Box, everything is quiet again so you can enjoy your audio without humming and buzzing.The Palmer iller is an isolation transformer in a robust aluminium and steel housing. It separates the ground potentials of two devices so that equalising currents are prevented and only your sound is transmitted - clean and without interference. The only difference to its sister model wupper is that the Palmer iller is equipped with a combo socket on the input side that can accept both jack and XLR connectors. This eliminates the need for adapter cables.The Palmer iller was developed for guitar and bass applications; however, due to its high-quality sound characteristics, it is just as suitable for keyboards and hi-fi equipment. The input (XLR/jack) can be balanced or unbalanced and the output (XLR) is balanced. This means that the Palmer iller can also be used to balance unbalanced signals, which allows longer cable runs without affecting the sound. Because of its passive design, the iller requires neither batteries nor phantom power. This makes it extremely failure-proof.The Palmer iller is a simple, efficient hum killer: you connect it between two devices and the noise is gone. Sometimes it can be that simple!
