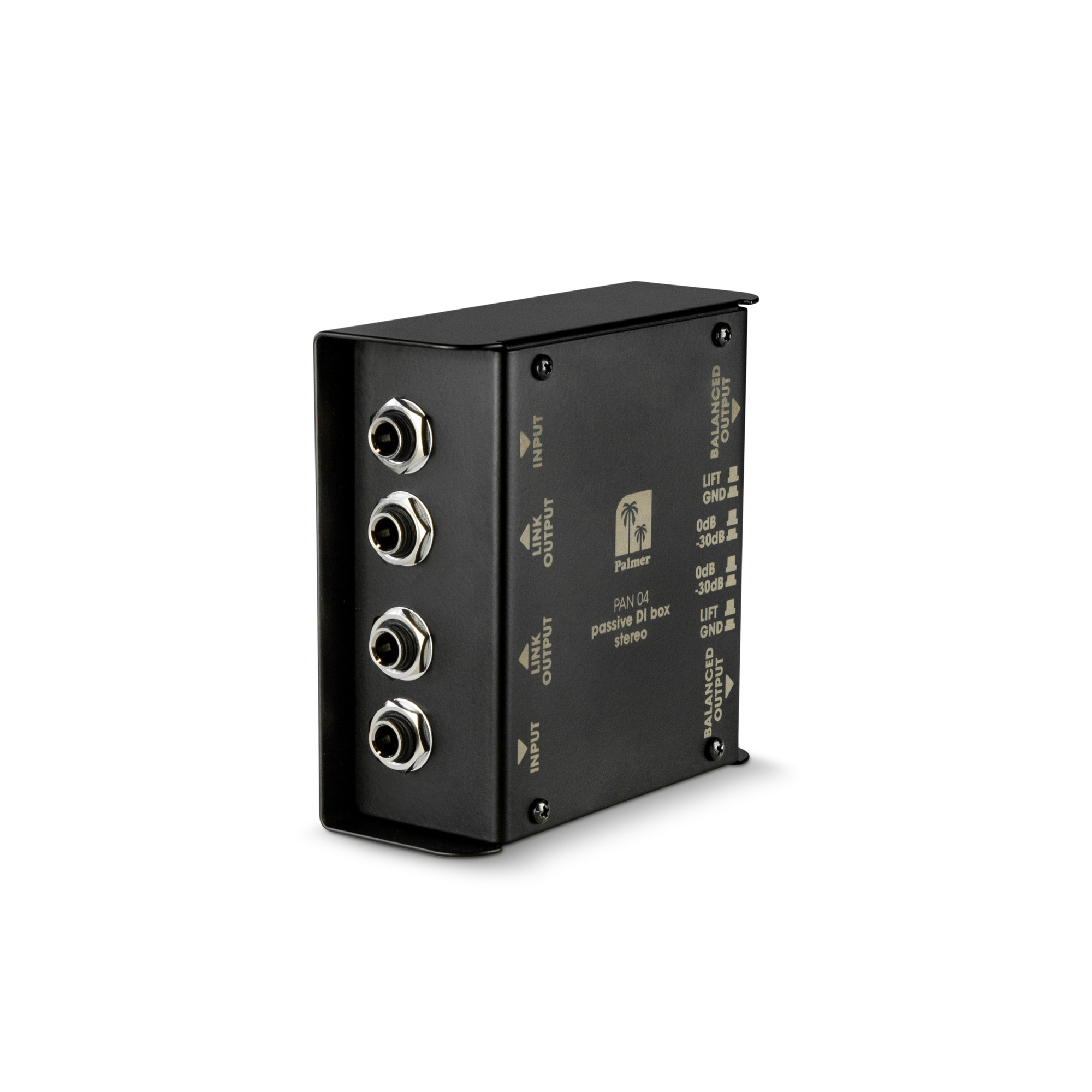

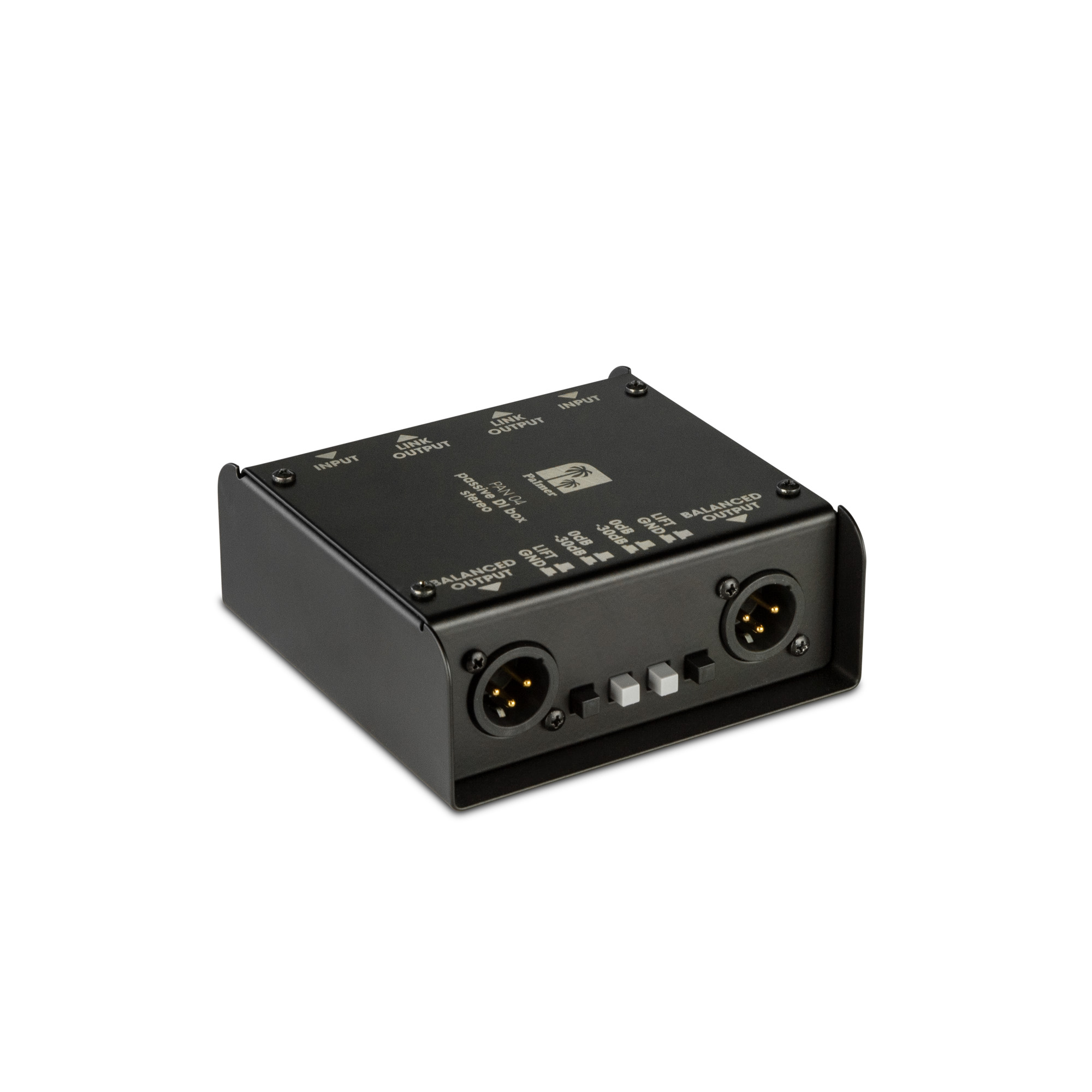

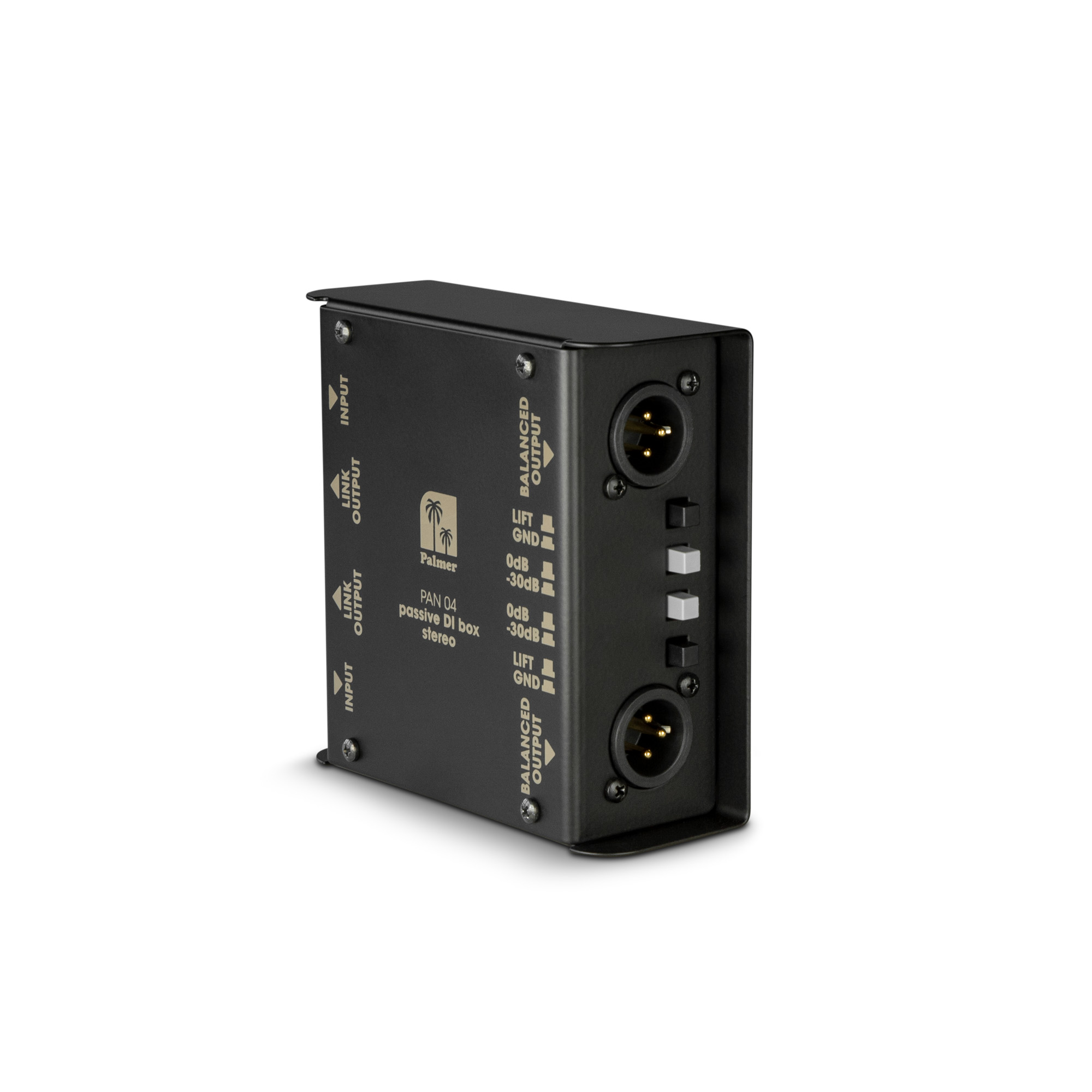

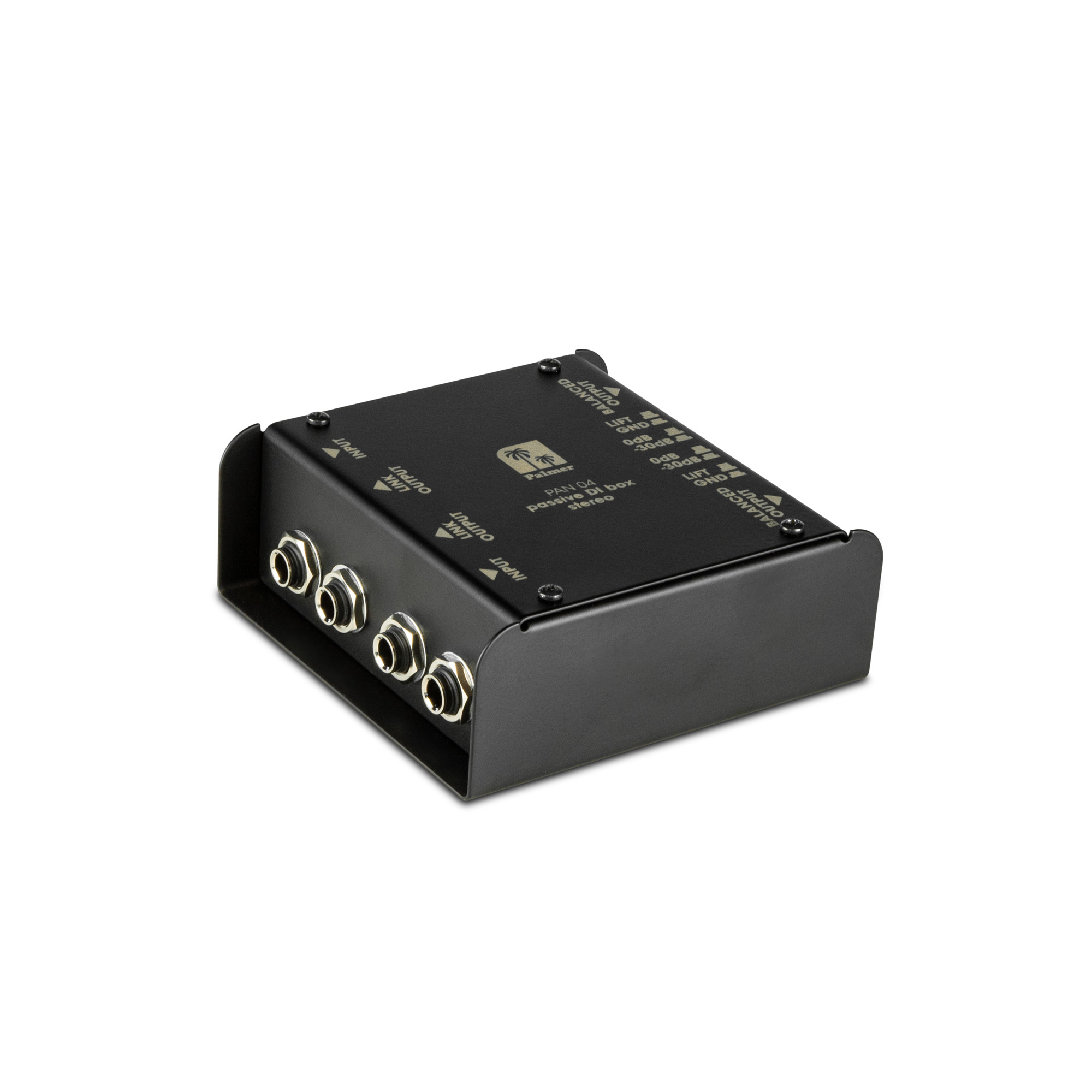

PAN 04
DI box 2-channel passive
$99.99
Backordered – More on the Way!
Product information "PAN 04"

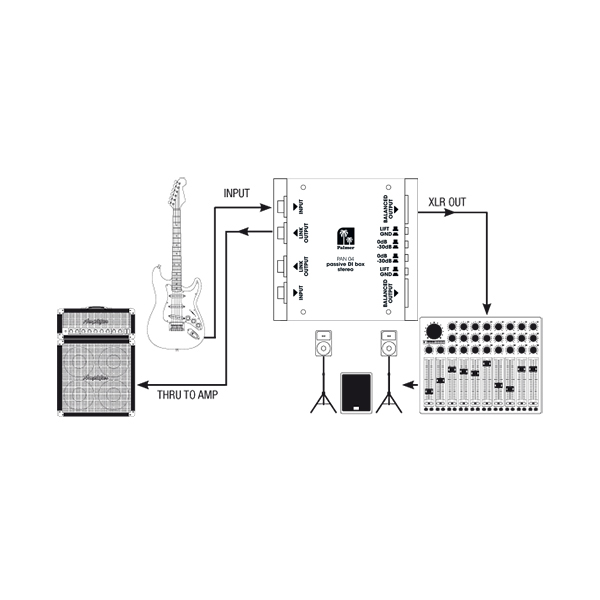

The PAN-04 consists of a housing containing the equivalent of two PAN-01s, making it a dual channel passive DI box. This „stereo" configuration makes it ideally suited for use with certain keyboards and devices which have several outputs.ive DI box. Jack input with paralell „THRU" output, transformer balanced XLR output. Attenuable input sensitivity, can handle both line level and speaker level signals.
| Input impedance: | 60 k |
|---|---|
| Input pad: | 0 / -30 dB |
| Type: | passive |
| Cabinet surface: | Powder coated |
| Output connectors: | XLR, 6.3 mm jack |
| Frequency response: | 10 - 40.000 |
| THRU outputs/channel: | 1 |
| Height: | 1.77 in |
| Number of outputs: | 2 |
| Inputs: | 2 |
| Transformer balanced: | Yes |
| Product type: | DI boxes |
| Ratio: | 10 : 1 |
| Max. output level: | + 4 dBu |
| Output impedance: | 600 |
| Controls: | attenuation, ground lift |
| Cabinet material: | sheet steel |
| Width: | 4.33 in |
| Max. input level: | + 54 dBu |
| Channels: | 2 |
| Depth: | 4.33 in |
| Input connectors: | 6.3 mm jack |
