BRIDGE 4P
19" DI box, 4 channels, passive
$349.99
Backordered – More on the Way!
Product information "BRIDGE 4P"
Are you aiming to capture the pure signal from a guitar, bass, or keyboard without any noise and tonal loss, even over long cable runs? In that case, you need a DI box - and a high-quality one at that - to ensure your sound won't be compromised.

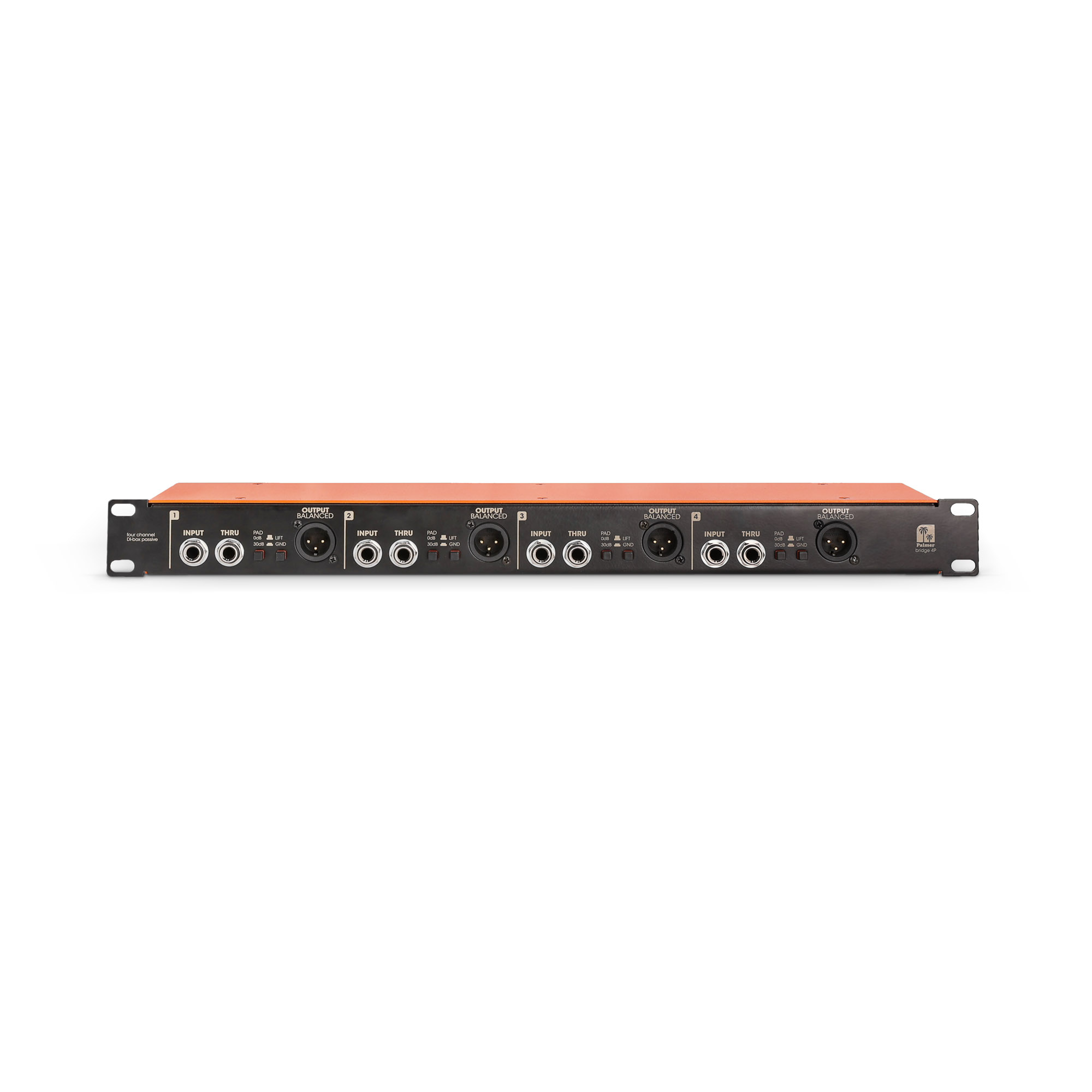

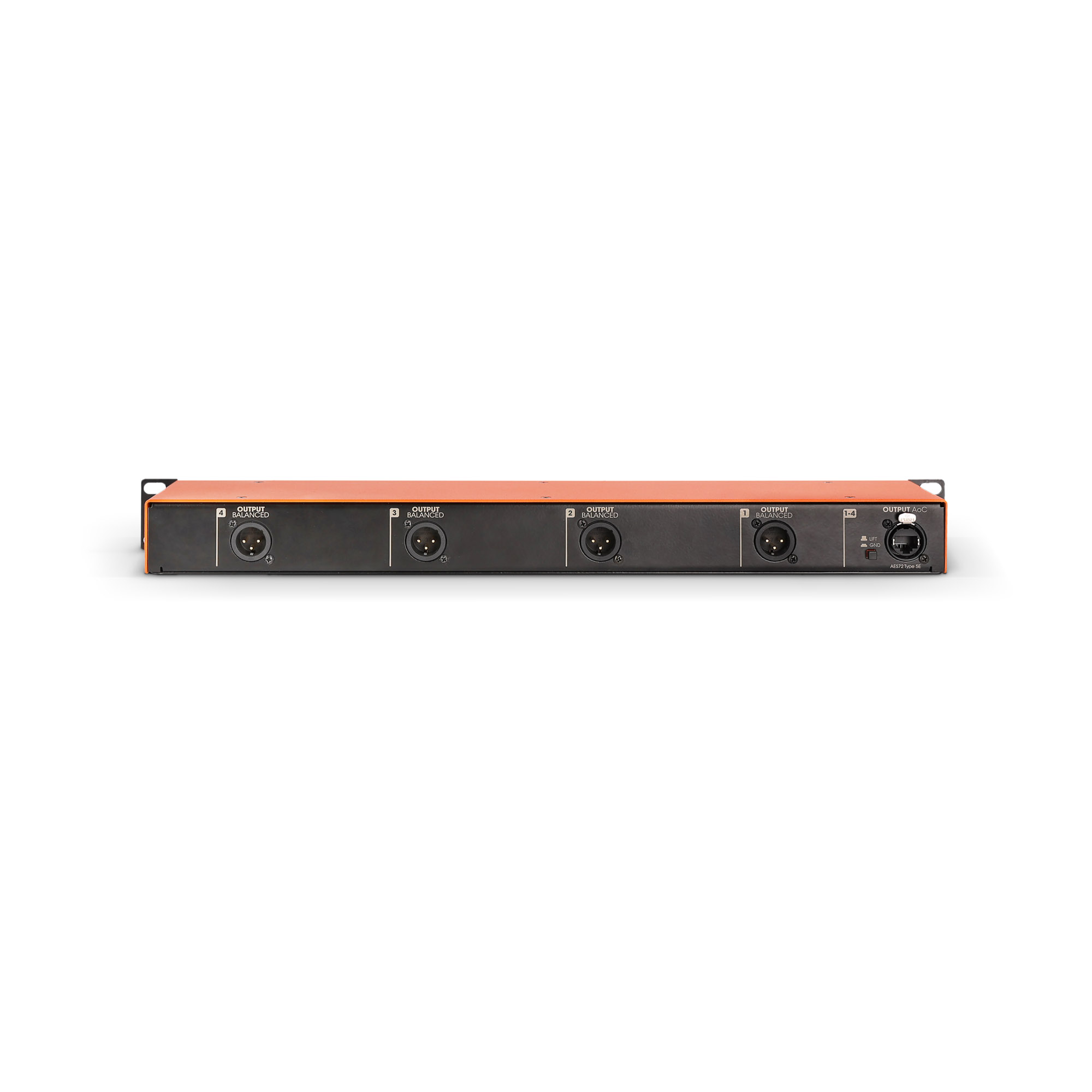

The BRIDGE 4P from Palmer is a 4-channel passive DI box in 19" rack format with high-quality transformers that handle even high levels without distorting or losing the pure sound of your instrument. Each channel is equipped with a 1/4" jack input, a THRU output (for forwarding the input signals to an amplifier, for example), and two transformer-balanced XLR outputs - one at the front and one at the rear.
With a transformation ratio of 10:1, the transformers ensure optimum impedance and level matching for connecting instrument signals from guitar, bass, keyboard or synthesizer to a balanced microphone input. At the same time galvanic isolation prevents ground loop hum, so that the signal remains pure, clear and ultra-low noise, without any interference.
Thanks to a switchable 30dB pre-attenuation, the BRIDGE 4P can be fed with extremely high input levels in addition to line signals, which means it can even be looped in between the amplifier output and speakers, for example. The Audio-Over-Cat output enables the signals of all 4 channels to be routed via a single Cat (Cat5e or higher) cable. This saves material, space and time. Due to its passive design, the BRIDGE 4P requires no power supply, which makes it extremely fail-safe.
The BRIDGE 4P is the ideal solution for audio technicians, semi-professional and professional musicians as well as recording studios that value reliable and durable products.
| Width: | 18.98 in |
|---|---|
| Transformer isolated: | yes |
| Output connectors: | RJ45, XLR |
| input type: | unbalanced |
| Input pad: | 0 dB / 30 dB |
| Height: | 1 U |
| Ground lift switch: | yes |
| Channels: | 4 |
| Relative Humidity: | < 80 % ( non-condensing ) |
| Width: | 19 Inch |
| Product type: | DI boxes |
| THRU outputs/channel: | 1 |
| Number of outputs: | 4 (+ 4 parallel XLR outs + AoC) |
| Additional Features: | AoC output with ground lift |
| Weight: | 4.23 lbs |
| Inputs: | 4 |
| Ambient temperature during operation: | -20 - 70 °C |
| Output type: | balanced |
| Frequency response: | 20 Hz - 20 kHz |
| Depth: | 3.54 in |
| Height: | 1.73 in |
| Cabinet material: | sheet steel |
| Input connectors: | 6.3 mm jack |
| Output impedance: | 30 |
| Type: | passive |
| THD (1 kHz, +4 dBu, unity, unweighted): | < 0.0006% |
|---|---|
| Max. input level (< 1% THD, 20 Hz): | + 21 dBu |
| Input impedance (1 kHz): | 27 KOHM |
| Frequency response (±0,1 dB, relative 1 kHz): | 20 Hz - 20 kHz |
| THD (30 Hz, +4 dBu, unity, unweighted): | < 0.029% |
| Output impedance (1 kHz): | 30 Ω |
| Transformer ratio: | 1 : 10 |
| IMD (SMPTE) (60 Hz / 7 kHz, 4:1, +4 dBu): | < 0.0012% |
| Max. input level (< 1% THD, 1 kHz): | +25 dBu |
Login
accessories

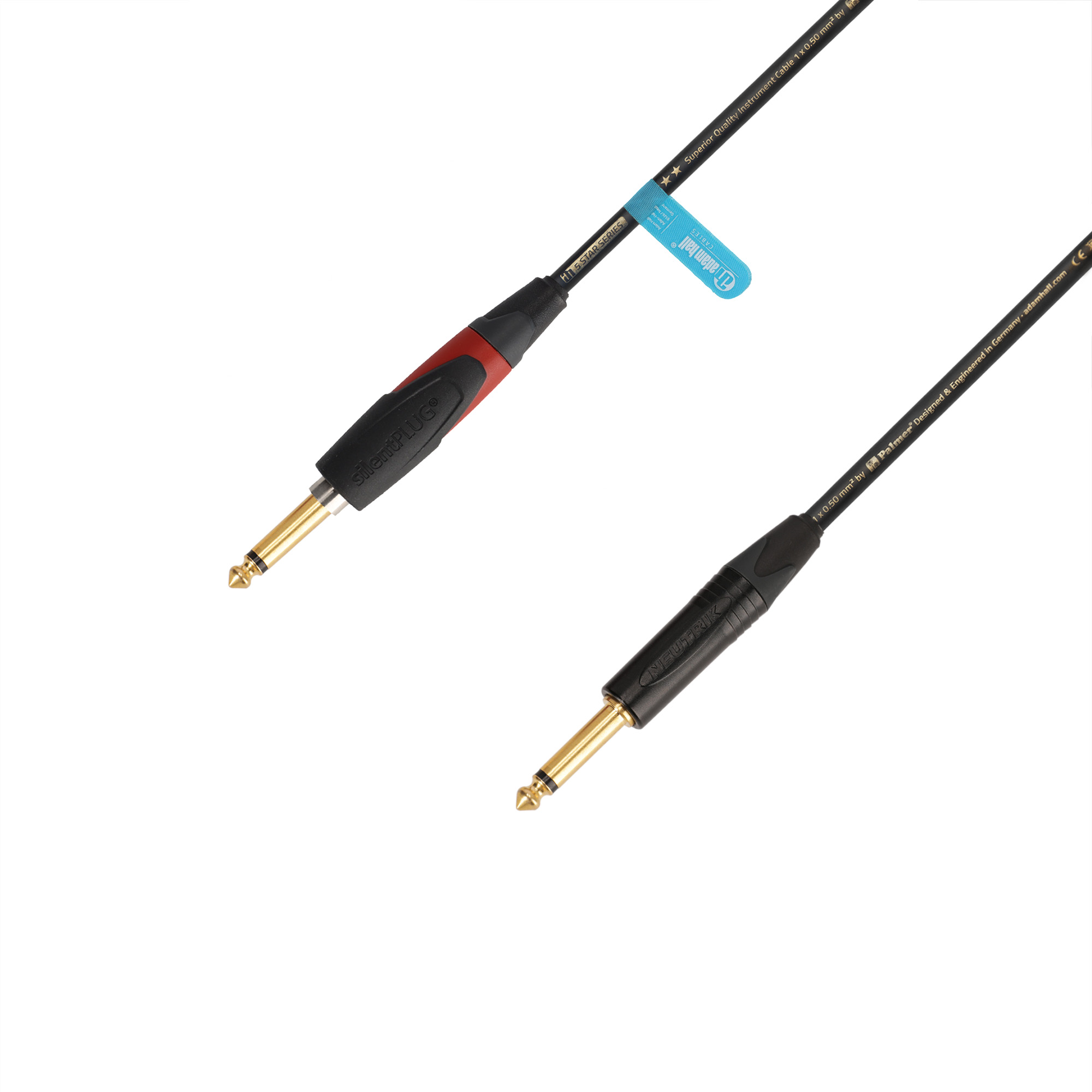

Superior quality on a high performance levelThis "Adam Hall Cables" 5 STAR product is a professional cable which delivers outstanding sound quality for the most demanding players.With musicians in mind who are seeking the full sound spectrum of their beloved instruments, our crew at Palmer® developed this super low restistance and low capacitance cable, amnd a braided shielding to avoid magnetic interferences to nearly 100%. The result of this Adam Hall Cables X Palmer® cooperation is an unaltered and balanced sound!In order to reach the superior quality, we only assemble original Neutrik® connectors with gold plated contacts. On the instrument side of the cable we use the original Neutrik silentPLUG®. It automatically mutes the signal by creating a short cirucuit during the plugging and unplugging process (therefore do not use the silentpLUG® on the amp side!). This prevents cracking and crashing when changing instruments.Palmer® products as well as Adam Hall Cables are engineered in Germany.
