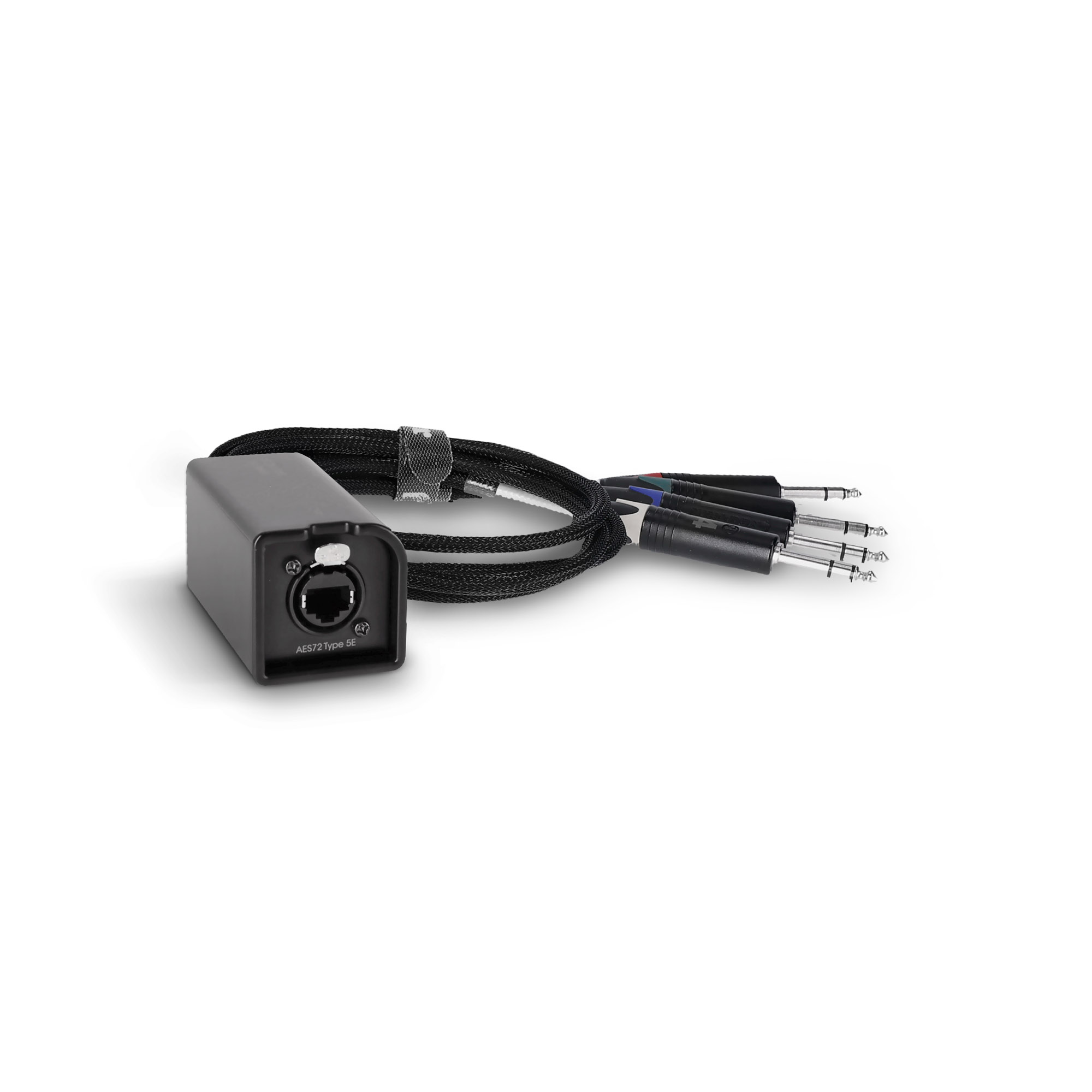

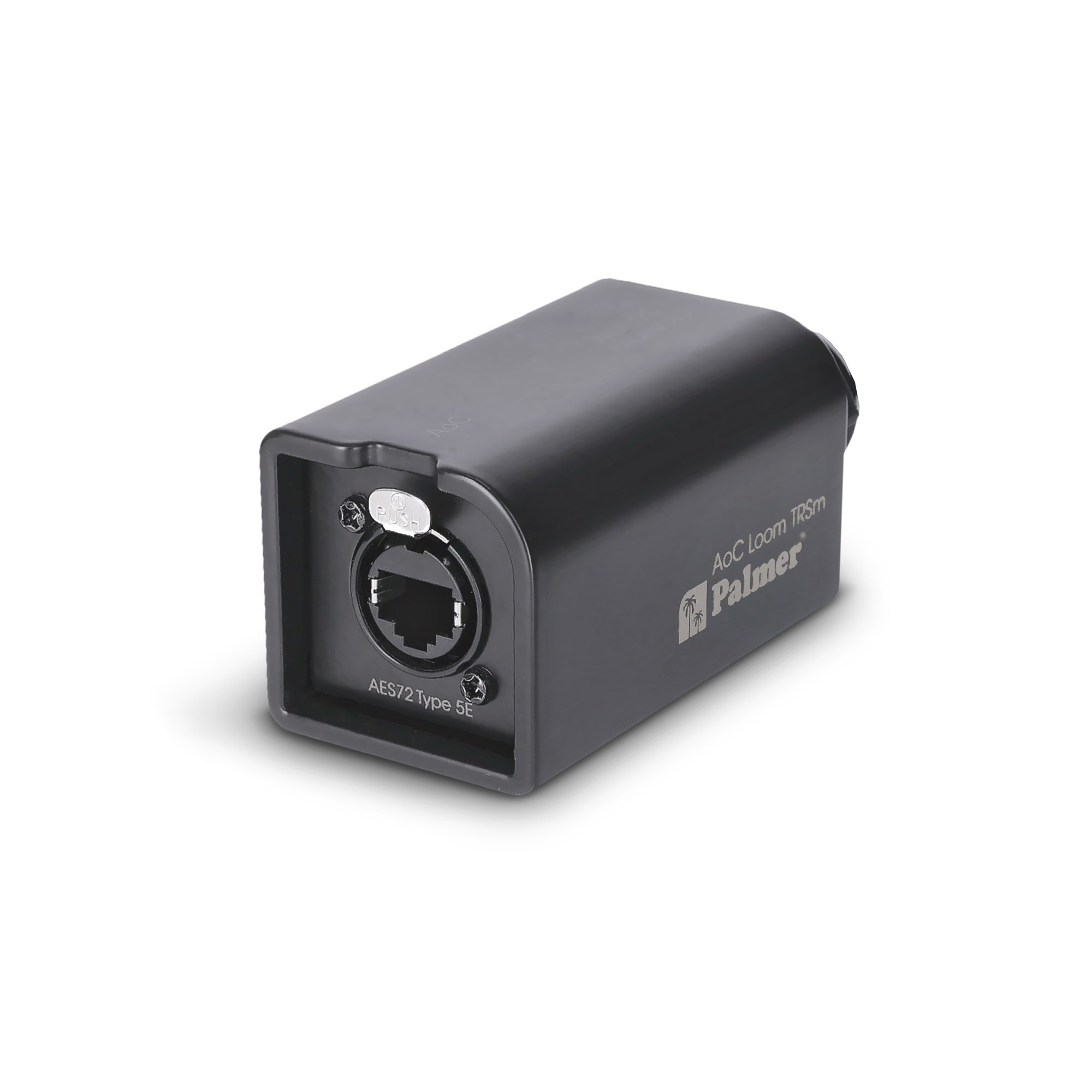

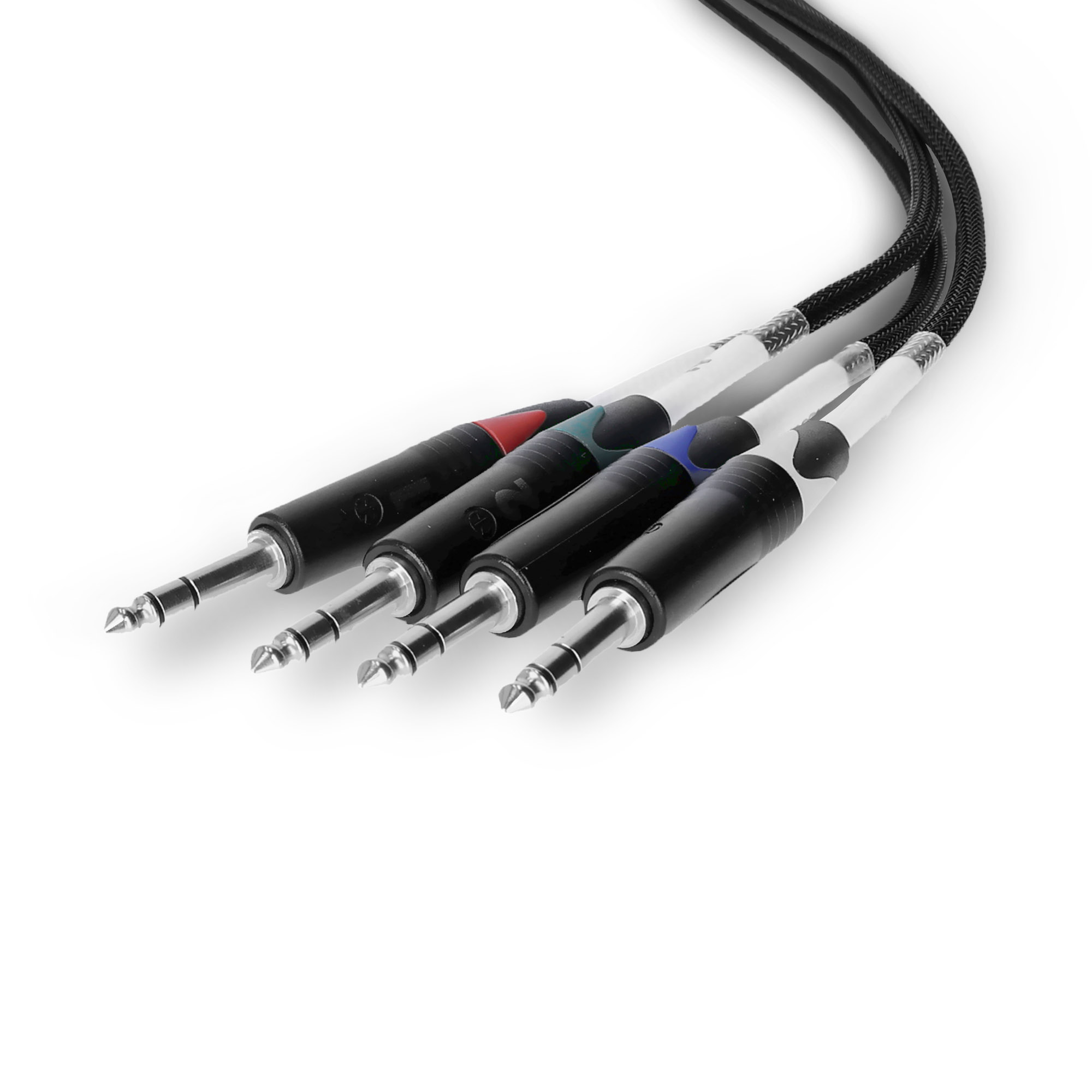

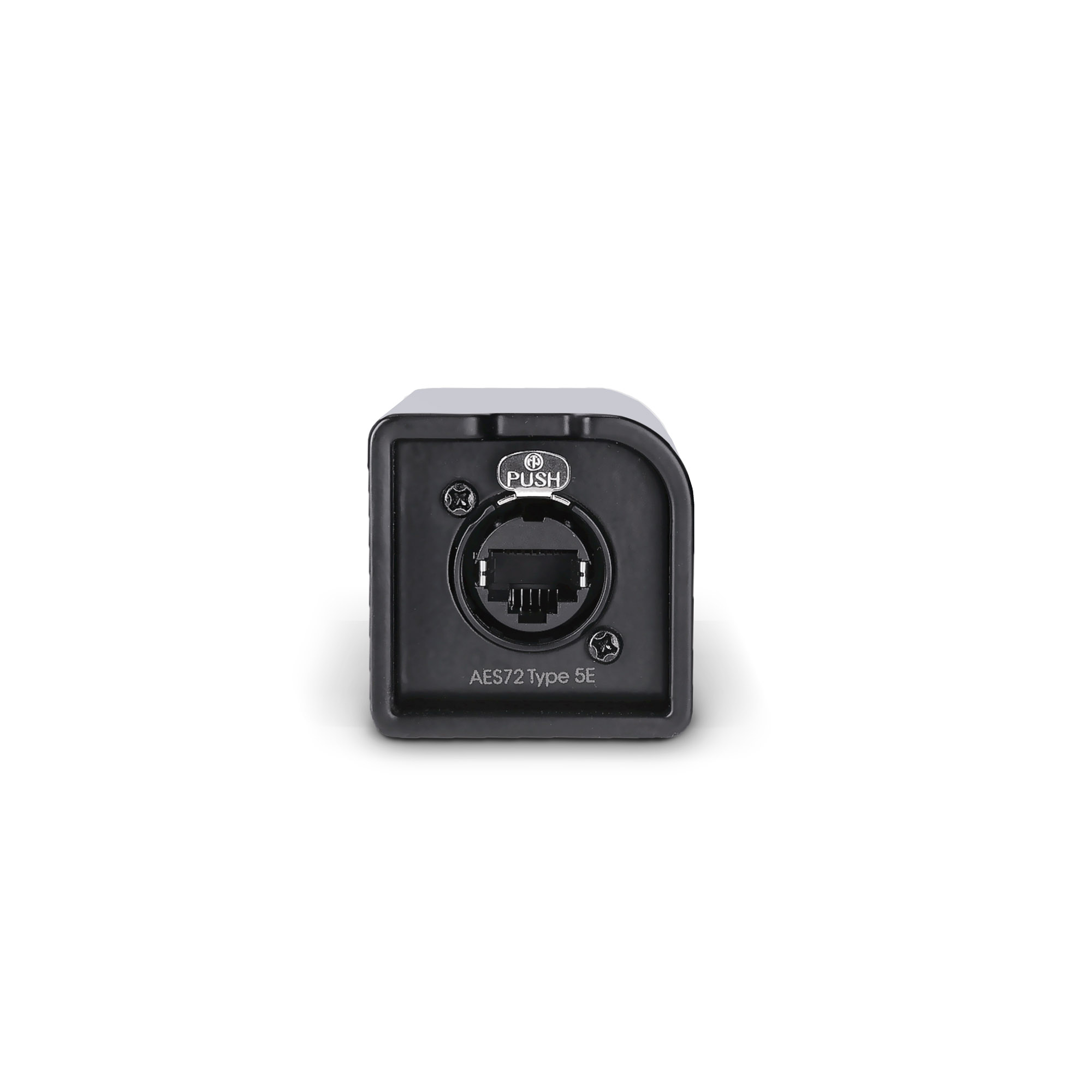

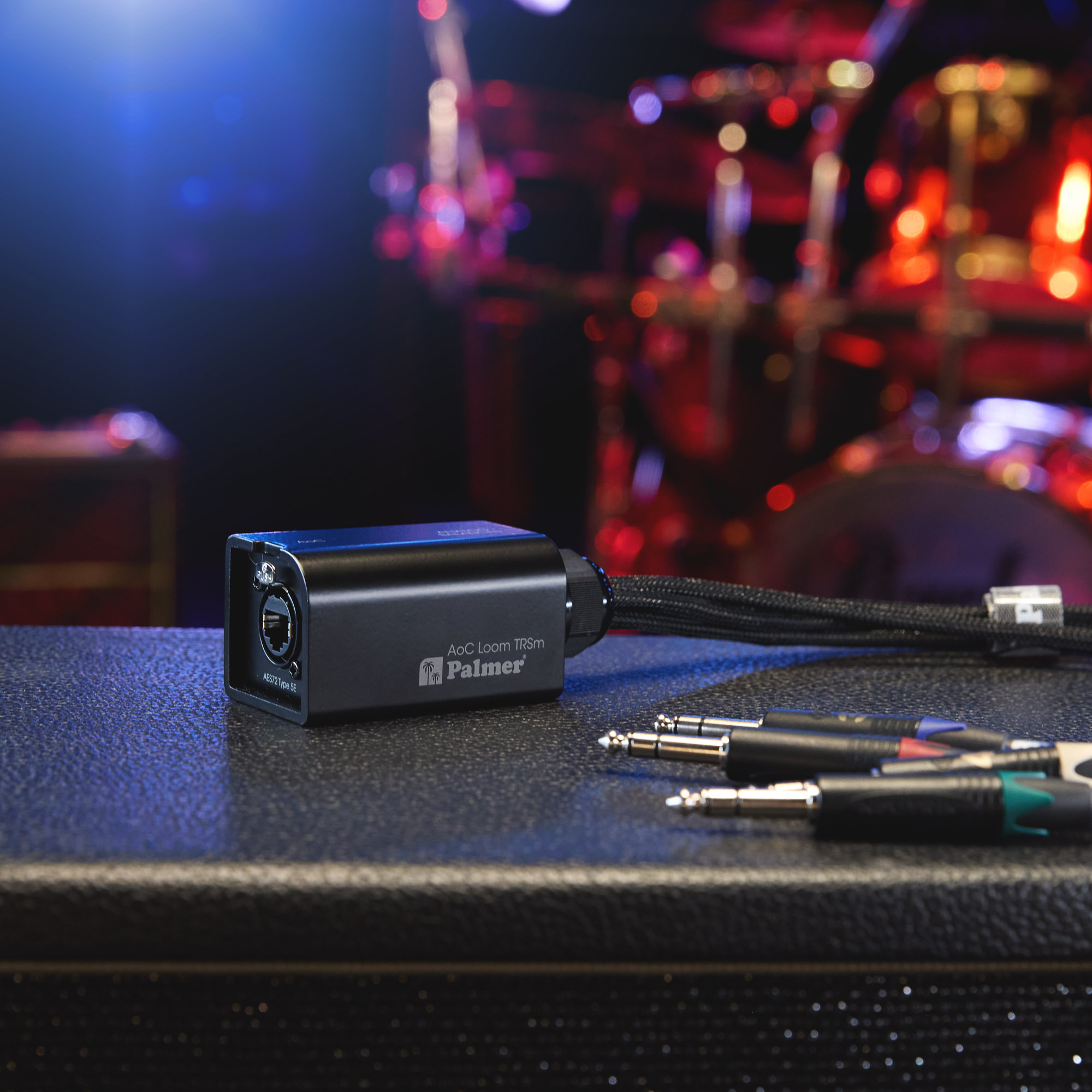

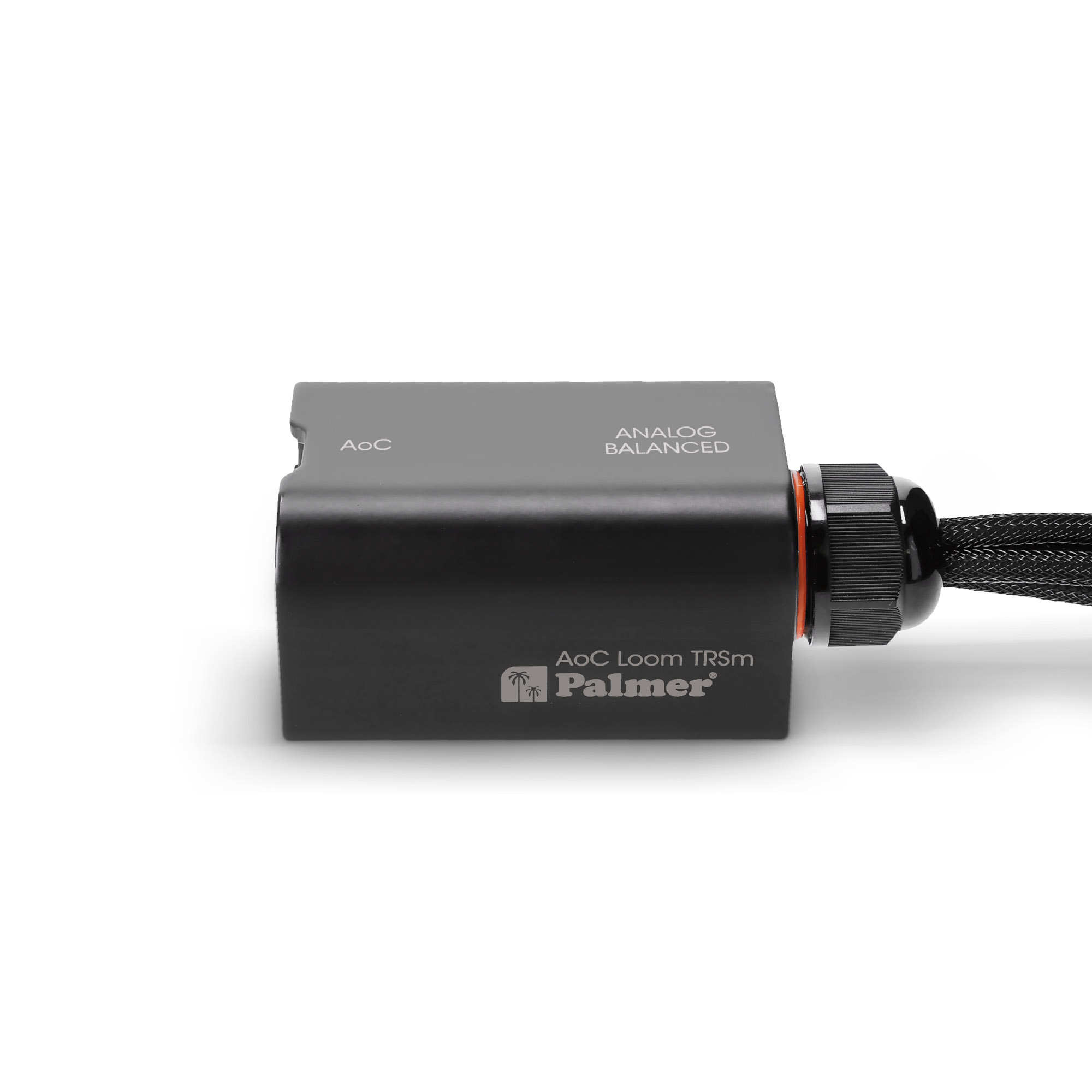

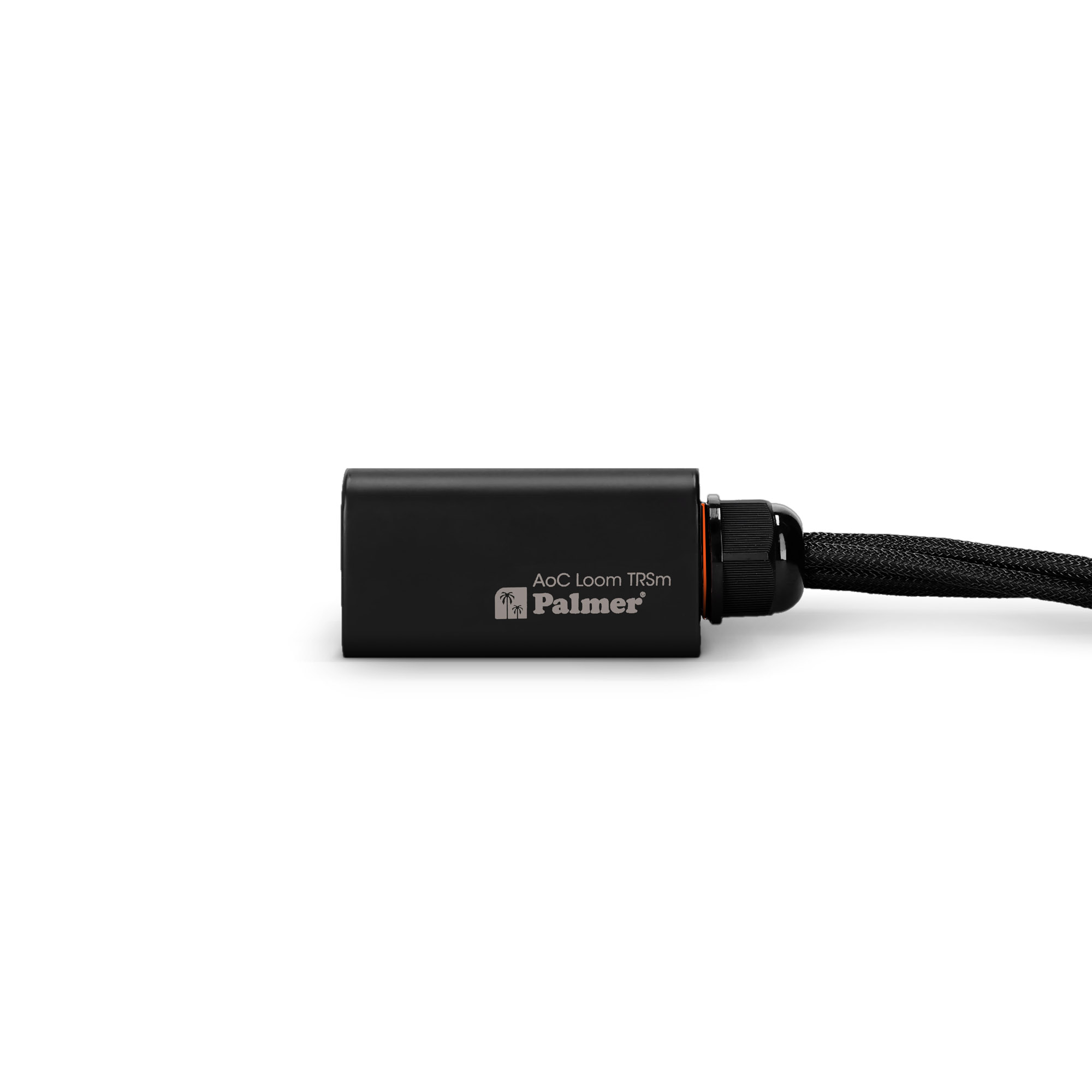

AoC Loom TRSm

Are you aiming to capture the pure signal from a guitar, bass, or keyboard without any noise and tonal loss, even over long cable runs? In that case, you need a DI box - and a high-quality one at that - to ensure your sound won't be compromised.The BRIDGE 4P from Palmer is a 4-channel passive DI box in 19" rack format with high-quality transformers that handle even high levels without distorting or losing the pure sound of your instrument. Each channel is equipped with a 1/4" jack input, a THRU output (for forwarding the input signals to an amplifier, for example), and two transformer-balanced XLR outputs - one at the front and one at the rear.With a transformation ratio of 10:1, the transformers ensure optimum impedance and level matching for connecting instrument signals from guitar, bass, keyboard or synthesizer to a balanced microphone input. At the same time galvanic isolation prevents ground loop hum, so that the signal remains pure, clear and ultra-low noise, without any interference.Thanks to a switchable 30dB pre-attenuation, the BRIDGE 4P can be fed with extremely high input levels in addition to line signals, which means it can even be looped in between the amplifier output and speakers, for example. The Audio-Over-Cat output enables the signals of all 4 channels to be routed via a single Cat (Cat5e or higher) cable. This saves material, space and time. Due to its passive design, the BRIDGE 4P requires no power supply, which makes it extremely fail-safe.The BRIDGE 4P is the ideal solution for audio technicians, semi-professional and professional musicians as well as recording studios that value reliable and durable products.

The BRIDGE 4A+ is a multifunctional device: each of the four channels can be used independently as an active DI box, a line isolation box, or a booster. The input combo socket accepts unbalanced and balanced signals. The outputs are designed as two transformer-balanced XLR sockets per channel (one on the front and one on the rear).The galvanic isolation via transformer eliminates hum loops, and the ground lift switch can also be used to eliminate noise and interference that occurs with already balanced input signals. The Palmer BRIDGE 4A+ reliably eliminates any hum - and when connecting unbalanced equipment, the signal is also balanced.If necessary, the signal level can be raised in three stages by 6dB, 12dB or 18dB. The audio over Cat output allows the signals of all 4 channels to be routed via a single Cat cable. This saves material, space, and time.The BRIDGE 4A+ line isolation box is a universal problem solver for eliminating ground loops. Whether it's at home, at lectures, in the rehearsal room, on stage, in clubs, or at large events - the Palmer BRIDGE 4A+ ensures a clean sound without interference anywhere.

Are you aiming to capture the pure signal from a guitar, bass, or keyboard without any noise and tonal loss, even over long cable runs? In that case, you need a DI box - and a high-quality one at that - to ensure your sound won't be compromised.The BRIDGE 4A from Palmer is a 4-channel, active DI box in 19" rack format for feeding the unbalanced and high-impedance signals of electric instruments such as guitar, bass, keyboard or synthesiser into the microphone inputs of a mixing console. It provides a transformer-balanced, low-impedance signal at the outputs and eliminates mains hum and interference caused by ground loops. This keeps the sound unadulterated: brilliant, low-noise and without interference.Each channel is equipped with a 6.3 mm jack input, a THRU-Out (for forwarding the input signals to an amplifier, for example), and two transformer-balanced XLR outputs - one at the front and one at the rear.Thanks to a switchable 30dB pre-attenuation, the BRIDGE 4A can be fed with extremely high input levels in addition to line signals, which means it can even be looped in between the amplifier output and speakers, for example. The Audio-Over-Cat output enables the signals of all 4 channels to be routed via a single Cat (Cat5e or higher) cable. This saves material, space and time. The active circuit leaves the frequency response unaffected, achieves a high dynamic range and delivers a higher output level than a passive DI box.The BRIDGE 4A is the ideal solution for audio technicians, semi-professional and professional musicians as well as recording studios that value reliable and durable products.
