PAN 03 PASS
19" DI box 4-channel passive
$259.99
Backordered – More on the Way!
Product information "PAN 03 PASS"

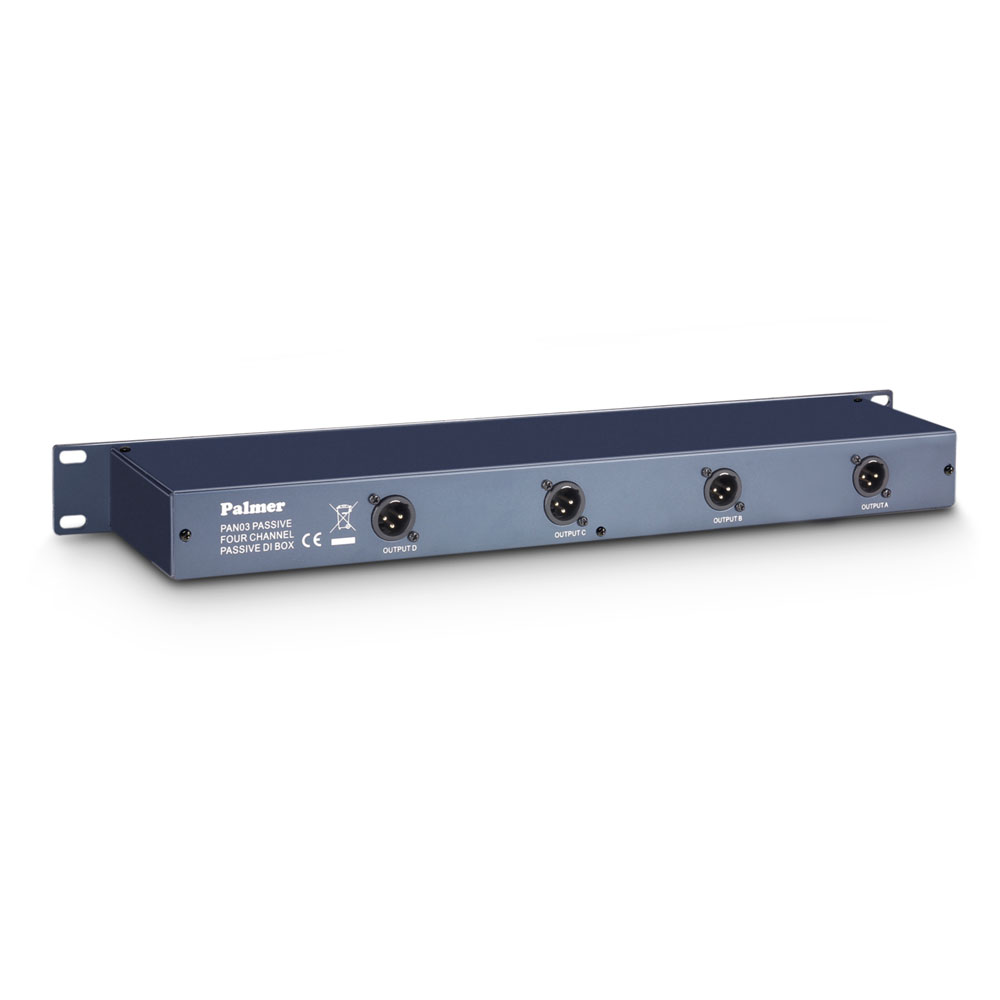

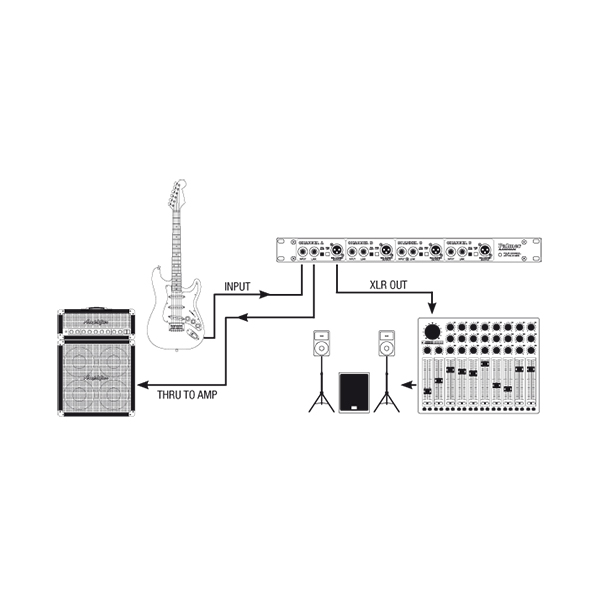

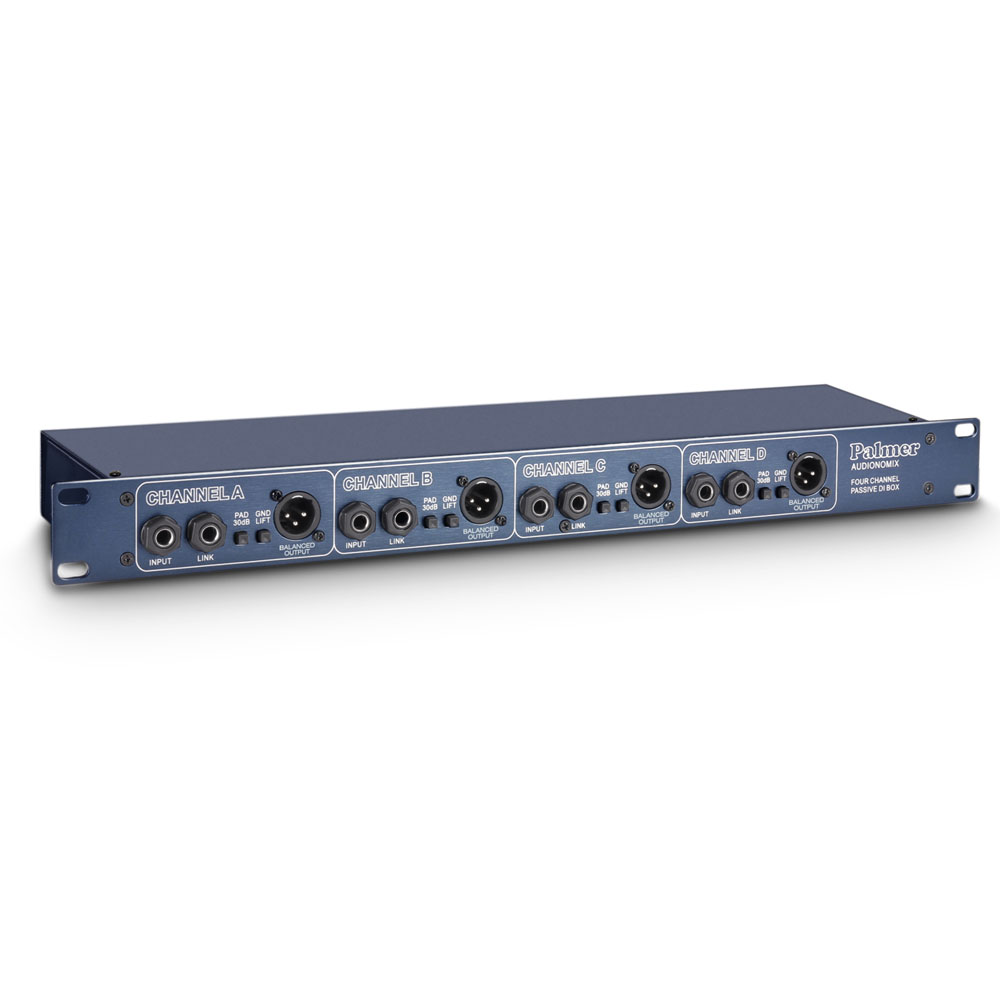

Passive 4-channel DI box in a 19" housing. Each channel has a jack input with a parallel output for looping the signal through. An attenuation switch (-30 dB) permits connection of a line or speaker signal at the user's choice. The specifications are identical with those of the PAN 01. All connections and switches are on the 1 U front panel; the XLR output is additionally present as a parallel socket on the rear panel.
| Input pad: | 0 / -30 dB |
|---|---|
| Type: | passive |
| Cabinet surface: | Powder coated |
| Output connectors: | XLR, 6.3 mm jack |
| Channels: | 4 |
| THRU outputs/channel: | 1 |
| Height: | 1.77 in |
| Input impedance: | (@ 60 Hz) 68k |
| Transformer balanced: | Yes |
| Height: | 1 U |
| Product type: | DI boxes |
| Ratio: | 10 : 1 |
| Output impedance: | 600 |
| Frequency response: | 10 - 40000 |
| Controls: | attenuation, ground lift |
| Cabinet material: | sheet steel |
| Number of outputs: | 4 (+ 4 parallel outs) |
| Max. input level: | + 54 dBu |
| Width: | 18.9 in |
| Input connectors: | 6.3 mm jack |
| Inputs: | 4 |
| Depth: | 3.54 in |
| Width: | 19 Inch |
| Max. output level: | +4 dBu |
