RIVER Wipper
Passive DI box
$129.99
Backordered – More on the Way!
Product information "RIVER Wipper"
If you need to pick up the pure sound of your guitar, bass or keyboard, you need a high-quality DI box which does not alter the natural sound or add any noise.

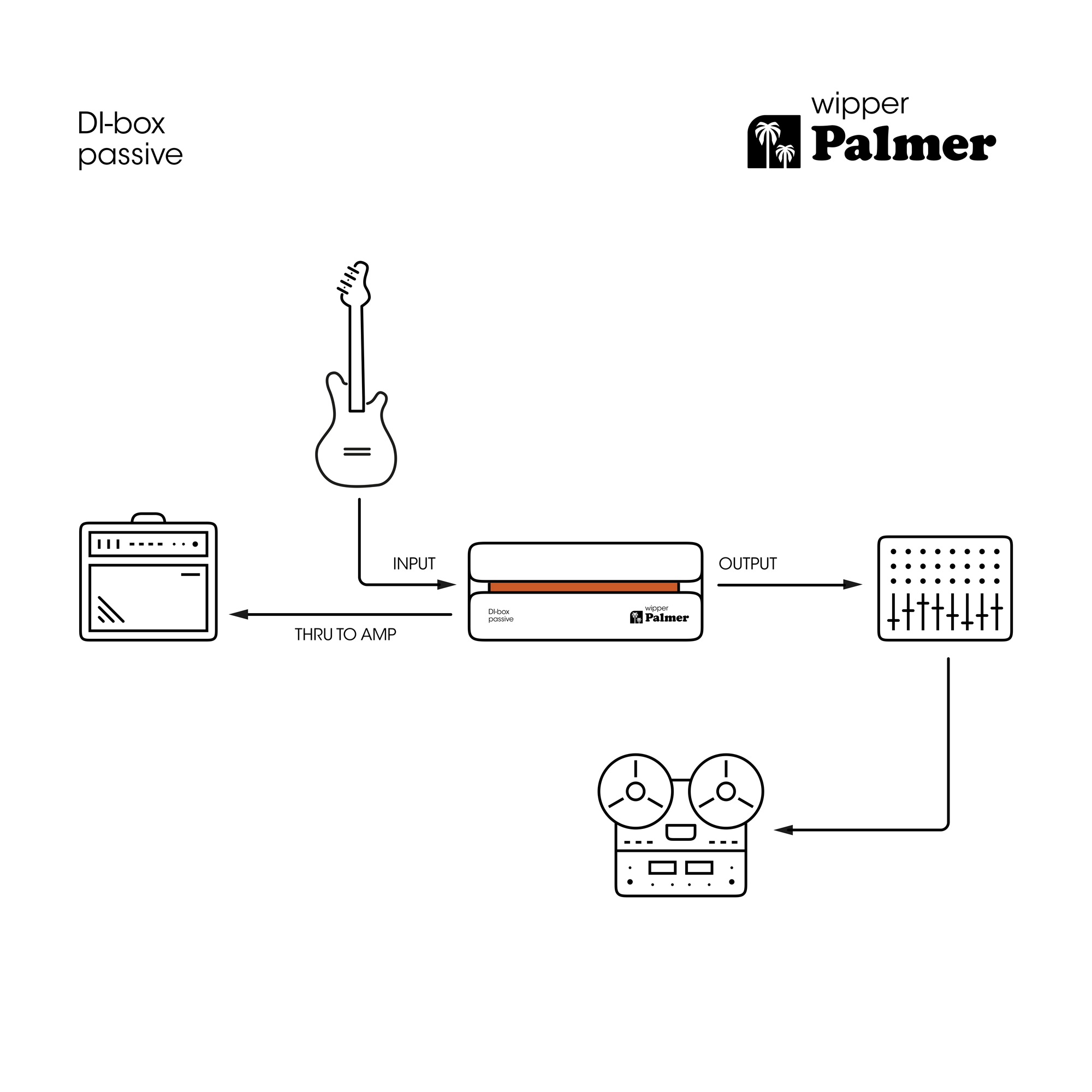

The Palmer Wipper is a single channel passive DI box with a high-quality transformer, which also handles high levels without distorting or losing the pure sound of your instrument. With a ratio of 10:1, it can be used for optimal impedance and level adjustment to connect instrument signals from guitars, bass, keyboards or synthesisers to a balanced microphone input. At the same time galvanic isolation prevents ground loop hum, so that the signal remains pure, clear and ultra-low noise, without any interference. Thanks to a switchable 30 dB pre-attenuation, the Wipper can also be looped in between amplifier output and the loudspeaker.
The Palmer Wipper is an easy-to-use problem solver. Its passive construction means it does not need any batteries or a phantom power. This makes it extremely fail-safe and also virtually indestructible thanks to its aluminum and steel casing. With its ability to retain the natural sound of your instrument, it also cuts a fine figure studio and live environments. This way you can simply be true to your sound.

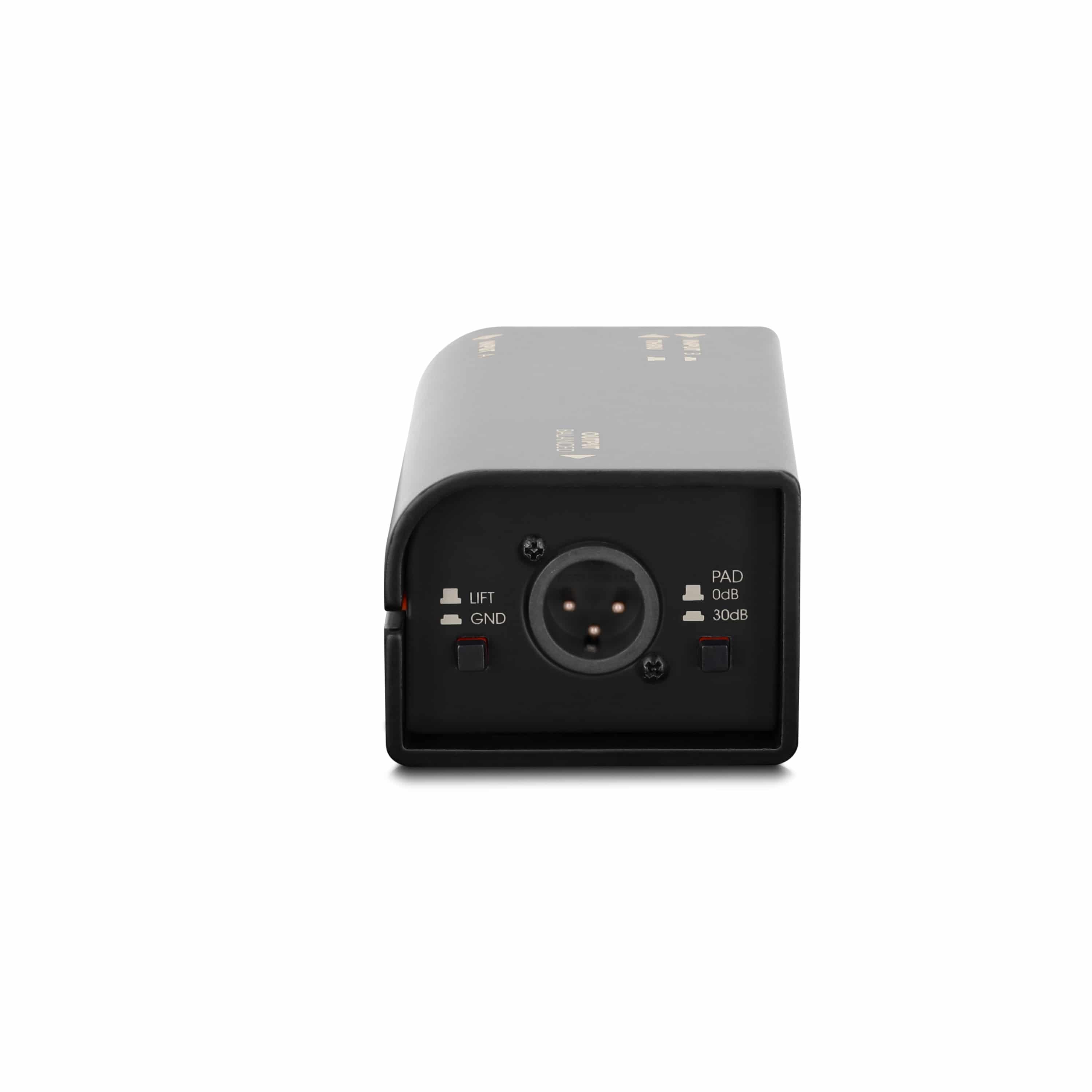

| Input attenuation (Pad): | 0 / 30 dB |
|---|---|
| Ambient temperature (in operation): | - 20 - 70 °C |
| Product type: | DI box |
| Output connectors: | XLR |
| Transformer isolated: | yes |
| Input type: | unbalanced |
| Output type: | balanced |
| Channels: | 1 |
| Dimensions (W x H x D): | 140 x 50 x 68 mm |
| Number of inputs: | 2 |

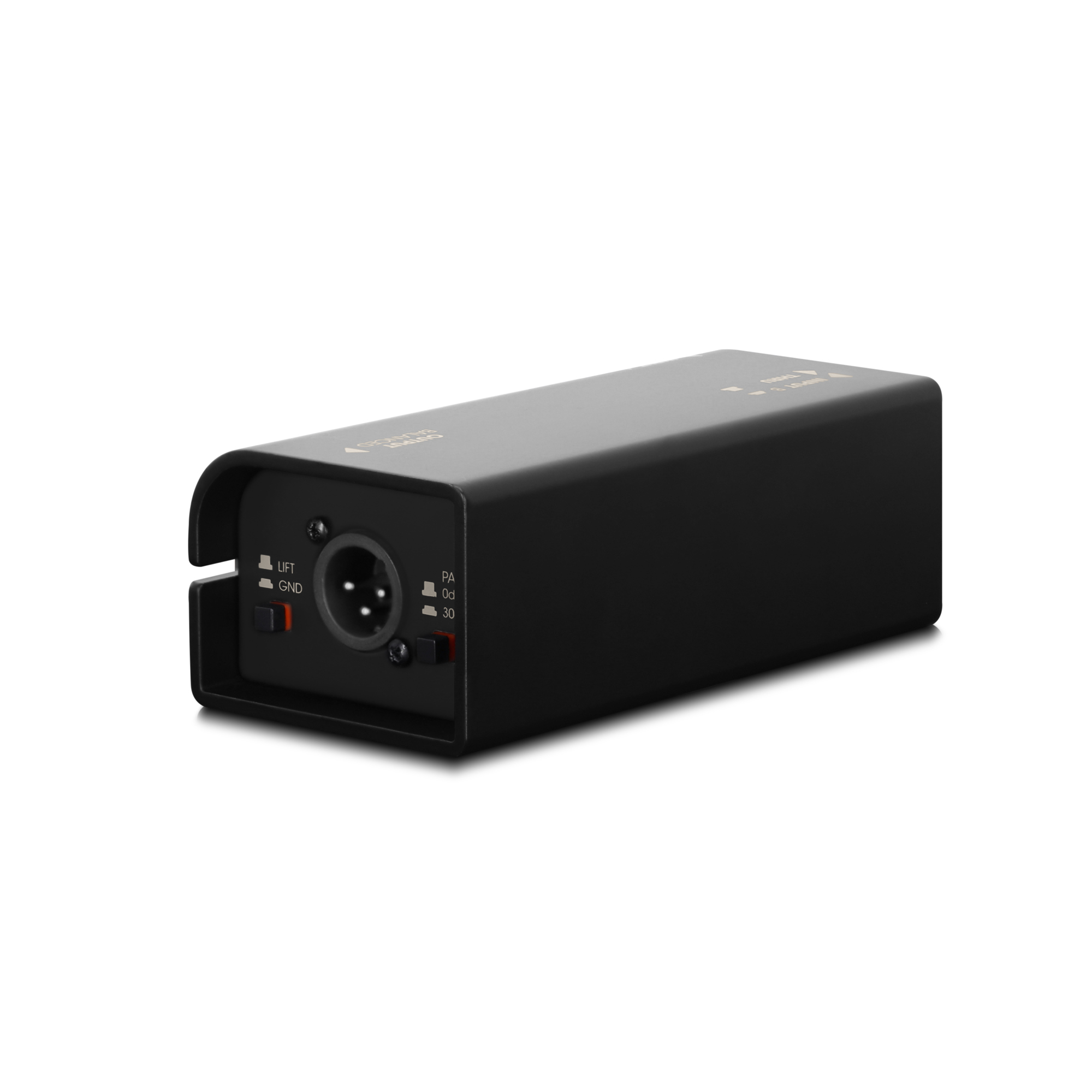

| Ground/lift switch: | Yes |

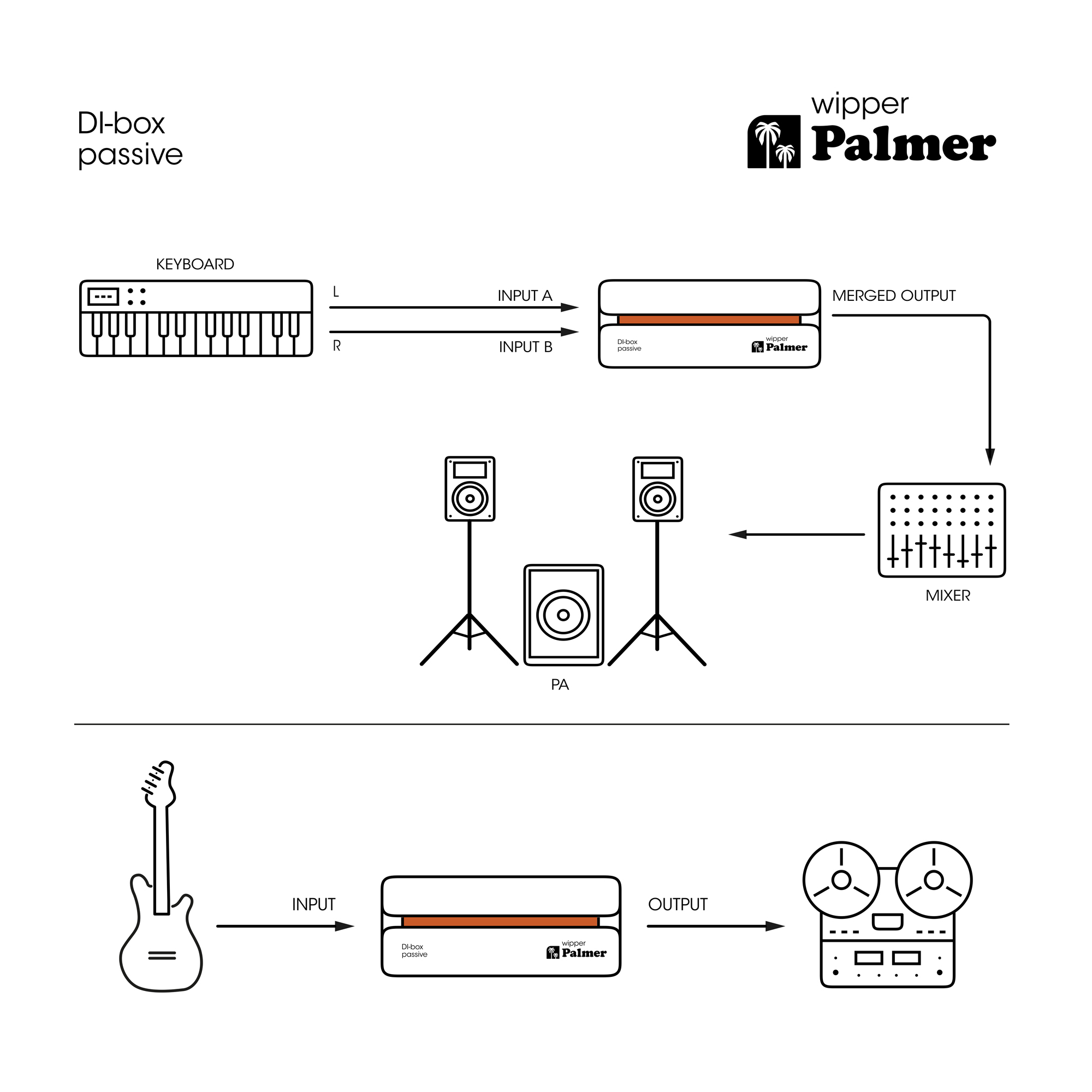

| Additional Features: | mono merge |

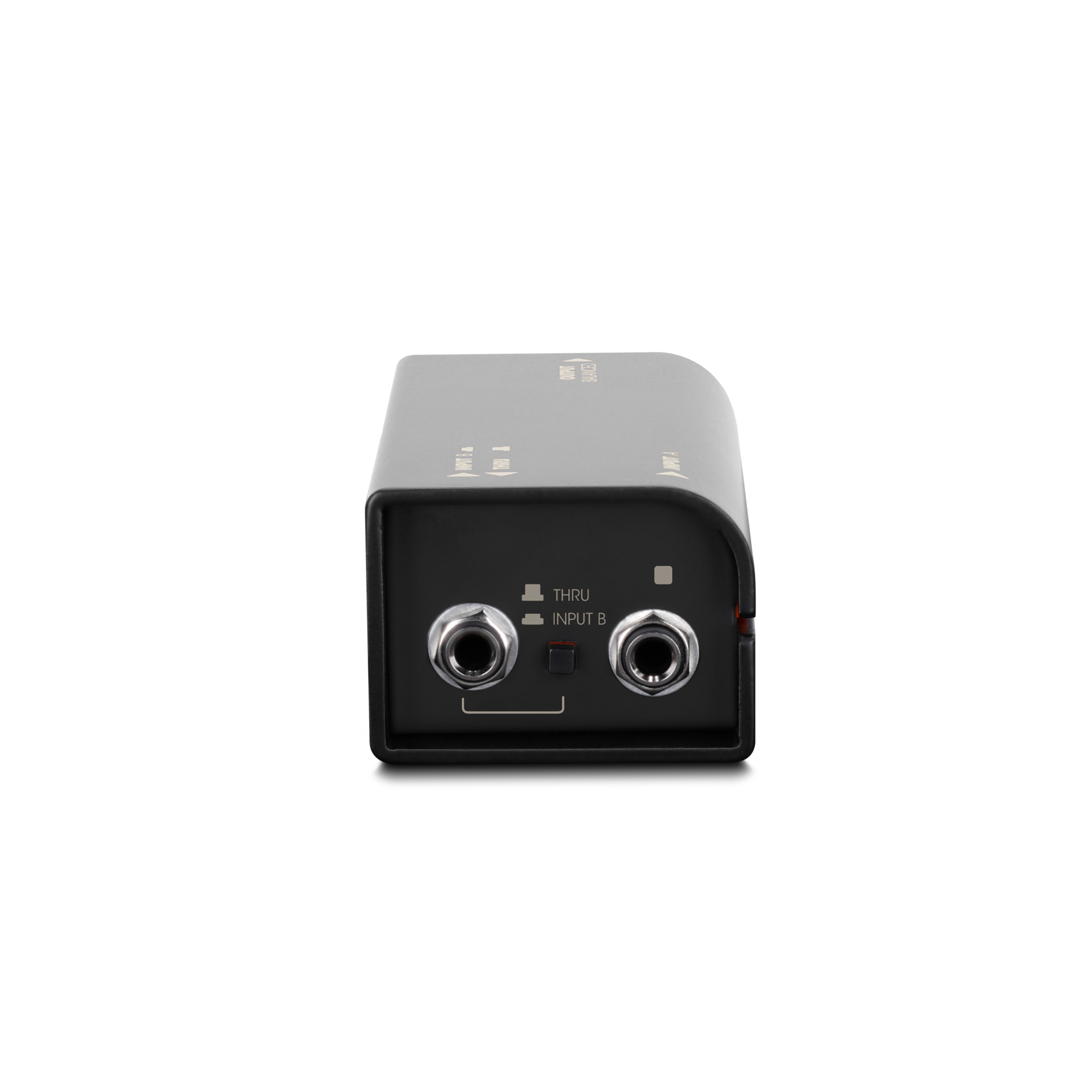

| THRU outputs per channel: | 1 |
| Type: | passive |
| Housing: | Aluminium continuous casting |
| Accessories (included): | rubber feet, Inscription label (tour label) |
| Input connectors: | 6.3 mm jack |
| Number of outputs: | 1 |
| Relative Humidity: | < 80 % ( non-condensing ) |
| THD (30 Hz, +4 dBu, unity, unweighted): | < 0,02 % |
|---|---|
| Transformer ratio: | 10 : 1 |
| Output impedance (1 kHz, Setting : 0 dB Pad, THRU): | 33 Ohm |
| Max. input level (< 1% THD, 20 Hz): | +24 dBu |
| Input impedance (1 kHz, Setting: 0 dB Pad, THRU): | 47 kOhm |
| THD (1 kHz, +4 dBu, unity, unweighted): | < 0,0007 % |
| Frequency response (±0,2dB, relative 1kHz): | 10 Hz - 60 kHz |
| IMD (SMPTE) (60 Hz / 7 kHz, 4:1, +4 dBu): | < 0,002 % |
| Max. input level (< 1% THD, 1 kHz): | +32 dBu |
