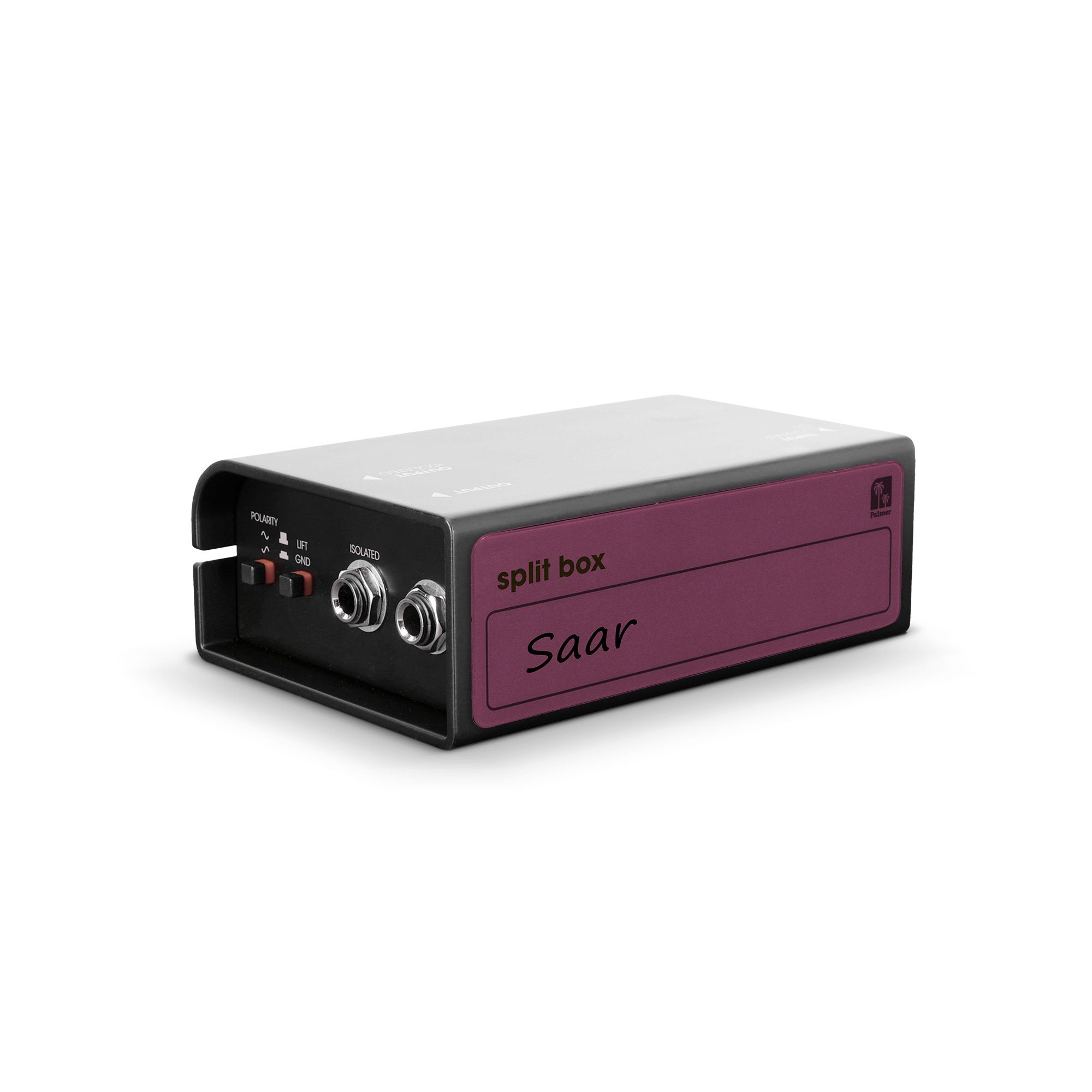

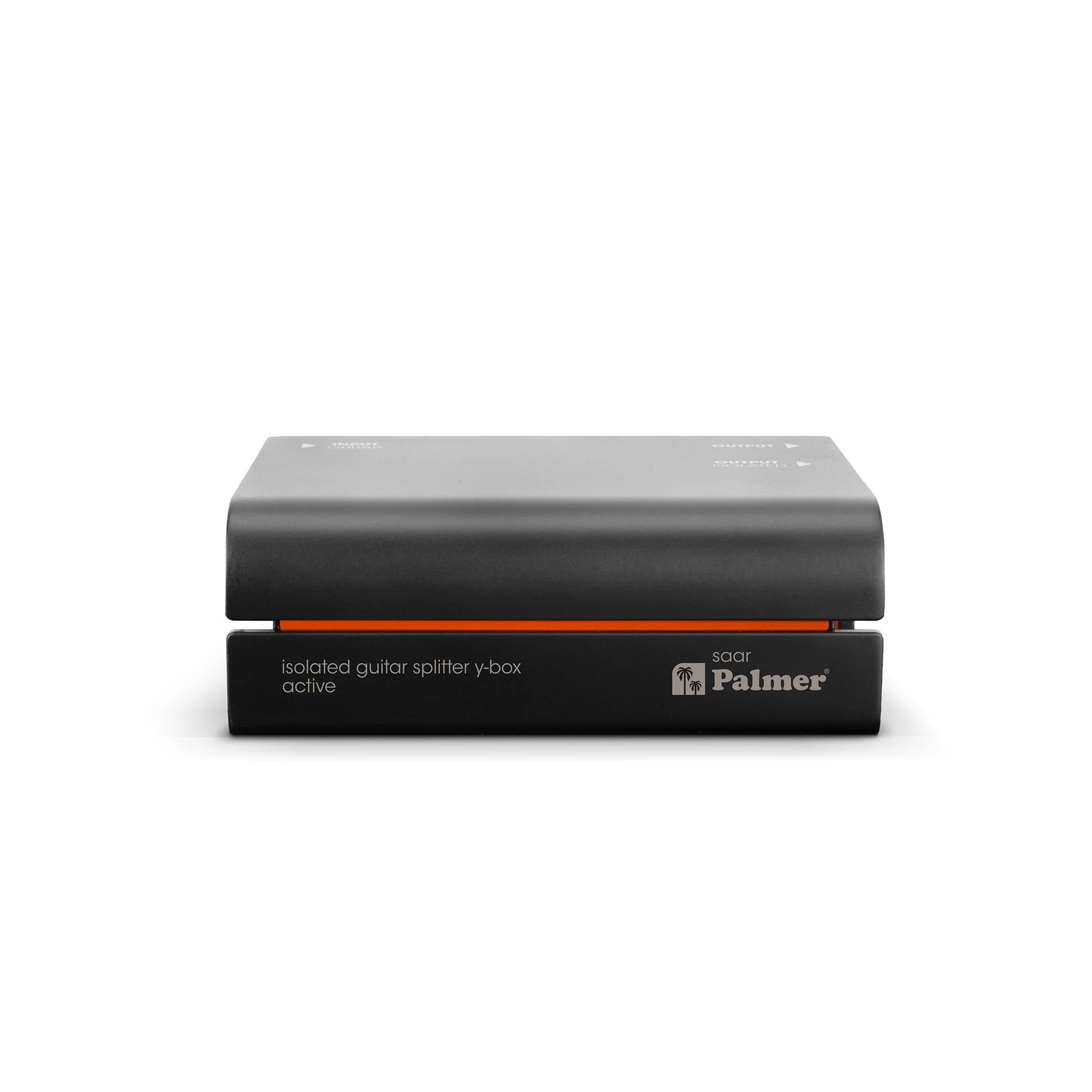

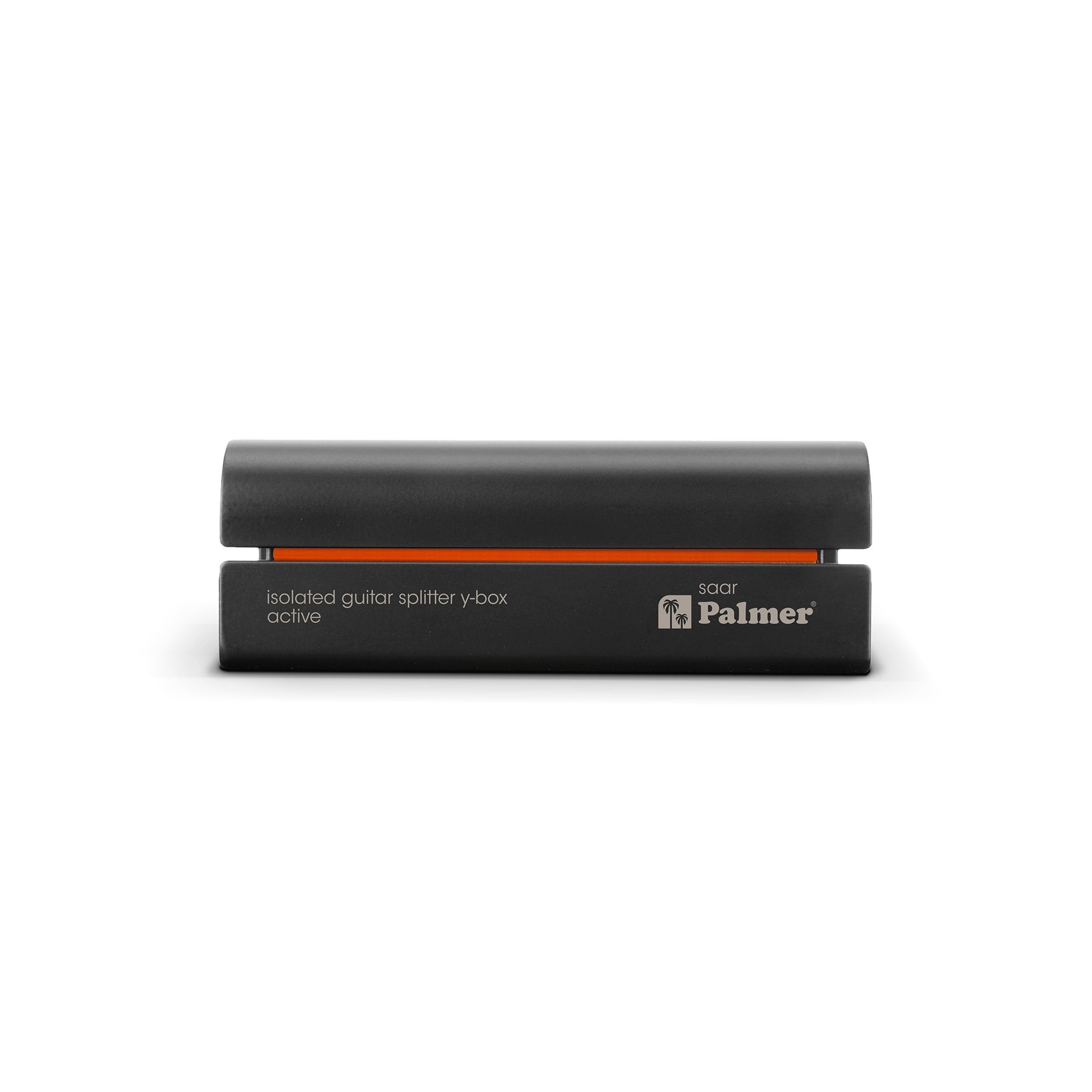

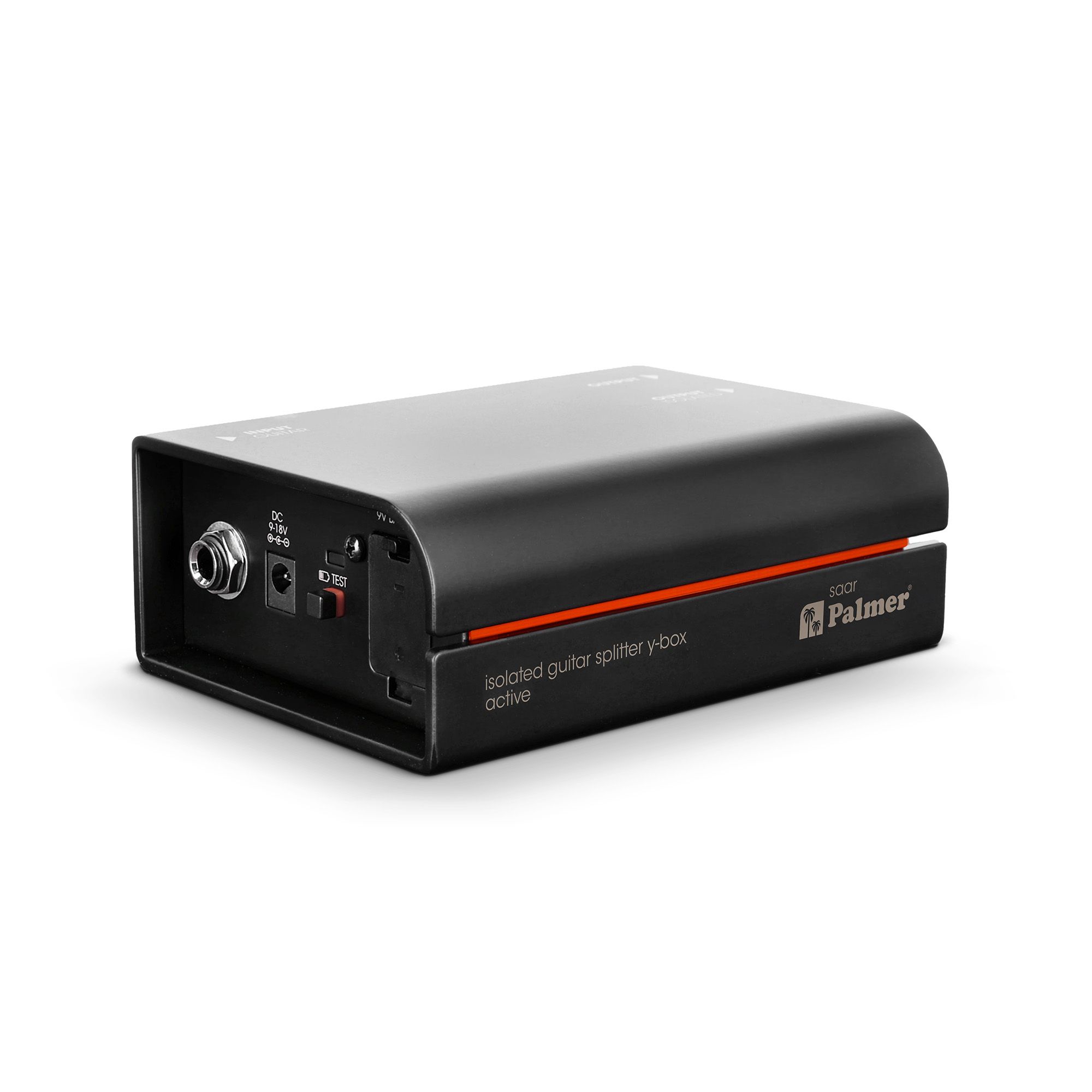

RIVER saar
Active guitar splitter Y-Box
$159.99
Backordered – More on the Way!
Product information "RIVER saar"

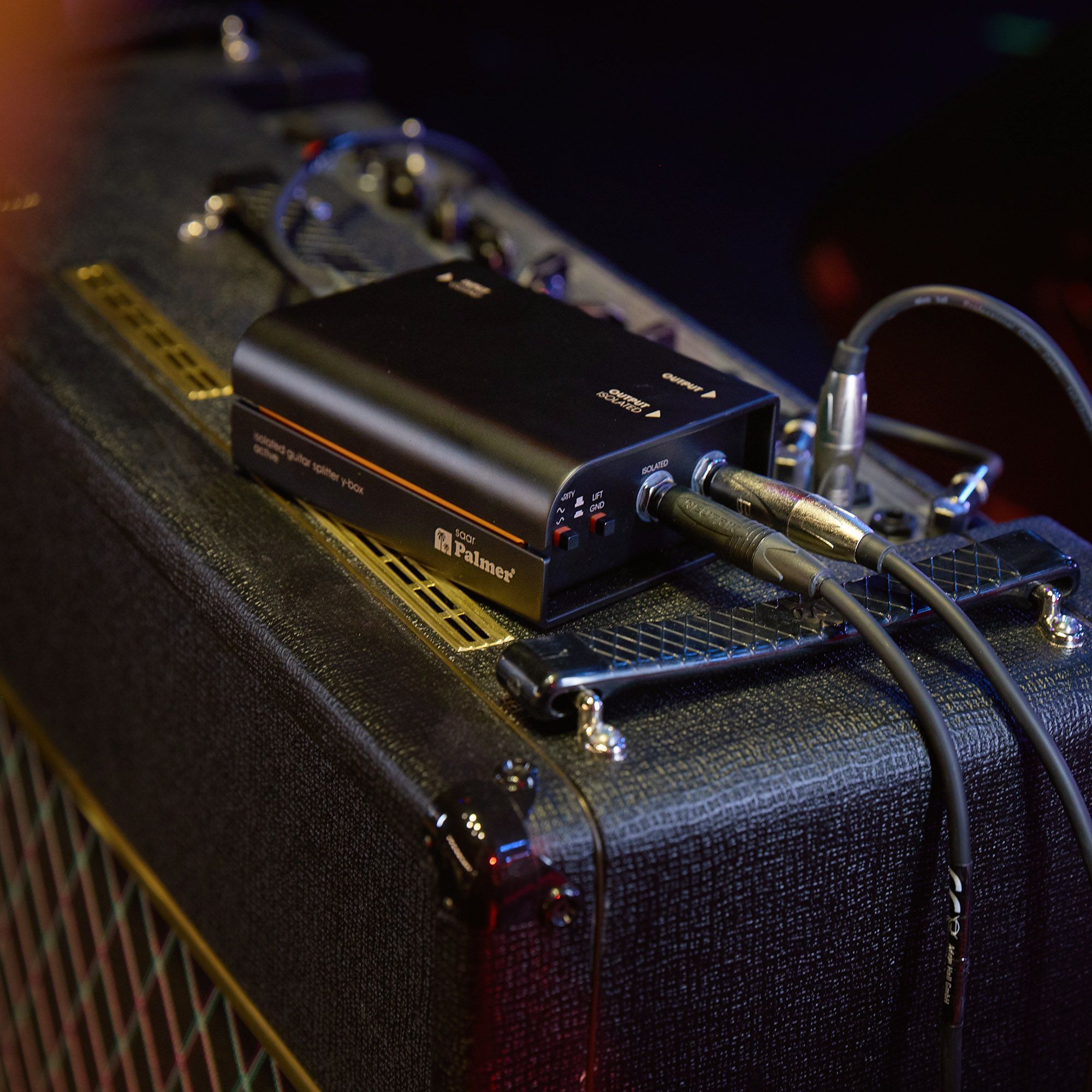

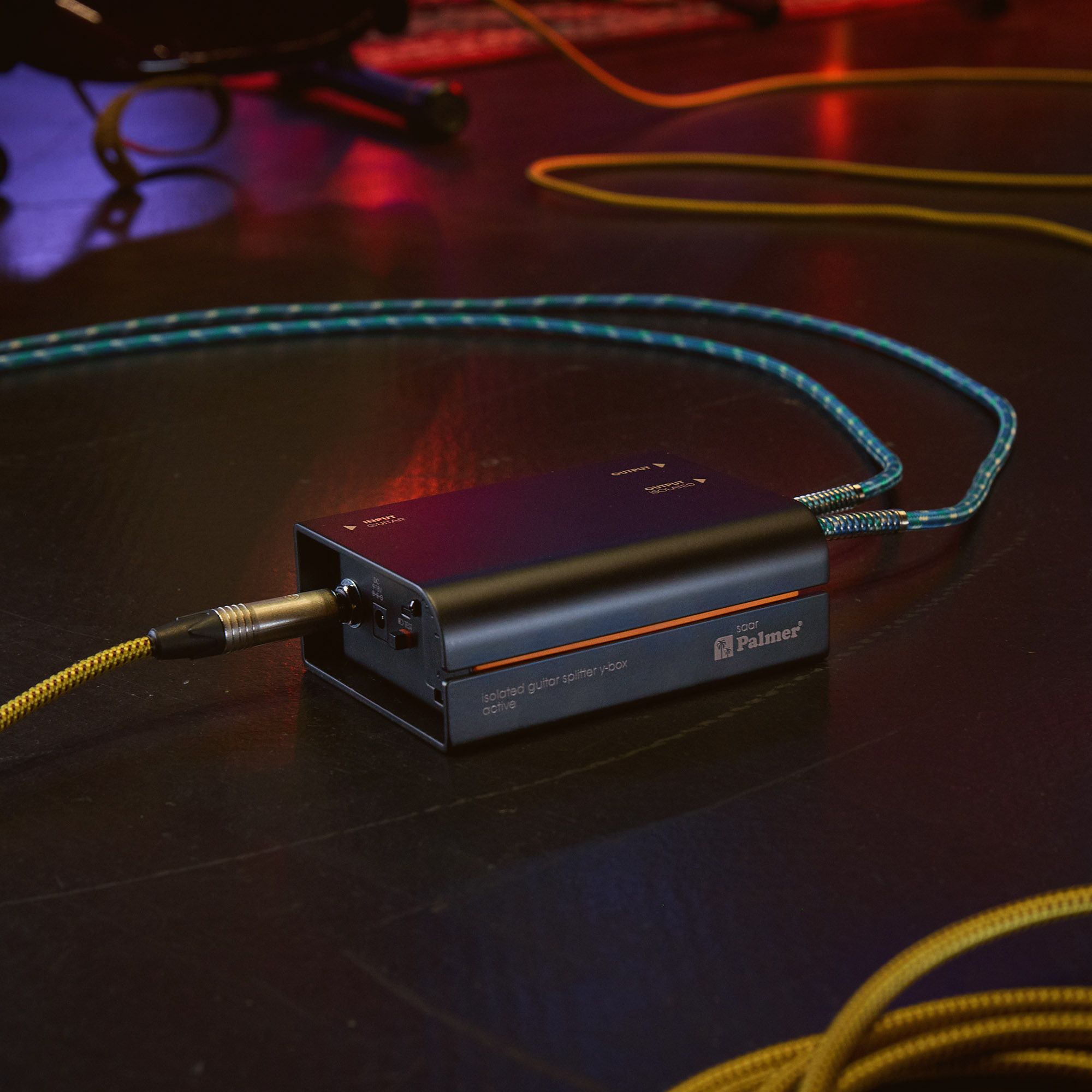

So, you want to play your guitar or your bass through two amps at the same time? Great idea! The problem is, it hums. And not just a little bit either. In fact, it makes a real racket. Thankfully, the Palmer saar Guitar Splitter box is here to save the day. The saar separates the ground potentials of both amplifiers and prevents ground loop hum when interconnecting multiple amps.

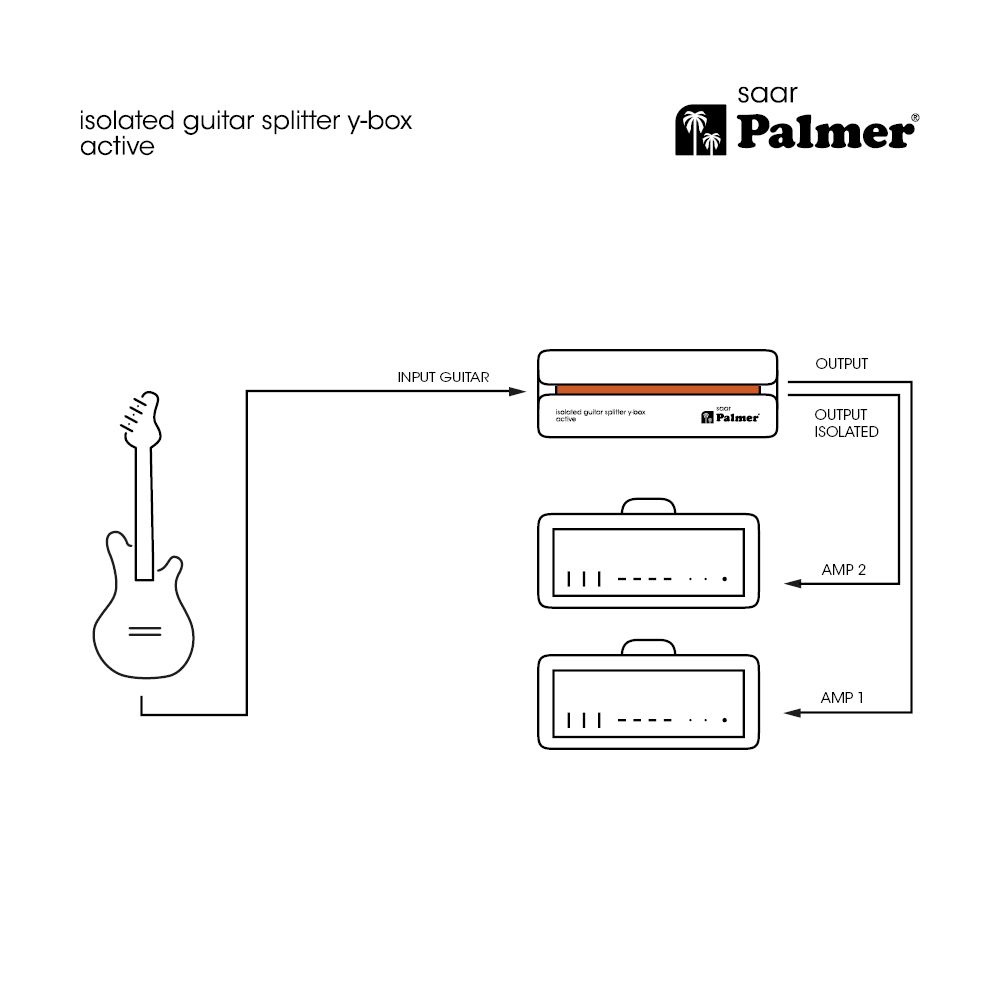

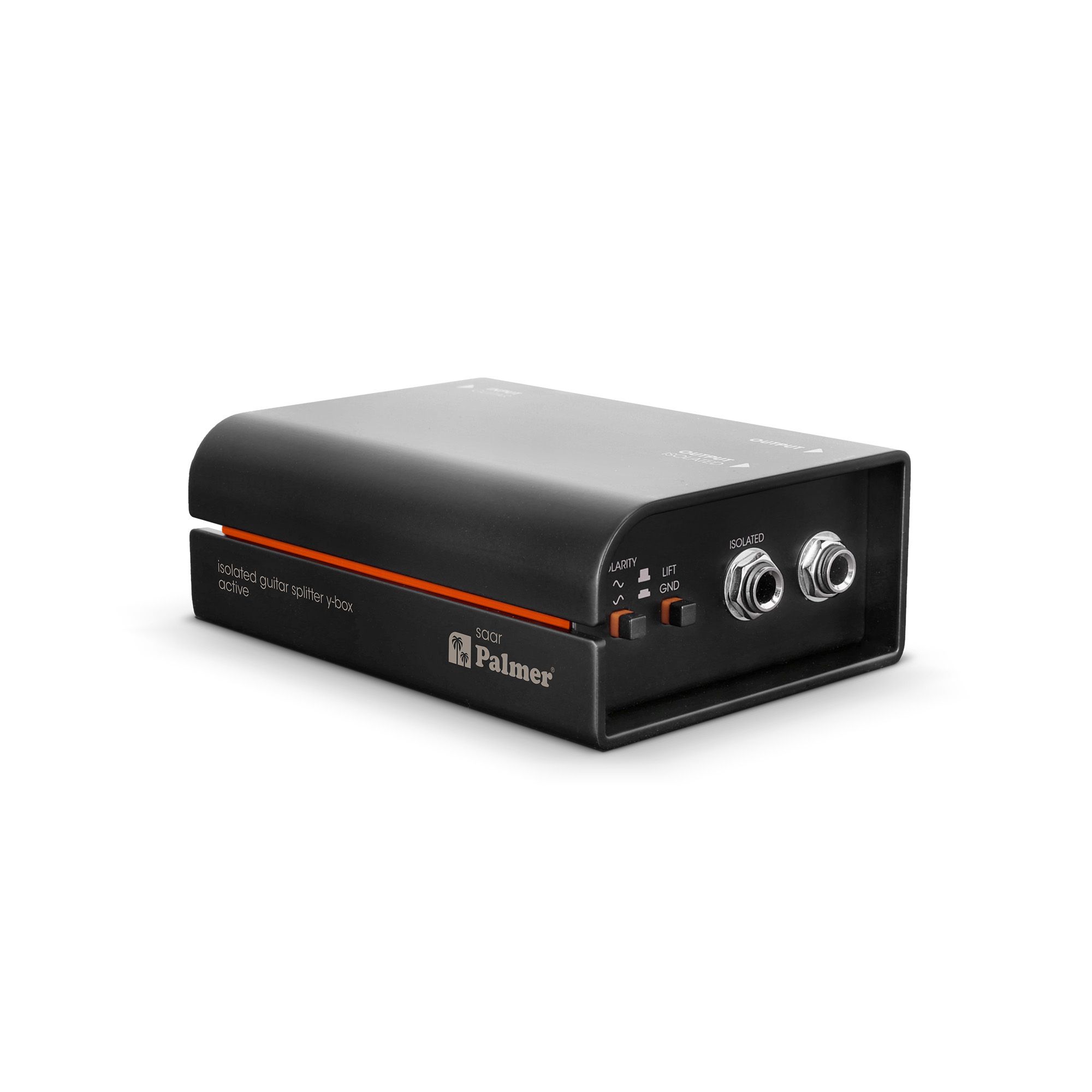

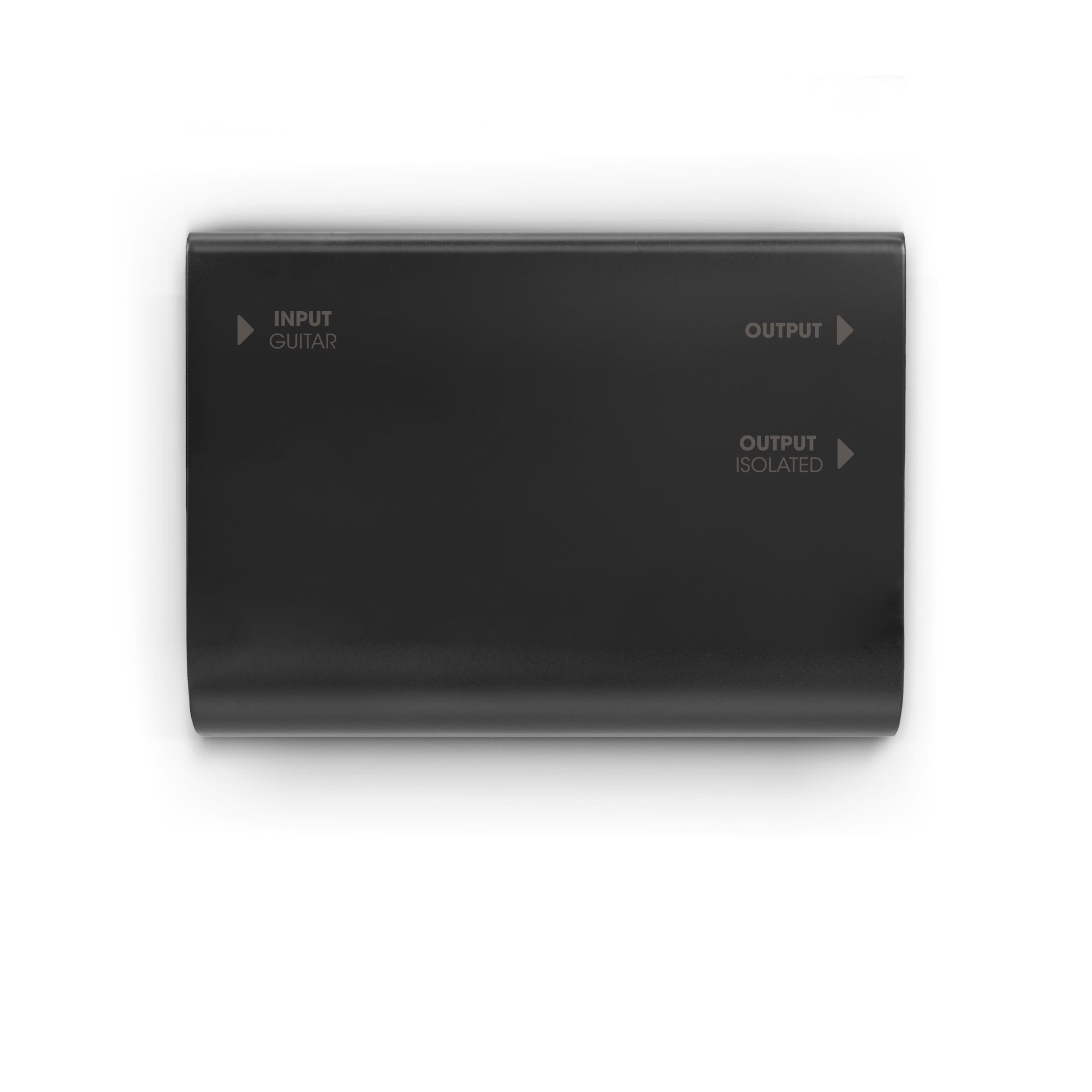

The Palmer saar loops through the input signal passively to amp out 1, while an active FET switch branches off the signal for amp out 2. This happens without sound loss, as the FET input level is extremely high impedance. Amp out 2 is also decoupled from the ground circuit by a transformer. Ground loops can be separated by pressing the ground lift switch.

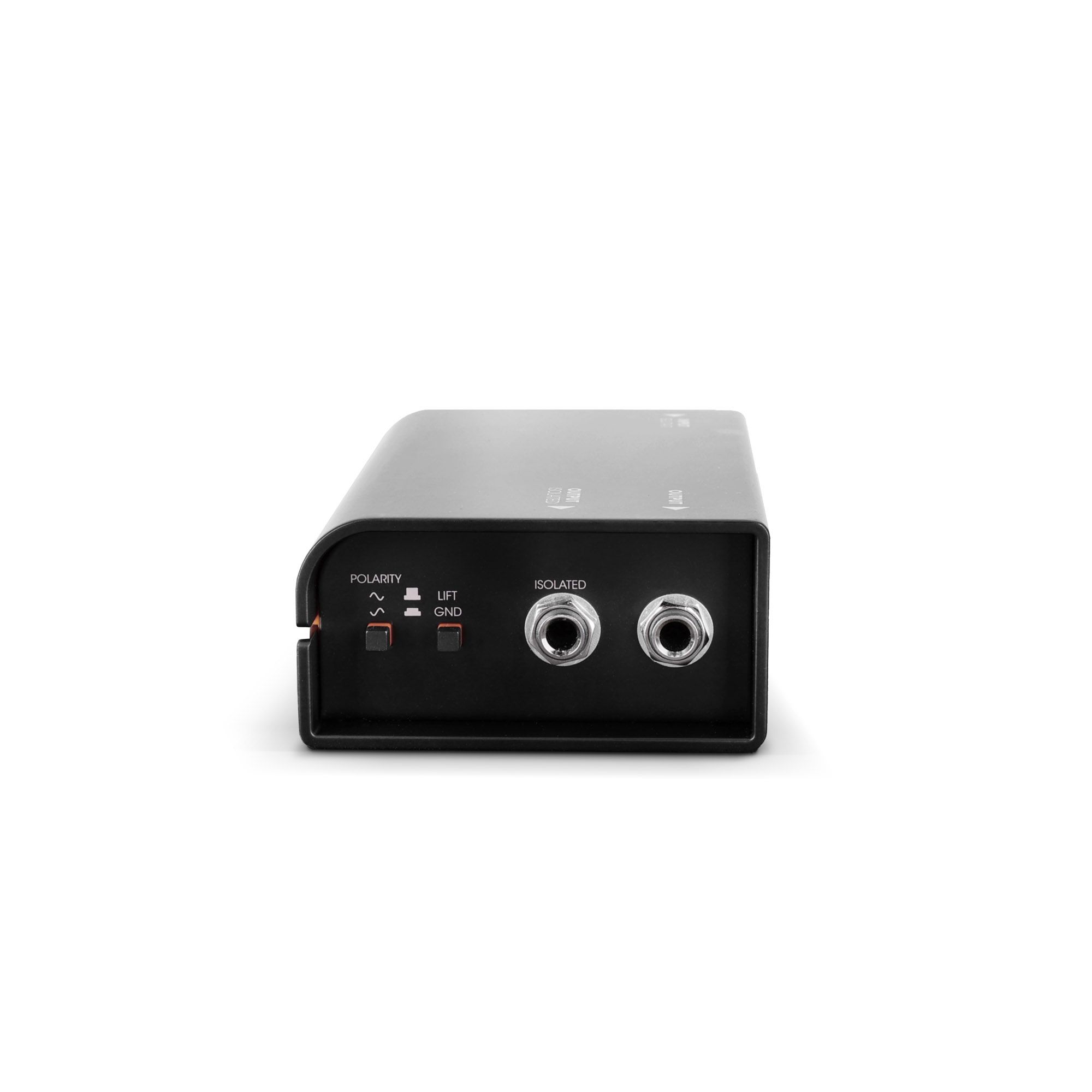

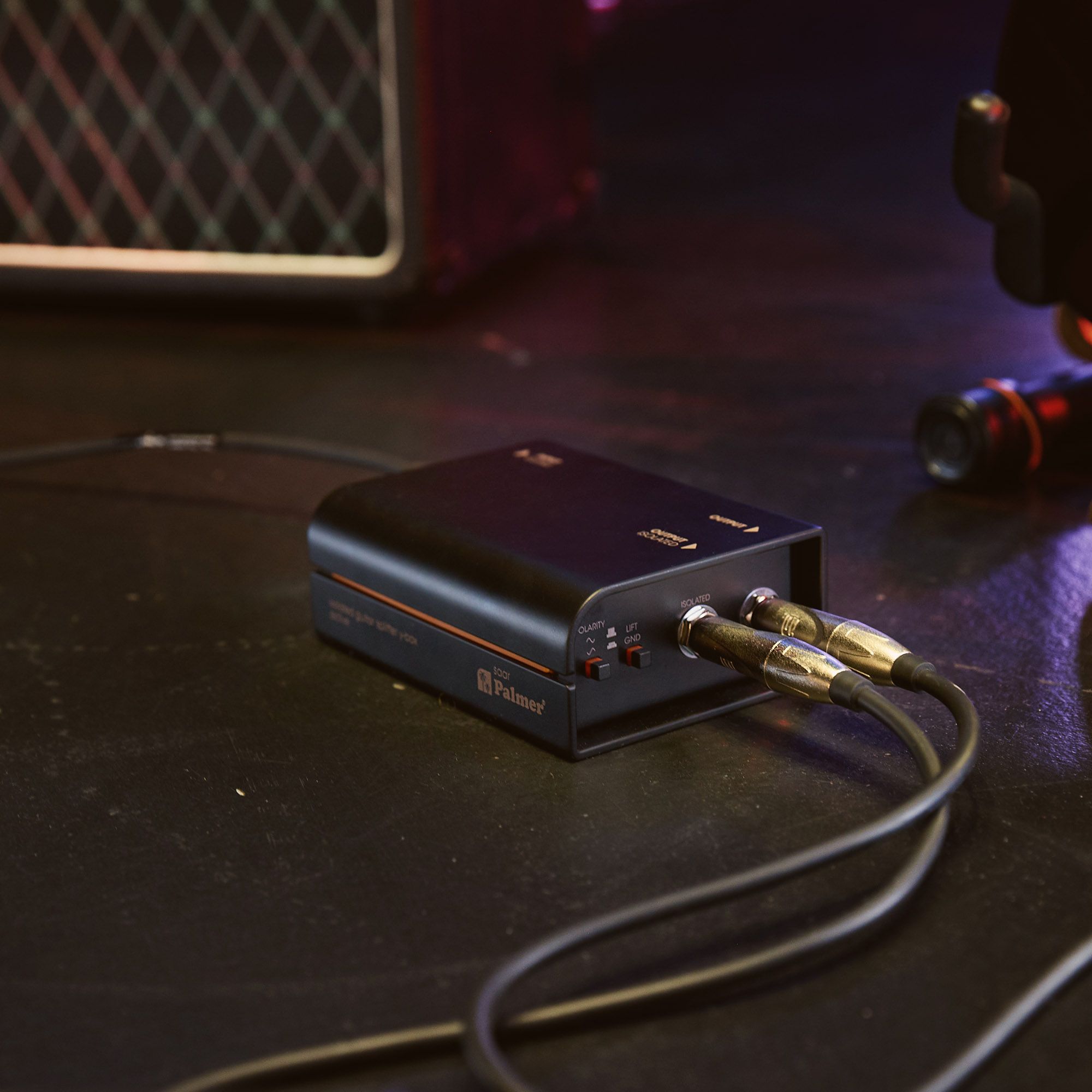

The signal from amp out 2 is low impedance and reliable, so that longer cable runs without sound loss are also possible. An important feature is the phase reverse switch for the second output. The signal polarity of guitar/bass amplifiers is not standardised. Two amps operated simultaneously can be in-phase or out-of-phase. In the latter case, the sound is unpleasantly thin - which can be resolved by pressing the phase reverse switch on the Palmer saar. Of course, you can also use the phase reverse feature as a sound design tool if you wish: the out-of-phase sound can sometimes be a great creative option!
The Palmer saar is a simple and effective tool that lets you enjoy the larger-than-life sound of two amps simultaneously - without any hum or interference.
| Type: | Active |
|---|---|
| Included Accessories: | Rubber feet, Tour label |
| Transformer Ratio: | 1:1,1 |
| Isolated transformer: | 1 |
| Number of inputs: | 1 |
| Frequency response (±1 dB, rel. Avg): | 20 - 20000 Hz |
| Number of outputs: | 1 |
| Ground Lift: | Yes |
| Number of channels: | 1 |
| Max. input level (< 1% THD, rel. 20 Hz): | 21 dBu |
|---|---|
| Input impedance: | 1 MΩ |
| Input signal type: | Unbalanced |
| Input connector types: | 6.3 mm Jack TS |
| Number of instrument inputs: | 1 |
| Max. input level (< 1% THD, rel. 1 kHz): | 24 dBu |
| Output connector types: | 6.3 mm Jack TS |
|---|---|
| Linked analog output connector type: | 6.3 mm Jack TS |
| Output signal type: | Unbalanced |
| Linked outputs per channel: | 1 |
| Balanced output impedance (1 kHz): | 64 Ω |
|---|---|
| Max. output level: | 20 dBu |
| Min. SNR (+4 dBu, 22 kHz BW, unity, unweighted): | 120 dB |
|---|---|
| Max. IMD (SMPTE, 60 Hz, 4:1, +4 dBu): | 0.0015 % |
| Max. IMD (SMPTE, 7 kHz, 4:1, +4 dBu): | 0.0015 % |
| Max. THD+N (1 kHz, +4 dBu, unity, unweighted): | 0.0005 % |
| Max. THD+N (30 Hz, +4 dBu, unity, unweighted): | 0.0006 % |
| Rated power: | 0.5 W |
|---|---|

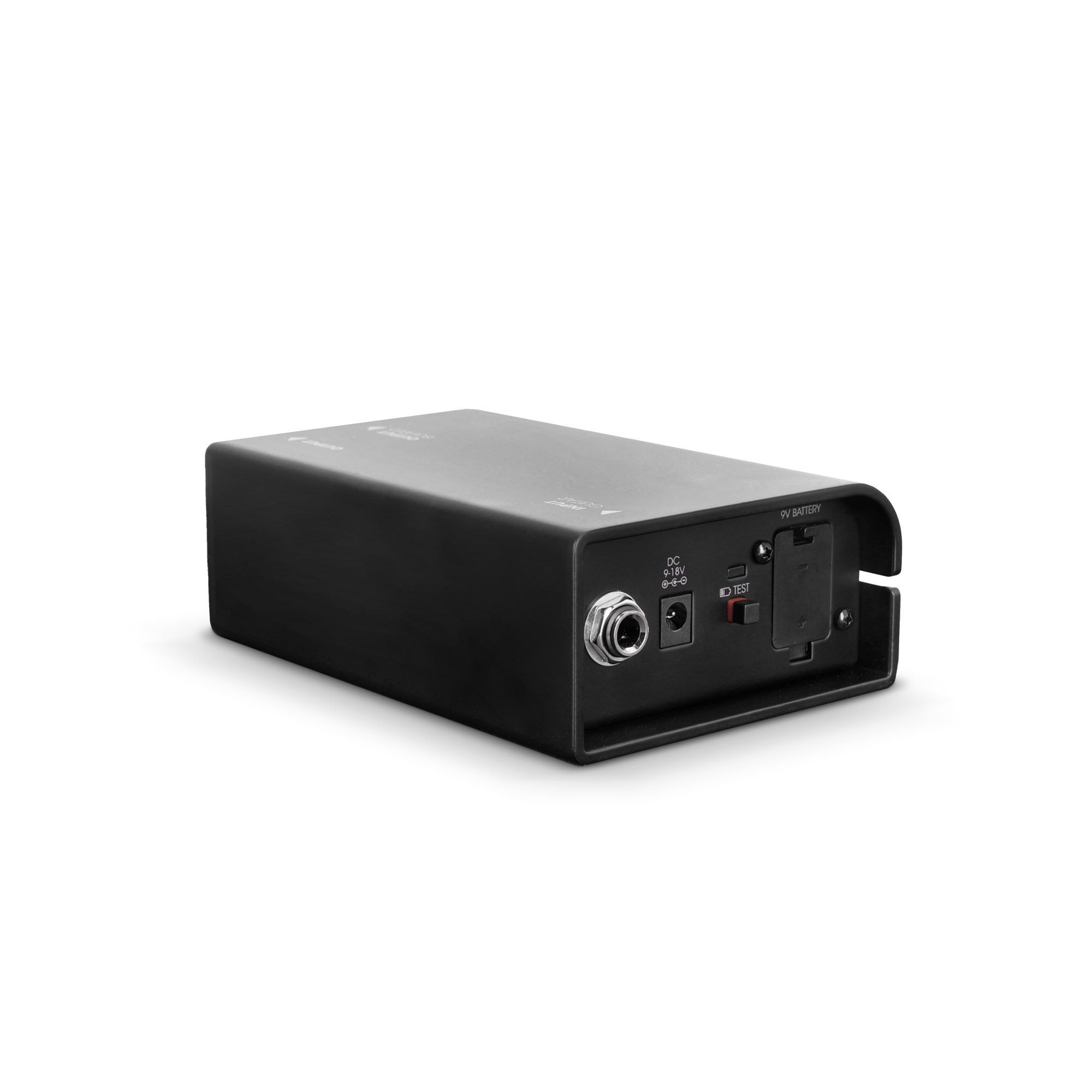

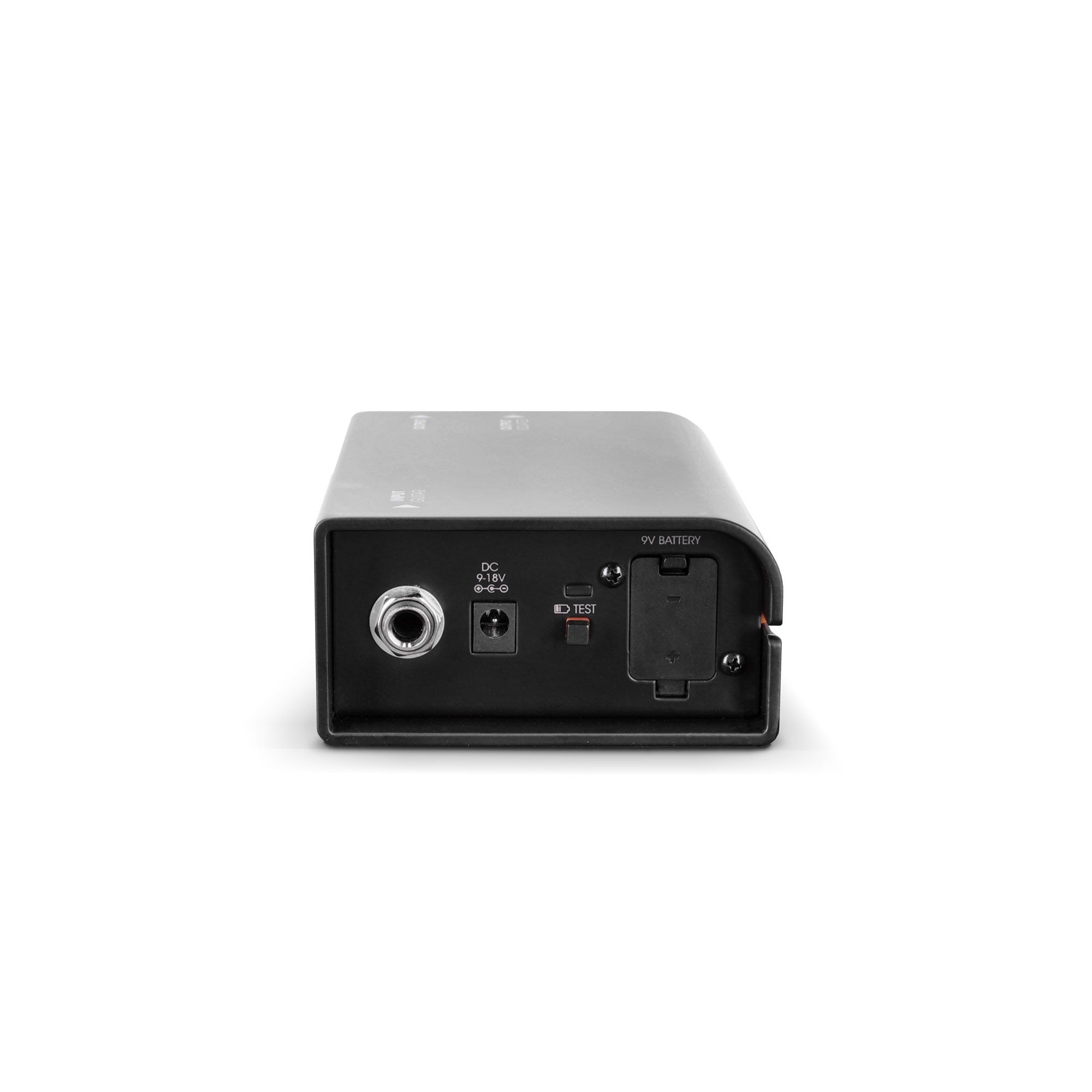

| Operation voltage: | 9 V DC - 18 V DC (external power supply) |
| Polarity: | Switchable |
| Batteries: | 1 x 9V block (6LR61) |
|---|
| Cabinet material: | Aluminum continuous casting |
|---|
| Maximum air humidity (non-condensing): | 80 % |
|---|---|
| Ambient temperature: | -20 - 70 °C |
| Depth: | 3.86 in |
|---|---|
| Height: | 1.97 in |
| Weight: | 1.26 lbs |
| Width: | 5.51 in |
Login
accessories

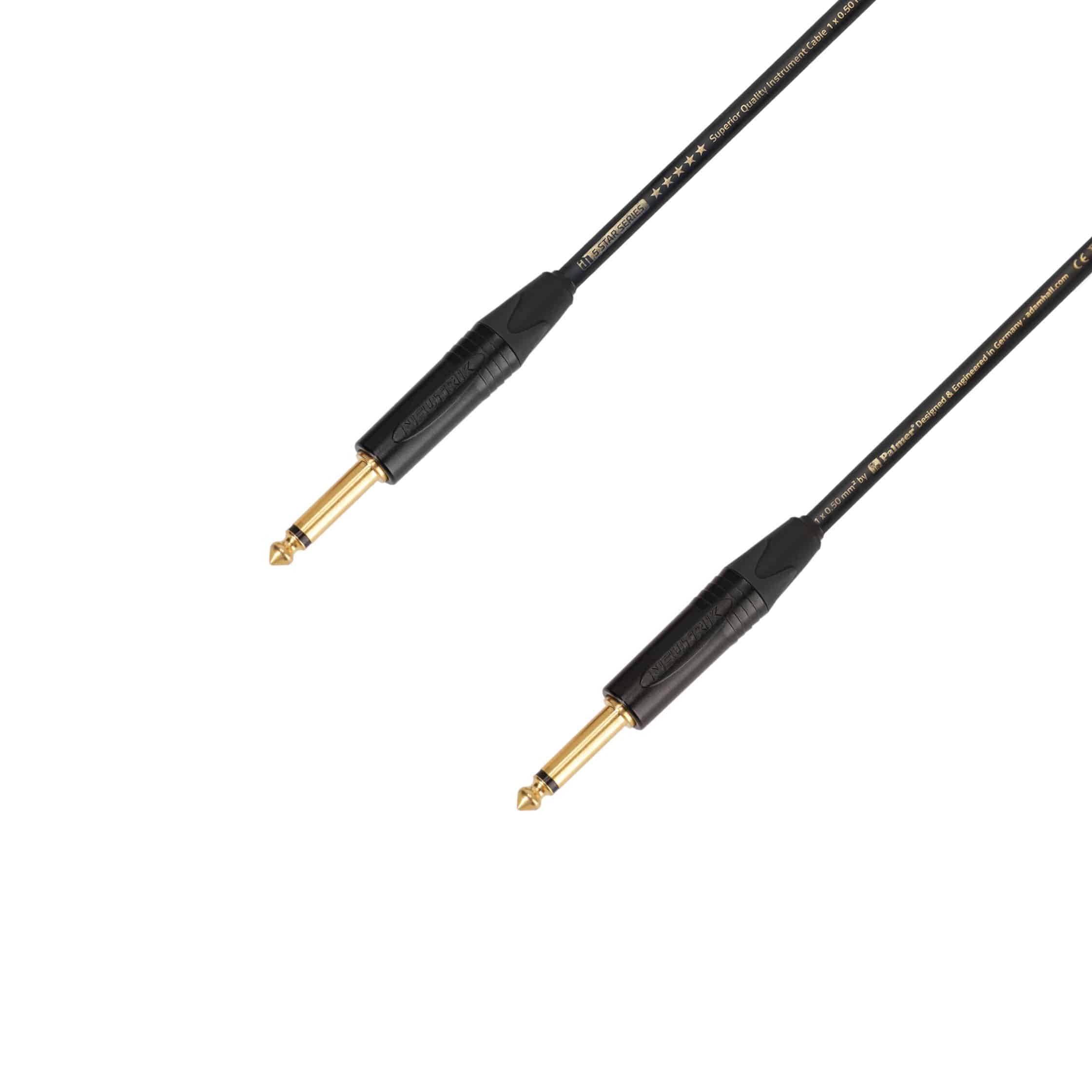

Superior quality on a high performance levelThis "Adam Hall Cables" 5 STAR product is a professional cable which delivers outstanding sound quality for the most demanding players.With musicians in mind who are seeking the full sound spectrum of their beloved instruments, our crew at Palmer® developed this super low restistance and low capacitance cable, and a braided shielding to avoid magnetic interferences to nearly 100%. The result of this Adam Hall Cables X Palmer® cooperation is an unaltered and balanced sound!In order to reach the superior quality, we only assemble original Neutrik® connectors with gold plated contacts. Palmer® products as well as Adam Hall Cables are engineered in Germany.
