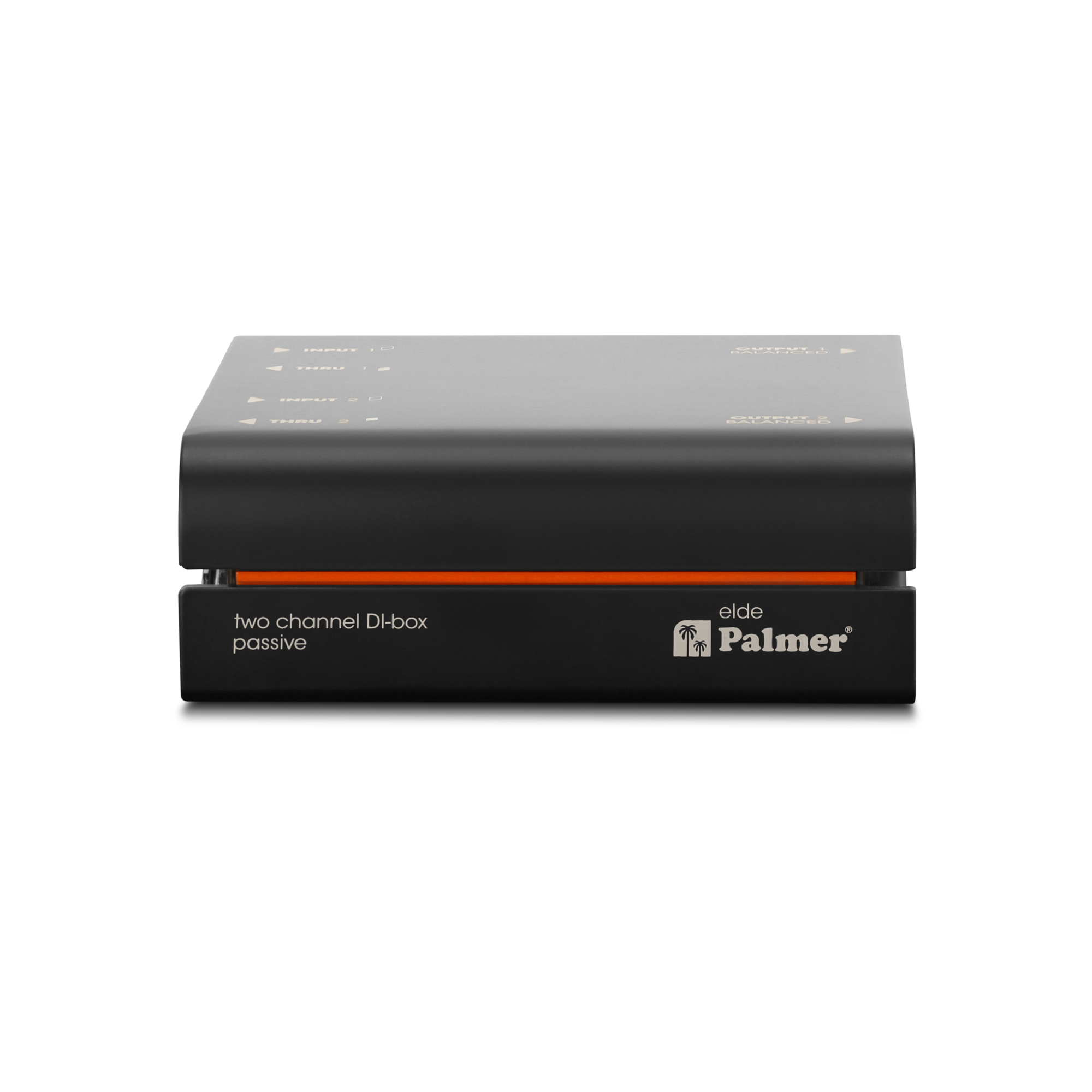

RIVER Elde
Passive 2-channel DI box
$159.99
Backordered – More on the Way!
Product information "RIVER Elde"

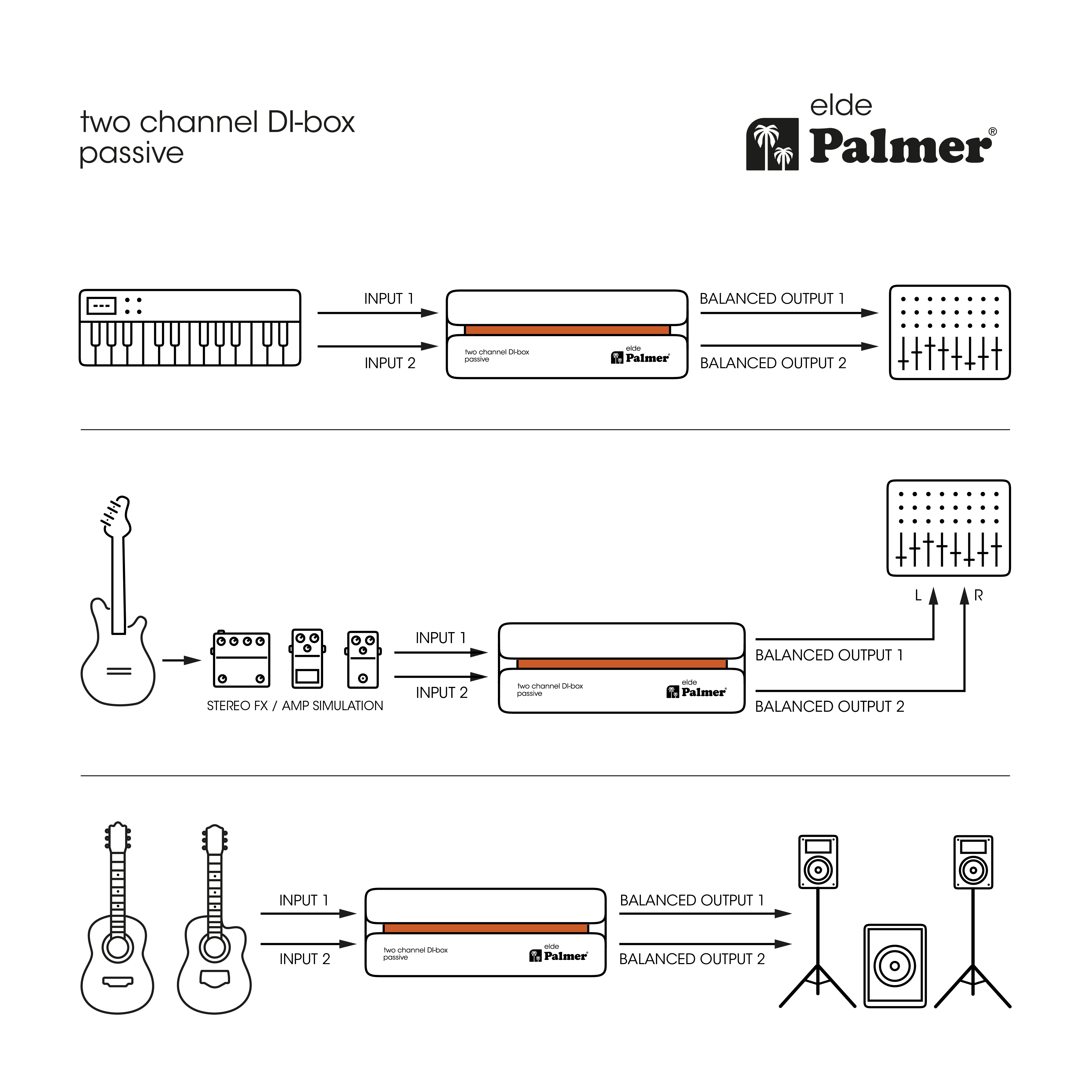

Are you looking to pick up the raw signal from a guitar, bass or keyboard without noise and tonal loss, even over long cable runs? That's exactly what the Palmer Elde does - simply and reliably. Especially since the Elde is a classic passive DI box, and it even has a dual-channel design. This means you can use it for stereo signals as well as for two different instruments.

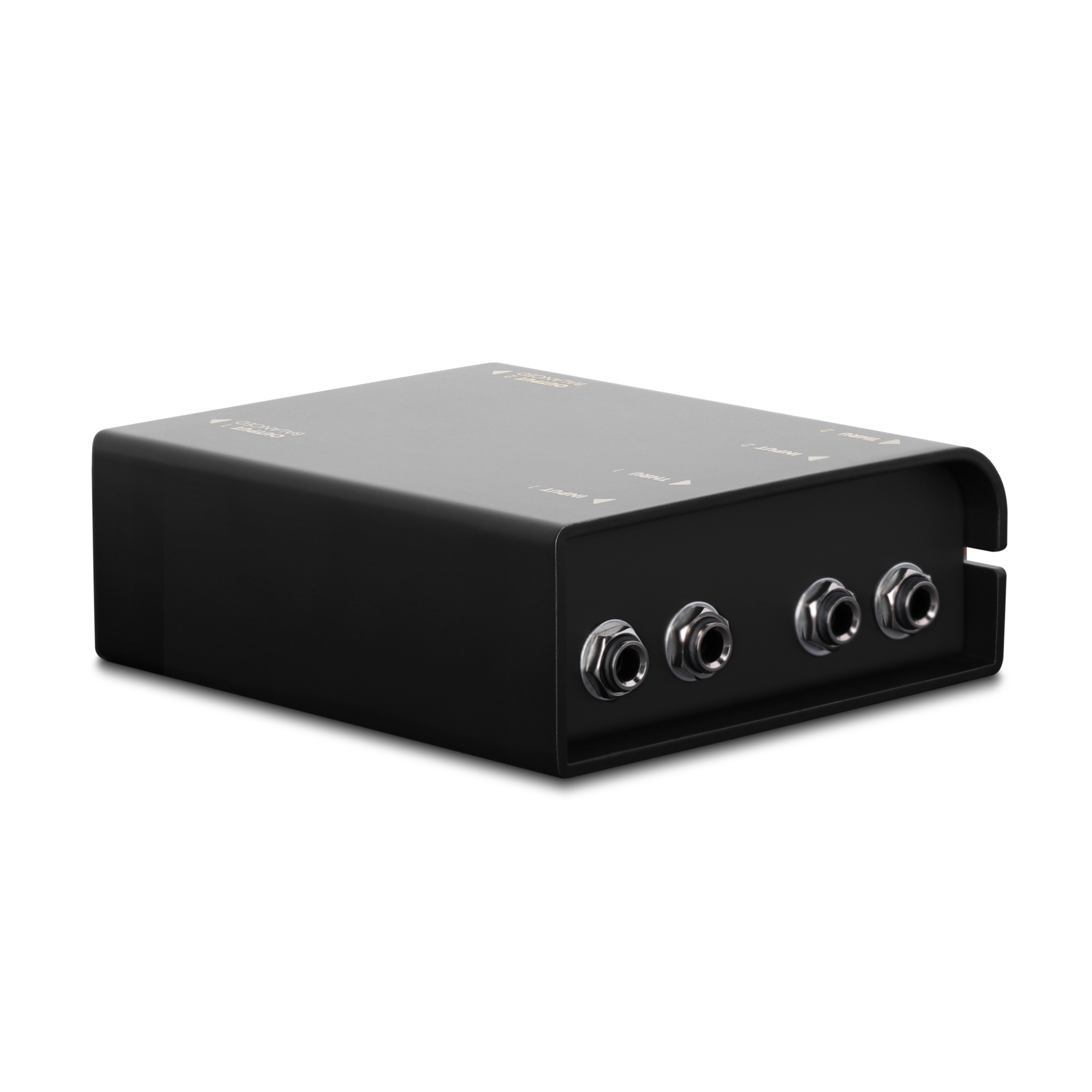

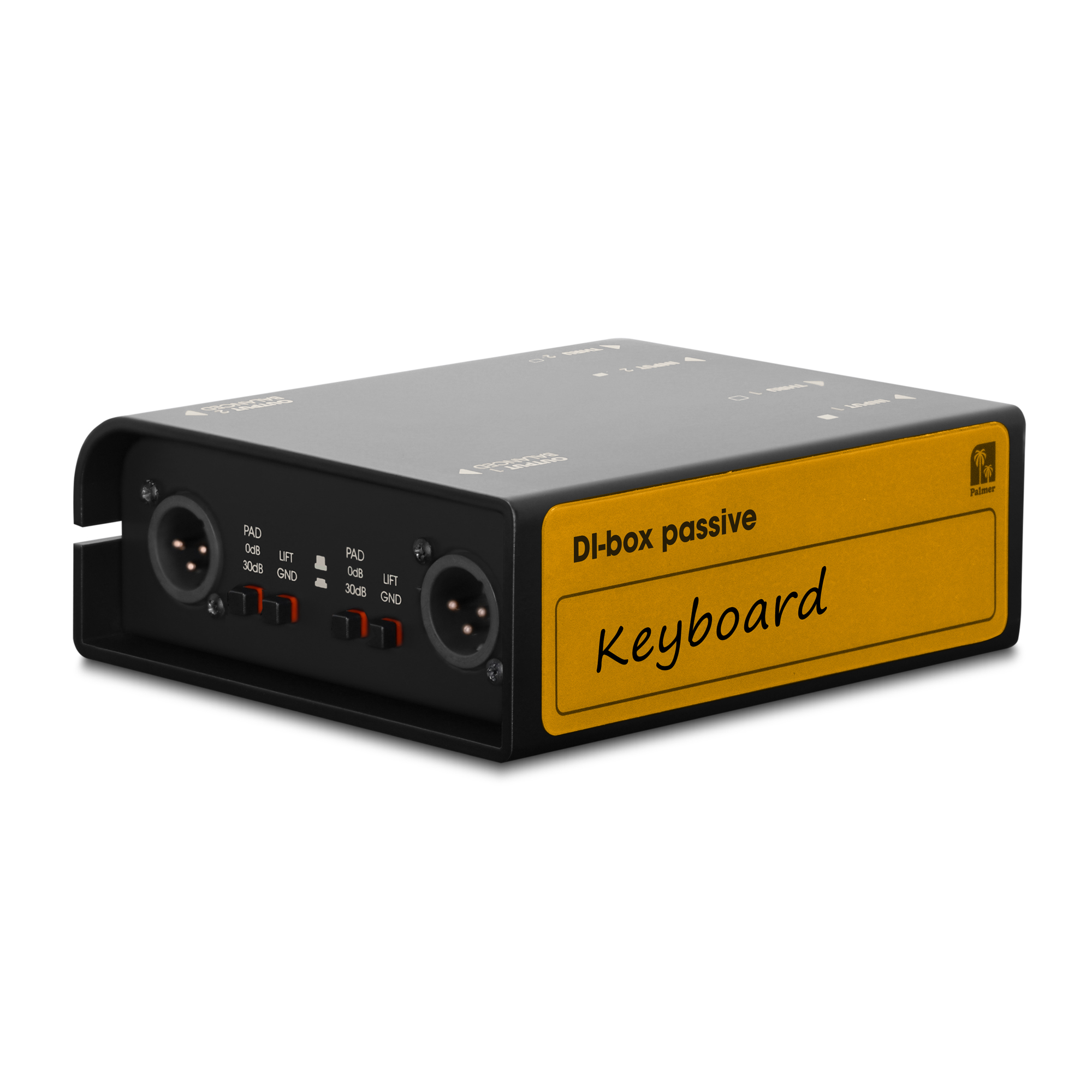

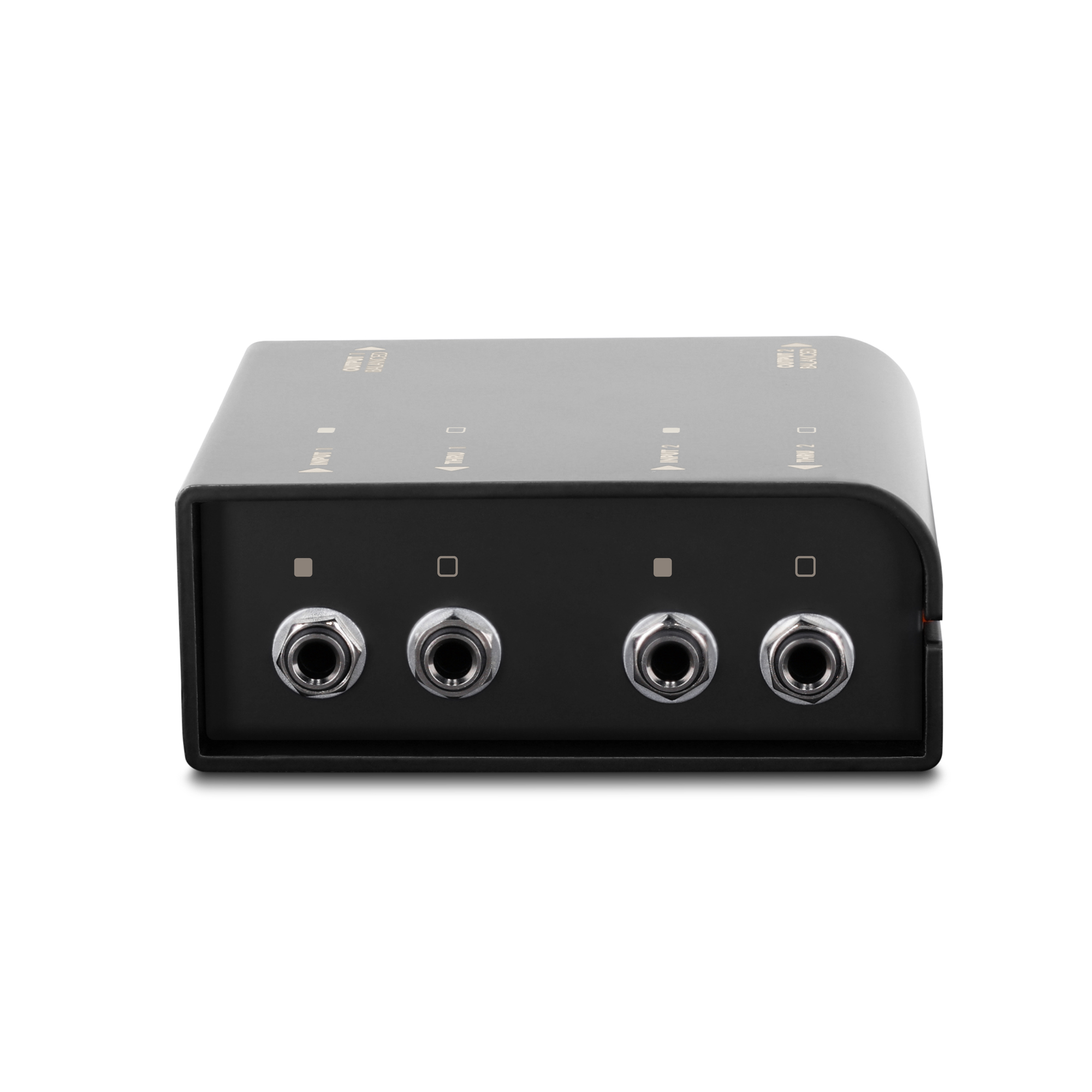

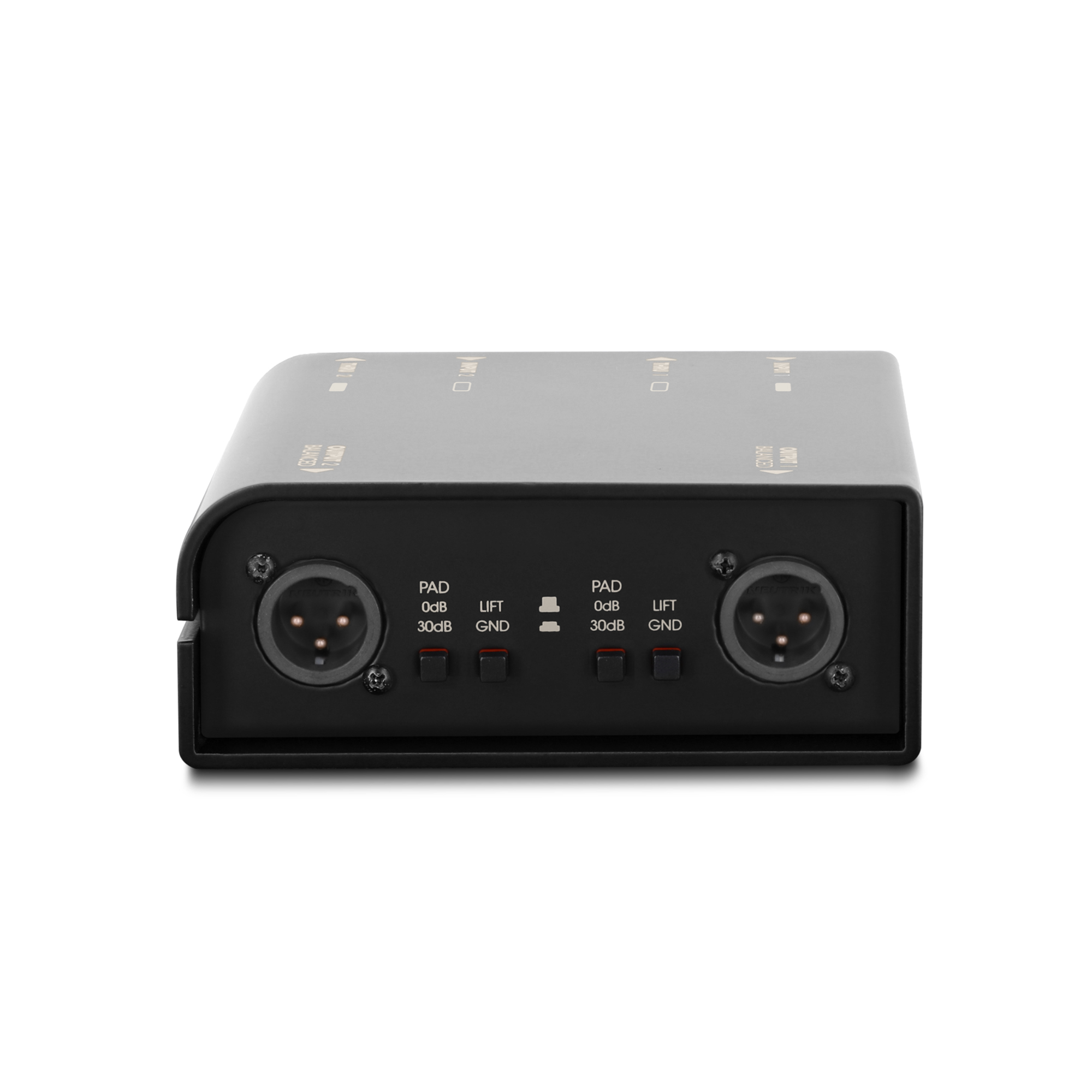

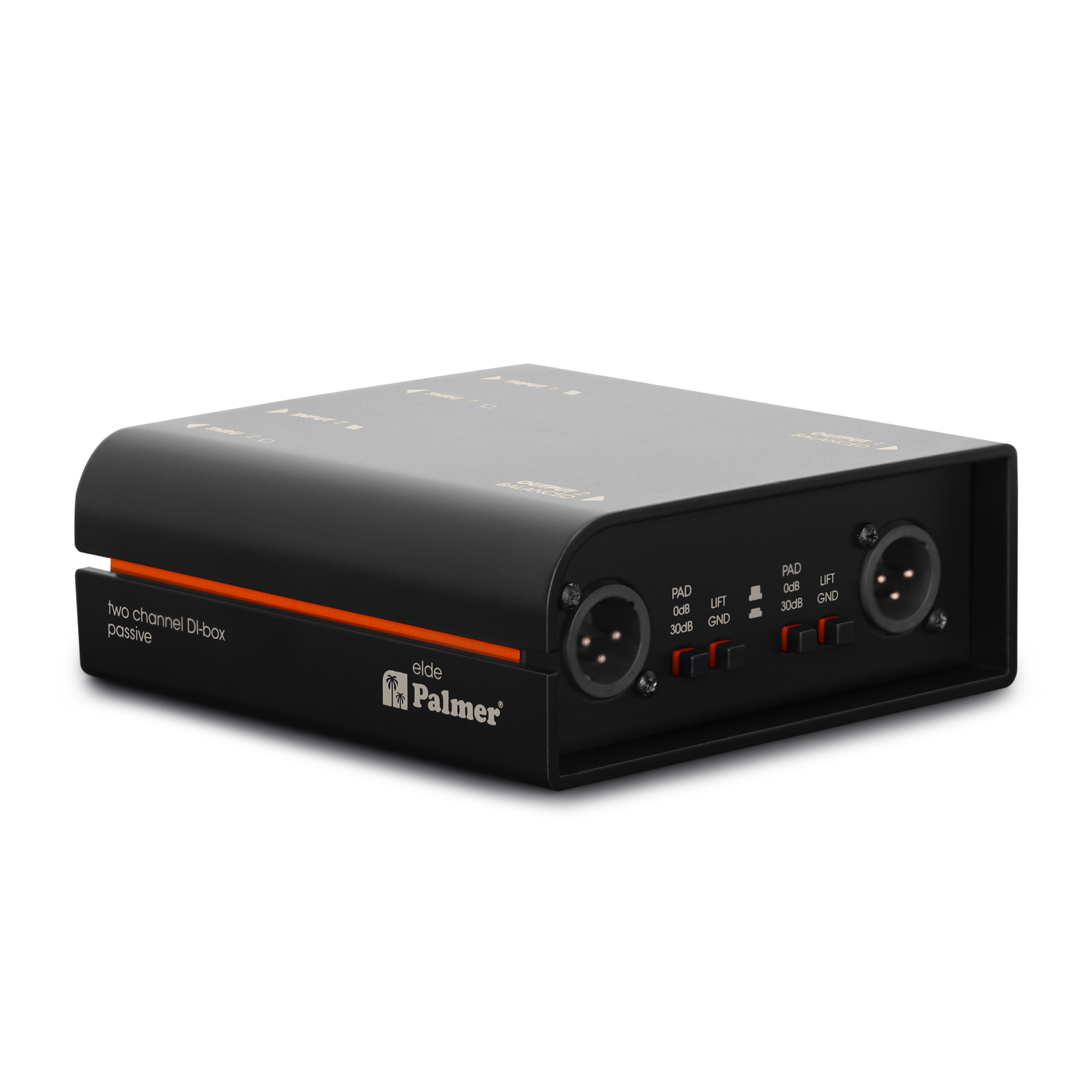

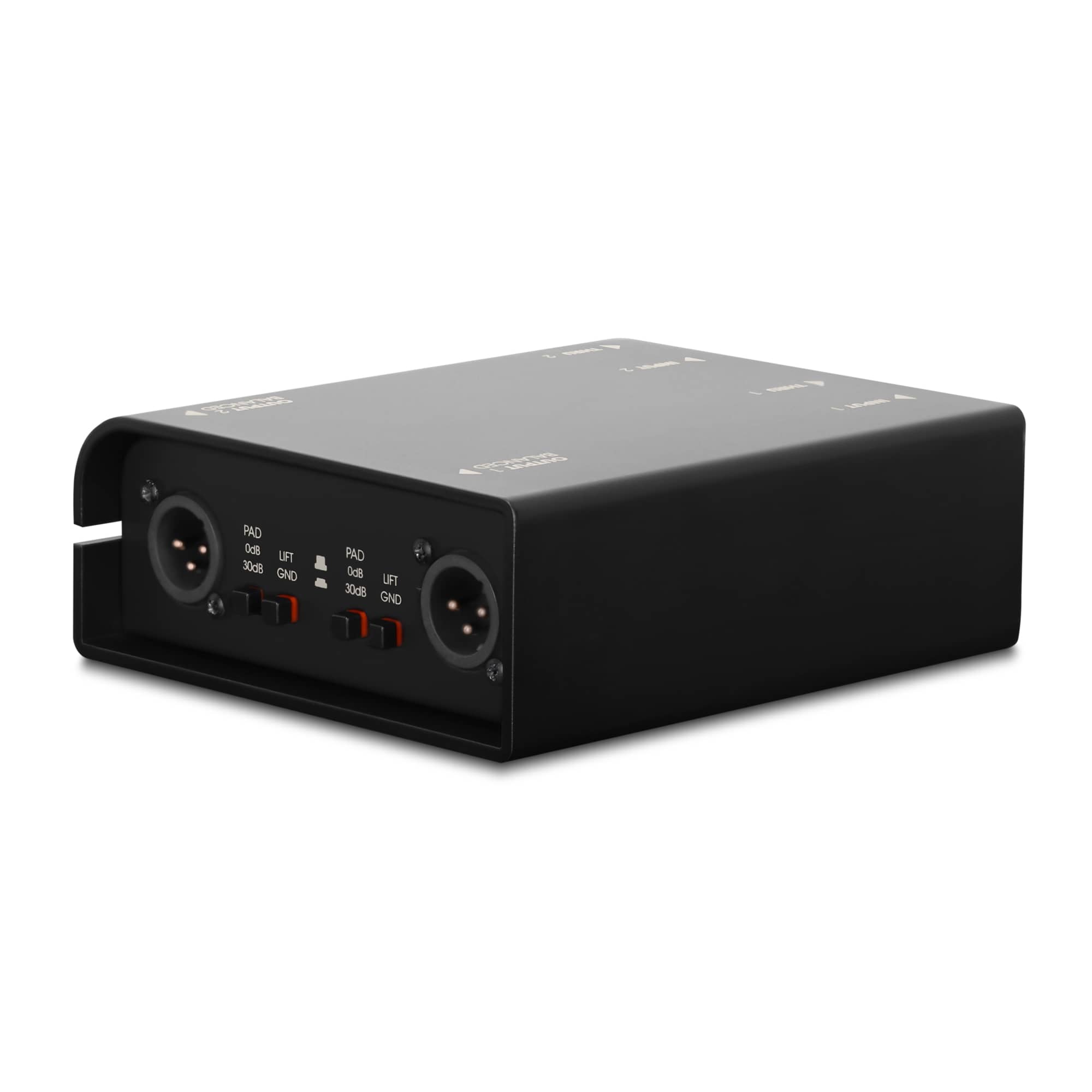

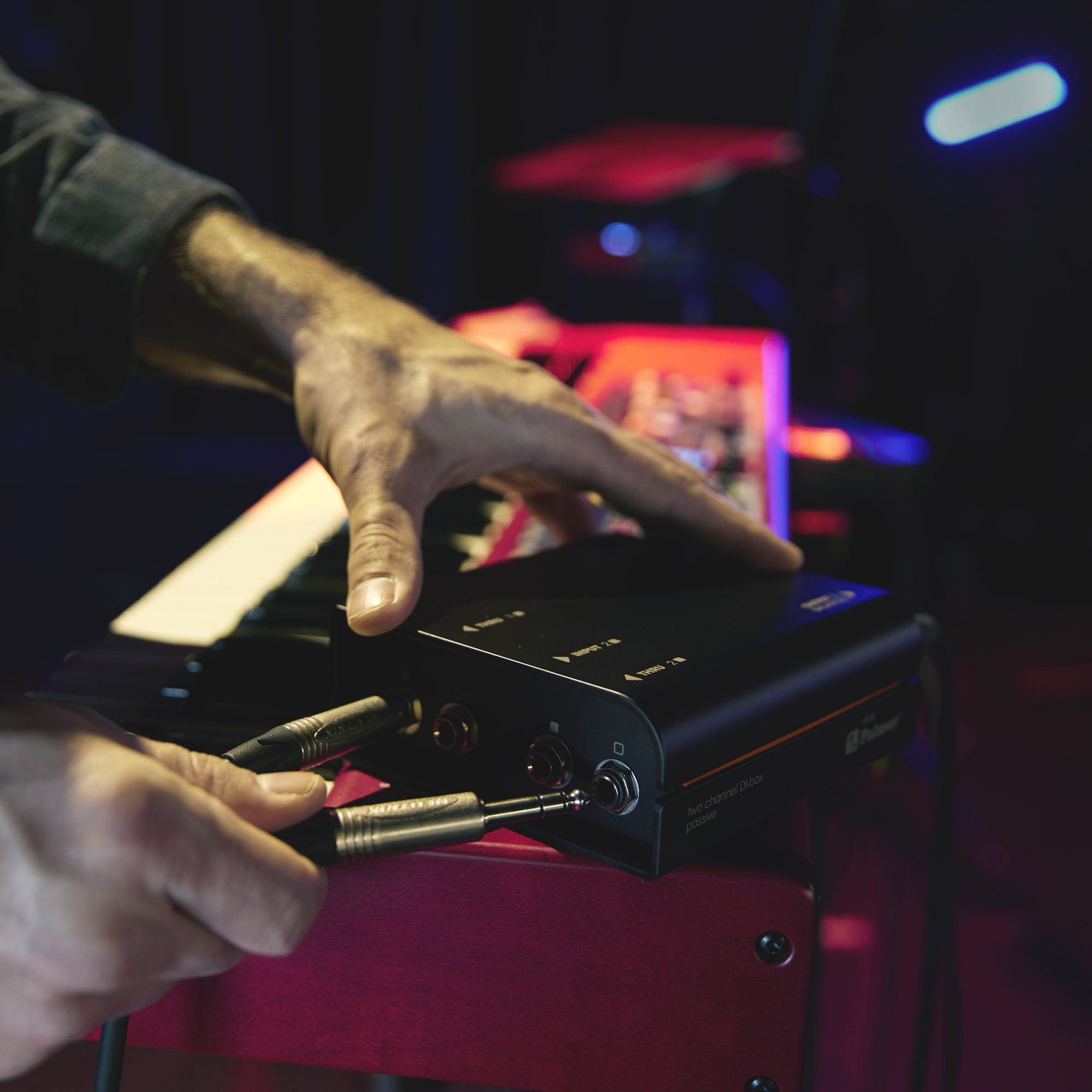

The inputs are each looped to a THRU Out, allowing the signal to be passed on to the guitar/bass amplifier. For very high level signals, each channel has its own pad switch (-30 dB), so you can also insert the Elde between the amplifier output and the loudspeaker. The output signals are balanced and with low impedance, so that they can withstand even longer cable runs without damage. Impedance conversion and balancing is done passively via a transformer, which also provides galvanic isolation. Each channel has its own ground lift switch to eliminate ground loops.

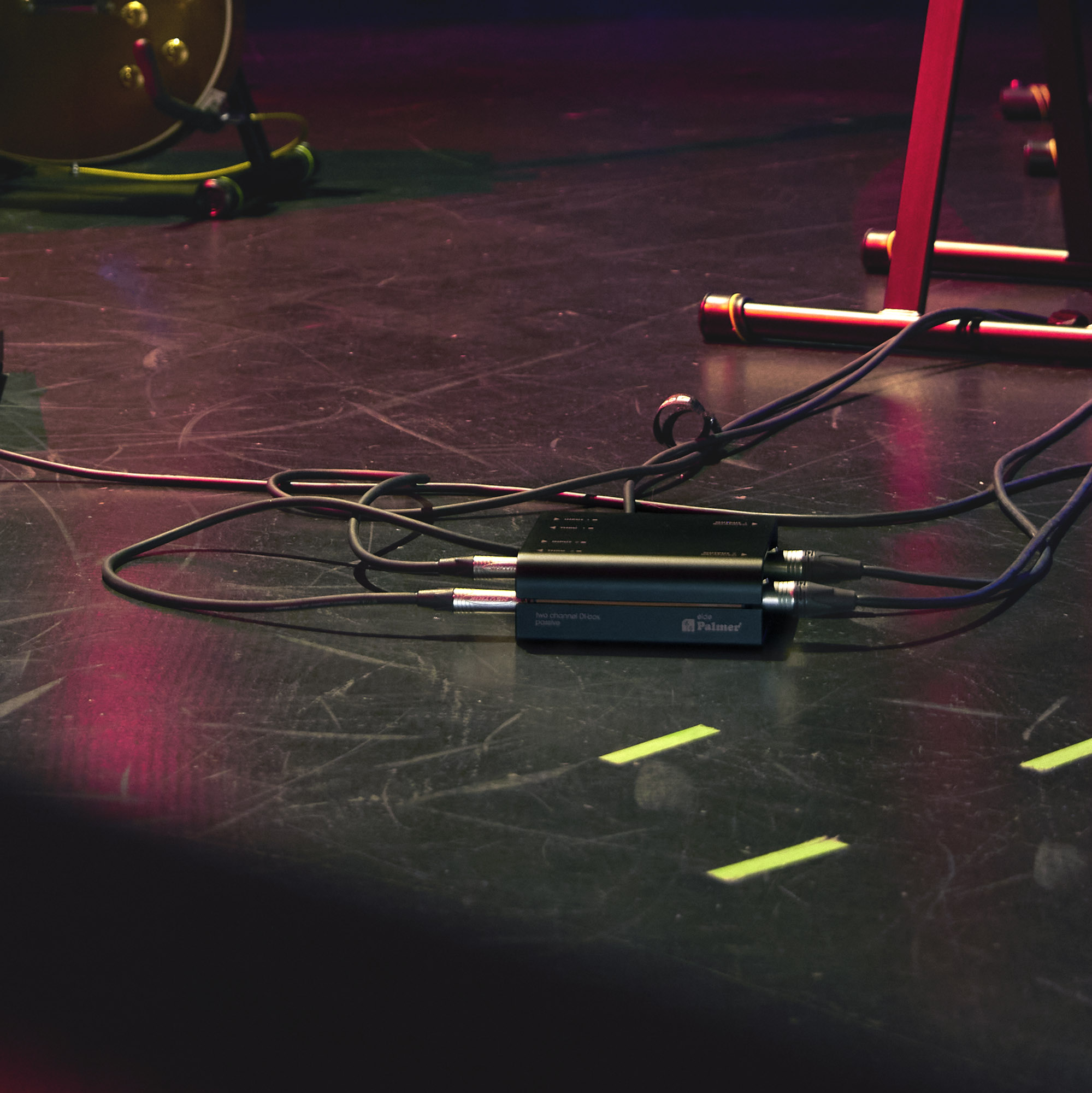

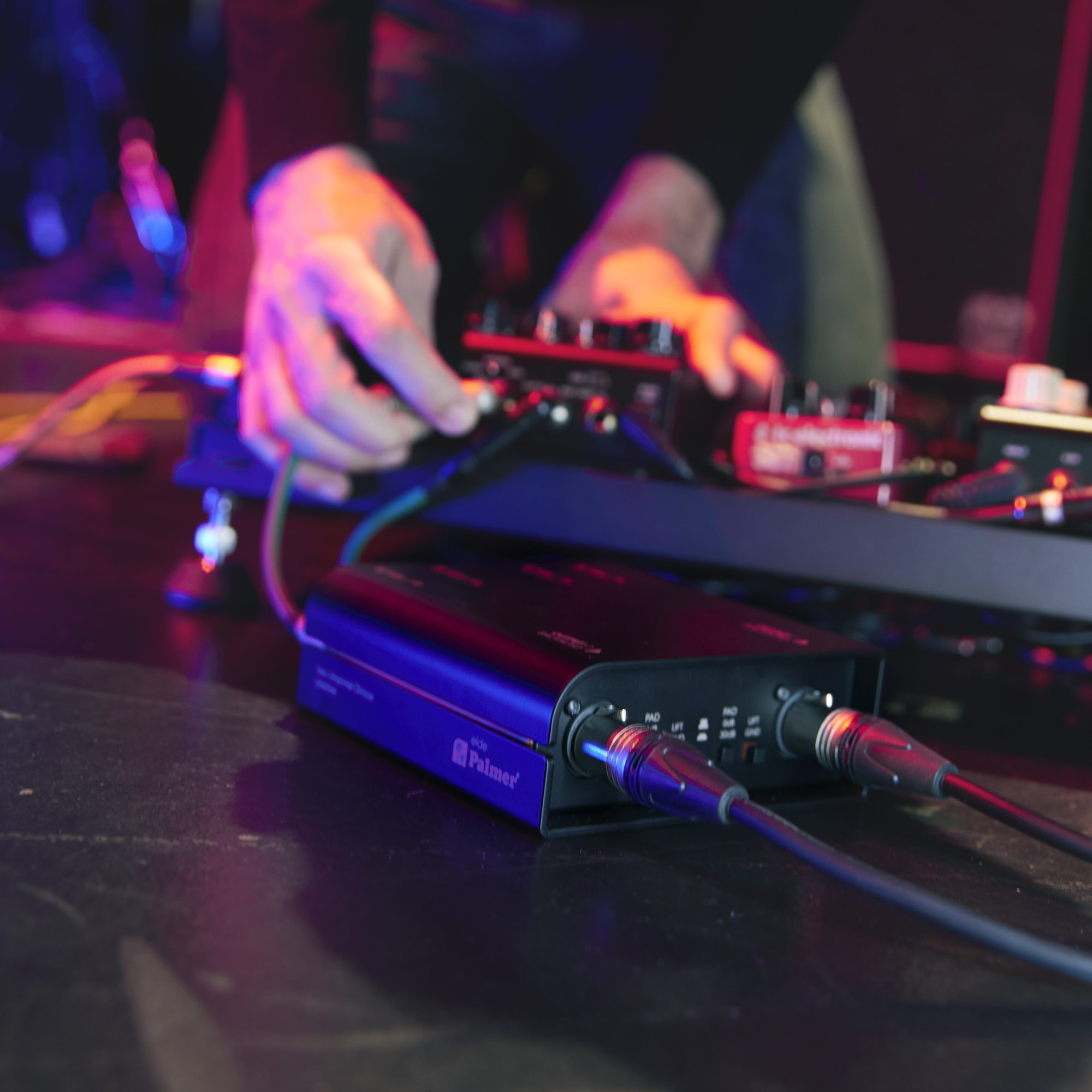

The Palmer Elde is a high-quality two-channel DI box that is extremely easy to use. Due to its passive design, it requires neither batteries nor phantom power. This makes it extremely reliable and failure-proof. With its robust aluminium/steel housing, the Palmer Elde easily withstands rough everyday use on stage, and with its clean, unaltered sound, it also excels perfectly in the recording studio.
| Output type: | balanced |
|---|---|
| Output connectors: | XLR |
| Number of outputs: | 2 |
| Number of inputs: | 2 |
| Channels: | 2 |
| Ambient temperature during operation: | -20 - 70 °C |
| Transformer isolated: | Yes |
| THRU outputs per channel: | 1 |
| input type: | unbalanced |
| Type: | passive |
| Dimension (H/W/D): | 50 x 140 x 128 mm |
| Ground lift switch: | Yes |
| Housing: | Aluminium continuous casting |

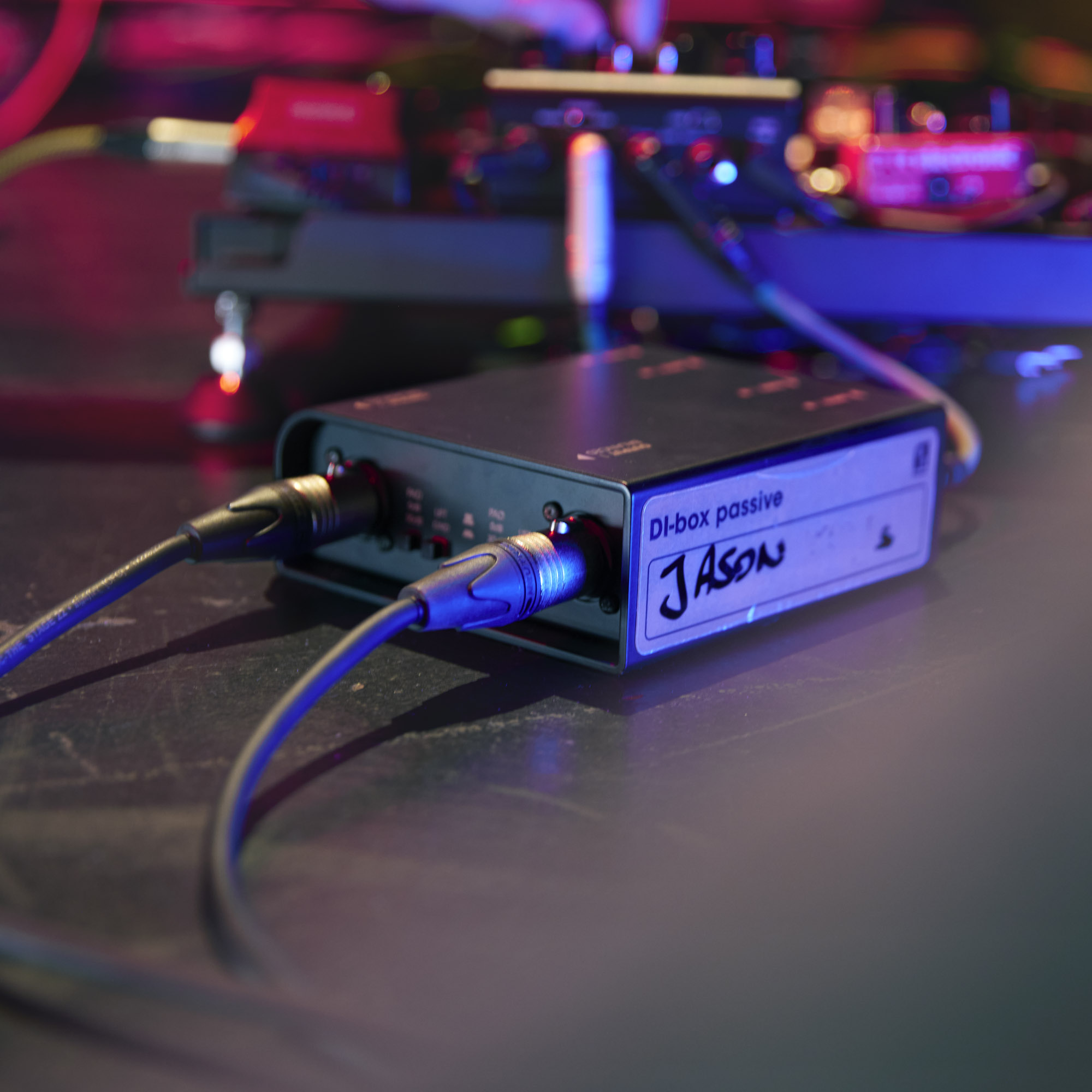

| Accessories (included): | rubber feet, Inscription label (tour label) |
| Input connectors: | 6.3 mm jack |
| Input attenuation (Pad): | 0 dB / 30 dB |
| Product type: | DI box |
| Relative Humidity: | < 80 % ( non-condensing ) |
| Output impedance (1 kHz): | 25 Ω |
|---|---|
| Transformer ratio: | 10 : 1 |
| Max. input level (< 1% THD, 20 Hz): | +20 dBu |
| THD (30 Hz, +4 dBu, unity, unweighted): | < 0,03 % |
| Frequency response (±0,2dB, relative 1kHz): | 5 Hz - 80 kHz |
| THD (1 kHz, +4 dBu, unity, unweighted): | < 0,002 % |
| IMD (SMPTE) (60 Hz / 7 kHz, 4:1, +4 dBu): | < 0,002 % |
| Max. input level (< 1% THD, 1 kHz): | +32 dBu |
| Input impedance (1 kHz): | 38.5 KOHM |
Login
accessories

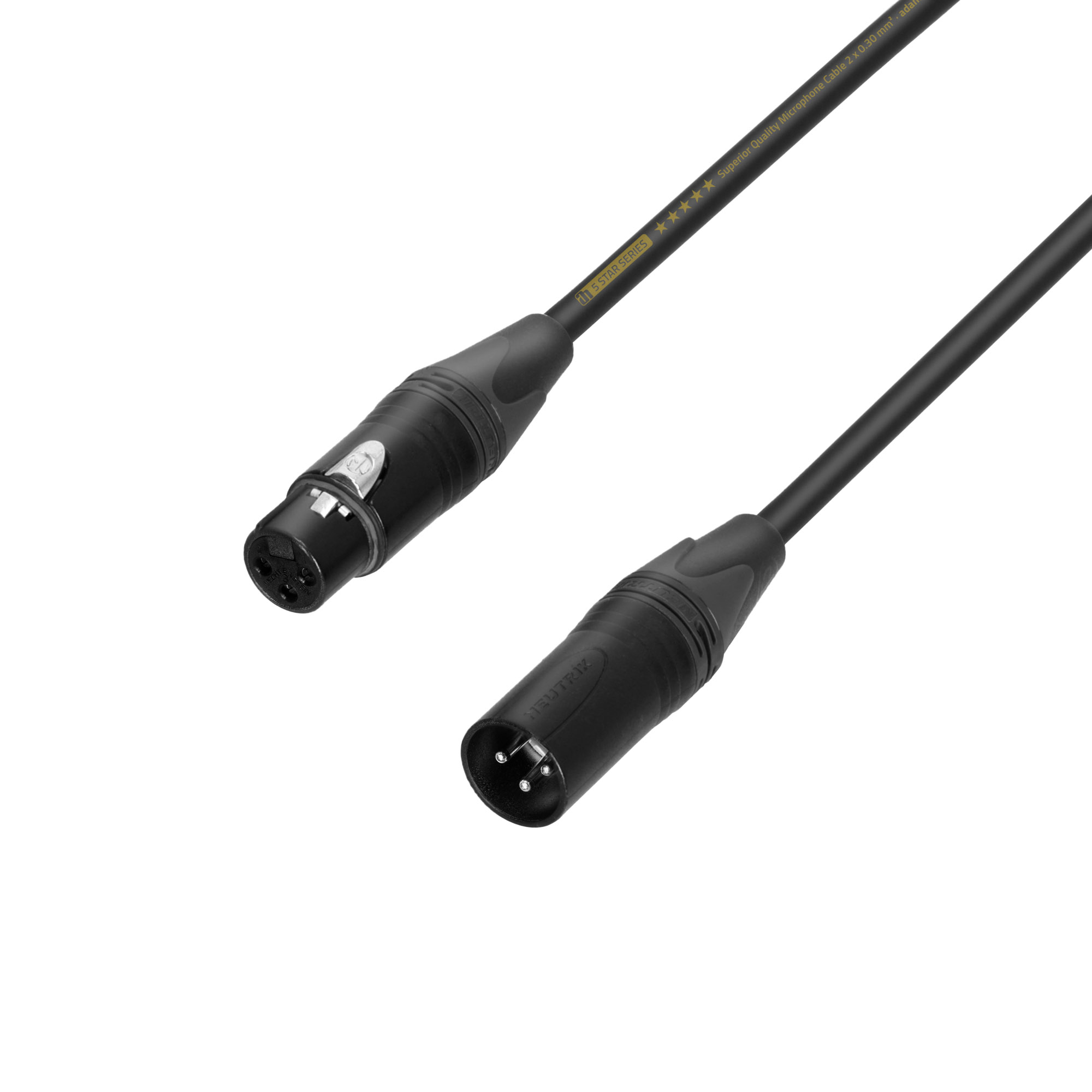

For professional applications on stage, in the studio or in the rehearsal room, excellent quality is available with our 5 STAR SERIES. This cable is made in the EU and therefore meets the relevant requirements for professional use.Durability and reliability find their master in the hard road everyday life! We have therefore developed a cable that is not only flexible, but also very robust. We use a special soft-PVC compound for all cables of the 5 STAR SERIES, which is friction resistant and bendable. For excellent signal transmission, but is also more abrasion resistance. The cable comes with a cable tie and two transparent, loose heatshrinks for labeling.Engineered in Germany & Made in EU: This stands for precision & quality.

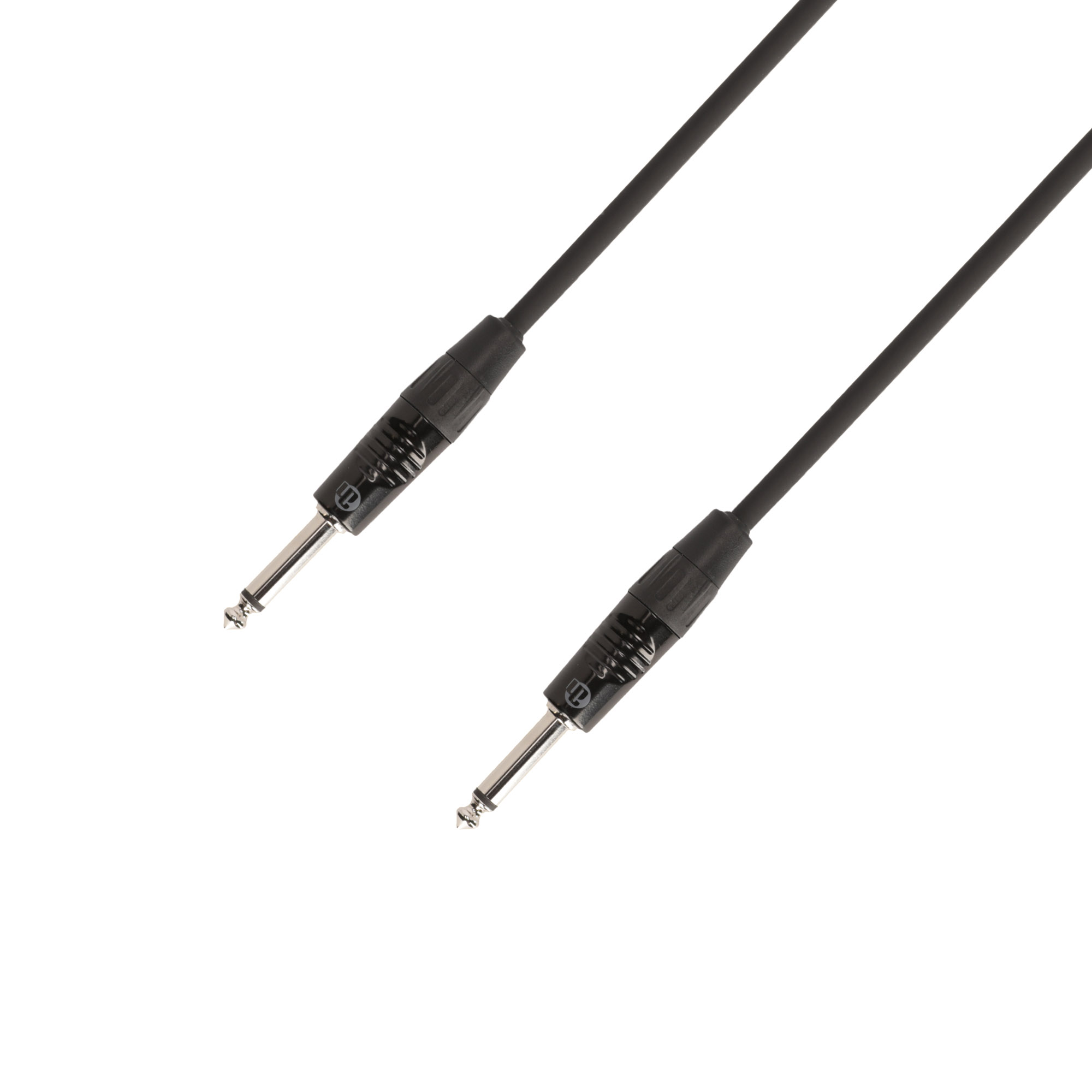

The instrument cable with the perfect price-performance ratio. Manufactured of highly flexible and rugged, double-shielded cable material with REAN © plugs. Practical for live use, making these cables the ideal choice for all patches and connections. Equipped with straight, unbalanced plugs.

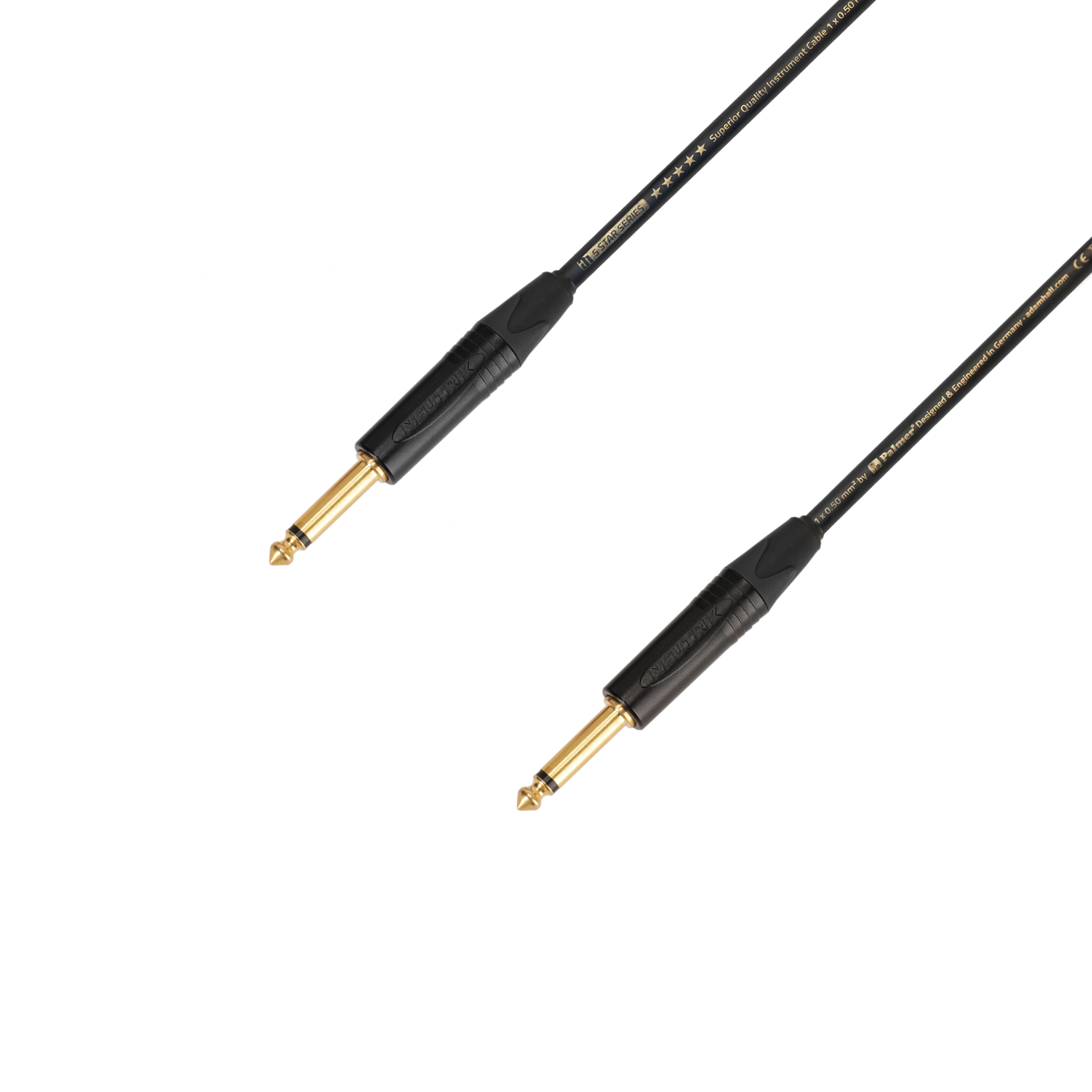

Superior quality on a high performance levelThis "Adam Hall Cables" 5 STAR product is a professional cable which delivers outstanding sound quality for the most demanding players.With musicians in mind who are seeking the full sound spectrum of their beloved instruments, our crew at Palmer® developed this super low restistance and low capacitance cable, and a braided shielding to avoid magnetic interferences to nearly 100%. The result of this Adam Hall Cables X Palmer® cooperation is an unaltered and balanced sound!In order to reach the superior quality, we only assemble original Neutrik® connectors with gold plated contacts. Palmer® products as well as Adam Hall Cables are engineered in Germany.
