PAN 03
19" DI box 4-channel active
$429.99
Backordered – More on the Way!
Product information "PAN 03"

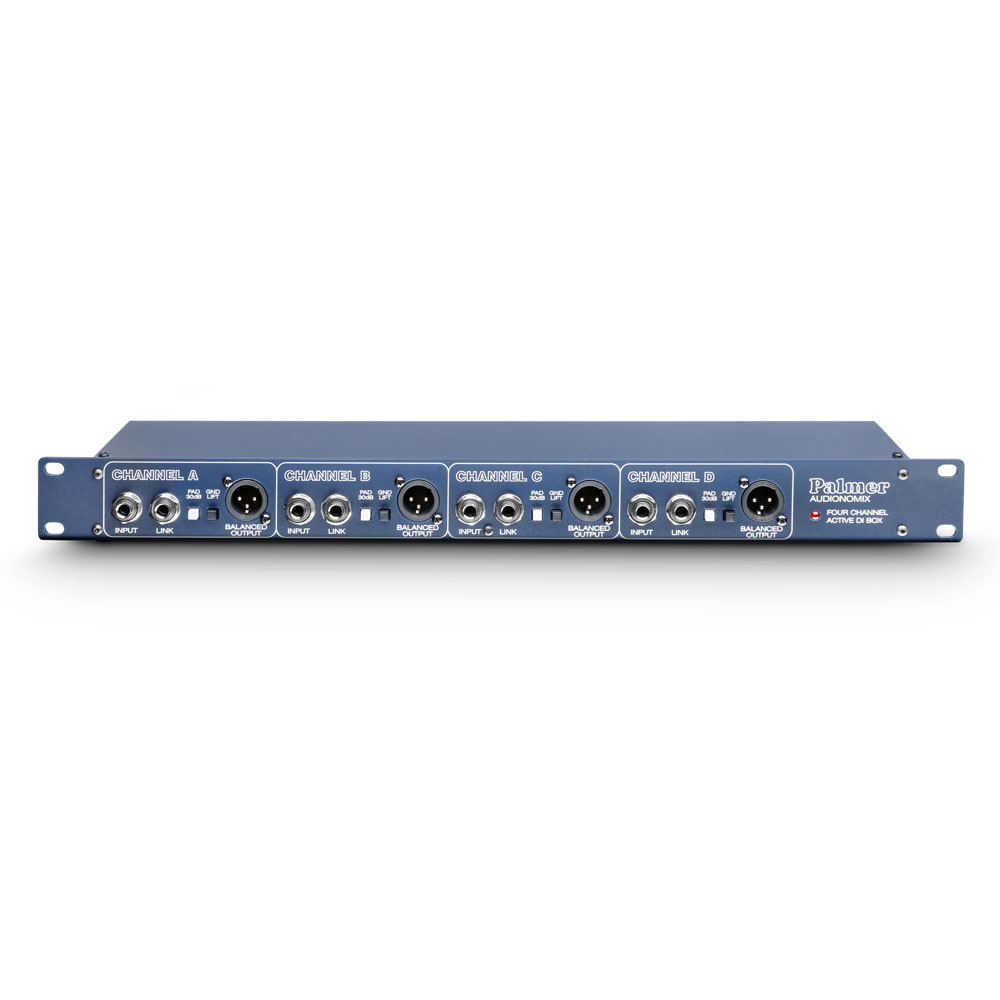

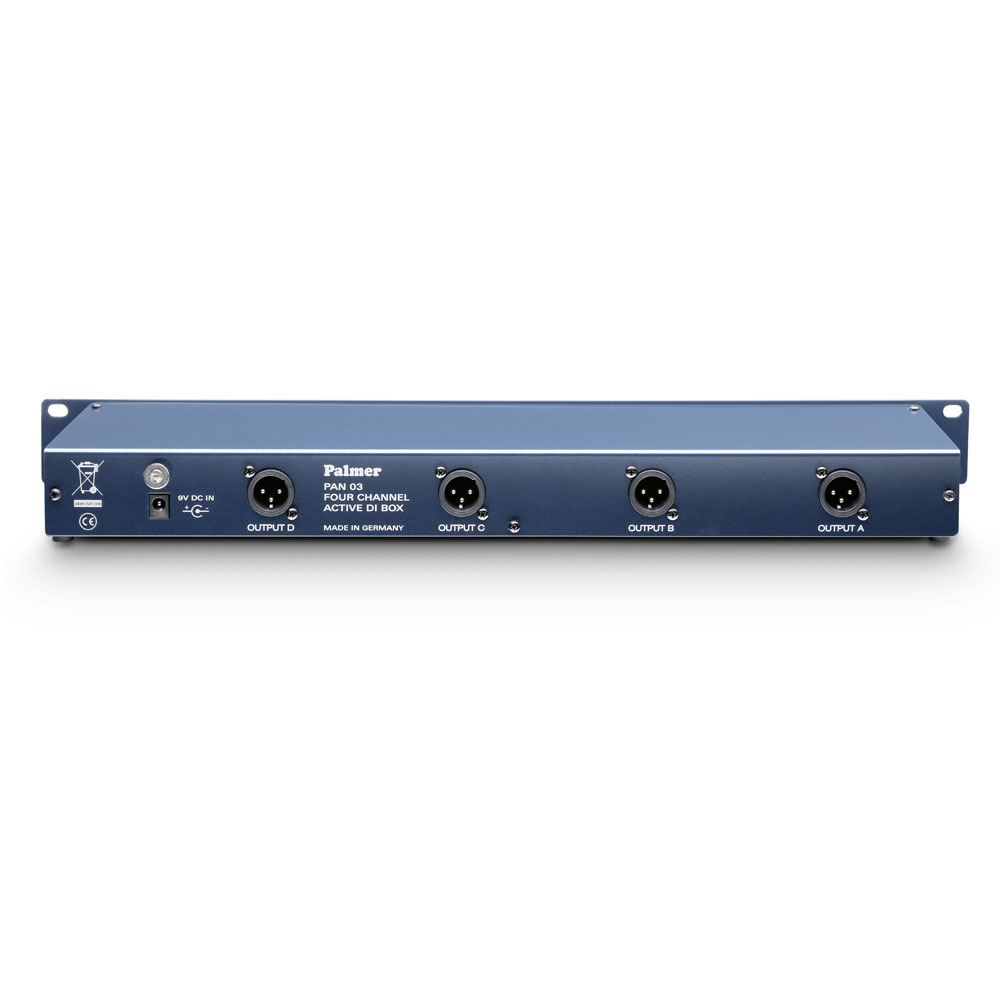

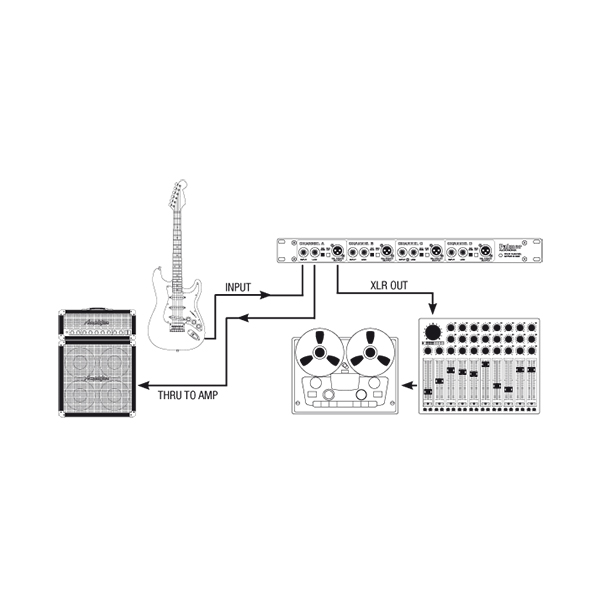

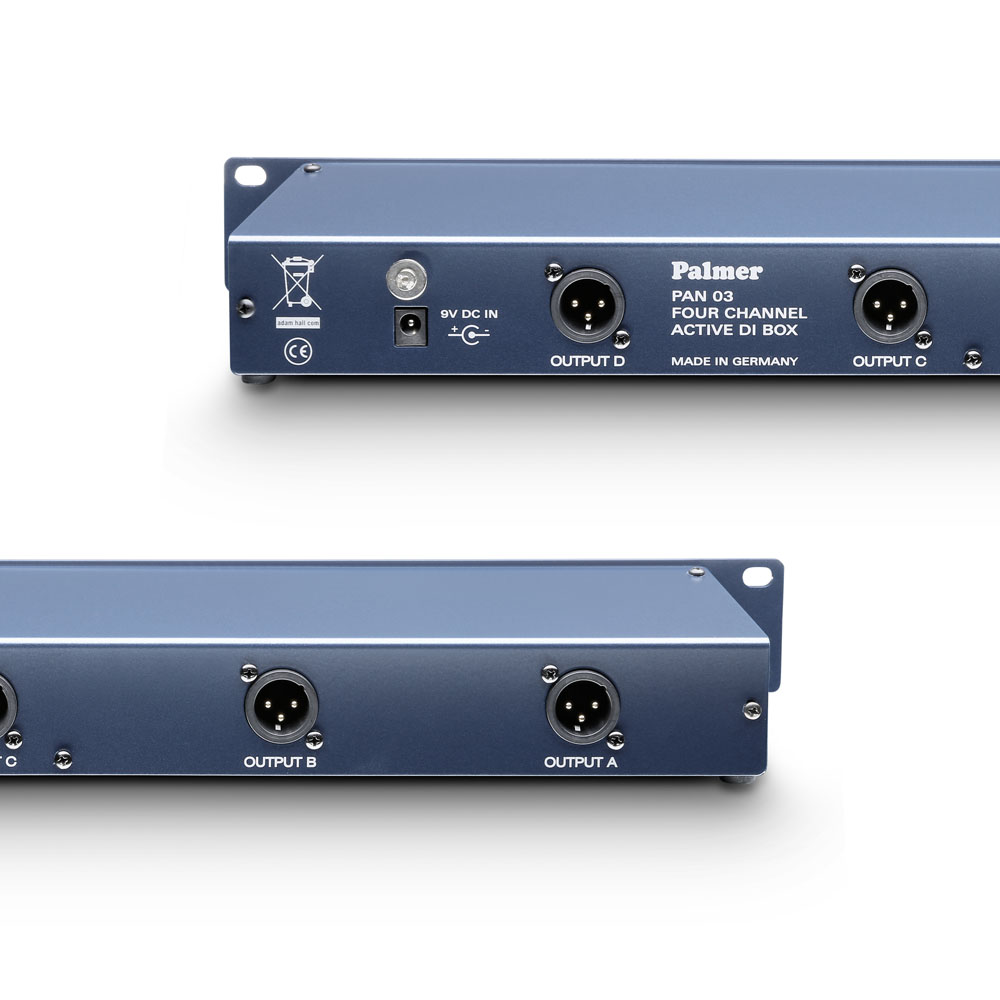

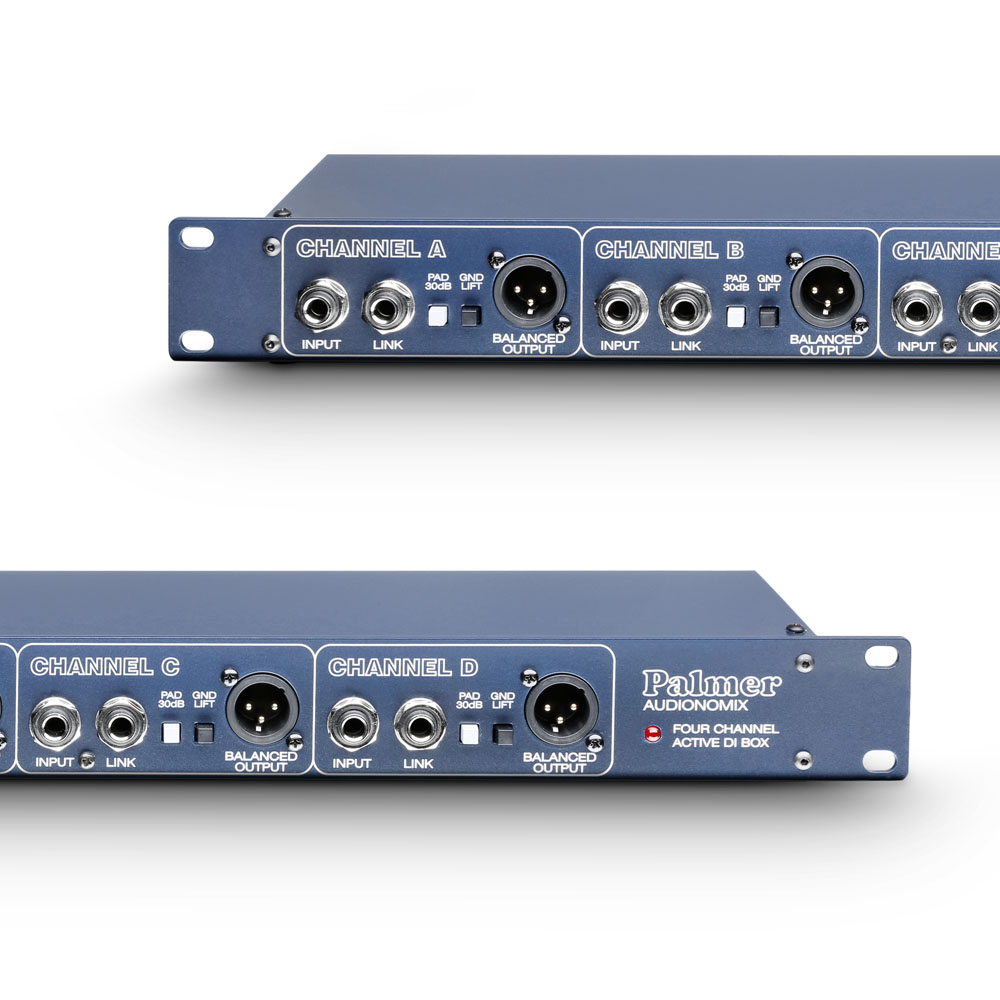

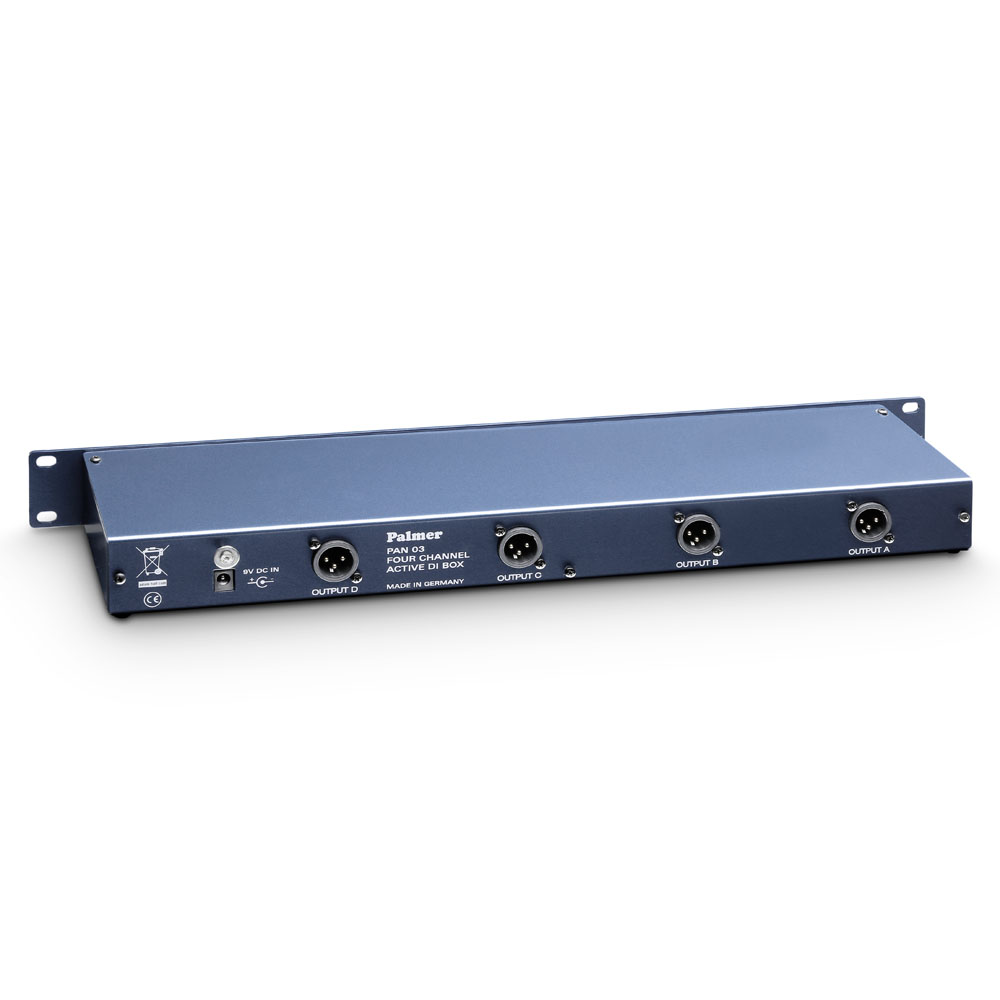

Active 4-channel DI box. Each channel has a jack input with a parallel output for passing through the signal. An attenuation switch (-30 dB) allows either a line or loudspeaker signal to be connected.Active 4 x DI box, 19" format. Technical specitications identicl to the PAN-02, however, the PAN-03 is built for mains operation. All connections and switches are located on the front panel, an additional parallel XLR output is located in back. 19 inch rack-mount format, 1 rack space, 90 mm front to back.
| Input pad: | 0 / -30 dB |
|---|---|
| Cabinet surface: | Powder coated |
| Indicators: | Power |
| Max. input level: | + 45 dBu |
| Output connectors: | XLR, 6.3 mm jack |
| Channels: | 4 |
| THRU outputs/channel: | 1 |
| Height: | 1.77 in |
| Frequency response: | 10 - 20000 |
| Transformer balanced: | Yes |
| Height: | 1 U |
| Controls: | attenuator, ground lift |
| Product type: | DI boxes |
| Ratio: | 10 : 1 |
| Power supply: | external |
| Number of outputs: | 4 (+ 4 parallel XLR outs) |
| Output impedance: | 600 |
| Max. output level: | + 10 dBu |
| Cabinet material: | sheet steel |
| Type: | active |
| Width: | 18.9 in |
| Input connectors: | 6.3 mm jack |
| Input impedance: | (@ 60 Hz) 1 M |
| Inputs: | 4 |
| Depth: | 3.54 in |
| Width: | 19 Inch |
