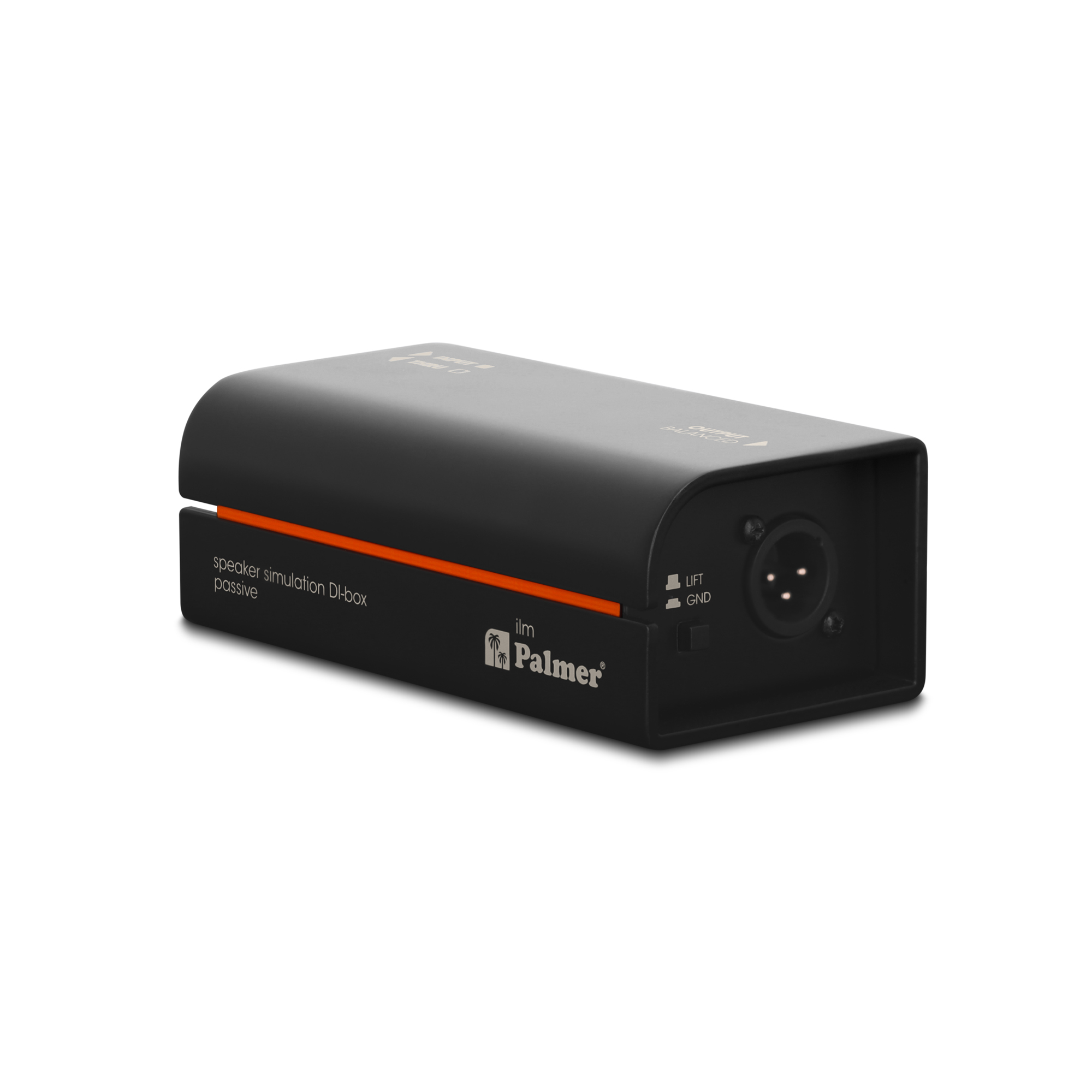

RIVER ilm
Passive speaker simulation DI box
$149.99
Backordered – More on the Way!
Product information "RIVER ilm"
You've found your perfect amp sound, but somehow it sounds different on every stage?

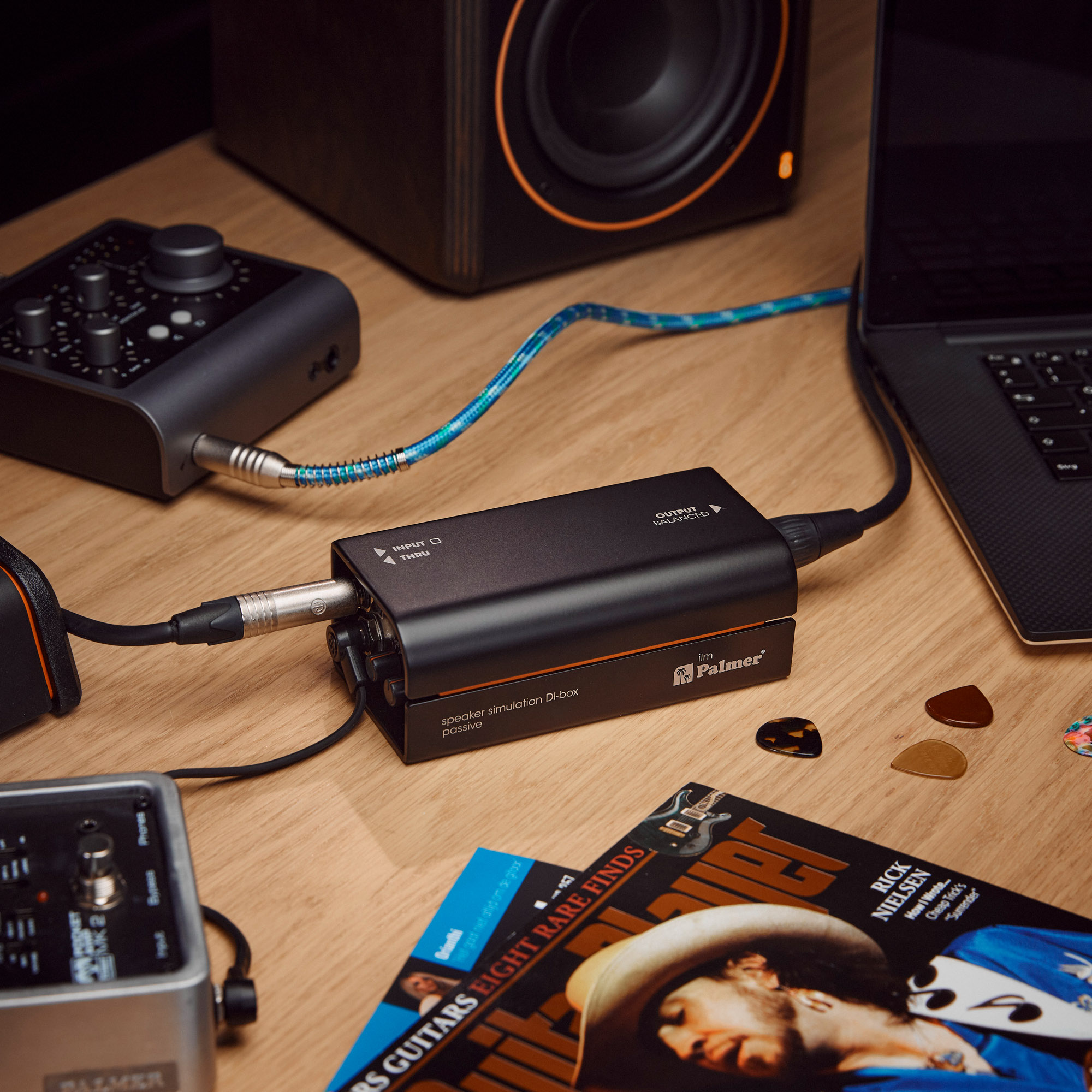

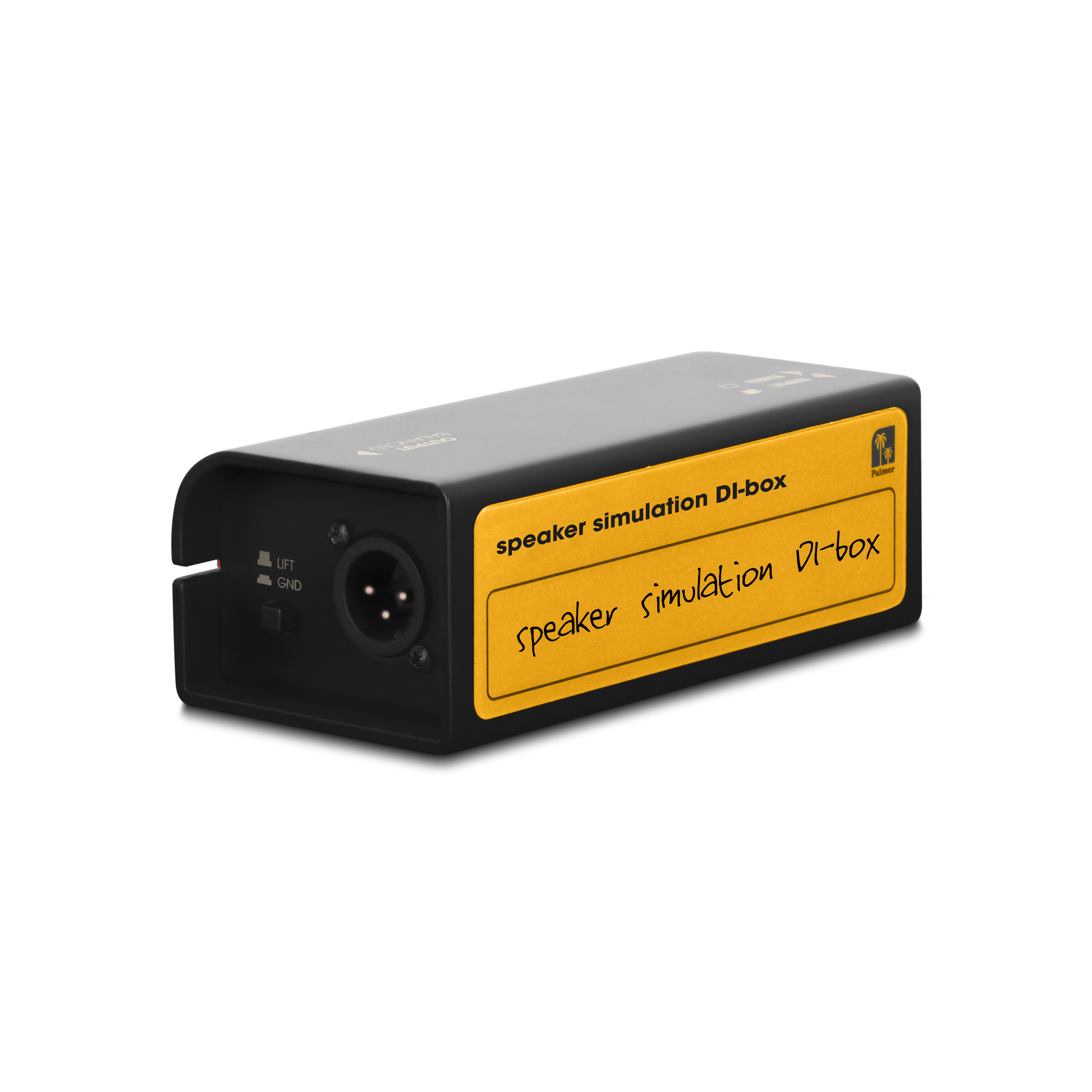

The Palmer ilm speaker simulation DI box removes all the uncertainties of amp micing such as microphone choice, acoustic environment and positioning. With a sophisticated filter switch simulating the sound behaviour of a real guitar speaker, it captures your authentic sound, even without a microphone. Its direct signal always sounds the same, whether at home, in the (home) studio, during rehearsals, or on stage, whatever the room size.

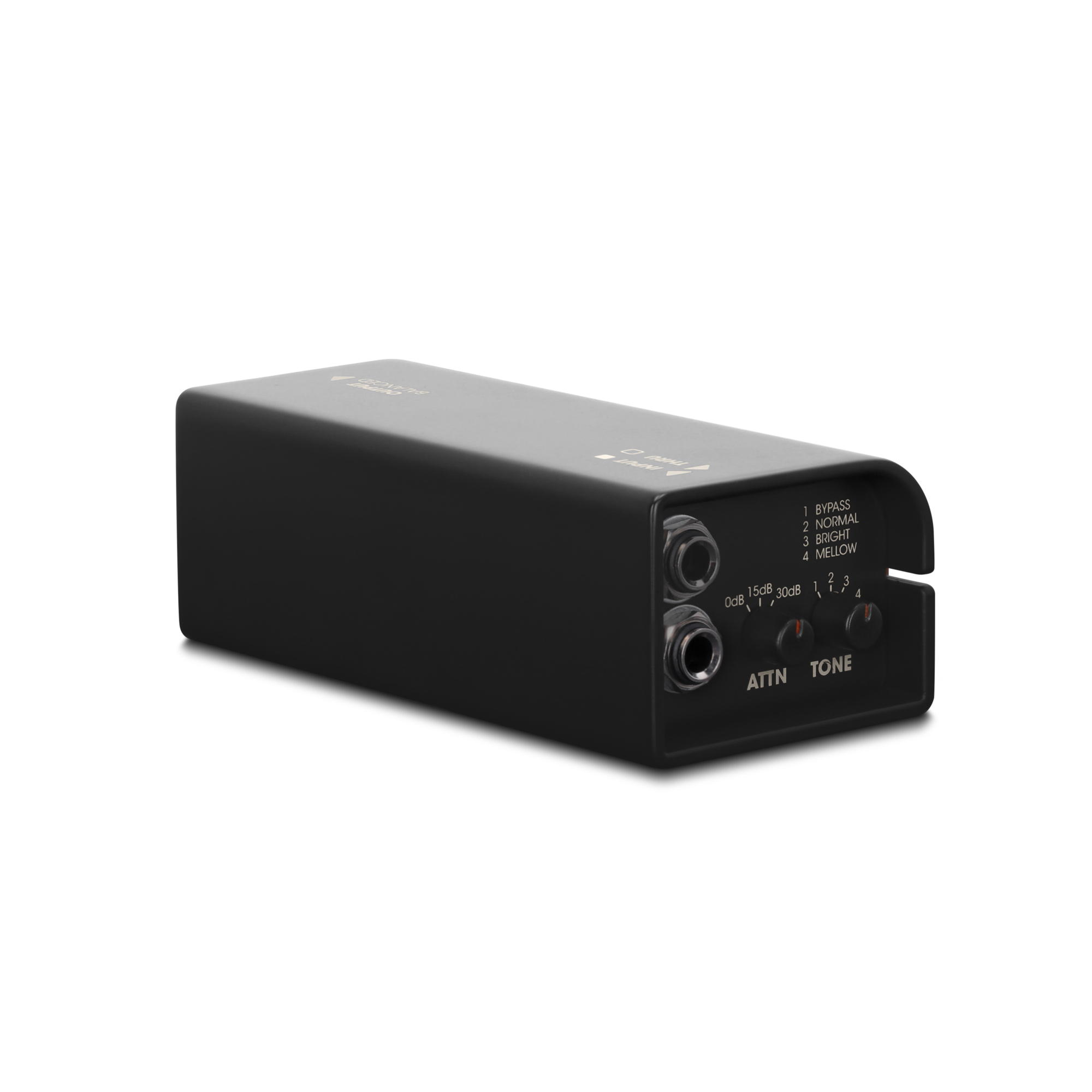

The Palmer ilm offers three analog guitar speaker simulation settings, which represent typical guitar speaker models. We'll leave the flowery names to the others; on the Palmer ilm , they are called "normal", "mellow" and "bright".

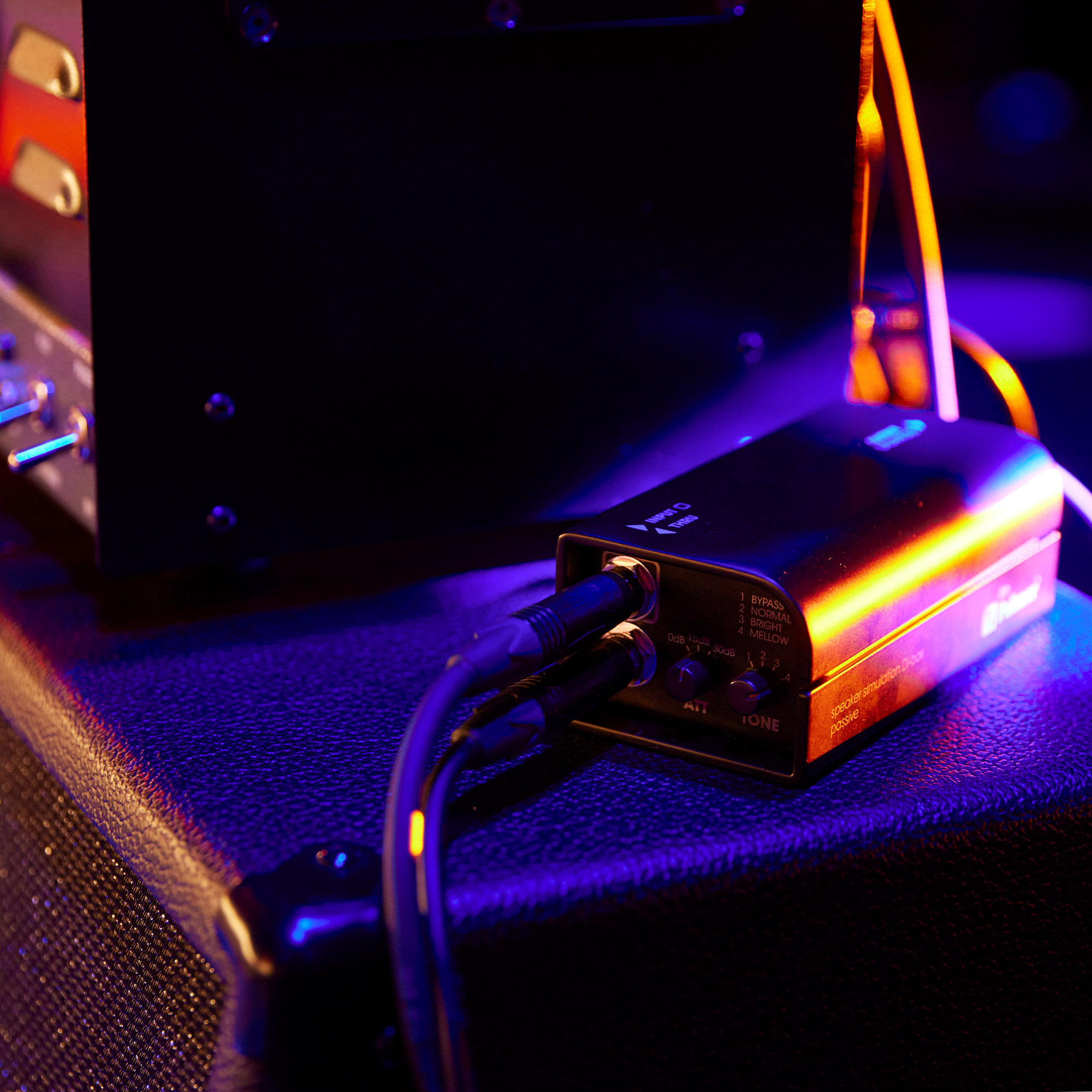

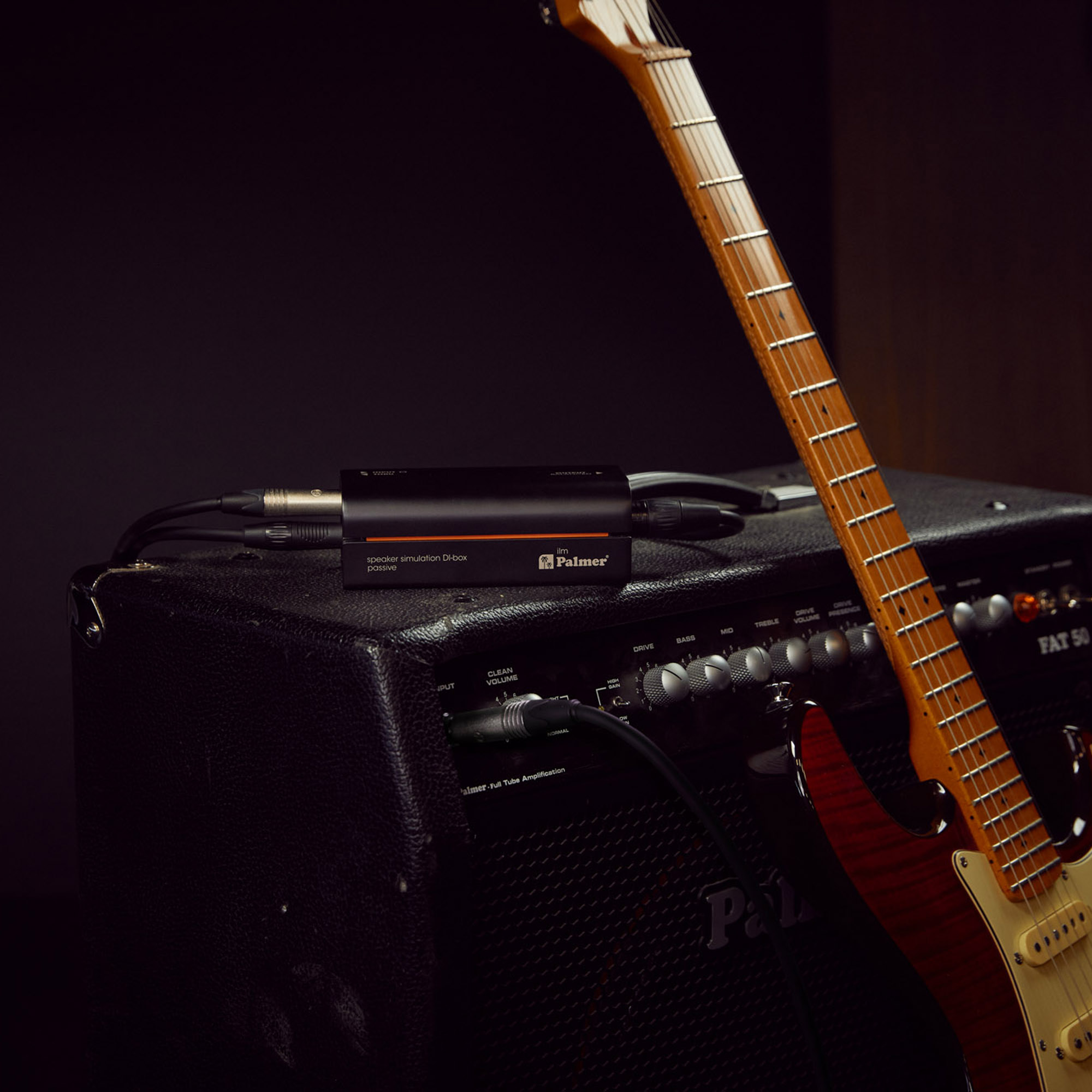

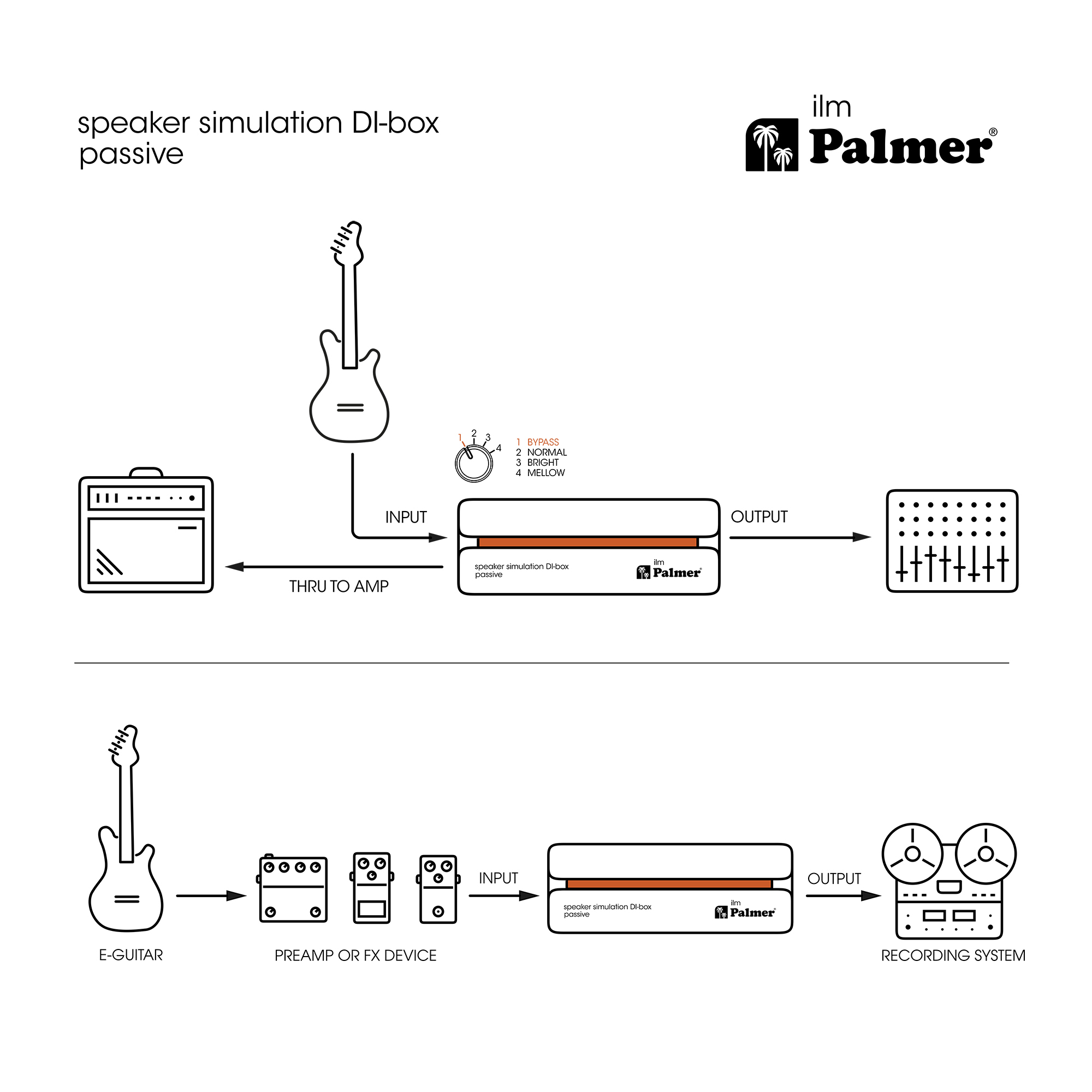

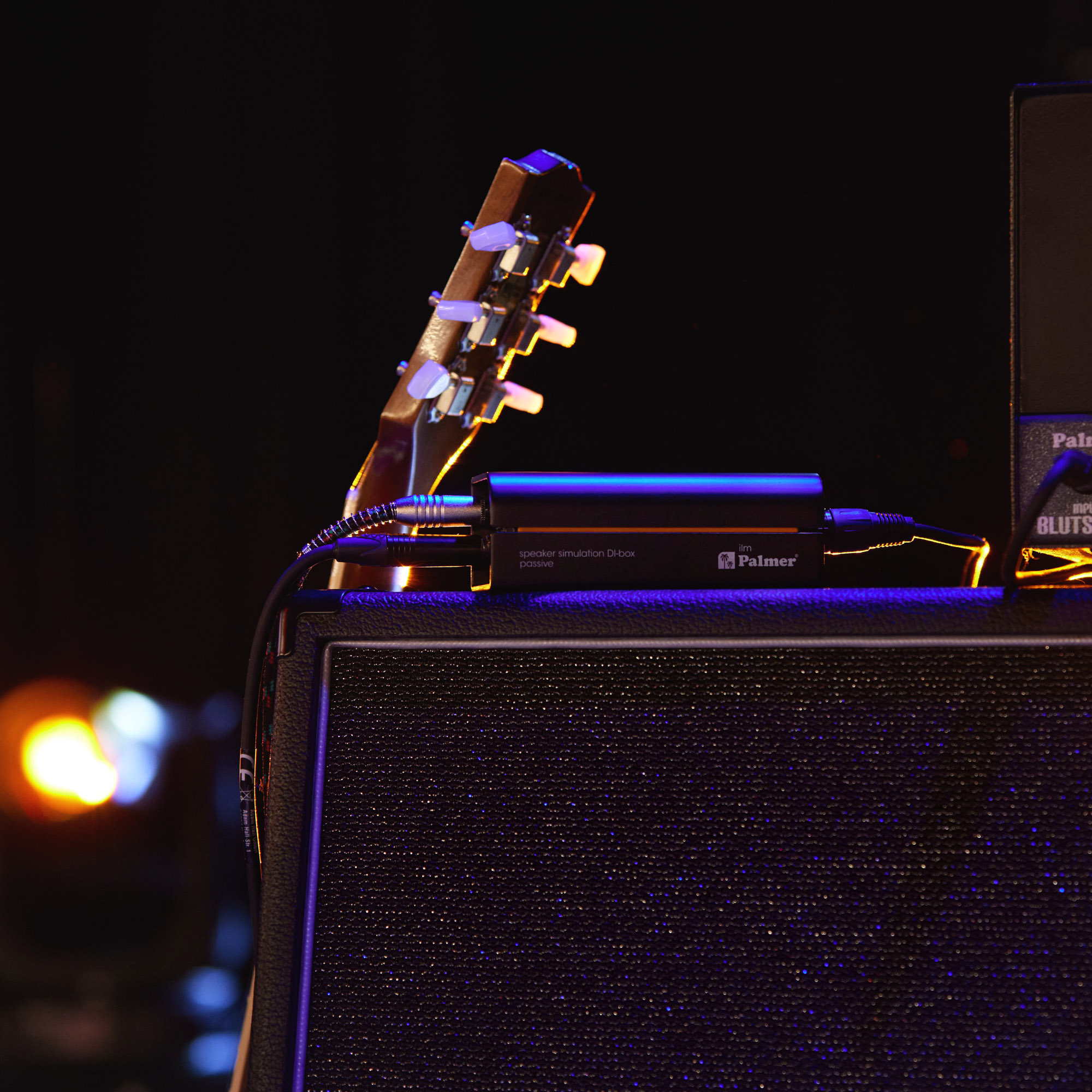

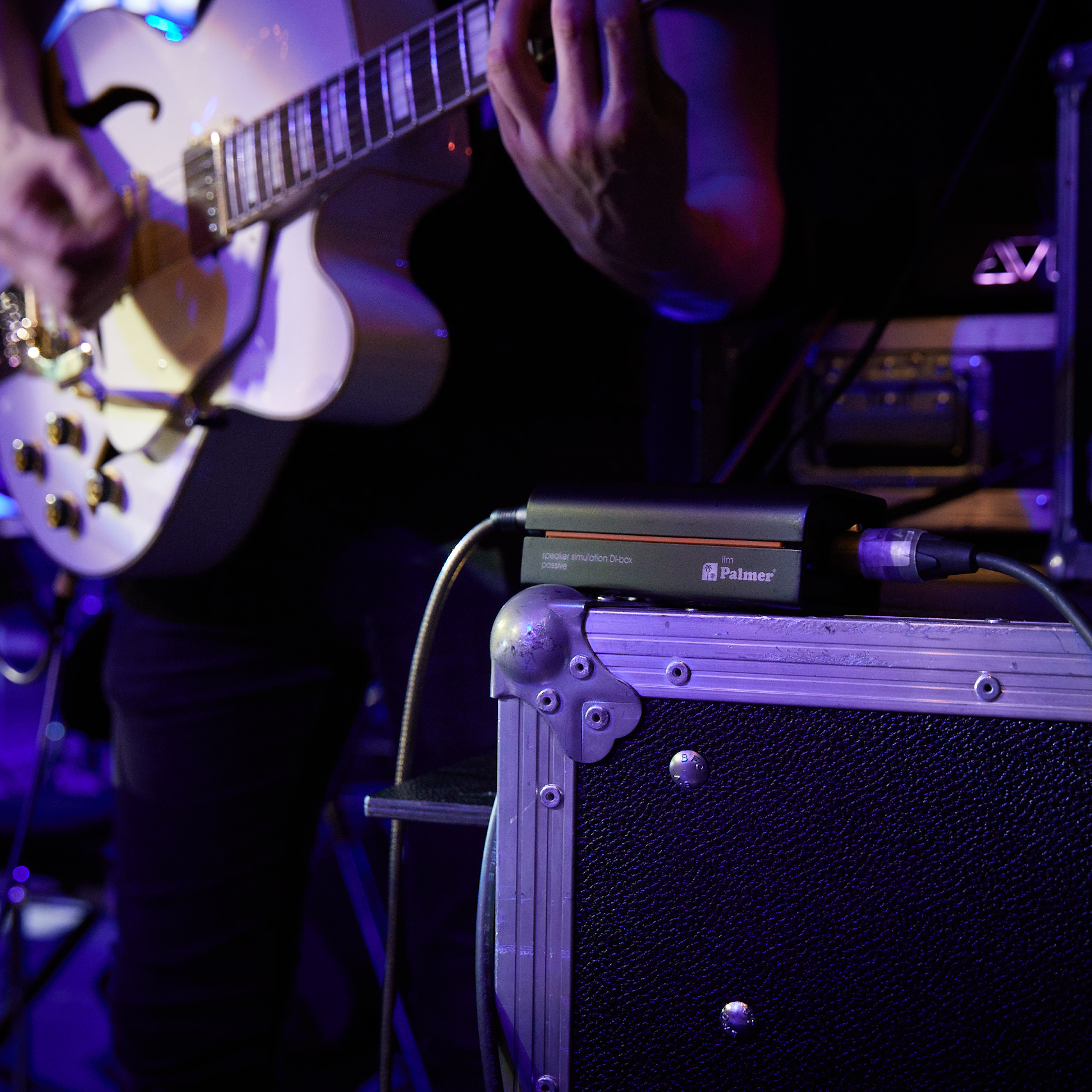

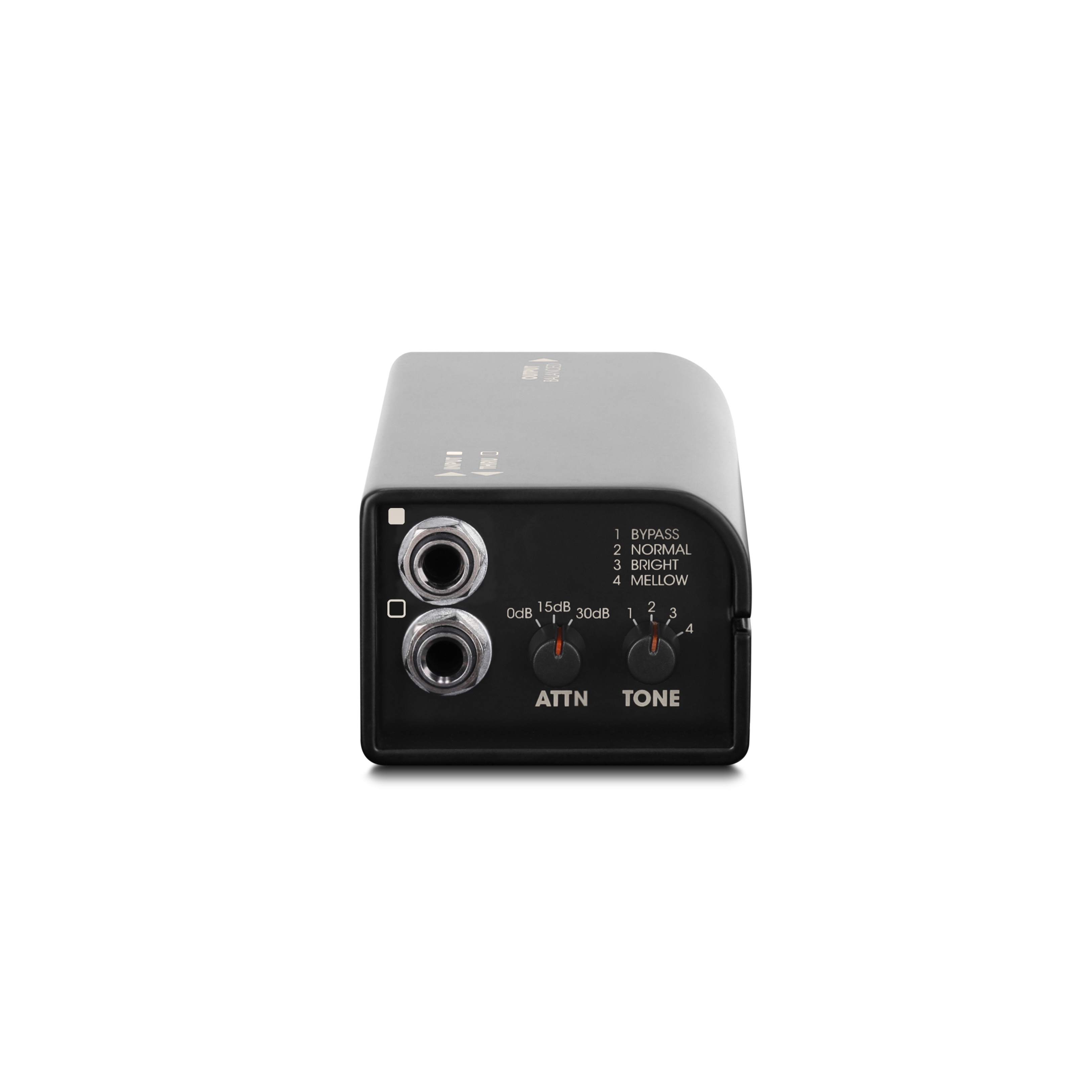

Generally, the Palmer ilm is looped in between the guitar amp output and guitar speaker; but it can also be operated on the amplifier's line out. For input-level adjustment, the ilm has a pad switch with three settings: 0, -15 and -30 dB.

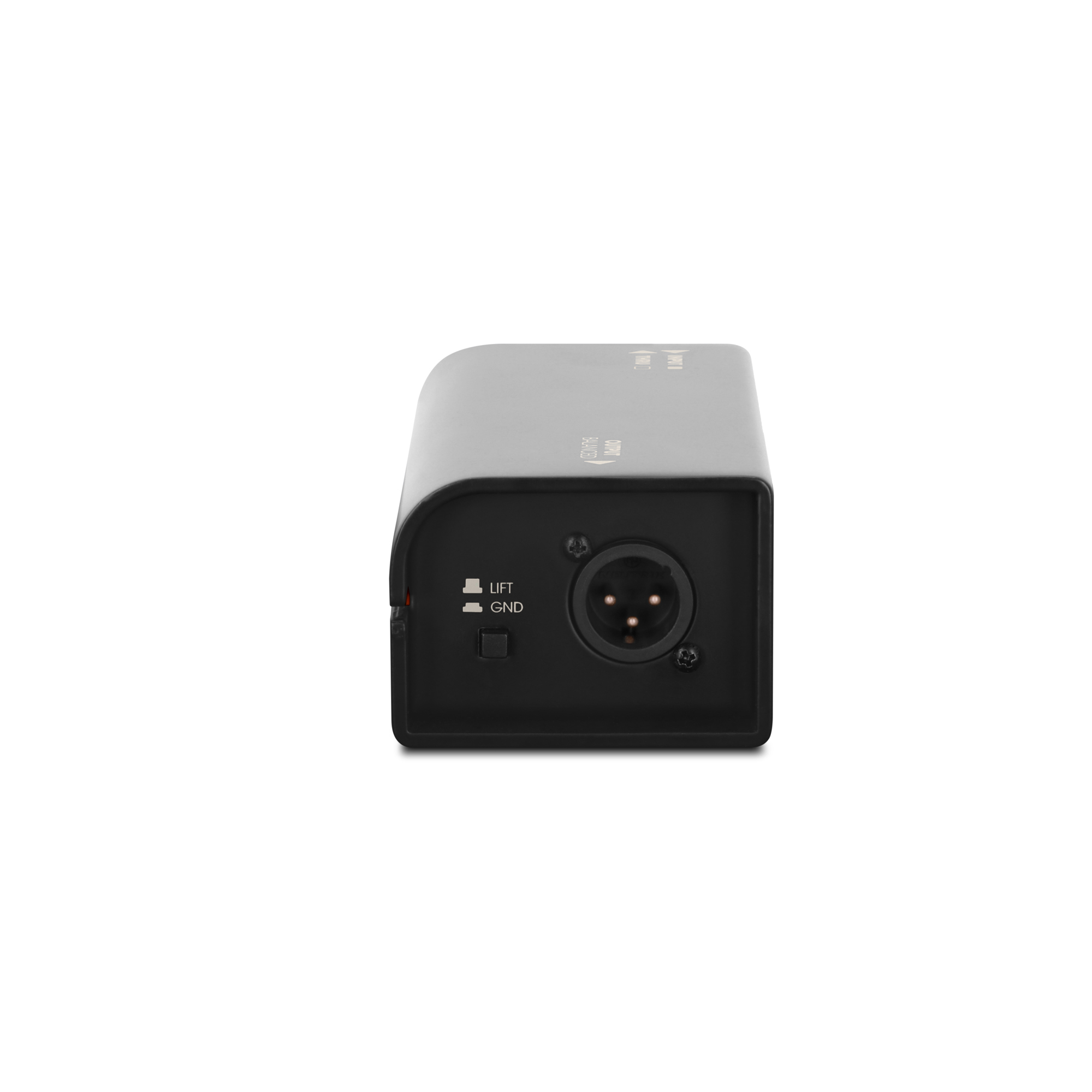

The output of the Palmer ilm is balanced and transformer isolated which means there is no interference or ground loop hum when connecting it to a mixing console or audio interface. With the Palmer ilm, you can always rely on what really matters: Your music, your instrument and your sound.
| Ambient temperature (in operation): | - 20 - 70 °C |
|---|---|
| Type: | passive |
| Housing material: | Aluminium continuous casting |
| Width: | 5.51 in |
| Output connectors: | XLR |
| Input type: | unbalanced |
| Output type: | balanced |
| More features: | Tone: Bypass, Normal, Bright, Mellow |
| Depth: | 2.68 in |
| Height: | 1.97 in |
| Outputs: | 1 |
| Number of inputs: | 1 |
| Product type: | Speaker Simulation DI-Box |
| Transformer isolated: | Yes |
| THRU outputs per channel: | 1 |
| Channels: | 1 |

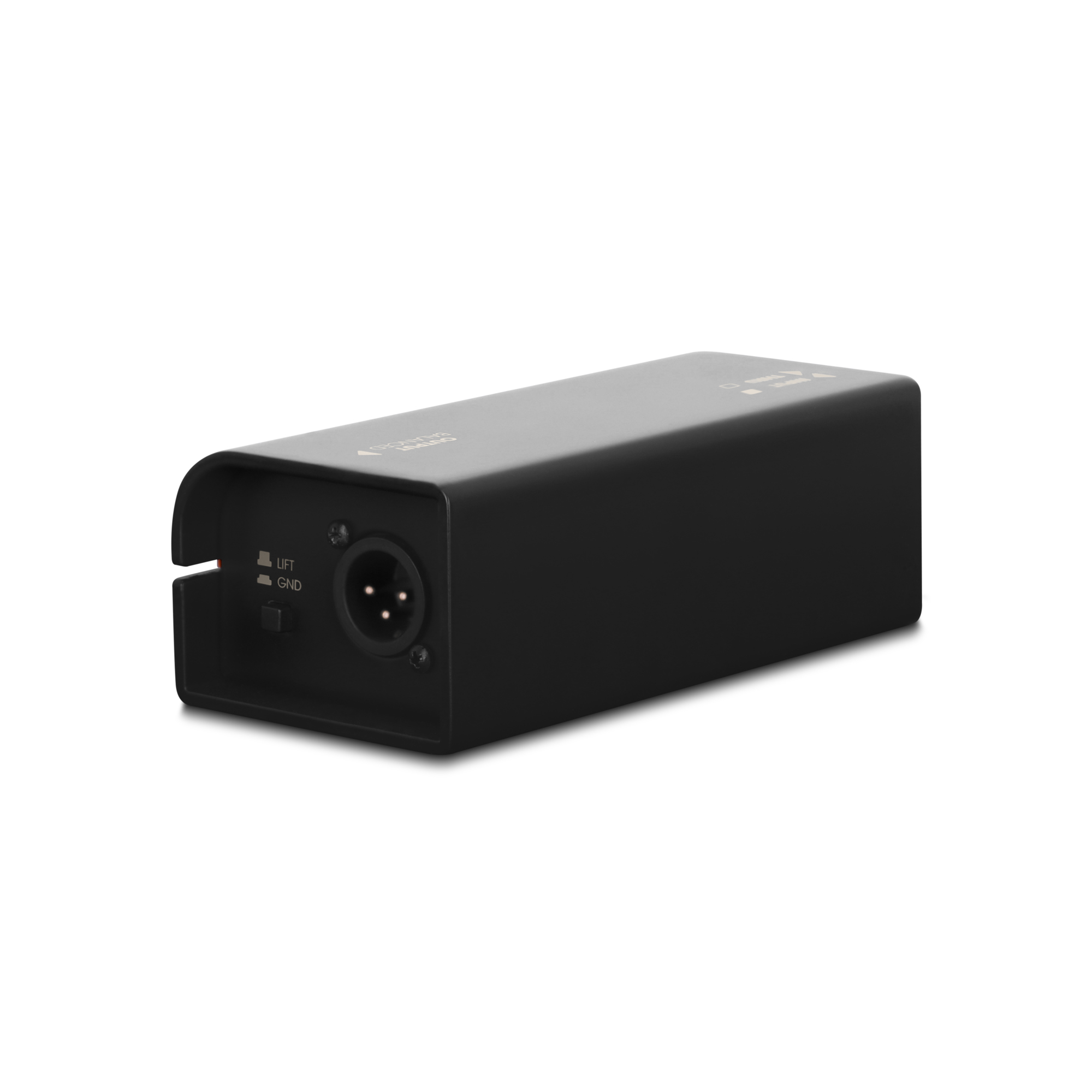

| Ground lift switch: | Yes |
| Accessories (included): | rubber feet, Inscription label (tour label) |
| Input connectors: | 6.3 mm jack |
| Relative Humidity: | < 80 % ( non-condensing ) |
| Transformer ratio: | 1:5 |
|---|---|
| Frequency response (±1 dB, relative 1 kHz): | 10 Hz - 60 kHz |
| THD (30 Hz, +4 dBu, unity, unweighted): | < 0,25 % |
| Max. input level (< 1% THD, 20 Hz): | +12 dBu |
| Input impedance (1 kHz, max. Level, -10dBV): | 8,8 kOhm |
| THD (1 kHz, +4 dBu, unity, unweighted): | < 0,009 % |
| IMD (SMPTE) (60 Hz / 7 kHz, 4:1, +4 dBu): | < 0.005 % |
| Max. input level (< 1% THD, 1 kHz): | +32 dBu |
| Output impedance (1 kHz, max. Level, -10dBV): | 125 Ohm |
Login
accessories

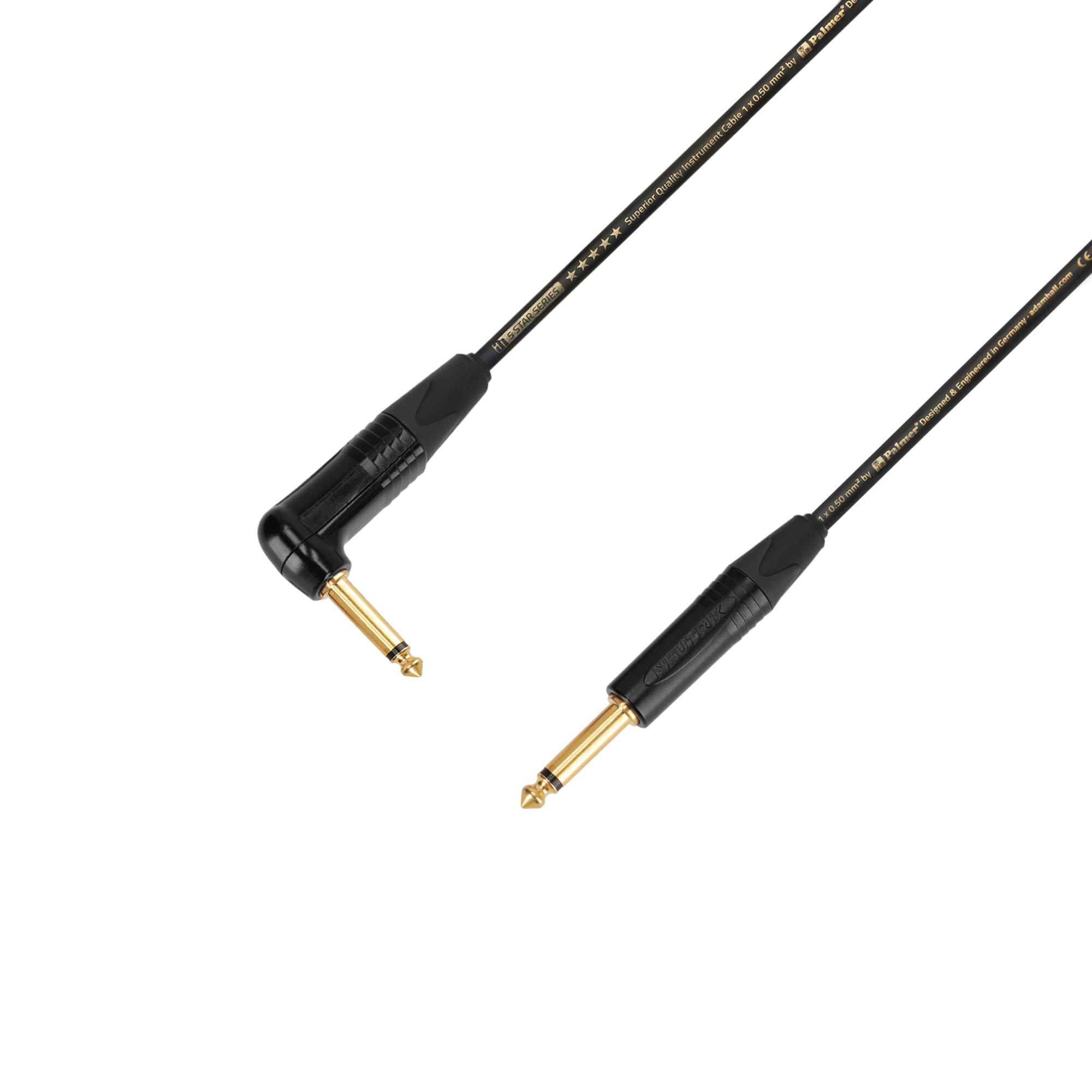

Superior Quality on a high performance levelThis Adam Hall Cables 5 STAR product is a professional cable which delivers outstanding sound quality for the most demanding players.With musicians in mind who are seeking for the full sound spectrum of their beloved instruments, our crew at Palmer® developed this super low restistance and low capacitance cable, and a braided shielding to avoid magnetic interferences to nearly 100%. The result of this Adam Hall Cables X Palmer® cooperation, is an unaltered and balanced sound!In order to reach the superior quality, we only assemble original Neutrik® connectors with gold-plated contacts. Palmer® products as ell as Adam Hall Cables are engineered in Germany.
The instrument cable with the perfect price-performance ratio. Manufactured of highly flexible and rugged, double-shielded cable material with REAN © plugs. Practical for live use, making these cables the ideal choice for all patches and connections. Equipped with straight, unbalanced plugs.
Superior Quality on a high performance levelThis Adam Hall Cables 5 STAR product is a professional cable which delivers outstanding sound quality for the most demanding players.With musicians in mind who are seeking for the full sound spectrum of their beloved instruments, our crew at Palmer® developed this super low restistance and low capacitance cable, and a braided shielding to avoid magnetic interferences to nearly 100%. The result of this Adam Hall Cables X Palmer® cooperation, is an unaltered and balanced sound!In order to reach the superior quality, we only assemble original Neutrik® connectors with gold-plated contacts. Palmer® products as ell as Adam Hall Cables are engineered in Germany.

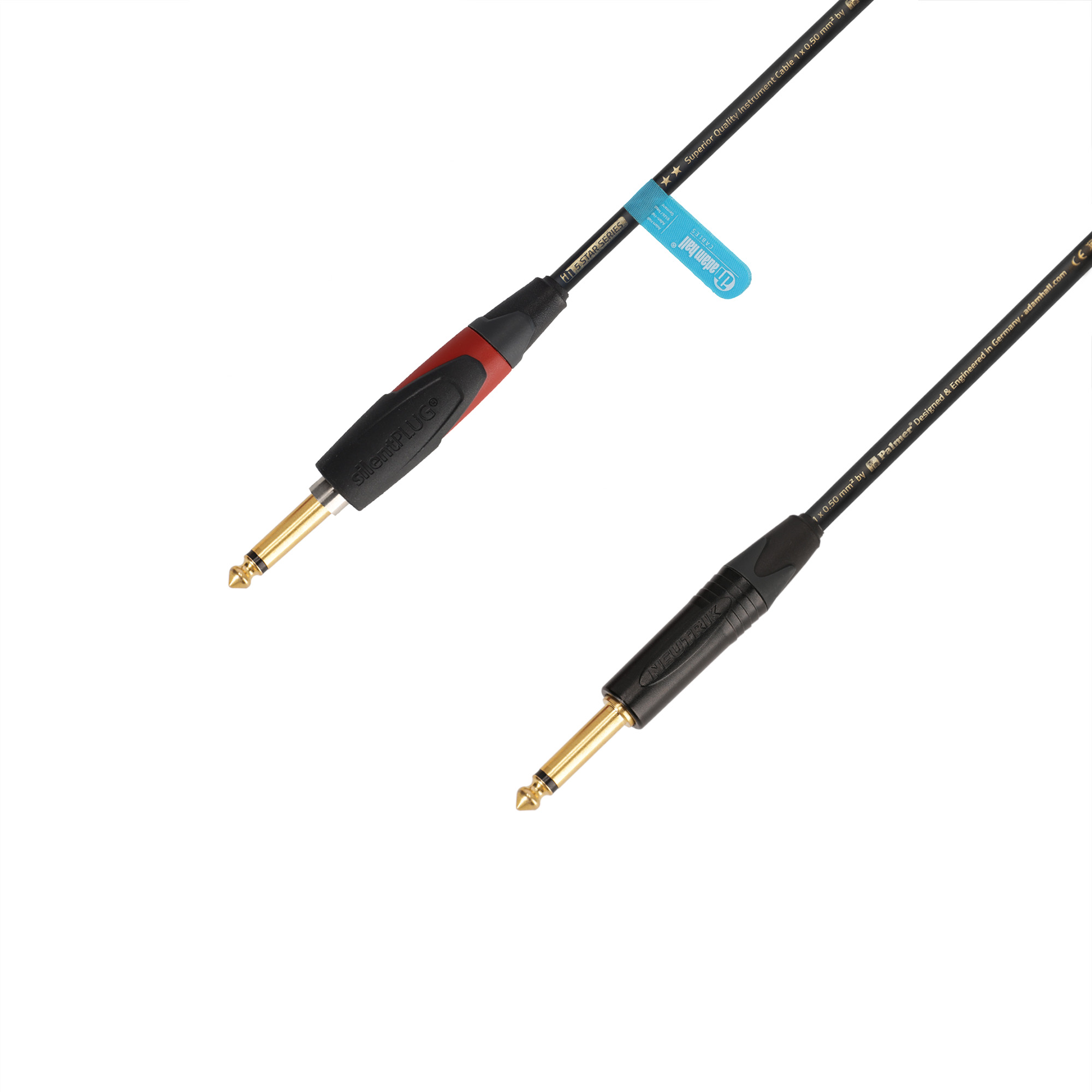

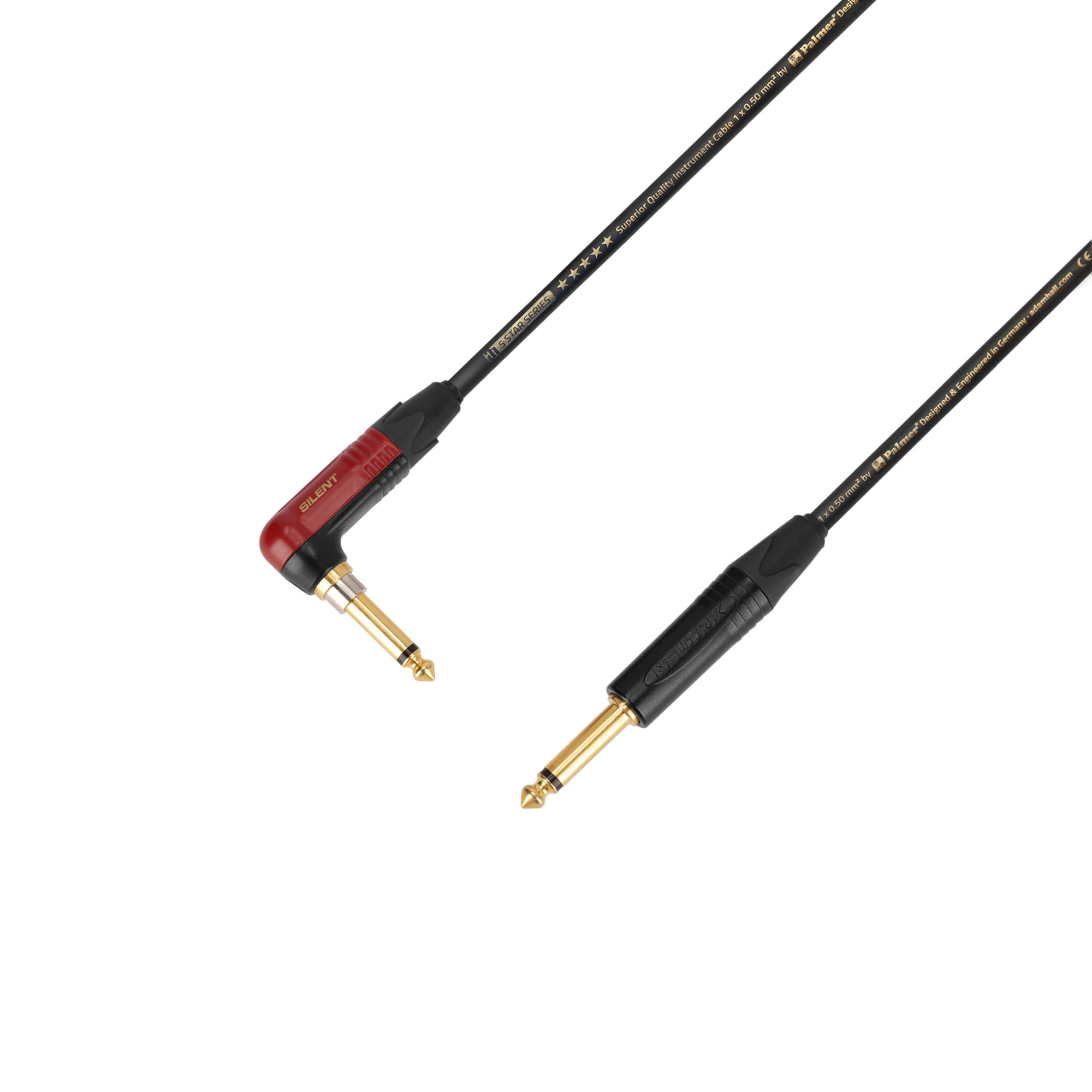

Superior quality on a high performance levelThis "Adam Hall Cables" 5 STAR product is a professional cable which delivers outstanding sound quality for the most demanding players.With musicians in mind who are seeking the full sound spectrum of their beloved instruments, our crew at Palmer® developed this super low restistance and low capacitance cable, amnd a braided shielding to avoid magnetic interferences to nearly 100%. The result of this Adam Hall Cables X Palmer® cooperation is an unaltered and balanced sound!In order to reach the superior quality, we only assemble original Neutrik® connectors with gold plated contacts. On the instrument side of the cable we use the original Neutrik silentPLUG®. It automatically mutes the signal by creating a short cirucuit during the plugging and unplugging process (therefore do not use the silentpLUG® on the amp side!). This prevents cracking and crashing when changing instruments.Palmer® products as well as Adam Hall Cables are engineered in Germany.
