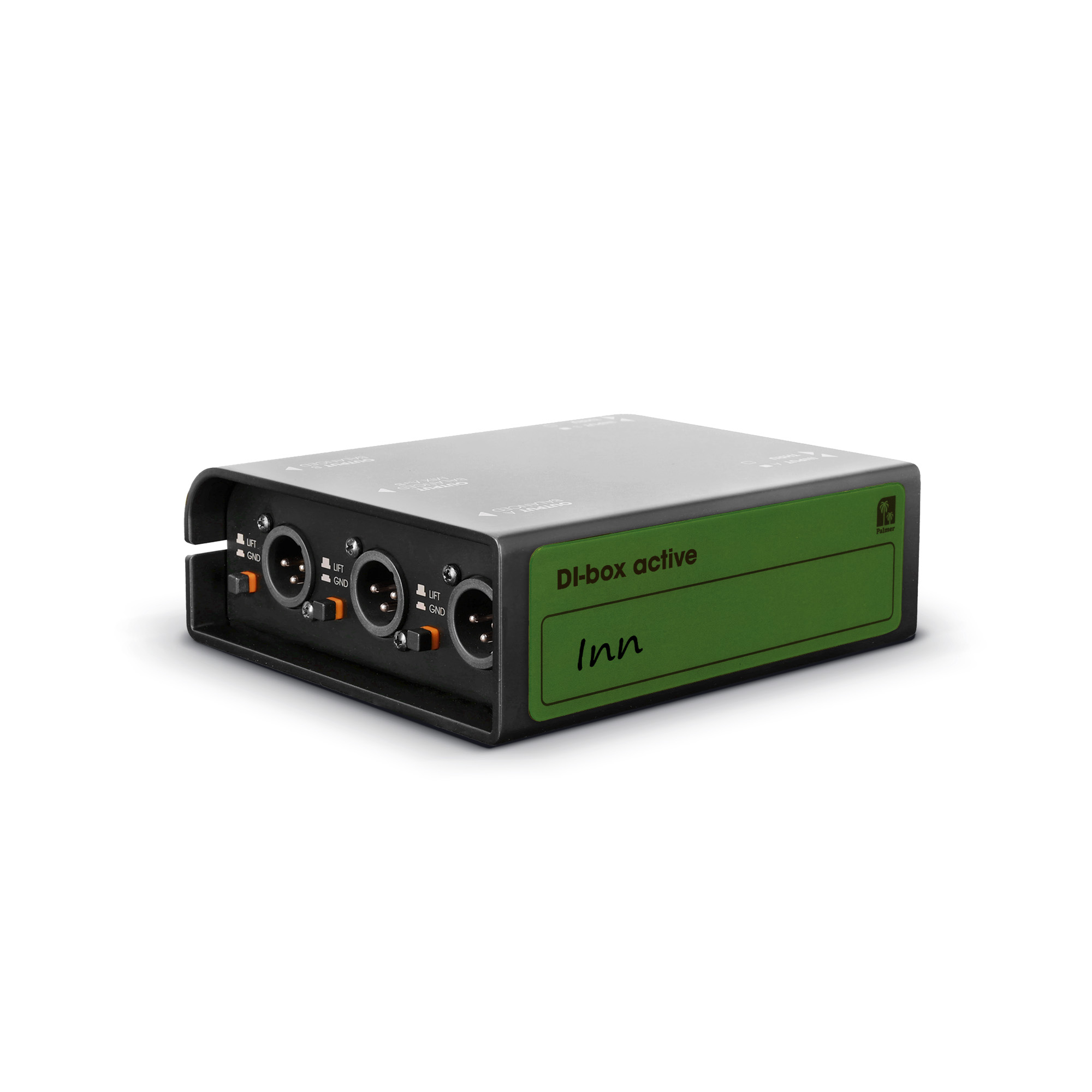

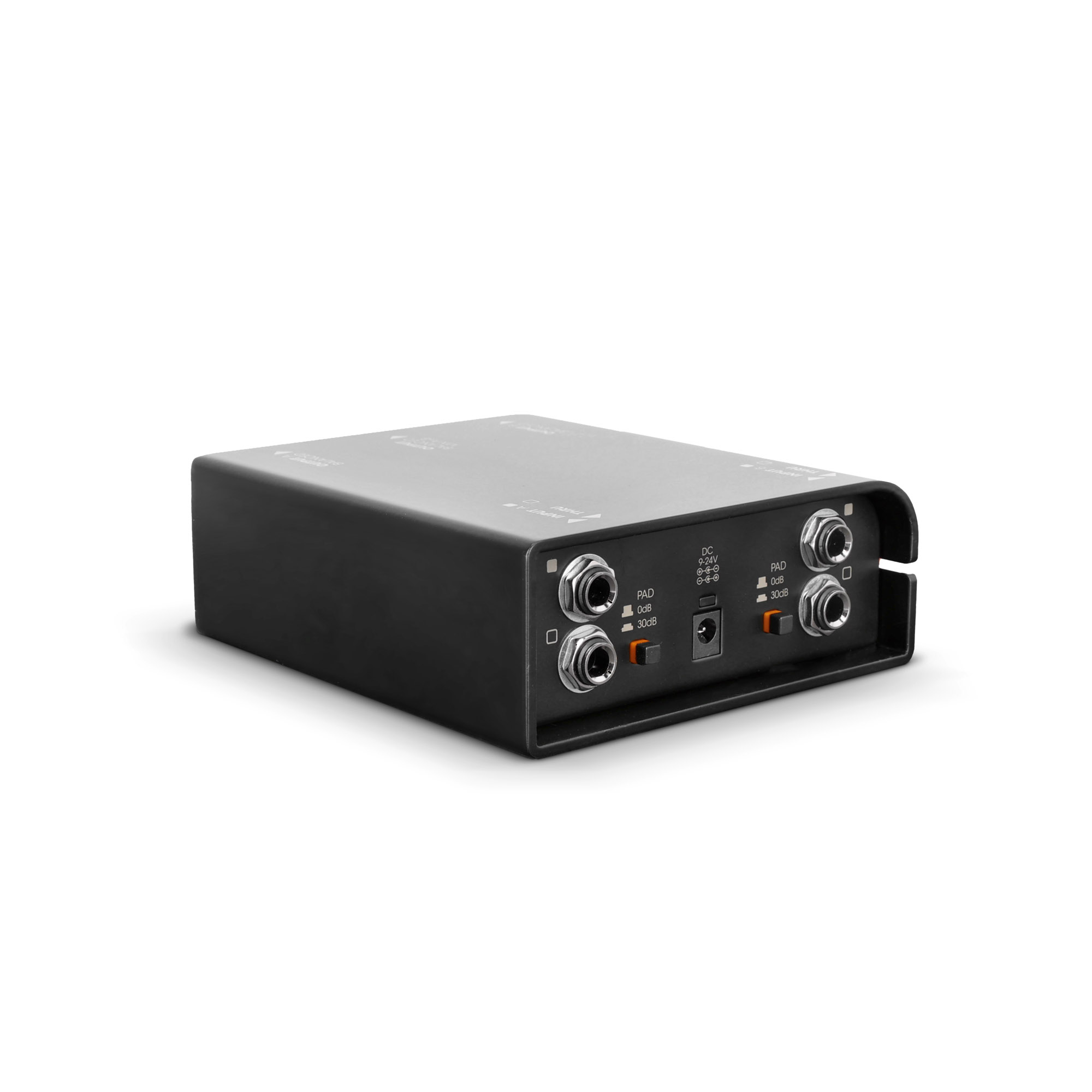

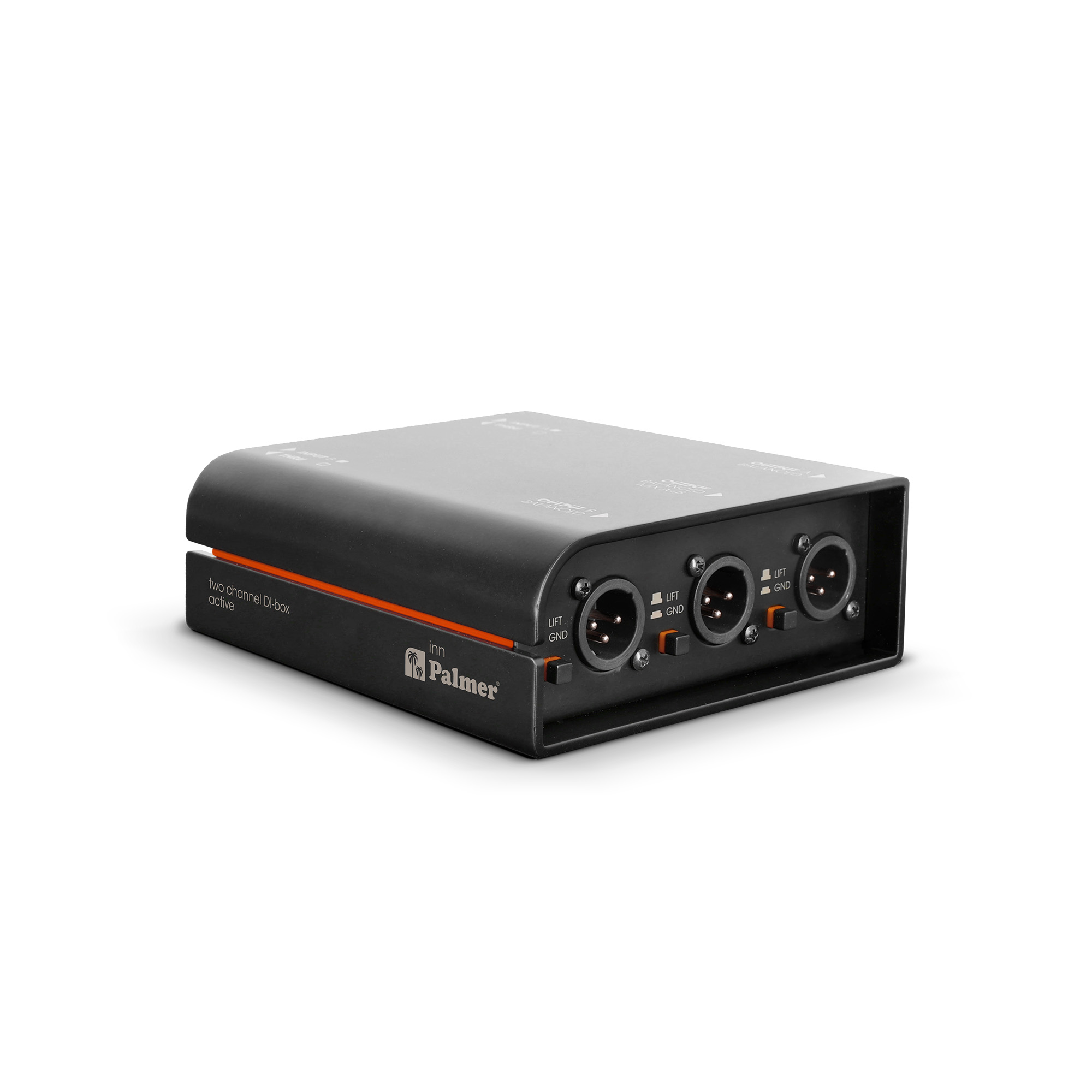

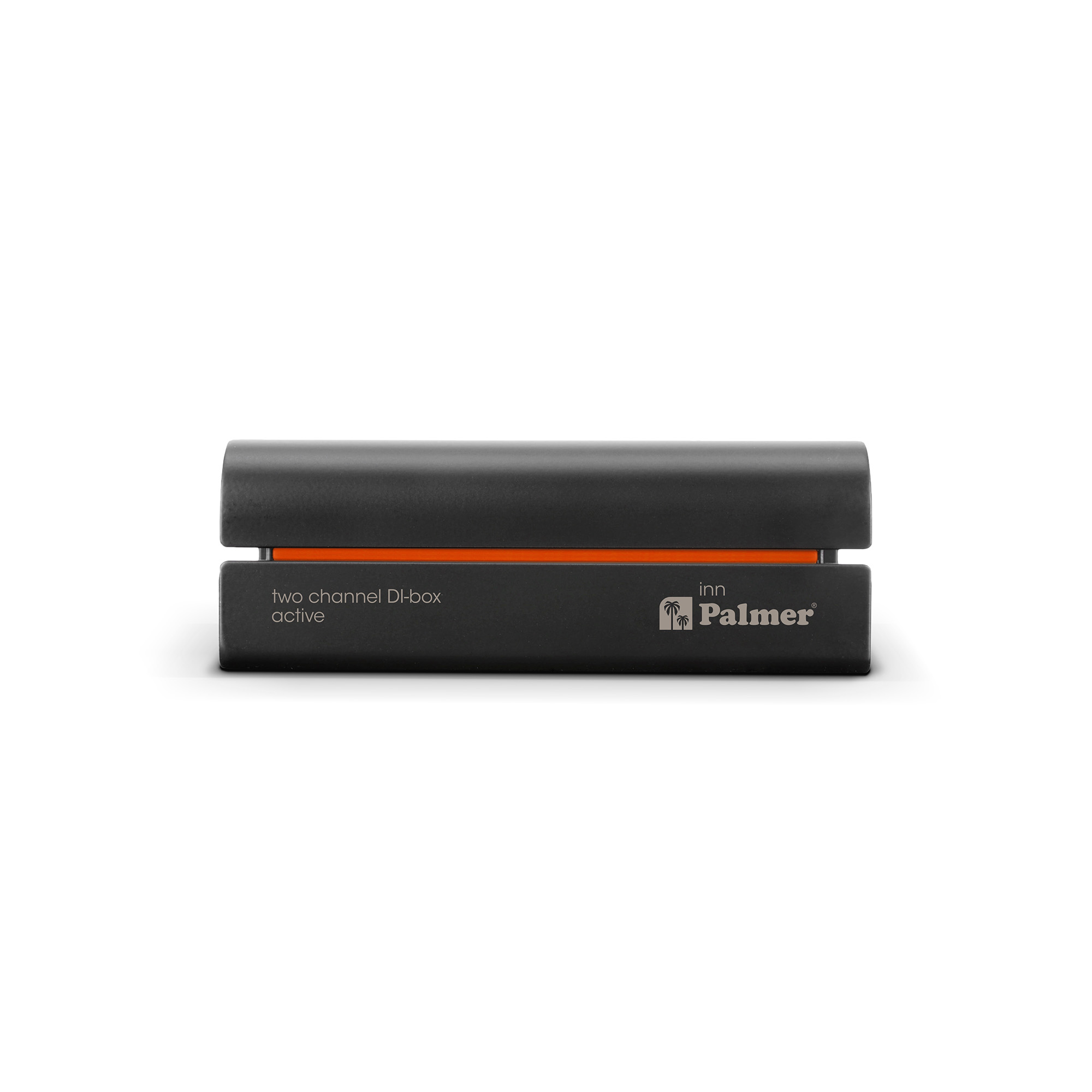

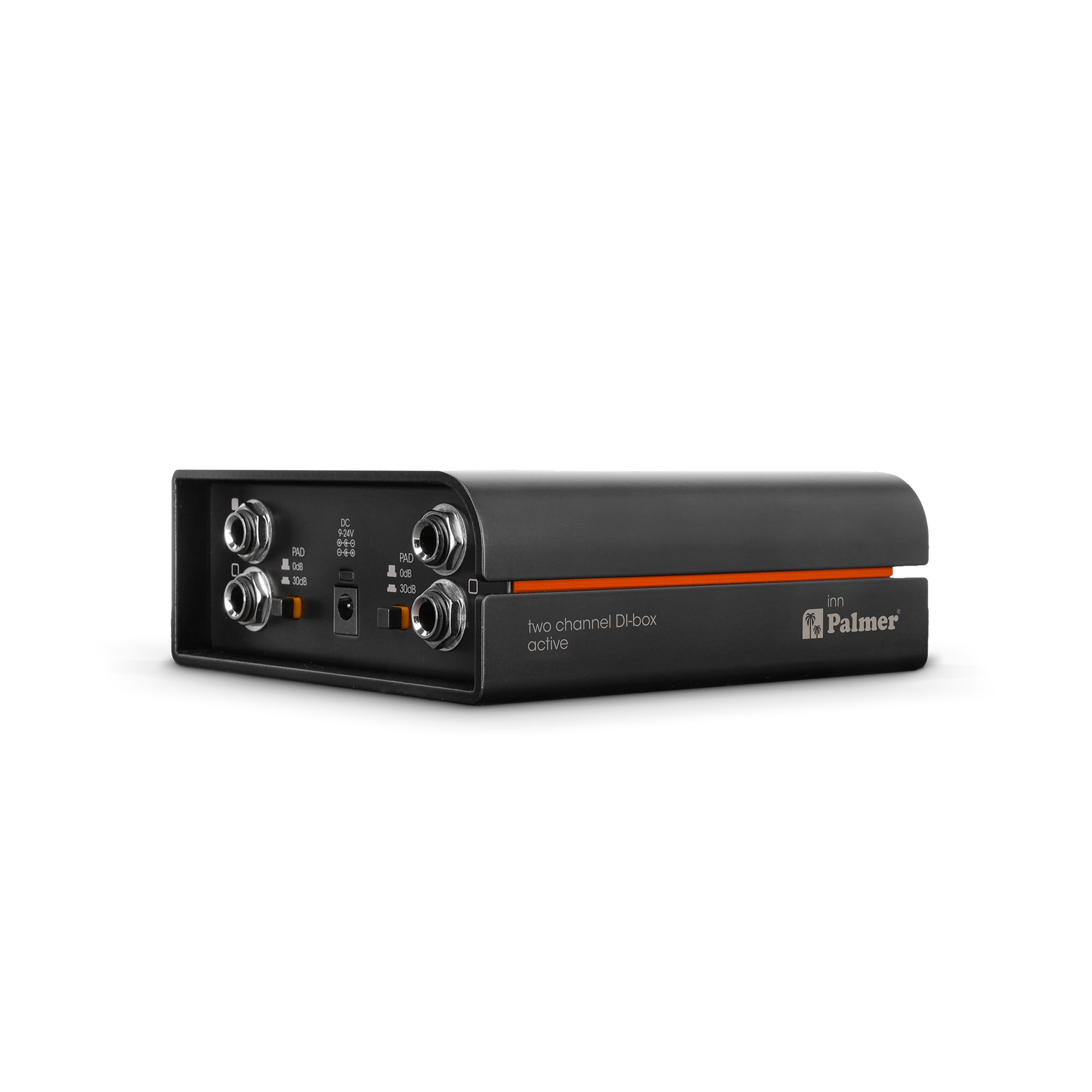

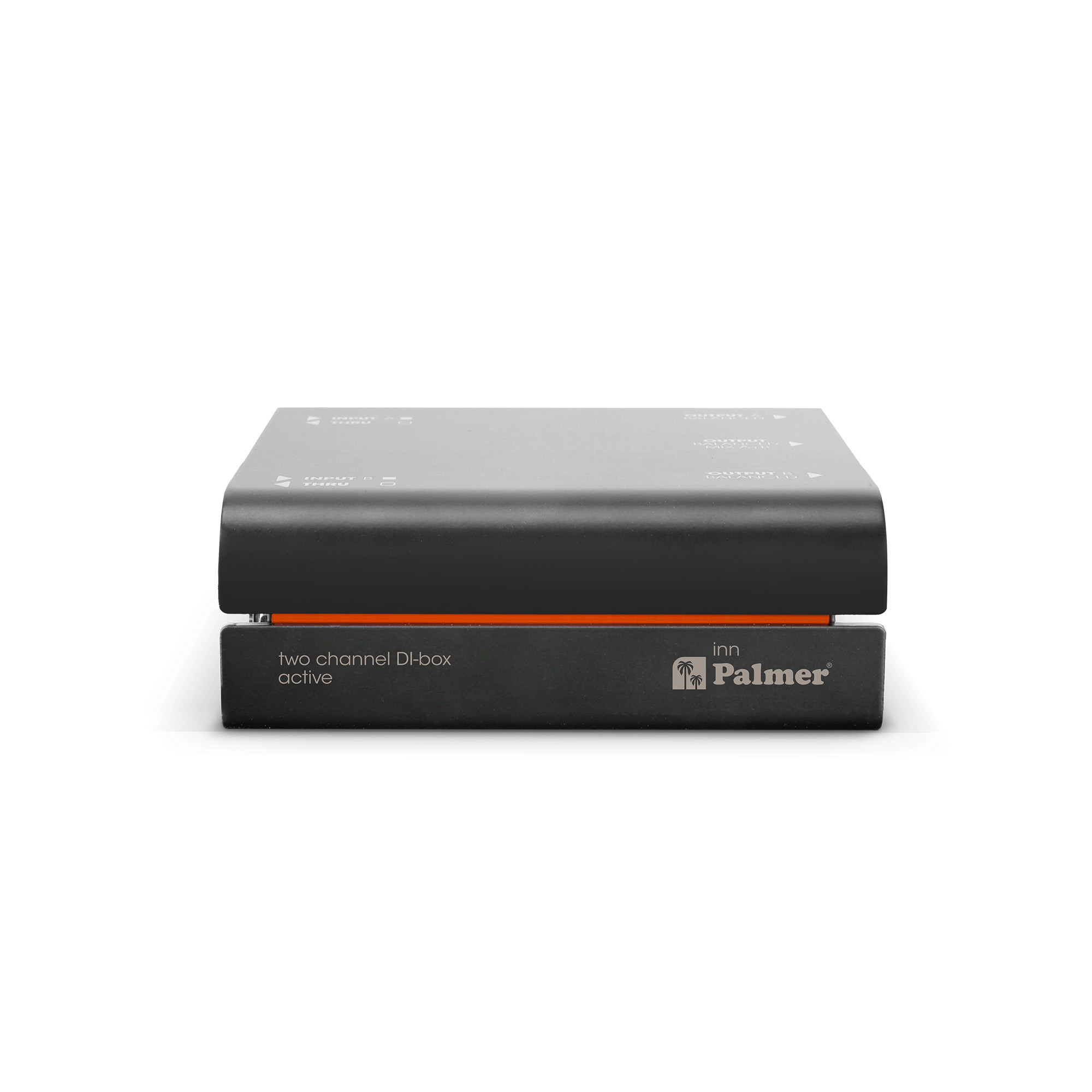

RIVER inn
Active 2-channel DI box
$229.99
Backordered – More on the Way!
Product information "RIVER inn"

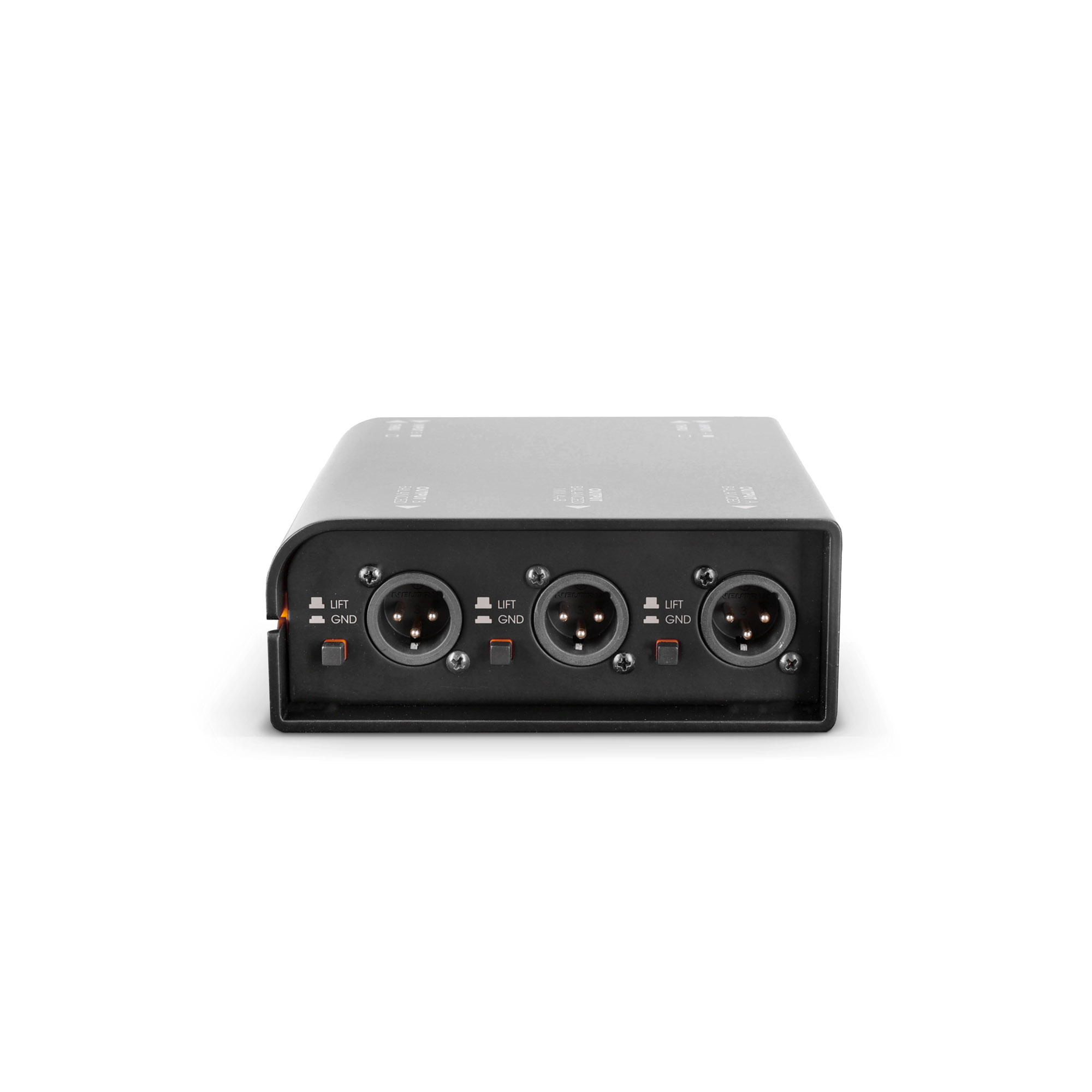

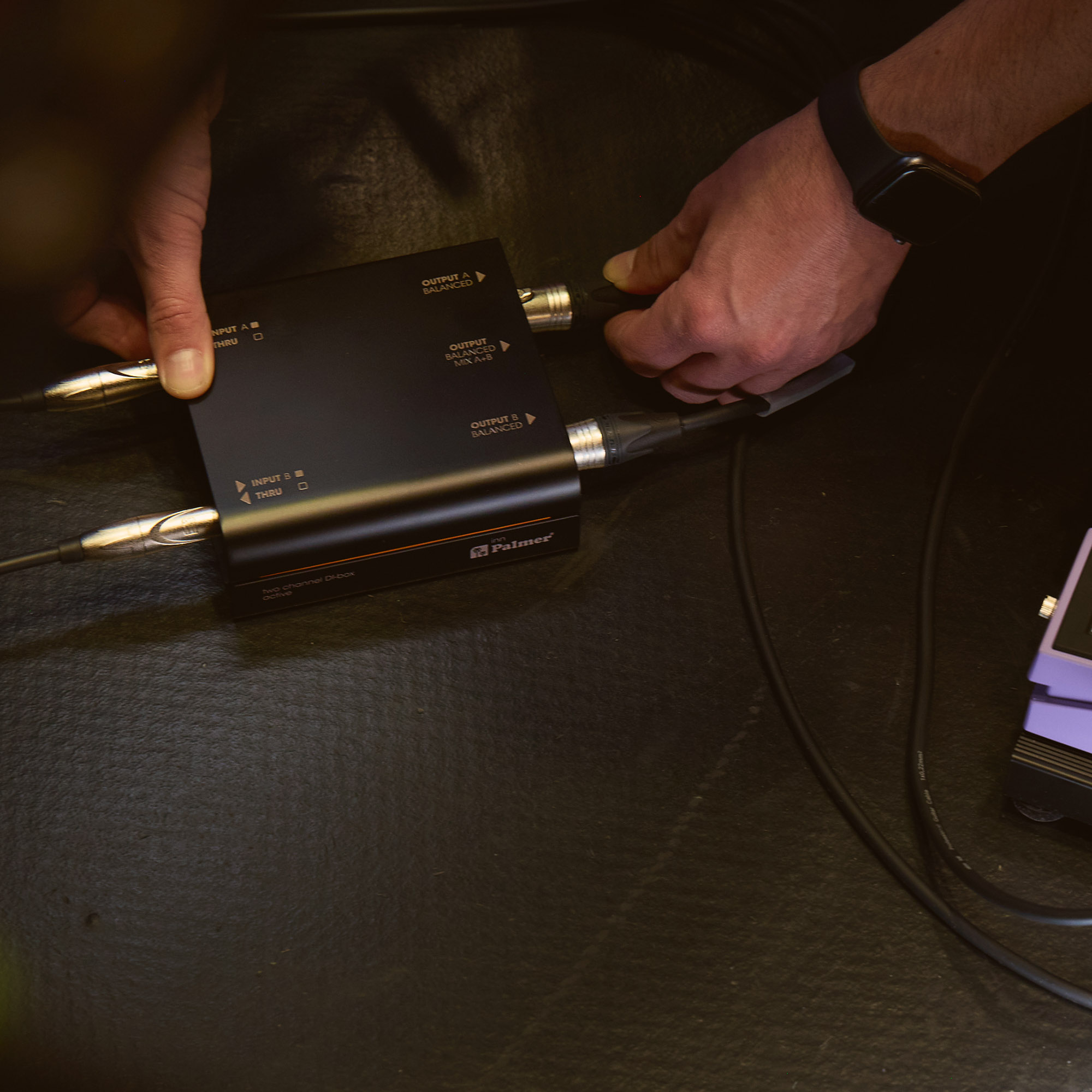

The balanced, low-impedance output signals from the Palmer inn are resistant to interference, which enables long cable runs without loss of sound quality. Thanks to the integrated transformer, the XLR outputs are galvanically isolated and have individual Ground Lift switches to eliminate ground loop hum without fuss. For a power supply, 48V phantom power or a standard PSU (9-24V) can be used.
You’ve probably spent a long time searching for YOUR sound and invested a lot of time and money to get your instrument to sound the way it should. The Palmer inn transmits that sound faithfully and free of interference - across two channels! This means your sound reaches the listener exactly as nature intended.
| Type: | Active |
|---|---|
| Number of channels: | 2 |
| Included Accessories: | Rubber feet, Tour label |
| Transformer Ratio: | 1:3 |
| Isolated transformer: | 1 |
| Number of inputs: | 2 |
| Number of outputs: | 2 |
| Ground Lift: | Yes |
| Max. input level (< 1% THD, rel. 1 kHz): | -11 dBu |
|---|---|
| Input signal type: | Unbalanced |

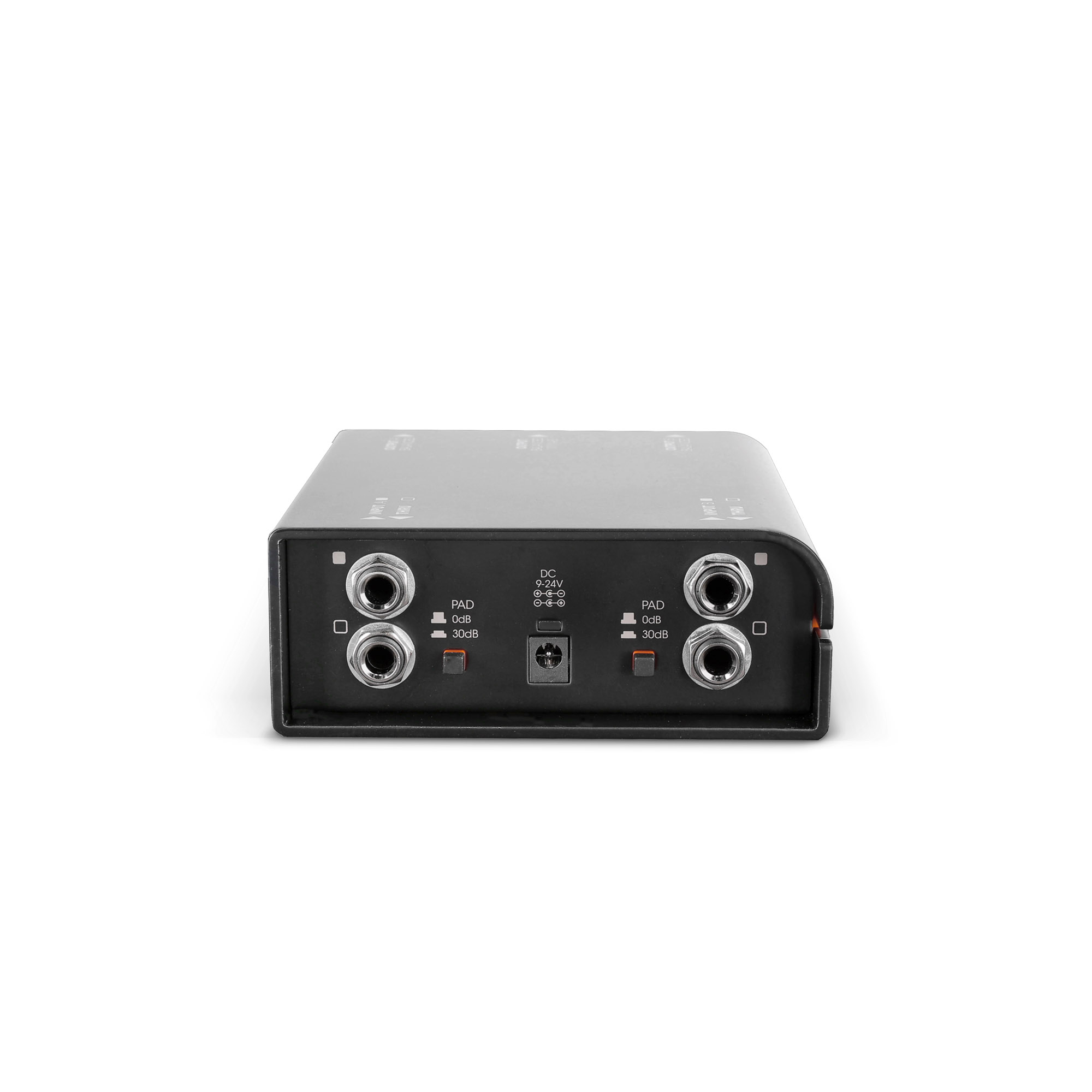

| Input connector types: | 6.3 mm Jack TS |
| Input impedance: | 500 kΩ |
| Max. input level (< 1% THD, rel. 20 Hz): | -11 dBu |
| Number of instrument inputs: | 2 |
| Output signal type: | Balanced |
|---|---|
| Output connector types: | XLR 3-pole male |
| Linked outputs per channel: | 1 |
| Balanced output impedance (1 kHz): | 110 Ω |
|---|---|
| Max. output level: | 5.5 dBu |
| Min. SNR (+4 dBu, 22 kHz BW, unity, unweighted): | 108 dB |
|---|---|
| Max. THD+N (30 Hz, +4 dBu, unity, unweighted): | 0.0028 % |
| Max. IMD (SMPTE, 7 kHz, 4:1, +4 dBu): | 0.0017 % |
| Max. THD+N (1 kHz, +4 dBu, unity, unweighted): | 0.0013 % |
| Max. IMD (SMPTE, 60 Hz, 4:1, +4 dBu): | 0.0017 % |
| Rated power: | 0.5 W |
|---|---|
| Operation voltage: | 9 V DC - 24 V DC (external power supply), 48 V phantom power |
| Cabinet material: | Aluminum continuous casting |
|---|
| Weight: | 1.59 lbs |
|---|---|
| Height: | 1.97 in |
| Depth: | 5.04 in |
| Width: | 5.51 in |
Login
accessories

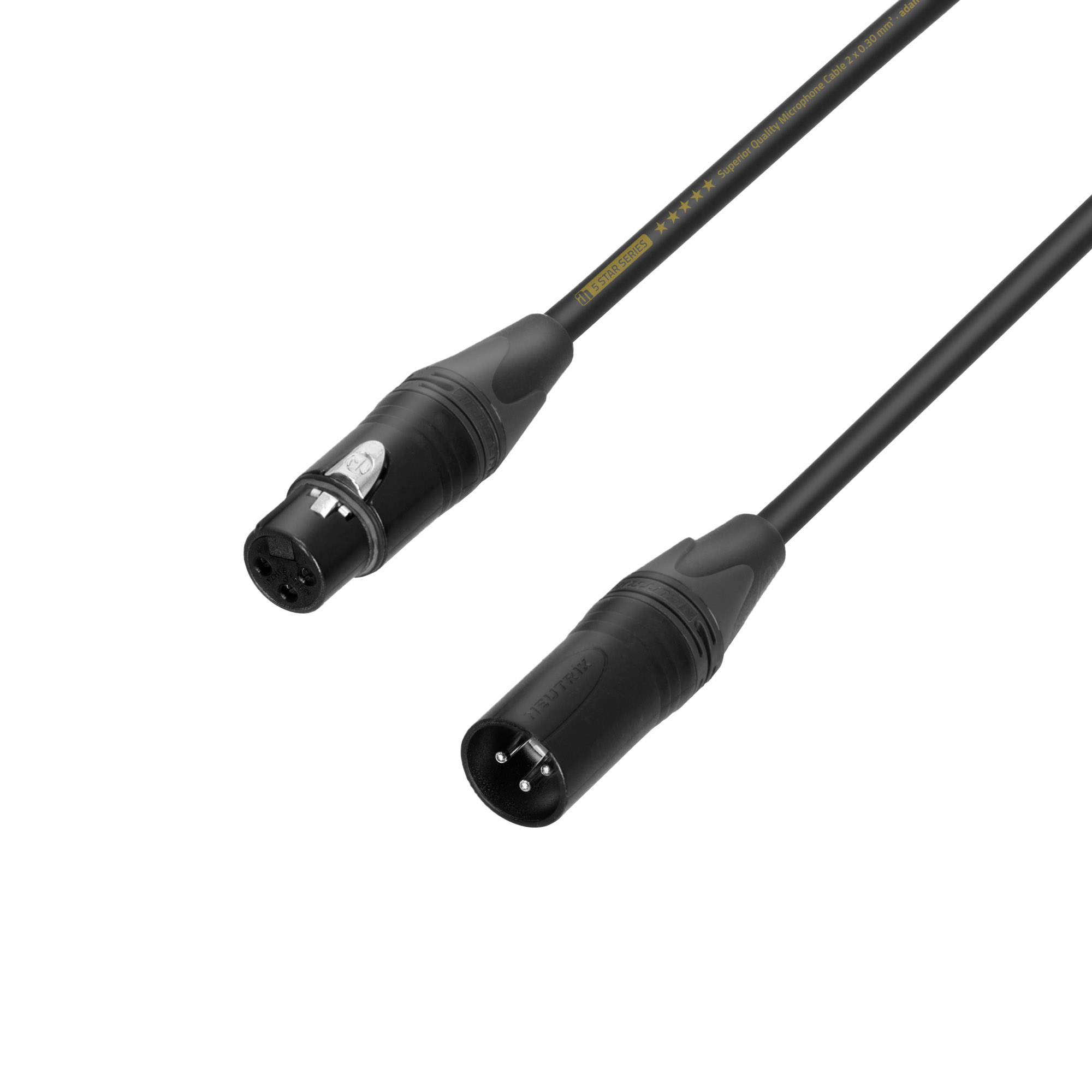

For professional applications on stage, in the studio or in the rehearsal room, excellent quality is available with our 5 STAR SERIES. This cable is made in the EU and therefore meets the relevant requirements for professional use.Durability and reliability find their master in the hard road everyday life! We have therefore developed a cable that is not only flexible, but also very robust. We use a special soft-PVC compound for all cables of the 5 STAR SERIES, which is friction resistant and bendable. For excellent signal transmission, but is also more abrasion resistance. The cable comes with a cable tie and two transparent, loose heatshrinks for labeling.Engineered in Germany & Made in EU: This stands for precision & quality.
