PAN 16
19" DI box 8 channels passive
$429.99
Backordered – More on the Way!
Product information "PAN 16"

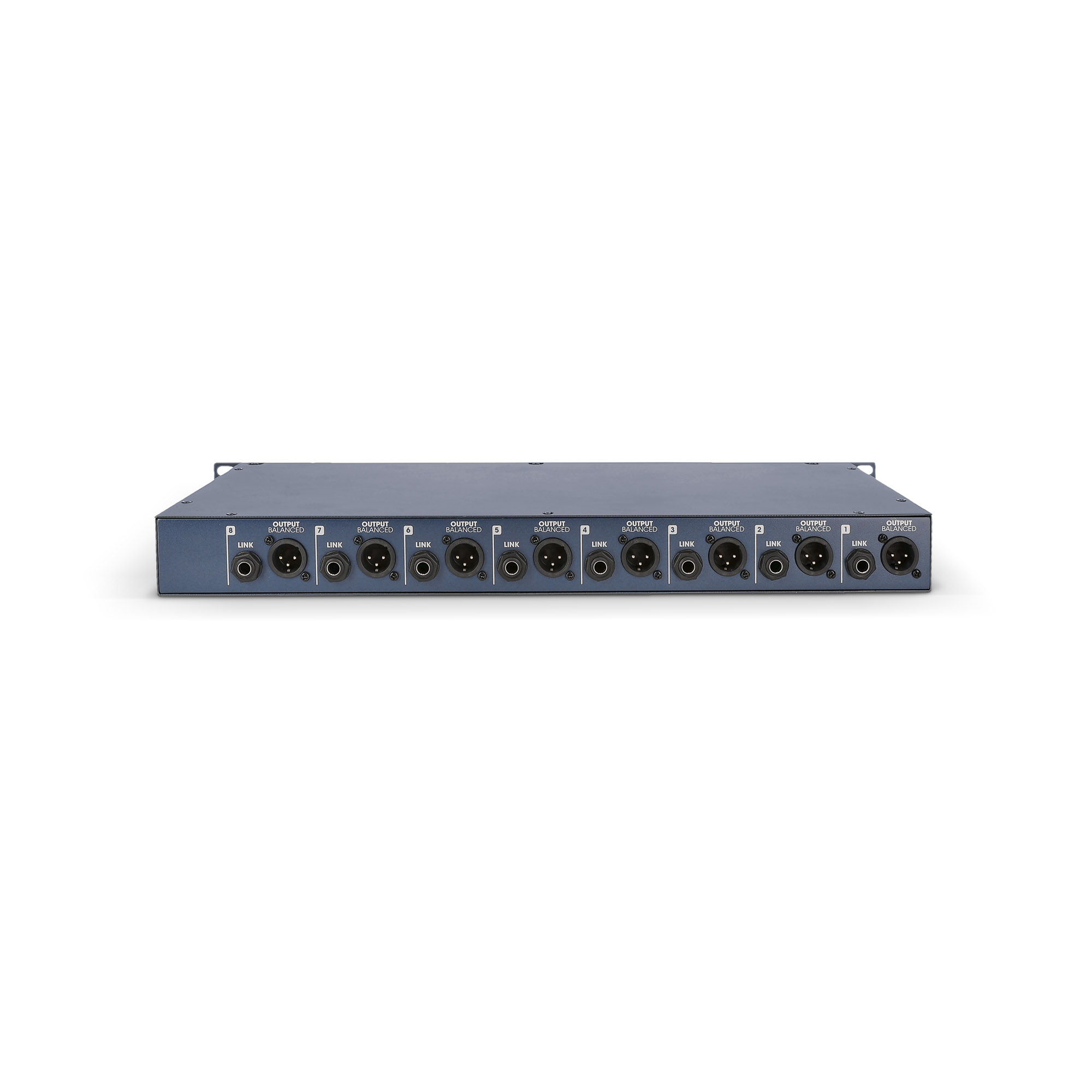

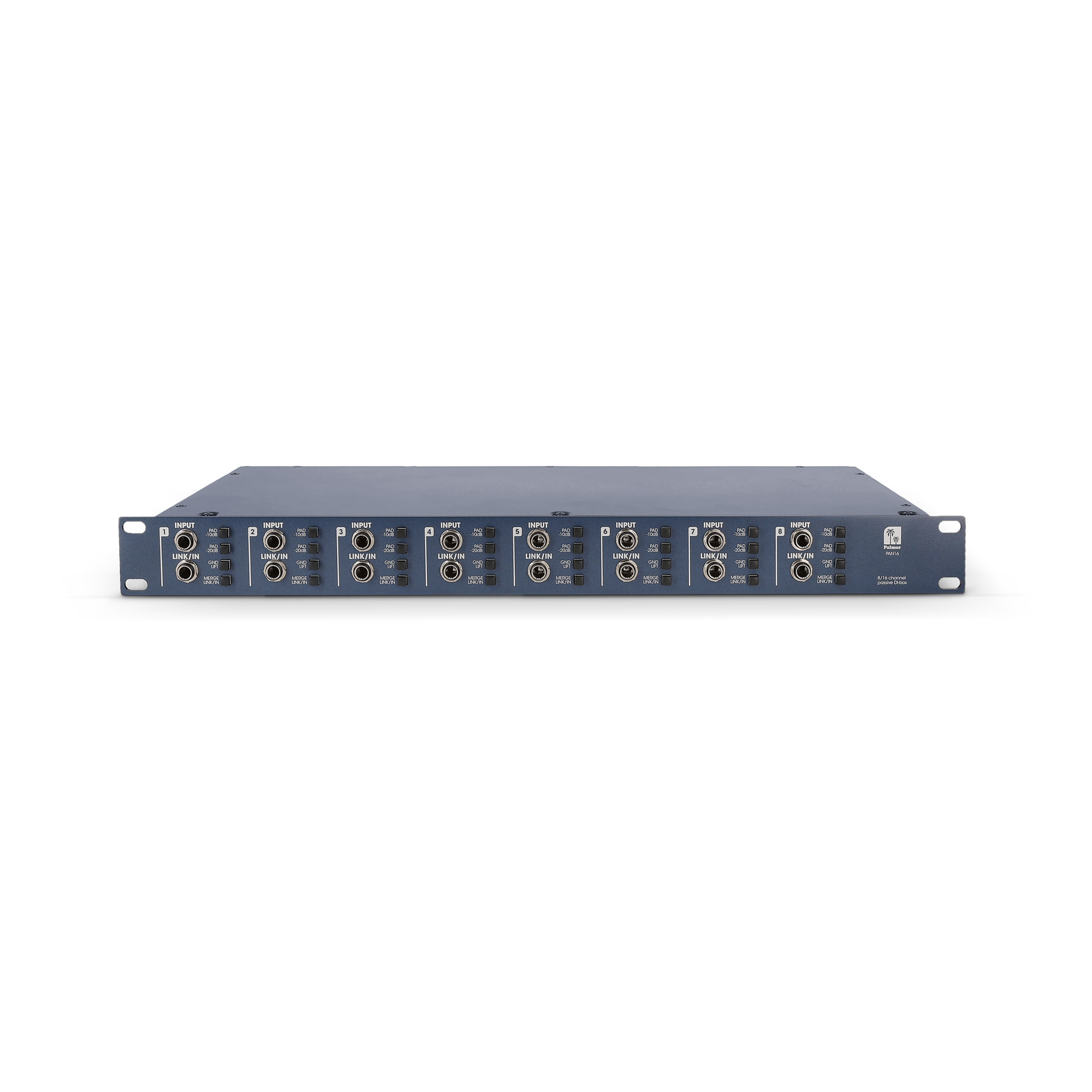

The Palmer PAN16 is an 8 channel passive DI box in a 19" 1U rack format. Through the special MERGE LINK/IN function, the front LINK output can be used as a second input.The signal is then mono merged with the one from the INPUT jack through to the output. Thus, the PAN16 offers a maximum of 16 inputs. Two PAD buttons enable an attenuation of 10, 20 or 30 dB. The XLR outputs are electrically isolated and balanced via transformer. 8 additional LINK-sockets are also available on the rear panel of the device.
| Number of outputs: | 4 (+ 4 Parallel Thru out) |
|---|---|
| Controls: | PAD -10dB, merge, PAD -20dB, ground lift |
| Input pad: | 0 / -30 dB |
| Type: | passive |
| Cabinet surface: | Powder coated |
| Output connectors: | XLR, 6.3 mm jack |
| Channels: | 8 |
| Height: | 1.77 in |
| THRU outputs/channel: | 2 |
| Inputs: | 8 / 16 |
| Transformer balanced: | Yes |
| Height: | 1 U |
| Product type: | DI boxes |
| Ratio: | 10 : 1 |
| Depth: | 7.87 in |
| Output impedance: | 600 |
| Frequency response: | 10 - 40000 |
| Cabinet material: | sheet steel |
| Max. input level: | + 54 dBu |
| Width: | 18.9 in |
| Input connectors: | 6.3 mm jack |
| Input impedance: | (@ 60 Hz) 1 M |
| Width: | 19 Inch |
| Max. output level: | +4 dBu |
