PAN 02 PRO
Professional DI box active
$259.99
Backordered – More on the Way!
Product information "PAN 02 PRO"

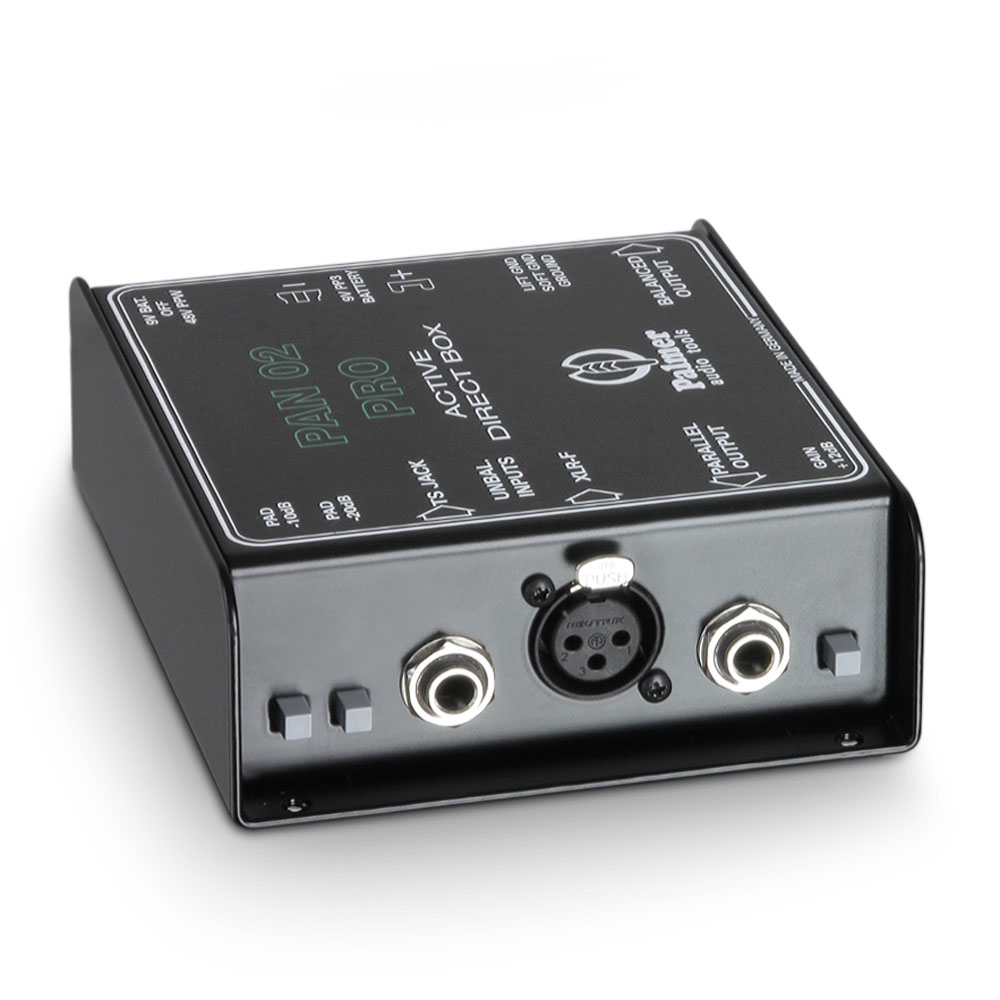

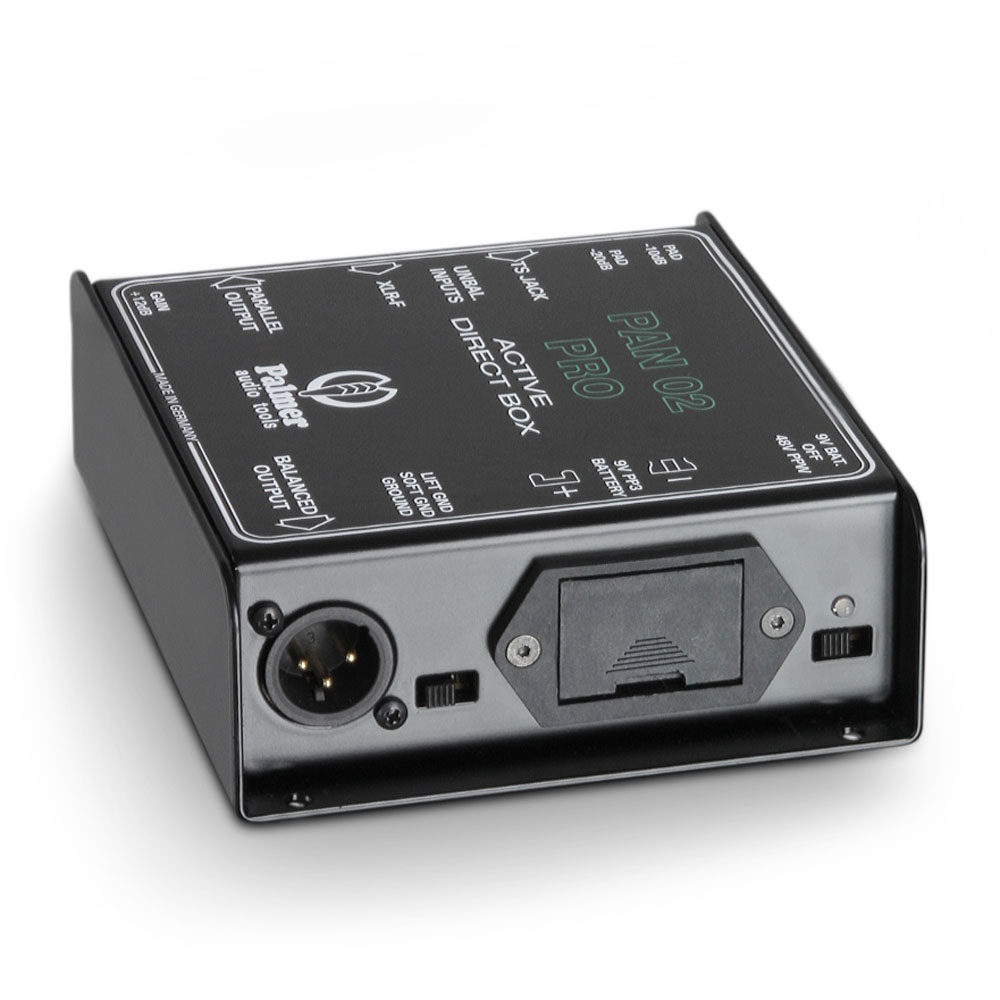

The Palmer PAN02 PRO is an active DI box with outstanding additional functions. These include an unbalanced XLR input, in addition to the 3-way attenuator -10, -20, -30 dB and a switchable gain of 12 dB, connected with a maximum output voltage of +20 dBu. The ground lift switch has a "lift" position allowing adjustments between a "soft and hard grounding" . The balanced output is achieved with a high quality transformer in the Mumetall housingthat was specially developed for this purpose. The PAN02 PRO can be powered either with a 9 V battery or 48 V phantom power. A two-colour LED indicates which source supplies the power.
| Frequency response: | 20 - 20000 |
|---|---|
| Ratio: | 3.16:1, 10:1, 31.6:1, 1:4 |
| Input pad: | 0 dB, -10 dB, -20 dB, -30 dB |
| Width: | 4.57 in |
| Height: | 1.71 in |
| Cabinet surface: | Powder coated |
| Max. input level: | + 45 dBu |
| Output connectors: | XLR, 6.3 mm jack |
| THRU outputs/channel: | 1 |
| Input connectors: | XLR, 6.3 mm jack |
| Controls: | battery/+ 48 V Power, Boost, attenuator, ground lift |
| Inputs: | 2 |
| Power supply: | +48 V phantom power, 9 V block |
| Transformer balanced: | Yes |
| Input impedance: | -10 & -20 dB: 70 k, 0dB & 12 dB: 1 M, -30 dB: 40 k |
| Product type: | DI boxes |
| Depth: | 5.51 in |
| Output impedance: | 600 |
| Channels: | 1 |
| Cabinet material: | sheet steel |
| Type: | active |
| Number of outputs: | 1 |
| Max. output level: | + 20 dBu |
