PAN 08
19" DI/Line Isolation box 4 channels active
$559.99
Backordered – More on the Way!
Product information "PAN 08"

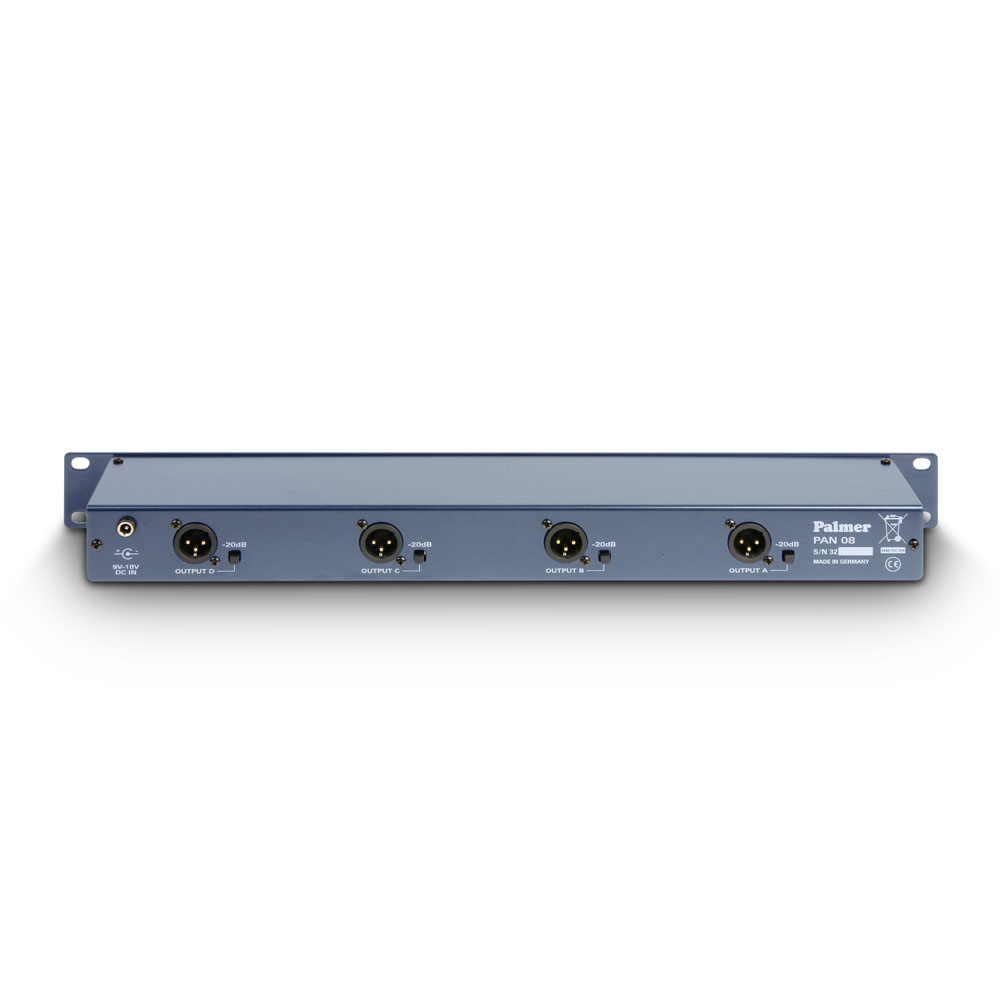

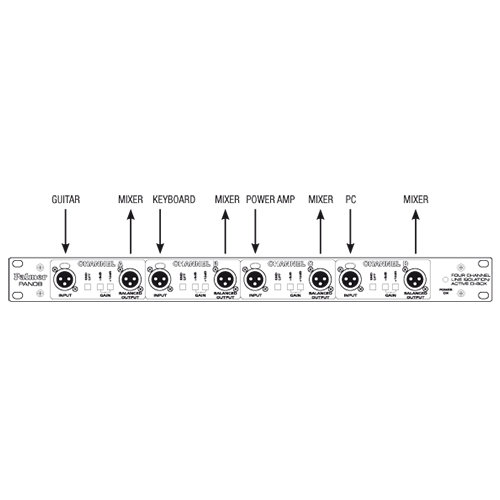

The PAN08 is a multifunctional device. Each of the four channels can be used independently as an active DI box, line isolation box or booster. The combination socket input accepts unbalanced and balanced signals. The output has dual transformer balanced XLR jacks (front and rear).
The signal level can be attenuated by 20 dB for microphone inputs, but can also be boosted in three stages by up to 18 dB for LINE inputs if necessary. With an output level of +12 dBu on a load of 600 Ohms with 0.05 % THD / 40 Hz and an output noise level of less than -110 dBu, the unit meets even high professional standards. One special feature that is worthy of mention is battery power. The supply voltage may range from 9 to 18 V. Thus the PAN08 can also be used without mains power outdoors.
| Width: | 19 " |
|---|---|
| Depth: | 3.54 in |
| Number of outputs: | 8 |
| Power supply: | 9 V DC power supply |
| Controls: | ground lift, attenuator, 2 x gain |
| Frequency response: | 20 - 20000 |
| Output impedance: | 600 Ohm(s) |
| THRU outputs/channel: | 0 |
| Weight: | 3.51 lbs |
| Ratio: | Variabel |
| Input impedance: | Balanced: 20k Ohm(s) |
| Indicators: | Power |
| Width: | 18.9 in |
| Cabinet material: | sheet steel |
| Cabinet surface: | Powder coated |
