PAN 04 A
Active 2-channel DI box
$209.99
Backordered – More on the Way!
Product information "PAN 04 A"

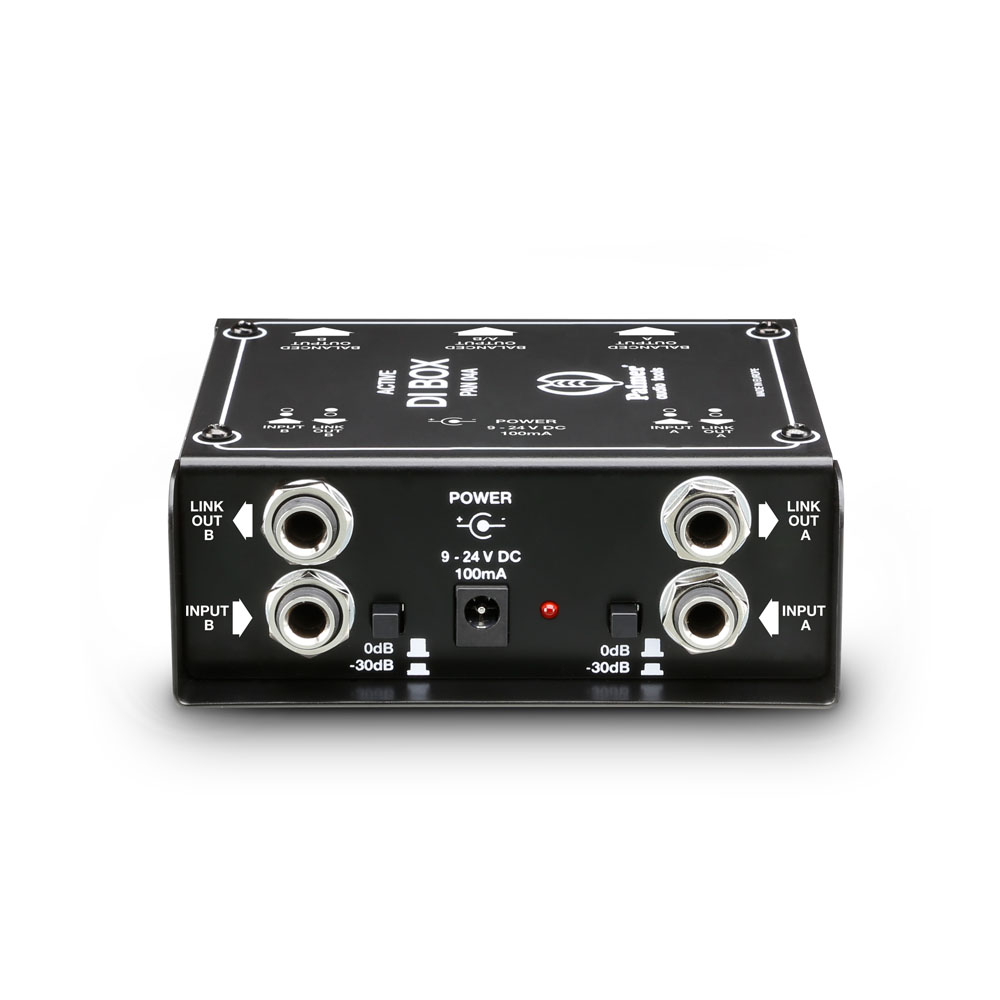

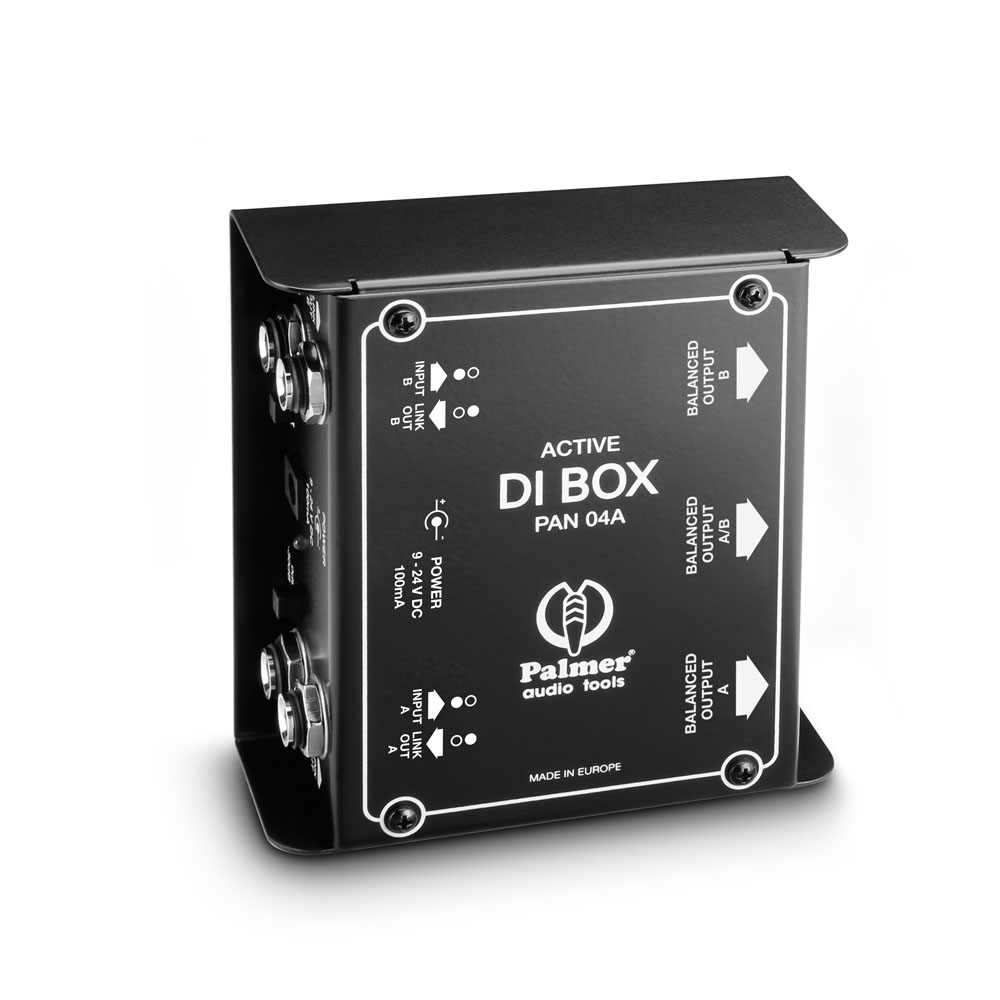

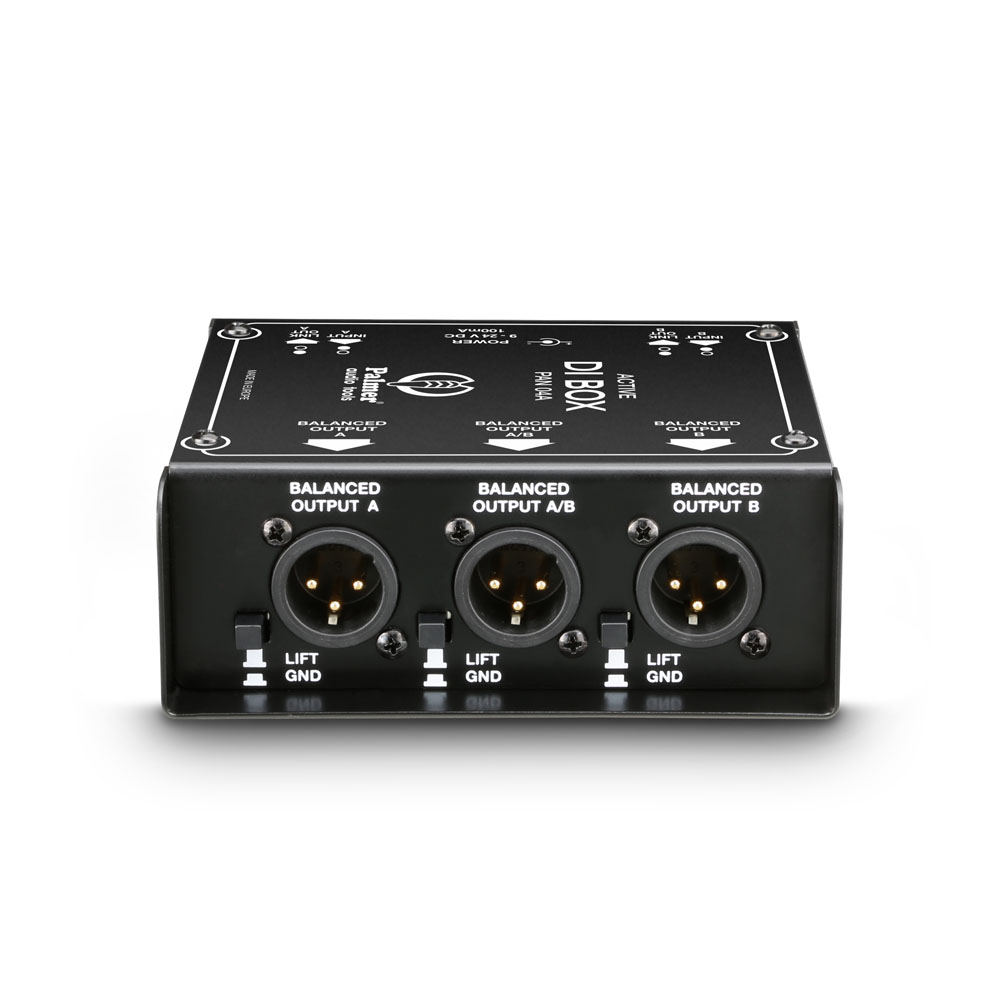

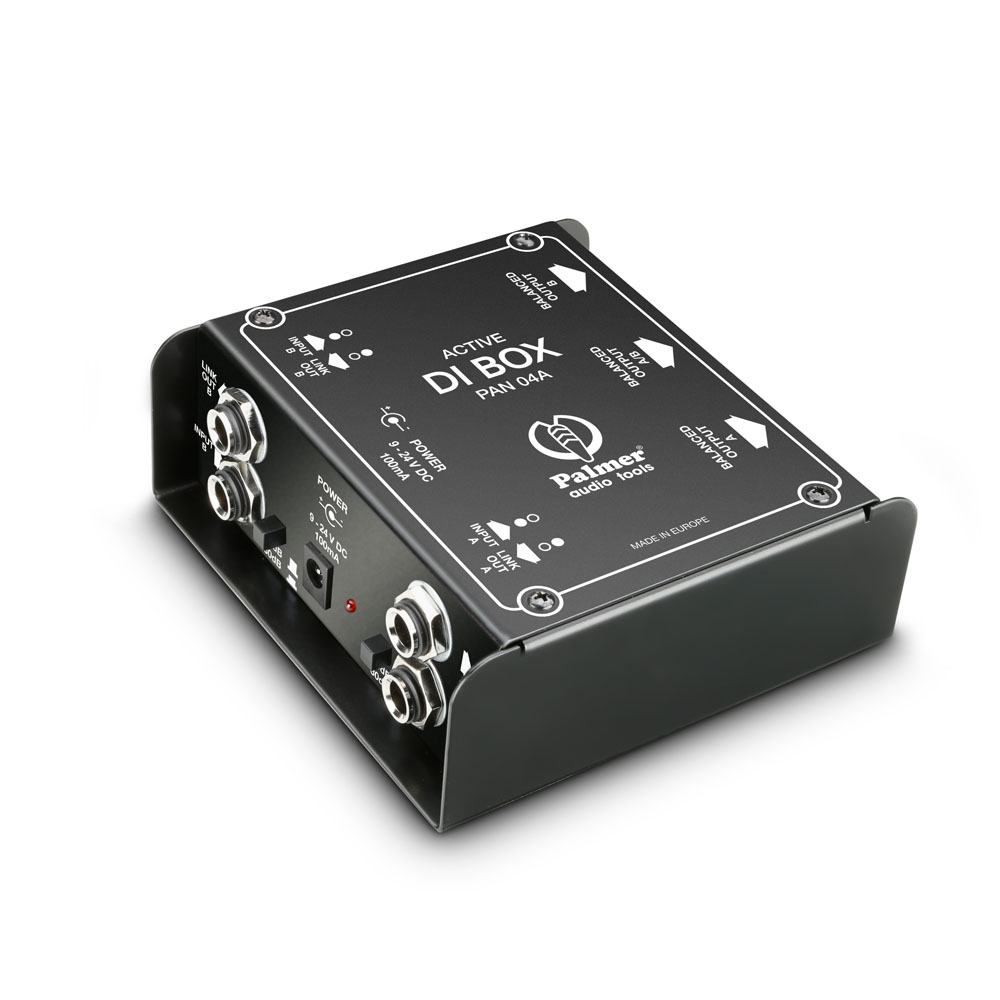

The Palmer PAN04A is 2-channel DI box for feeding asymmetrical and high impedance electric instrument signals into a mixing desk’s microphone inputs. It delivers a transformer balanced, low impedance signal to the outputs and eliminates mains hum and interference caused by ground loops. The active switch leaves the frequency response unaffected and achieves a high dynamic range. In addition to 6.35 mm direct outputs and -30 dB switchable input attenuation, the DI box also features a mono output that sums both channels. The PAN04A is designed to be exceptionally robust and is suitable for both stage and studio. It can be powered with 9 to 24 V DC mains adapters or phantom power when two outputs are connected to a mixer.
| Width: | 4.57 in |
|---|---|
| Cabinet surface: | Powder coated |
| Max. input level: | + 45 dBu |
| Output connectors: | XLR, 6.3 mm jack |
| THRU outputs/channel: | 1 |
| Height: | 1.77 in |
| Inputs: | 2 |
| Transformer balanced: | Yes |
| Output impedance: | 200 |
| Max. output level: | + 11 dBu |
| Product type: | DI boxes |
| Frequency response: | 10 - 40000 |
| Controls: | attenuation, ground lift |
| Input impedance: | 39.37 in |
| Cabinet material: | sheet steel |
| Ratio: | 1 : 1 |
| Channels: | 2 |
| Depth: | 4.33 in |
| Type: | active |
| Number of outputs: | 3 |
| Input connectors: | 6.3 mm jack |
