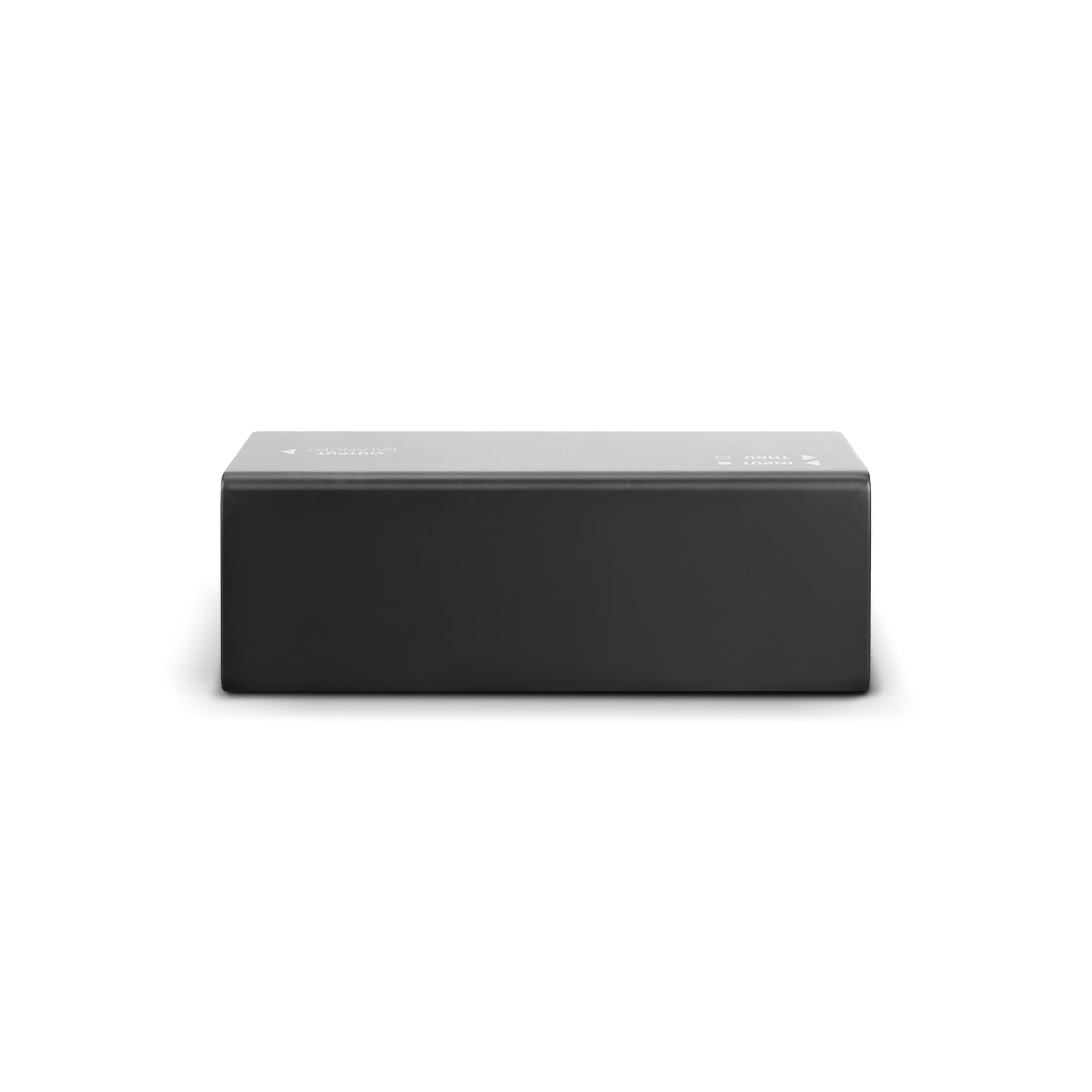

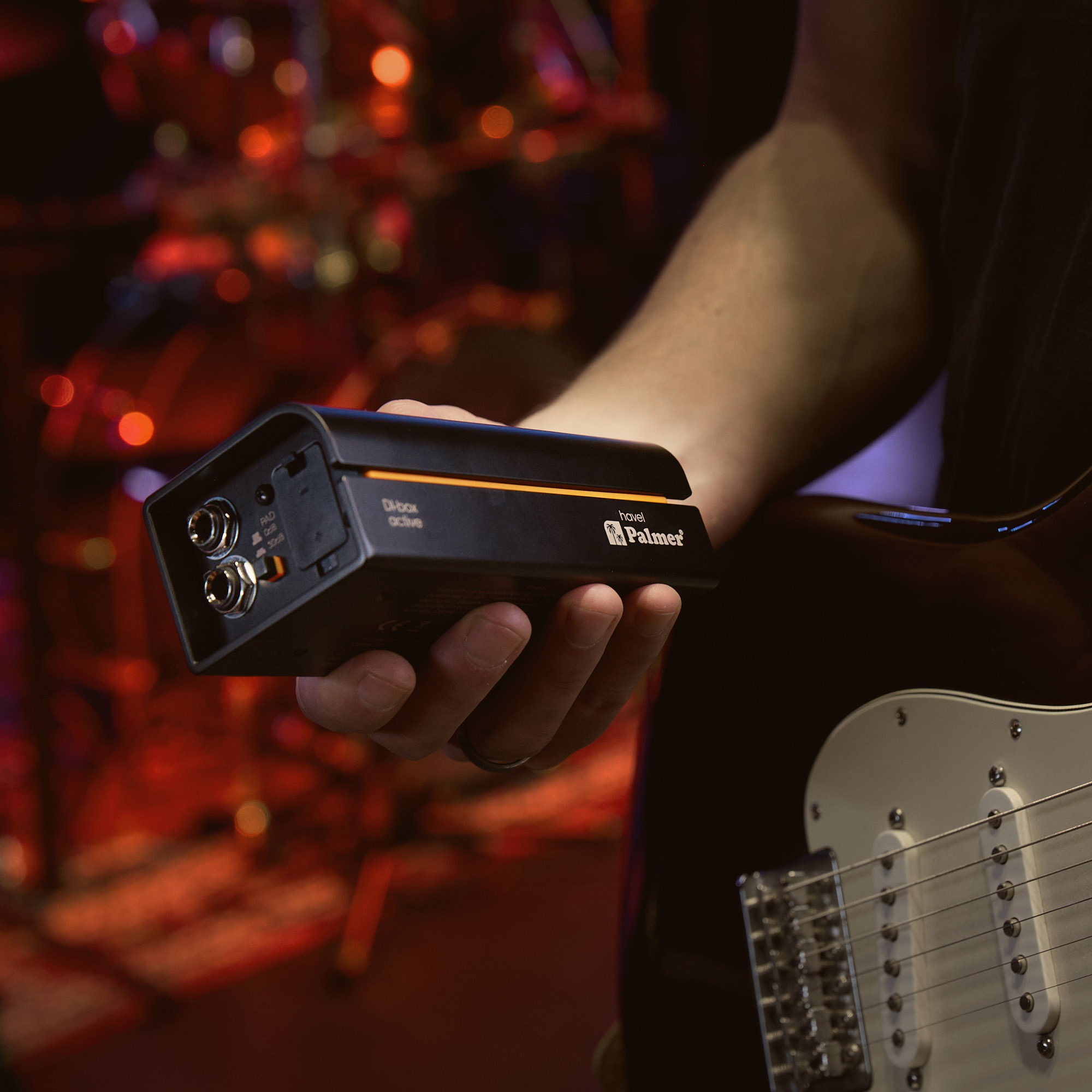

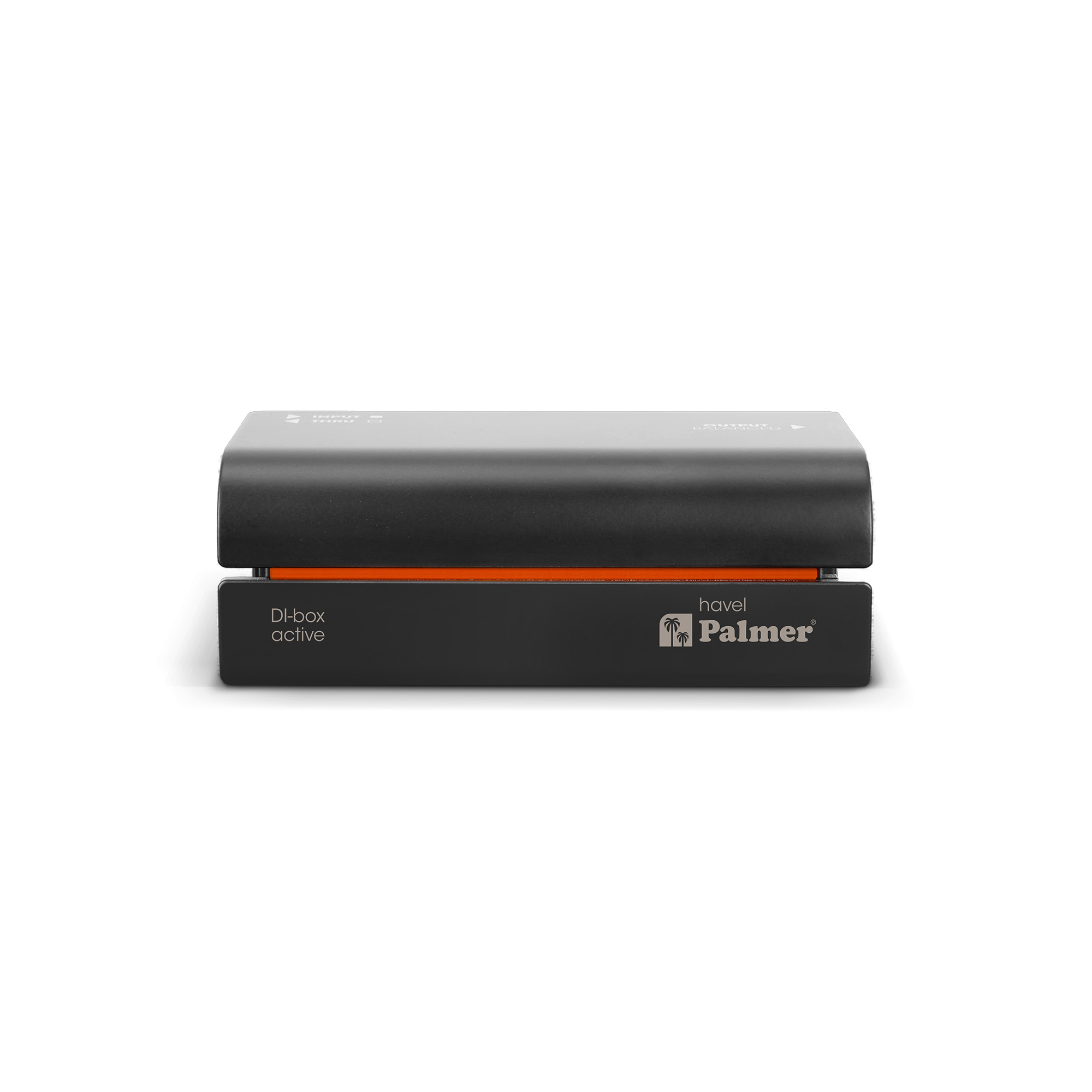

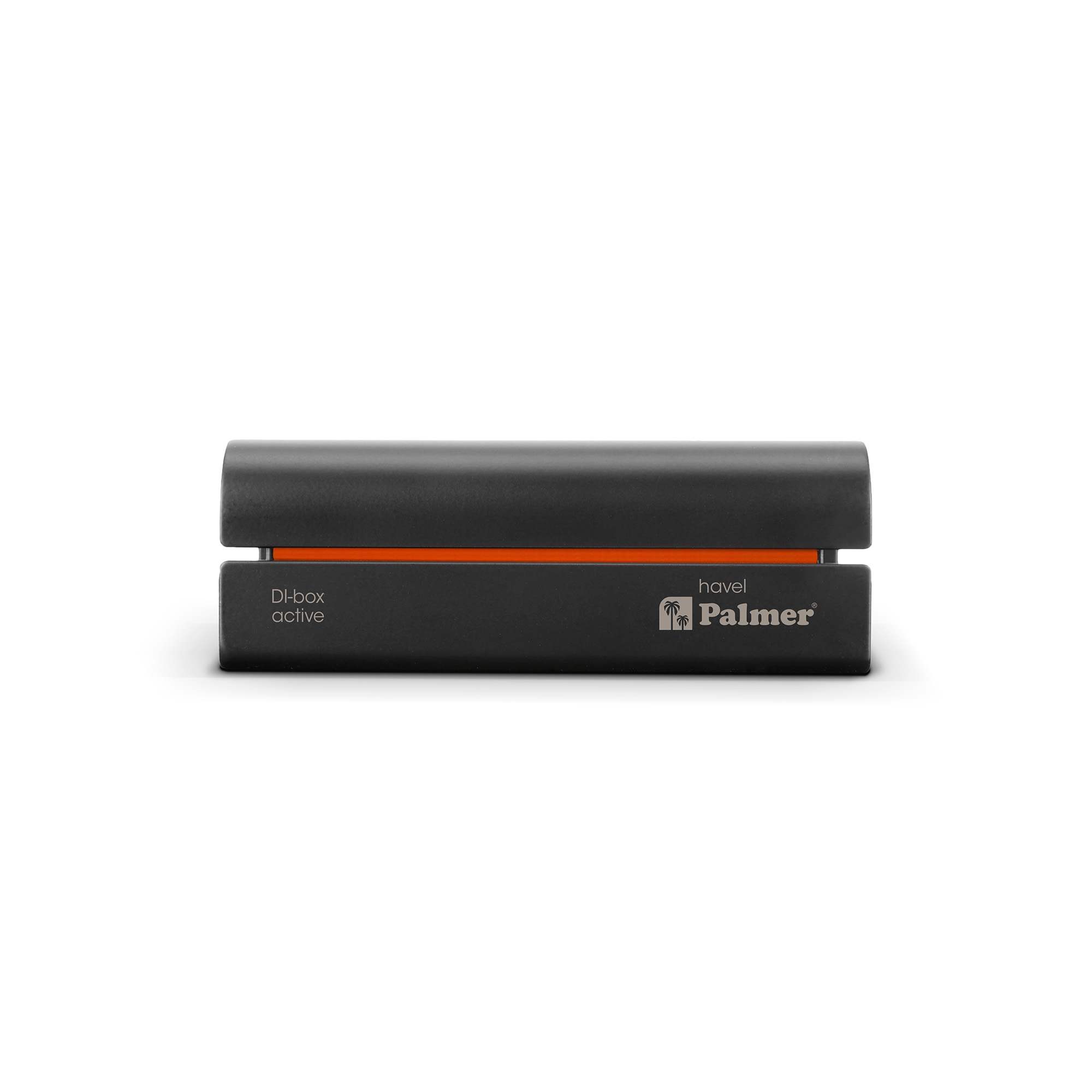

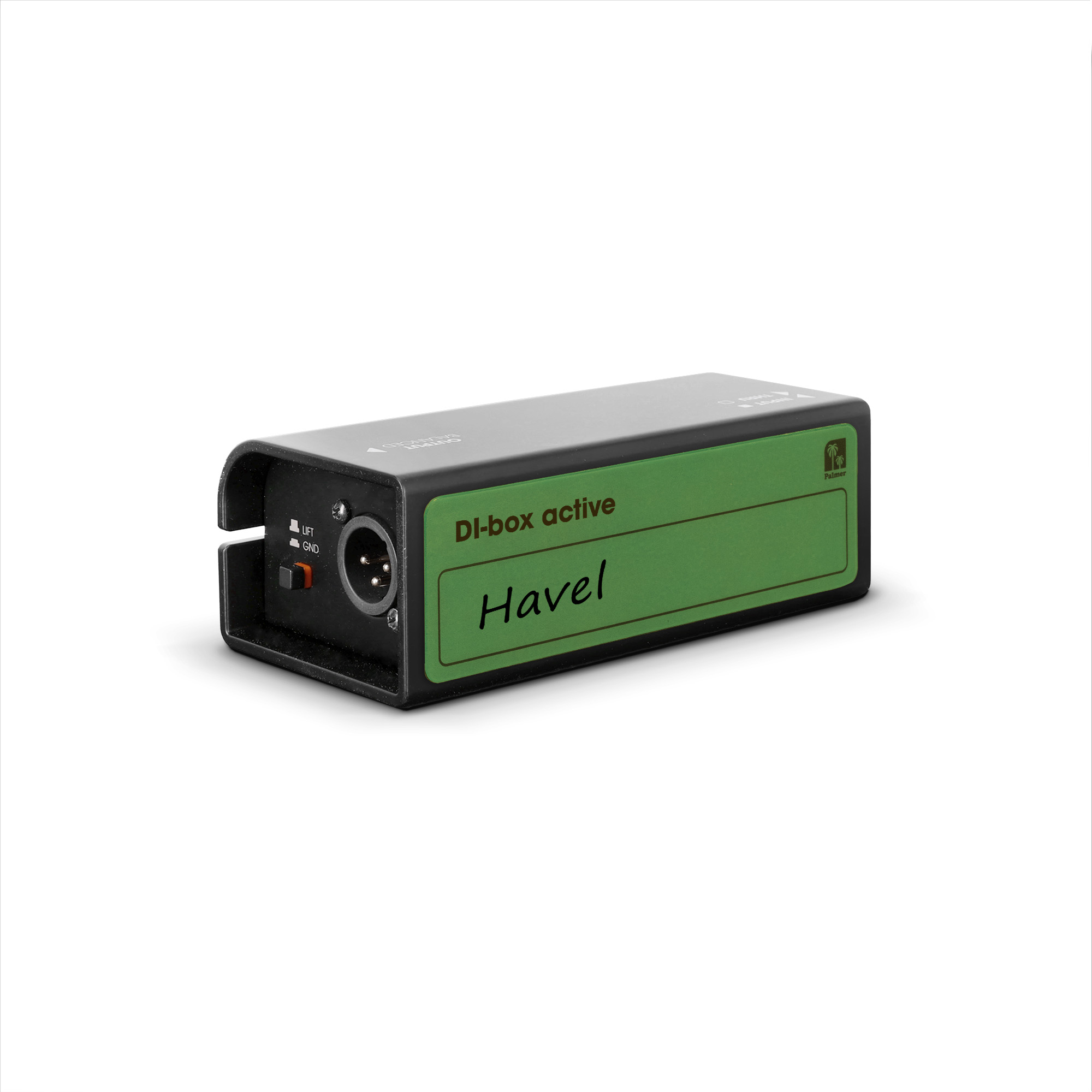

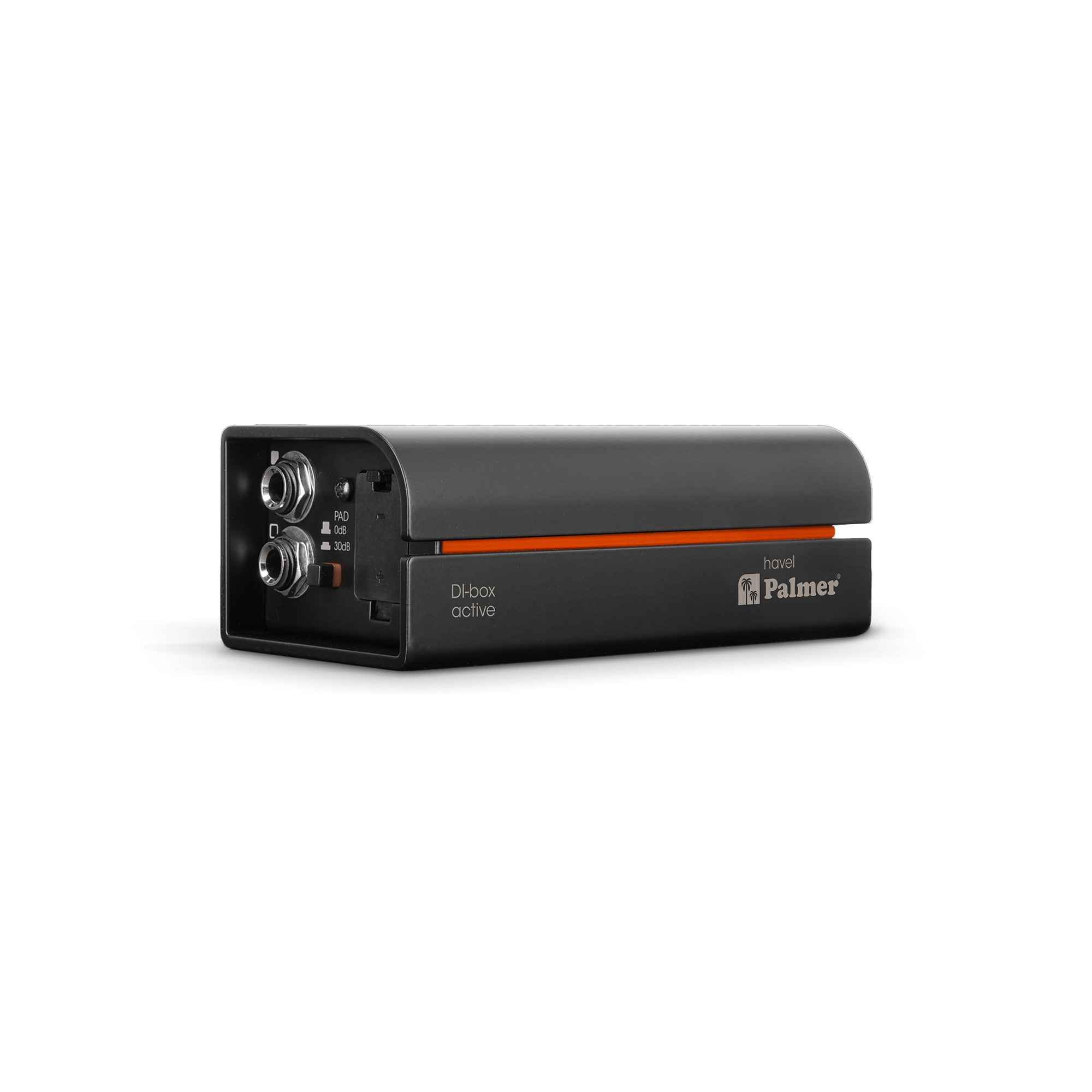

RIVER havel
Active DI box
$129.99
Backordered – More on the Way!
Product information "RIVER havel"

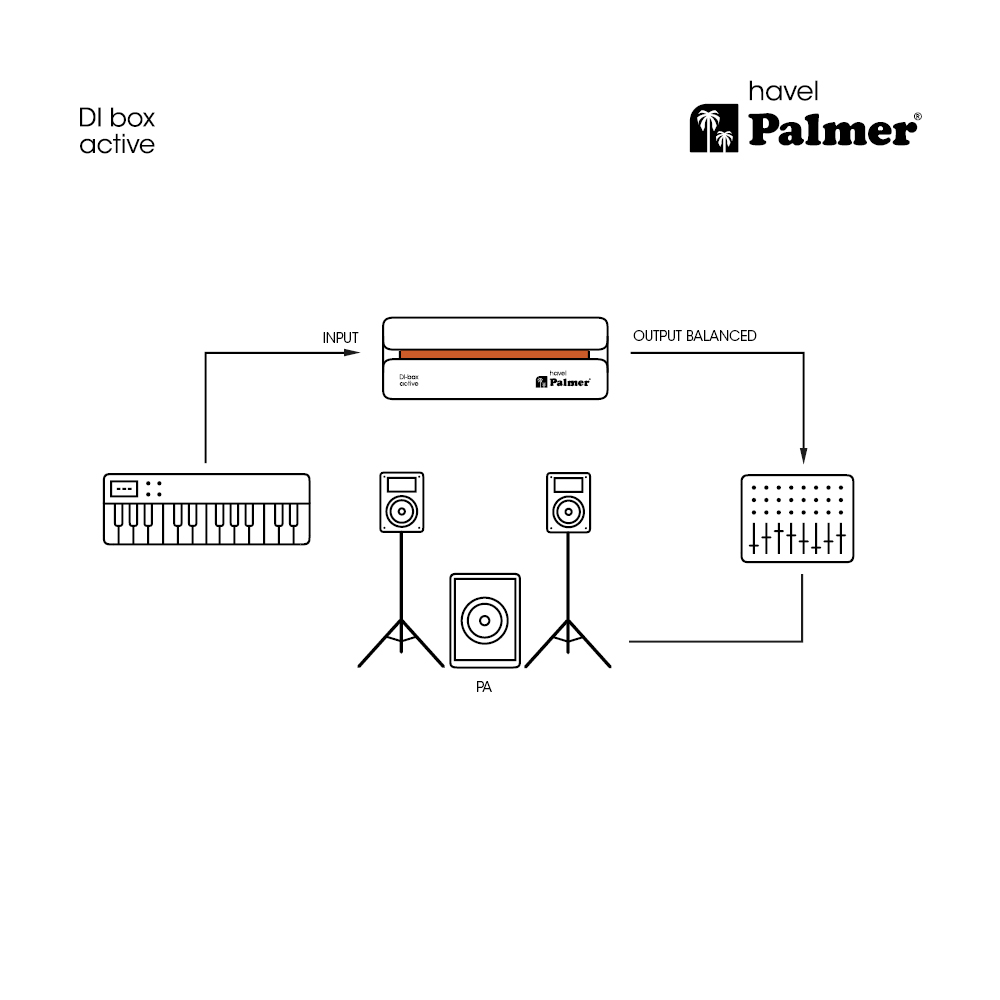

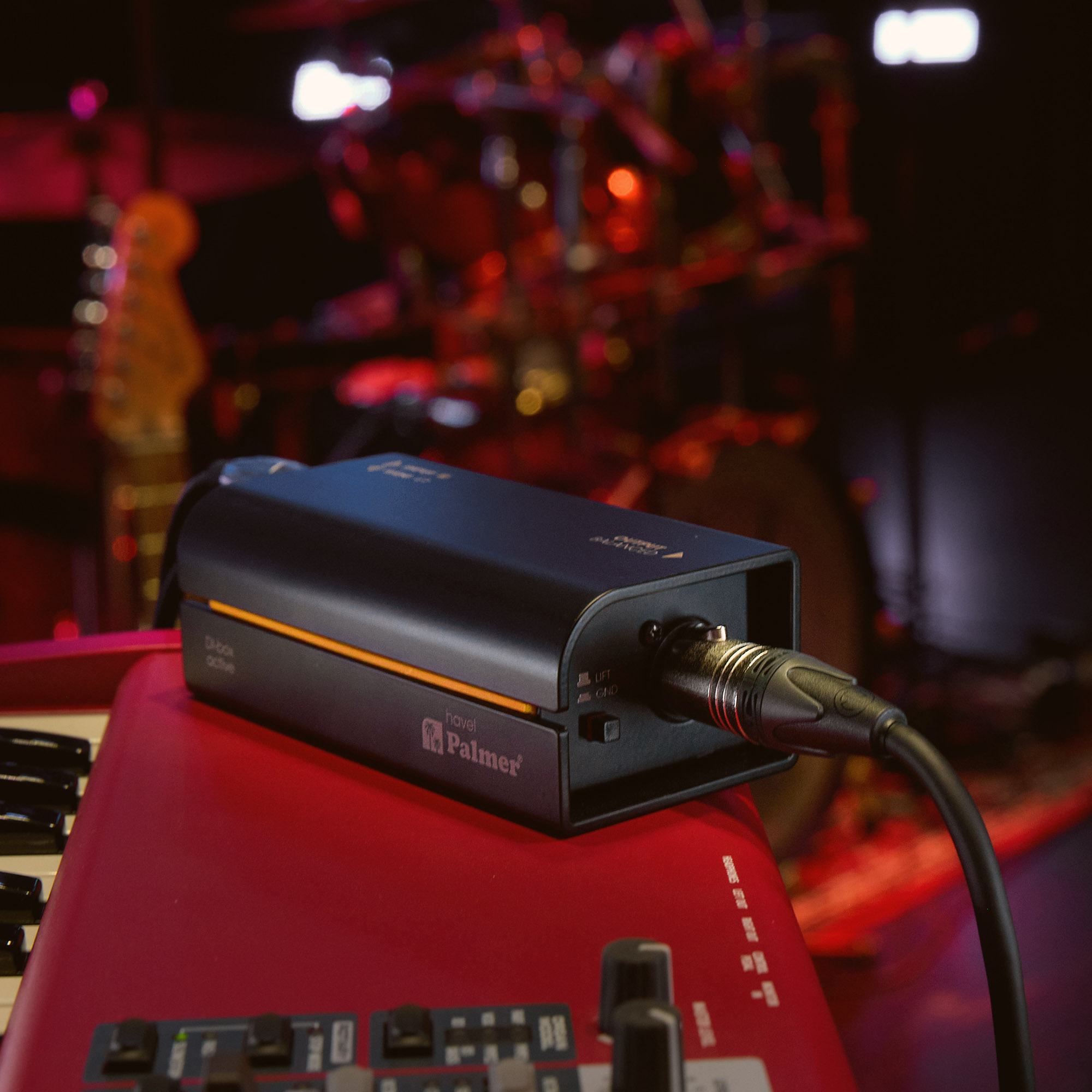

Are you looking to pick up a pure guitar, bass, or electric piano signal with all its brilliance and without any tonal alterations? An active DI box offers the best solution - as long as it has the same high-quality construction as the Palmer havel. The havel's low-noise active circuitry allows a higher input impedance than a passive DI box. This means the sound of the instrument is captured without treble or bass losses. High-level input impedance is especially important in interaction with the magnetic pickups in electrical guitars, electric basses and electromechanical electric pianos (e.g. Rhodes), as well as with (passive) piezo pickups for acoustic instruments. However, the Palmer havel is also very well suited to synthesisers and other electronic keyboards, since it offers enough headroom to handle even high-level inputs without unwanted distortion.

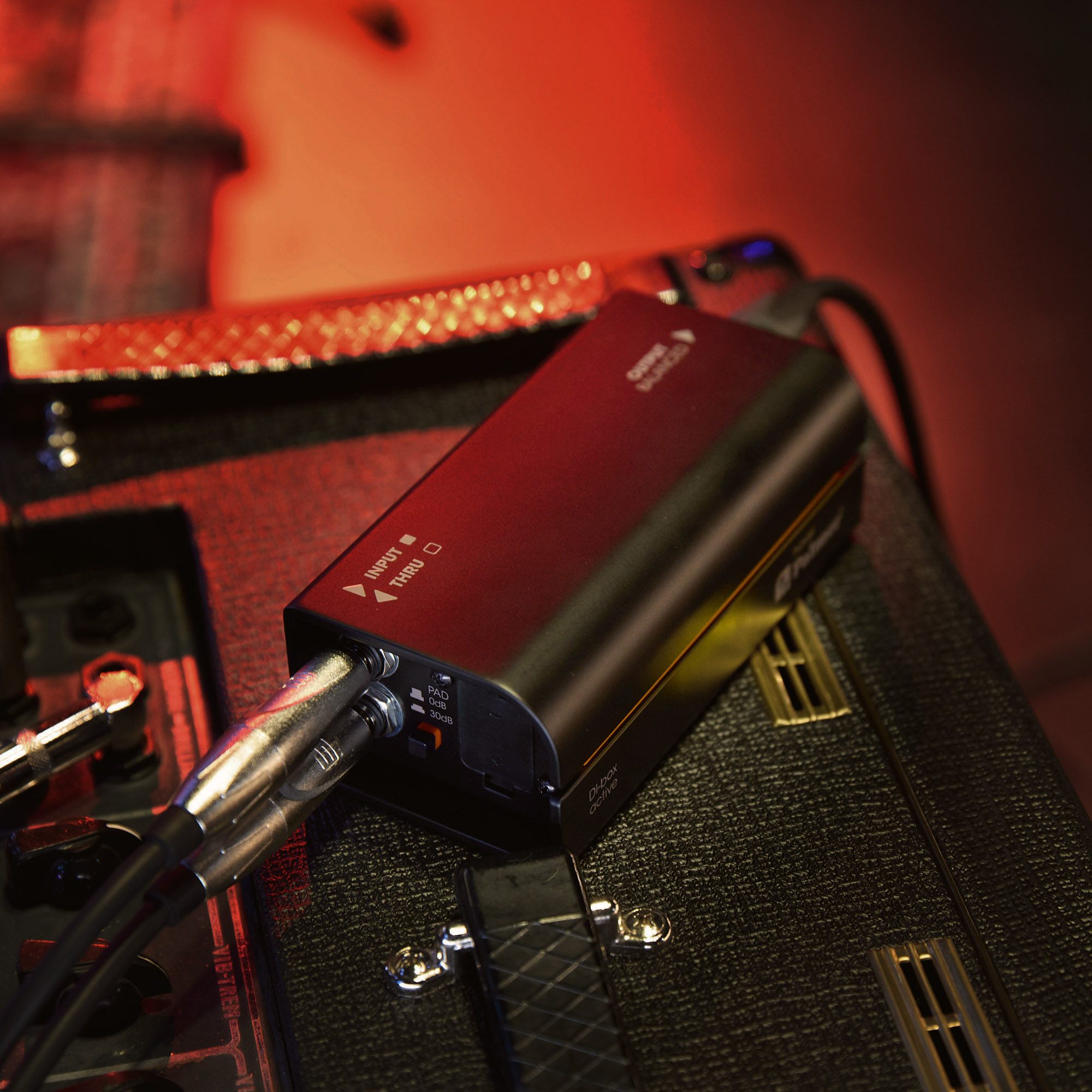

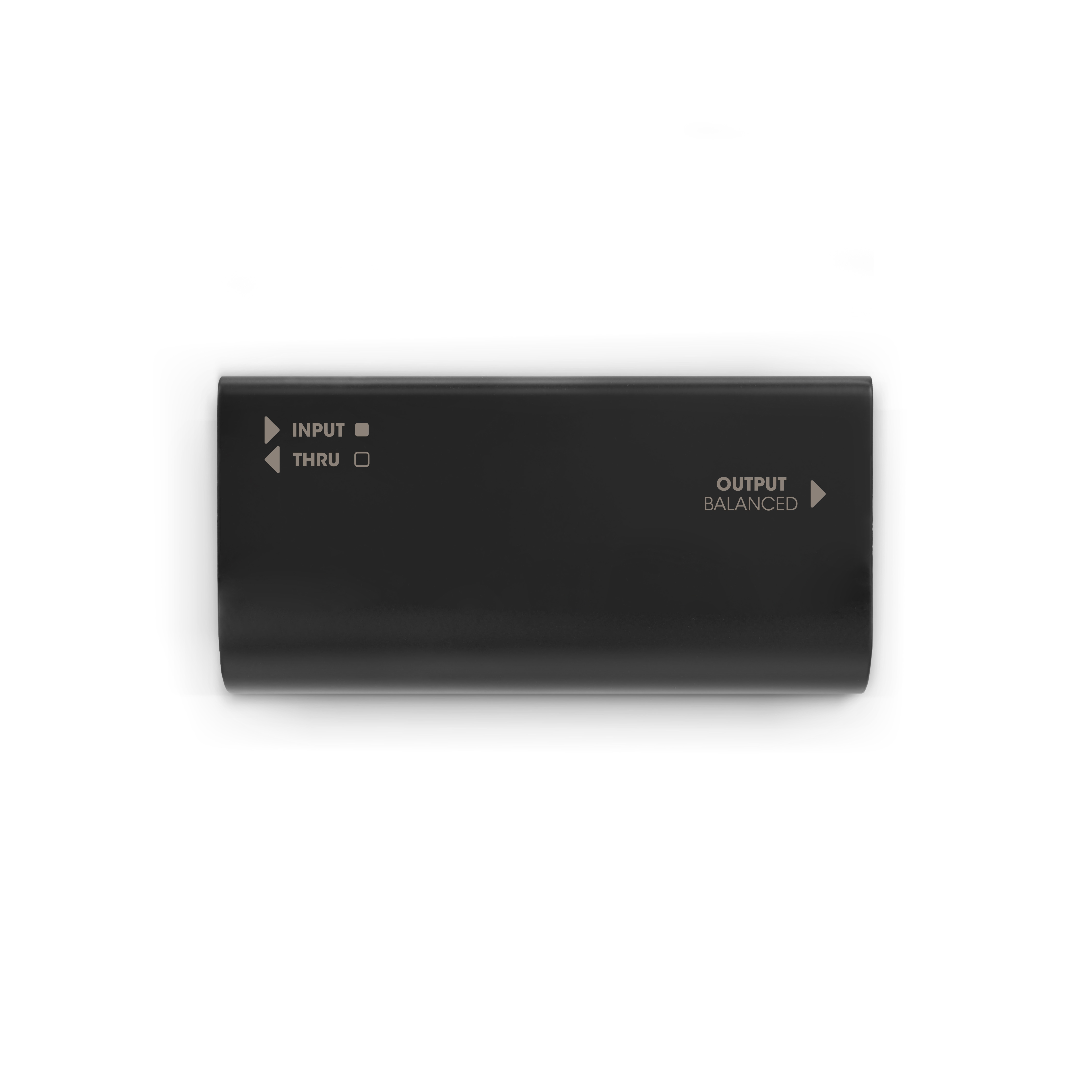

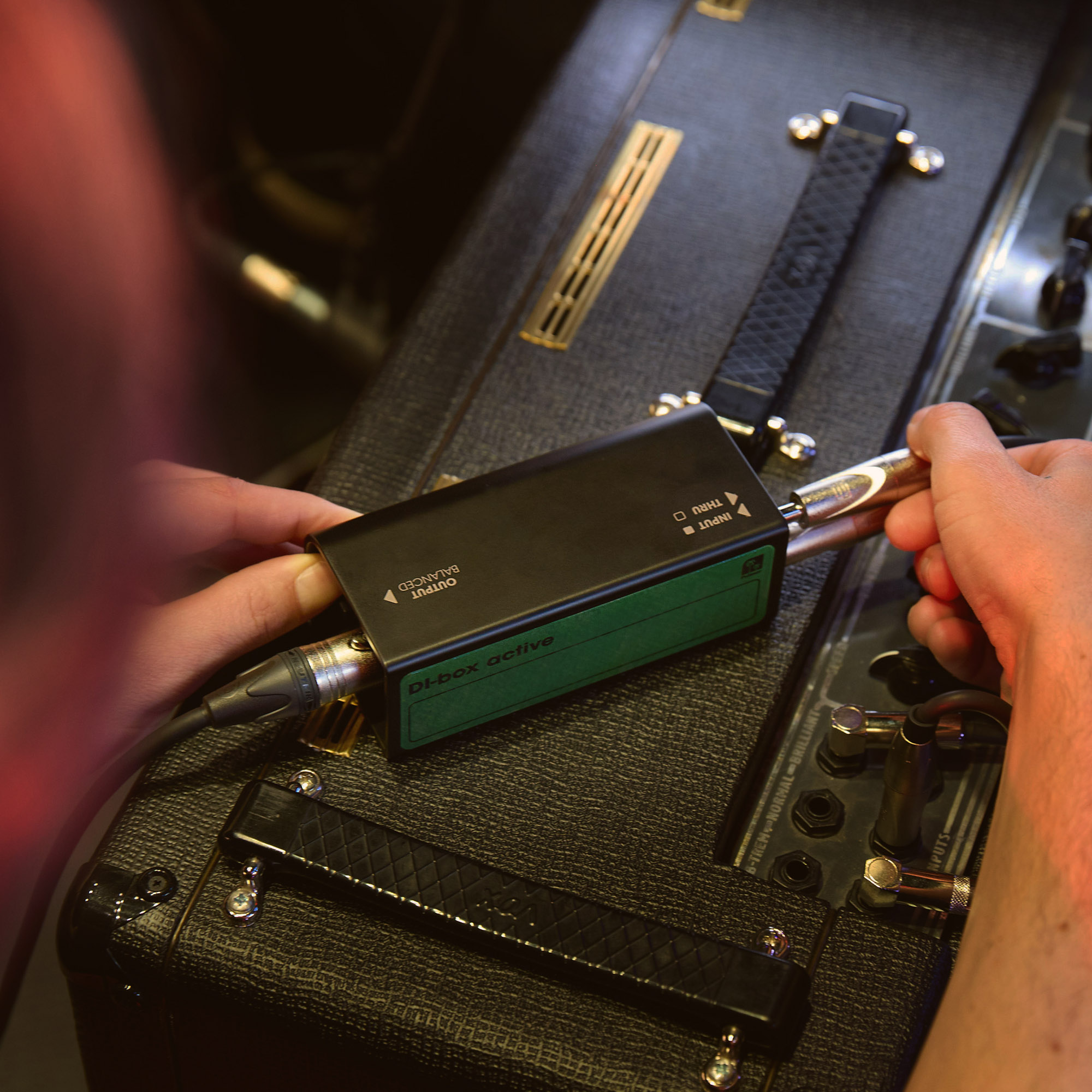

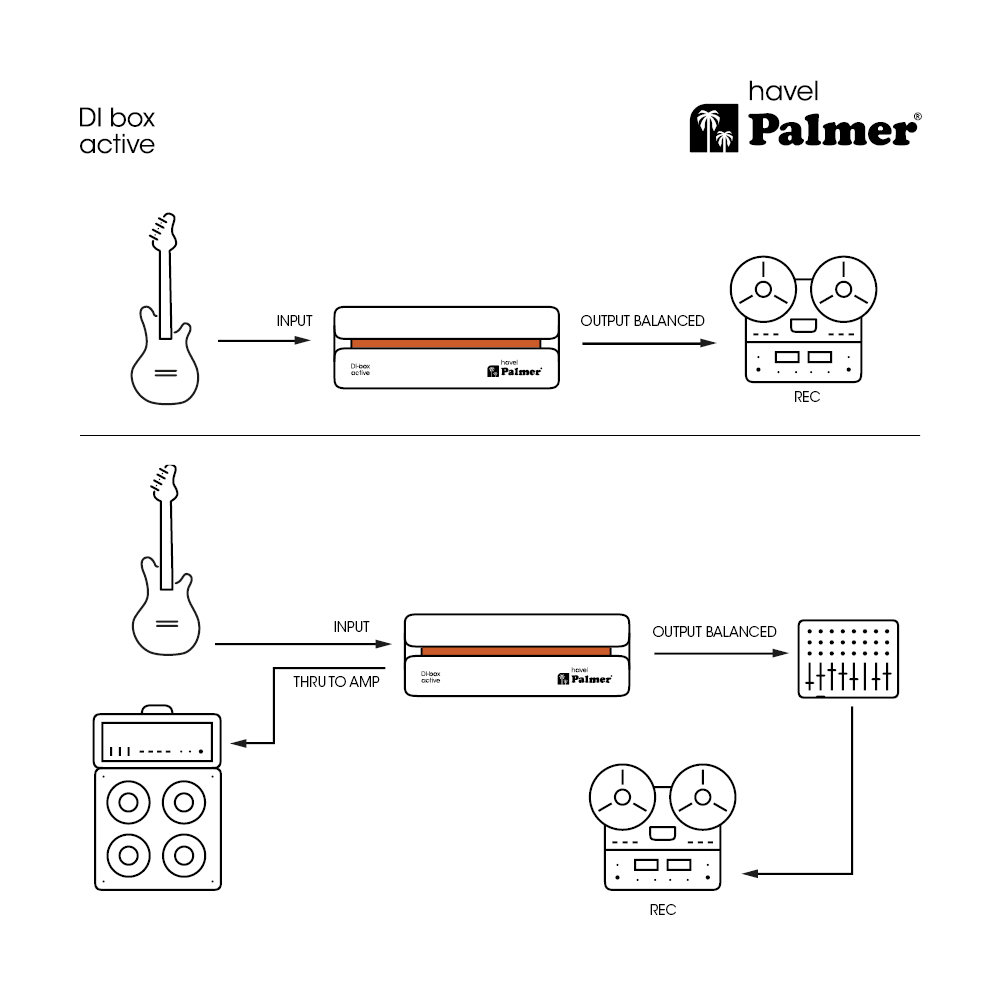

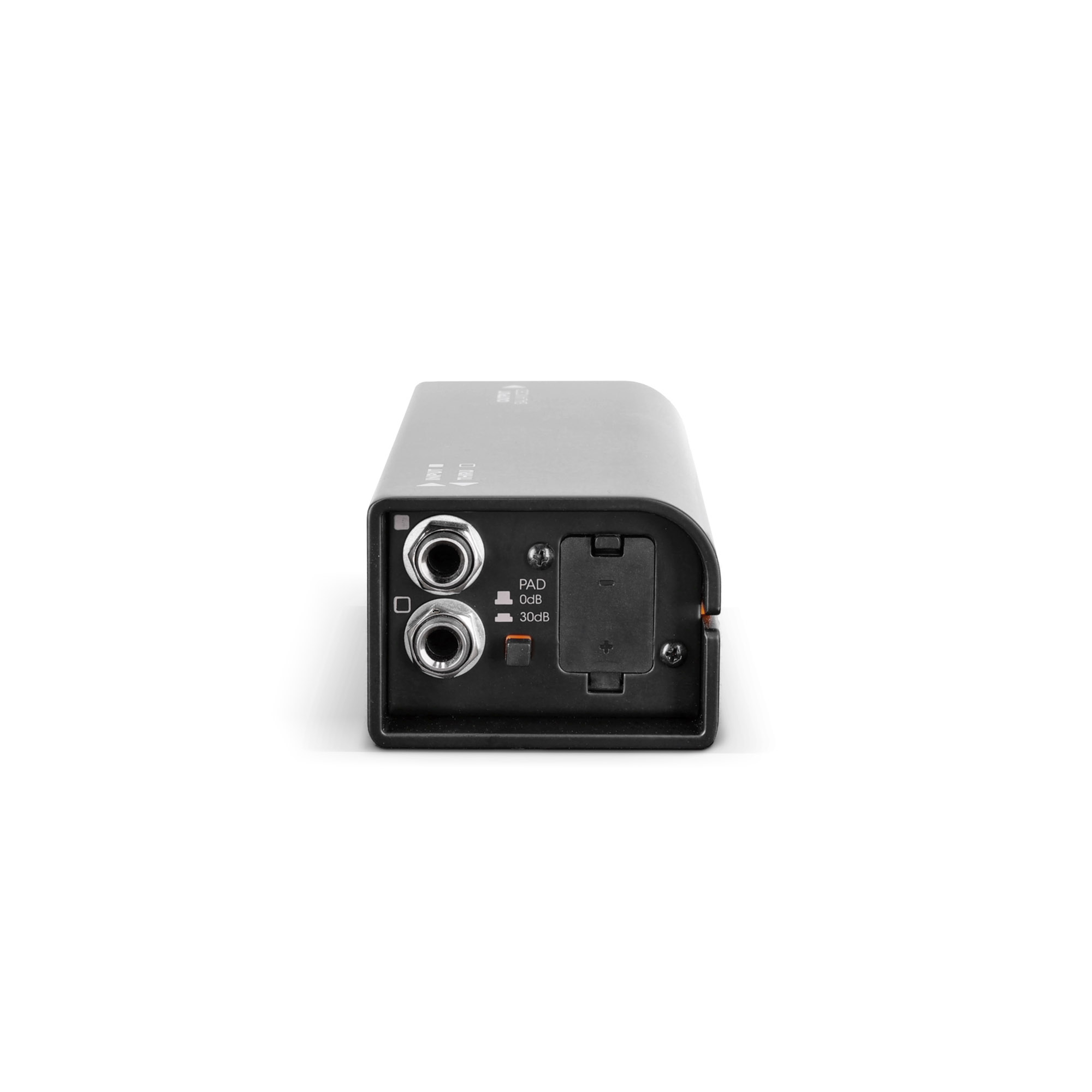

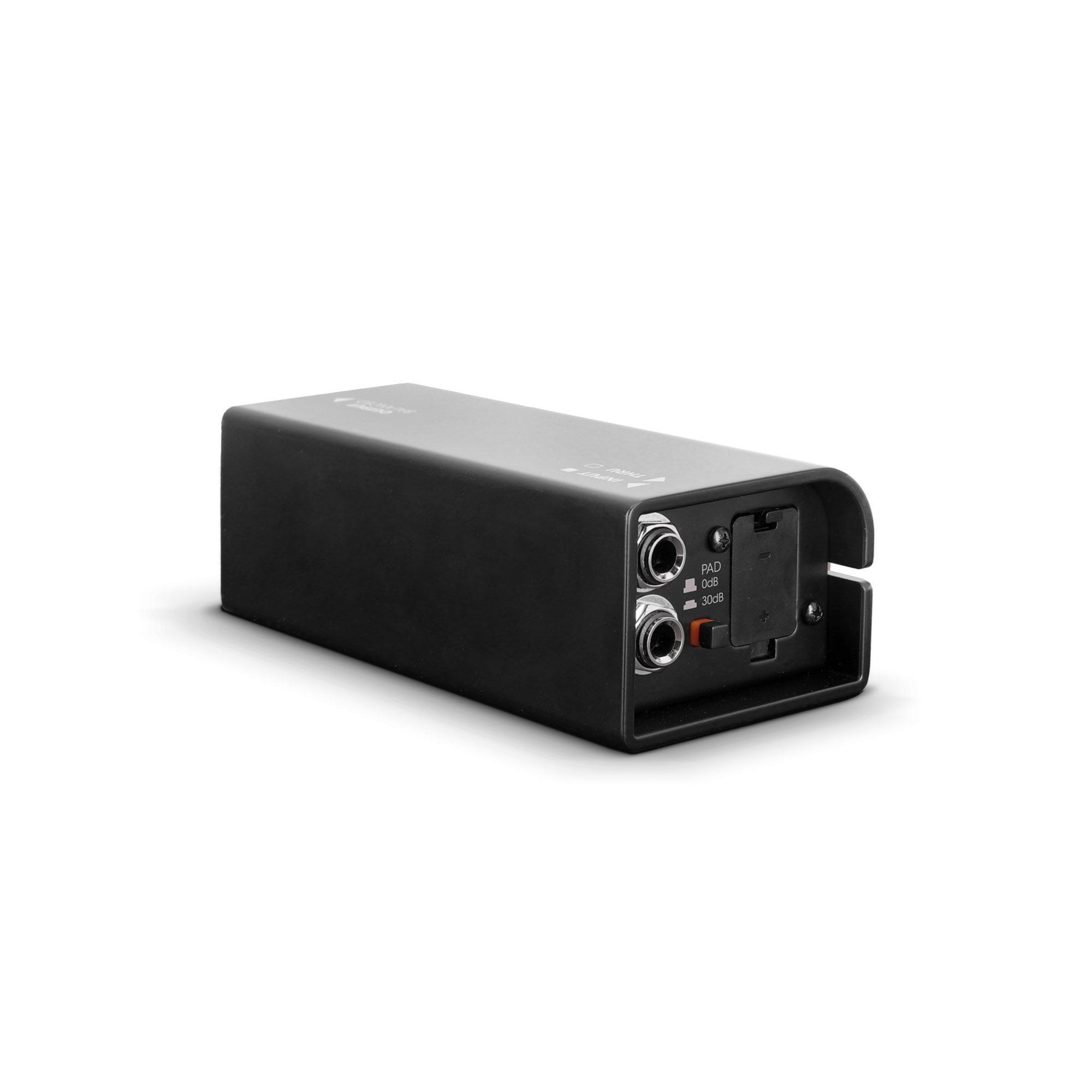

Of course, the Palmer havel features a THRU output to pass the input signal on to the instrument amplifier. With 30 dB of pre-attenuation activated, the Palmer havel can also be looped in between the amplifier output and the loudspeaker, if you want to include the sound of the amplifier instead of the “raw” instrument signal.

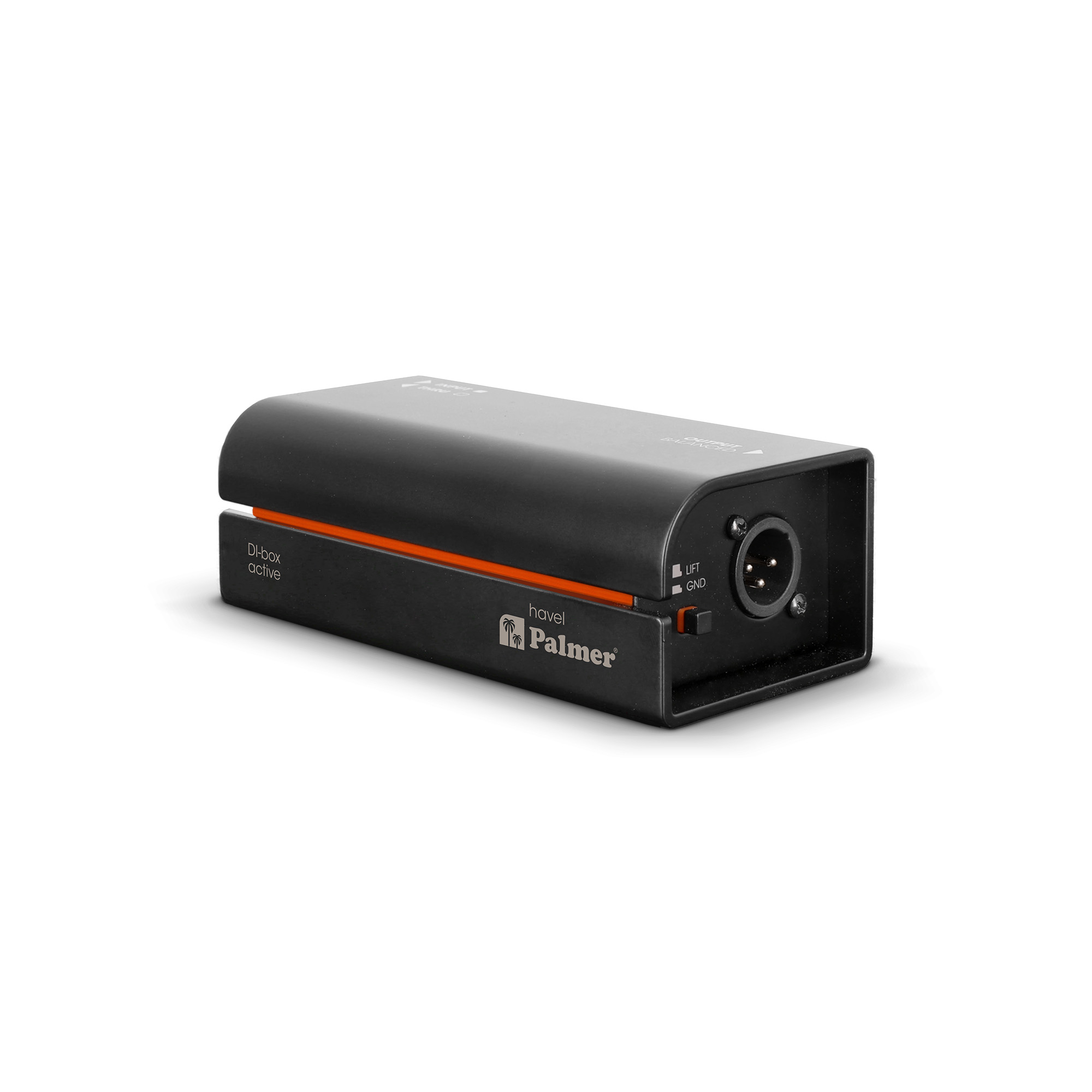

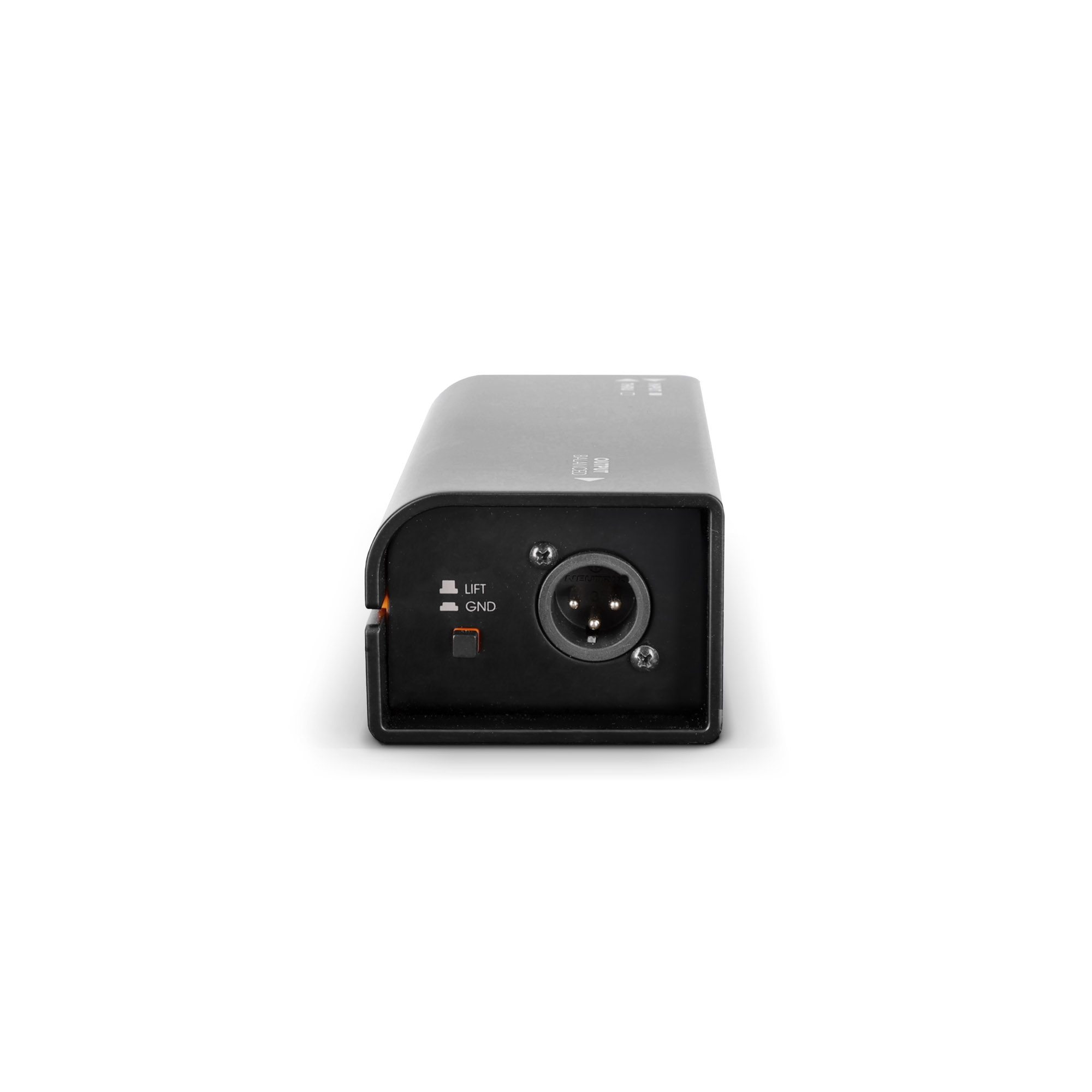

The balanced, low-impedance output signal from the Palmer havel is resistant to interference, which enables long cable runs without any loss of sound quality. Thanks to the built-in transformer, the XLR output is galvanically isolated. Any hum loops that may occur can easily be remedied by pressing the ground lift switch. For a power supply, a 48V phantom power unit or a standard 9V battery can be used.
We're sure you’ve spent a long time searching for YOUR sound, and have invested a lot of time and money to get your instrument to sound the way it should. The Palmer havel transmits your sound faithfully and free of interference. This means your sound reaches the listener exactly as nature intended!
| Type: | Active |
|---|---|
| Included Accessories: | Rubber feet, Tour label |
| Isolated transformer: | 1 |
| Number of inputs: | 1 |
| Frequency response (±1 dB, rel. Avg): | 20 - 20000 Hz |
| Number of outputs: | 1 |
| Transformer Ratio: | 1:1 |
| Ground Lift: | Yes |
| Number of channels: | 1 |
| Input signal type: | Unbalanced |
|---|---|
| Input connector types: | 6.3 mm Jack TS |
| Max. input level: | 9.5 dBu |
| Number of instrument inputs: | 1 |
| Input impedance: | 500 kΩ |
| Output signal type: | Balanced |
|---|---|
| Output connector types: | XLR 3-pole male |
| Linked outputs per channel: | 1 |
| Max. output level: | 4.5 dBu |
|---|---|
| Balanced output impedance (1 kHz): | 100 Ω |
| Max. THD+N (30 Hz, +4 dBu, unity, unweighted): | 0.0026 % |
|---|---|
| Max. THD+N (1 kHz, +4 dBu, unity, unweighted): | 0.0017 % |
| Min. SNR (+4 dBu, 22 kHz BW, unity, unweighted): | 105 dB |
| Max. IMD (SMPTE, 7 kHz, 4:1, +4 dBu): | 0.0017 % |
| Max. IMD (SMPTE, 60 Hz, 4:1, +4 dBu): | 0.0017 % |
| Rated power: | 0.5 W |
|---|---|
| Operation voltage: | 48 V phantom power |
| Batteries: | 1 x 9V block (6LR61) |
|---|
| Colour: | Black |
|---|---|
| Cabinet material: | Aluminum continuous casting |
| Maximum air humidity (non-condensing): | 80 % |
|---|---|
| Ambient temperature: | -20 - 70 °C |
| Depth: | 2.68 in |
|---|---|
| Height: | 1.97 in |
| Width: | 5.51 in |
| Weight: | 0.9 lbs |
Login
accessories

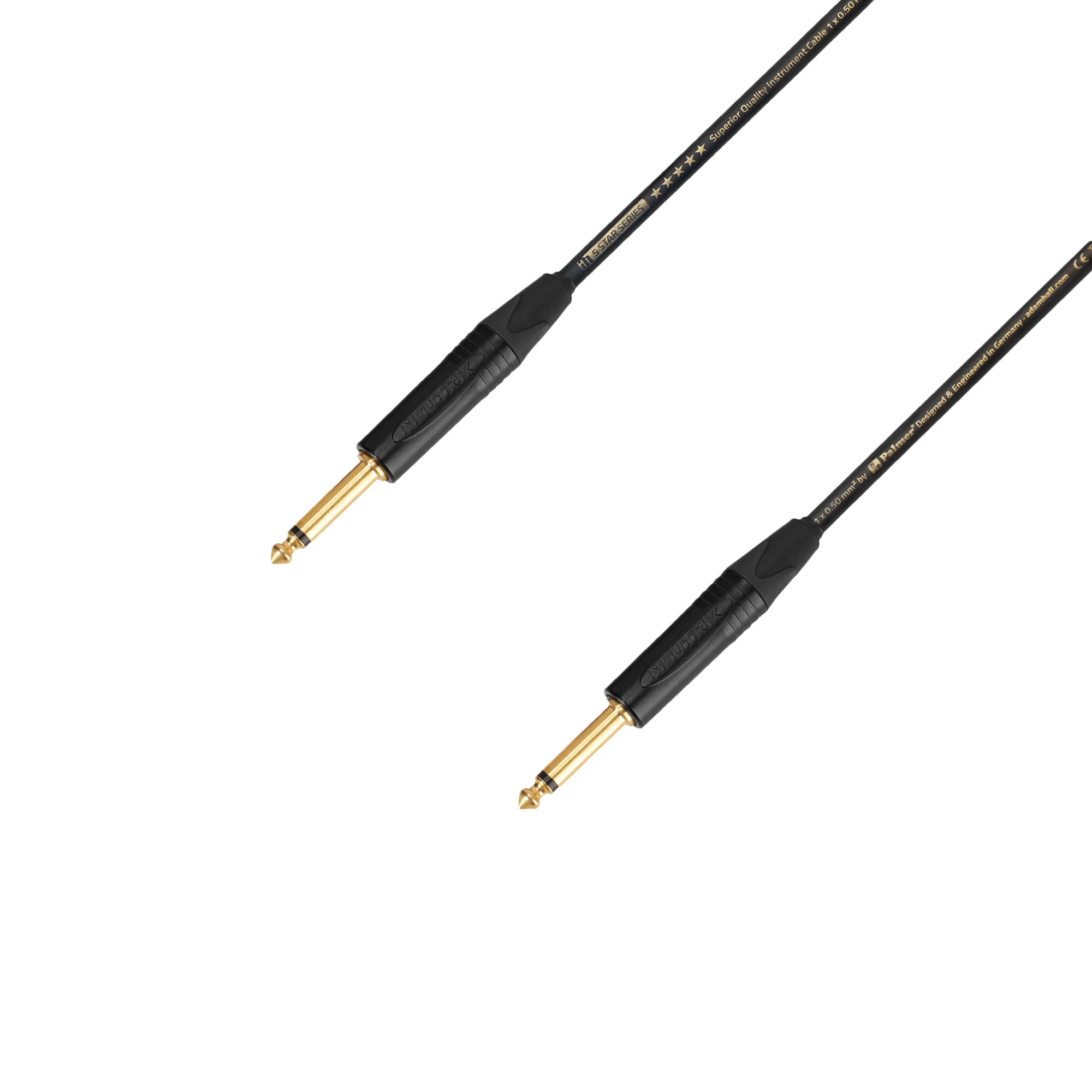

Superior quality on a high performance levelThis "Adam Hall Cables" 5 STAR product is a professional cable which delivers outstanding sound quality for the most demanding players.With musicians in mind who are seeking the full sound spectrum of their beloved instruments, our crew at Palmer® developed this super low restistance and low capacitance cable, and a braided shielding to avoid magnetic interferences to nearly 100%. The result of this Adam Hall Cables X Palmer® cooperation is an unaltered and balanced sound!In order to reach the superior quality, we only assemble original Neutrik® connectors with gold plated contacts. Palmer® products as well as Adam Hall Cables are engineered in Germany.
