Product information "RIVER tauber"
Do you have two microphones, but just one free microphone input?

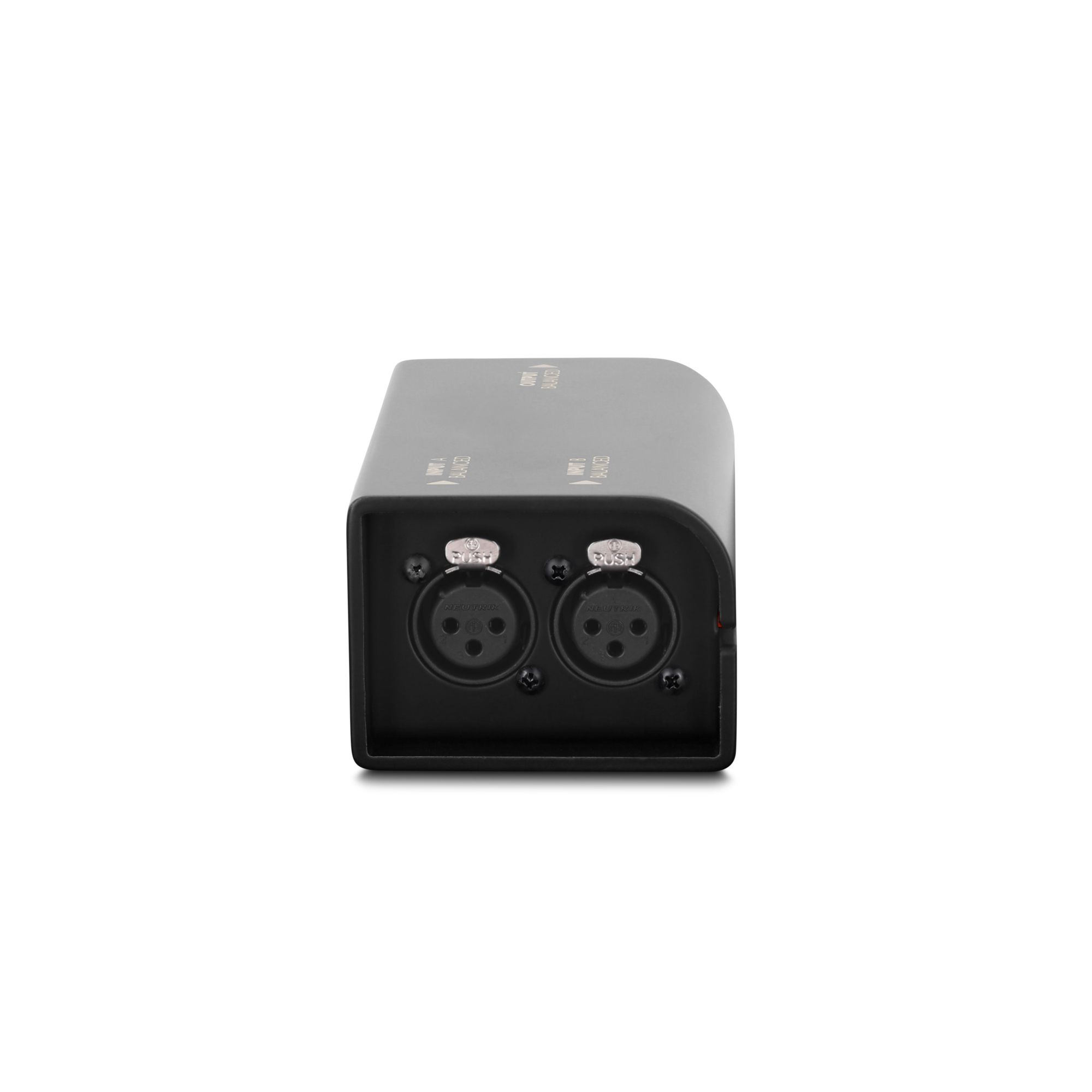

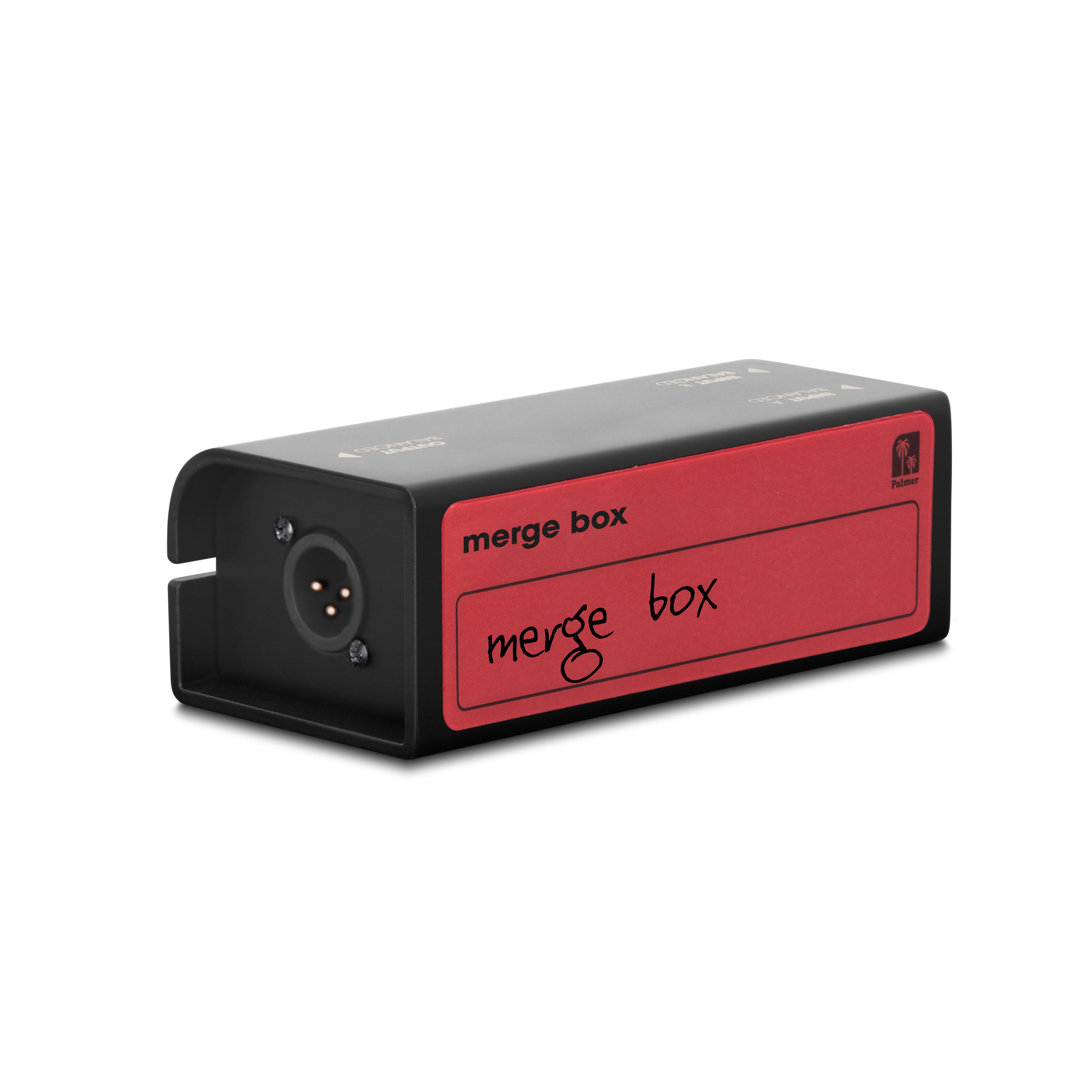

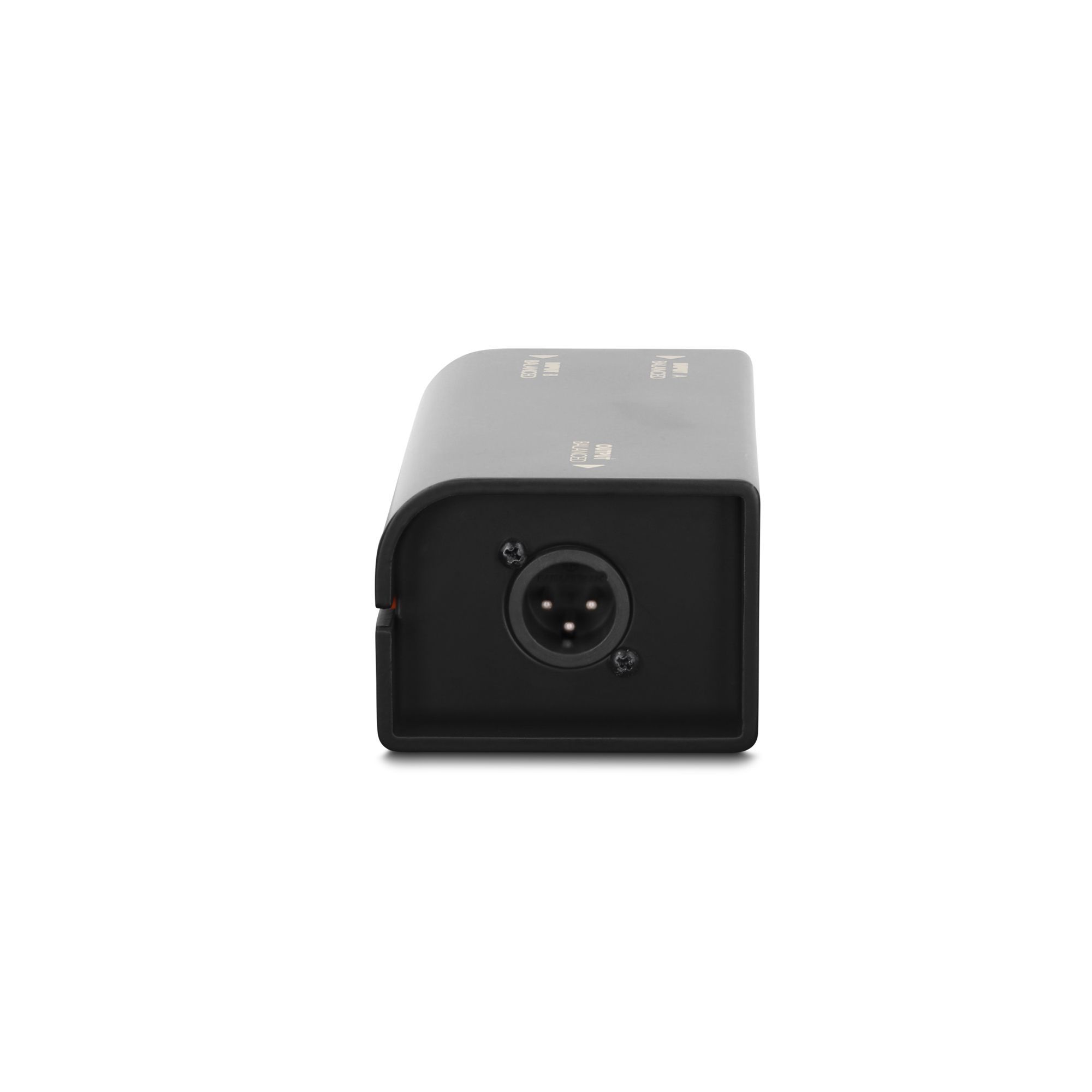

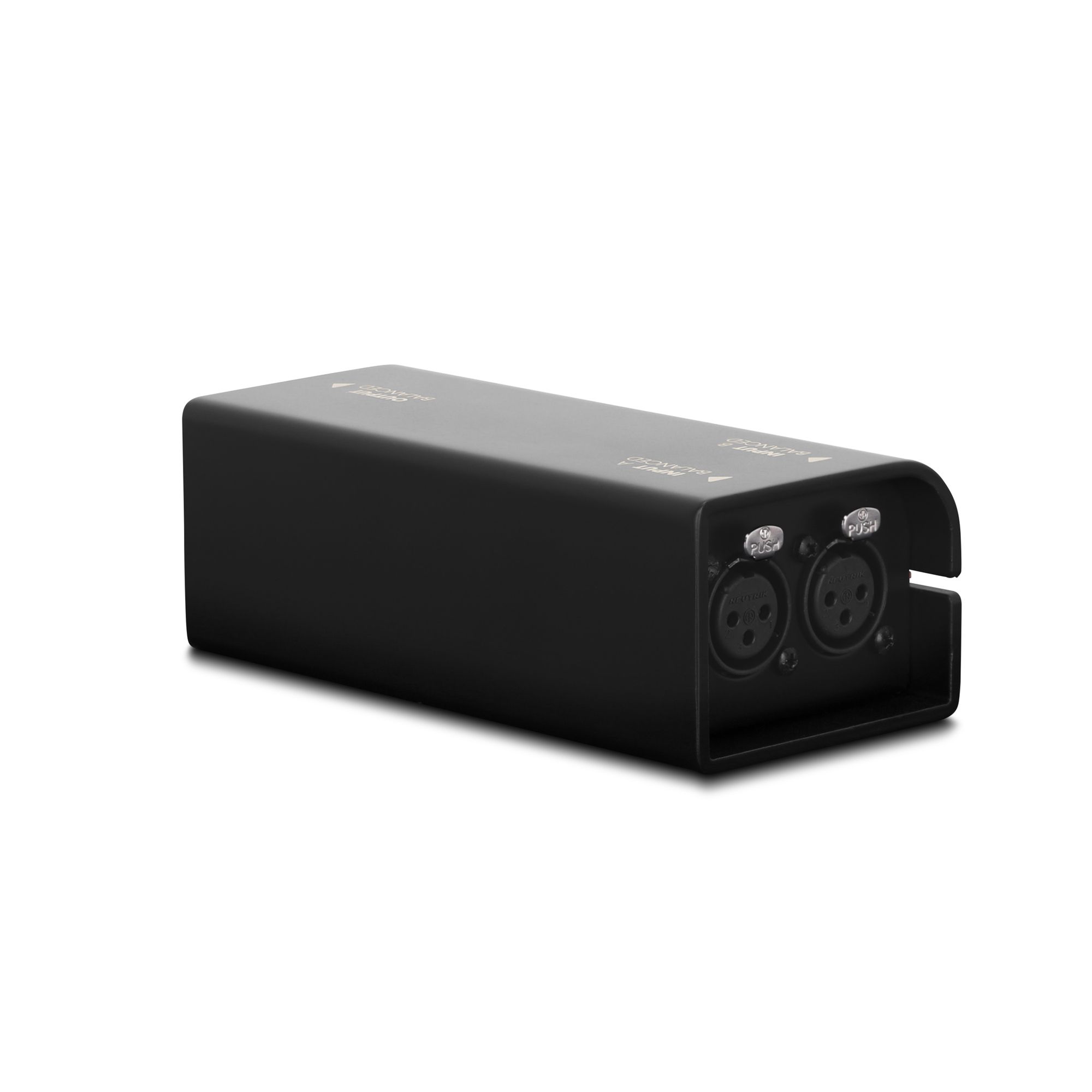

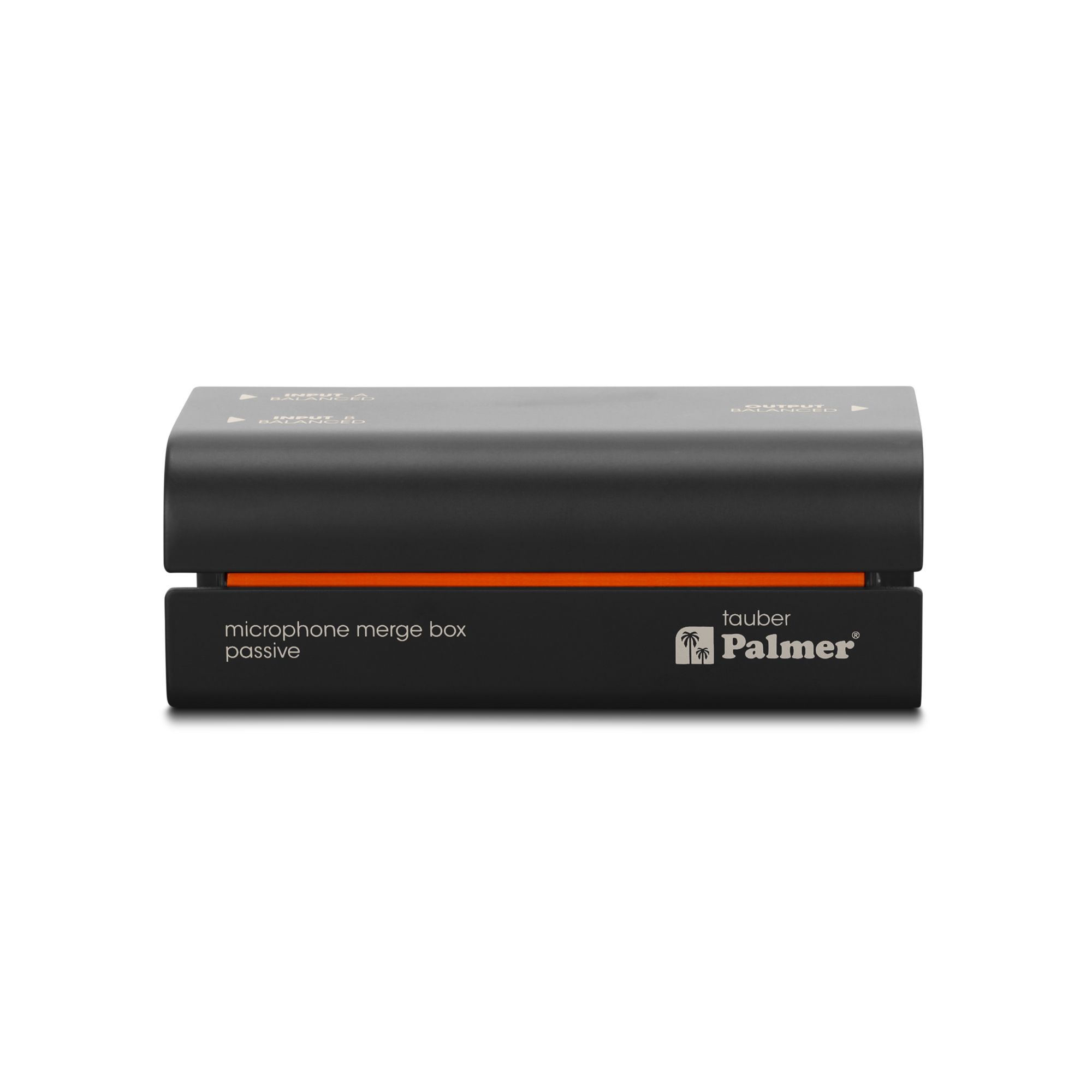

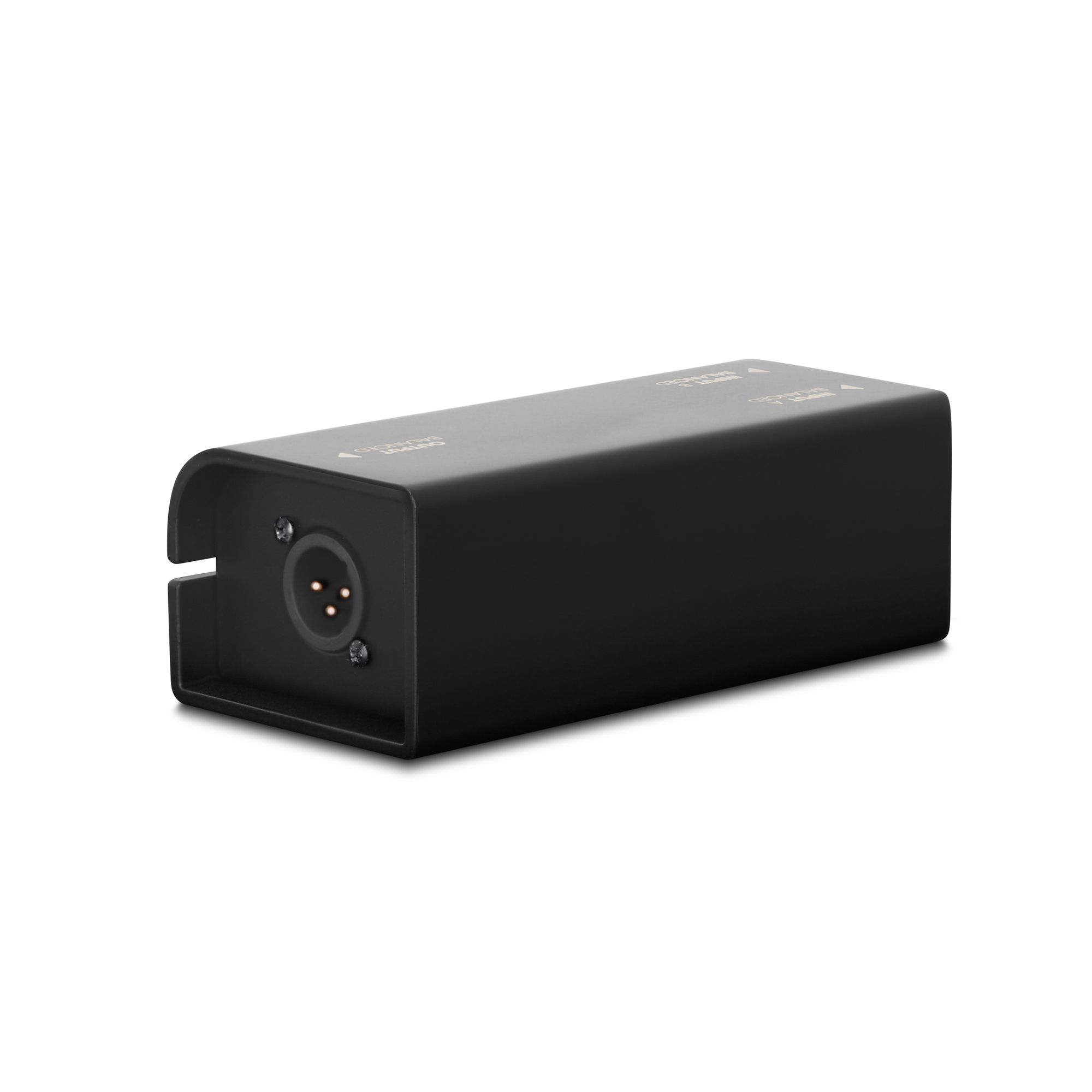

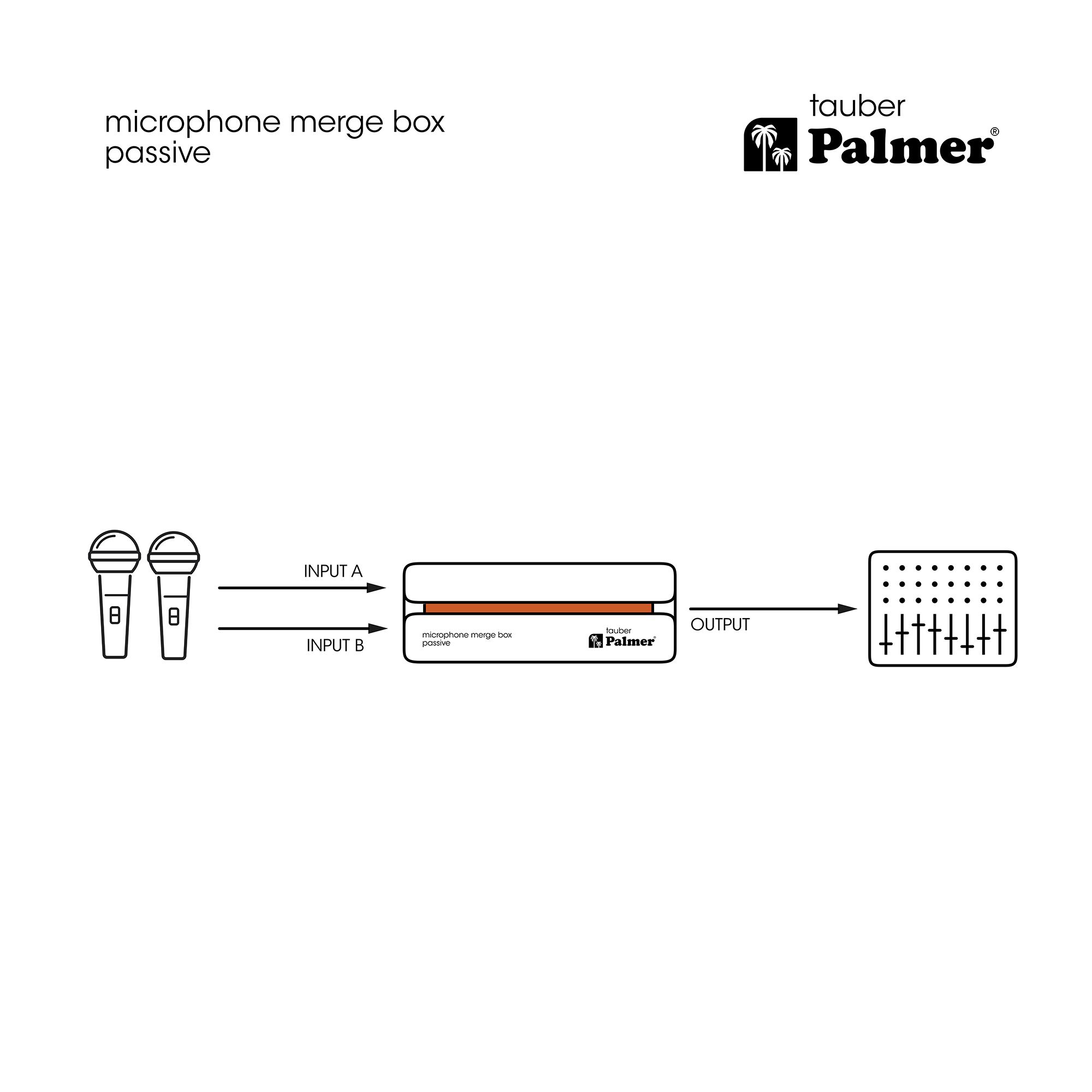

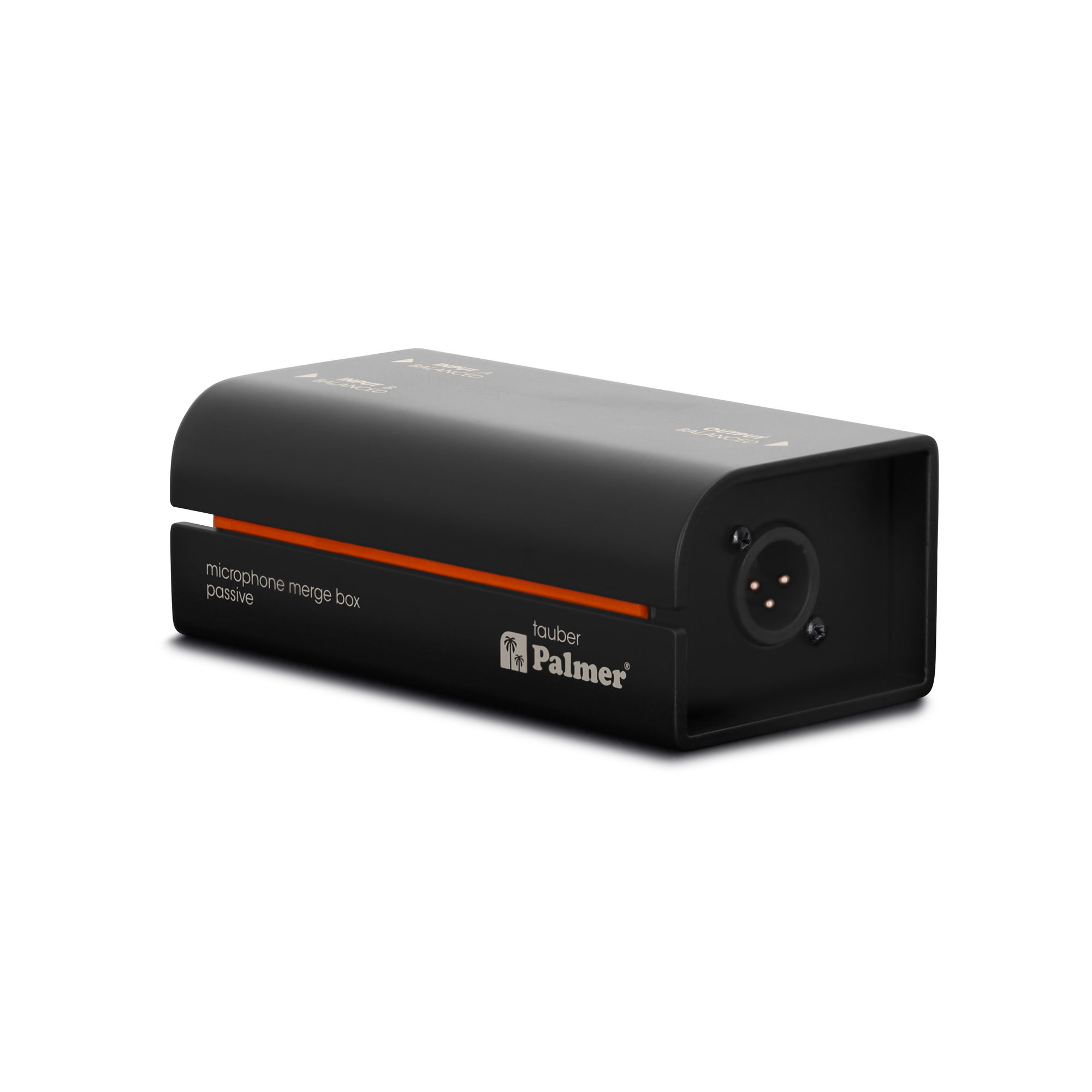

This problem has existed for as long as there have been PA systems! The Palmer tauber Microphone Merge Box solves the problem in a simple way. It has two balanced microphone inputs that are summed via a resistor matrix to a balanced mono signal which is routed to a single XLR output. It's as easy as it sounds!
It can be used for two dynamic microphones or two condenser microphones. Ideally, they should be identical or similar microphone types to avoid any undesirable level differences. Phantom power is passed through to both inputs.
Due to its passive circuitry, the tauber works without any sound colouration and does not require a power supply. The casing and sockets are extremely robust and longlasting.
| Ambient temperature (in operation): | - 20 - 70 °C |
|---|---|
| Output connectors: | XLR |
| Input connectors: | XLR |
| Output type: | balanced |
| Input type: | balanced |
| Channels: | 1 |
| Dimensions (W x H x D): | 140 x 50 x 68 mm |
| Number of inputs: | 2 |
| Product type: | Microphone summing unit |
| Type: | passive |
| Housing: | Aluminium continuous casting |
| Accessories (included): | rubber feet, Inscription label (tour label) |
| Transformer isolated: | No |
| Number of outputs: | 1 |
| Relative Humidity: | < 80 %, not condensing |
| Output impedance (1 kHz): | 400 Ω |
|---|---|
| Input impedance (1 kHz): | 644 KOHM |
0 of 0 reviews
Average rating of 0 out of 5 stars
Login
accessories
For professional applications on stage, in the studio or in the rehearsal room, excellent quality is available with our 5 STAR SERIES. This cable is made in the EU and therefore meets the relevant requirements for professional use.Durability and reliability find their master in the hard road everyday life! We have therefore developed a cable that is not only flexible, but also very robust. We use a special soft-PVC compound for all cables of the 5 STAR SERIES, which is friction resistant and bendable. For excellent signal transmission, but is also more abrasion resistance. The cable comes with a cable tie and two transparent, loose heatshrinks for labeling.Engineered in Germany & Made in EU: This stands for precision & quality.
High Quality CableFor users who demand high-quality on stage, in the studio, or in the rehearsal room, we have developed this cable from our 3 STAR SERIES. This product is completely developed in Germany and therefore meets the relevant requirements for users with high-quality standards.
For professional applications on stage, in the studio or in the rehearsal room, excellent quality is available with our 5 STAR SERIES. This cable is made in the EU and therefore meets the relevant requirements for professional use.Durability and reliability find their master in the hard road everyday life! We have therefore developed a cable that is not only flexible, but also very robust. We use a special soft-PVC compound for all cables of the 5 STAR SERIES, which is friction resistant and bendable. For excellent signal transmission, but is also more abrasion resistance. The cable comes with a cable tie and two transparent, loose heatshrinks for labeling.Engineered in Germany & Made in EU: This stands for precision & quality.

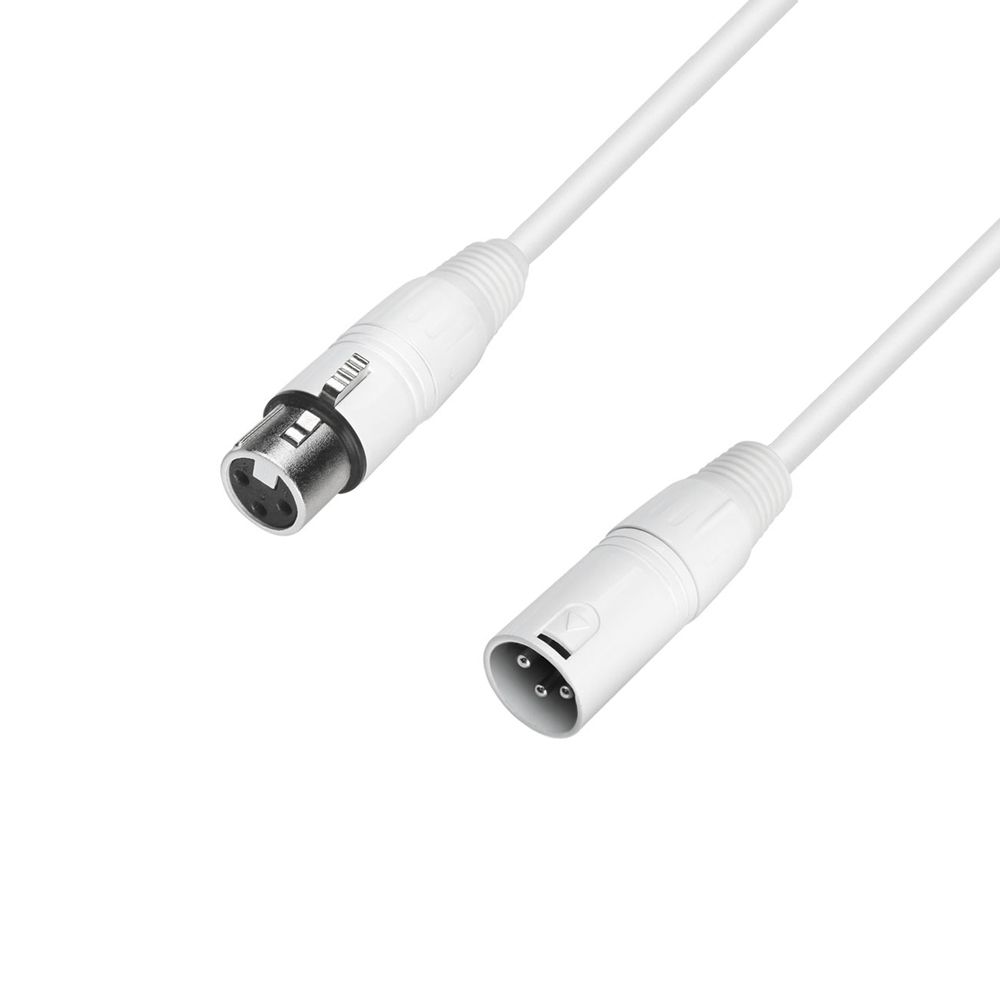

Professional Quality CableFor professional applications on stage, in the studio or in the rehearsal room, professional quality is available with our 4 STAR SERIES. THis cable is completely developed in Germany and therefore meets the relevant requirements for professional use.We focus on durability and reliability, and have therefore developed a line of cables that are not only flexible, but also very robust. We use a special soft-PVC compound for all cables of the 4 STAR SERIES which has very good bending abilities. Of course, the jacket is not the only factor that makes a cable great, so we use a dense copper-spiral shielding, for professional transmission values. All these parts make the cable very flexible.
