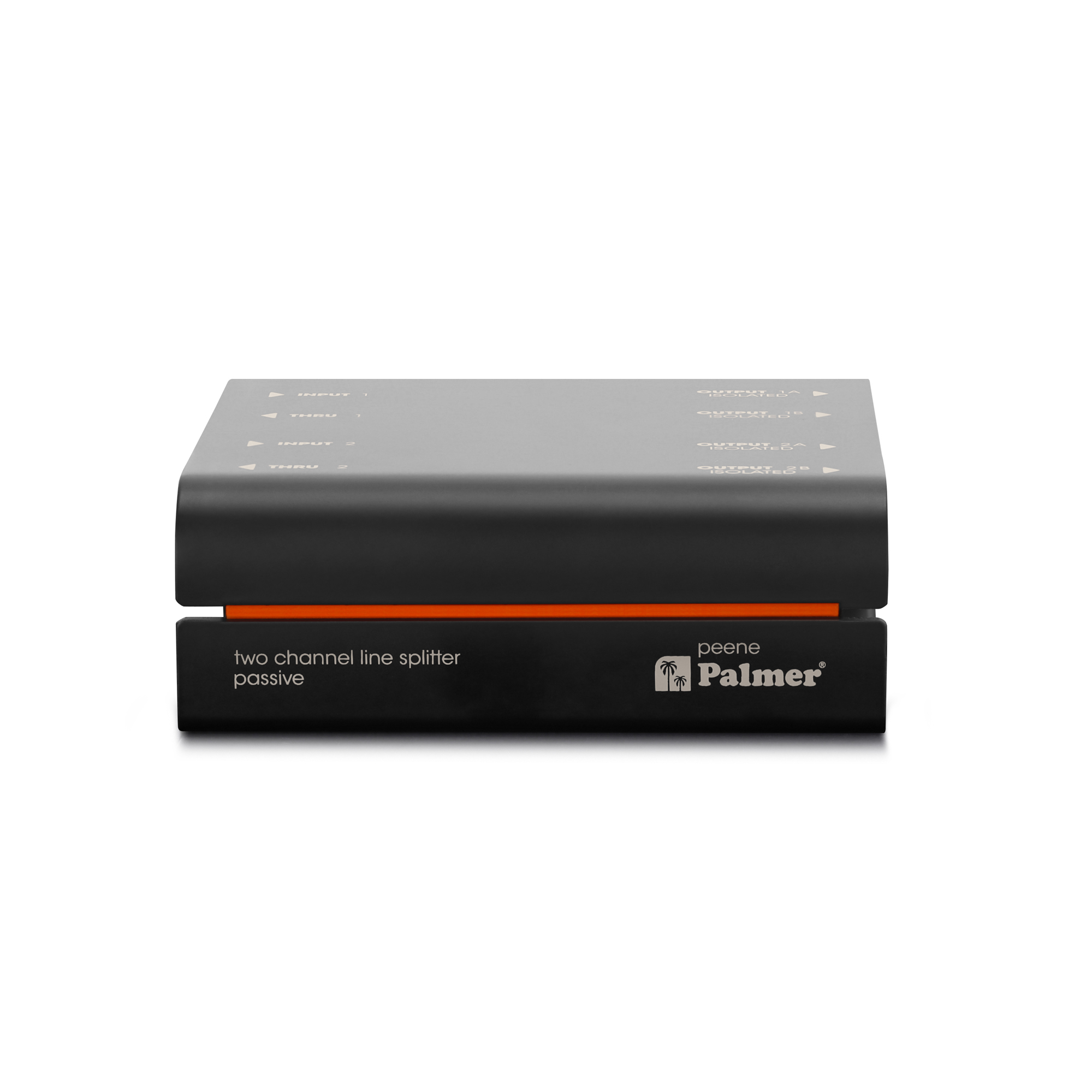

RIVER peene
Passive 2-Channel Line Splitter
$259.99
Backordered – More on the Way!
Product information "RIVER peene"

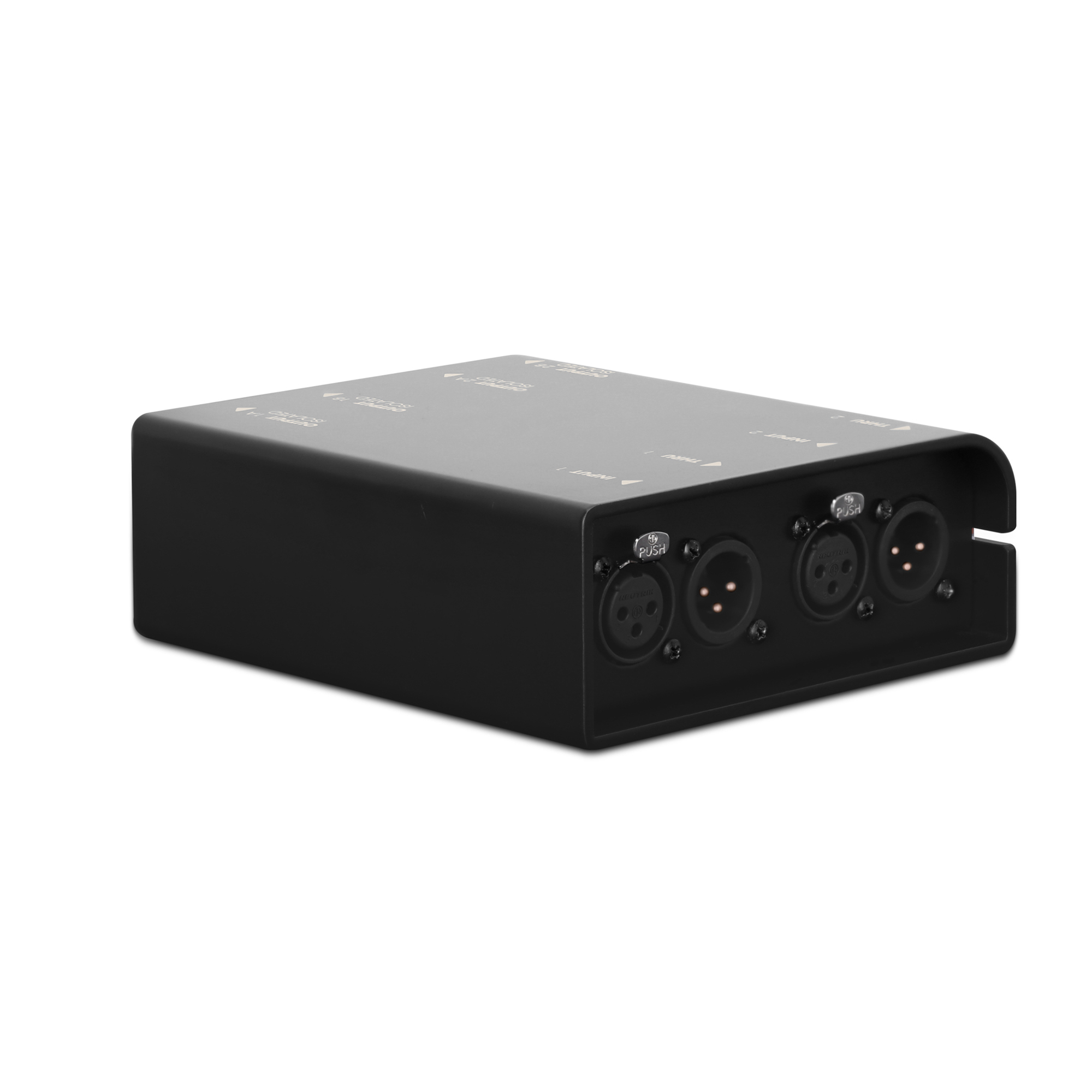

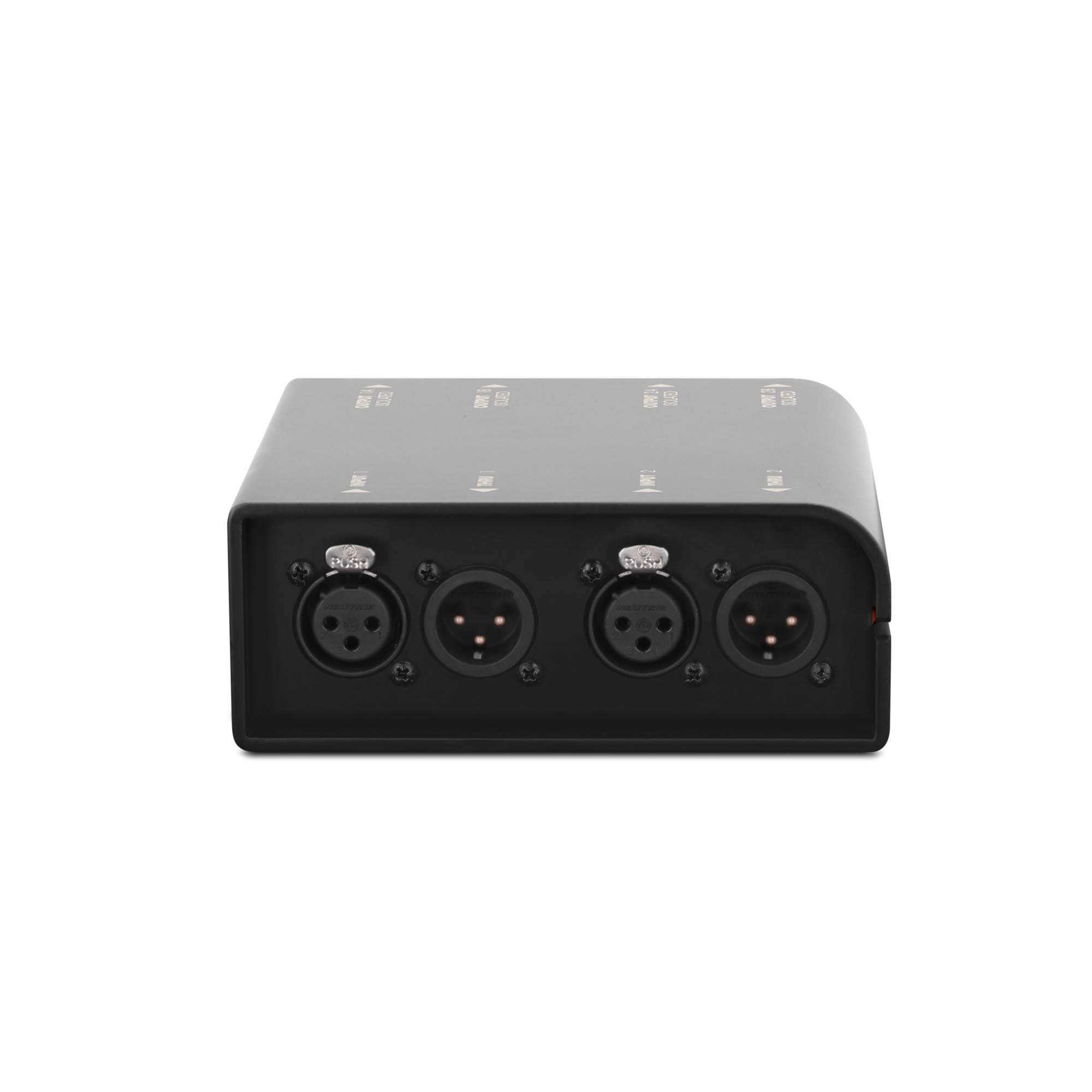

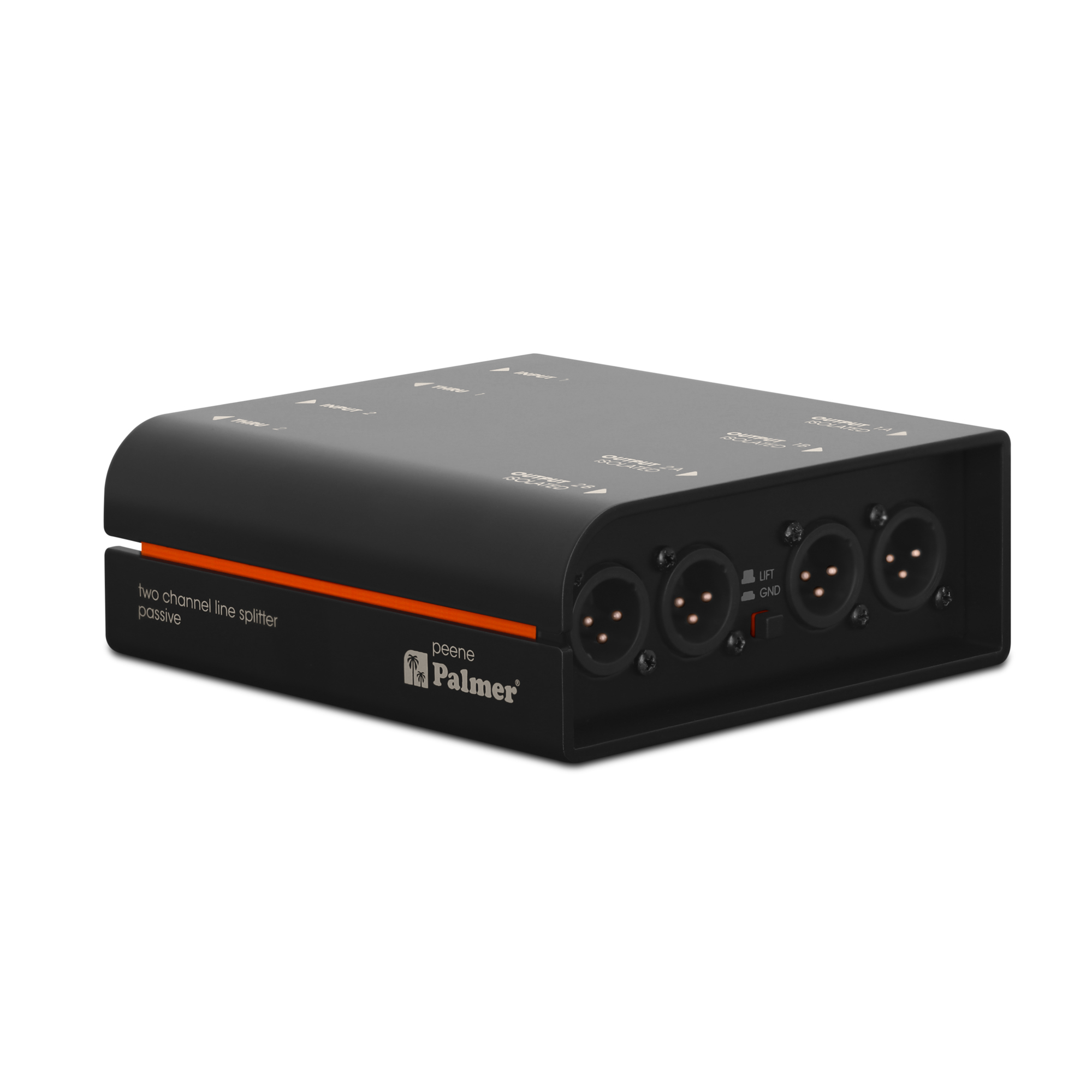

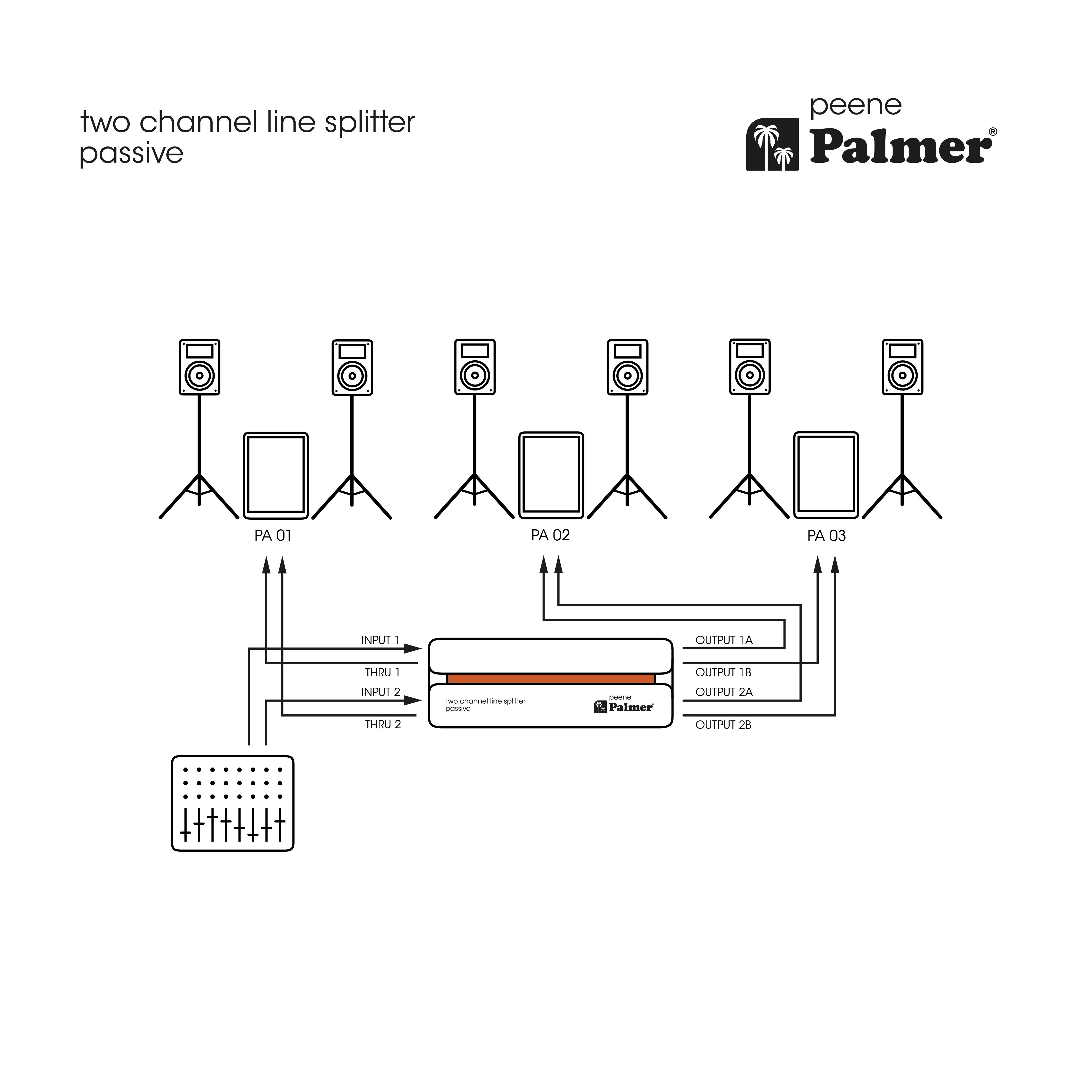

Do you want to send a line signal - stereo or dual mono - to multiple devices, without interference such as hum? Then the Palmer peene line splitter box is the right tool for you. It works on a purely passive basis with large isolation transformers, which can even handle high-level signals without distortion. So, for instance, you can send the stereo output signal from the mixer to several power amps, without any ground loops. The Palmer peene also includes a ground-lift switch. In addition to the two transformer-isolated outputs, the peene also directs the input signal on directly via a link out.
The Palmer peene is everything you need to distribute line signals to several devices and is a reliable audio tool with ultra-simple handling and professional sound characteristics.
| input type: | balanced |
|---|---|
| Input connectors: | XLR |
| Output type: | balanced |
| Product type: | Line Splitter |
| Output connectors: | XLR |
| Number of inputs: | 2 |
| Channels: | 2 |
| Ambient temperature during operation: | -20 - 70 °C |
| Transformer isolated: | Yes |
| THRU outputs per channel: | 1 |
| Number of outputs: | 4 |
| Type: | passive |
| Dimension (H/W/D): | 50 x 140 x 128 mm |

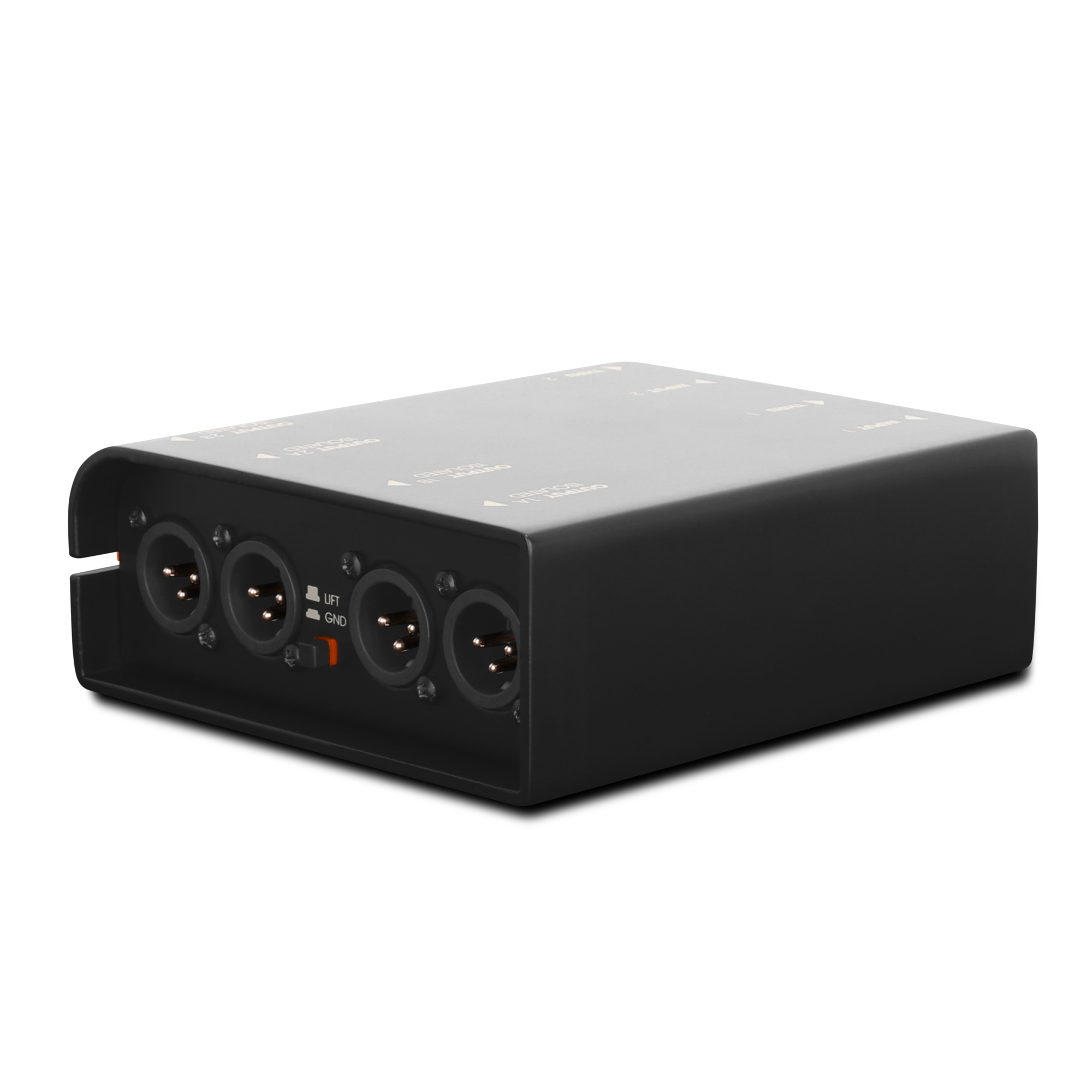

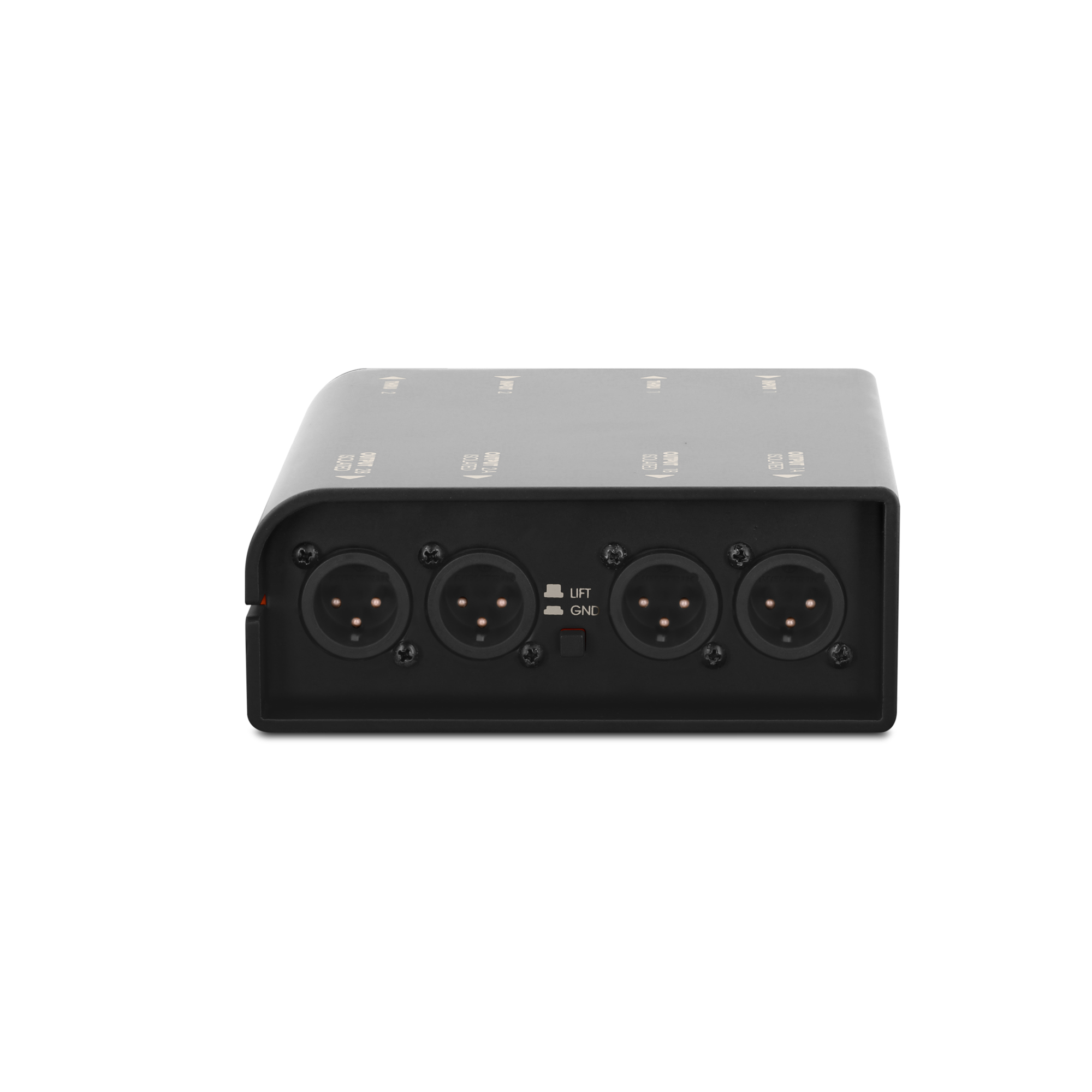

| Ground lift switch: | Yes |
| Housing: | Aluminium continuous casting |

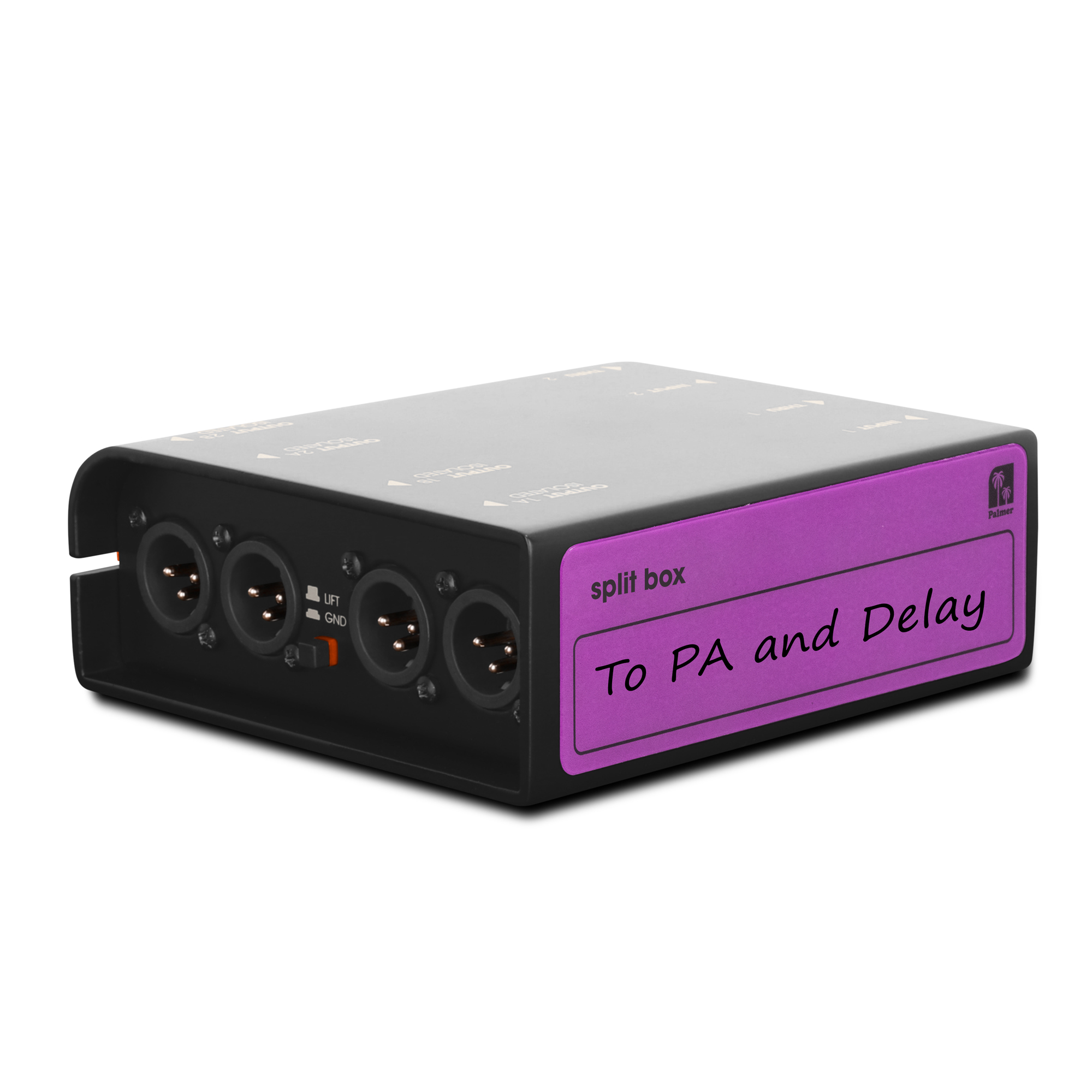

| Accessories (included): | rubber feet, Inscription label (tour label) |
| Relative Humidity: | < 80 % ( non-condensing ) |
| Input impedance (1 kHz): | 6.8 KOHM |
|---|---|
| Frequency response (±1 dB, relative 1 kHz): | 10 Hz - 30 kHz |
| IMD (SMPTE) (60 Hz / 7 kHz, 4:1, +4 dBu): | < 0,01 % |
| Max. input level (< 1% THD, 20 Hz): | + 20 dBu |
| THD (30 Hz, +4 dBu, unity, unweighted): | < 1 % |
| THD (1 kHz, +4 dBu, unity, unweighted): | < 0,02 % |
| Transformer ratio: | 1:1:1 |
| Output impedance (1 kHz): | 500 Ω |
| Max. input level (< 1% THD, 1 kHz): | + 32 dBu |
