Product information "PWT 04"

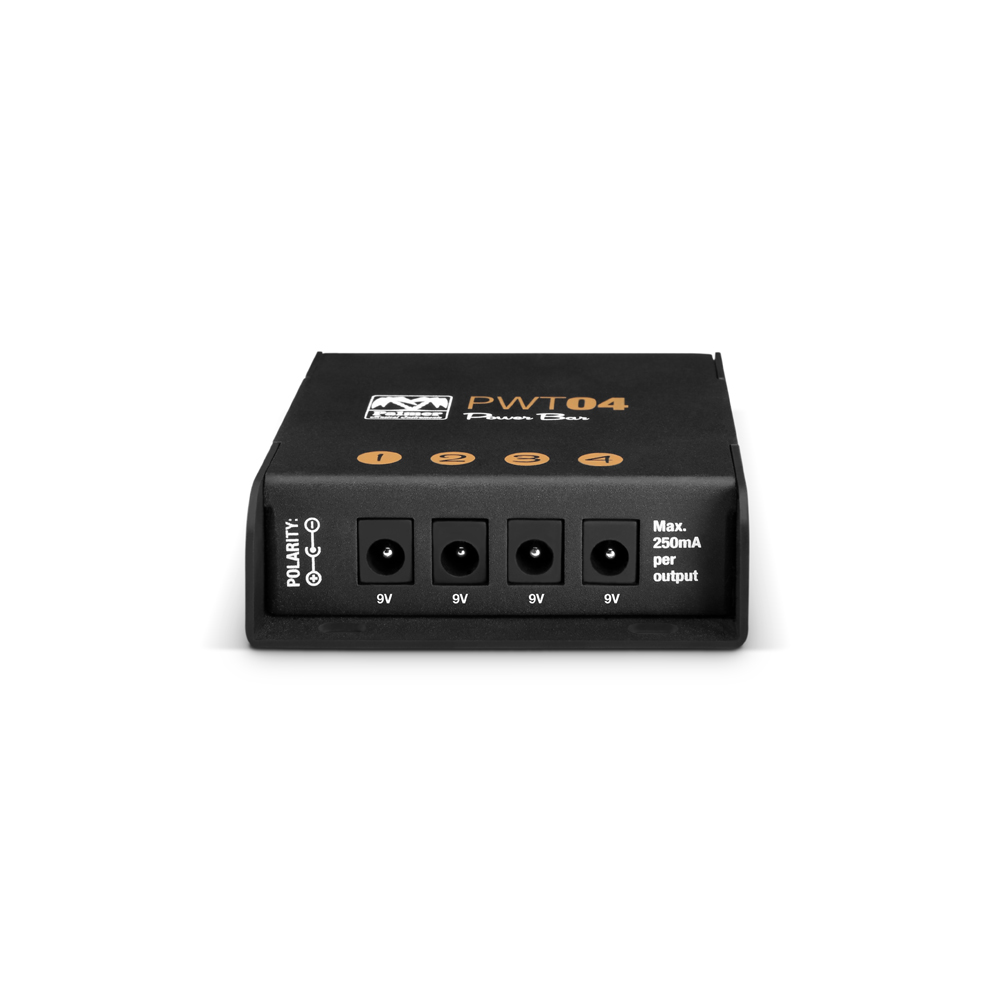

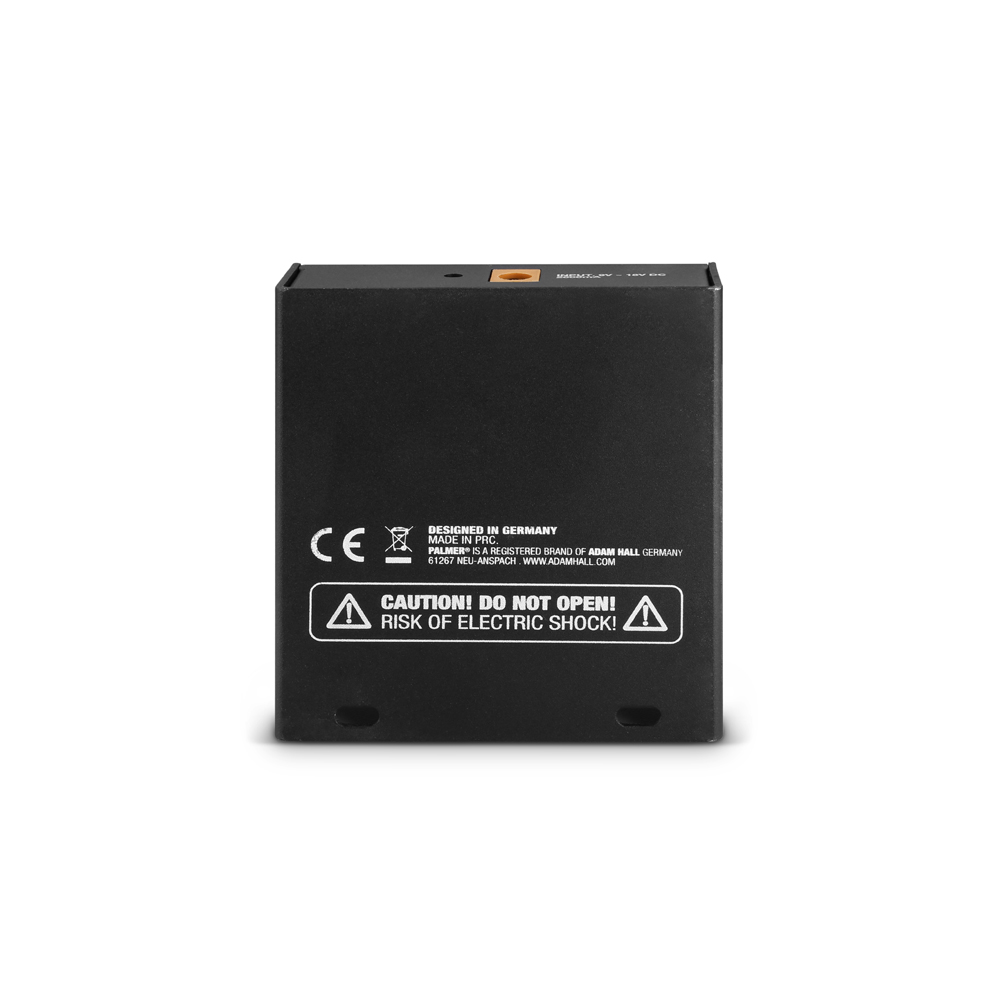

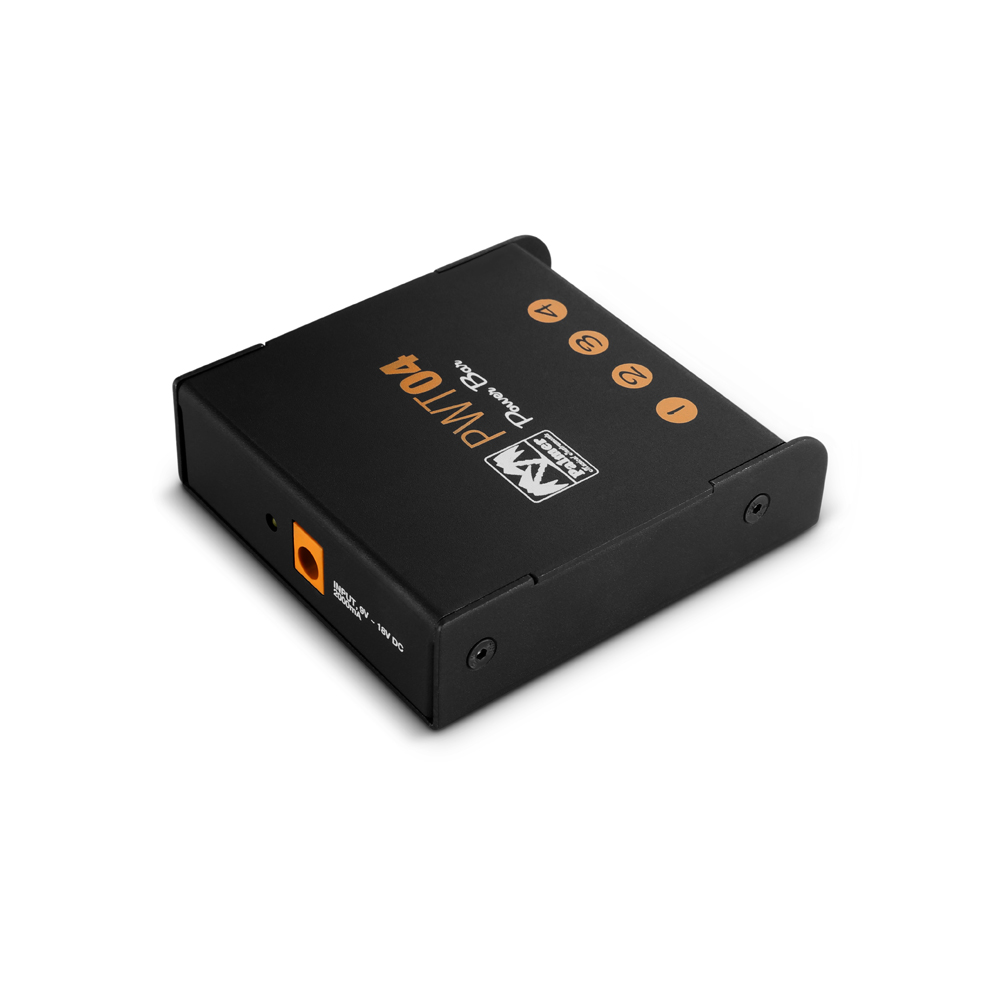

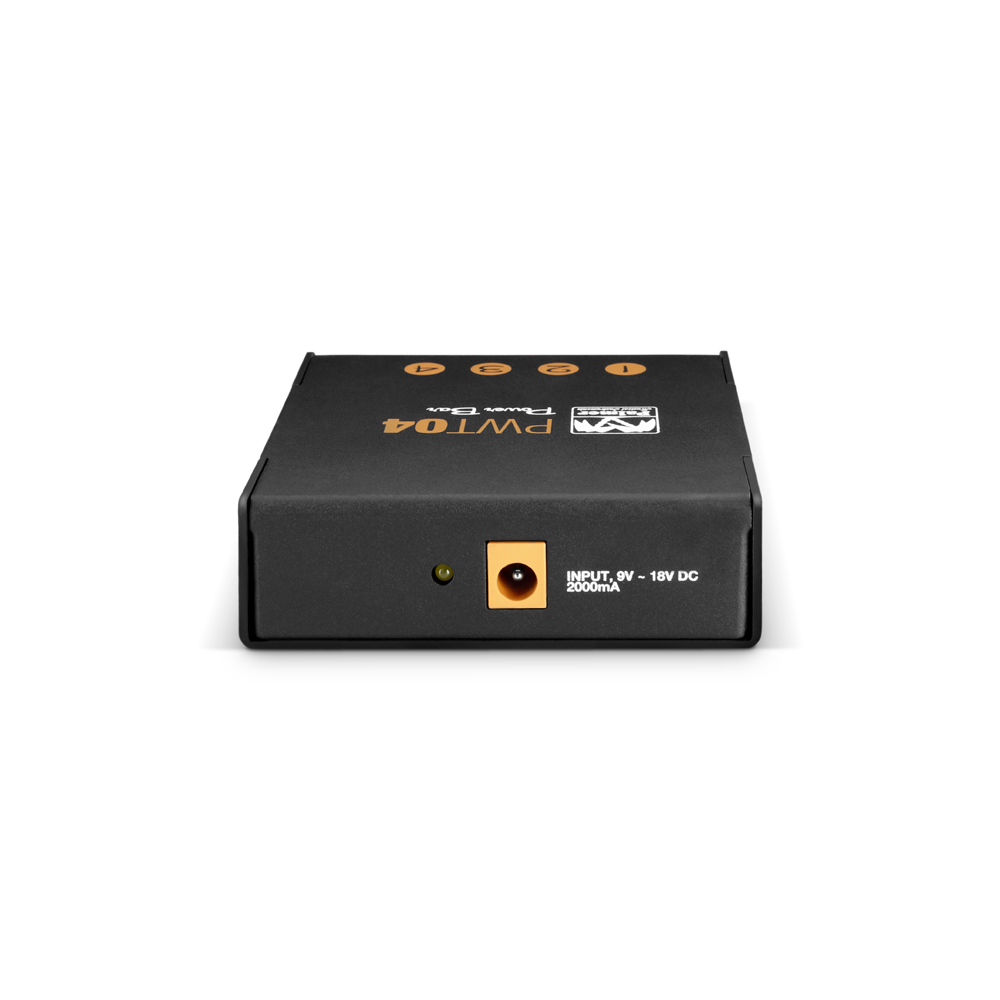

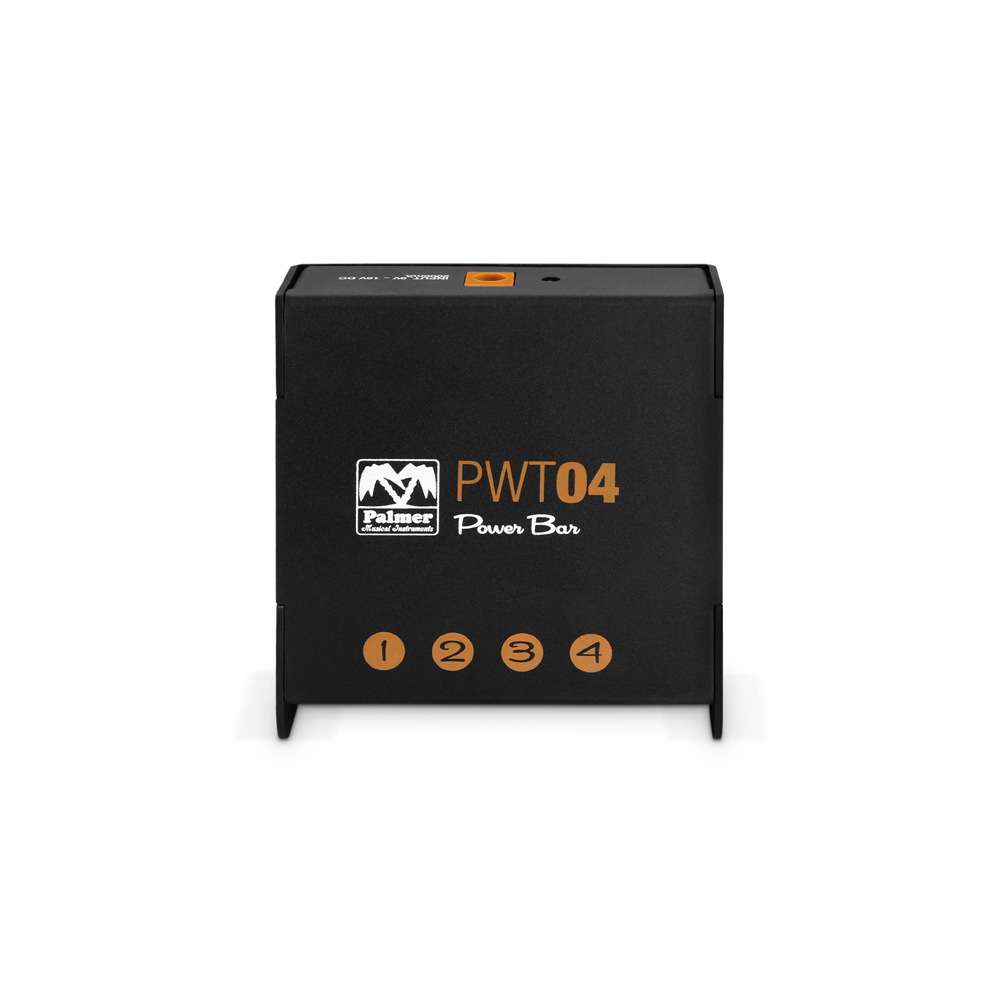

The PWT 04 is a universal pedalboard power supply with 1,000 mA output capacity and 4 standard centre negative 9 V DC single isolated outputs. Featuring short circuit and overload protection, the PWT 04 is fully regulated to deliver constant voltage. The unit sports a power on LED, and comes with a set of DC cables and dedicated mains adapter.
| Polarity: | Center negative |
|---|---|
| Indicators: | Power |
| Depth: | 3.54 in |
| Input voltage: | 100 - 250 V |
| Output voltage: | 9 |
| Accessories (included): | 4 x DC cable |
| Max. output current: | each output 250 mA |
| Cord length: | 25 - 50 cm |
| Product type: | Power Supplies |
| Output connectors: | 2.1 x 5.5 mm |
| Outputs: | 4 |
| Isolated outputs: | Yes |
| Height: | 0.98 in |
| Width: | 3.15 in |
0 of 0 reviews
Average rating of 0 out of 5 stars
Login
accessories

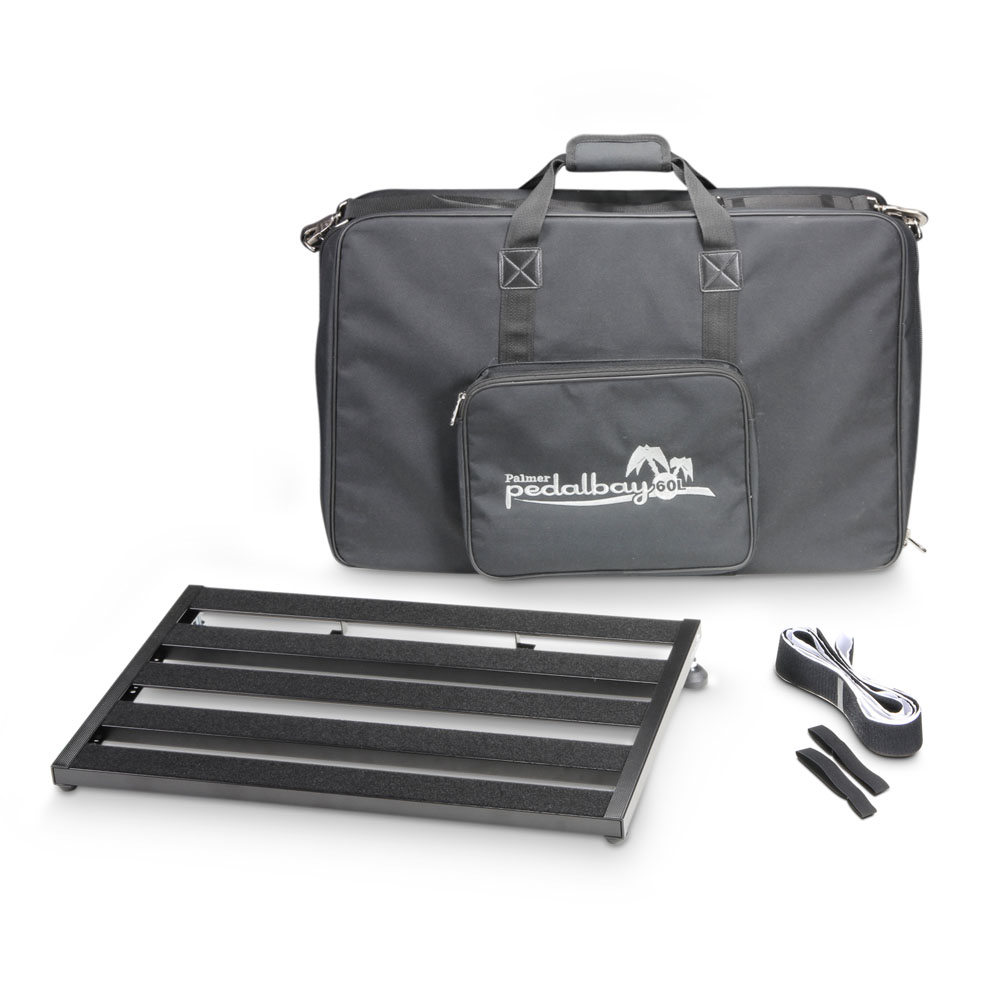

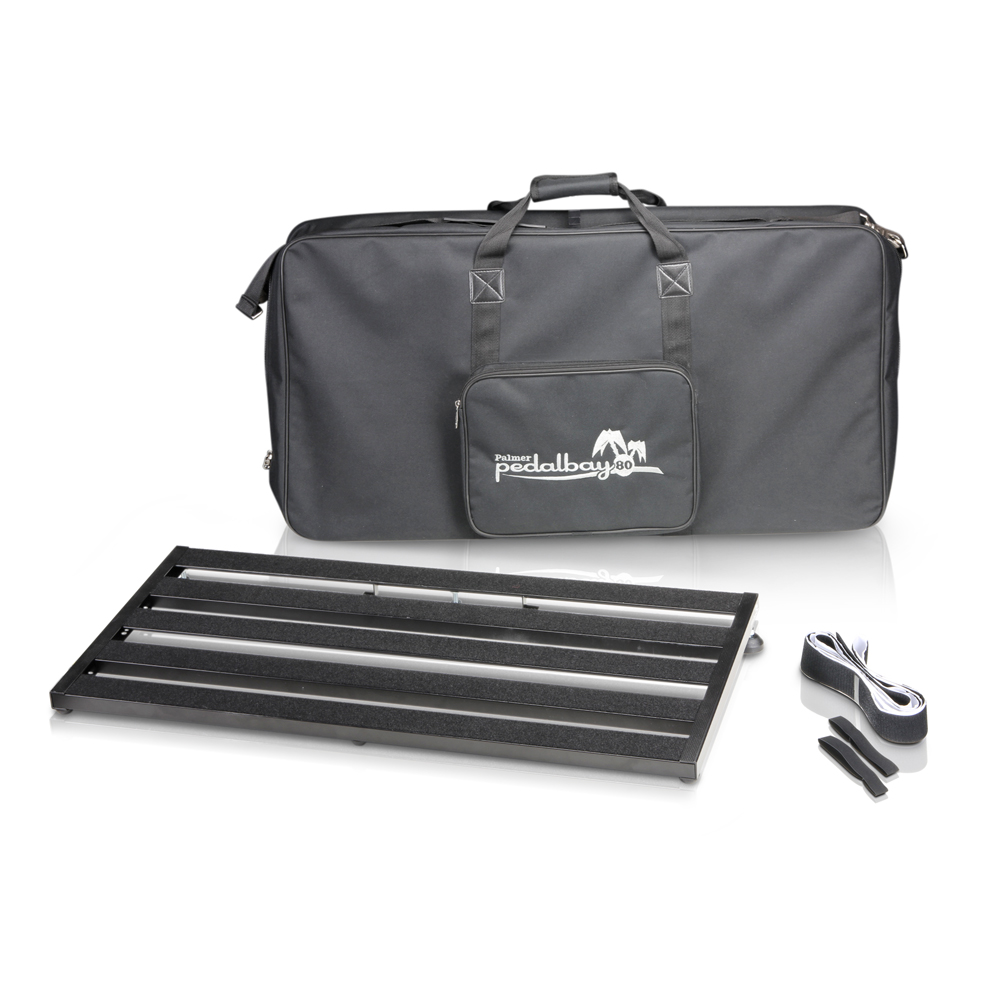

Universal aluminium Pedalboard for the storage of all commercially available floor effects. The cross bars as well as the height and the tilt of the Pedalboard can be individually adjusted. The cross bars are already covered with Velcro (fleece), a sufficient amount of hook strap is also included. Power supplies and similar peripheral devices can be mounted below the board. For this the Pedalboard features 4 practical hooks on the underside. 2 Elastic bands are supplied - making fixation easy!This set also features a high-quality padded softcase with an accessory compartment and a shoulder strap.
