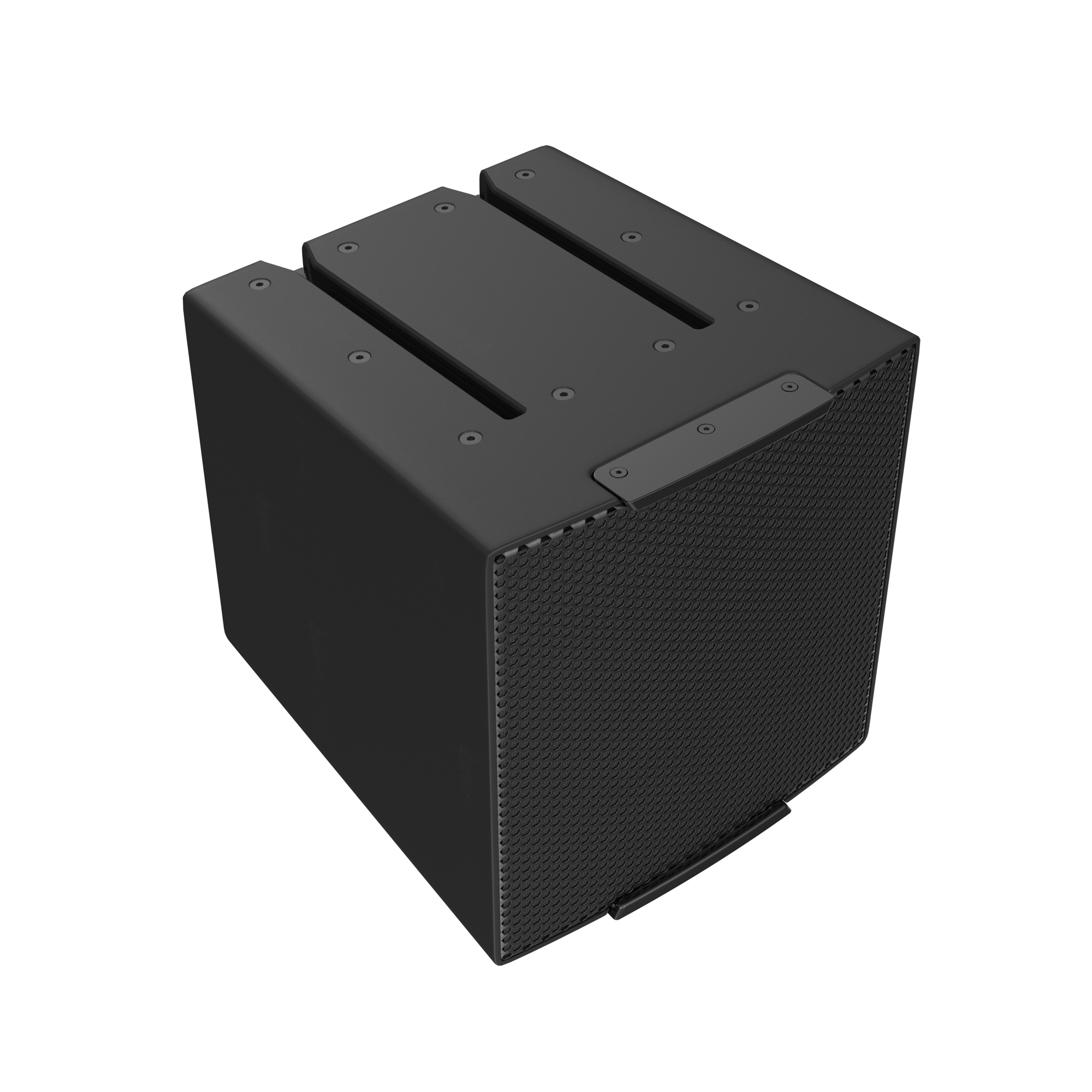

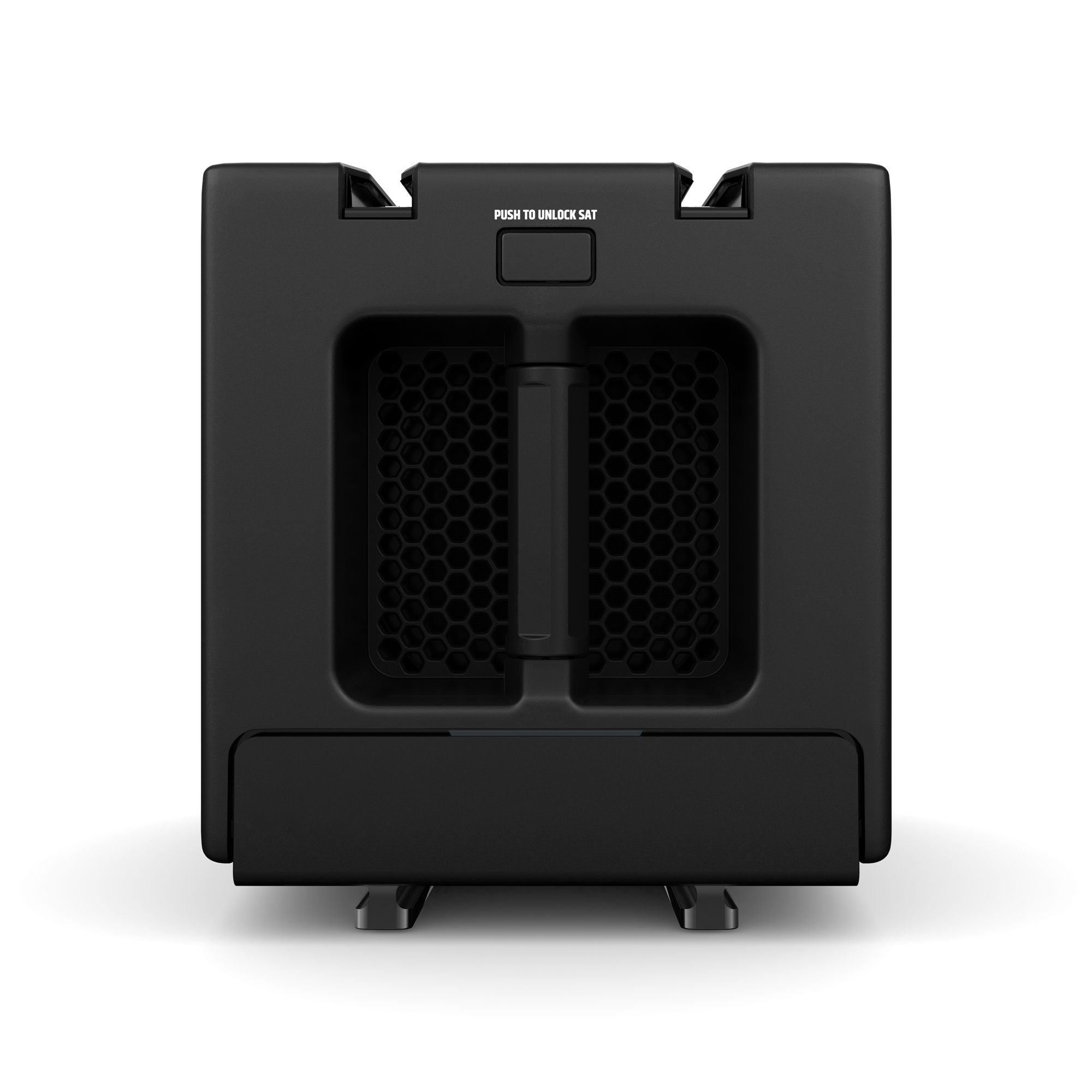

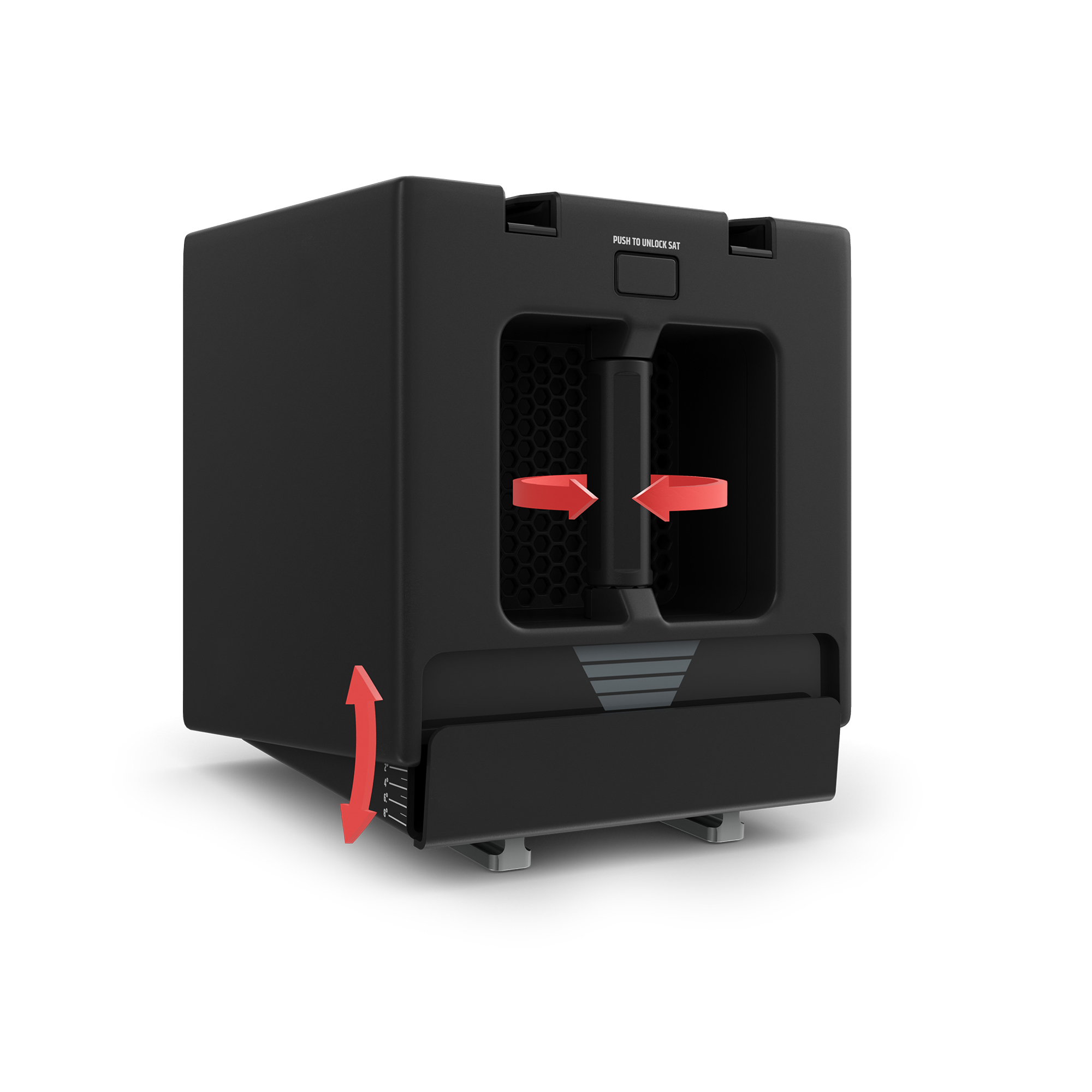

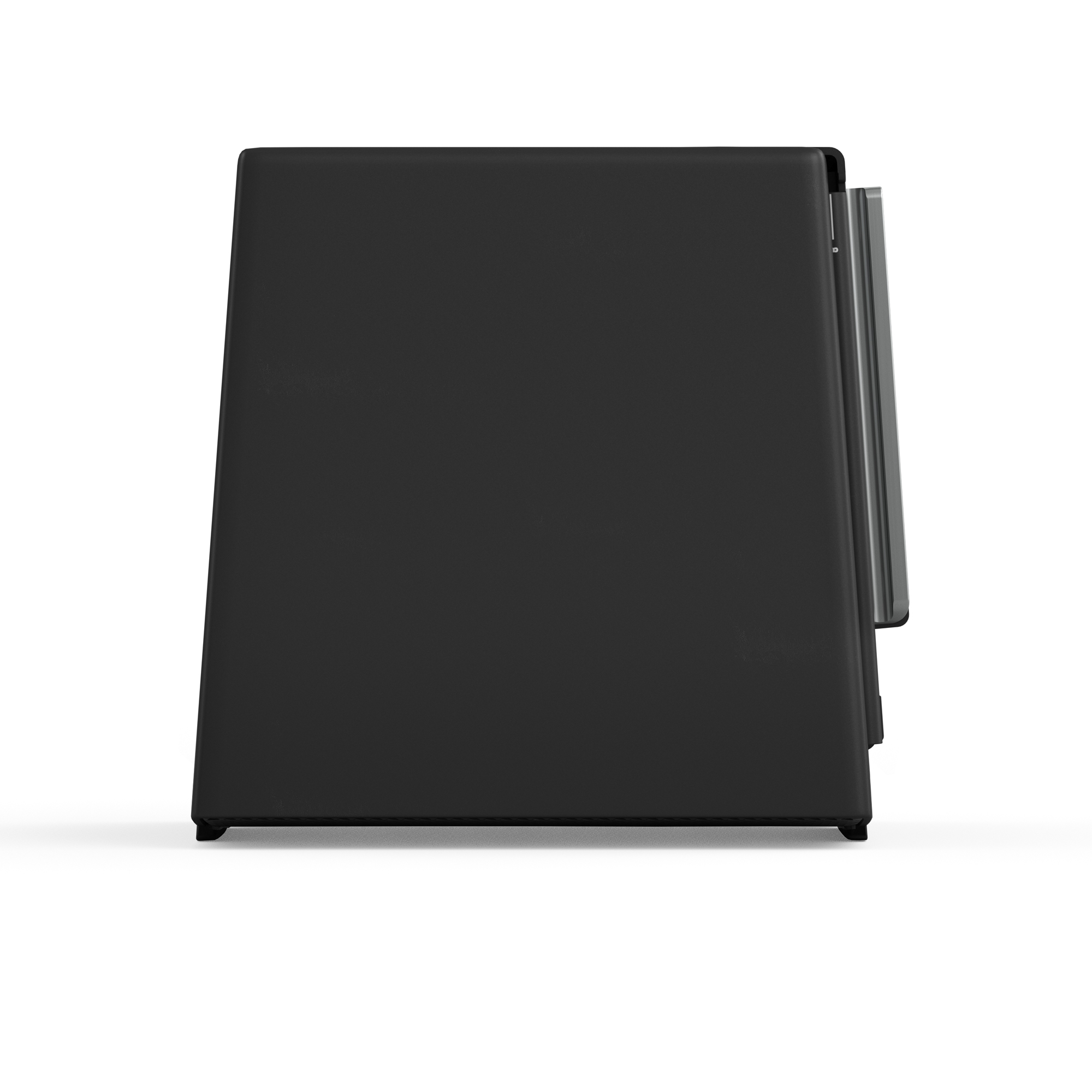

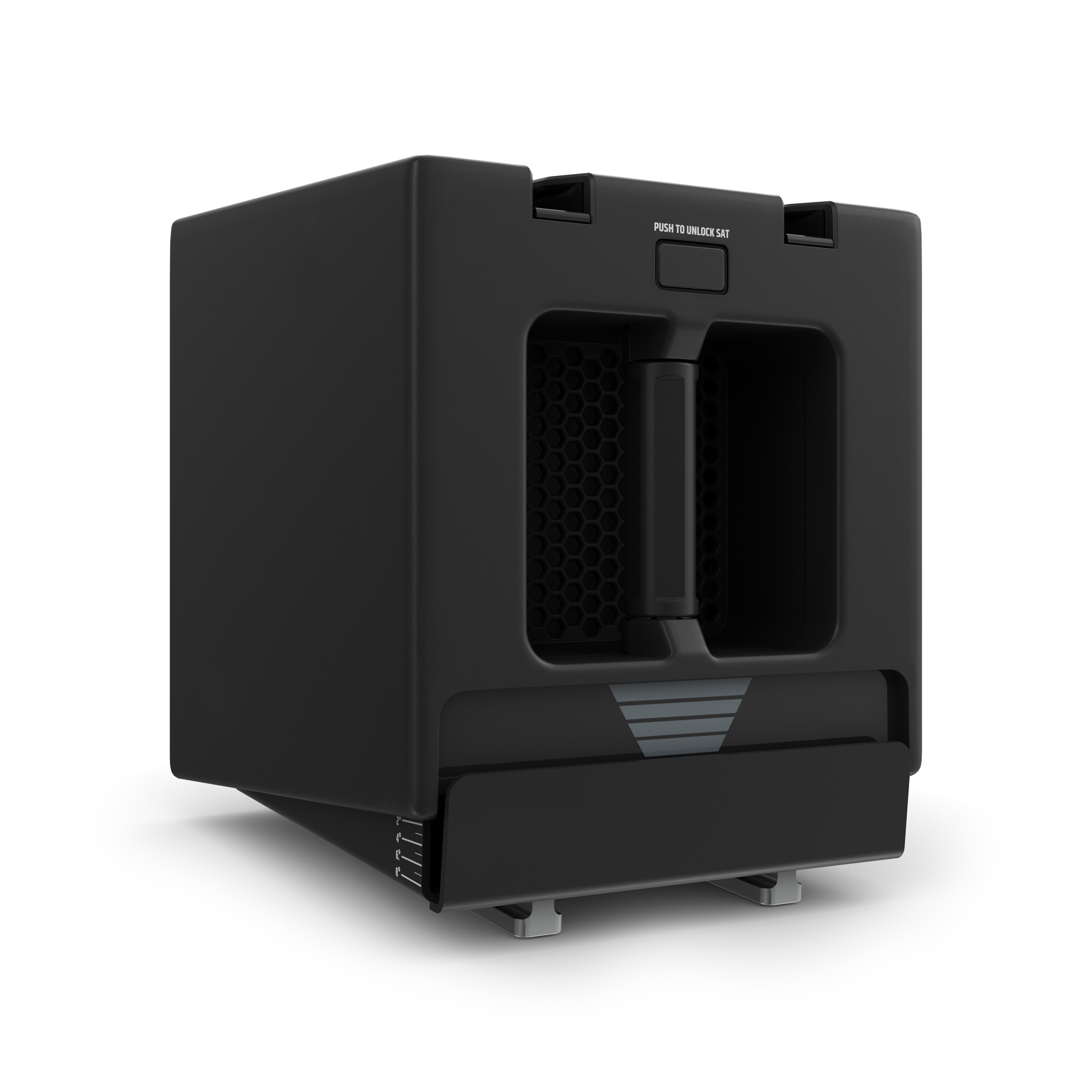

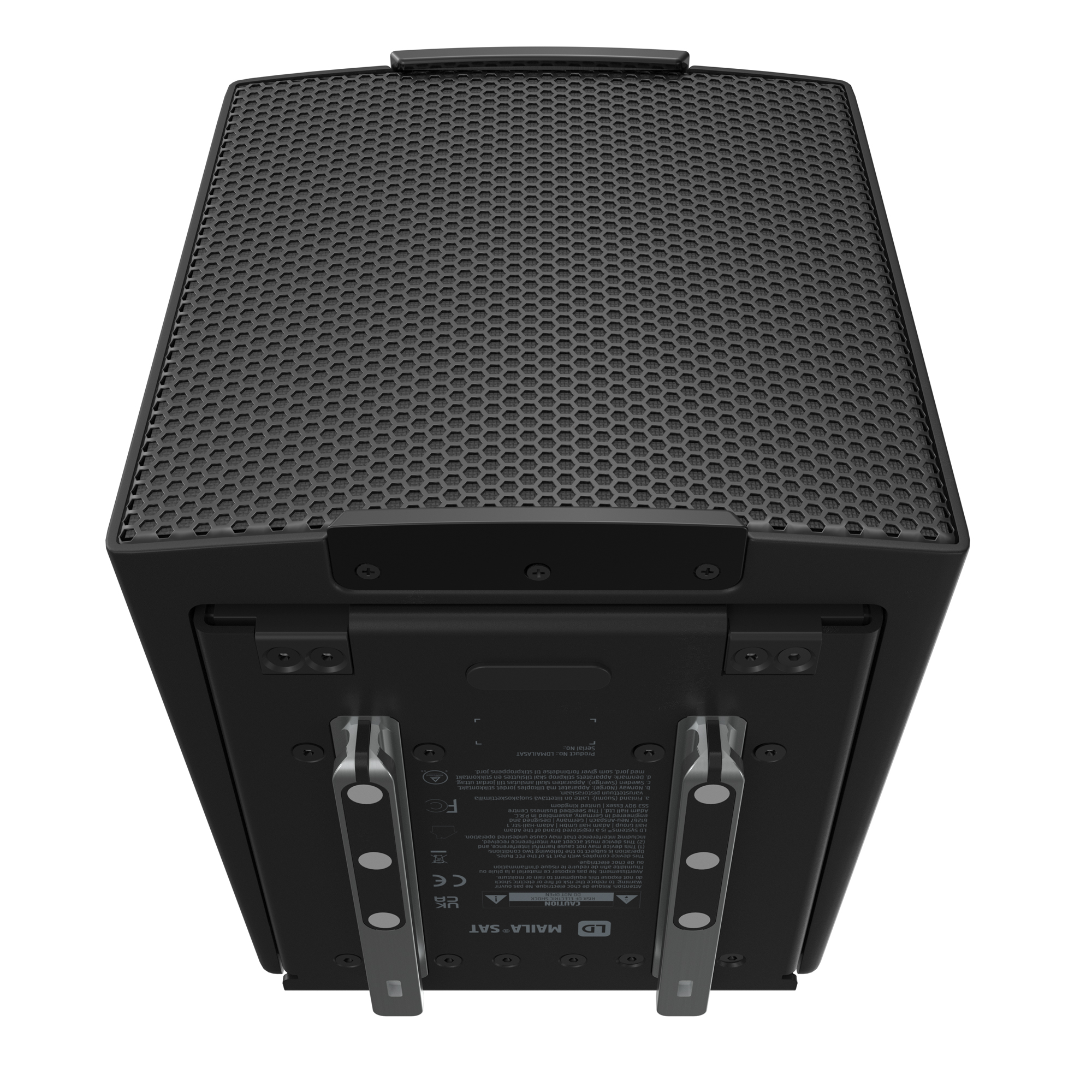

MAILA SAT

The safest and easiest way to transport your MAILA SPA and SAT. This padded bag with smooth zip is made of durable and water-repellent nylon 1680D. Inside, a 16 mm thick padding between the devices protects the MAILA SPA and MAILA SAT from scratches, while the rubber feet on the bottom of the bag provide additional protection.The MAILA BAG has space for up to two MAILA SPA or two MAILA SAT and also has two additional side pockets for extra storage space. The bag has two handles that can be connected by a Velcro fastener with padding to form a carrying handle. The adjustable shoulder strap with shoulder pad is ideal for transporting the components and keeping your hands free for other equipment. At the same time, the MAILA BAG offers the optimal solution for all events where the use of a suitable MAILA transport case is not possible.

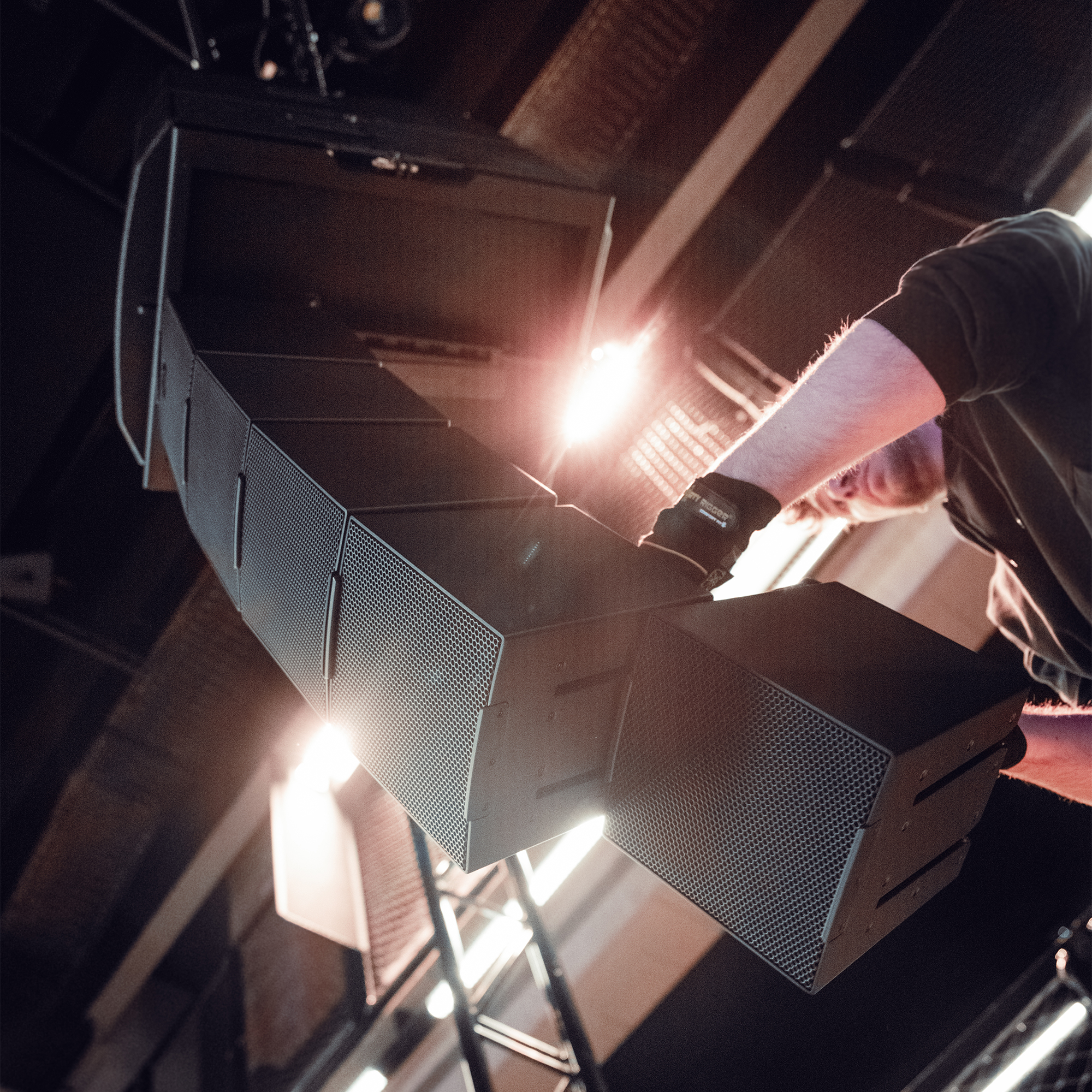

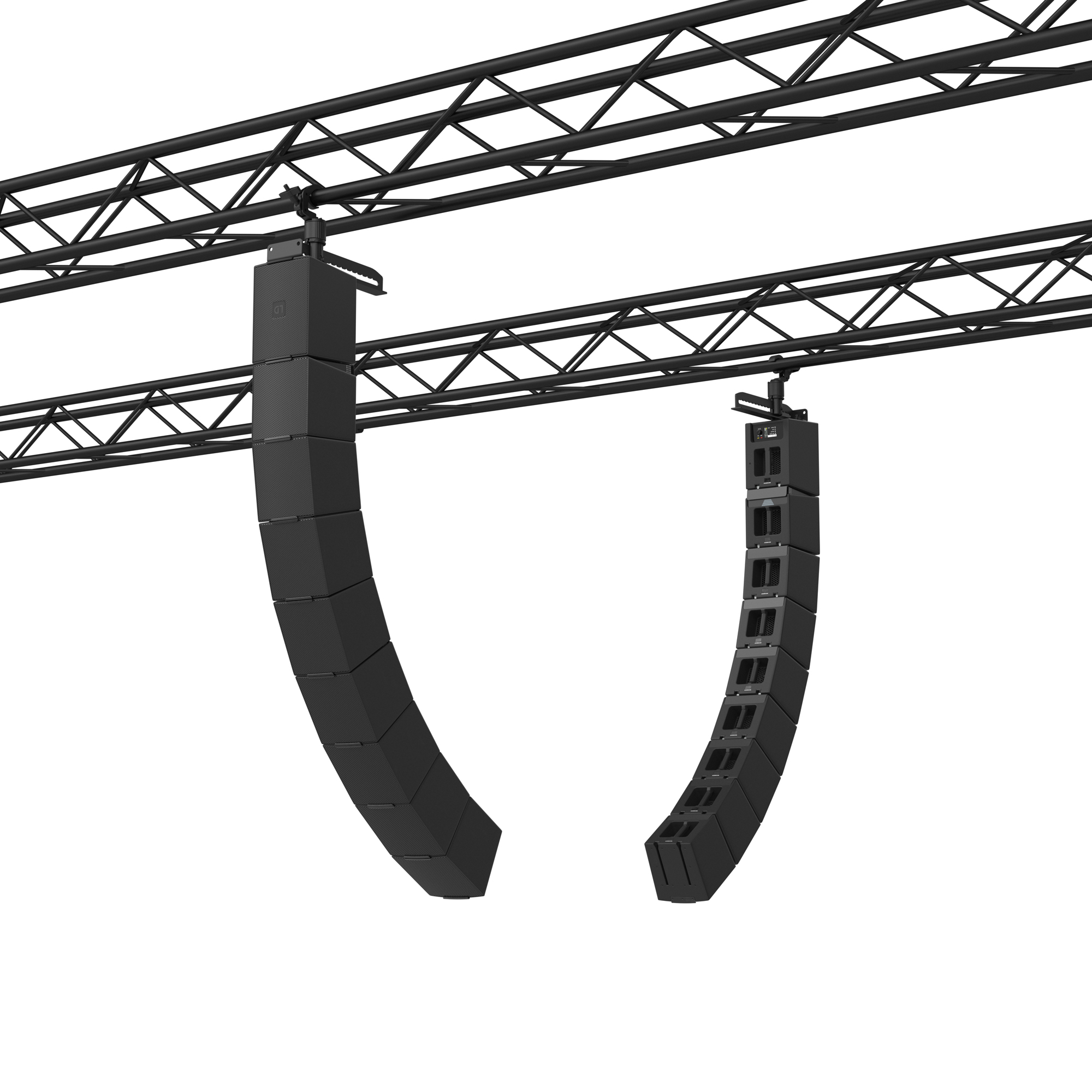

The EasyMount+® mounting adapter enables truss or shackle mounting of MAILA array configurations in flown applications. The “DGUV regulation 17”-compliant mounting adapter made of steel with a robust powder coating can be attached to the MAILA SPA and COL amplifier module - the basis of every flown MAILA configuration - without the use of tools and suspended from the truss via a "self-lock" tube clamp. A "self-lock" rake is included in the scope of delivery for attaching to the truss. Alternatively, the system can be suspended using the shackle bracket included in the scope of delivery.Once mounted, the EasyMount+® bracket enables convenient 360° rotation and alignment of flown MAILA configurations - even under load with several attached MAILA SAT or MAILA COL modules. The mount can be equipped with a maximum of 8x SAT + 1x COL. A clever collar secures the vertical alignment of the loudspeaker array and allows it to be adjusted in the blink of an eye.Note: A shackle is not included in the scope of delivery.Only use suitable shackles Ø 12 mm!

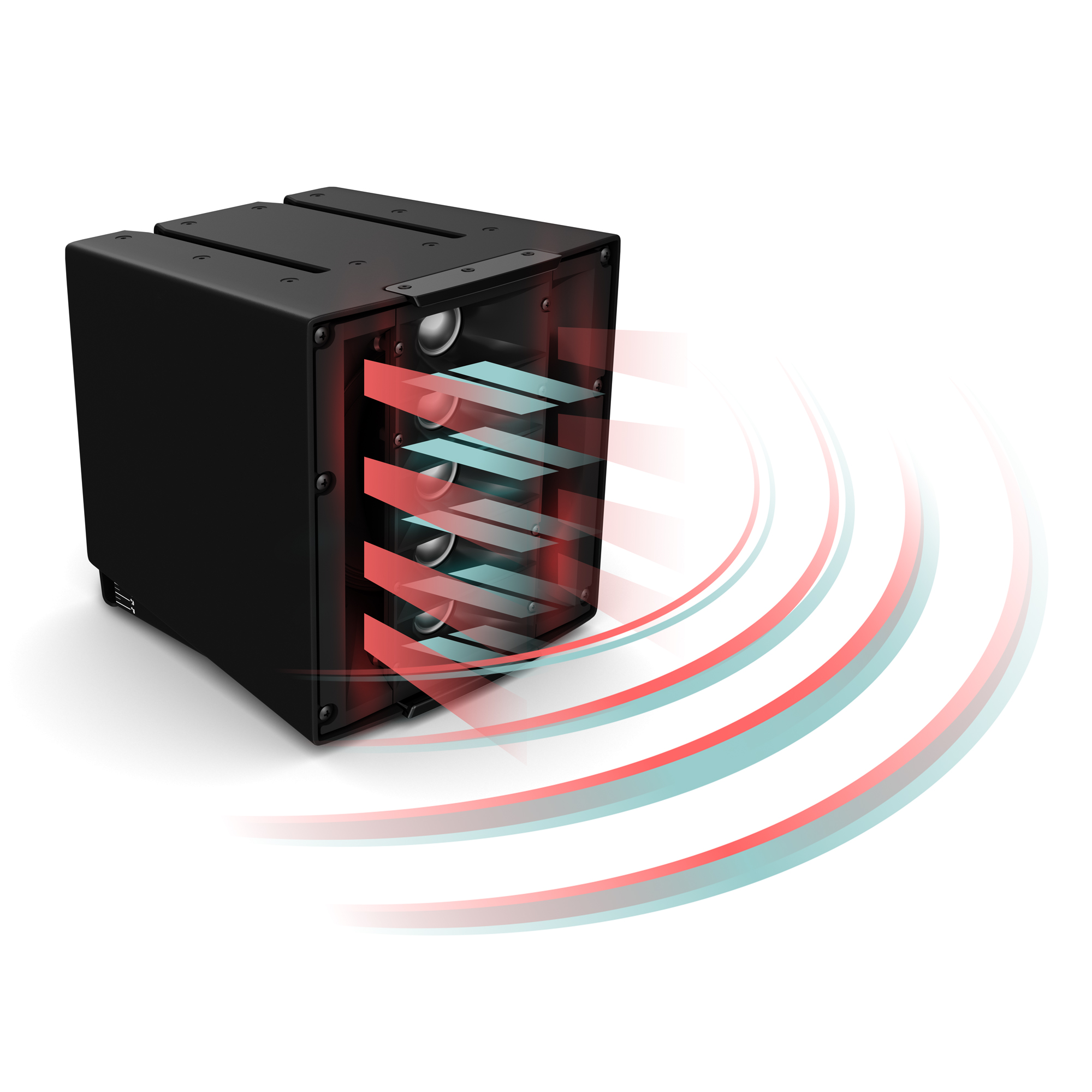

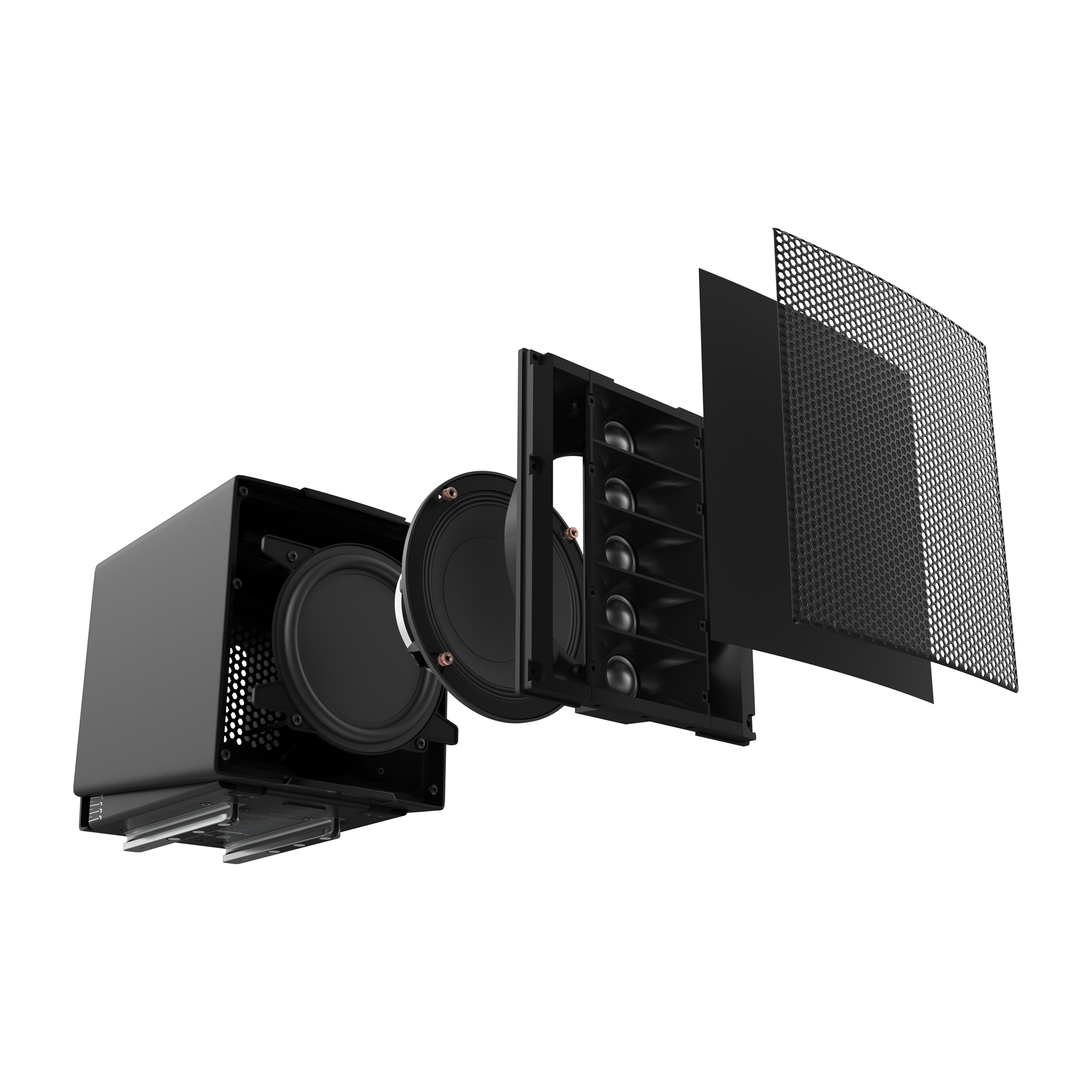

Even in the SMALL configuration, the smallest MAILA system is an extremely powerful, active full-range stereo system. The ground stack system consists of one MAILA SUB 2x15'' high-performance subwoofer with cardioid function, three MAILA SAT satellites and one MAILA SPA amplifier module, which drives the satellites, per stereo side.Like the larger MAILA configurations, MAILA S combines a variety of acoustic concepts to bring maximum power and sound quality from an exceptionally compact and versatile PA system. The 2.5 kW 2x15'' high-performance subwoofer uses a bandpass design and delivers a massive and powerful bass foundation with its newly developed SysCore® DSP.The MAILA SAT satellites in the elegant unibody aluminium housing are based on the Advanced WaveAhead® technology. Here, five 1'' tweeters are placed in front of a 6.5'' midrange driver and coupled without interference via the SonicGuide® (two combined waveguides). Furthermore, despite the compact dimensions of the satellite, the integrated passive membrane provides extended punch down to 100 Hz. The result is a classic line array dispersion with impressive throw.On the back of the housing of each MAILA SAT is a rotating handle which hides a groundbreaking innovation: via the patented EasySplay® mechanism, users can adjust the inclination of each individual satellite continuously from 0° to 8° in the blink of an eye. The angle can be adjusted with just one hand, even under load. In this way, every MAILA system offers a uniquely flexible concept for adapting the sound coverage to any sound reinforcement situation at any time.MAILA is not just "one" product, but a scalable sound reinforcement system that sets new standards in its diversity and flexibility. If required, the MAILA SPA module with its SysCore® DSP can control up to eight MAILA SAT and, in addition to the ground stack variant, also enables flown configurations with a separately placed subwoofer. In this way, MAILA S covers small conferences and lectures just as effortlessly and precisely as DJ performances at festivals and corporate events or a small live band.Directly on the device or via the free MAILA app (iPadOS), every MAILA system can be adjusted quickly, easily and in detail and supplied with software updates wirelessly. Based on the integrated LogoLink® Wireless Connection, operating ranges of up to 30 metres are no problem for MAILA under practical conditions. Once connected, the app automatically detects the available MAILA components and enables the system to be set up quickly and easily - including calculation of the SAT angles - in the run-up to an event. The highlight: the wireless antennas are invisibly integrated into the LD logos (LogoLink®).With MAILA, LD Systems presents a new sound reinforcement concept with which users do not need to commit to one system only. MAILA has many faces.Scope of delivery includes: 6x MAILA SAT satellite, 2x MAILA SPA amplifier module, 2x MAILA SUB subwoofer, 2 x MAILA POLE DB distance rod, 2 x MAILA FC1*, 2 x MAILA SUB CB*, 2 x MAILA SUB PC and 4 x power cable.*Flight cases not included in North America

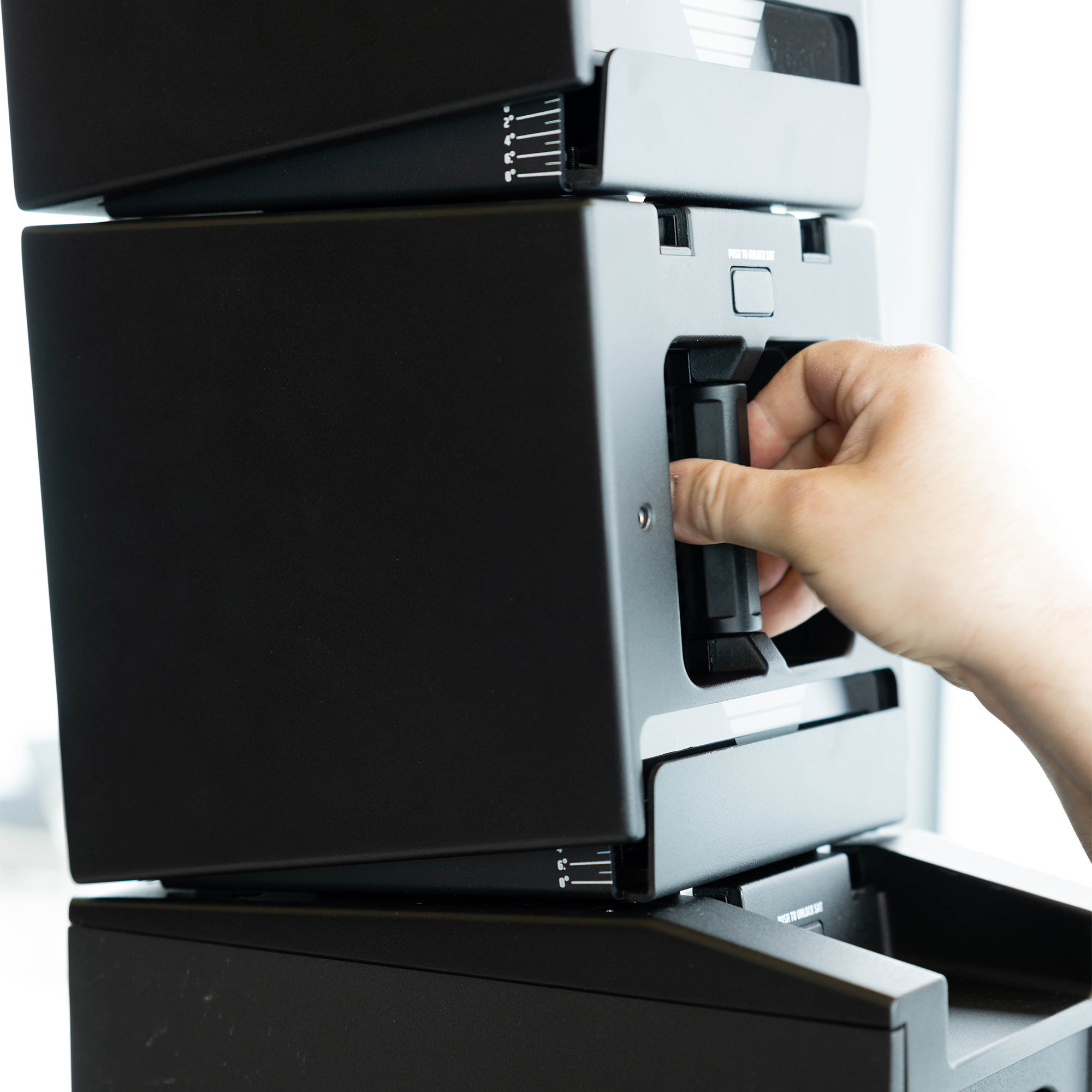

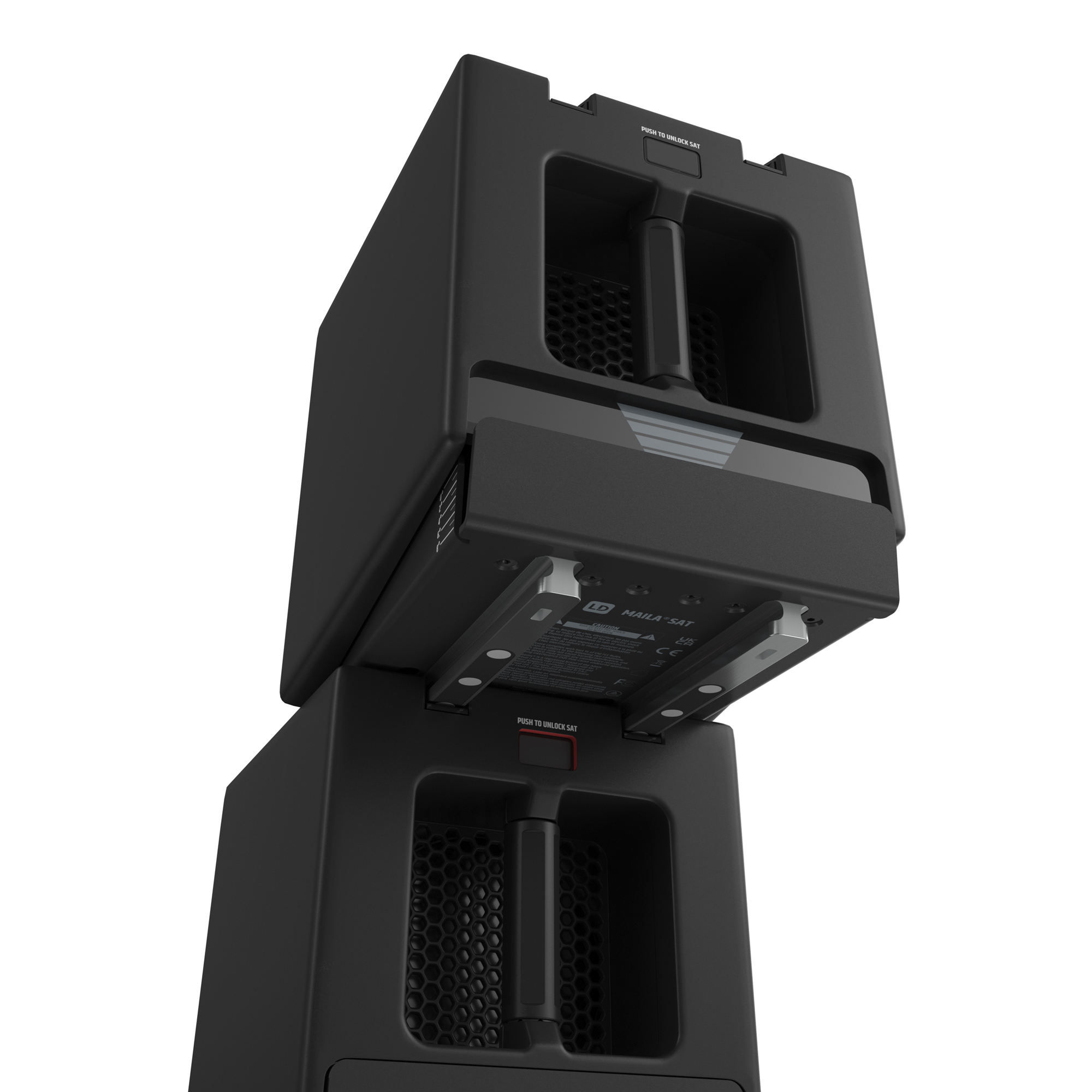

MAILA SPA is the only MAILA module without integrated loudspeakers - and yet an integral part of the MAILA concept. Its versatility can already be guessed at by looking at the range of MAILA sets: The MAILA SPA amplifier module is used in the smallest MAILA-S ground stack set as well as in the large MAILA XL version with flown arrays.MAILA SPA is an amplifier module in elegant unibody aluminium design with integrated 1.25 kW power amplifier with SysCore® DSP for controlling up to eight MAILA SAT satellites. Via the SmartLink+® system, the satellites can be simply slid onto the SPA and wirelessly supplied with a signal. In addition, SmartLink+® enables automatic detection of the installed satellites for automatic or manual DSP processing.As with the MAILA COL column module, MAILA SPA allows users to create ground stack configurations with a speaker pole (included in the MAILA S set) as well as flown setups with the EasyMount+® mounting adapter.With LogoLink®, LD Systems has added another innovation to MAILA. Via the free MAILA app (iPadOS), every MAILA system can be quickly, easily and precisely adjusted and wirelessly supplied with software updates. Once connected, the app automatically recognises the existing MAILA components and enables the system to be set up quickly and easily - including calculation of the SAT angles - in the run-up to an event. The highlight: the wireless antennas are invisibly integrated into the LD logo of the MAILA SPA.

MAILA SUB forms the basis of every MAILA system. The 2.5 kW 2x15'' high-performance subwoofer features a bandpass design and, with its newly developed SysCore® DSP, delivers a massive and powerful bass foundation in any application.The acoustic concept of the MAILA SUB is based on a planar wave bandpass design with quarter-wave horn and symmetrical driver construction. By placing the two 15'' speakers opposite each other, the MAILA SUB enables exceptional impulse compensation, resulting in a powerful and precise low-frequency punch.The four large-area bass reflex openings, in conjunction with the enclosure design, ensure optimised airflow and reduced flow losses, resulting not only in a lower noise level, but above all in higher efficiency at low frequencies.The enclosure of the subwoofer is made of 18 mm thick birch plywood. The MAILA SUB defies the rigours of everyday road use with a hard-wearing polyurea paint finish. A total of six carrying handles ensure optimum grip during assembly and dismantling. For comfortable transport on longer trips, the optional MAILA SUB CB castor board is the optimal choice.With LogoLink®, LD Systems has added another innovation to MAILA. Via the free MAILA app (iPadOS), every MAILA system can be quickly, easily and precisely adjusted and wirelessly supplied with software updates. Once connected, the app automatically recognises the existing MAILA components and enables the system to be set up quickly and easily - including calculation of the SAT angles - in the run-up to an event. The highlight: the wireless antennas are invisibly integrated into the LD logo of the MAILA SUB.

With the MAILA SUB CB castor board, the MAILA SUB 2x15" high-performance subwoofer can be conveniently transported to any position. The MAILA SUB is securely fastened by two integrated butterfly fasteners. The stackable castor board made of 18 mm plywood runs on four 100 mm heavy-duty castors and is optimally protected from scratches and other signs of wear by its polyurea coating.

With the padded protective cover made of water-repellent 1680D nylon, the MAILA SUB is optimally protected from the weather and other influences. The protective cover can be pulled over the front grille of the 2x15" high-performance subwoofer to protect the MAILA SUB in a lying position on the optional MAILA SUB CB castor board. The reinforced cut-outs incl. Velcro flap on the sides allow the MAILA SUB to be gripped and transported even with the cover on.

MAILA L is the largest ground-stack stereo system in the MAILA family and delivers maximum power and punch for medium-sized live sound applications, clubs and corporate events when a flown setup is not possible for various reasons.As a ground stack system, MAILA L sets new standards with its flexibility. Powered by a total output of 15 kW, MAILA L combines several acoustic concepts into a unique sound reinforcement solution: bandpass subwoofer with cardioid function, column element with integrated DSP amplifier and coaxial satellite with line array functionality.The MAILA L is based on four 2.5 kW 2x15'' high-performance subwoofers (MAILA SUB) in bandpass design, which deliver a massive and powerful bass foundation with their newly developed SysCore® DSP. On top of the double subwoofers sits the MAILA COL full-range column module, which, in addition to the 4x 6.5'' woofers for an extended low-mid range, also includes a 4-channel DSP amplifier (2.5 kW) with SysCore® DSP powering the MAILA SAT satellites via the cable-free SmartLink+® rails.Six MAILA SAT satellites are mounted on each COL column element in an elegant unibody aluminium housing. Based on Advanced WaveAhead® technology, each SAT has five 1'' tweeters that are placed in front of a 6.5'' midrange driver and coupled without interference via the SonicGuide® (two combined waveguides). Furthermore, despite the satellite's compact dimensions, the integrated passive membrane provides extended punch down to 100 Hz. The result is a classic line array dispersion pattern with an impressive throw due to the height of the ground stack setup of over 3 metres.On the back of the housing of each MAILA SAT is a rotating handle which hides a groundbreaking innovation: via the patented EasySplay® mechanism, users can adjust the inclination of each individual satellite continuously from 0° to 8° literally in the blink of an eye. The angle can be adjusted with just one hand, even under load. In this way, every MAILA system offers a uniquely flexible concept for adapting the sound coverage to any sound reinforcement situation at any time.MAILA is not just "one" product, but a scalable sound reinforcement system that sets new standards in its diversity and flexibility. If required, the MAILA COL column module can control up to eight MAILA SAT and, in addition to the ground stack variant, also enables flown configurations with subwoofers placed on the floor in various arrangements. In this way, MAILA L covers medium-sized festival stages and clubs just as effortlessly and precisely as conferences and lectures in the context of corporate events.Directly on the device or via the free MAILA app (iPadOS), every MAILA system can be adjusted quickly, easily and in detail and supplied with software updates wirelessly. Based on the integrated LogoLink® Wireless Connection, operating ranges of up to 30 metres under practical conditions are no problem for MAILA. Once connected, the app automatically detects the available MAILA components and enables the system to be set up quickly and easily - including calculation of the SAT angles - in the run-up to an event. The highlight: the wireless antennas are invisibly integrated into the LD logos (LogoLink®).With MAILA, LD Systems presents a new sound reinforcement concept with which users do not need to commit to one system only. MAILA has many faces.Scope of delivery includes: 4x MAILA SUB subwoofer, 2x MAILA COL column, 12x MAILA SAT satellite, 1x MAILA FC1*, 2 x MAILA FC2*, 4 x MAILA SUB CB, 4 x MAILA SUB PC, 6 x power cable.*Flight cases not included in North America

The MAILA COL full-range column module makes MAILA truly versatile. With its 4x 6.5'' woofers, the elegant column element not only provides an extended low-mid range, but also includes a 4-channel DSP amplifier with 2.5 kW total power, which drives both the column itself and the MAILA SAT satellites.In this way, MAILA sets with column module can not only be used as a ground stack variant, but also as a flown array consisting of MAILA COL and up to eight MAILA SAT - especially useful for festivals and fixed installations. In addition, as with a classic line array, users can select different subwoofer arrangements and adapt them to the sound reinforcement requirements on site.On the ground, the use of MAILA COL provides a further advantage: the interconnected column module allows ground stack sound setups that are significantly higher (up to 3.4 metres) than conventional systems and, with its greater throw, also enables uniform sound coverage in the far field.With LogoLink®, LD Systems has added another innovation to MAILA. Via the free MAILA app (iPadOS), every MAILA system can be quickly, easily and precisely adjusted and wirelessly supplied with software updates. Once connected, the app automatically recognises the existing MAILA components and enables the system to be set up quickly and easily - including calculation of the SAT angles - in the run-up to an event. The highlight: the wireless antennas are invisibly integrated into the LD logo of the MAILA COL.

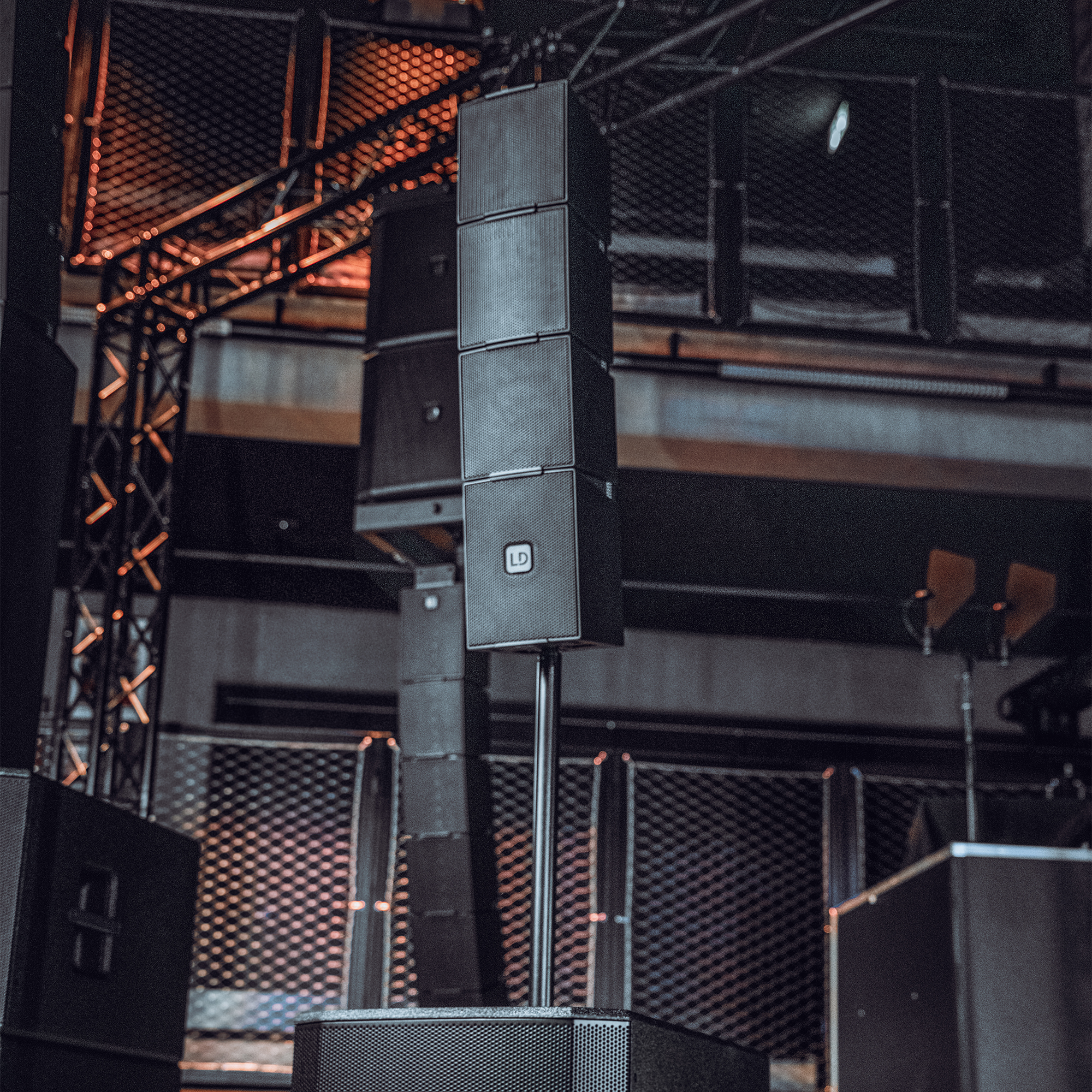

The MAILA DB speaker pole enables the installation of MAILA ground stack systems consisting of MAILA SUB, MAILA SPA and MAILA SAT. Made of powder-coated steel, it has a fixed height of 70 cm and is screwed to the MAILA SUB subwoofer at the lower end via an M20 thread. The upper end is used to attach the MAILA SPA amplifier module, which can be equipped with a maximum of three satellites.

MAILA M is a full-blown, full-range stereo system that sets new standards with its flexibility In the M configuration, MAILA delivers a total output of 10 kW and combines several acoustic concepts into a sound reinforcement solution that is unique to date: bandpass subwoofer with cardioid function, column element with integrated DSP amplifier and coaxial satellite with line array functionality.The basis of MAILA M is the 2.5 kW 2x15'' high-performance subwoofer in bandpass design with its newly developed SysCore® DSP that delivers a massive and powerful bass foundation. On top of the subwoofer sits the MAILA COL full-range column module, sporting 4x 6.5'' woofers for an extended low-mid range as well as a 4-channel DSP amplifier (2.5 kW) with SysCore® DSP powering the MAILA SAT satellites via the cable-free SmartLink+® rails.The MAILA SAT satellites sit on top of the COL column element in an elegant unibody aluminium housing. Based on Advanced WaveAhead® technology, each SAT has five 1'' tweeters placed in front of a 6.5'' midrange driver which are coupled without interference via the SonicGuide® (two combined waveguides). Furthermore, despite the satellite's compact dimensions, the integrated passive membrane provides extended punch down to 100 Hz. The result is a classic line array dispersion pattern with an impressive throw due to the height of the ground stack setup of up to 3 metres.On the back of the housing of each MAILA SAT is a rotating handle which hides a groundbreaking innovation: via the patented EasySplay® mechanism, users can adjust the inclination of each individual satellite continuously from 0° to 8° in the blink of an eye. The angle can be adjusted with just one hand, even under load. In this way, every MAILA system offers a uniquely flexible concept for adapting the sound coverage to any sound reinforcement situation at any time.MAILA is not just "one" product, but a scalable sound reinforcement system that sets new standards in its diversity and flexibility. If required, the MAILA COL column module can control up to eight MAILA SAT and, in addition to the ground stack variant, also enables flown configurations with a separately placed subwoofer. In this way, MAILA M covers small festival stages and clubs just as effortlessly and precisely as conferences or lectures in the context of corporate events.Directly on the device or via the free MAILA app (iPadOS), every MAILA system can be adjusted quickly, easily and in detail and supplied with software updates wirelessly. Based on the integrated LogoLink® Wireless Connection, operating ranges of up to 30 metres under practical conditions are no problem for MAILA. Once connected, the app automatically detects the available MAILA components and enables the system to be set up quickly and easily - including calculation of the SAT angles - in the run-up to an event. The highlight: the wireless antennas are invisibly integrated into the LD logos (LogoLink®).With MAILA, LD Systems presents a new sound reinforcement concept with which users do not need to commit to one system only. MAILA has many faces.Scope of delivery includes: 8x MAILA SAT satellite, 2x MAILA COL column, 2x MAILA SUB subwoofer, 2 x MAILA FC2*, 2 x MAILA SUB CB, 2 x MAILA SUB PC and 4 x power cable.*Flight case not included in North America

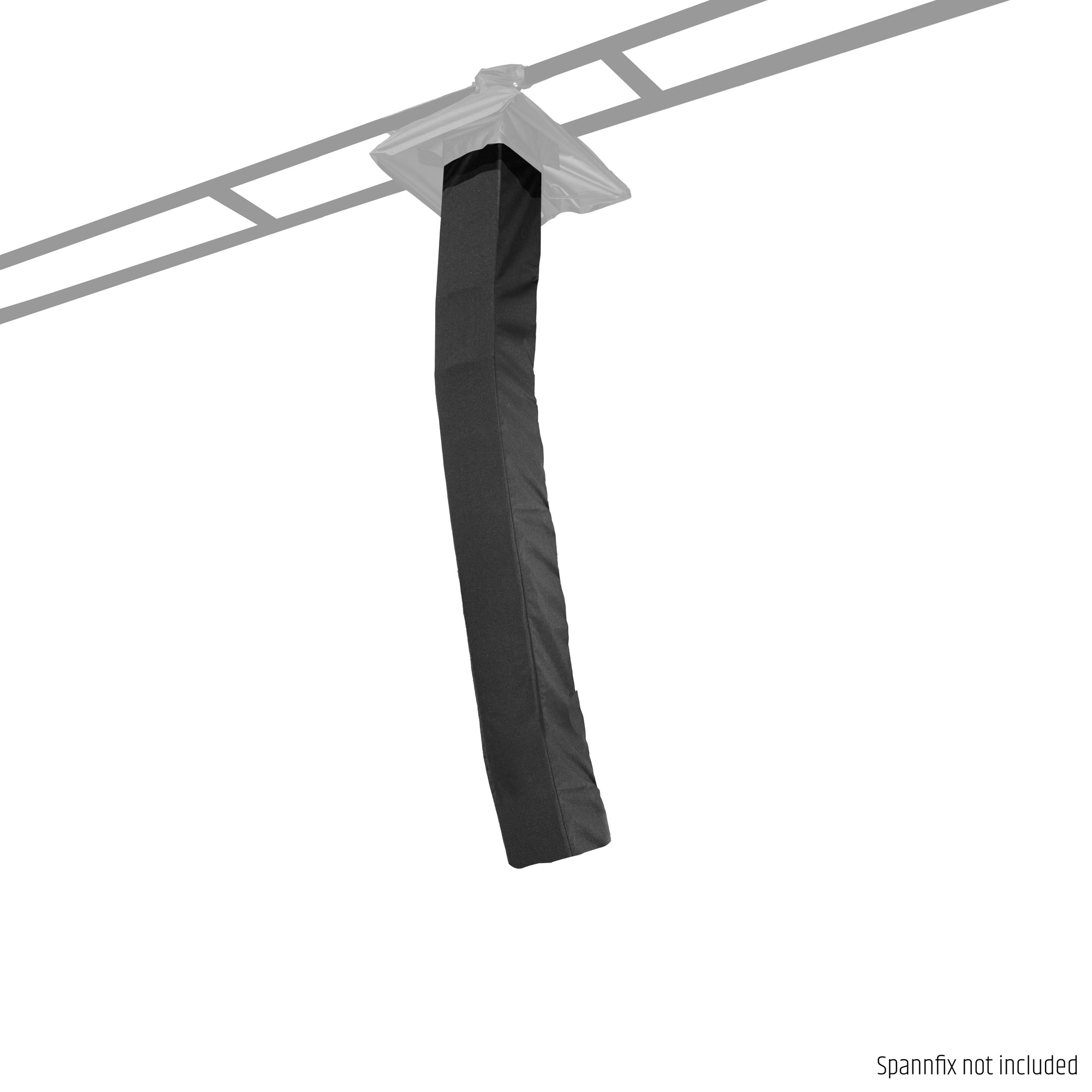

The MAILA ARRAY RC XL was specially developed for flown arrays. It protects one MAILA SPA power amplifier and up to eight MAILA SAT modules (use for shorter arrays is also possible). A detachable transparent window ensures good access to the control and connection panel as well as sufficient ventilation of the amp unit to prevent overheating.  The cover can be opened at the back to allow the modules to be mounted and their angle of inclination to be adjusted.Note: For comprehensive rain protection, an additional rain cover hood (MAILA HOOD RC L) is required to protect against water entering from above.The MAILA rain covers are made of high-quality, rain-repellent material and offer reliable protection for the LD Systems MAILA system at outdoor events. The front of the rain covers is covered with a special, impregnated acoustic fabric that ensures clear sound transmission. The various MAILA rain covers can be combined with each other using a Velcro system to create customised solutions for different configurations. This modularity enables optimum protection of the individual modules and the system as a whole, while at the same time allowing convenient operation.

The MAILA ARRAY RC M protects one MAILA COL and four MAILA SAT modules, both in ground stack and flight mode. A detachable transparent window ensures good access to the control and connection panel as well as sufficient ventilation of the amp unit to prevent overheating. The cover can be opened at the back to allow the modules to be mounted and their angle of inclination to be adjusted. In combination with the MAILA ARRAY RC S, the cover can be used to fit the MAILA L set perfectly.Note: For comprehensive rain protection, an additional rain cover hood (MAILA HOOD RC S) is required to protect against water entering from above.The MAILA rain covers are made of high-quality, rain-repellent material and offer reliable protection for the LD Systems MAILA system at outdoor events. The front of the rain covers is covered with a special, impregnated acoustic fabric that ensures clear sound transmission. The various MAILA rain covers can be combined with each other using a Velcro system to create customised solutions for different configurations. This modularity enables optimum protection of the individual modules and the system as a whole, while at the same time allowing convenient operation.
