MAILA SUB CB

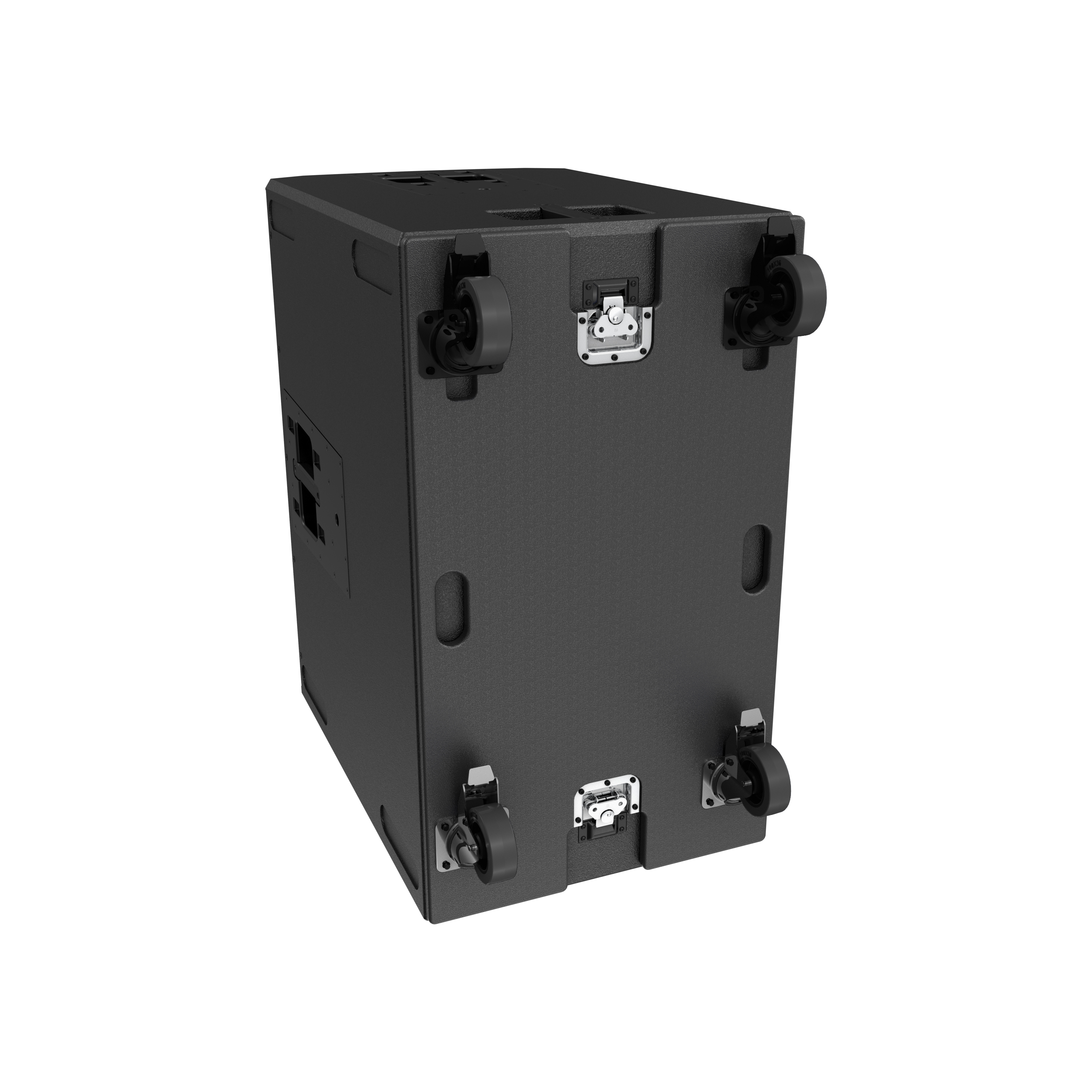

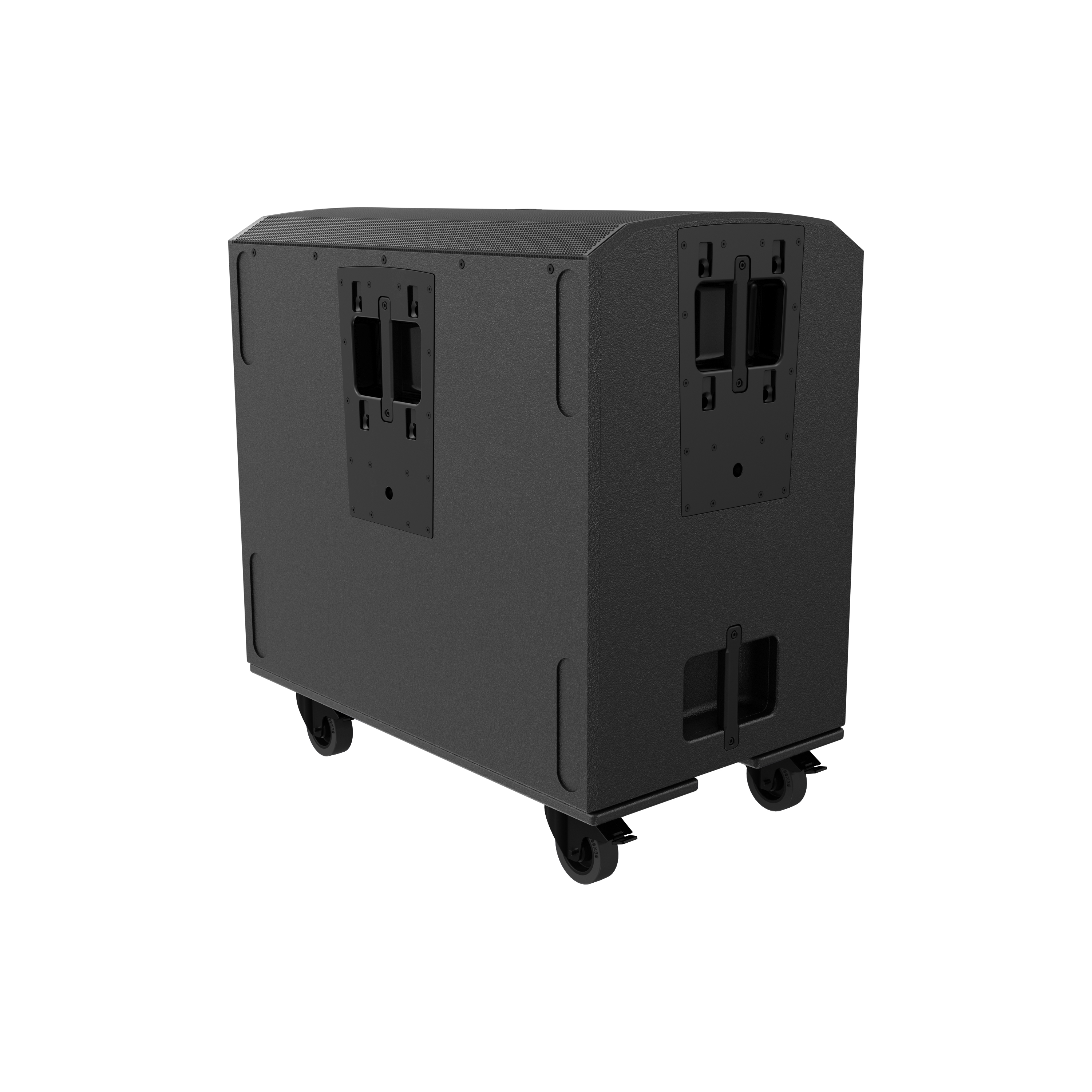

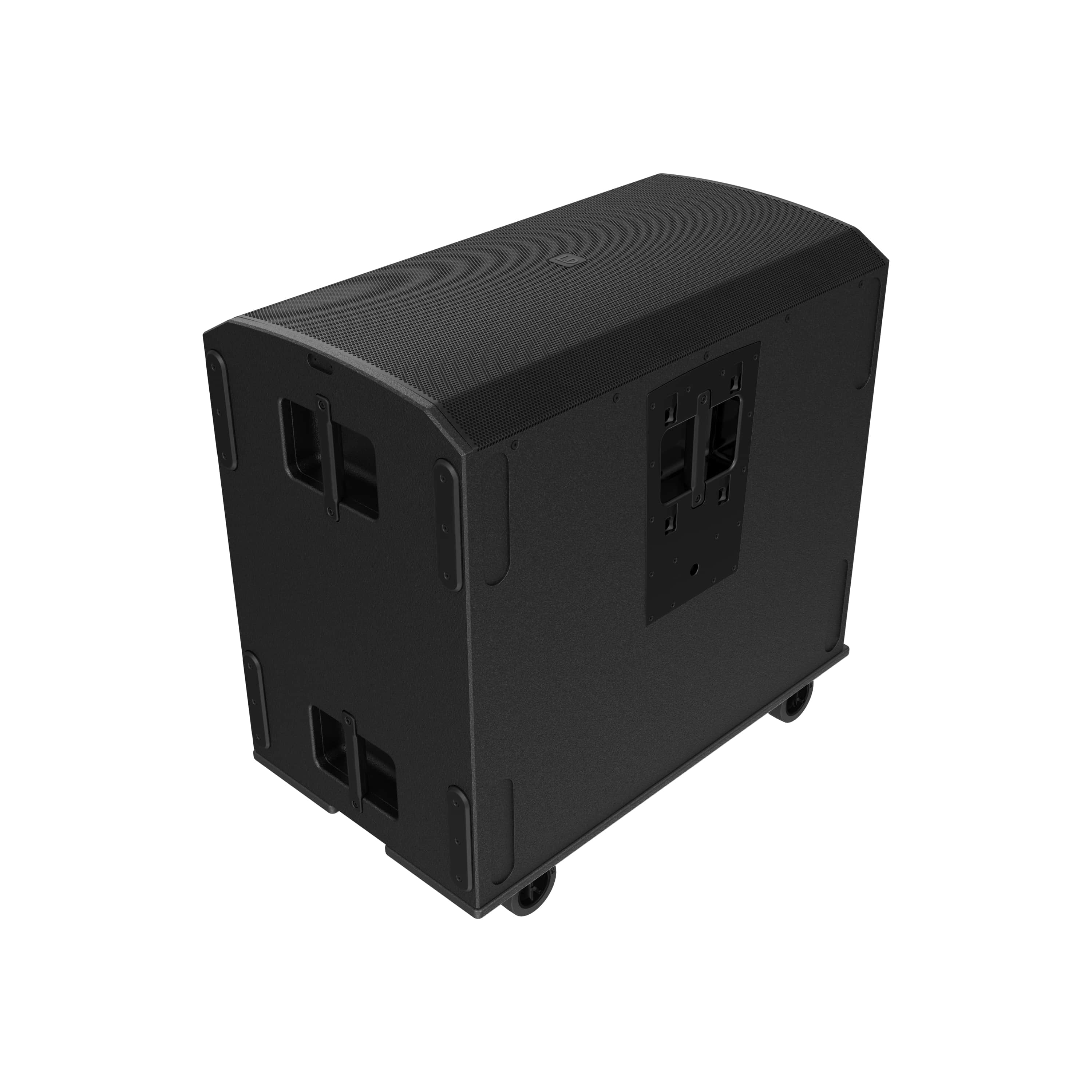

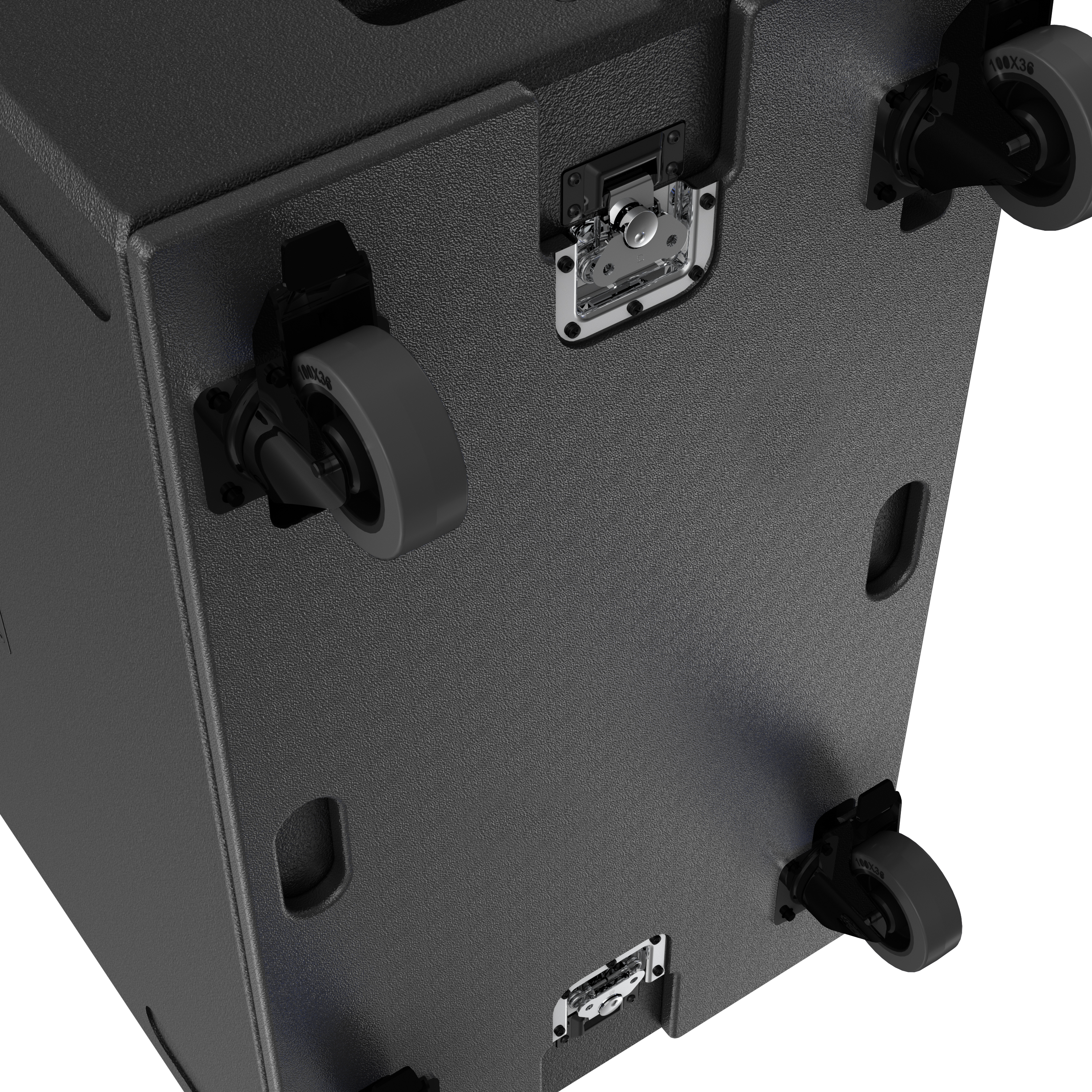

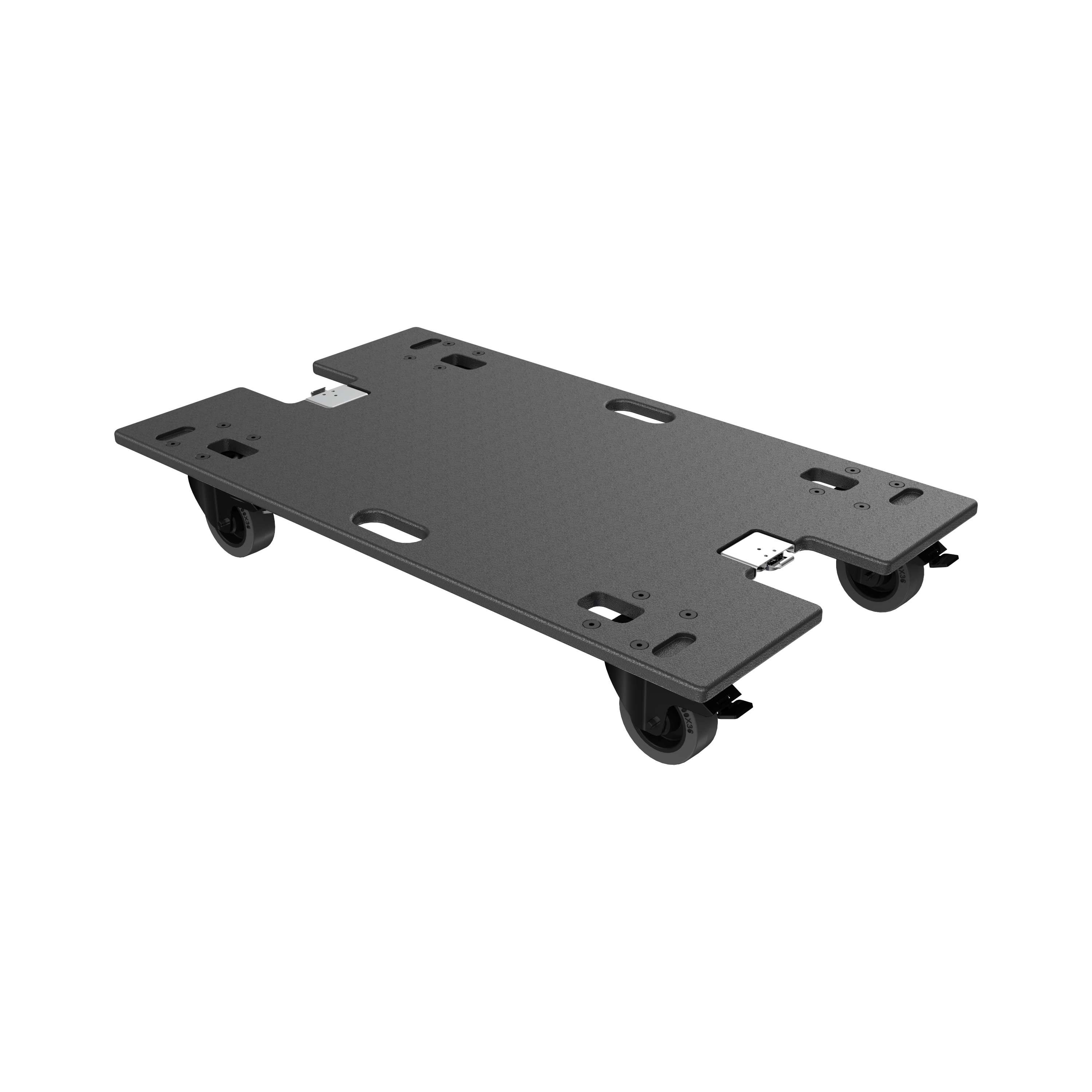

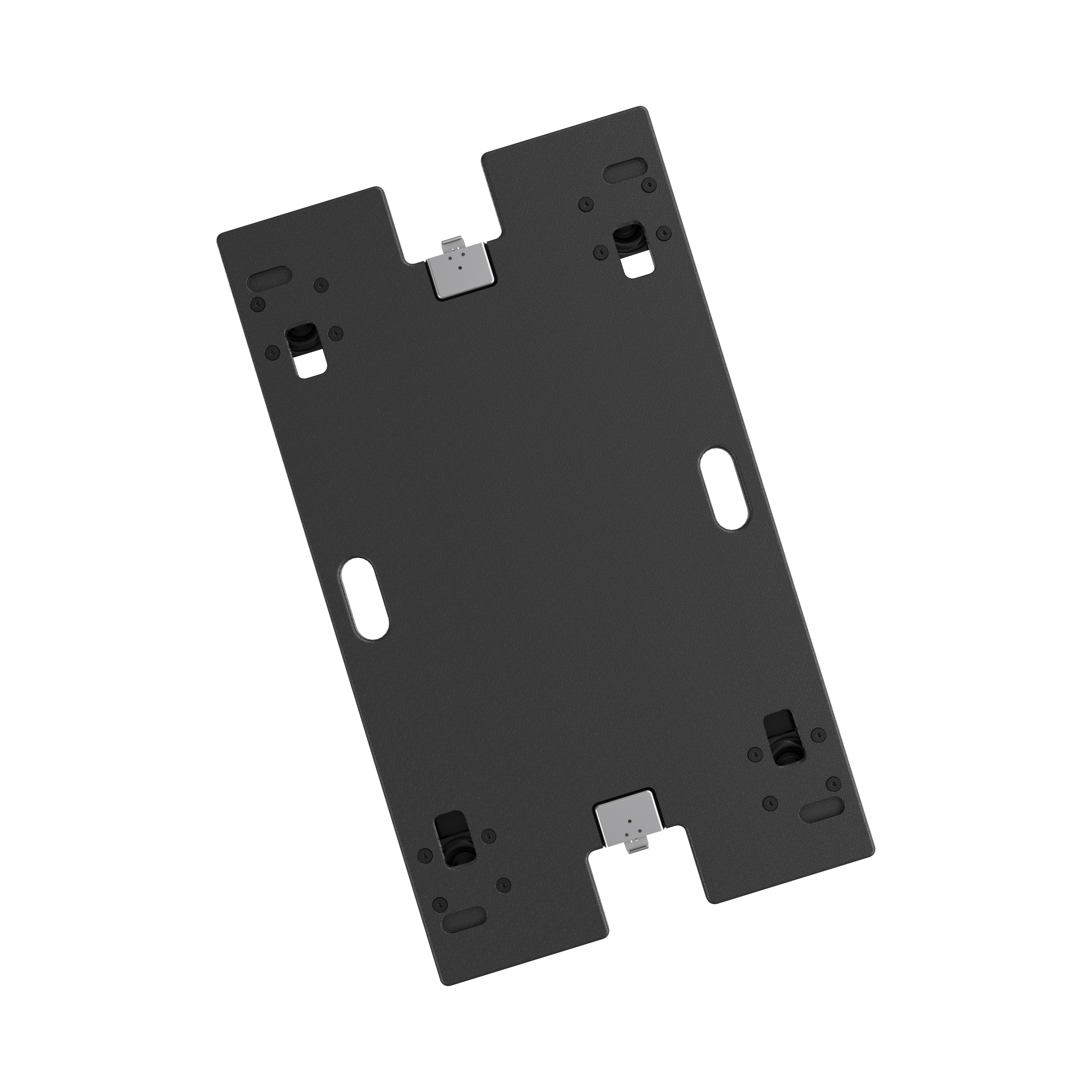

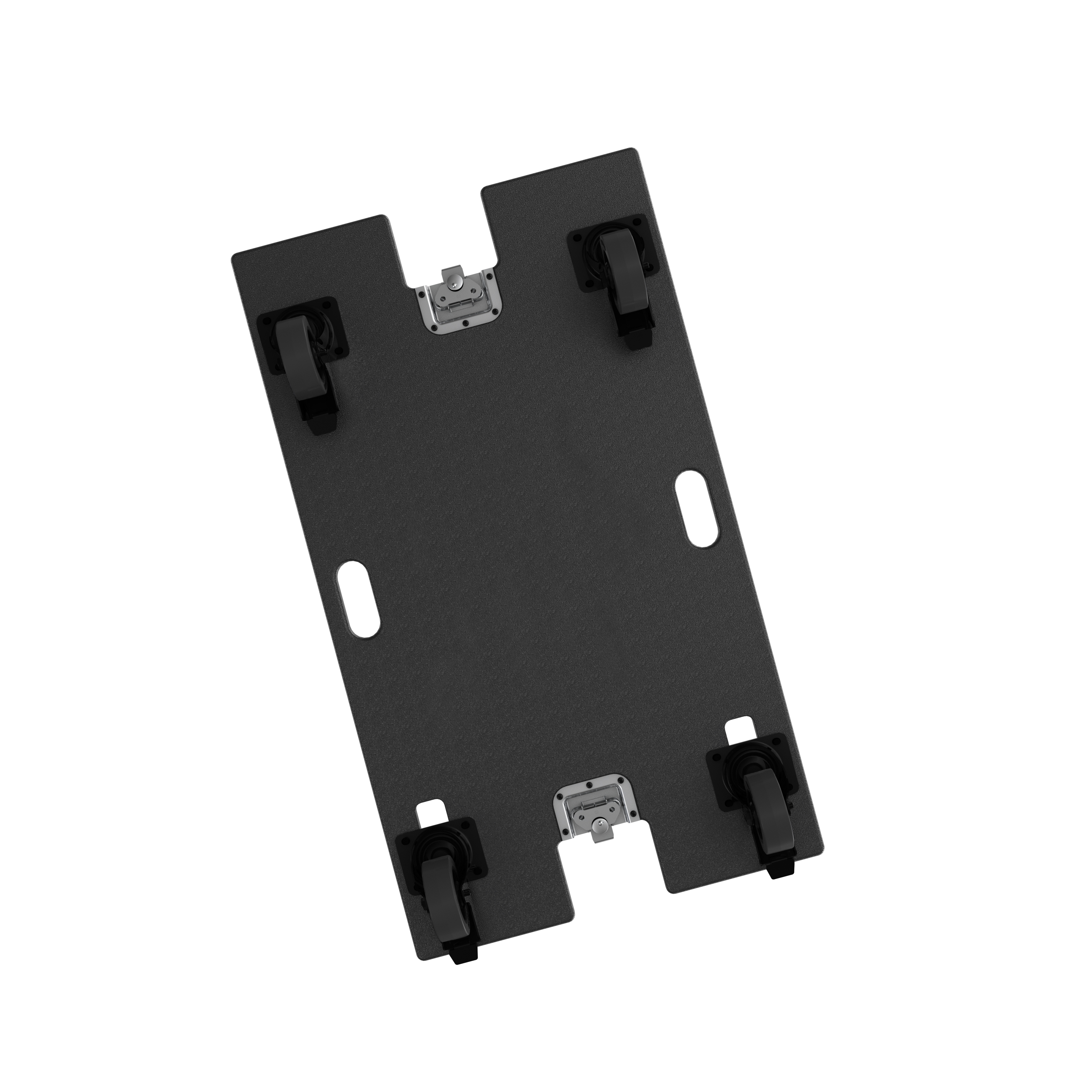

MAILA SUB forms the basis of every MAILA system. The 2.5 kW 2x15'' high-performance subwoofer features a bandpass design and, with its newly developed SysCore® DSP, delivers a massive and powerful bass foundation in any application.The acoustic concept of the MAILA SUB is based on a planar wave bandpass design with quarter-wave horn and symmetrical driver construction. By placing the two 15'' speakers opposite each other, the MAILA SUB enables exceptional impulse compensation, resulting in a powerful and precise low-frequency punch.The four large-area bass reflex openings, in conjunction with the enclosure design, ensure optimised airflow and reduced flow losses, resulting not only in a lower noise level, but above all in higher efficiency at low frequencies.The enclosure of the subwoofer is made of 18 mm thick birch plywood. The MAILA SUB defies the rigours of everyday road use with a hard-wearing polyurea paint finish. A total of six carrying handles ensure optimum grip during assembly and dismantling. For comfortable transport on longer trips, the optional MAILA SUB CB castor board is the optimal choice.With LogoLink®, LD Systems has added another innovation to MAILA. Via the free MAILA app (iPadOS), every MAILA system can be quickly, easily and precisely adjusted and wirelessly supplied with software updates. Once connected, the app automatically recognises the existing MAILA components and enables the system to be set up quickly and easily - including calculation of the SAT angles - in the run-up to an event. The highlight: the wireless antennas are invisibly integrated into the LD logo of the MAILA SUB.

The MAILA SAT satellite speaker is a true line array element and is full of surprises The elegant and robust unibody aluminium enclosure houses five 1'' tweeters in front of a 6.5'' midrange driver, arranged in a coaxial design based on Advanced WaveAhead® technology and coupled almost interference-free via the SonicGuide® (two combined waveguides). The result is a classic line array radiation pattern with impressive throw and energy density. The horn-loaded 6.5'' midrange driver with 1.8'' voice coil and neodymium driver features a split-path waveguide as well as a phase plug and enables a particularly high sensitivity in the midrange.The tweeter section is formed by five vertically arranged 1'' dome tweeters that do not require a compression chamber and thus offer an even and natural dispersion pattern (100° horizontal x 8° vertical). At the same time, the midrange driver's phase plug reduces the heat generated by the tweeter voice coils, contributing to the satellite's increased efficiency. Furthermore, the passive membrane placed behind the woofers provides extended punch down to 100 Hz despite the compact dimensions of the satellite housing.On the back of the housing of each MAILA SAT is a rotating handle which hides a groundbreaking innovation: via the patented EasySplay® mechanism, users can adjust the inclination of each individual satellite continously from 0° to 8° in the blink of an eye. The angle can be adjusted with just one hand, even under load. In this way, every MAILA system offers a uniquely flexible concept for adapting the sound coverage to any sound reinforcement situation at any time.For an especially easy setup, the passive MAILA SAT array satellites are equipped with the LD Systems SmartLink+® system, which ensures a cable-free connection between the MAILA SAT modules as well as between MAILA SAT and MAILA SPA amplifier module or MAILA COL column module. Both the audio signal and the power supply for the passive MAILA elements are provided via the robust aluminium rails. In addition, SmartLink+® allows the installed satellites to be detected for automatic or manual DSP processing.

The MAILA COL full-range column module makes MAILA truly versatile. With its 4x 6.5'' woofers, the elegant column element not only provides an extended low-mid range, but also includes a 4-channel DSP amplifier with 2.5 kW total power, which drives both the column itself and the MAILA SAT satellites.In this way, MAILA sets with column module can not only be used as a ground stack variant, but also as a flown array consisting of MAILA COL and up to eight MAILA SAT - especially useful for festivals and fixed installations. In addition, as with a classic line array, users can select different subwoofer arrangements and adapt them to the sound reinforcement requirements on site.On the ground, the use of MAILA COL provides a further advantage: the interconnected column module allows ground stack sound setups that are significantly higher (up to 3.4 metres) than conventional systems and, with its greater throw, also enables uniform sound coverage in the far field.With LogoLink®, LD Systems has added another innovation to MAILA. Via the free MAILA app (iPadOS), every MAILA system can be quickly, easily and precisely adjusted and wirelessly supplied with software updates. Once connected, the app automatically recognises the existing MAILA components and enables the system to be set up quickly and easily - including calculation of the SAT angles - in the run-up to an event. The highlight: the wireless antennas are invisibly integrated into the LD logo of the MAILA COL.

MAILA SPA is the only MAILA module without integrated loudspeakers - and yet an integral part of the MAILA concept. Its versatility can already be guessed at by looking at the range of MAILA sets: The MAILA SPA amplifier module is used in the smallest MAILA-S ground stack set as well as in the large MAILA XL version with flown arrays.MAILA SPA is an amplifier module in elegant unibody aluminium design with integrated 1.25 kW power amplifier with SysCore® DSP for controlling up to eight MAILA SAT satellites. Via the SmartLink+® system, the satellites can be simply slid onto the SPA and wirelessly supplied with a signal. In addition, SmartLink+® enables automatic detection of the installed satellites for automatic or manual DSP processing.As with the MAILA COL column module, MAILA SPA allows users to create ground stack configurations with a speaker pole (included in the MAILA S set) as well as flown setups with the EasyMount+® mounting adapter.With LogoLink®, LD Systems has added another innovation to MAILA. Via the free MAILA app (iPadOS), every MAILA system can be quickly, easily and precisely adjusted and wirelessly supplied with software updates. Once connected, the app automatically recognises the existing MAILA components and enables the system to be set up quickly and easily - including calculation of the SAT angles - in the run-up to an event. The highlight: the wireless antennas are invisibly integrated into the LD logo of the MAILA SPA.
