DQOR SUB WMB
Wall and ceiling bracket for DQOR SUB 8 (A/D)
$95.00
Backordered – More on the Way!
Product information "DQOR SUB WMB"

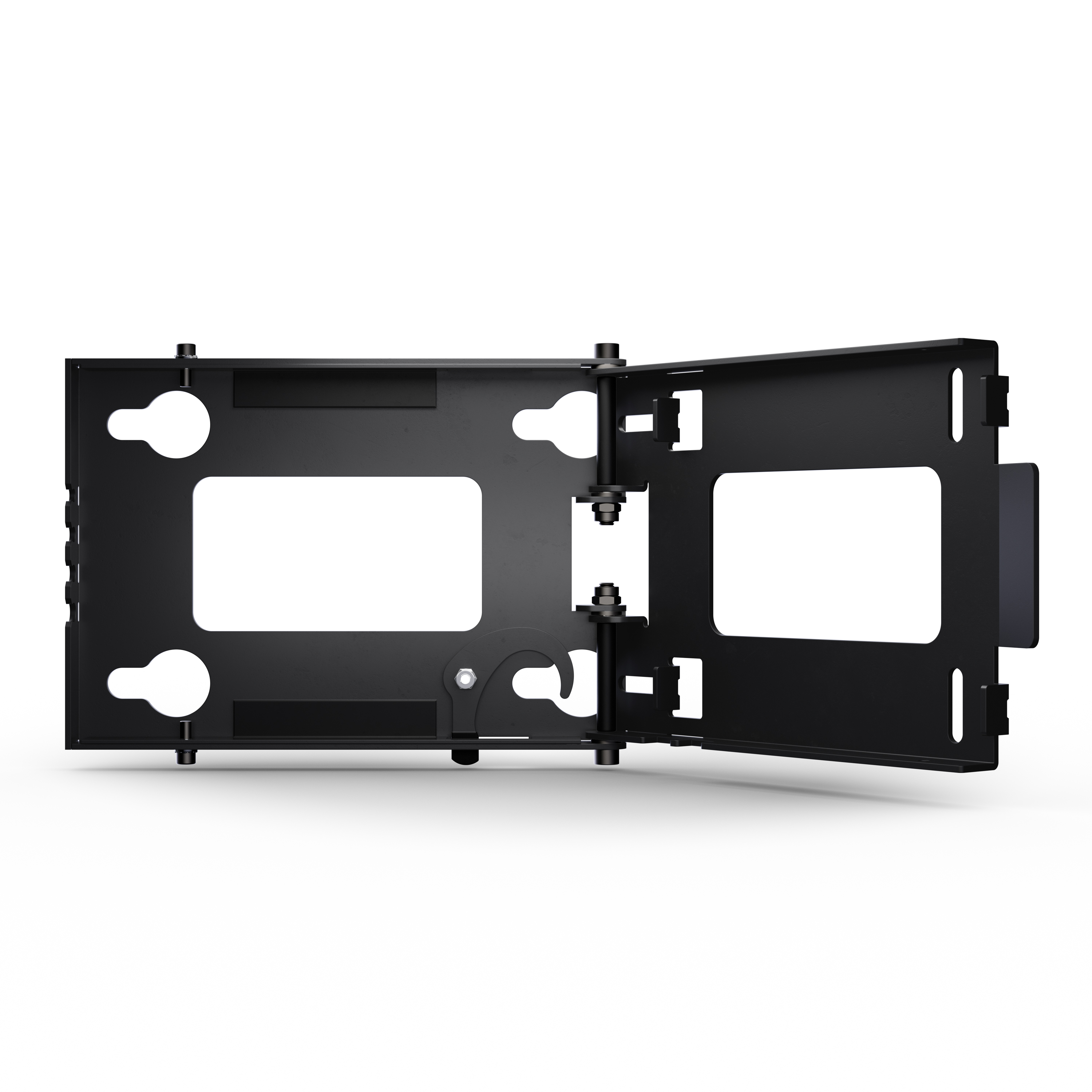

The DQOR® SUB WMB mounting bracket makes it possible to securely and flexibly attach DQOR® SUB 8 subwoofers to walls and ceilings, both in vertical and horizontal positions.

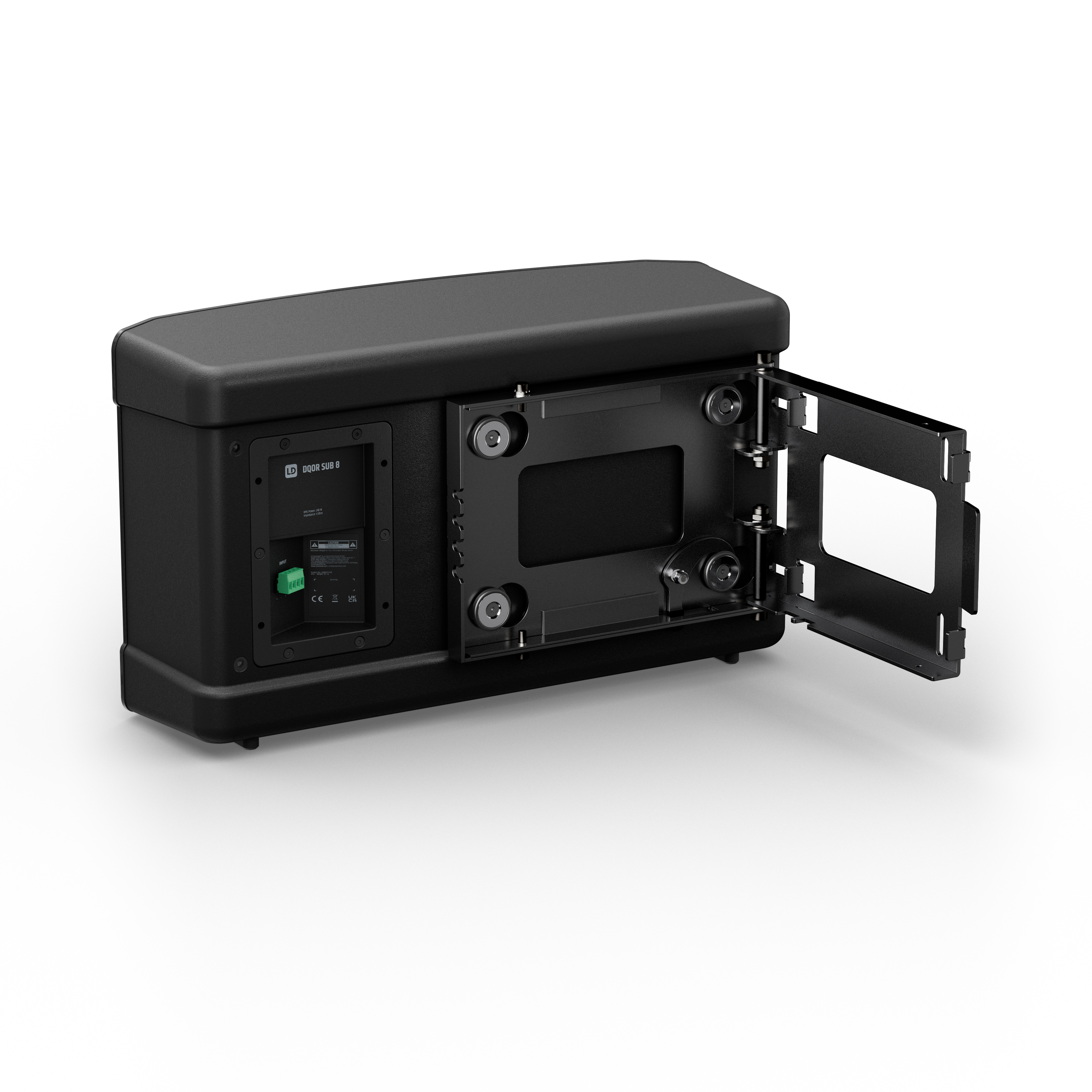

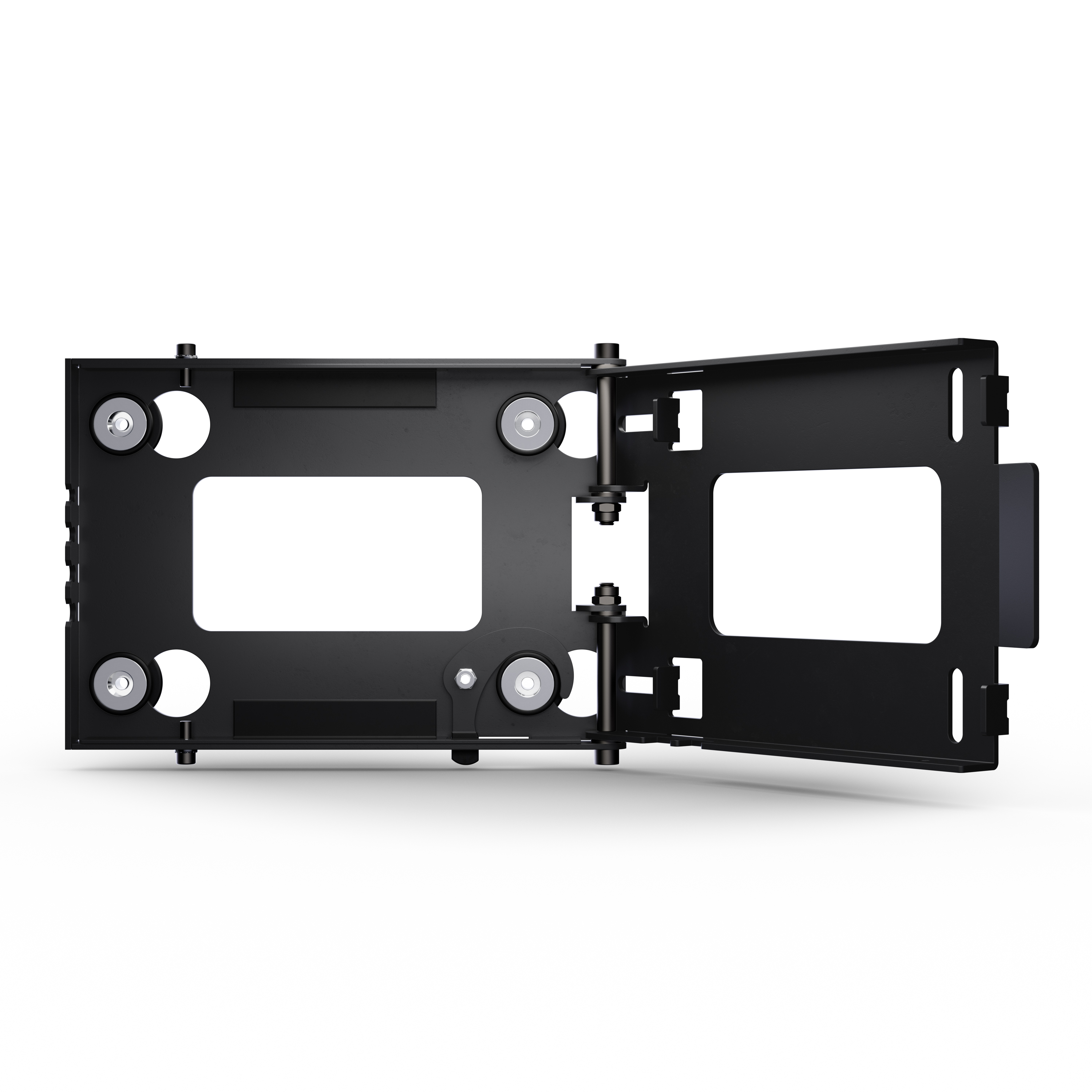

The subwoofer is hooked into the bracket with pre-assembled rubber pads and locked in position by the safety hook. The steel reinforcement of the rubber pads ensures a stable hold, while the rubber coating reduces the transmission of structure-borne sounds.
Thanks to the integrated hinge mechanism, installation is particularly easy and allows convenient access to the internal cable routing. Several cable cut-outs ensure neat and organised cable routing.
To prevent accidental opening, the mounting bracket’s hinge mechanism is locked with two locking screws.
| Material: | Aluminium, EVA foam (ethylene vinyl acetate), Steel, TPU (Thermoplastic polyurethane) |
|---|---|
| Coating: | Powder coated |
| Colour: | Black |
| Colour (like RAL): | RAL 9005 |
| Width: | 11.28 in |
|---|---|
| Depth: | 1.15 in |
| Weight: | 5.73 lbs |
| Height: | 8.48 in |
| Material thickness: | 0.12 in |
Login
accessories

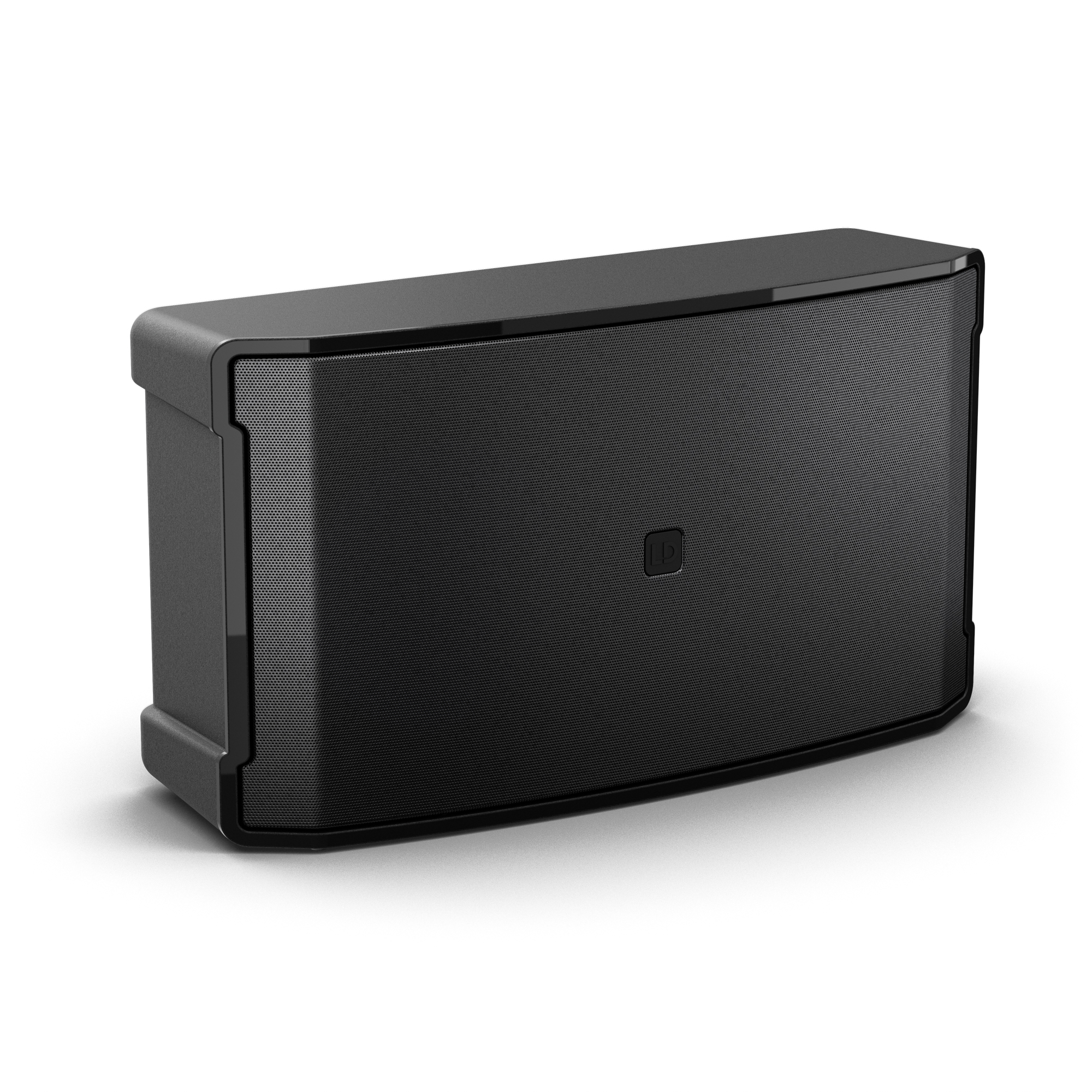

Part of the DQOR® series, the DQOR® SUB 8 D is a powered installation indoor/outdoor subwoofer with an 8" woofer and a 10" passive radiator. With a built in Dante audio connection, it easily connects to any networked audio system and is AES67 compliant for compatibility with thousands of audio devices.Designed for high performance in a compact form factor, it delivers powerful bass audio with no need for separate amplifier racks.Uniquely the DQOR® SUB 8 D is the only outdoor rated Dante sub bass loudspeaker available.The clean and low-profile design ensures the DQOR® SUB 8 D is a sleek addition to any room, combining aesthetics with powerful audio performance. Rated at 190 W RMS and max power of 230 W, it delivers impressive sound quality at up to 108 dB SPL with low frequency extension down to 37 Hz.The DQOR® SUB 8 D has rubber feet for floor mounting, or it can be easily installed with the optional surface mount bracket, which includes flexible mounting options, holes for clean cable management, locking screws, a safety-locking mechanism, and a hinge mechanism for quick setup.AC inputs are connected with a 3-pole phoenix contact terminal block with lever push-in connector for reliable and safe connection of the power cables. Terminal block connectors allow for remote standby control. The DQOR® SUB 8 D can be used in a wide variety of applications both inside and outside including hospitality, retail, entertainment, or corporate settings.It is available in black or white (RAL9005 & RAL9016).
