DQOR® SUB 8 D
Powered Dante Indoor/Outdoor Installation Subwoofer, black
$569.99
Backordered – More on the Way!
Product information "DQOR® SUB 8 D"

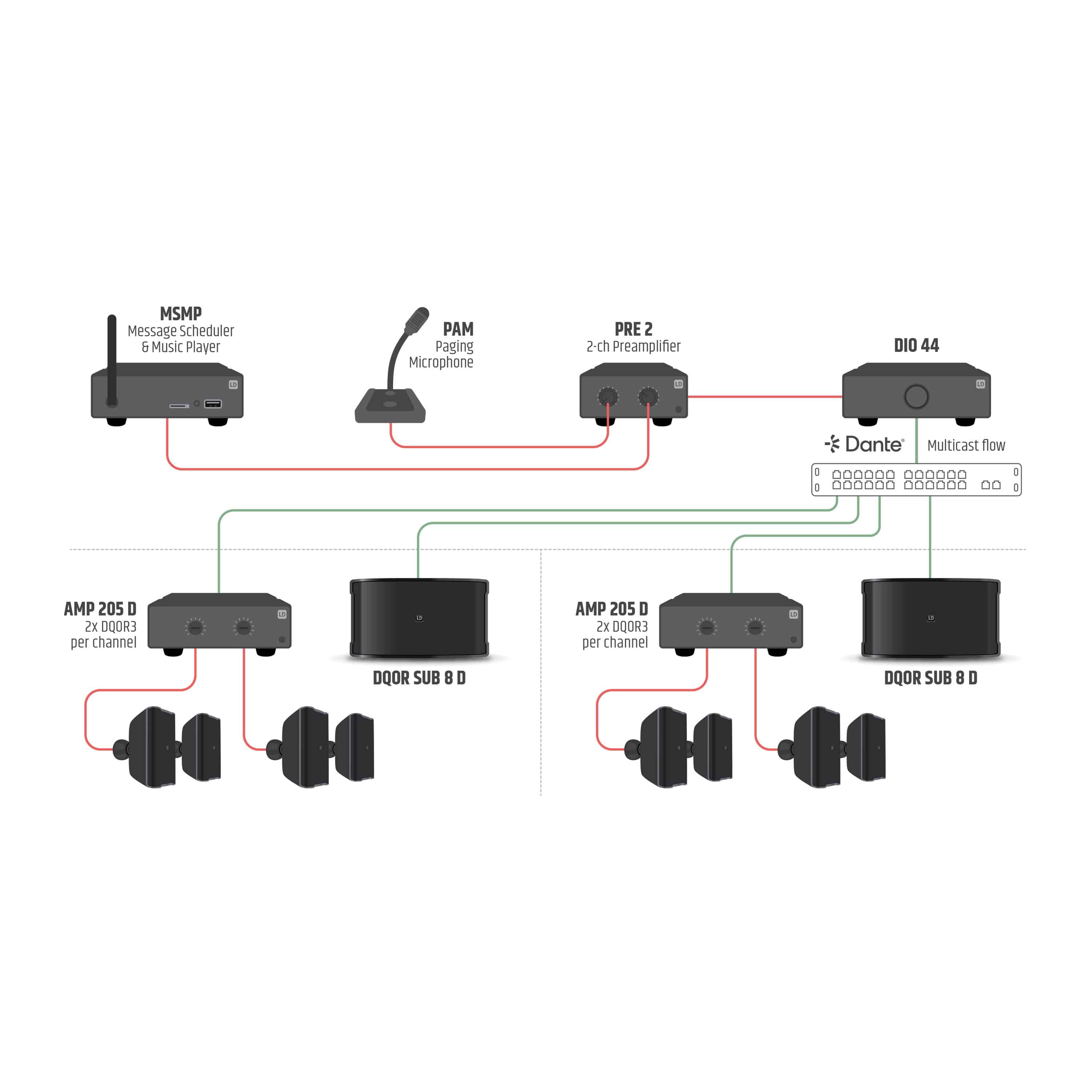

Part of the DQOR® series, the DQOR® SUB 8 D is a powered installation indoor/outdoor subwoofer with an 8" woofer and a 10" passive radiator. With a built in Dante audio connection, it easily connects to any networked audio system and is AES67 compliant for compatibility with thousands of audio devices.
Designed for high performance in a compact form factor, it delivers powerful bass audio with no need for separate amplifier racks.
Uniquely the DQOR® SUB 8 D is the only outdoor rated Dante sub bass loudspeaker available.

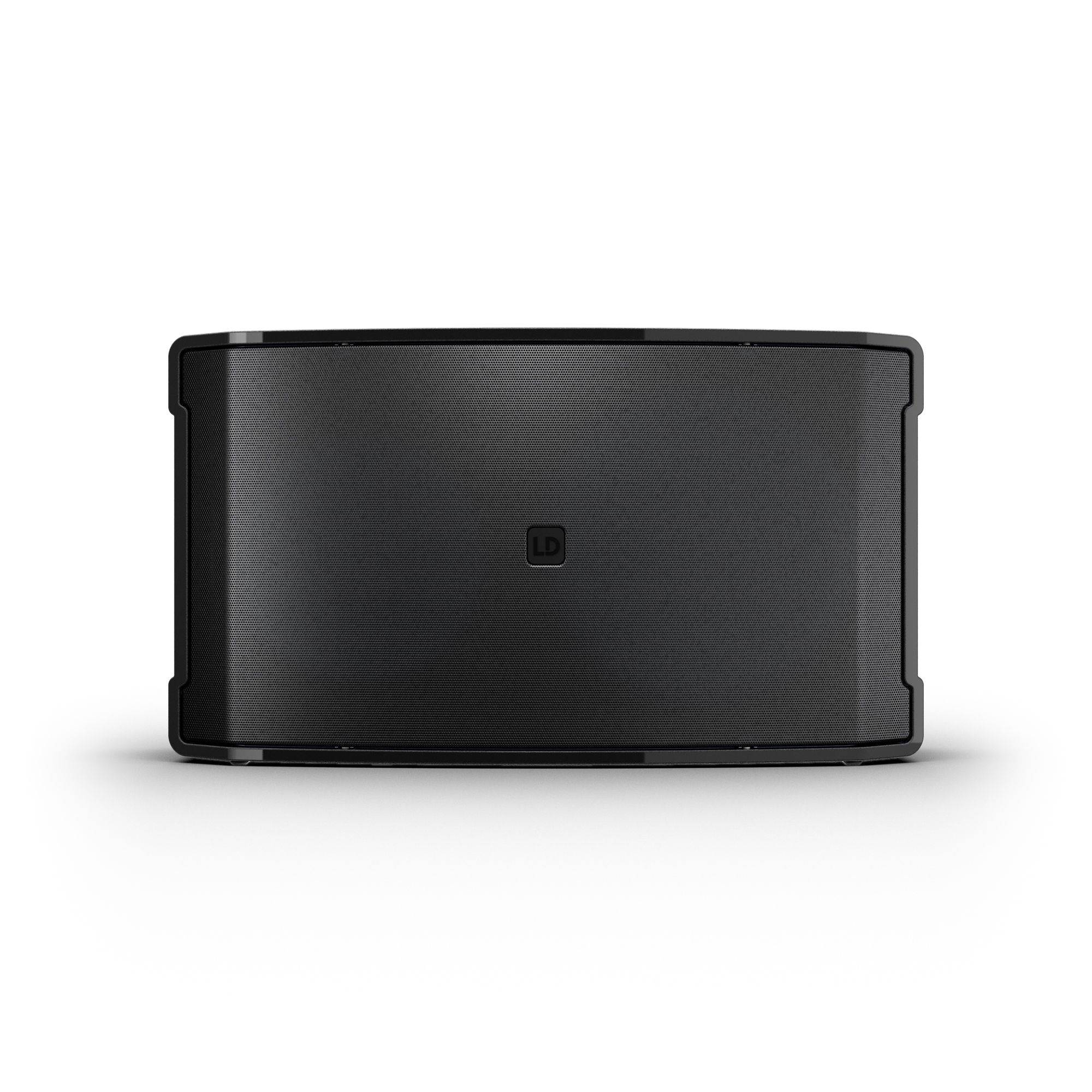

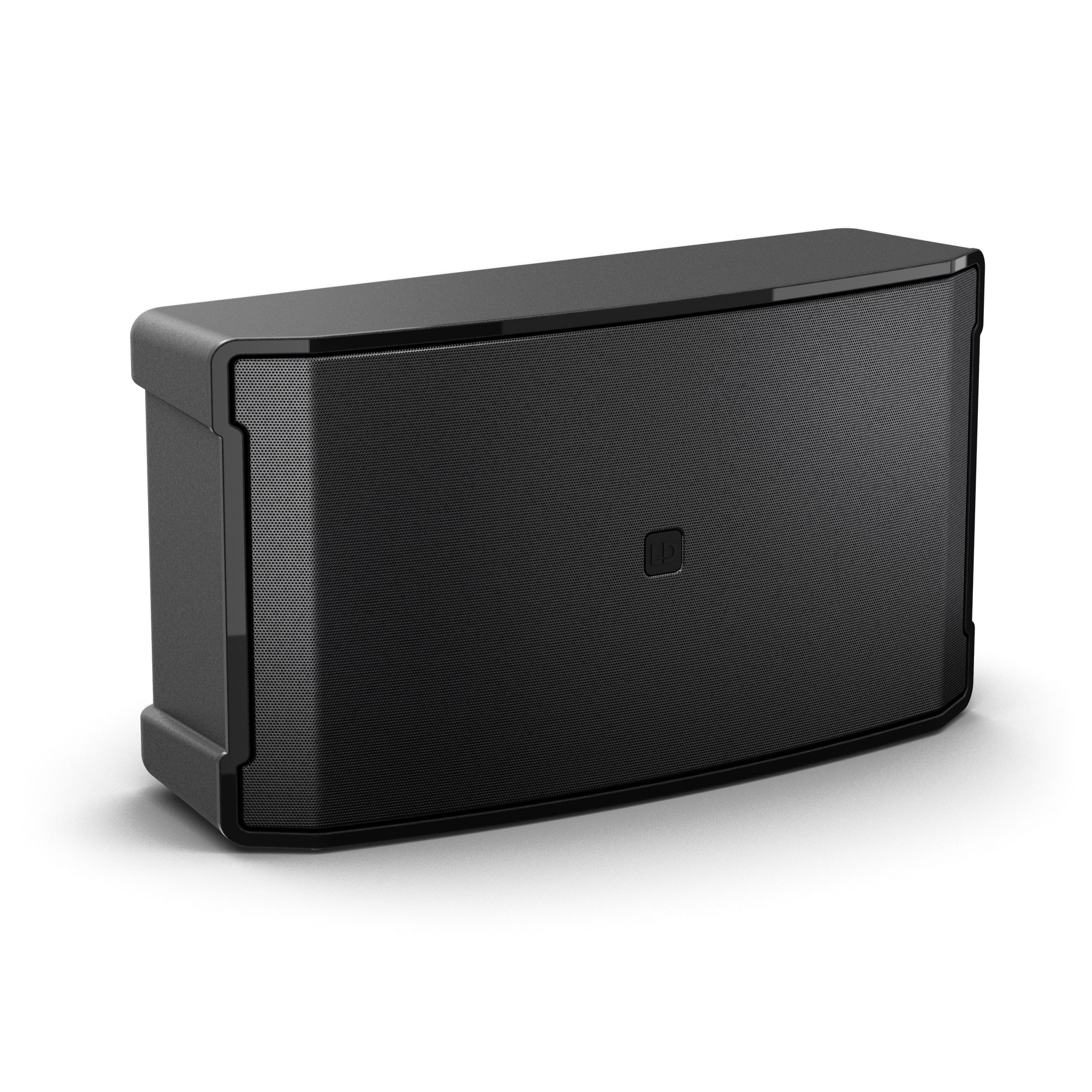

The clean and low-profile design ensures the DQOR® SUB 8 D is a sleek addition to any room, combining aesthetics with powerful audio performance. Rated at 190 W RMS and max power of 230 W, it delivers impressive sound quality at up to 108 dB SPL with low frequency extension down to 37 Hz.
The DQOR® SUB 8 D has rubber feet for floor mounting, or it can be easily installed with the optional surface mount bracket, which includes flexible mounting options, holes for clean cable management, locking screws, a safety-locking mechanism, and a hinge mechanism for quick setup.

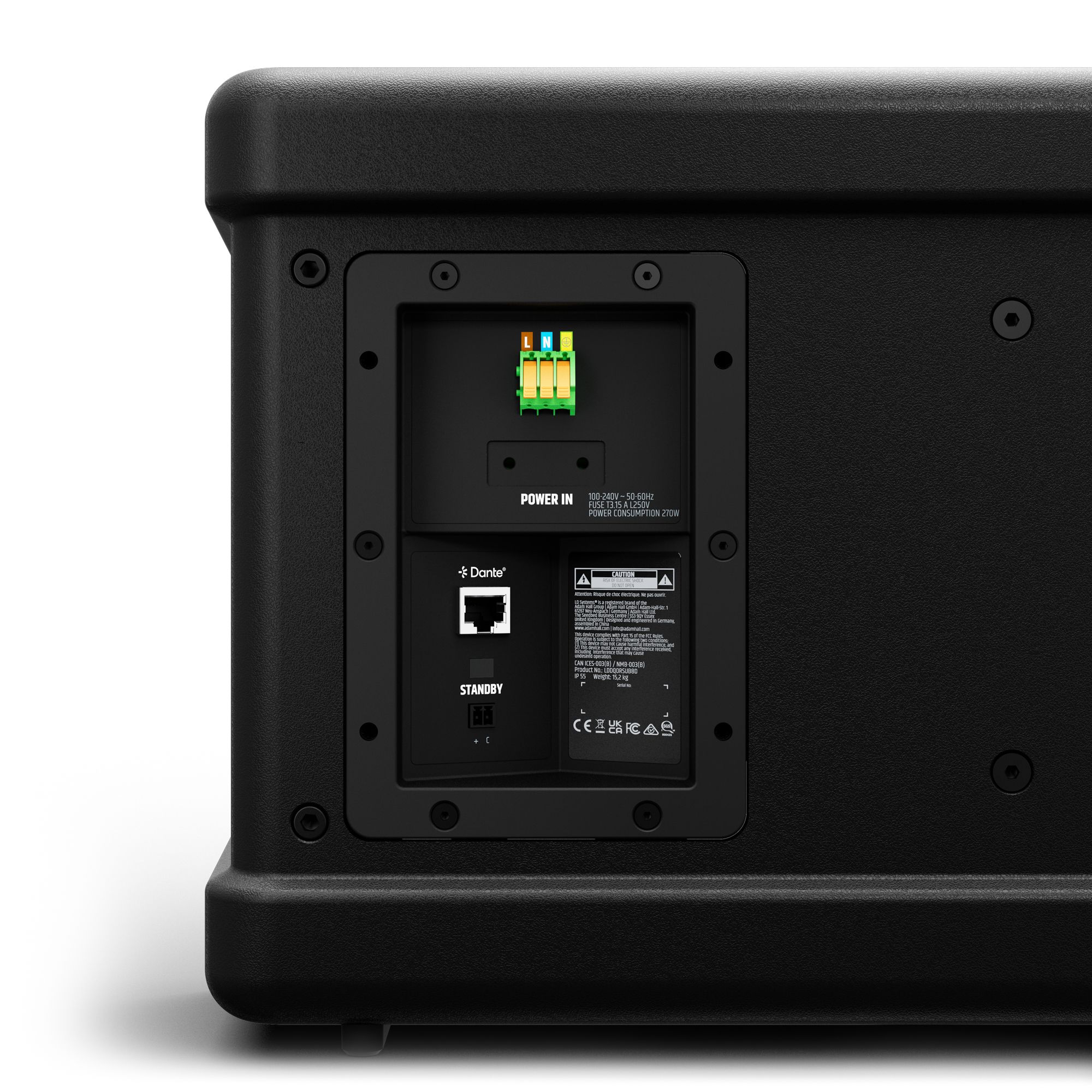

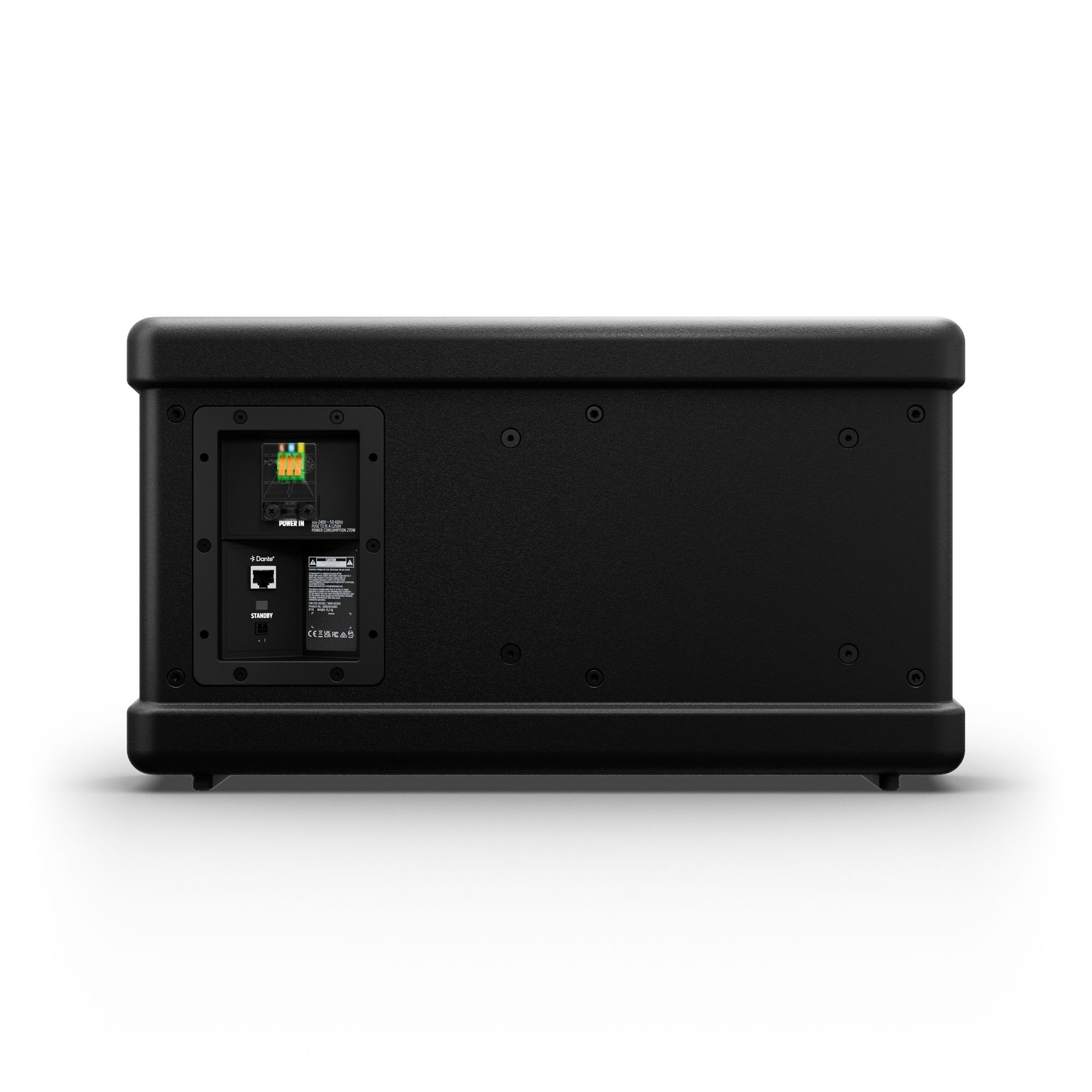

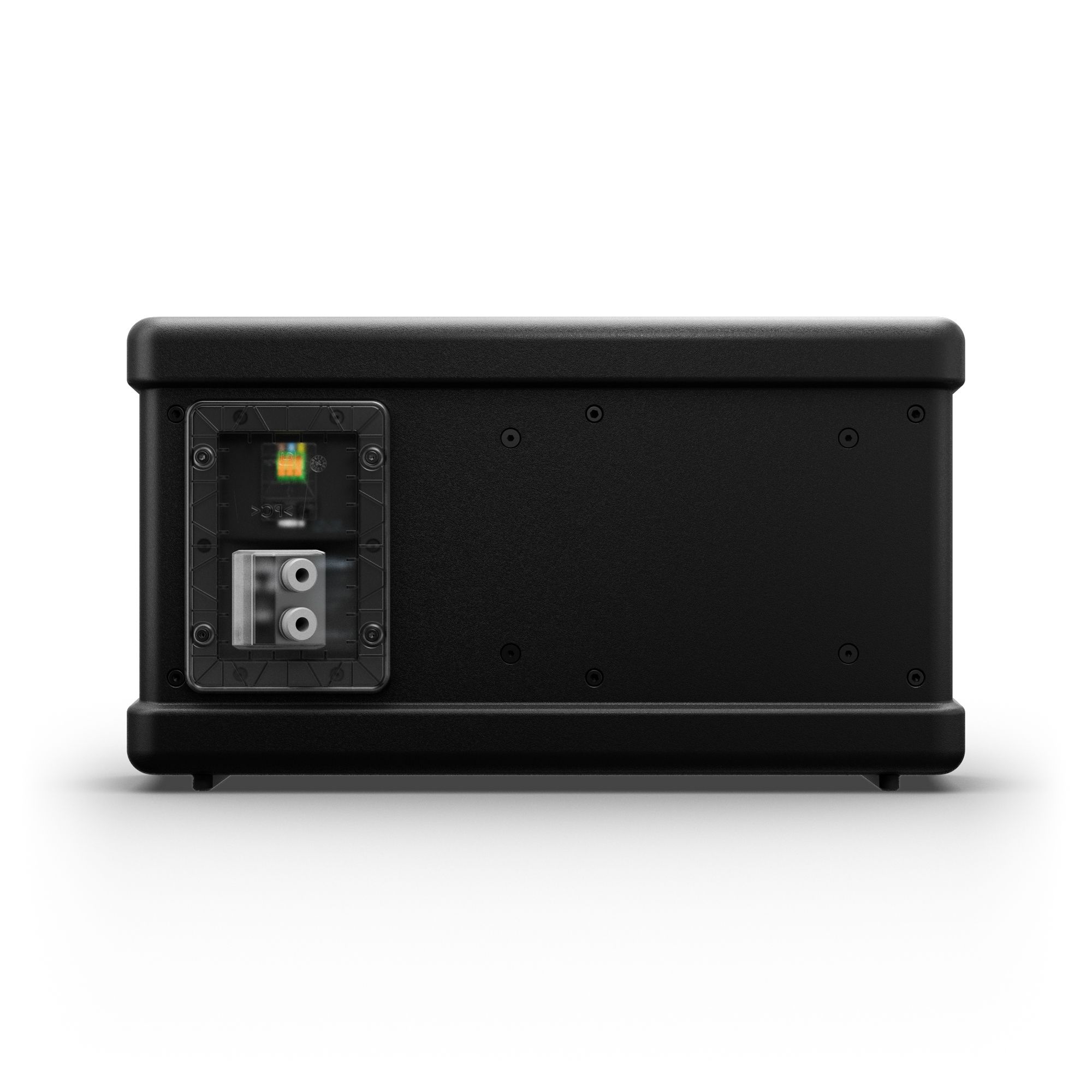

AC inputs are connected with a 3-pole phoenix contact terminal block with lever push-in connector for reliable and safe connection of the power cables. Terminal block connectors allow for remote standby control.

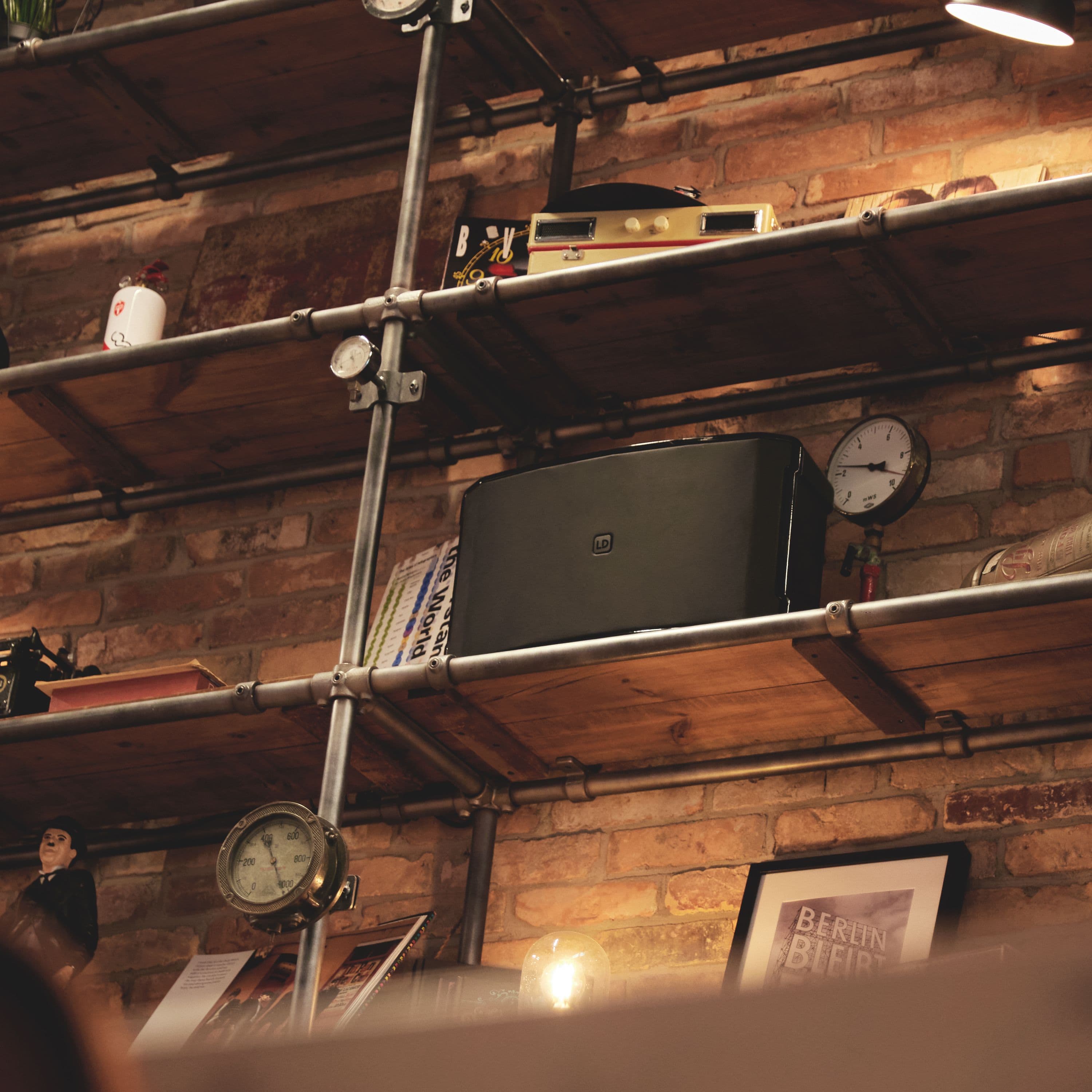

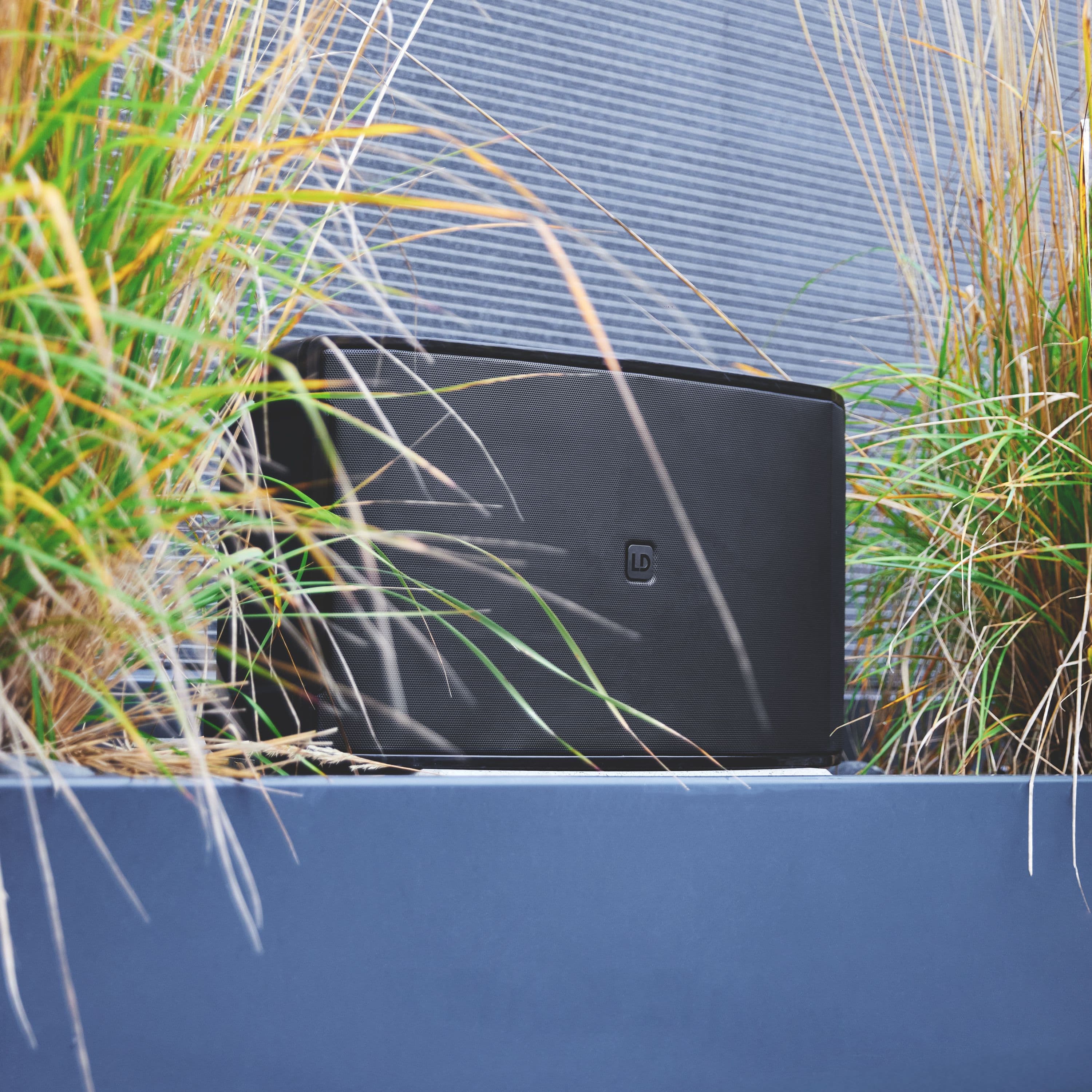

The DQOR® SUB 8 D can be used in a wide variety of applications both inside and outside including hospitality, retail, entertainment, or corporate settings.
It is available in black or white (RAL9005 & RAL9016).
| Directivity: | Omnidirectional |
|---|---|
| Max. SPL peak (sine burst, halfspace/1 m, THD≤10 %): | 110 dB |
| Amp class: | Class D |
| SPL (1 W/1 m): | 86 dB |
| RMS output power: | 190 W |
| Low frequency limit (-3 dB, rel. Avg.): | 43 Hz |
| Protection features: | Overvoltage, Overheating, Short circuit |
| Crossover frequency: | 110 Hz |
| Colour: | Black |
| RAL code: | RAL 9005 |
| Low frequency limit (-10 dB, rel. Avg.): | 37 Hz |
| Peak output power: | 230 W |
| Max. SPL peak (pink noise, halfspace/1 m, CF 4): | 119 dB |
| Max. channels (44.1 kHz/48 kHz): | 2 |
|---|---|
| Bit depth: | 32 Bit, 24 Bit |
| Dante® connector type: | RJ-45 socket |
| DANTE® channels (In x Out): | 1 x 0 |
| Sample rate: | 48 kHz |
| Min. Signal-to-noise ratio (SNR): | 96 dB |
|---|---|
| AD/DA converter bit depth: | 24 Bit |
| AD/DA converter sampling rate: | 48 kHz |
| System latency: | 2 ms |
| Sub output power per channel (Peak): | 230 W |
|---|---|
| Sub output power per channel (RMS): | 190 W |
| GPI input connection socket: | Terminal block 2 pin (Euroblock) / 3.81 mm pitch |
|---|---|
| GPI controllable functions: | Standby |
| Manufacturer: | Custom Made |
|---|---|
| Passive radiator: | 10 " |
| Size: | 8 " |
| Magnet: | Ferrite |
| Voice coil: | 2.5 " |
| Operation voltage: | 100 V AC - 240 V AC (±10 %) / 50 - 60 Hz |
|---|---|
| Rated power: | 270 W |
| Mains fuse: | T3.15AL/250 V |
| Inrush current: | 2.4 A |
| Fuse replacement: | Possible from the outside without opening |
| Max. Stand-by power consumption: | 2 W |
| Power consumption in idle mode: | 18 W |
| Power supply type: | Switched-mode power supply (SMPS) |
| Standby wake up time: | 3 s |
|---|---|
| Auto standby after: | 20 min |
| Design: | Closed with passive radiator |
|---|---|
| Front grille material: | Aluminium |
| Cabinet material: | Die-cast aluminium, Plastic |
| Cooling system: | Convection cooling |
|---|
| Ambient temperature: | -10 - 50 °C |
|---|---|
| Safety Class: | Class 1 |
| Maximum air humidity (non-condensing): | 85 % |
| Weight: | 33.51 lbs |
|---|---|
| Depth: | 8.19 in |
| Width: | 21.16 in |
| Height: | 11.98 in |
