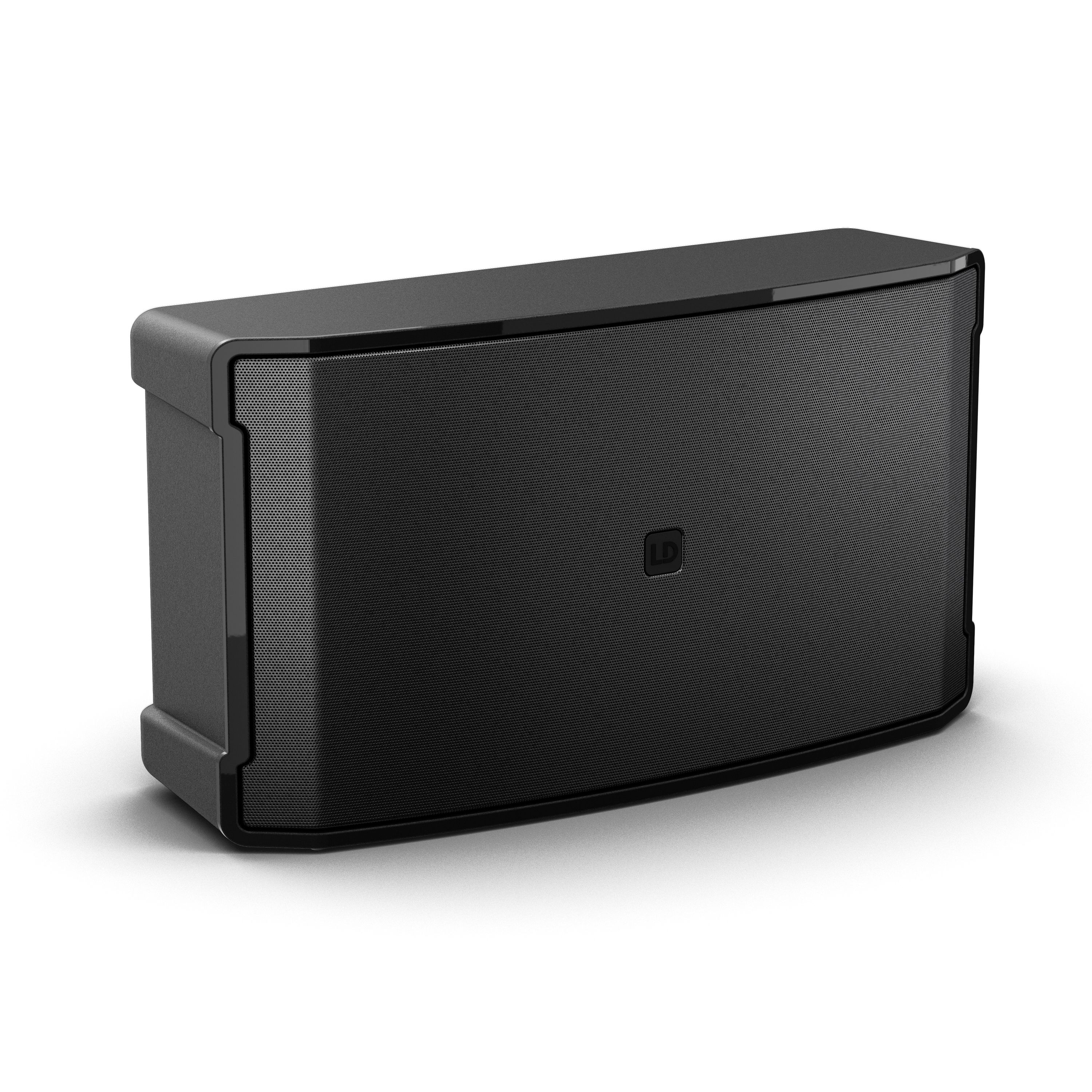

DQOR® SUB 8
Passive Indoor/Outdoor Installation Subwoofer, black
$0.00
Product information "DQOR® SUB 8"

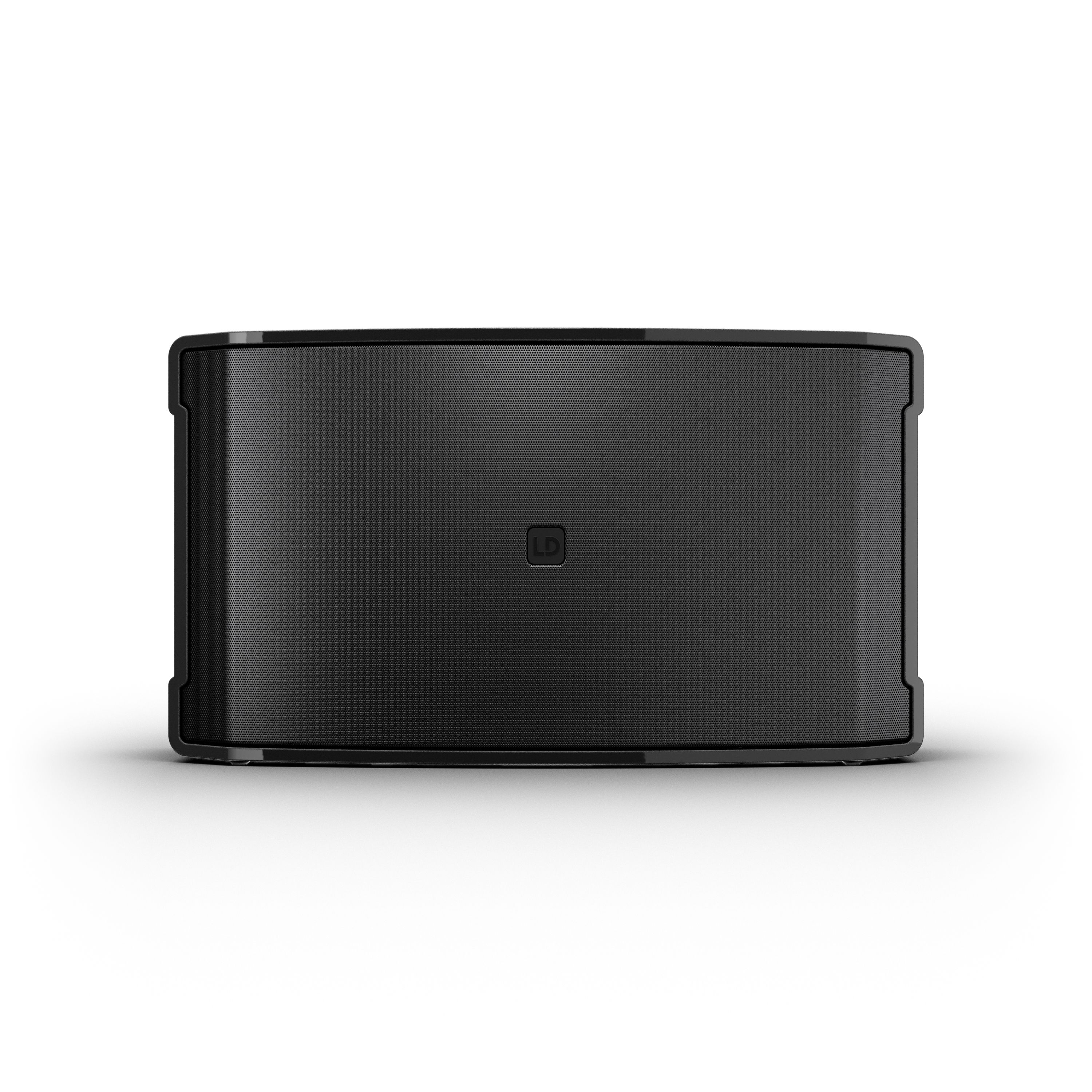

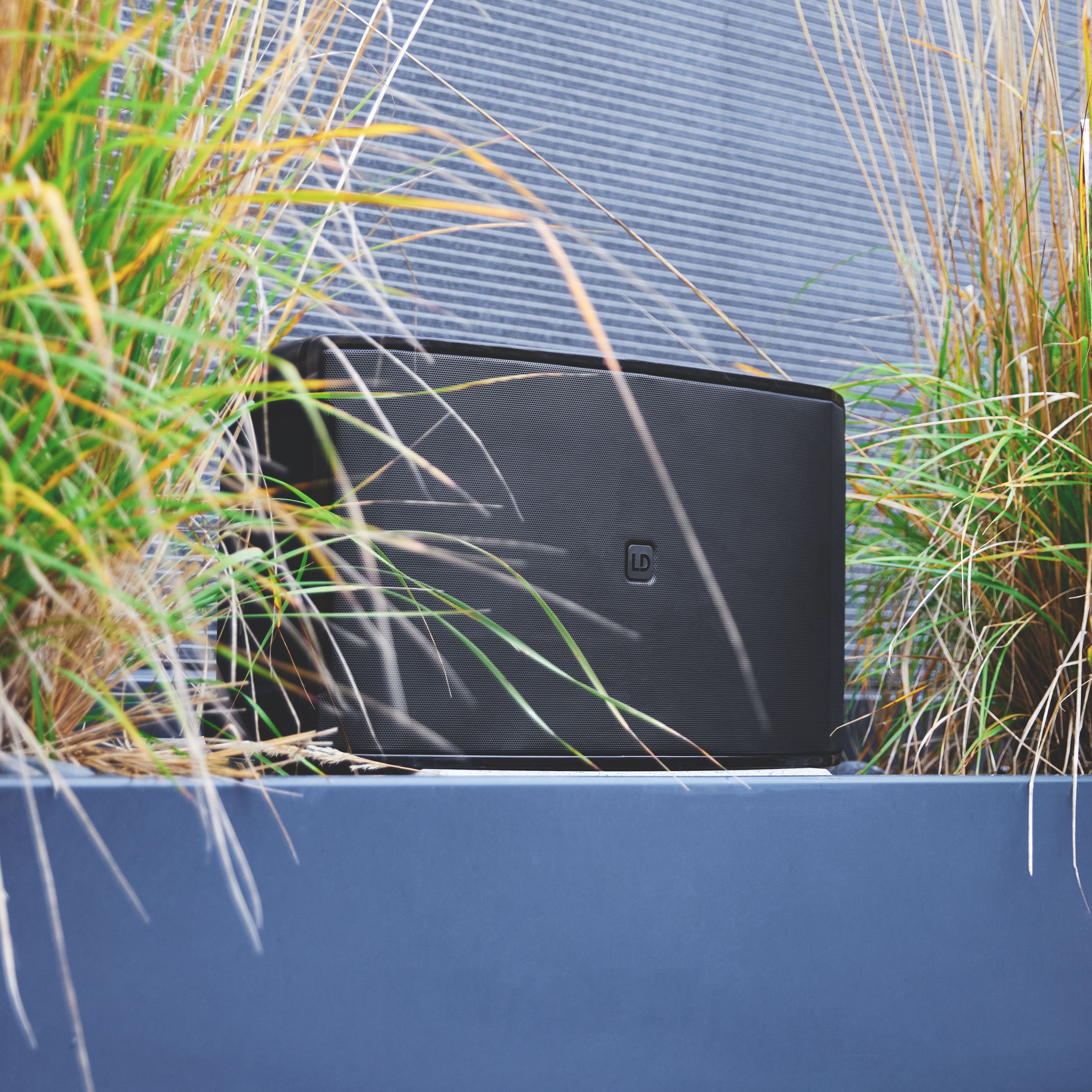

Part of the DQOR® series, the DQOR® SUB 8 is an installation subwoofer with an 8" woofer and a 10" passive radiator, designed for high performance in a compact form factor. Ideal for both indoor and outdoor installations, the DQOR® SUB 8 features a robust aluminium enclosure with powder coating for durability and an IP55 rating for outdoor use.
The clean and low-profile design ensures the DQOR® SUB 8 is a sleek addition to any room, combining aesthetics with powerful audio performance. With 240 W RMS and 4 ohm impedance, it delivers impressive sound quality at up to 108 dB SPL with low frequency extension down to 37 Hz.

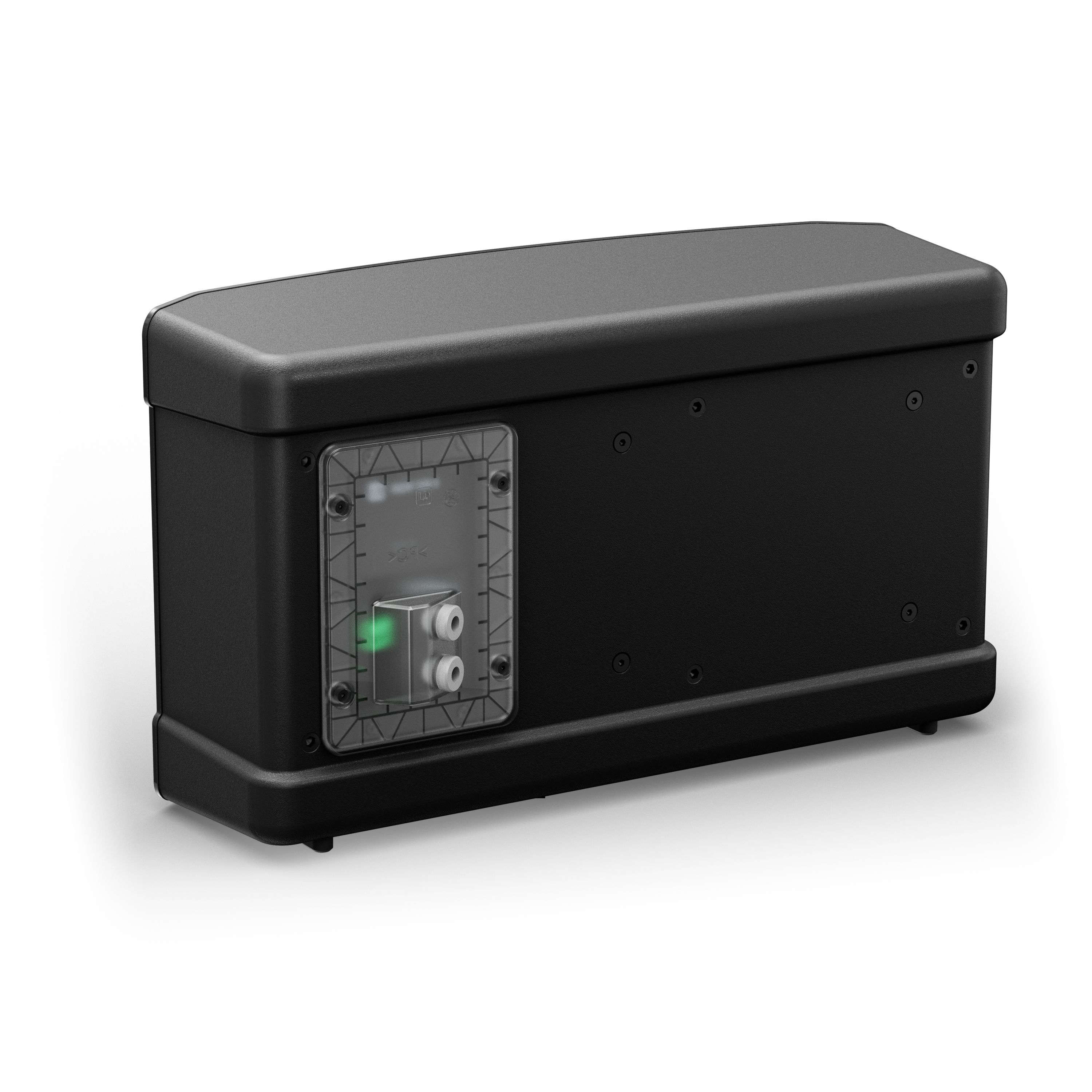

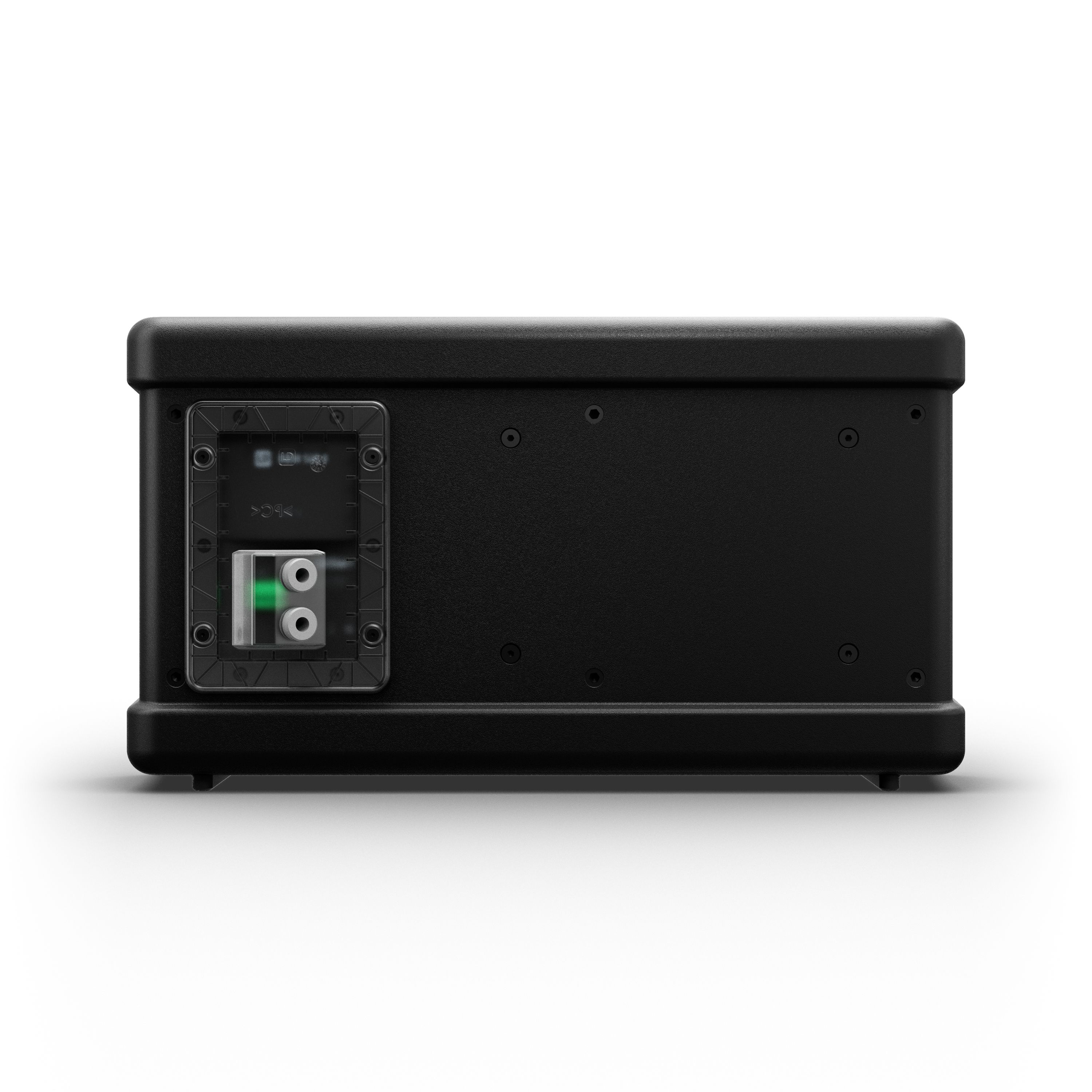

The DQOR® SUB 8 has rubber feet for floor mounting, or it can be easily installed with the optional surface mount bracket, which includes flexible mounting options, holes for clean cable management, locking screws, a safety-locking mechanism, and a hinge mechanism for quick setup. The recessed connection area, with a clear plastic cover, ensures outdoor protection for the connections.

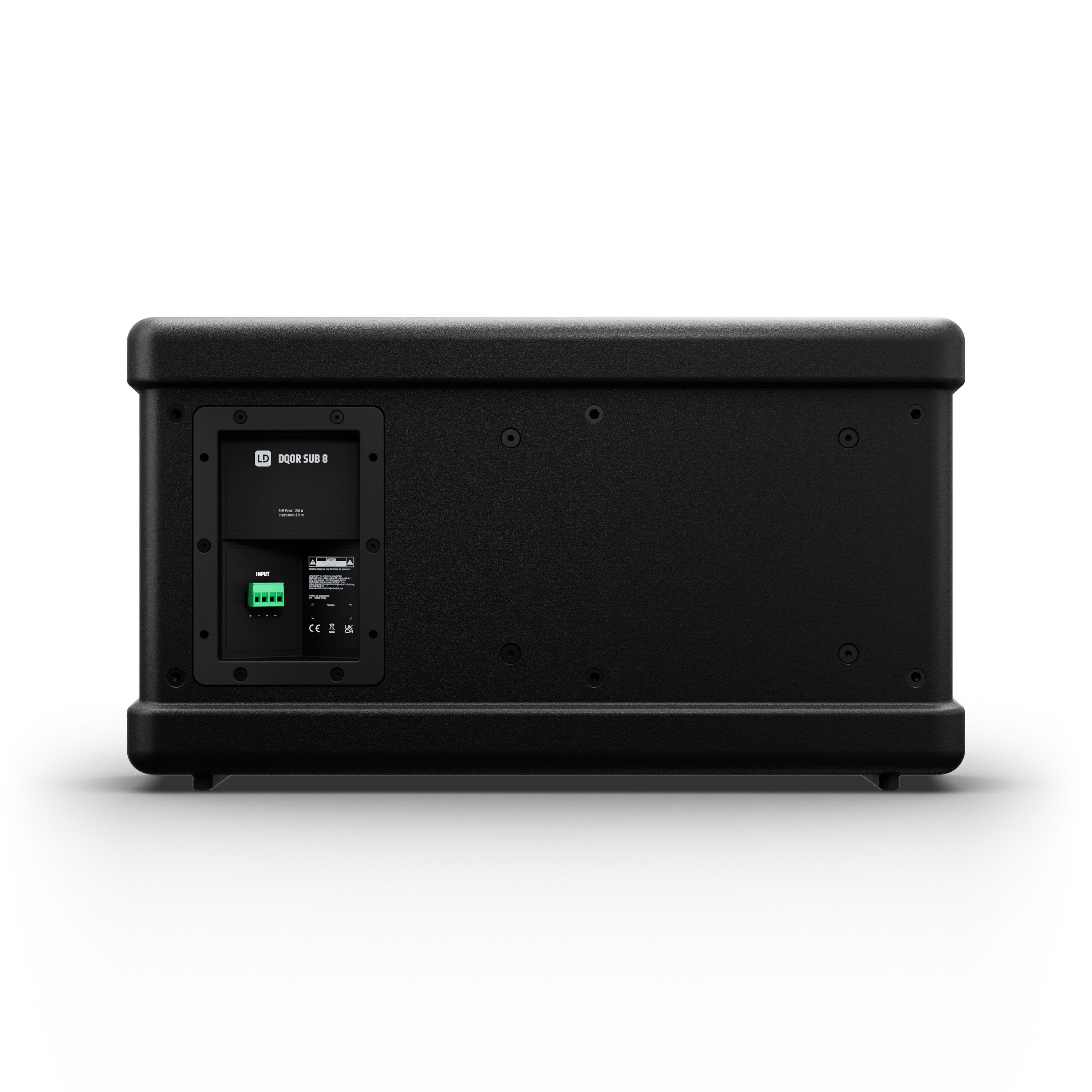

The 4-pole terminal block connector allows for parallel (2 Ohm) or serial connections (8 Ohm).

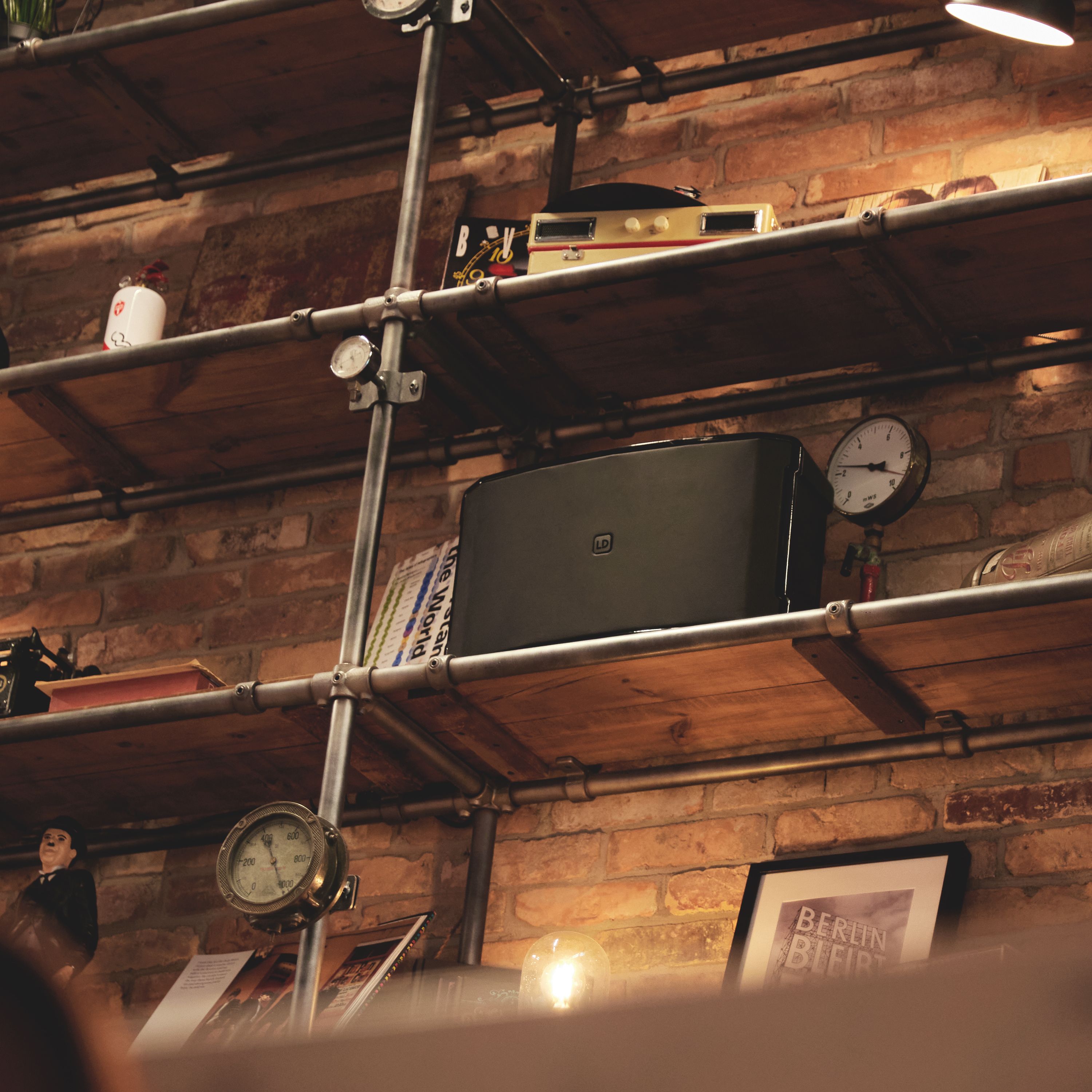

The DQOR® SUB 8 can be used in a wide variety of applications including hospitality, retail, entertainment or corporate applications.
It is available in two colours: black (RAL9005) and white (RAL9016).
| Directivity: | Omnidirectional |
|---|---|
| SPL (1 W/1 m): | 86 dB |
| Power handling (Peak): | 400 W |
| Input connector types: | Terminal block 4 pin (Euroblock) / 5.08 mm pitch |
| Impedance: | 4 Ω |
| Frequency response (-3 dB, rel. Avg): | 43 - 200 Hz |
| Colour: | Black |
| Power handling (RMS): | 240 W |
| RAL code: | RAL 9005 |
| Max. SPL peak (sine burst, fullspace/1 m, THD≤10 %): | 108 dB |
| Number of inputs: | 1 |
| Crossover frequency: | 200 Hz |
| Passive radiator: | 10 " |
|---|---|
| Size: | 8 " |
| Magnet: | Ferrite |
| Voice coil: | 2.5 " |
| Front grille material: | Aluminium |
|---|---|
| Cabinet material: | Die-cast aluminium, Plastic |
| Ambient temperature: | -30 - 50 °C |
|---|---|
| Maximum air humidity (non-condensing): | 85 % |
| Protection class: | IP55 |
| Width: | 21.14 in |
|---|---|
| Height: | 11.93 in |
| Weight: | 30.2 lbs |
| Depth: | 8.07 in |
Login
accessories

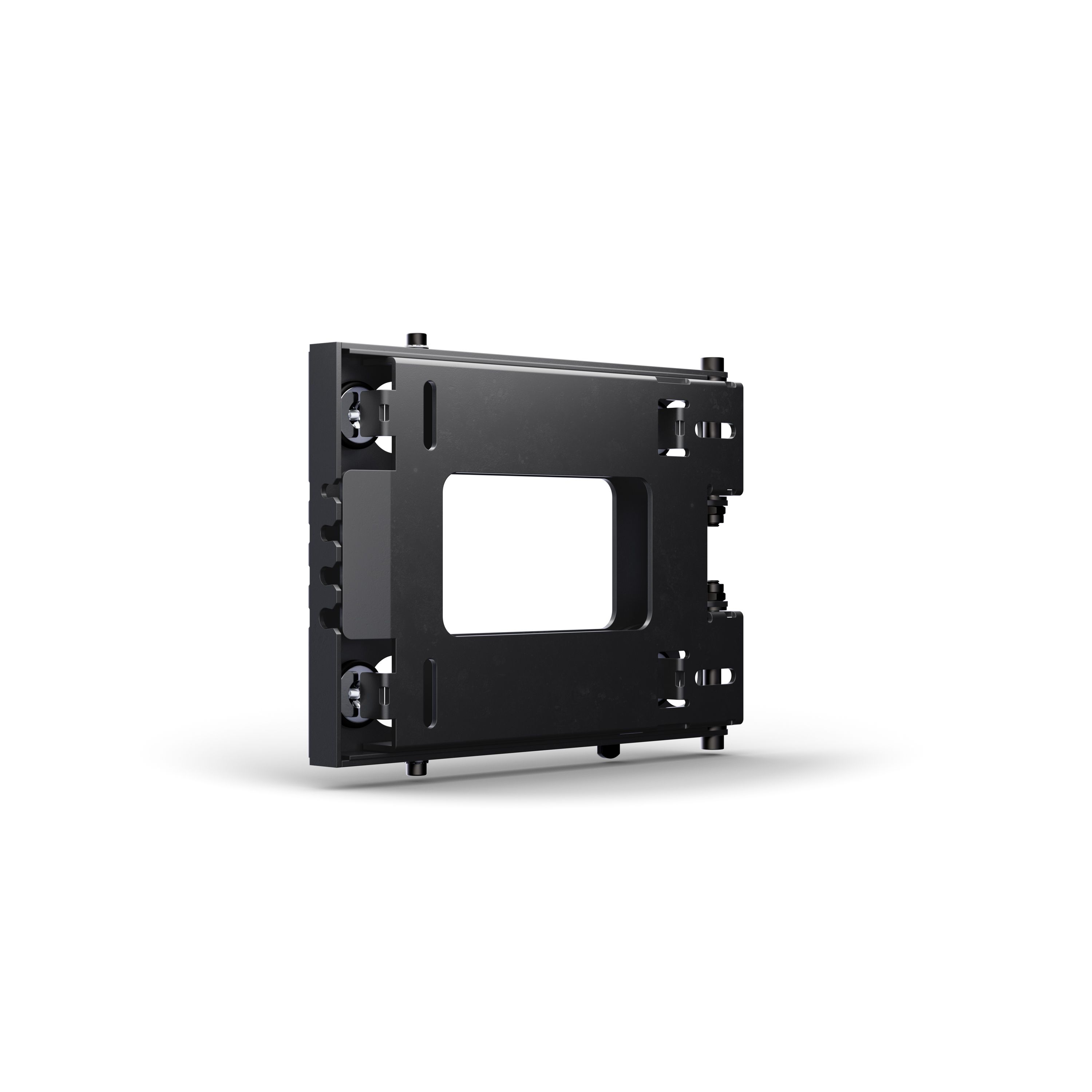

The DQOR® SUB WMB mounting bracket makes it possible to securely and flexibly attach DQOR® SUB 8 subwoofers to walls and ceilings, both in vertical and horizontal positions. The subwoofer is hooked into the bracket with pre-assembled rubber pads and locked in position by the safety hook. The steel reinforcement of the rubber pads ensures a stable hold, while the rubber coating reduces the transmission of structure-borne sounds. Thanks to the integrated hinge mechanism, installation is particularly easy and allows convenient access to the internal cable routing. Several cable cut-outs ensure neat and organised cable routing. To prevent accidental opening, the mounting bracket’s hinge mechanism is locked with two locking screws.

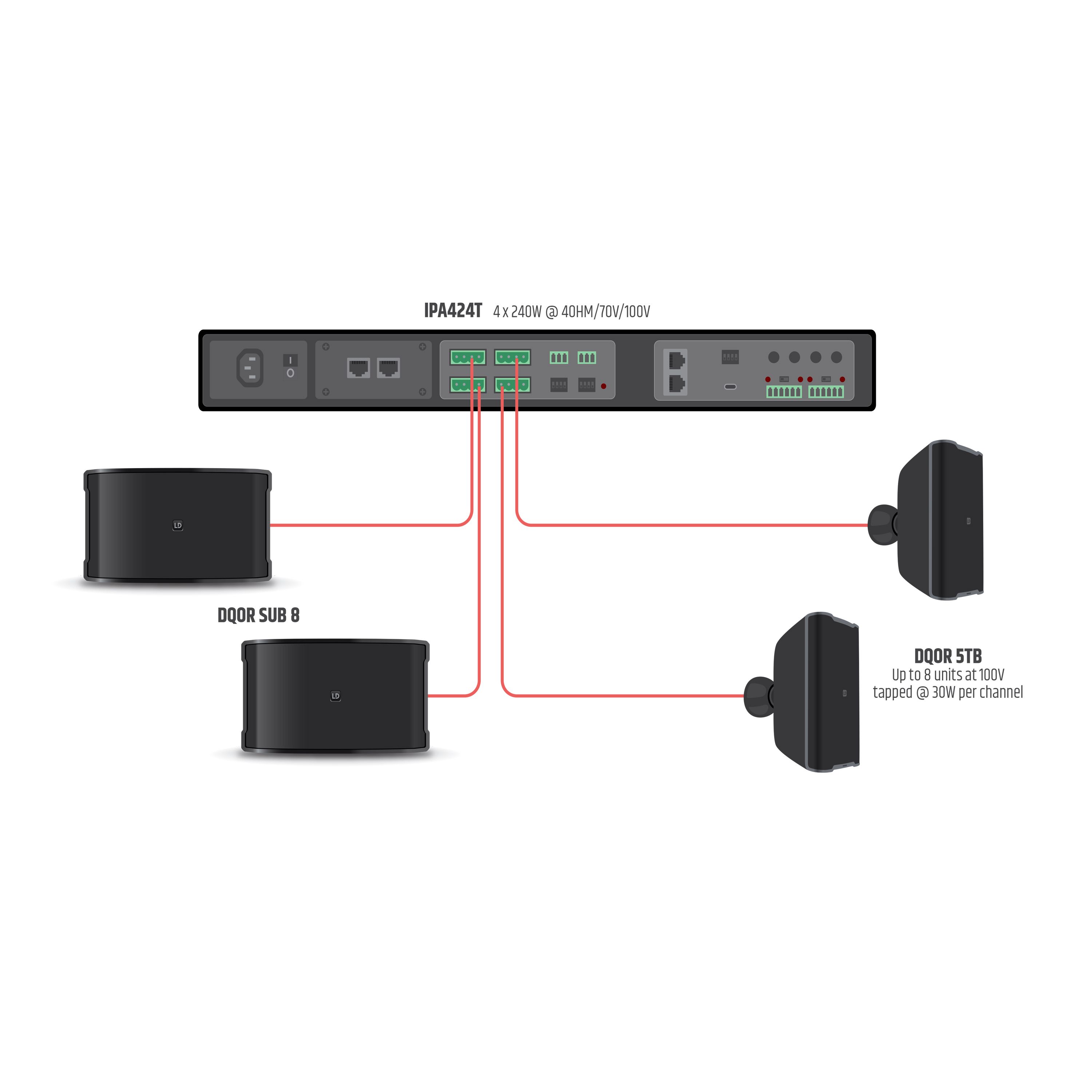

Good sound belongs everywhere - in the hotel lobby, in conference rooms, in schools and houses of worship. Demands are constantly increasing, not only in terms of quality, but also in terms of flexibility. Permanently installed and still flexible? This apparent contradiction can be resolved by the IPA Series DSP-based installation amplifiers.The IPA 424 T is a professional, four-channel installation power amplifier with 4 x 240 watts. While the 70V/100V outputs are equipped with high quality toroidal core transformers, the low impedance 4-Ohm outputs are completely transformerless and guarantee the highest possible audio quality. The DSP functions include, amongst others, a parametric EQ with matching speaker library, dynamic tools, a matrix mixer, priority source selection and delay.Despite this range of functions, the IPA Series power amps are easy to operate. Important functions such as signal, limit, protection and bridge mode are easily visible via the LEDs on the front panel.HPF/LPF presets can be enabled directly on the device via DIP switches. The IPA 424 T is already prepared for remote control using future remote panels and paging microphones from LD Systems. The back-panel slot provides expansion card connectivity for additional future-proofing. The Ethernet card offers comprehensive configurability and management via software. The Ethernet+Dante card also offers Dante audio networking capabilities and connection to a wide range of Dante-enabled devices, in order to integrate the IPA 424 T into the Dante network and resolve more complex tasks.Times are changing; rooms are redivided or rededicated, numbers of attendees increase or decrease based on unforeseen events, but with the IPA Series DSP-supported power amps, your installation is prepared for any situation. Scalability and future-proofing are the biggest advantages of the IPA Series. Its energy efficiency is also ideal thanks to the class-D technology and switchable auto standby.The IPA 412 T variant with 4 x 120 watts is available for smaller installations.
