Product information "STINGER 28 A G3"

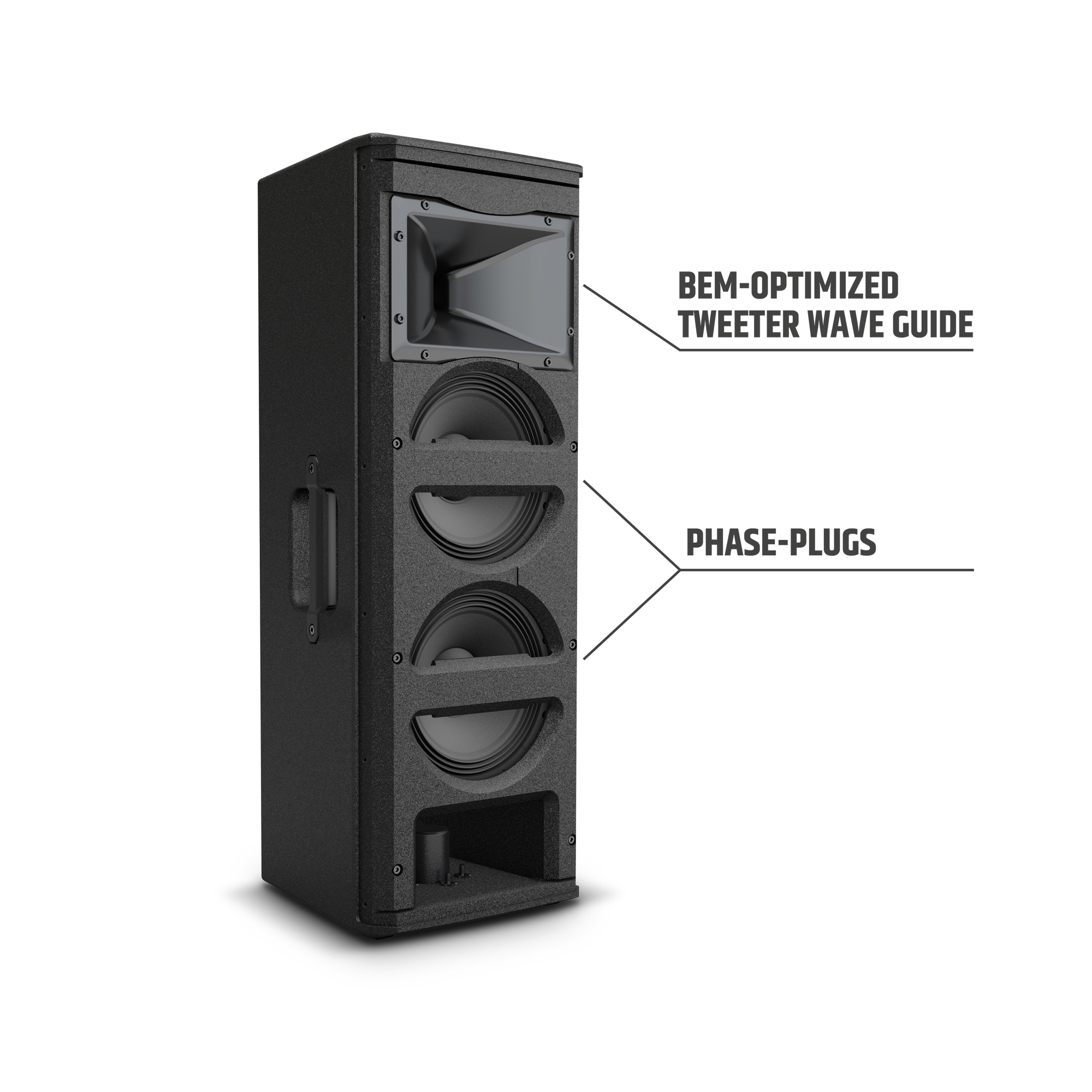

This highly professional 2-way active system is designed for absolute, long-term reliability. With its rugged bass reflex housing and finely tuned, user-friendly presets, it is suitable for use as a full-range speaker, satellite or monitor. The STINGER® 28 A G3 is powered by a highly efficient Class-D amplifier with a powerful 500-watt continuous output. Its two specially developed 8" woofers and a BMS tweeter driver achieve a powerful bass response and fresh, natural trebles. The wave guide of the tweeter has been developed using the Boundary Element Method (BEM), a numerical simulation of the sound radiation and dispersion. It reduces reflection from floors and ceilings and prevents sidelobe levels, thus achieving controlled and homogeneous dispersion. Situated directly in front of the two 8” woofers, phase plugs ensure that midrange efficiency is increased and harmonic distortion above the crossover frequency is reduced.

LD Systems’ proprietary DynX® DSP technology means that the STINGER® 28 A G3 delivers perfect performance with maximum clarity and power under all conditions. The signal processing of the crossover function and the multi-band limiter achieve an optimal runtime and high freedom from distortion. Designed as an all-around workhorse, the housing of the speaker is made of robust birch plywood. An extremely resilient coating of polyurea offers exceptional robustness and durability. The features include a steel front grille, a dual-tilt stand attachment, flight points and ergonomic handles. The STINGER® 28 A G3 is a good value and attractive solution for professional sound systems, with extensive accessories that support usage on the stage and in fixed installations.

Input connector types: Standard speaker connector 4-pole male & speakON®
Type: Active
RMS output power: 500 W
Beam angle: Hor.: 90° / Vert.:50°
Amp class: Class D
Output connector types: XLR 3-pole male
Protection features: Overload, Multiband Limiter, Overvoltage, Overheating
Frequency response: 58 - 20000 Hz
Colour: Black
Speaker system: 2-way system
Number of inputs: 2
Peak output power: 1000 W
Number of outputs: 1
Max. SPL peak: 131 dB
Line-In connector type: Standard speaker connector 4-pole male & speakON®
Number of line inputs: 2
Number of line outputs: 1
Line outputs connector type: XLR 3-pole male
Audio processing: 3 band EQ (High, Mid, Low), Presets
Mixer: 1
Manufacturer: Custom Made
Outer diameter: 80 in
Quantity: 2
Voice coil: 2 "
Size: 8 "
Magnet: Ferrite
Manufacturer: BMS
Driver size: 0.04 in
Voice coil: 0.04 in
Magnet: Ferrite
Operation voltage: 100 V AC - 240 V AC / 50 - 60 Hz
Mains connector: Mains socket indoor power in male & powerCON®
Power supply type: Switched-mode power supply (SMPS)

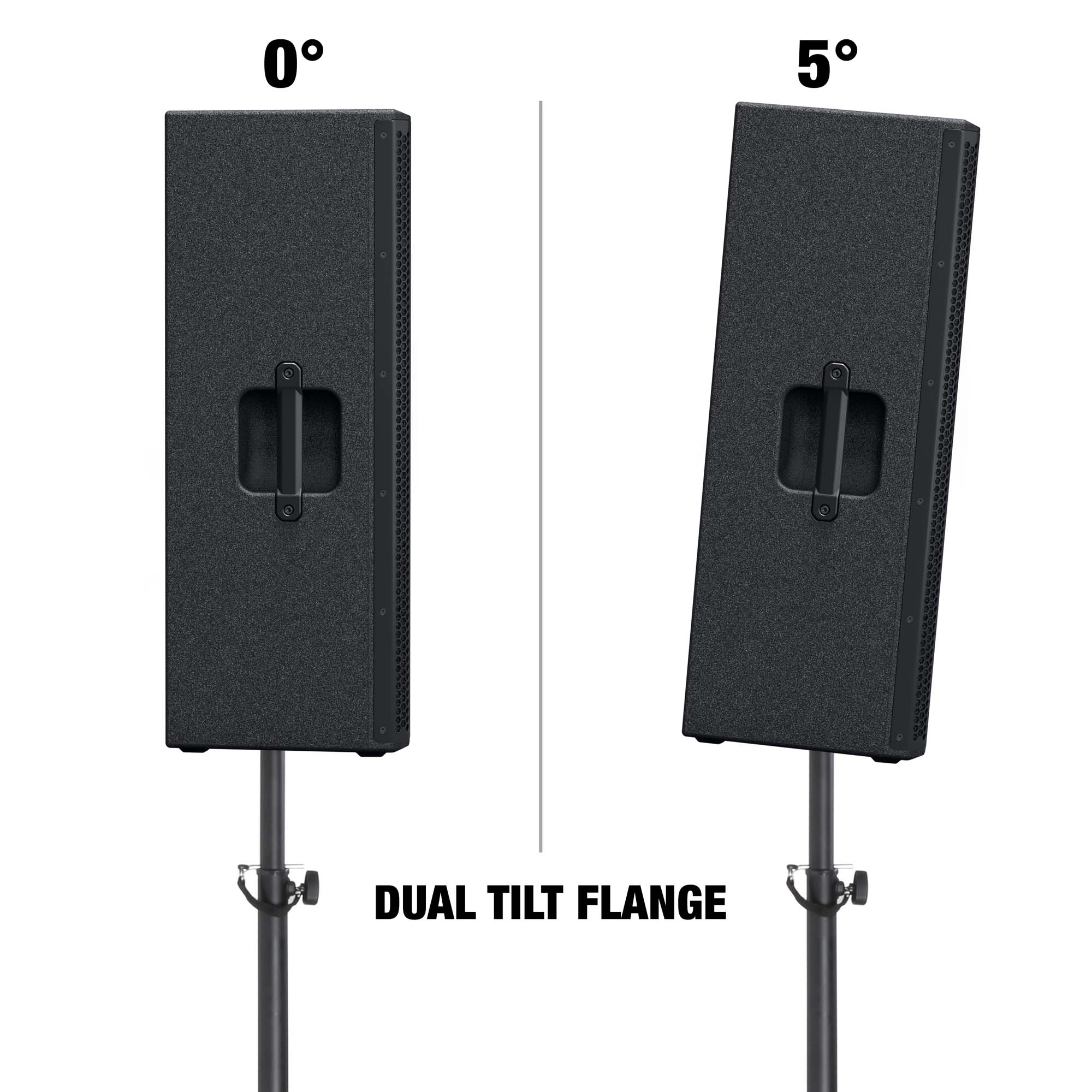

Flange: 36 mm (0°/5°)
Cabinet material: Birch plywood
Design: Bass reflex
Front grille material: Aluminium
Material thickness: 0.47 in
Mounting type: M10 for SuperClamp
Maximum air humidity (non-condensing): 80 %
Ambient temperature: 0 - 40 °C
Width: 10.63 in
Weight: 45.19 lbs
Depth: 11.42 in
Height: 29.76 in
Included accessories: Mains cable

0 of 0 reviews

Average rating of 0 out of 5 stars

Leave a review!

Share your experiences with other customers.


Skip product gallery

accessories

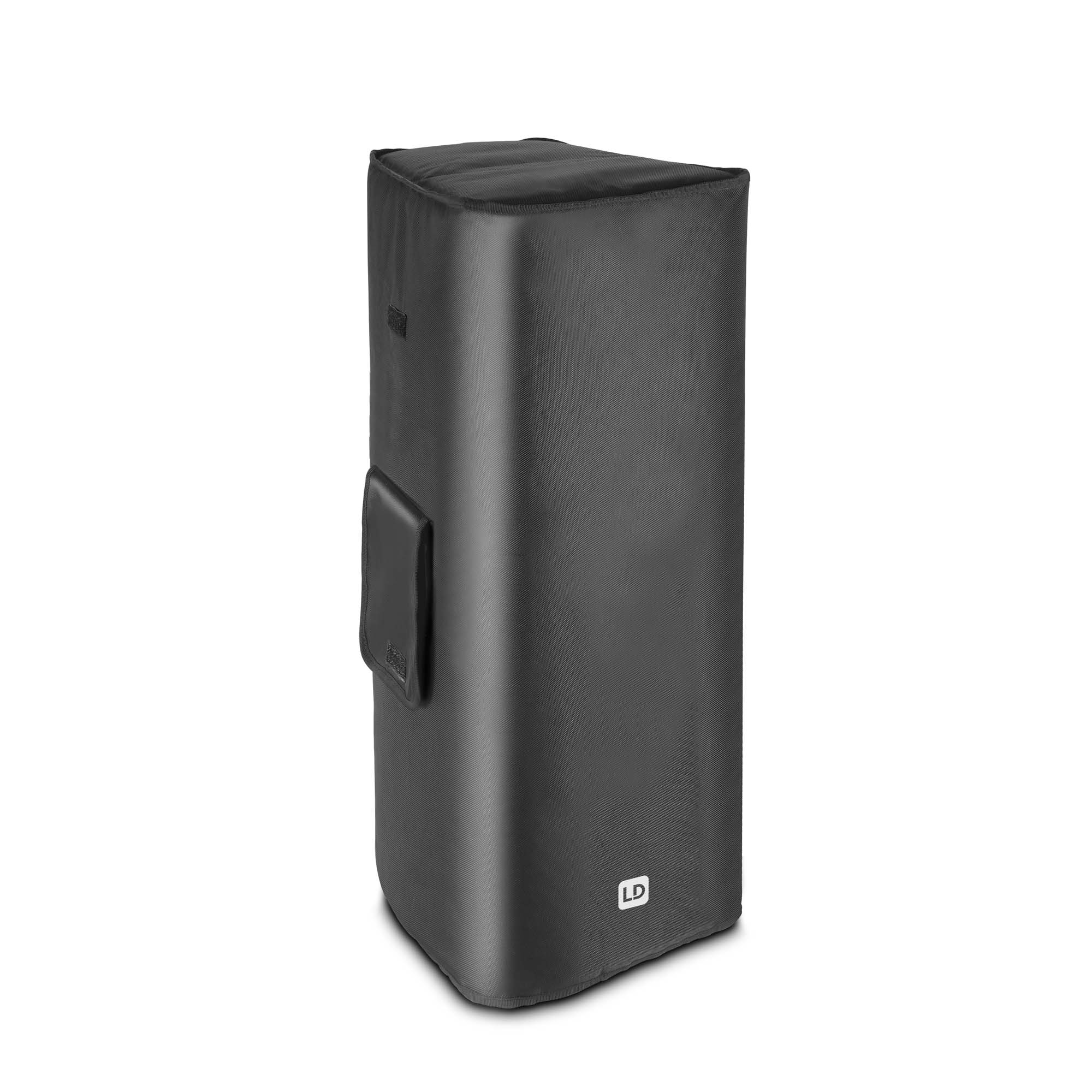

STINGER 28 G3 PC
STINGER 28 G3 PC

This slip cover is made of hard wearing water repellent 1680D nylon with 8 mm padding to protect your Stinger® G3 loudspeaker. It features reinforced cutouts with hook-and-loop fastener flaps for easy handle access and an outer pocket to store accessories.

$49.99*
STINGER 28 A G3 WMB 1
STINGER 28 A G3 WMB 1

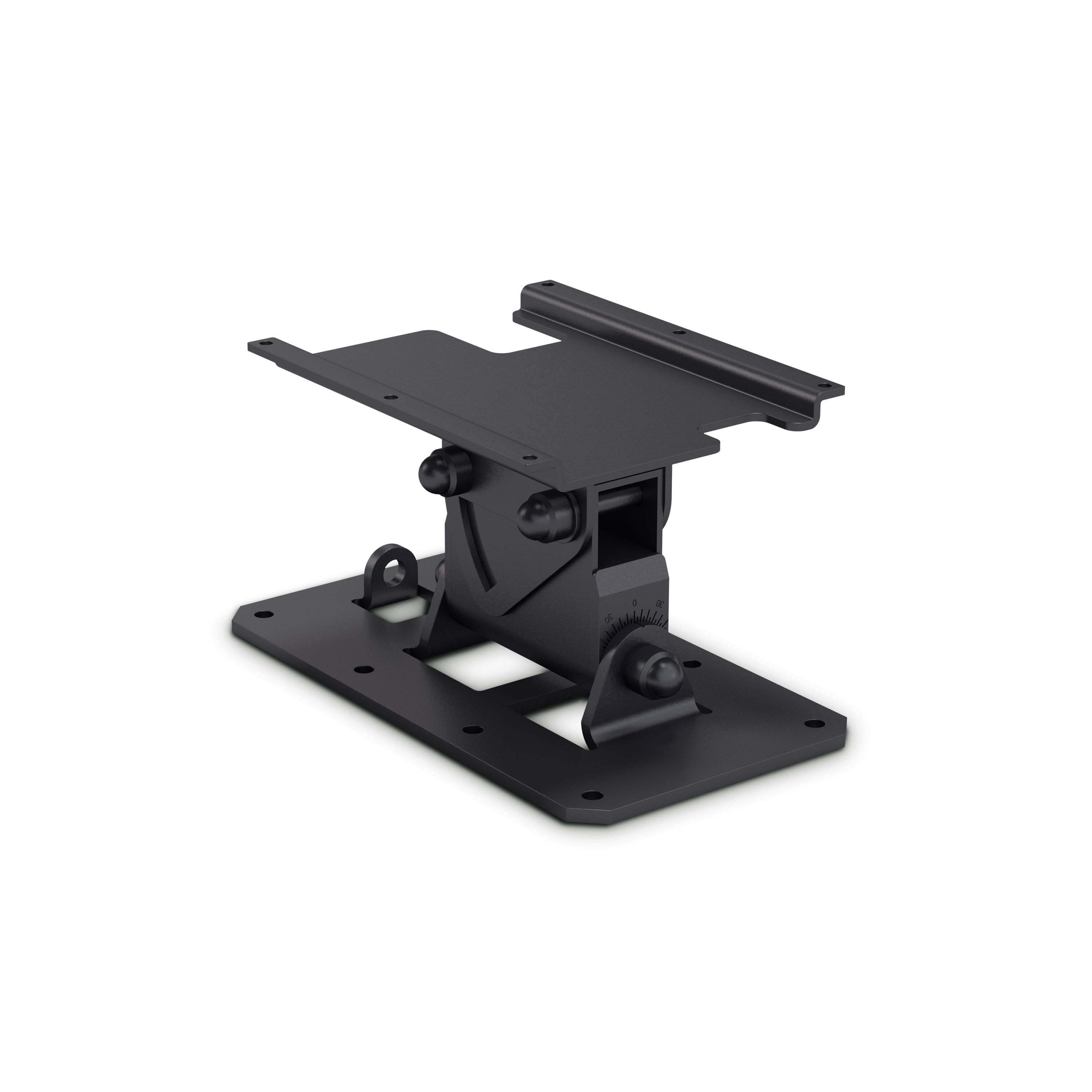

This wall bracket makes it possible to precisely position active STINGER® 28 A G3 models. It is made with powder-coated steel, it holds up to 21 kg and it can be precisely positioned both horizontally and vertically. Its swivel range is 160°, the downward tilt of the loudspeaker is continuously adjustable up to 40°. The solid wall panel is 5 mm thick and equipped with an eyelet for safety cables in accordance with BGV C1.
