Product information "PWT 12 MK 2"

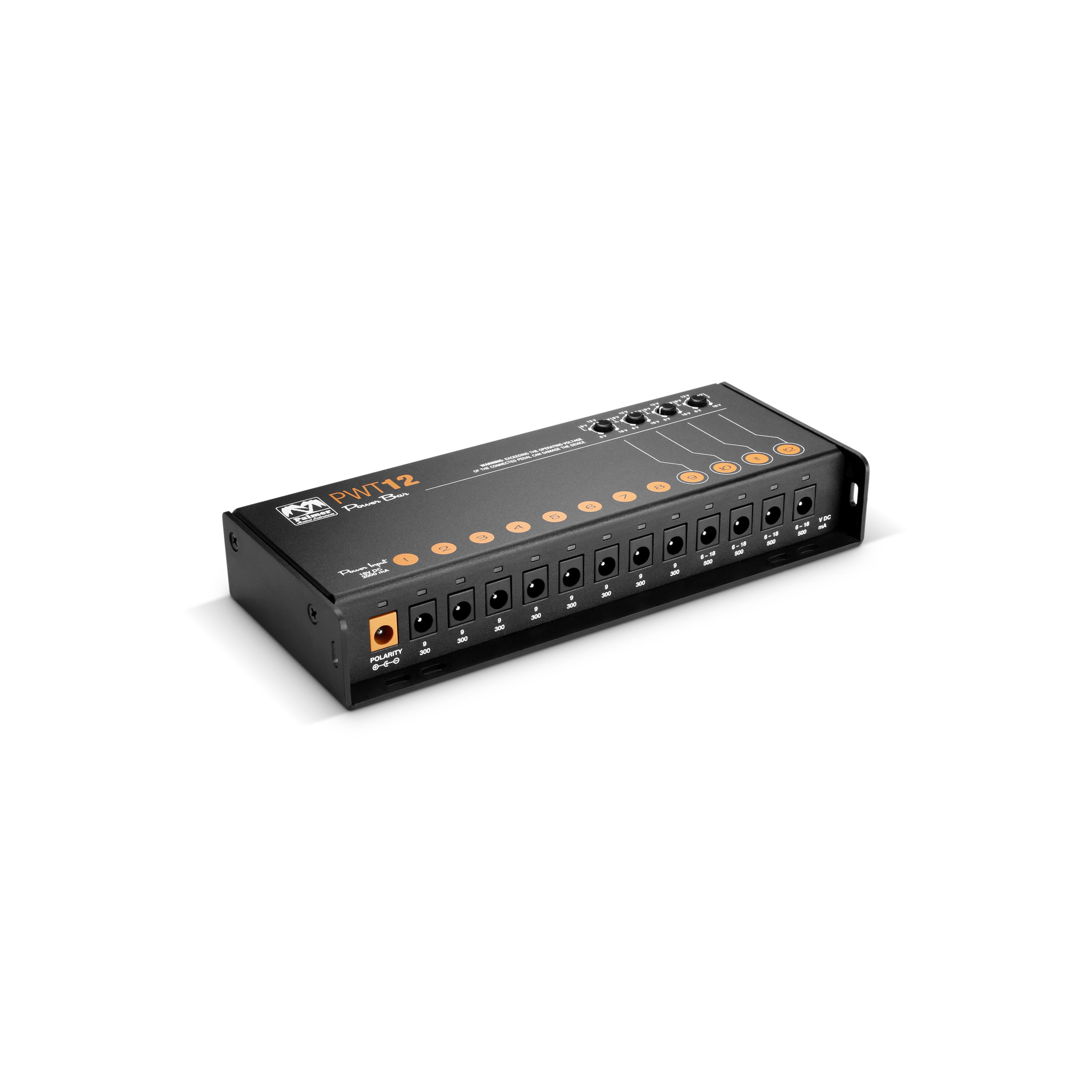

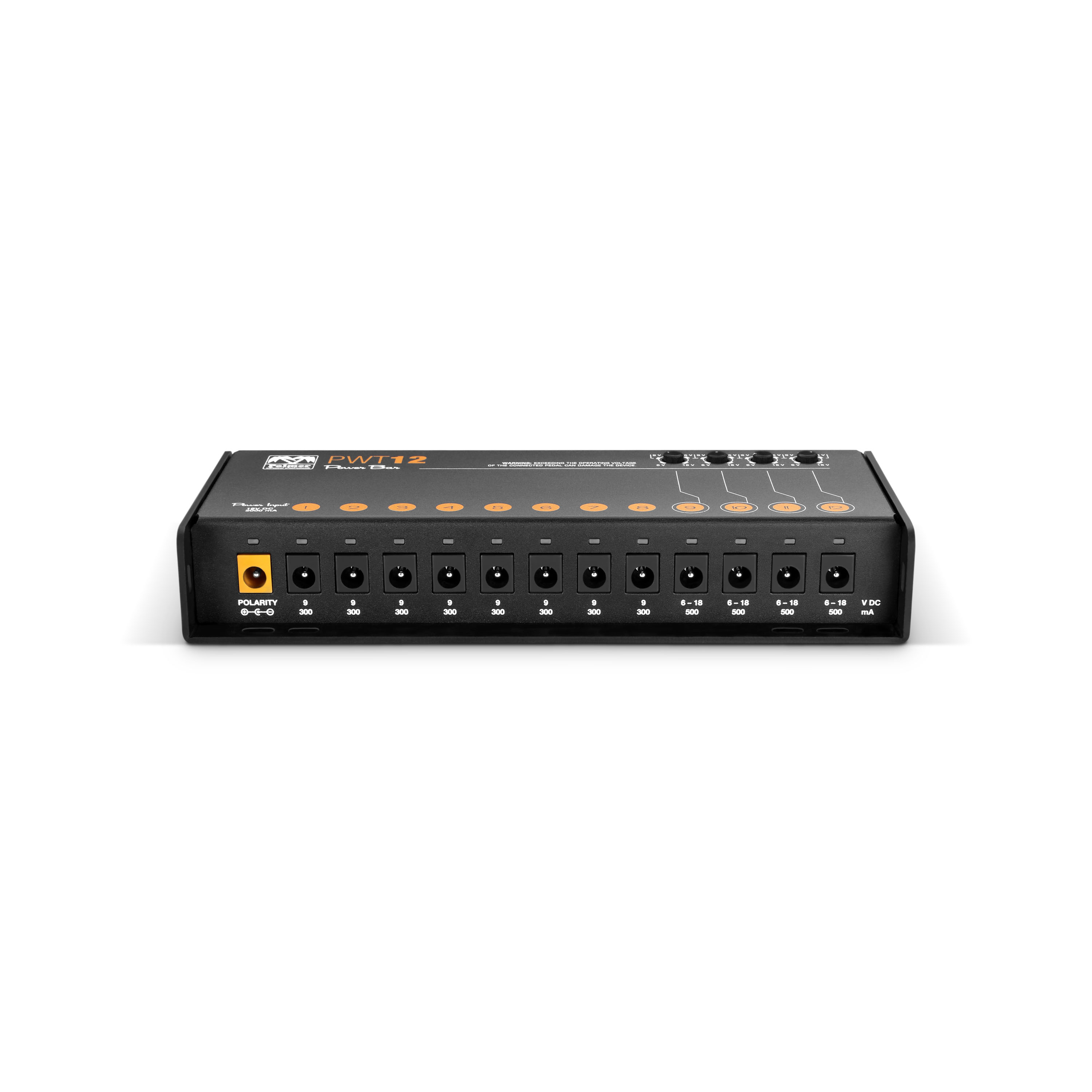

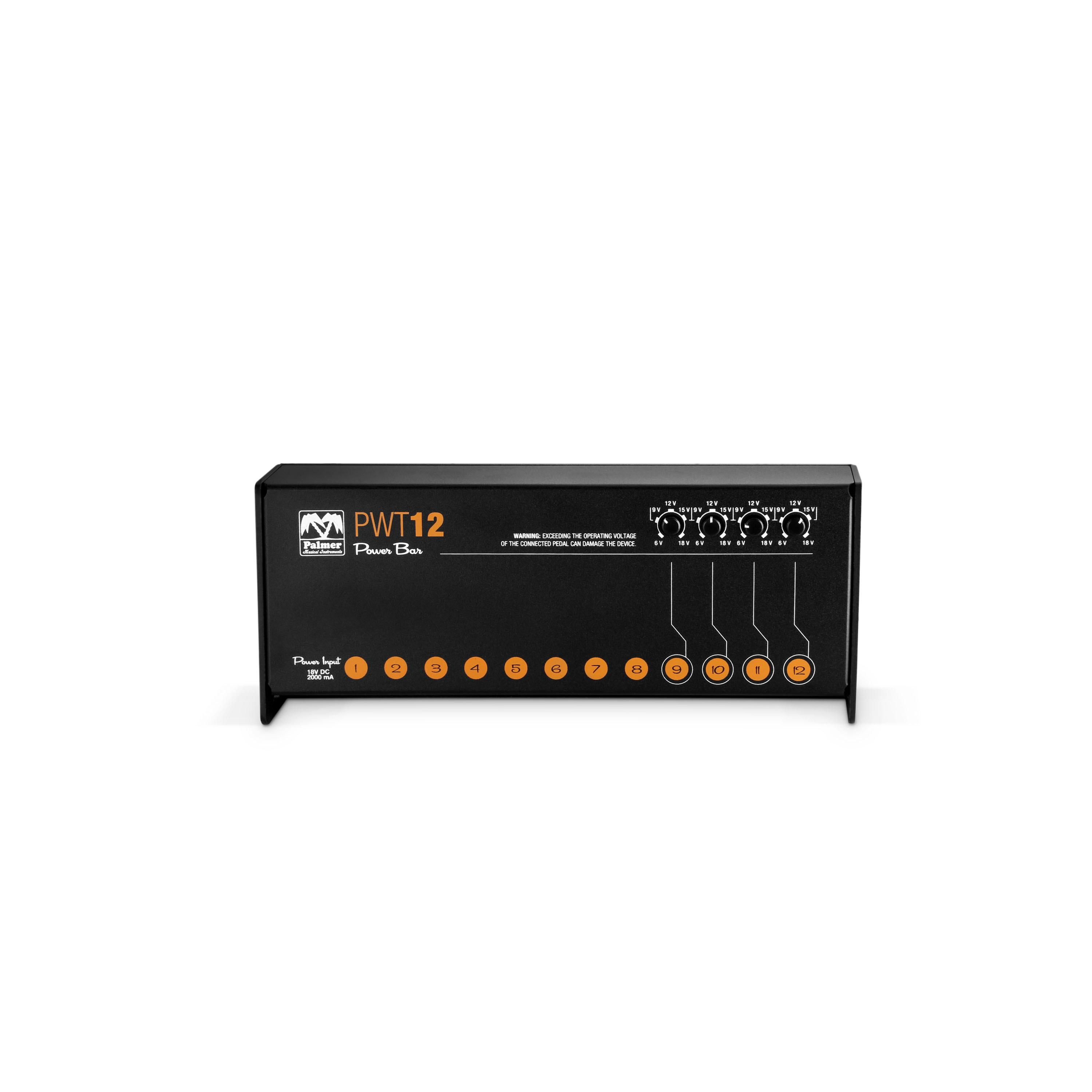

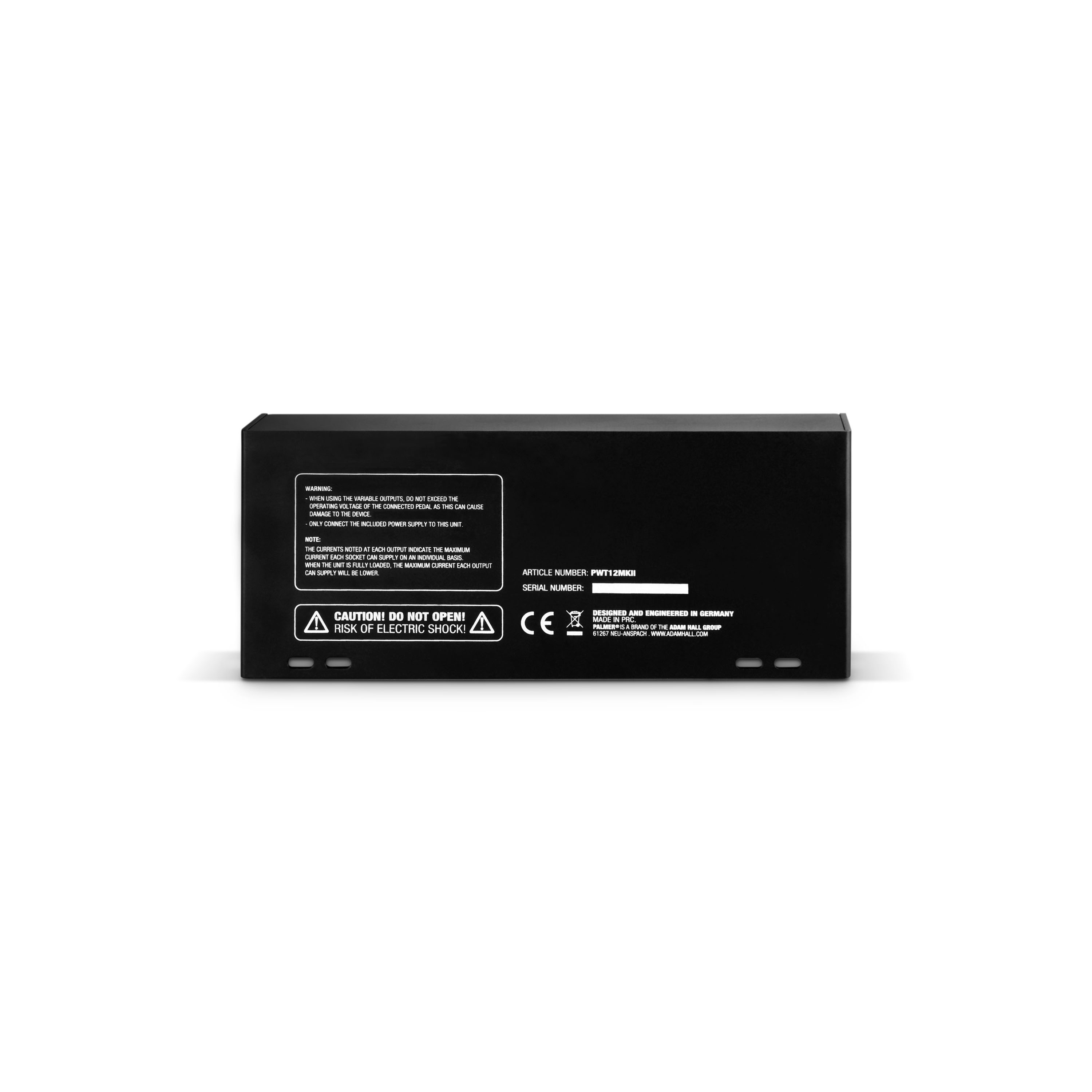

The PWT 12 is a heavy duty (2000 mA) universal pedal board power supply with 12 single-isolated 9 V DC, centre-negative female pin-connector outputs. The variable outputs enable the simulation of voltage drop or 'battery sag' in old batteries. The power supply is regulated for constant voltage supply and protected against short circuit and overloading. The PWT 12 is equipped with a power LED and a two-colour LED output status indicator. It is supplied with an AC adapter and a set of DC cables. The PWT 12 is the ideal solution for power-hungry foot pedals or 9-volt effects units that can be operated at higher voltages for increased dynamics and stability.
| Width: | 7.6 in |
|---|---|
| Polarity: | Center negative |
| Output voltage: | 18, 9, 12 |
| Indicators: | Power, fault |
| Input voltage: | 100 - 250 V |
| Outputs: | 12 |
| Controls: | Output voltage selector |
| Cord length: | 25 - 50 cm |
| Product type: | Power Supplies |
| Height: | 1.18 in |
| Output connectors: | 2.1 x 5.5 mm |
| Isolated outputs: | Yes |
| Max. output current: | 2000 mA |
| Depth: | 2.76 in |
