MONICON XL
Active Studio Monitor Controller
$459.99
Backordered – More on the Way!
Product information "MONICON XL"

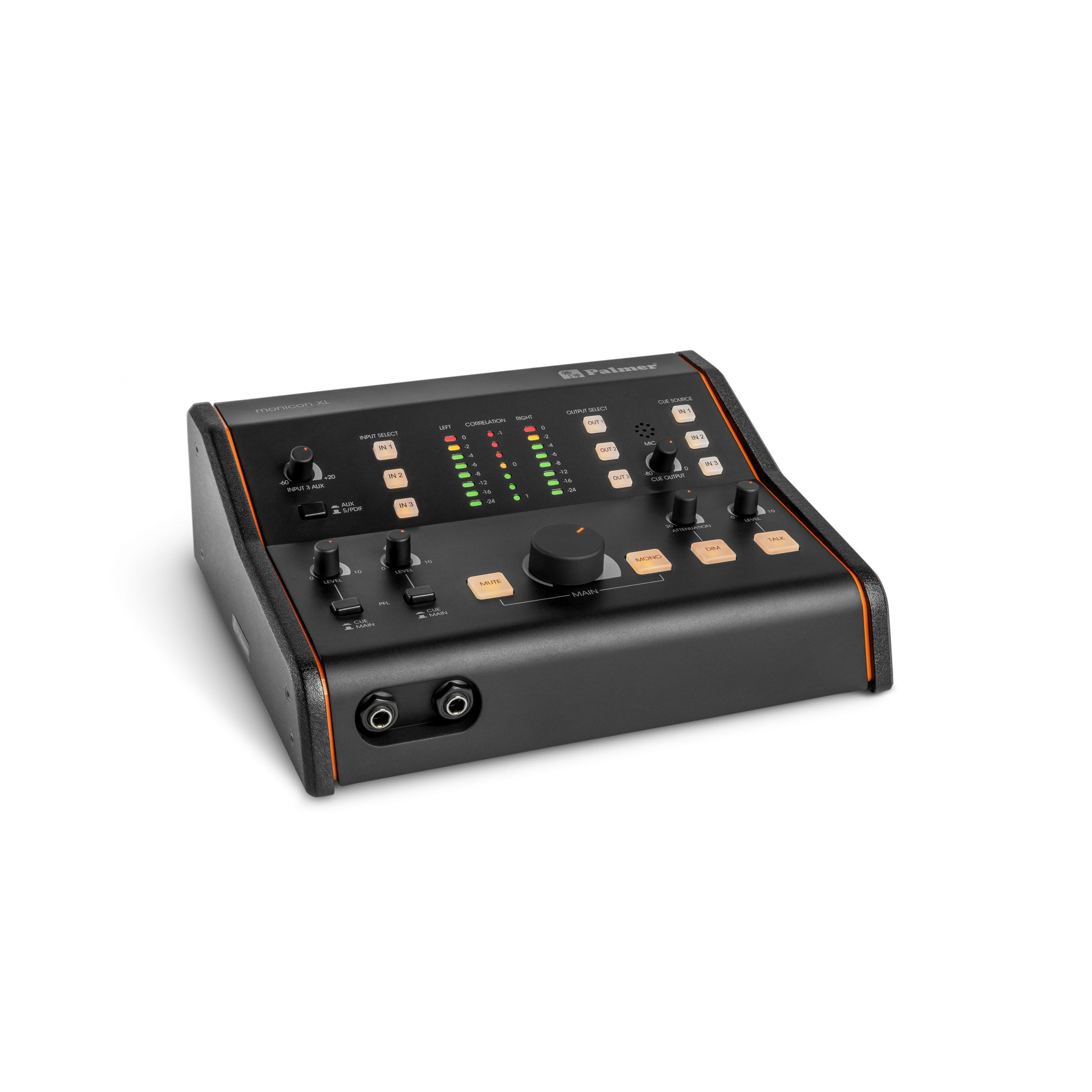

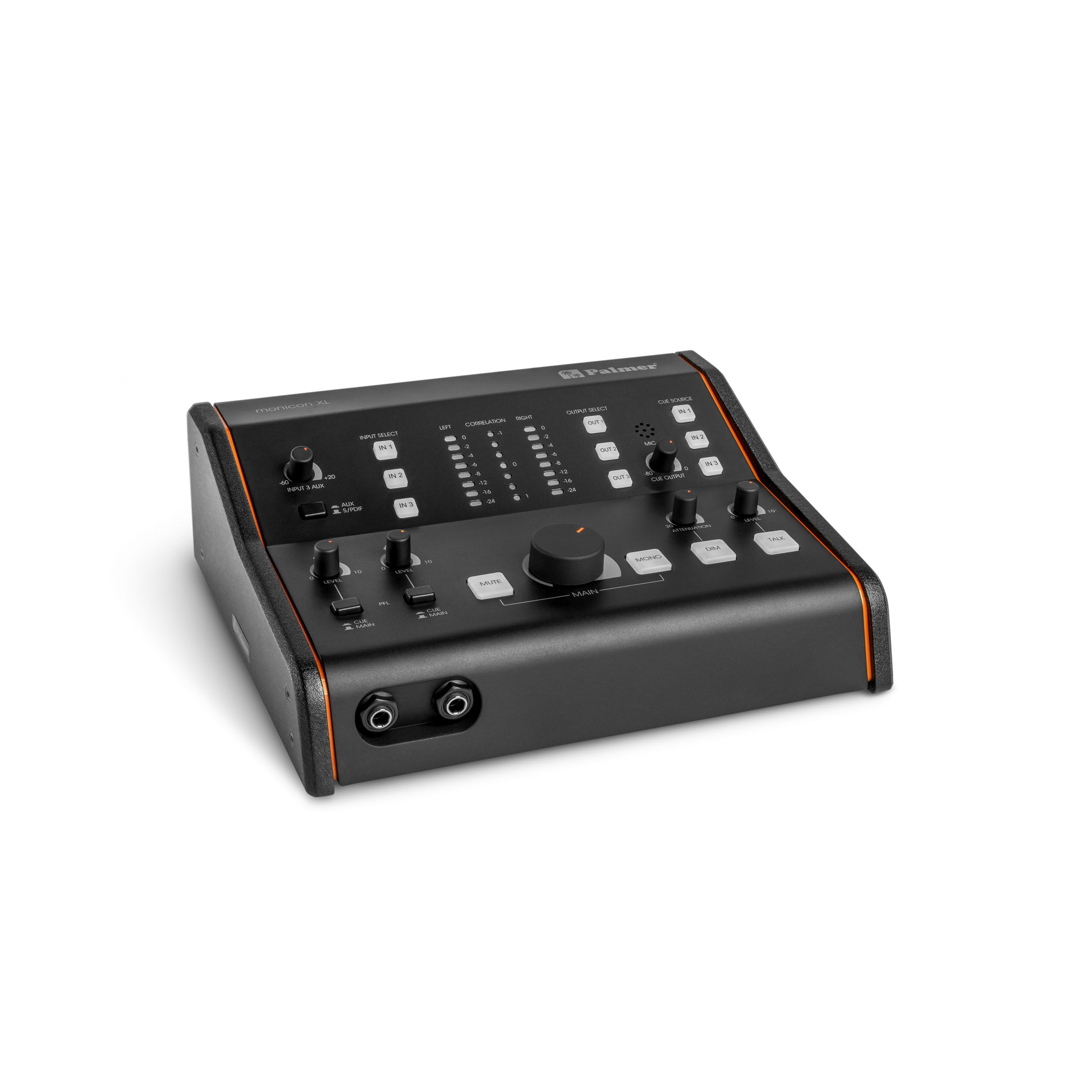

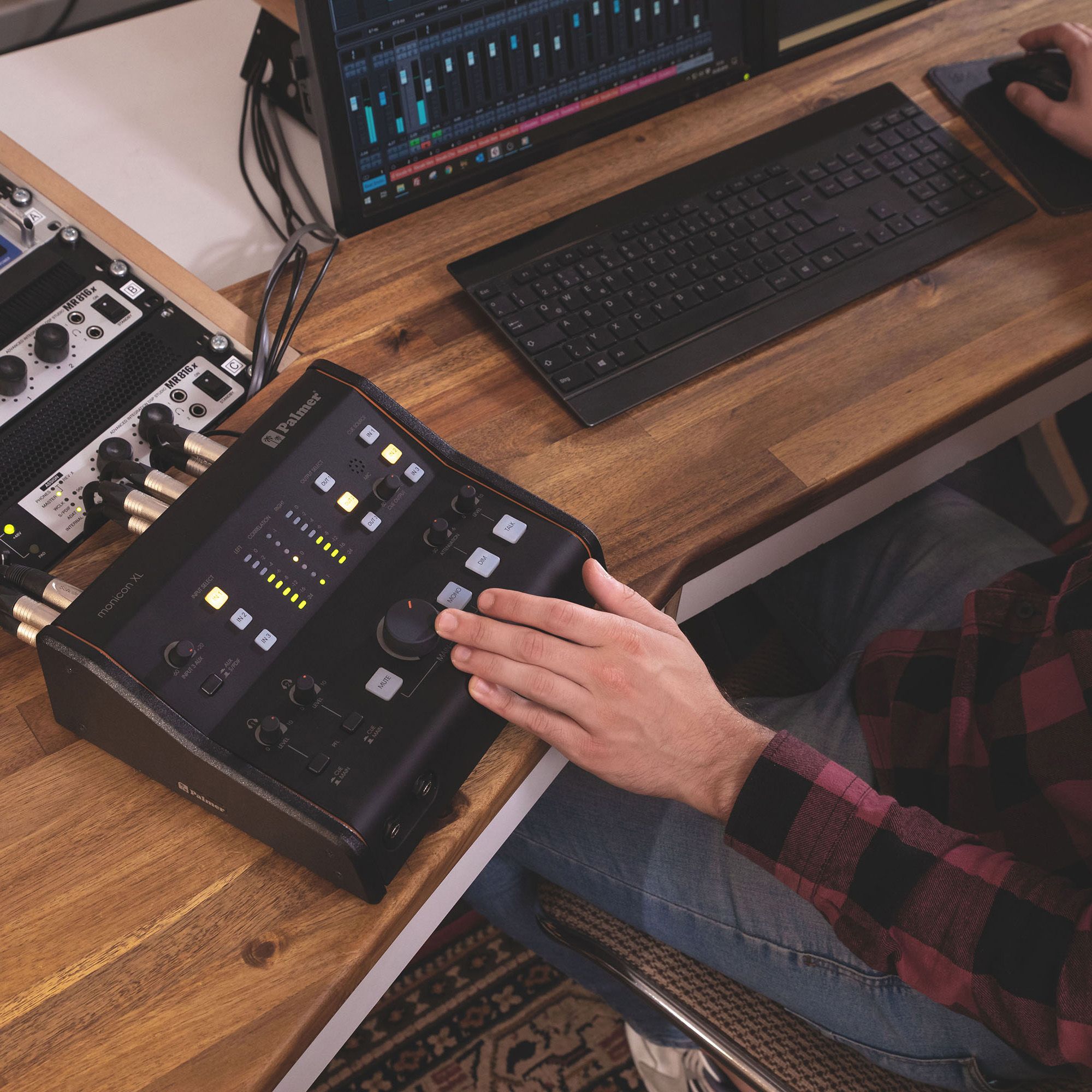

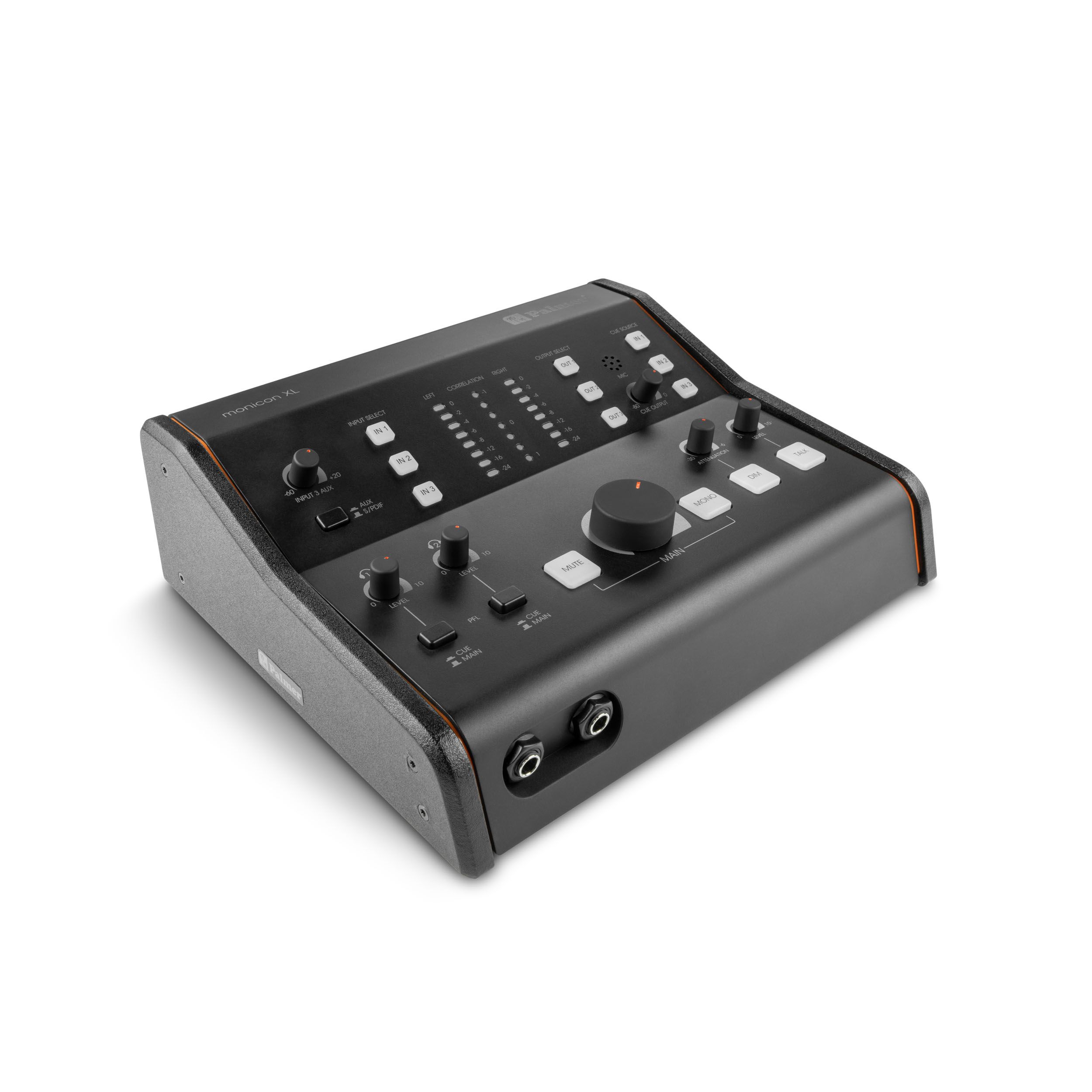

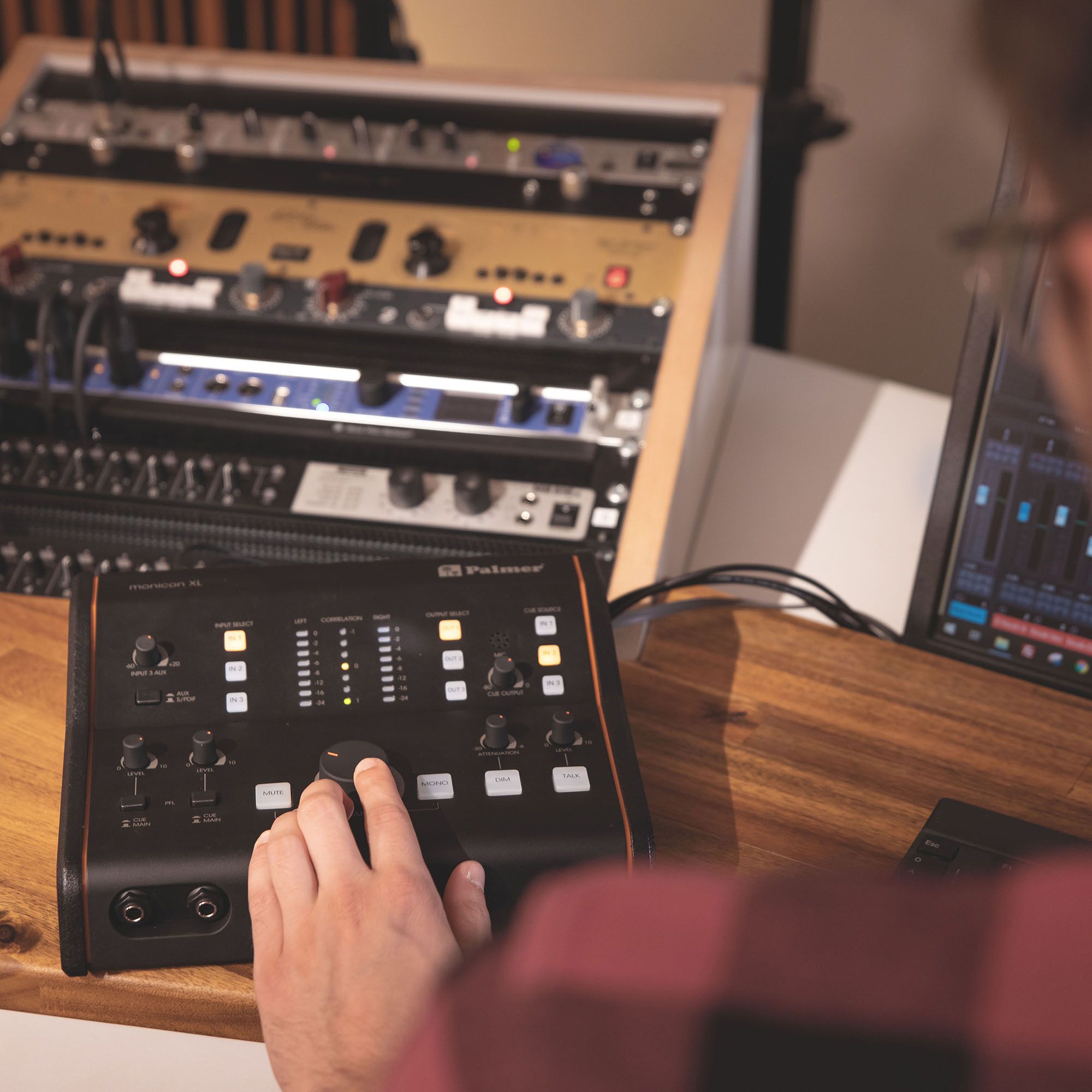

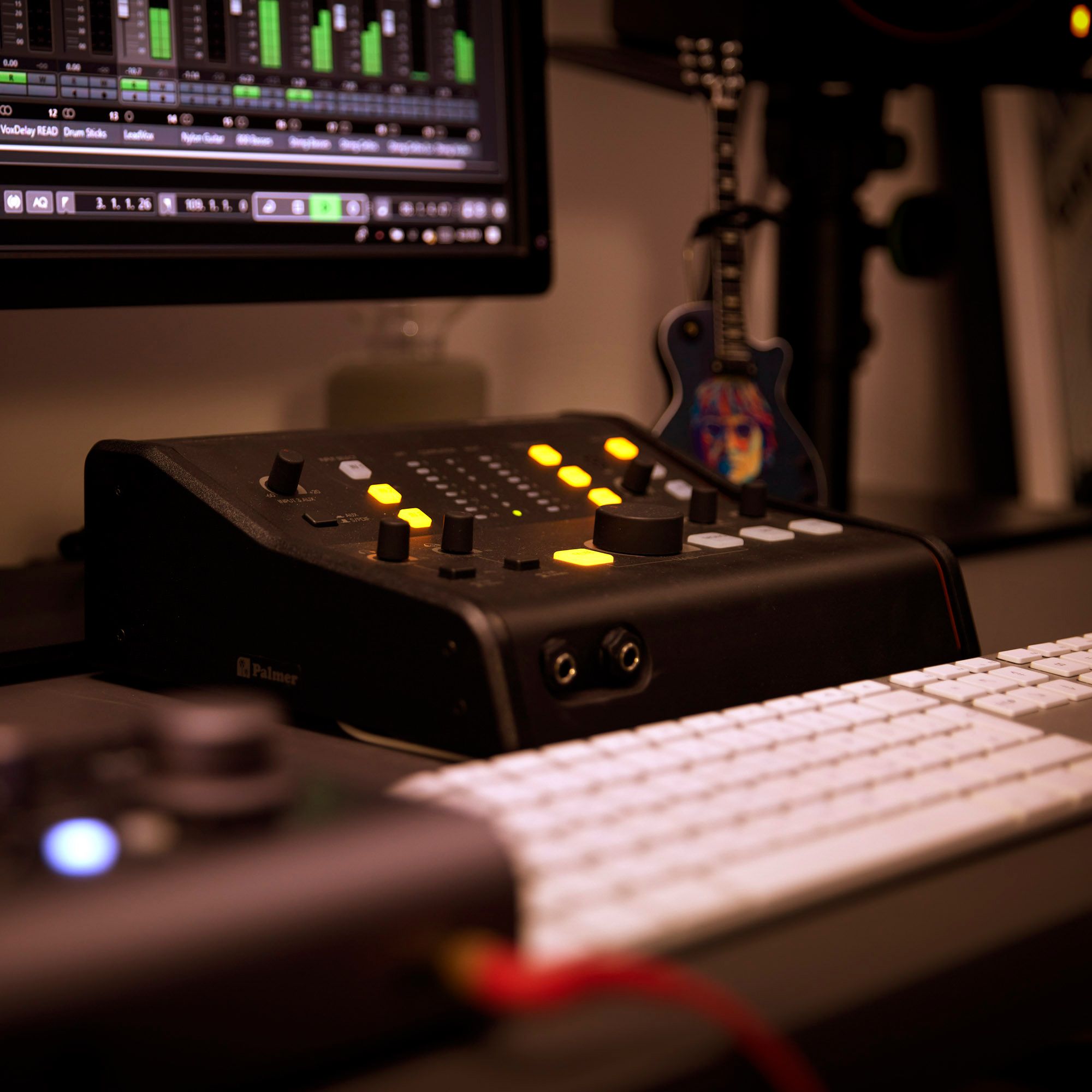

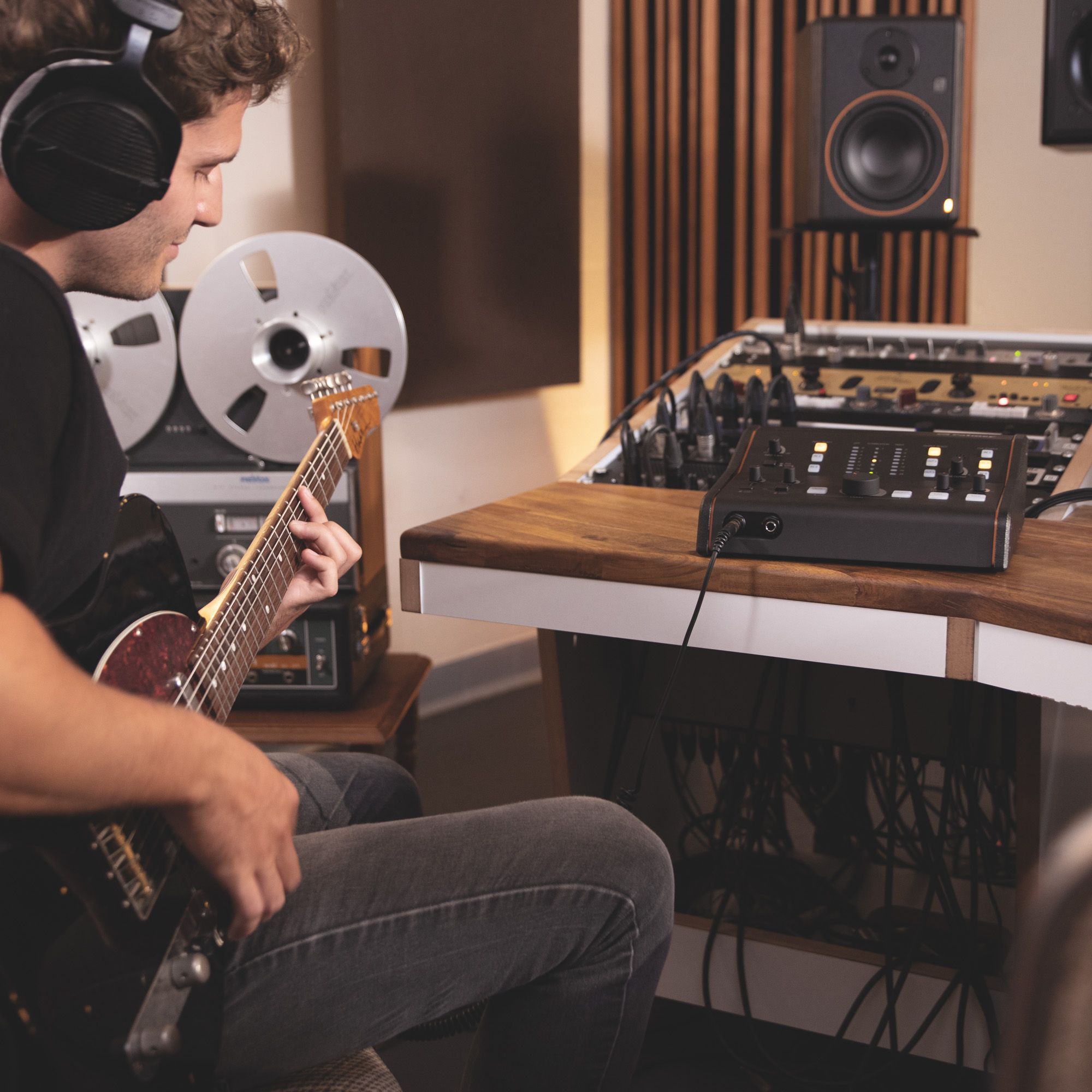

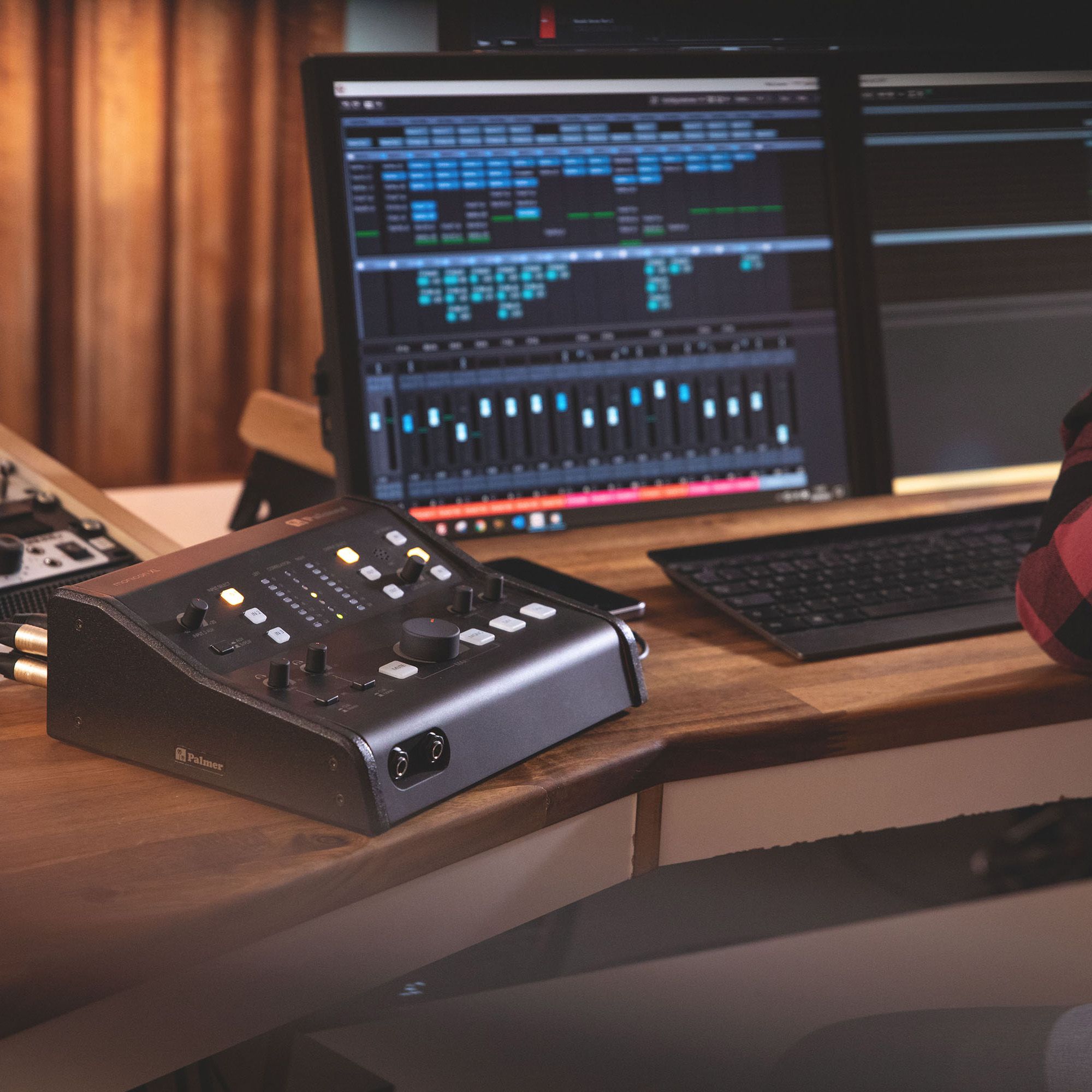

Switching between different signal sources and monitors is one of the most common tasks in any studio. Ergonomic console design and two clearly structured control levels makes the Palmer MONICON XL the perfect, intuitive nerve centre for all your requirements. Selecting audio sources and loudspeakers is convenient and at the touch of a button.

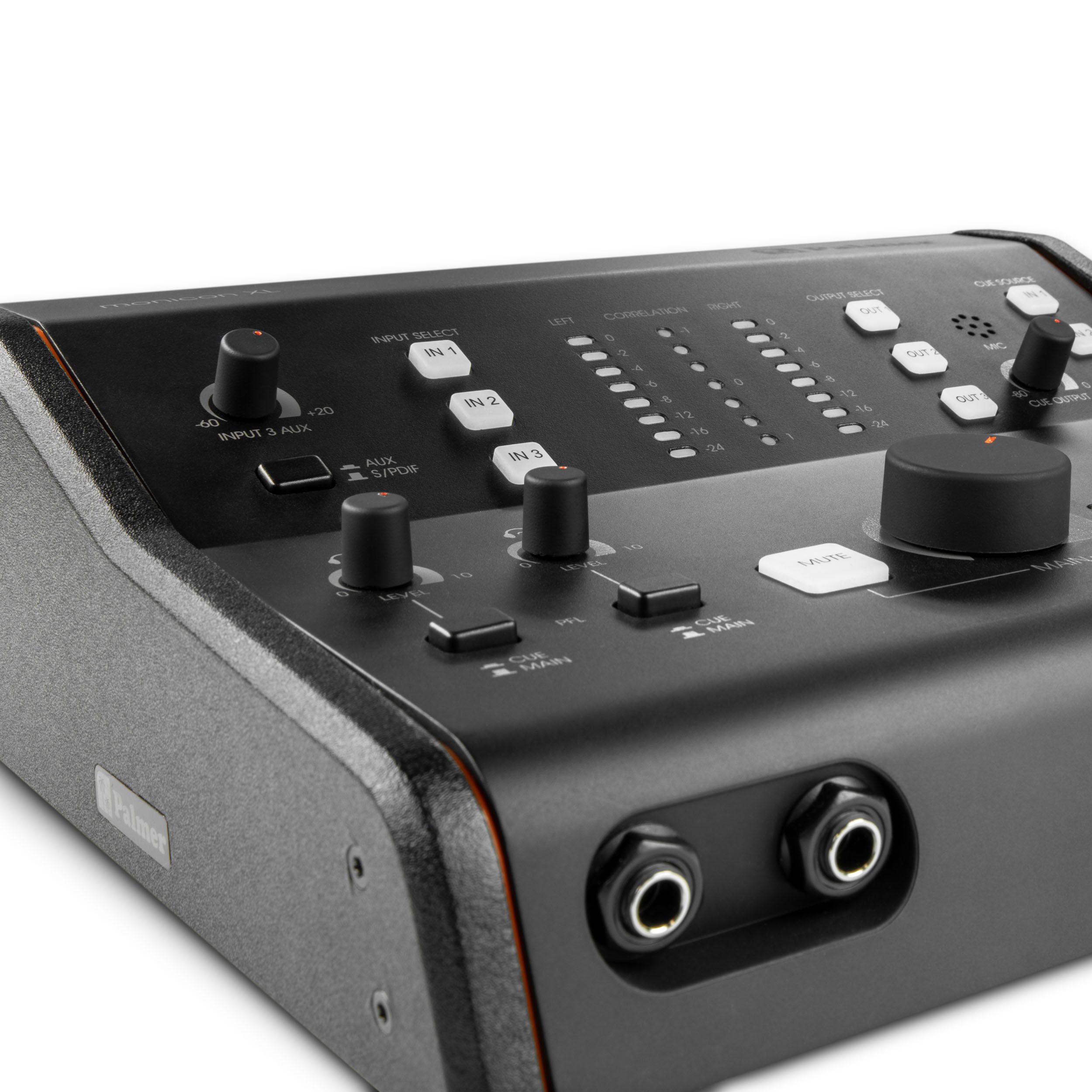

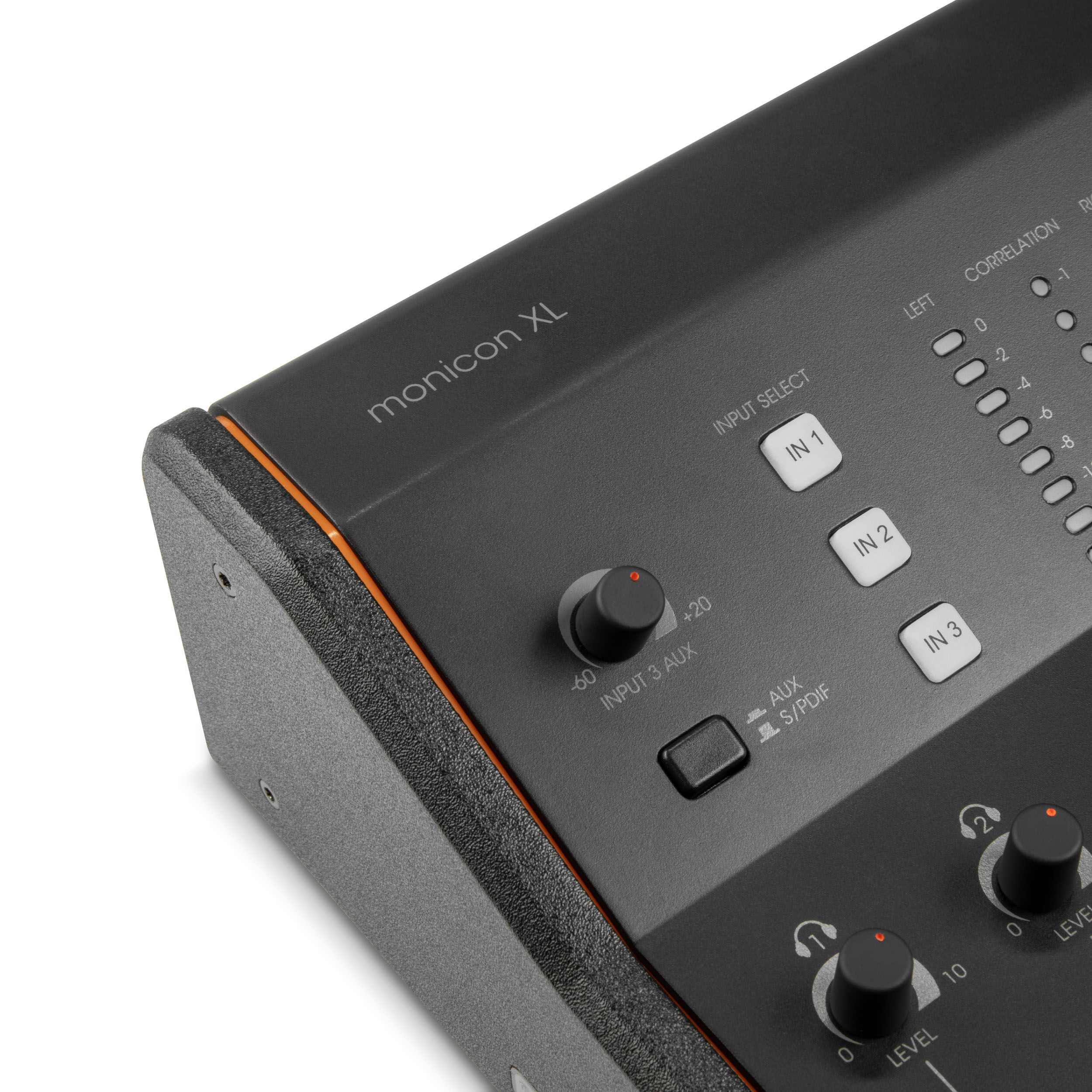

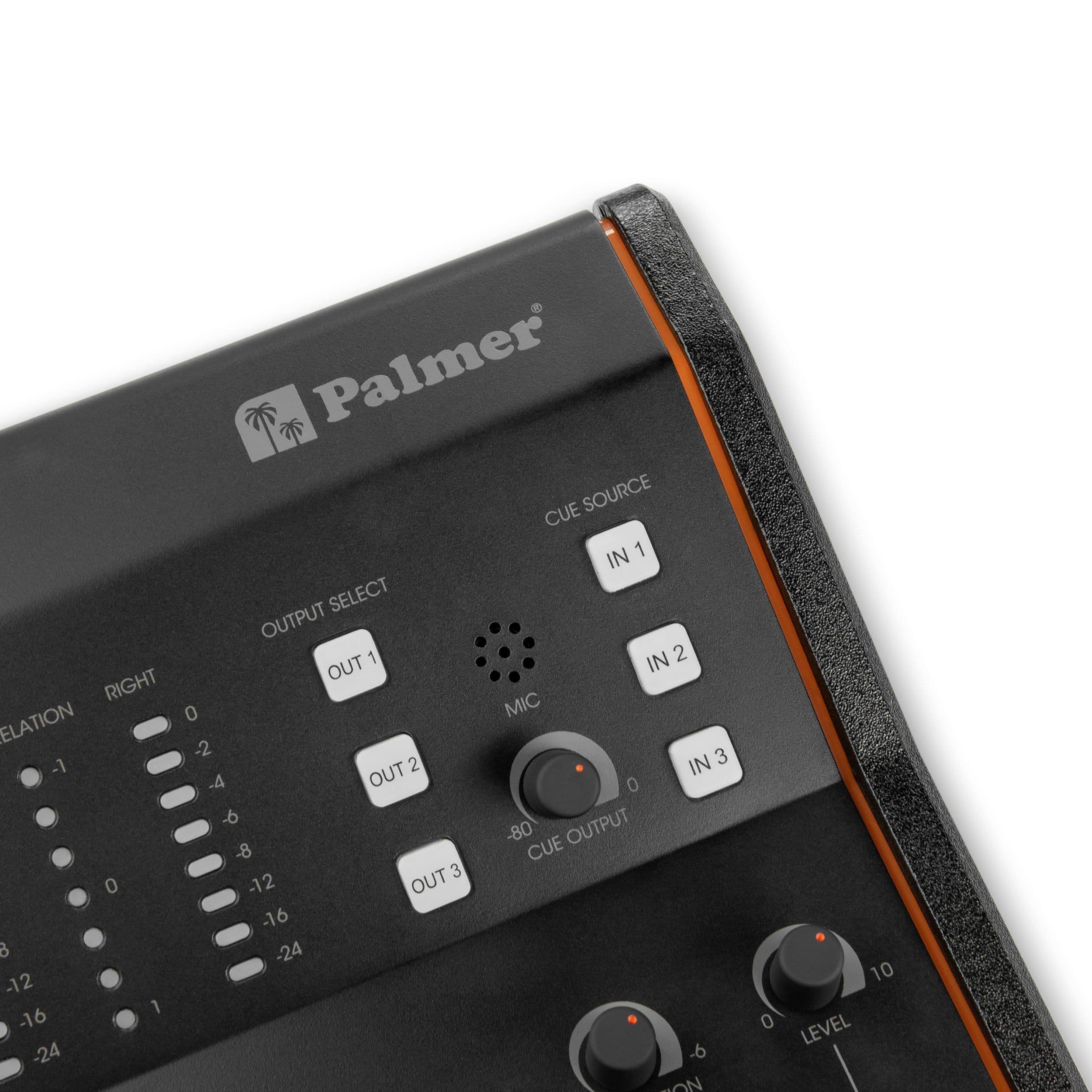

The Palmer studio monitor controller features three analog stereo inputs, one S/PDIF input and outputs for three monitor pairs, each with its own volume controller for level calibration. A further mono summed full-range output is also available for connecting either a mono monitor or a subwoofer. An exclusive highlight of the MONICON XL is its correlation meter, which displays the phase difference between a stereo signal's left and right channels. This facilitates the quick and simple discovery of mono-compatibility errors in mixes. The controller is also customisable to your personal work style.

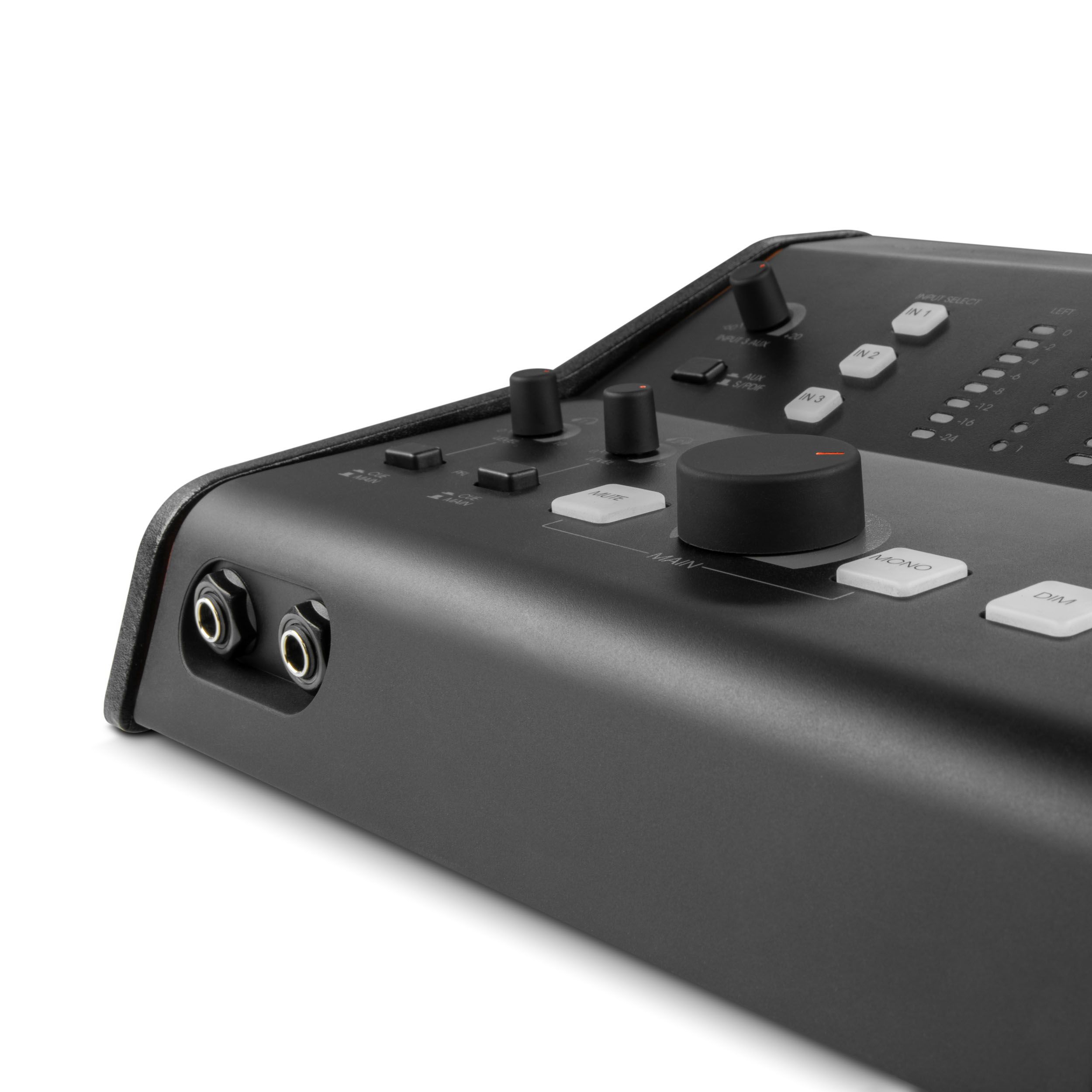

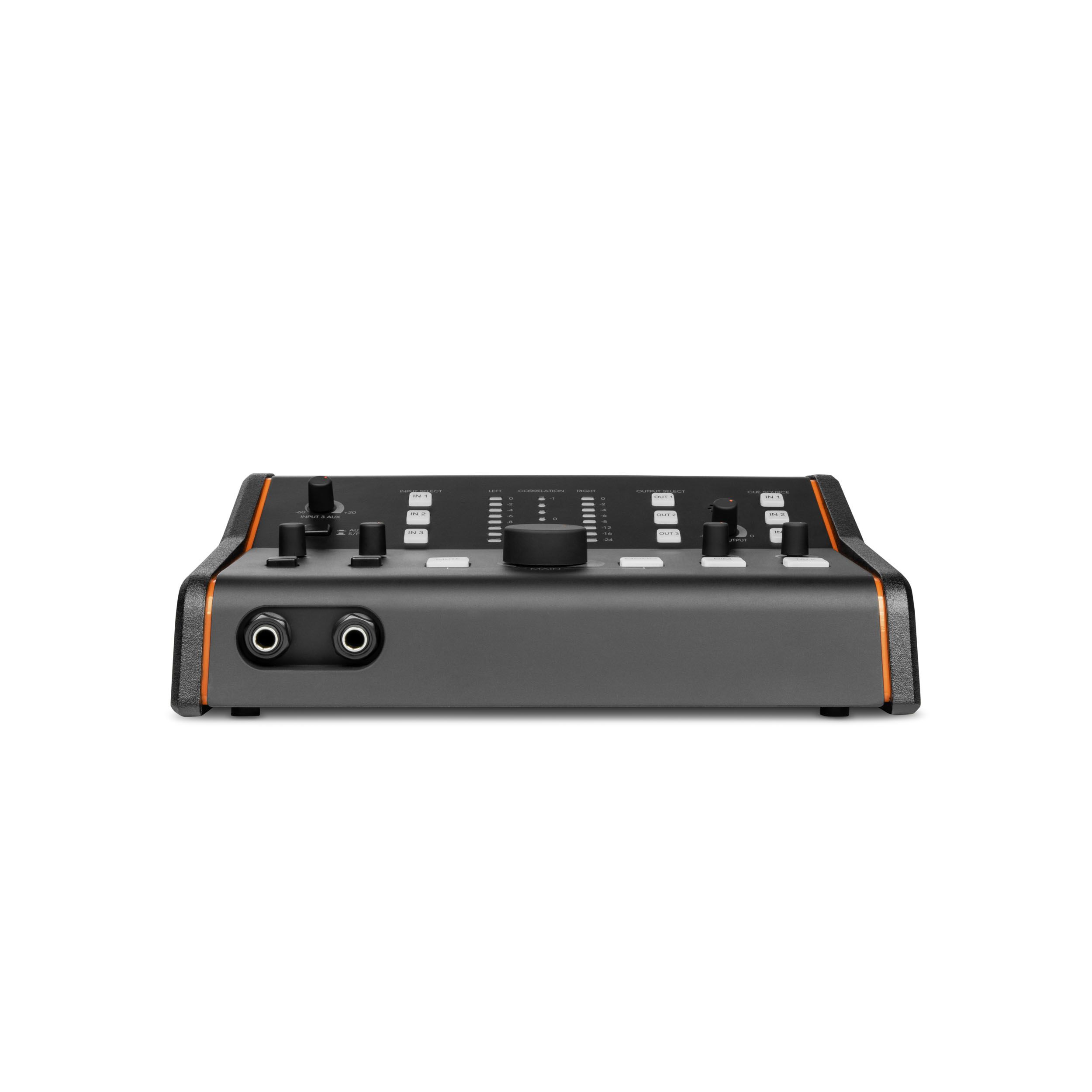

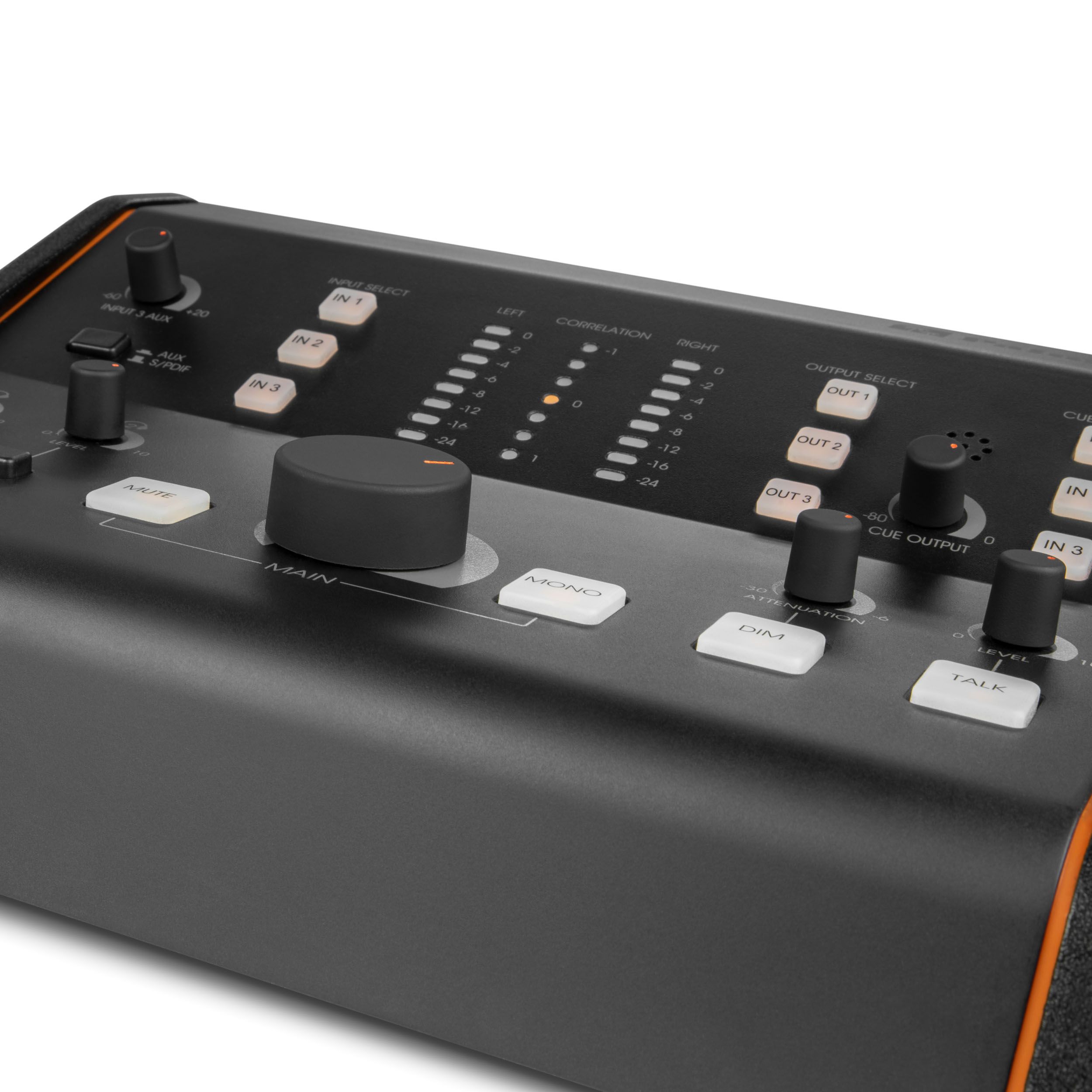

Its fully analogue audio circuit means that the MONICON XL demonstrates absolutely no latency or signal distortion. Additional features that are a must for any studio make the device far more than simply a monitor controller. Two headphone outputs with volume controllers and main cue selector switches, a cue master controller and an on/off talkback microphone with volume control are all also included. As are a mute button and a dim button, with volume control, that instantly reduces the monitor level by a pre-set amount.

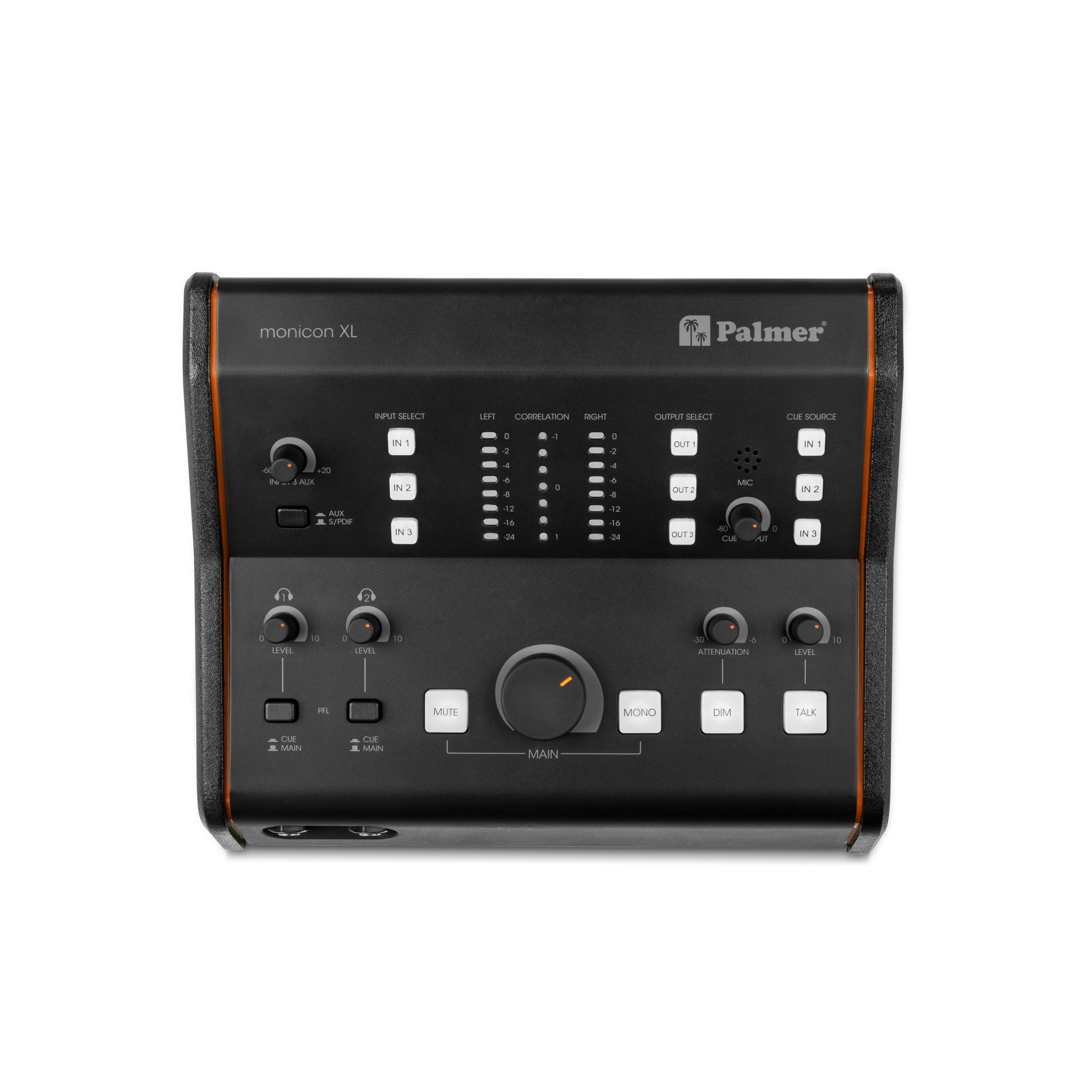

| Controls: | Talkback, mute, Audio DIM, input selector, attenuation, PFL source, mono, output selector |
|---|---|
| Input impedance: | (unbalanced) 5.000, (balanced) 10.000 |
| Product type: | Other Studio and Recording Equipment |
| Width: | 10 in |
| Cabinet surface: | Powder-coated |

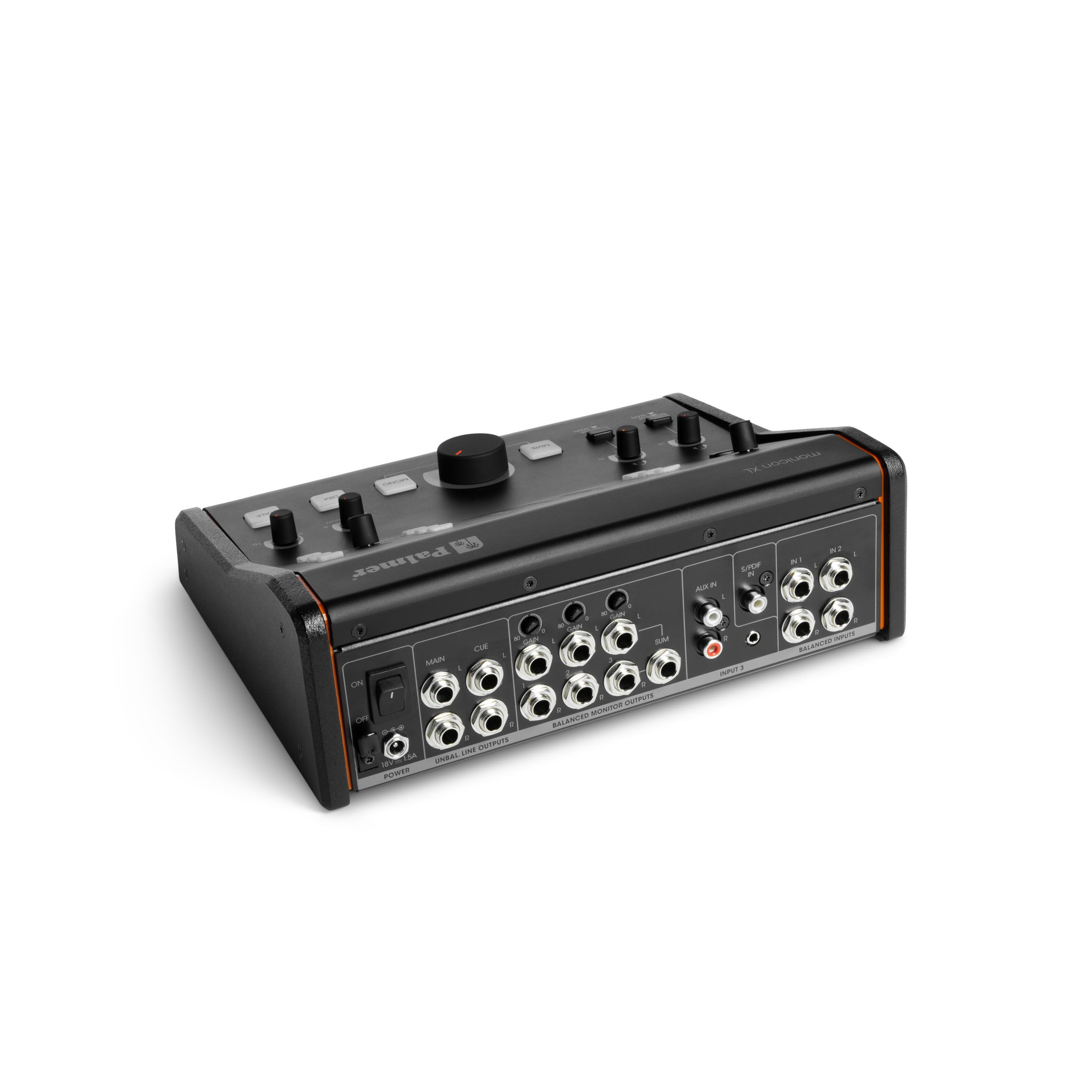

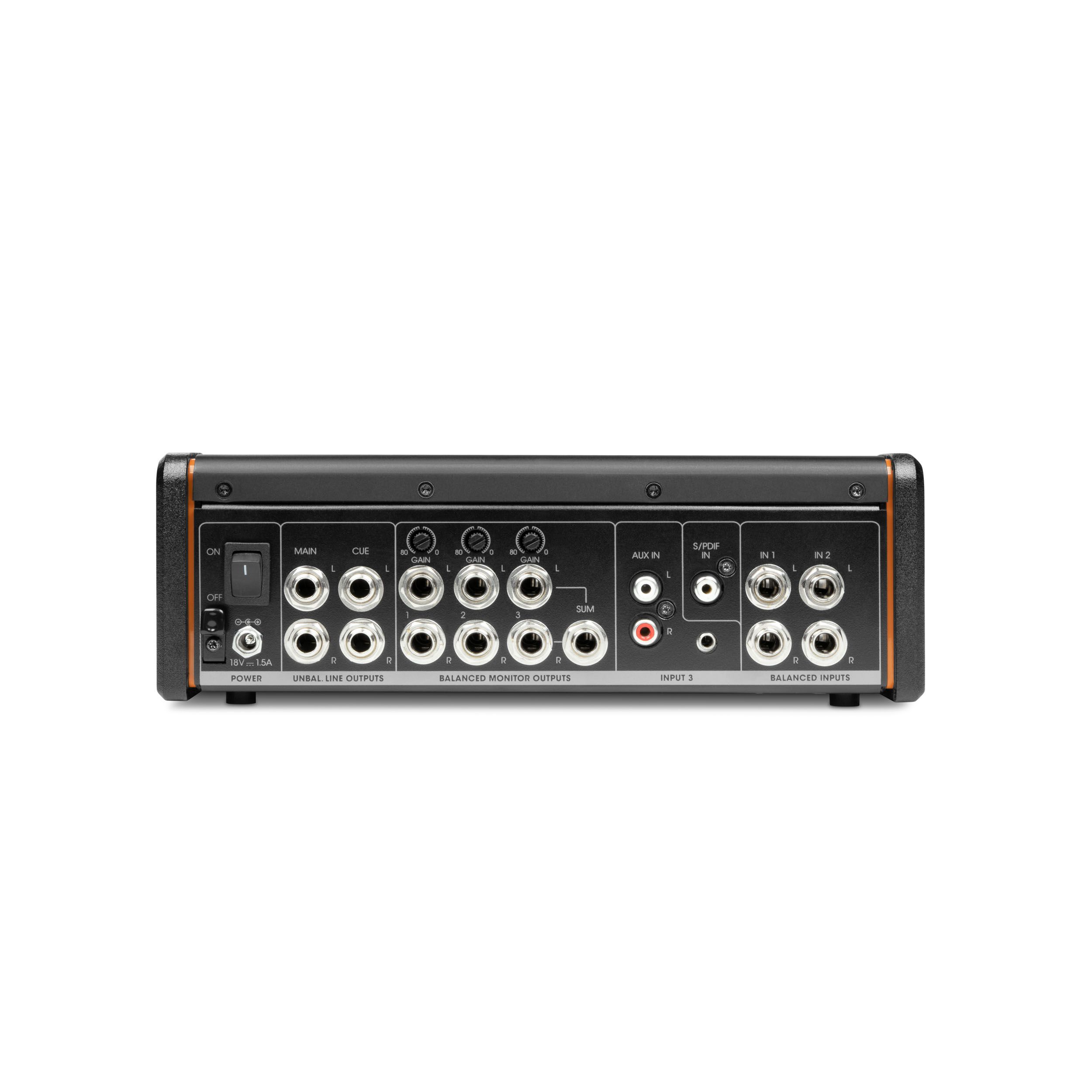

| Output connectors: | TRS unbalanced (CUE, MAIN, headphones 1 & 2), TRS balanced (1 - 3) |
| Input connectors: | RCA, 3.5 mm TRS, SPDIF, 6.3 mm jack |
| CMRR: | > 55 dB |
| Output impedance: | 600 Ω |
| Housing material: | sheet steel, wood |
| Outputs: | Three controllable and balanced stereo outputs, One unbalanced stereo MAIN output, One unbalanced stereo CUE output, Two stereo headphone outputs (PHONES) |
| Max. attenuation: | 111 dB (Attenuator + Mute), 86 dB (Attenuator) |
| Total Harmonic Distortion (THD): | 0.002 % (BW 20 - 20,000 Hz) |
| Number of inputs: | 3 + SPDIF |
| Height: | 3.31 in |
| Frequency response: | 12 - 90000 Hz |
| Dynamic range (DR AES17): | 115 dB |
| Signal-to-noise ratio (SNR): | 102 dB (a-weighted) @ + 4 dBu |
| Max. input level: | 20 dBu |
| Outputs: | 7 x stereo |
| Input type: | balanced/unbalanced (depending on TS/TRS connection) |
| Depth: | 215 |
Login
accessories

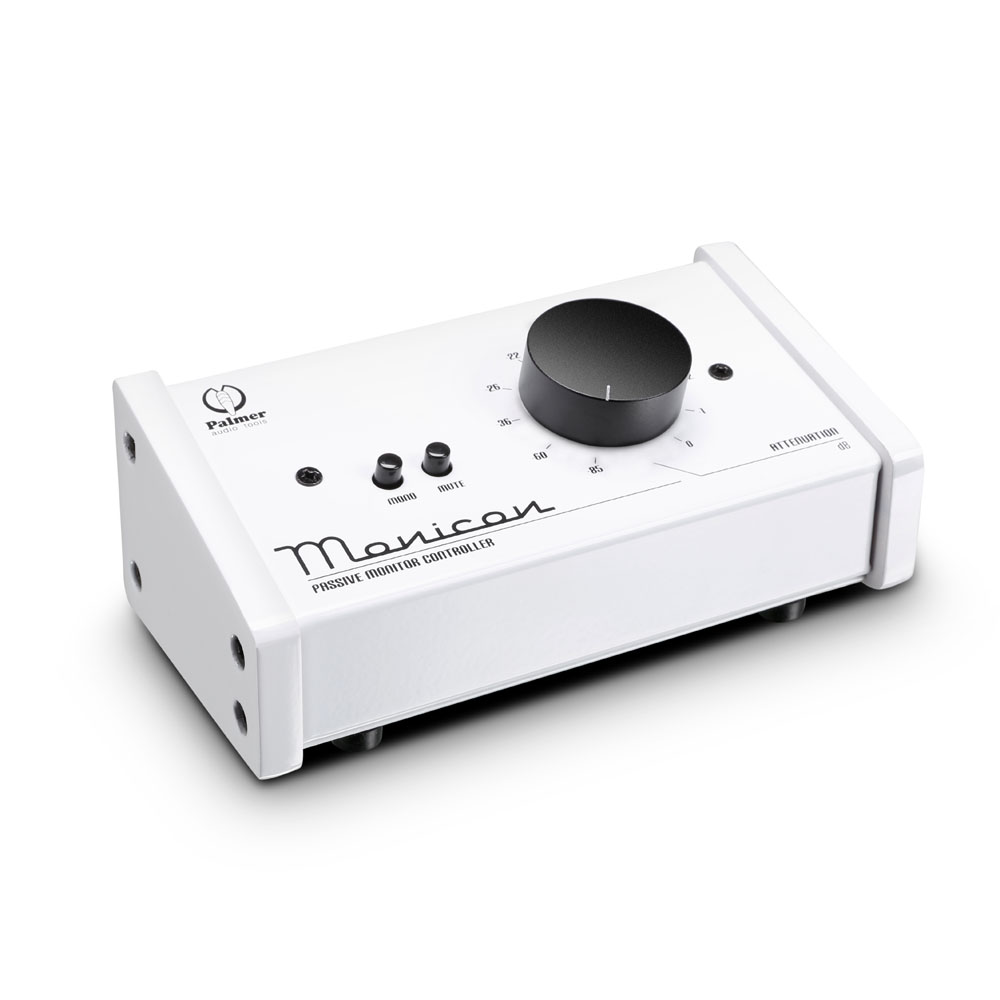

Palmer Monicon®, and the volume is right!With Palmer Monicon®, your monitor volume is always under control. The passive mini-mixer with the oversized control is inserted between the stereo output of the notebook, PC or interface and an active monitor system and thus permits convenient and precise volume control of the monitors from the workstation. The passive circuitry with only a few components has absolutely no affect on the sound. Mute and mono buttons make it possible to mute the outputs and merge the stereo output signal into a mono master signal.The inputs and outputs of the controller are equipped with XLR connectors and the 3.5mm stereo TRS sockets usually found on computers. Combo input sockets also permit connection with 6.3 mm TRS plugs. Thus the Palmer Monicon® is compatible with both professional and consumer equipment. Genuine wood sides make the practical studio tool in its massive powder-coated sheet steel housing an elegant looking "little helper" that is a typical Palmer product.
