MONICON® L
Passive Monitor Controller
$269.99
Backordered – More on the Way!
Product information "MONICON® L"

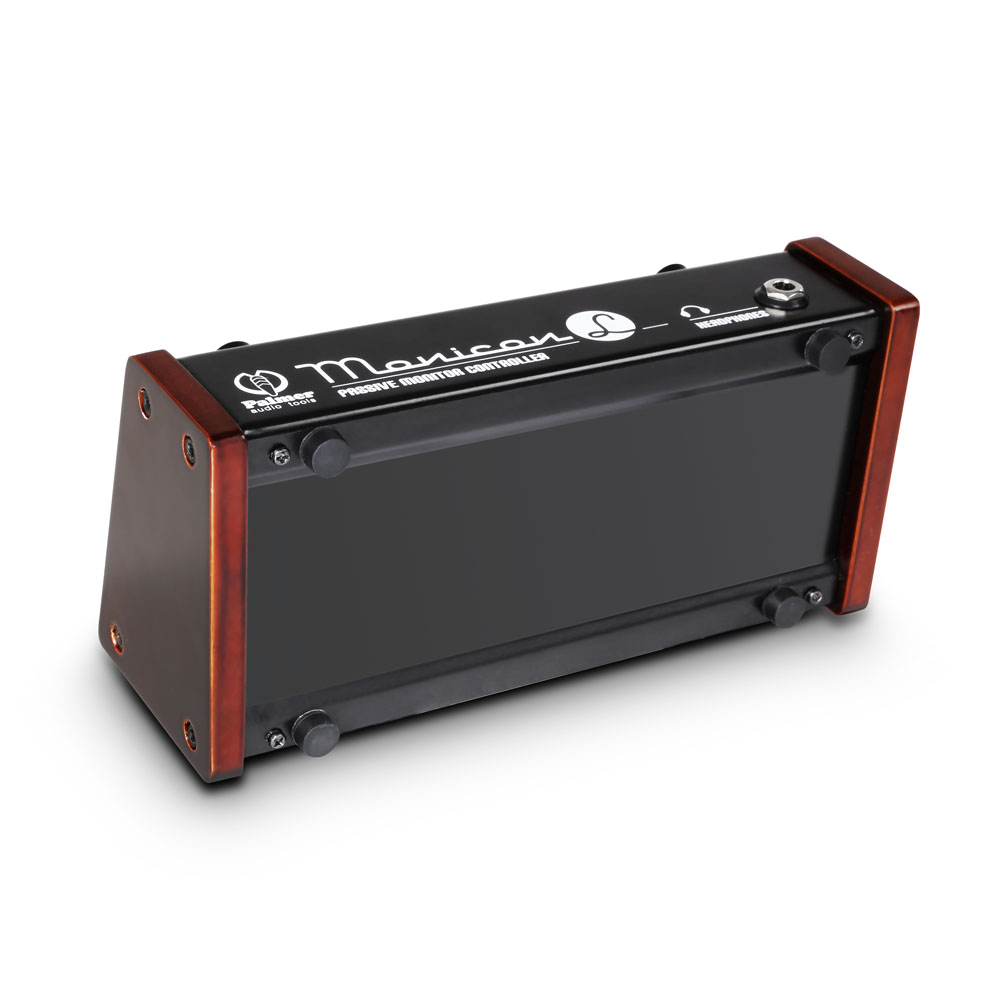

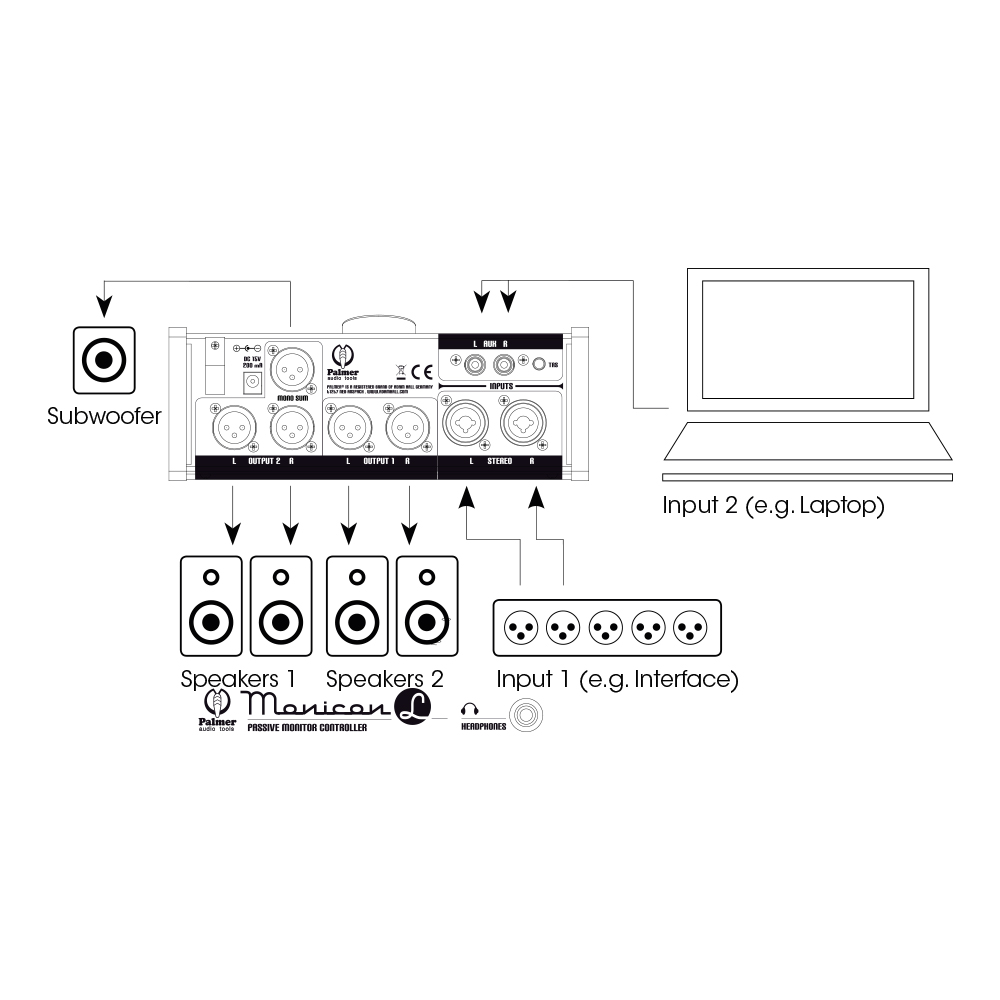

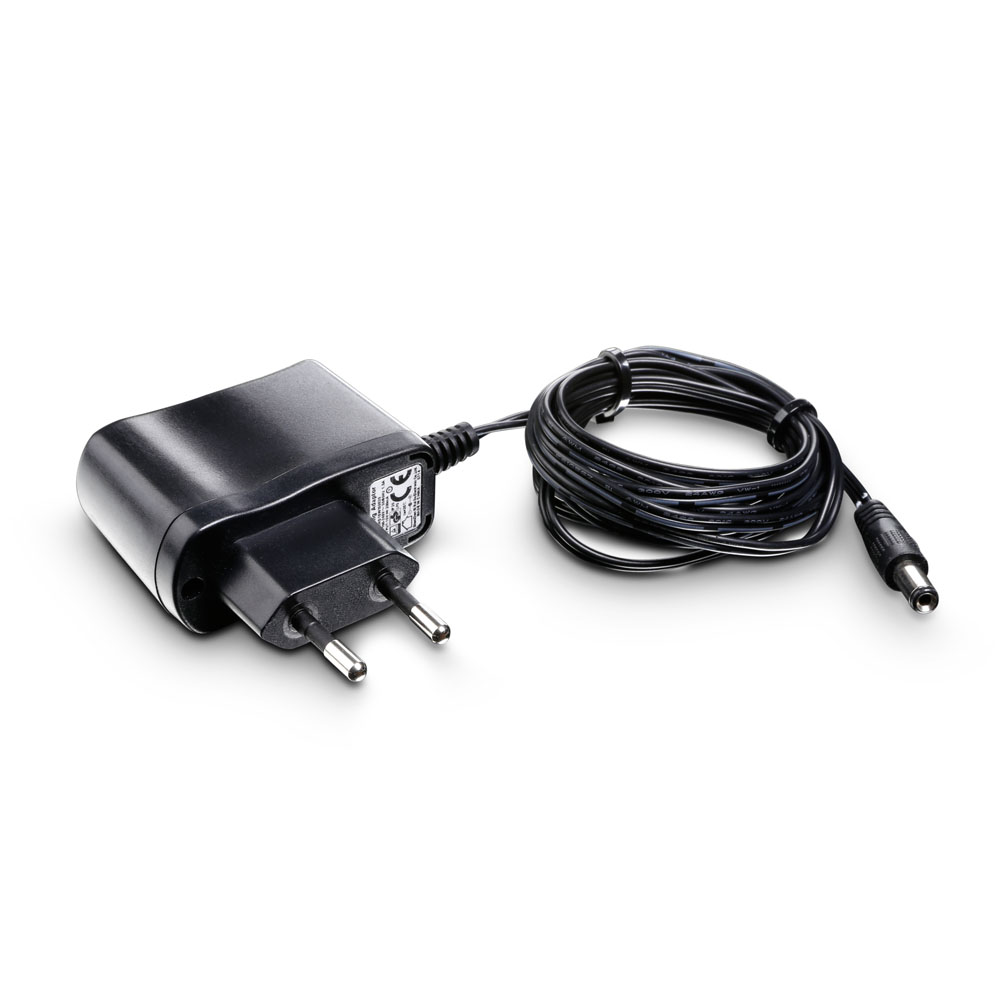

The Palmer Monicon® L is a precise, analogue volume control that connects between a computer or audio interface and active monitor speakers. The switch is completely passive and distortion-free, the LED displays and built-in headphone amplifier are powered via the included power supply.

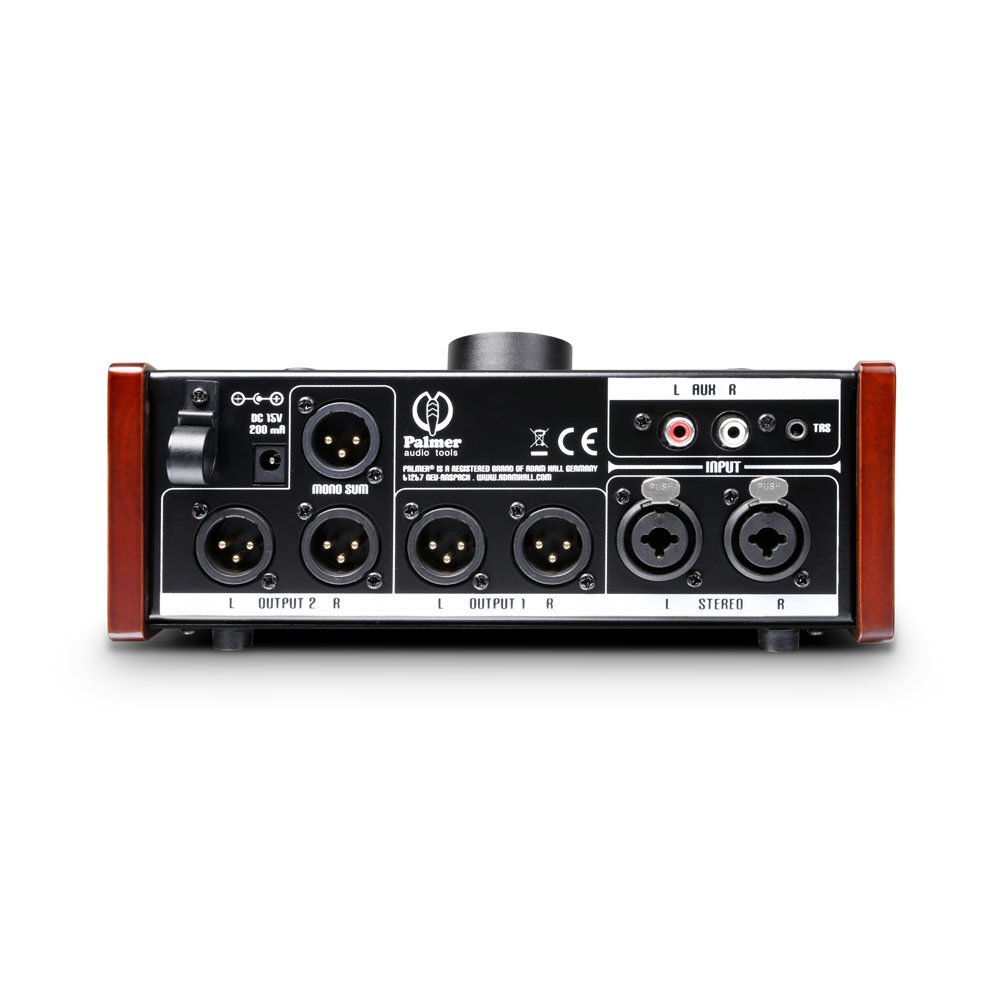

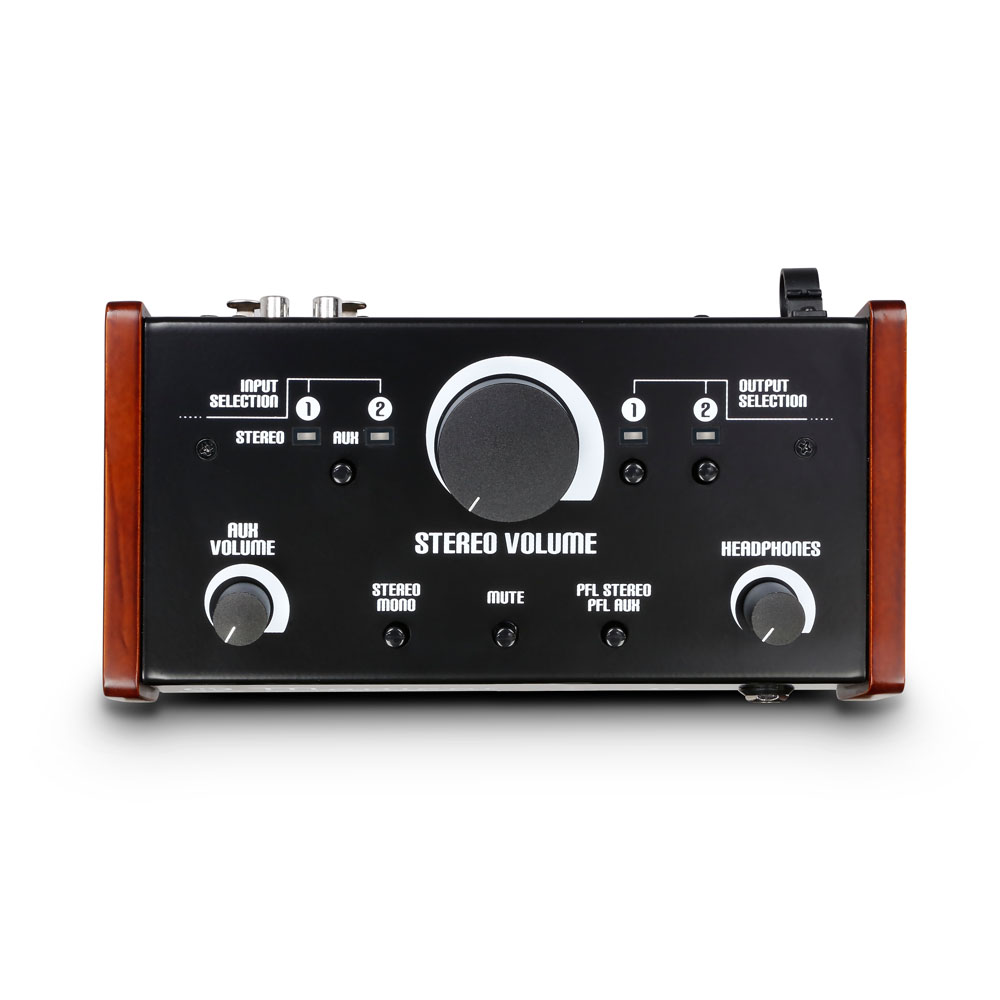

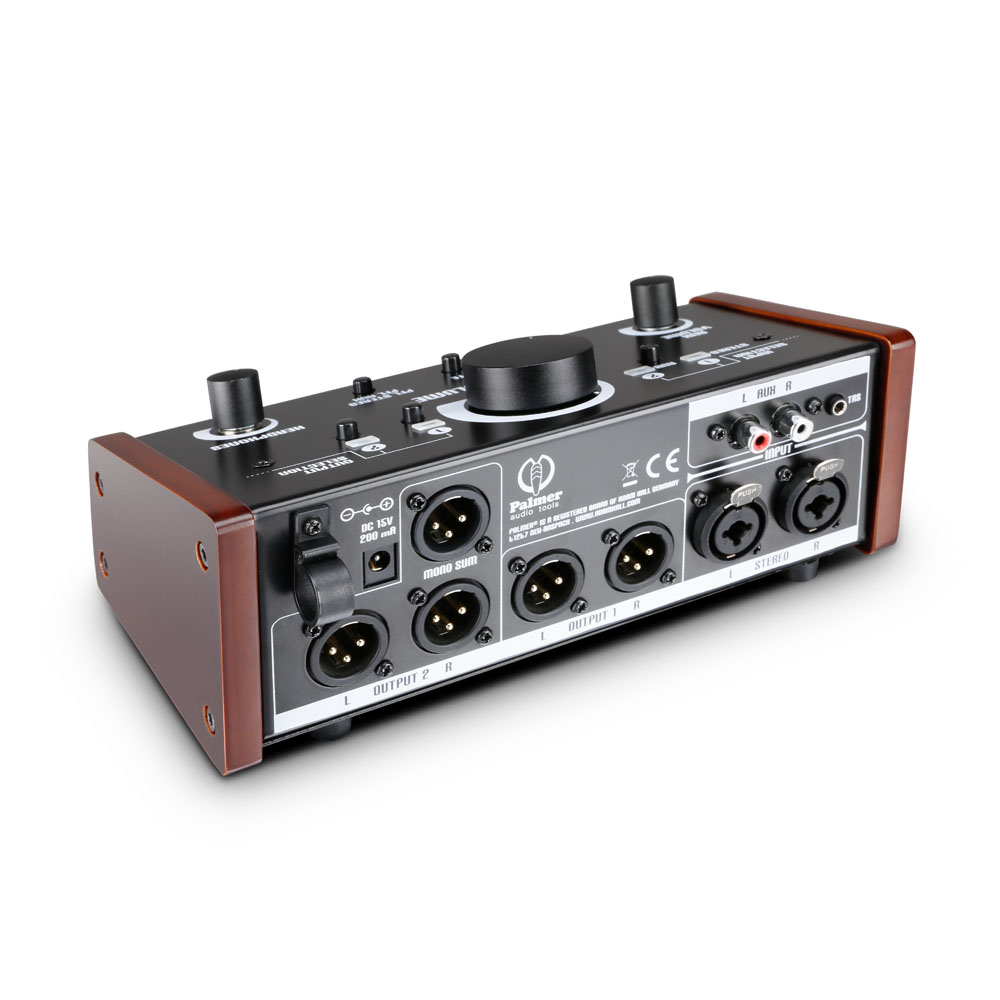

Symmetric combo sockets serve as stereo input. The Monicon® L’s AUX input features RCA sockets and a 3.5 mm stereo jack. The compact console offers outputs for two monitor pairs and a mono summed output via XLR sockets. The stereo or AUX input can be selected alternately, the two outputs individually and together. In addition to its large volume controller, the Monicon® L is also equipped with mono, mute and PFL switches, a 6.35 mm headphone output, and separate AUX and headphone controllers for convenient operation.
| Controls: | input selector, mono, mute, attenuation, output selector, PFL source |
|---|---|
| Output connectors: | XLR |
| Channels: | 2 |
| Input impedance: | (unbalanced) 5k Ohm(s), (balanced) 10k Ohm(s) |
| Input connectors: | XLR, RCA, 3.5 mm TRS |
| Inputs: | 2 |
| Outputs: | 3 |
| Depth: | 3.94 in |
| Max. input level: | 20 dBu |
| Weight: | 2.51 lbs |
| Total Harmonic Distortion (THD): | 0.001 % |
| Output type: | balanced/unbalanced (depending on TS/TRS connection) |
| Output impedance: | 600 Ohm(s) |
| Max. attenuation: | (Attenuator) 85, (Attenuator + Mute) 112 |
| Width: | 8.58 in |
| Input type: | balanced/unbalanced (depending on TS/TRS connection) |
| Cabinet material: | wood, sheet steel |
| Height: | 3.03 in |
| Product type: | Other Studio and Recording Equipment |
| Frequency response: | 10 - 40000 |
| Cabinet surface: | Powder coated |
| Max. output level: | 20 dBu |
