Product information "ICOA® 12 A"

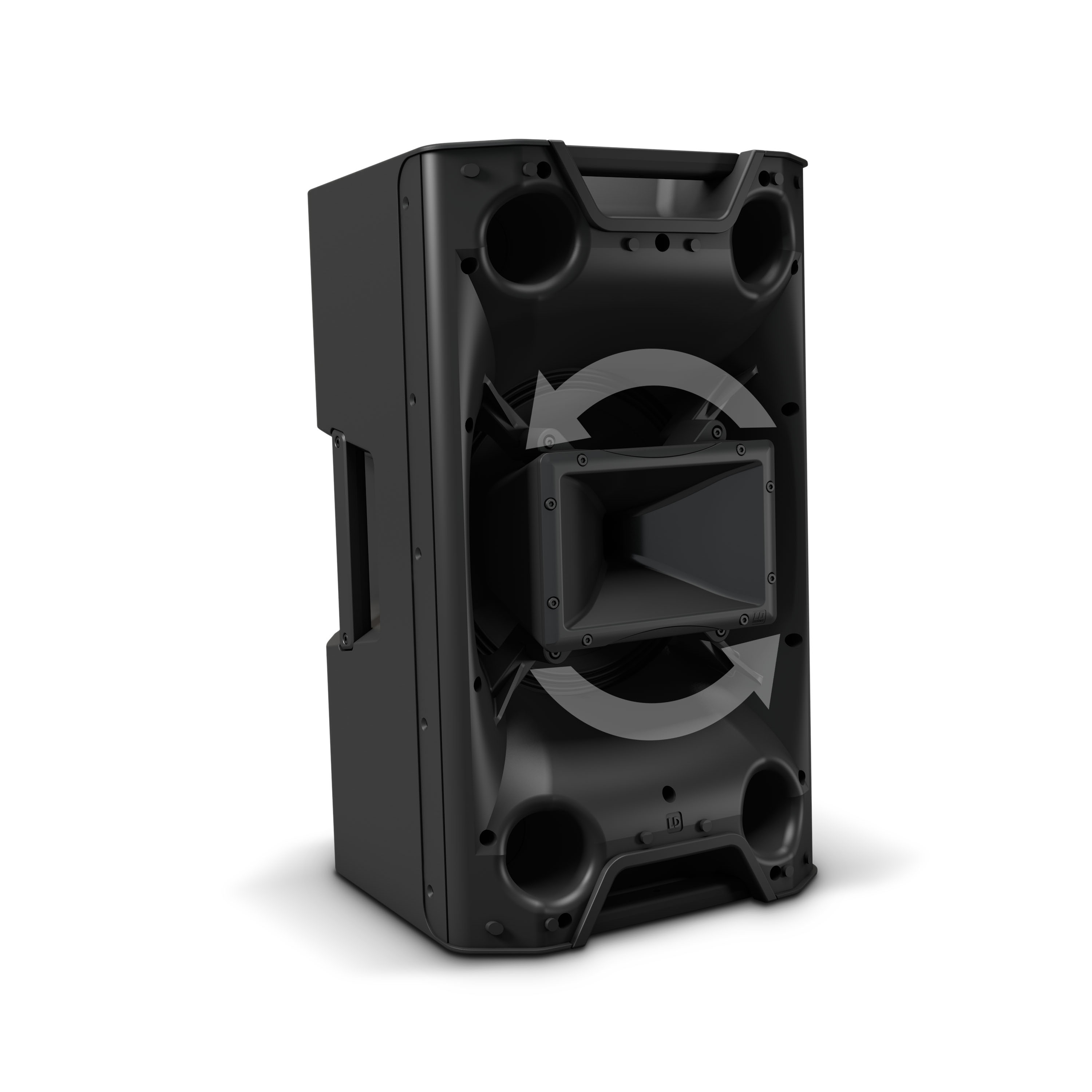

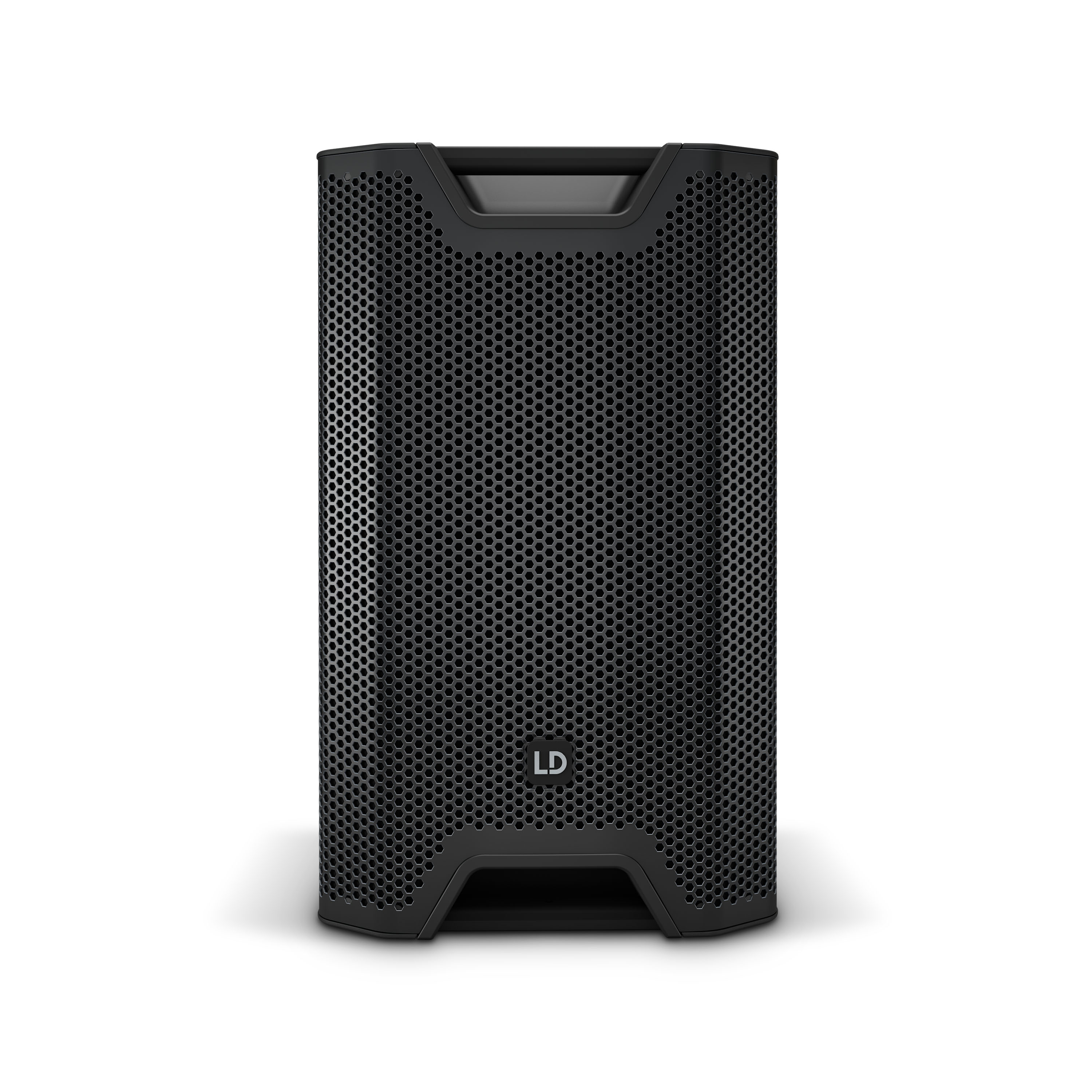

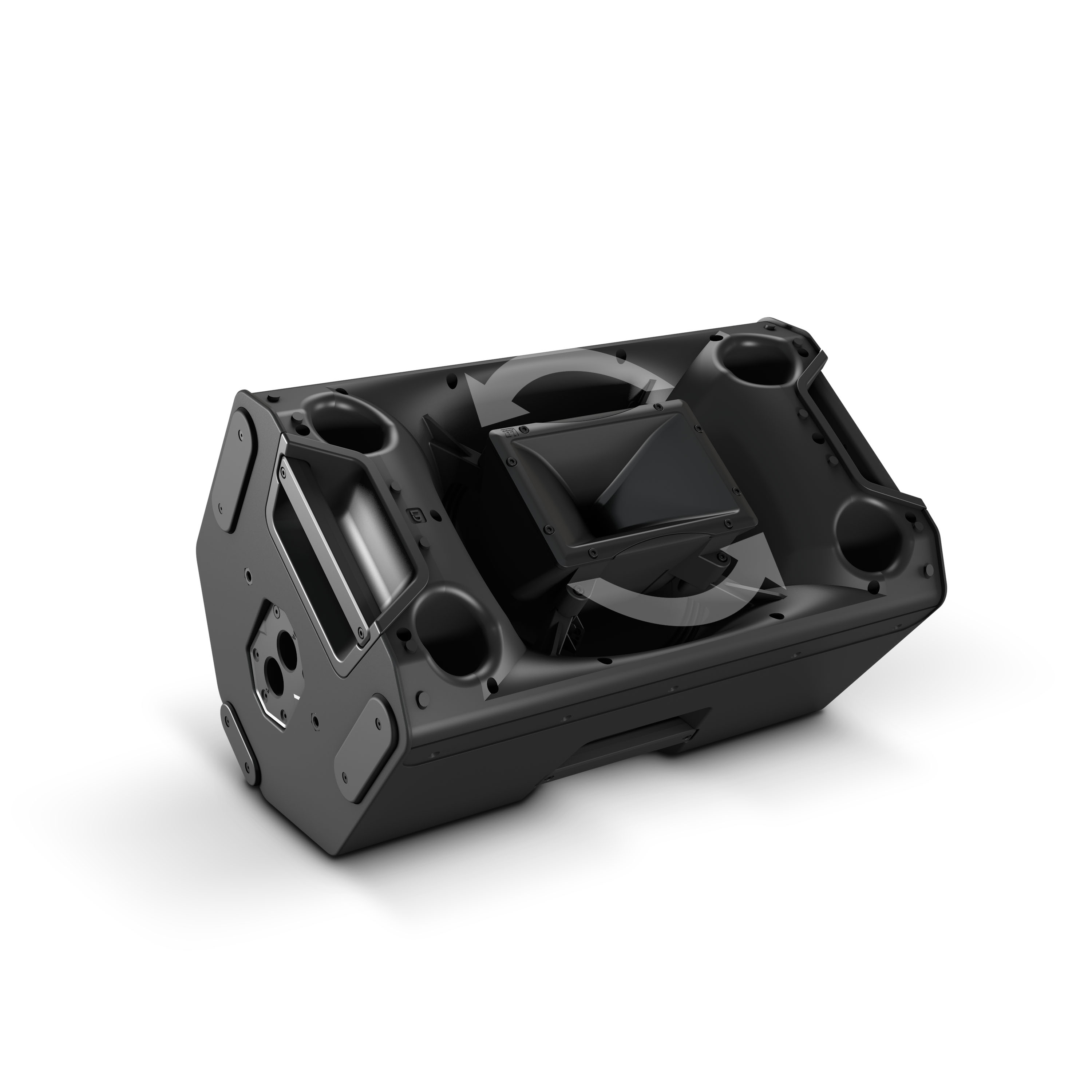

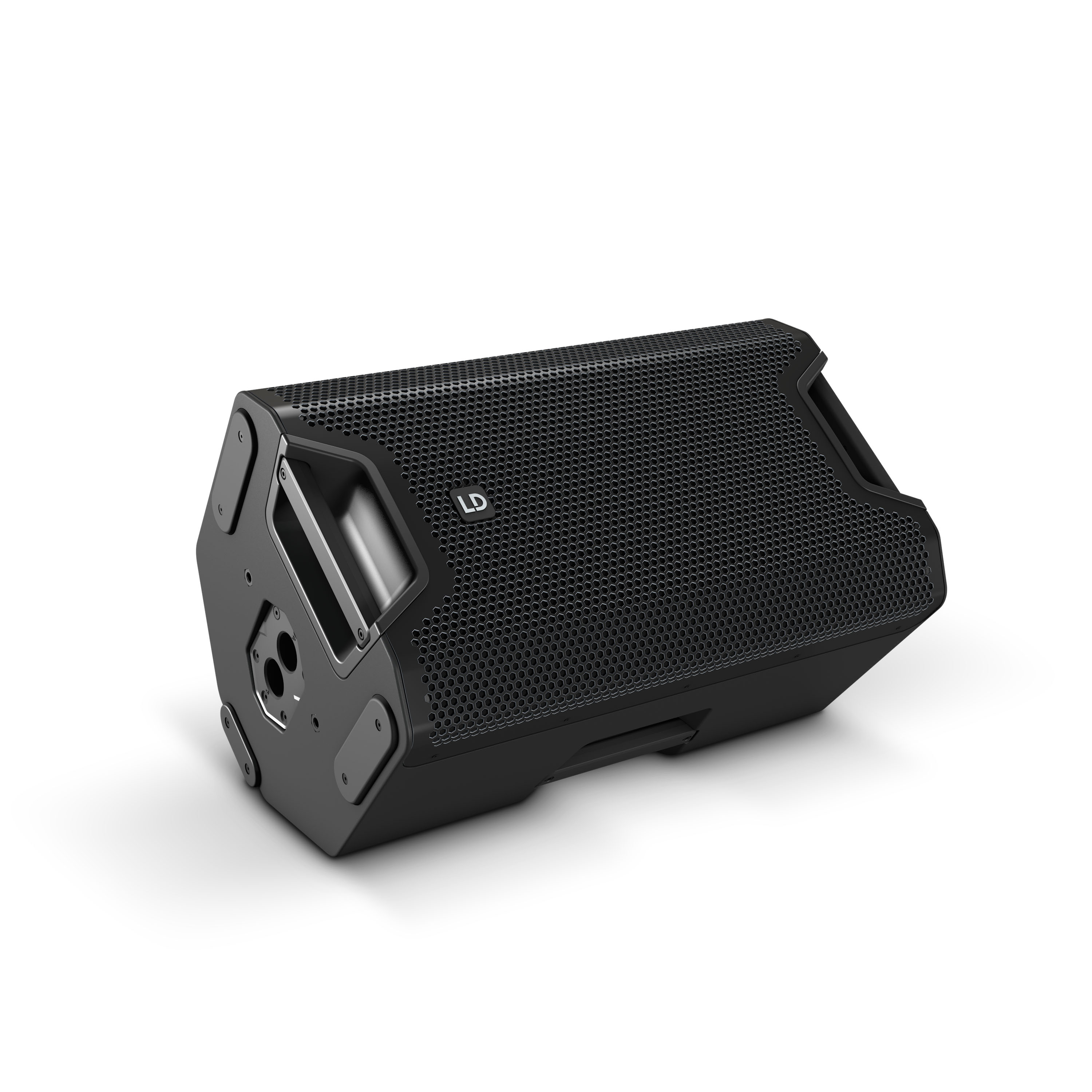

This full-range loudspeaker impresses with its outstanding sound, even at low frequencies. The ICOA 12 A by LD Systems is a genuine all-rounder that offers unparalleled features for its class. Its coaxial design, rotating, BEM-optimised CD horn and extensive and precisely calibrated DynX DSP presets make this powered 12" loudspeaker exceptionally flexible.
The outstanding bass reproduction from the horn-loaded woofer makes the LD ICOA 12 A the ideal choice for musicians, bands, entertainers and dance schools. It also allows DJs to play sets without the need for a subwoofer. Deployed vertically, the speaker impresses as a satellite; horizontally, it's excellent in suspended systems or as a floor monitor. The efficient class-D power amplifier delivers 126 dB max. SPL and 1200 W peak performance.

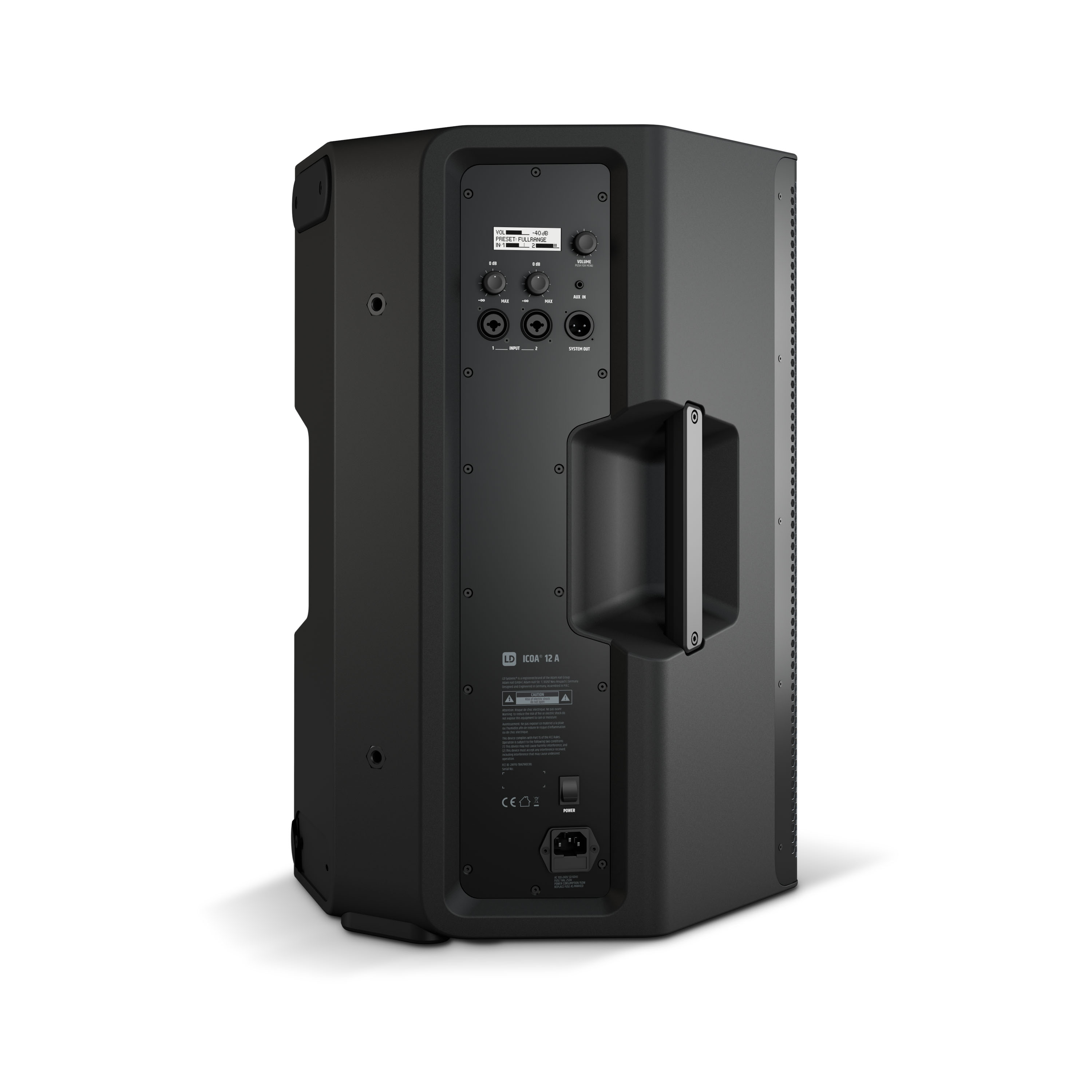

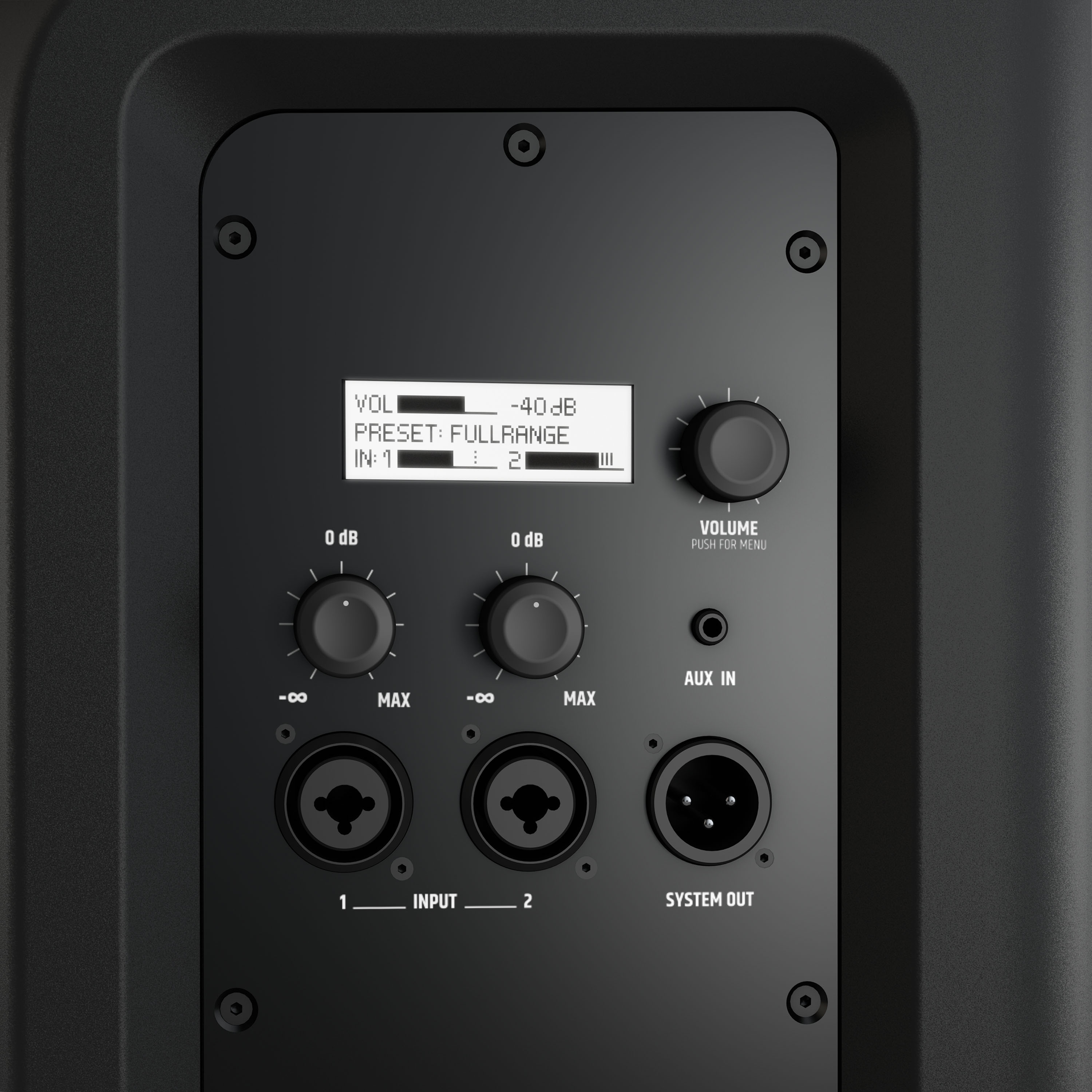

Drawing on DynX DSP technology by LD Systems, the speaker delivers perfect performance with maximum clarity and power under all conditions. 4 presets, a 3-band EQ and a delay function facilitate optimal adjustment of the sound to the venue conditions. The 2 line/mic input channels with individual gain controllers, plus mono mix output, allow a variety of signal sources to be connected.

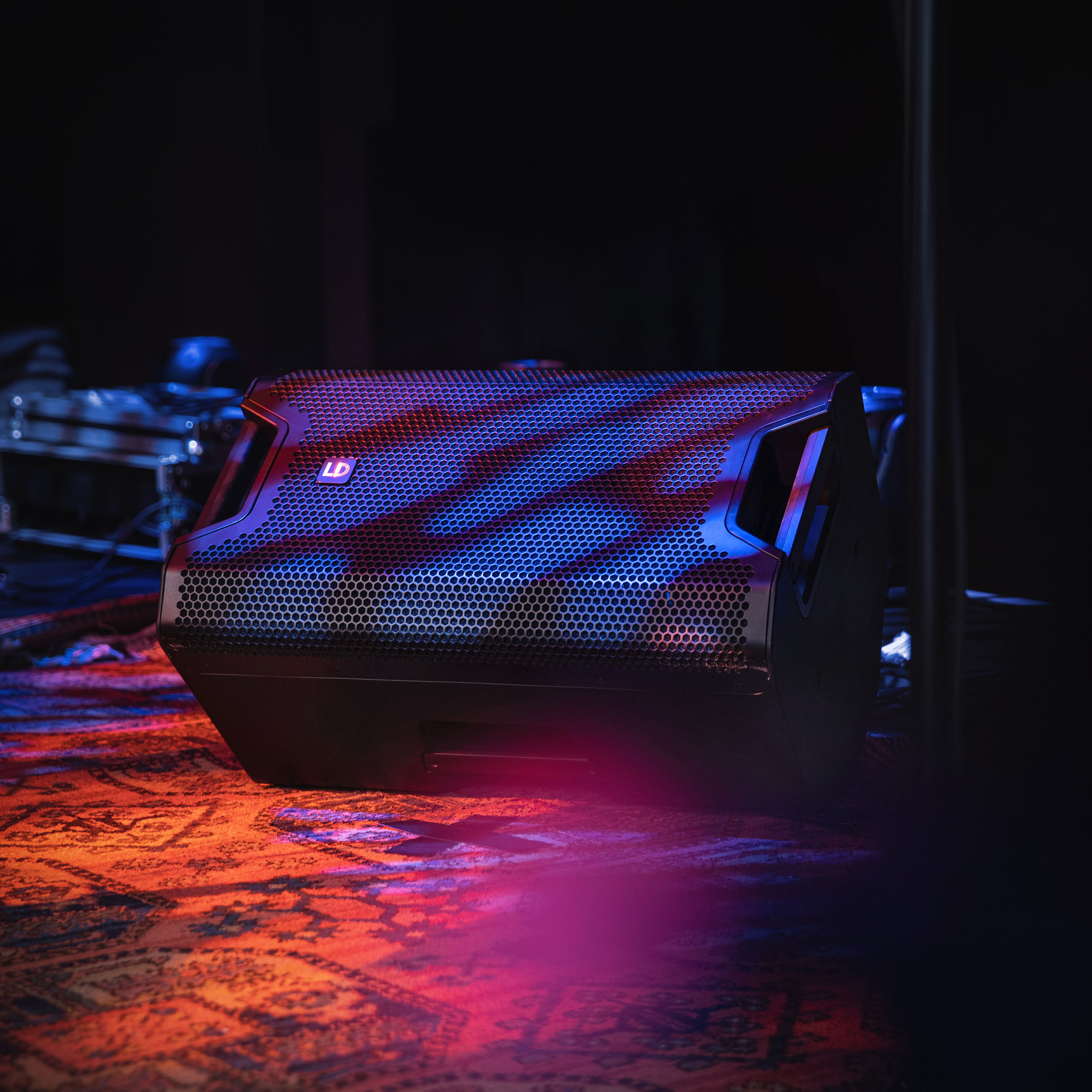

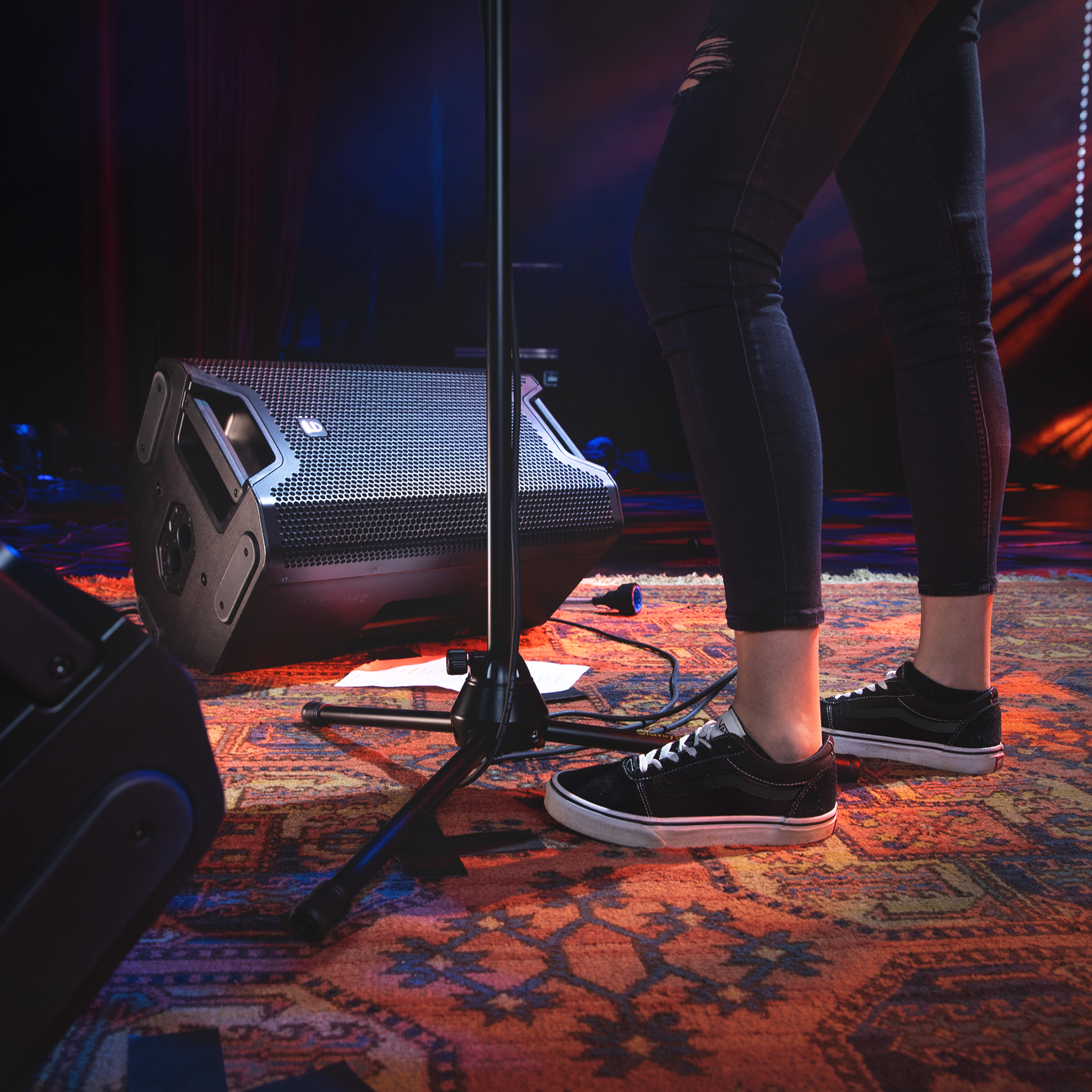

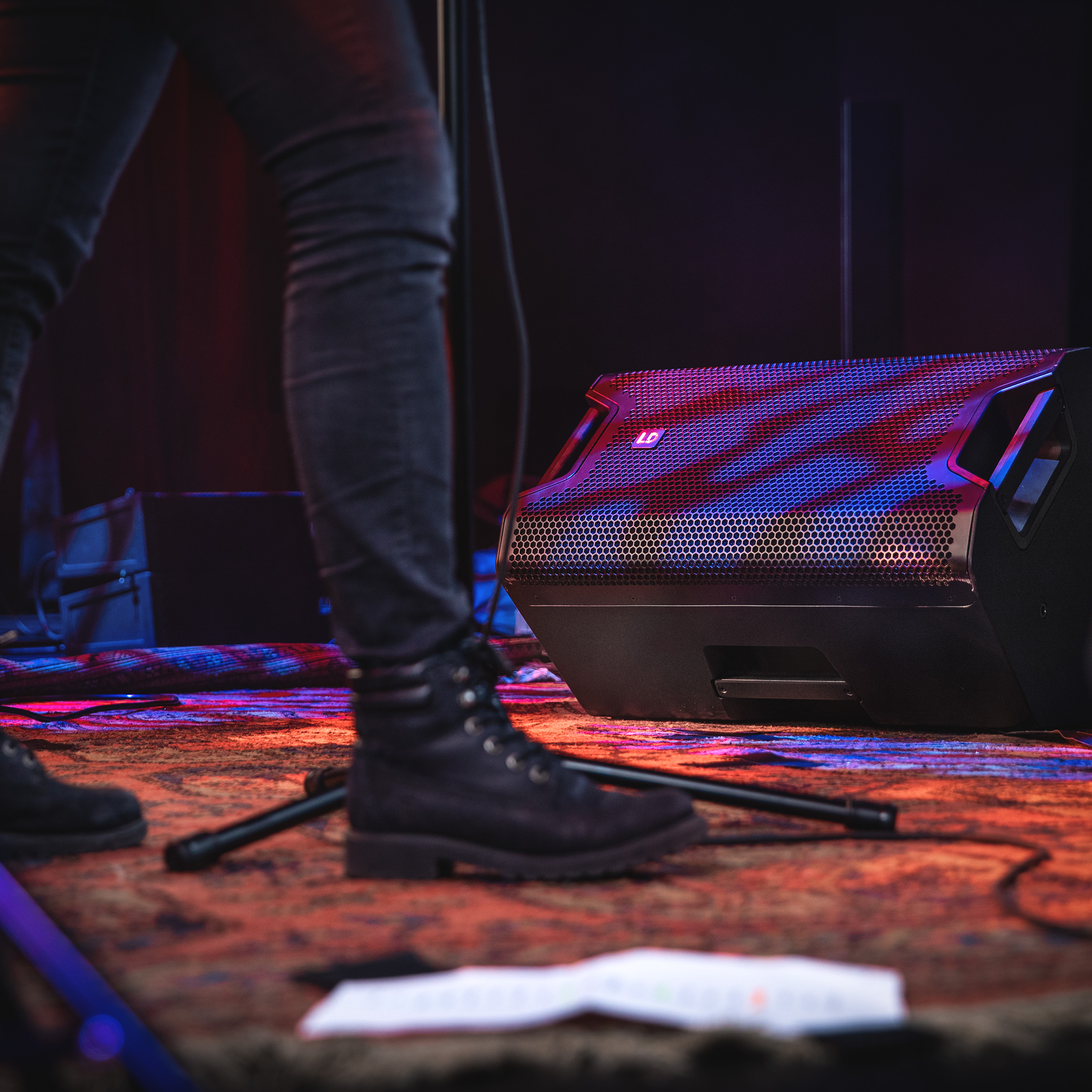

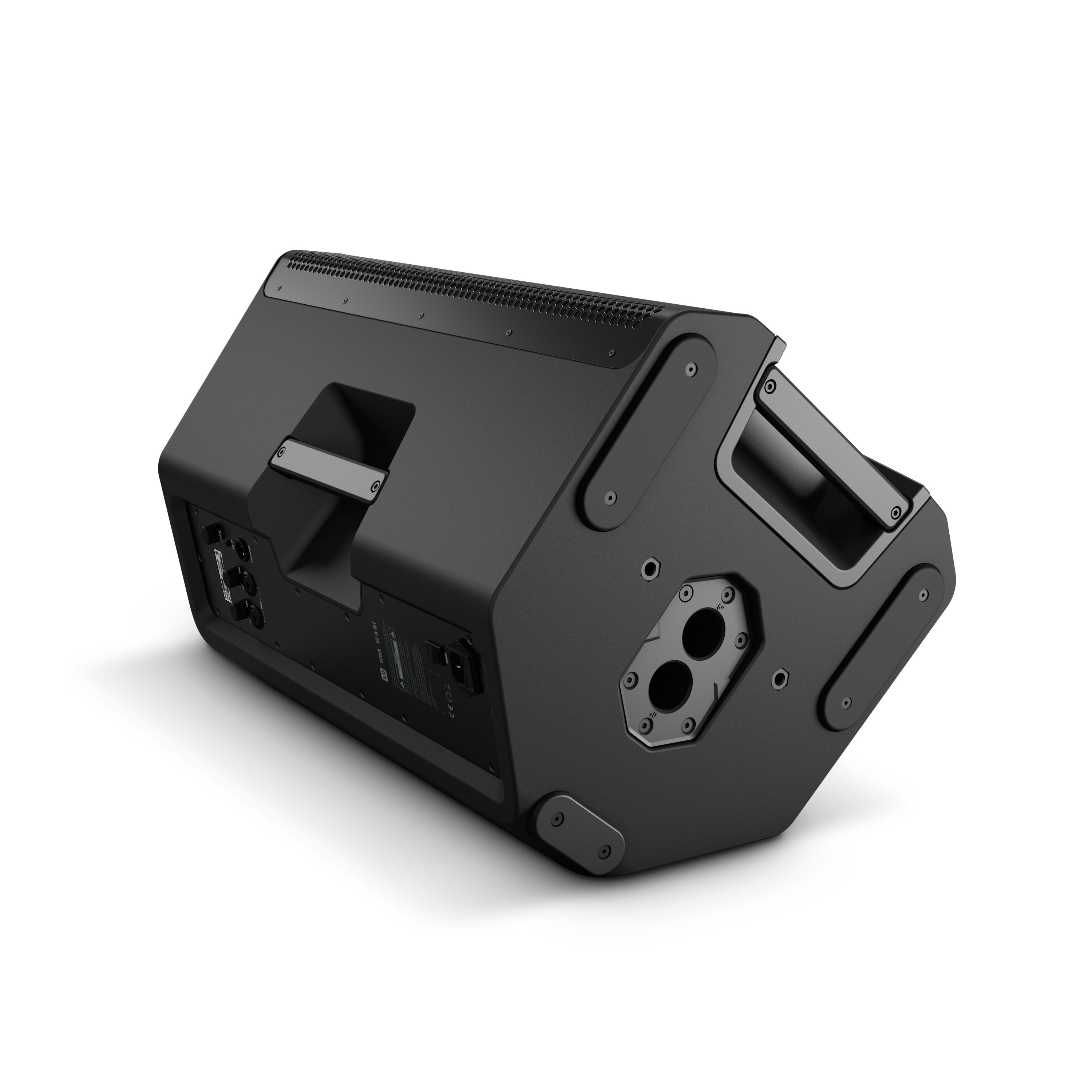

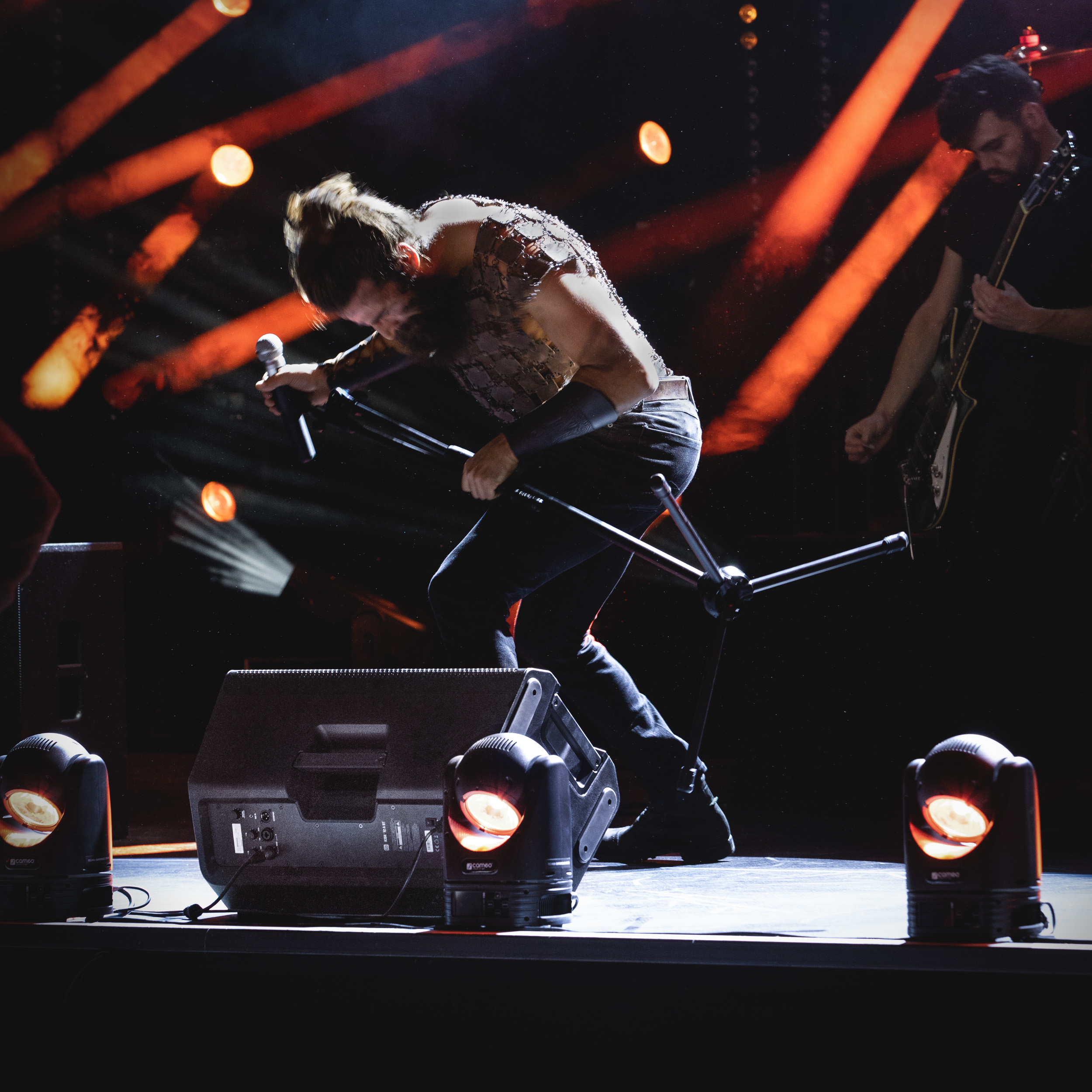

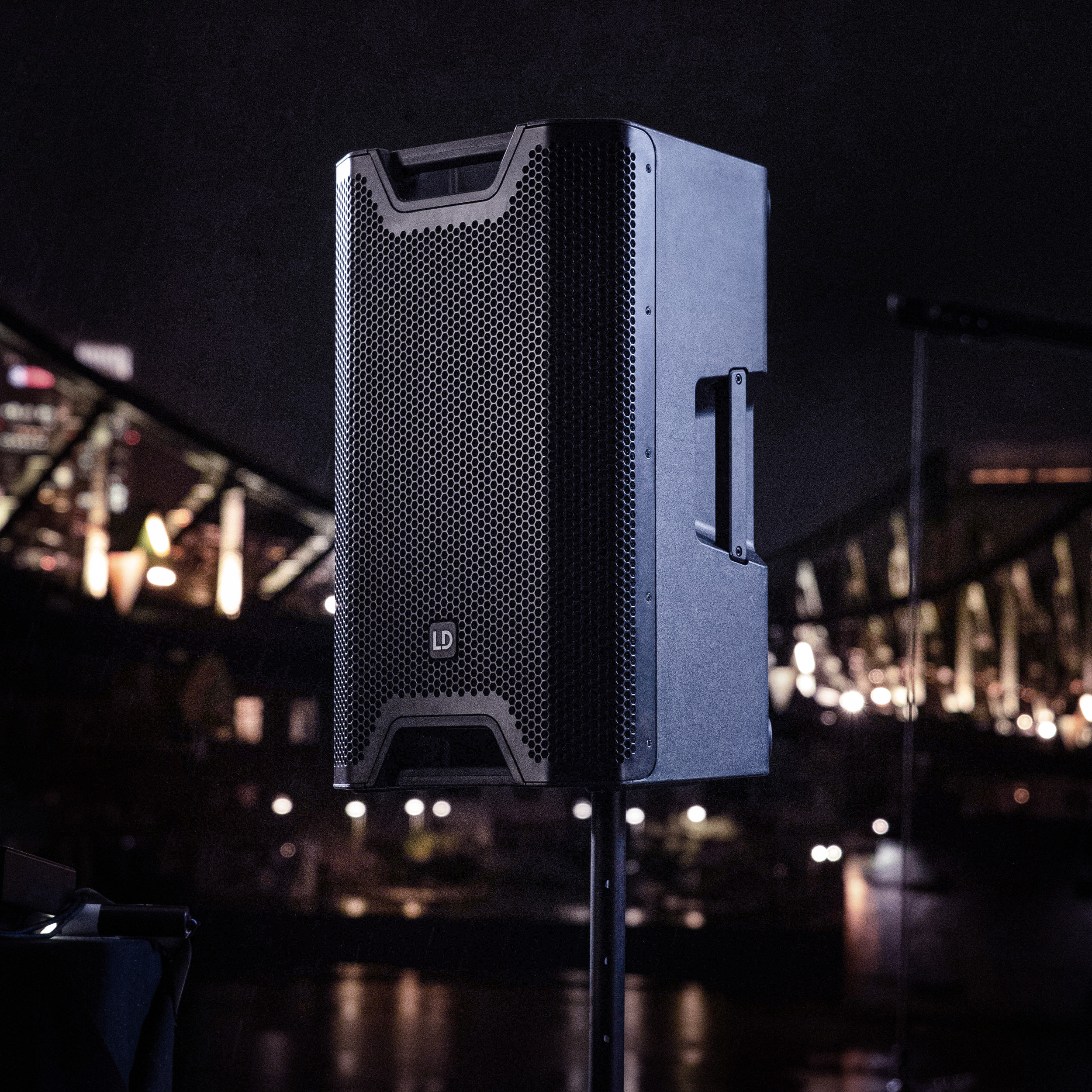

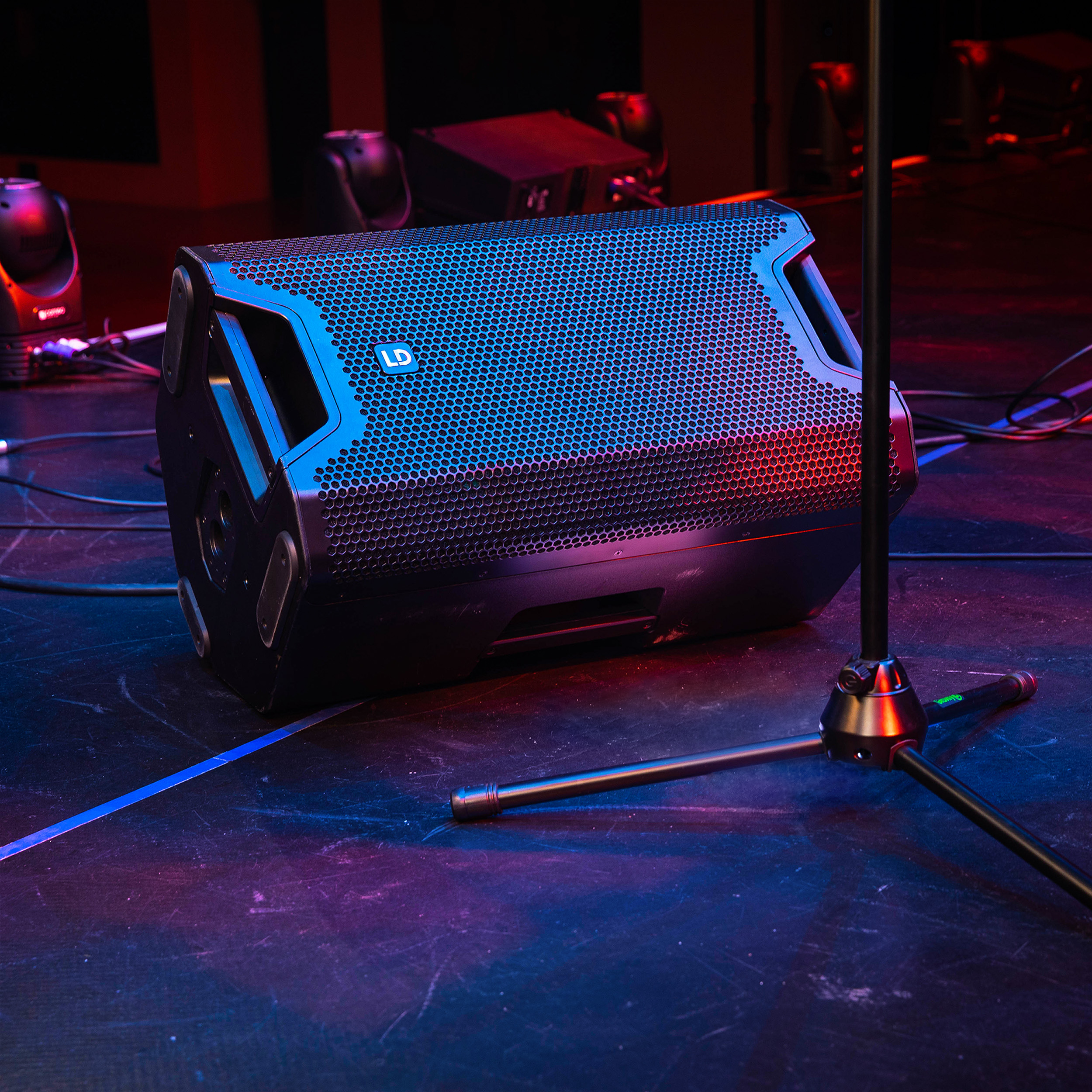

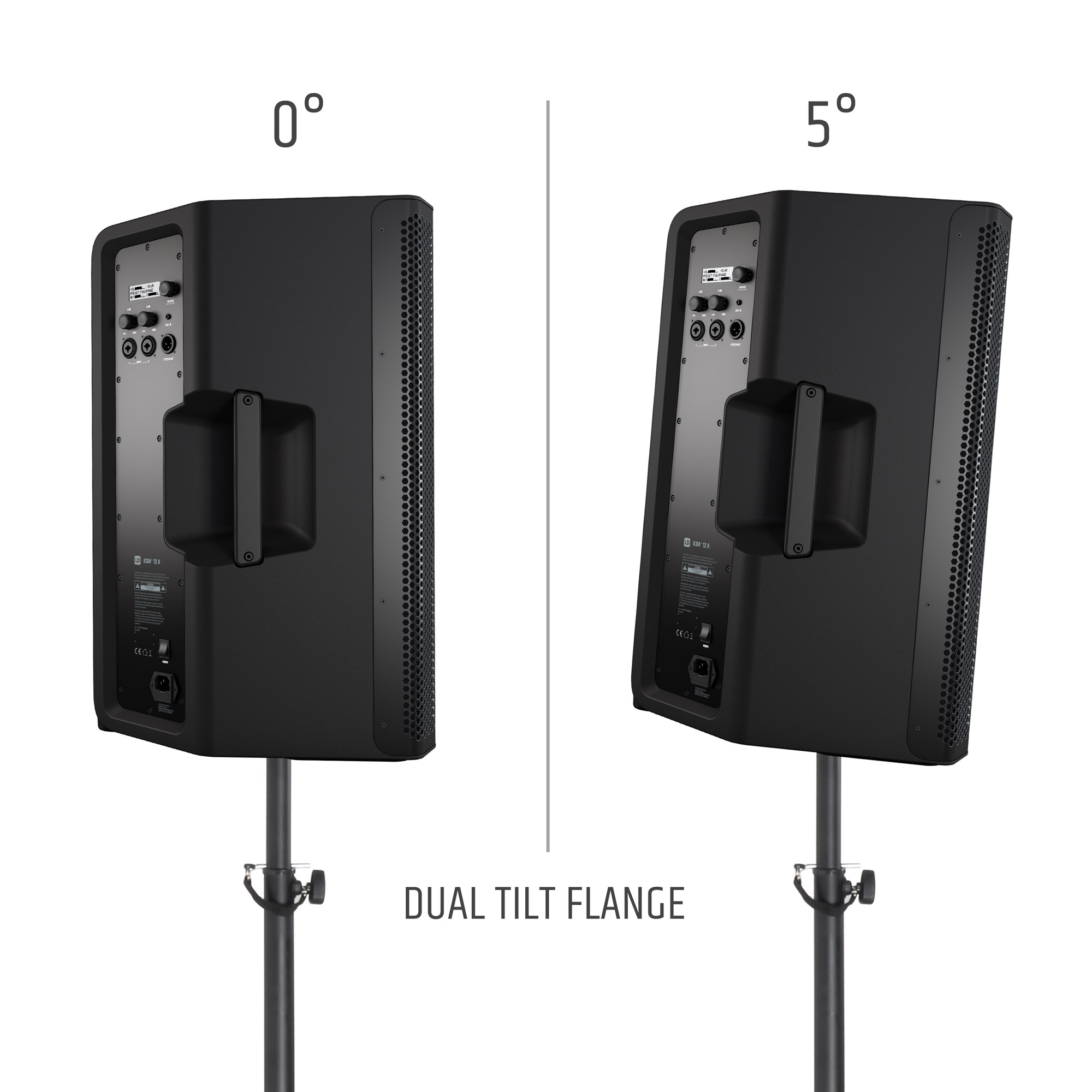

Thanks to its shock-resistant front grille and ideal 55° tilt angle, the LD ICOA 12 A is also outstanding as a floor monitor. Placed vertically, the 36 mm dual tilt stand attachment offers the choice of a 0° or 5° tilt angle for optimally adapting the system to the local acoustic environment.

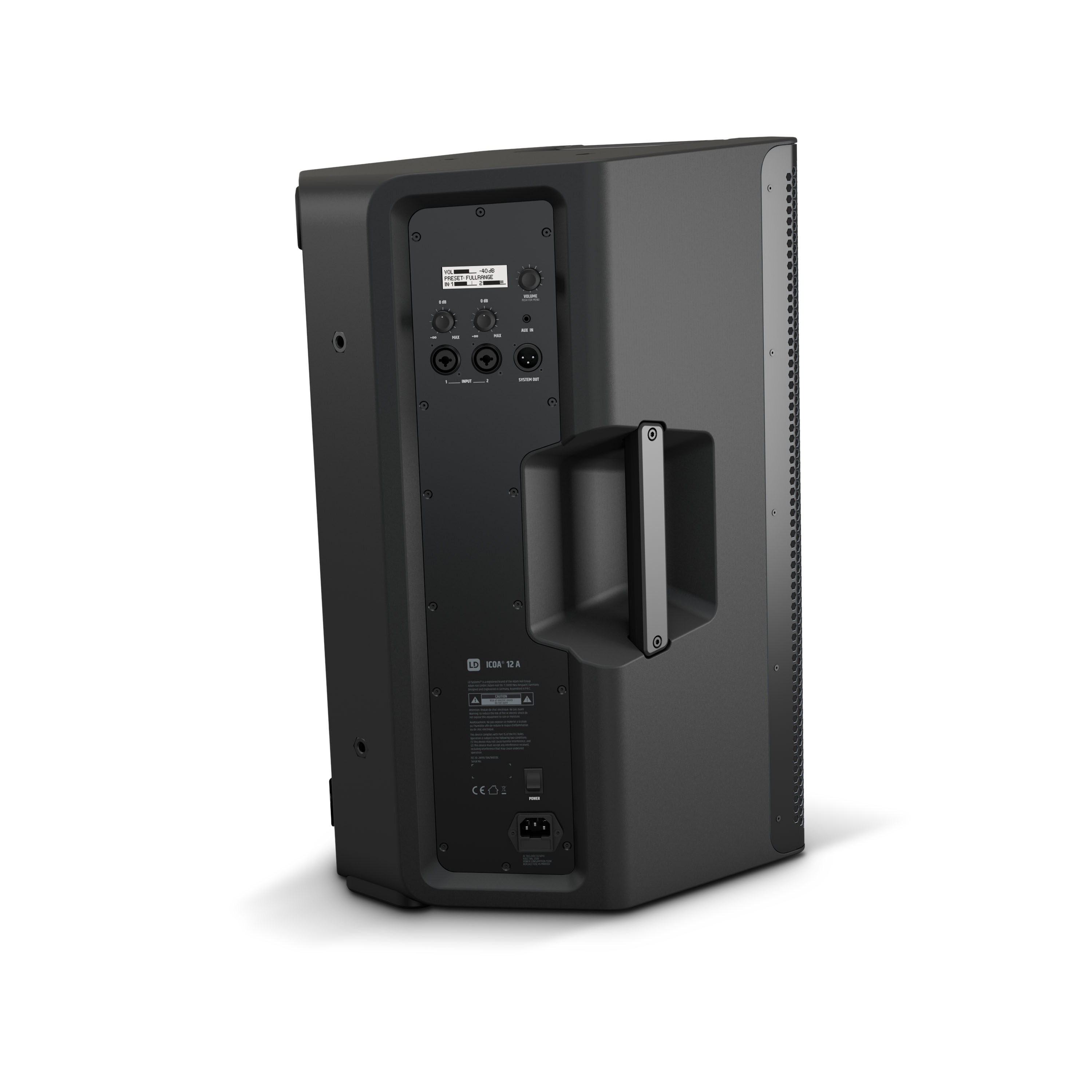

Extensive and smart accessories for installation and transport are optionally available. 4 aluminium handles with an ergonomic rubber surface provide optimal grip when carrying the speaker.
| Frequency response: | 50 - 20000 Hz |
|---|---|
| Monitor angle: | 55 ° |
| Type: | Active |
| Input connector types: | 6.3 mm Jack TRS female, XLR 3-pole female |
| Output connector types: | XLR 3-pole female |
| Beam angle: | Hor.: 90° / Vert.:50° |
| Amp class: | Class D |
| Speaker system: | 2-way coaxial system |
| Protection features: | Overload, Multiband Limiter, Overvoltage, Overheating |
| RMS output power: | 300 W |
| Peak output power: | 1200 W |
| Crossover frequency: | 2 kHz |
| Colour: | Black |
| Number of inputs: | 3 |
| Number of outputs: | 1 |
| Max. SPL peak: | 126 dB |
| Number of line inputs: | 1 |
|---|---|
| Mic/Line-in connector type: | XLR combo socket |
| Number of mic/line inputs: | 2 |
| Line-In connector type: | 3.5 mm Jack TRS female |
| Number of line outputs: | 1 |
|---|---|
| Line outputs connector type: | XLR 3-pole female |
| Audio processing: | Delay Line, 3 band EQ (High, Mid, Low), Presets |
|---|---|
| Mixer: | 1 |
| Manufacturer: | Custom Made |
|---|---|
| Size: | 12 " |
| Magnet: | Ferrite |
| Voice coil: | 1.4 " |
|---|---|
| Manufacturer: | Custom Made |
| Driver size: | 0.04 in |
| Magnet: | Ferrite |
| Rated power: | 150 W |
|---|---|
| Mains connector: | IEC C14 plug male |
| Mains fuse: | T4AL/250 V |
| Fuse replacement: | Possible from the outside without opening |
| Operation voltage: | 100 V AC - 240 V AC / 50 - 60 Hz |
| Power supply type: | Switched-mode power supply (SMPS) |
| Flange: | 36 mm (0°/5°) |
|---|---|
| Design: | Bass reflex |
| Number of handles: | 4 |
| Number of mounting points: | 6 |
| Front grille material: | Aluminium |
| Cabinet material: | Polypropylene |
| Mounting type: | M10 flying points |
| Material thickness: | 0.59 in |
| Maximum air humidity (non-condensing): | 80 % |
|---|---|
| Ambient temperature: | 0 - 40 °C |
| Width: | 14.76 in |
|---|---|
| Depth: | 15.59 in |
| Height: | 25 in |
| Weight: | 43.98 lbs |
| Included accessories: | Mains cable |
|---|
