Product information "ICOA SUB 18 A"

Music starts to really groove when you can feel the bass in your body. The ICOA SUB can deliver as much bass as you want - to get the people rocking and entice them to the dance floor. It can even lend a multimedia presentation that special oomph it needs to reach its audience.

The ICOA SUB pumps out serious bass and gives you greater headroom and a clearer sound. This is because your subwoofer relieves the main speaker, whose woofers are now less burdened by high-energy bass impulses, resulting in less intermodulation distortion. Even at higher volumes, the sound doesn't get muffled. Voices and instruments stay crystal clear.

Thanks to its powerful Class D amplifier with 600-watt RMS or 2400-watt peak output, you have some serious power at your command. The presets of the integrated DynX DSP - which offers crossover frequencies of 80, 100 and 120 Hz - let you finely balance your ICOA SUB perfectly with your system. Signal polarity can also be reversed and the SUB offers a delay line-preset for distances up to 10 meters.

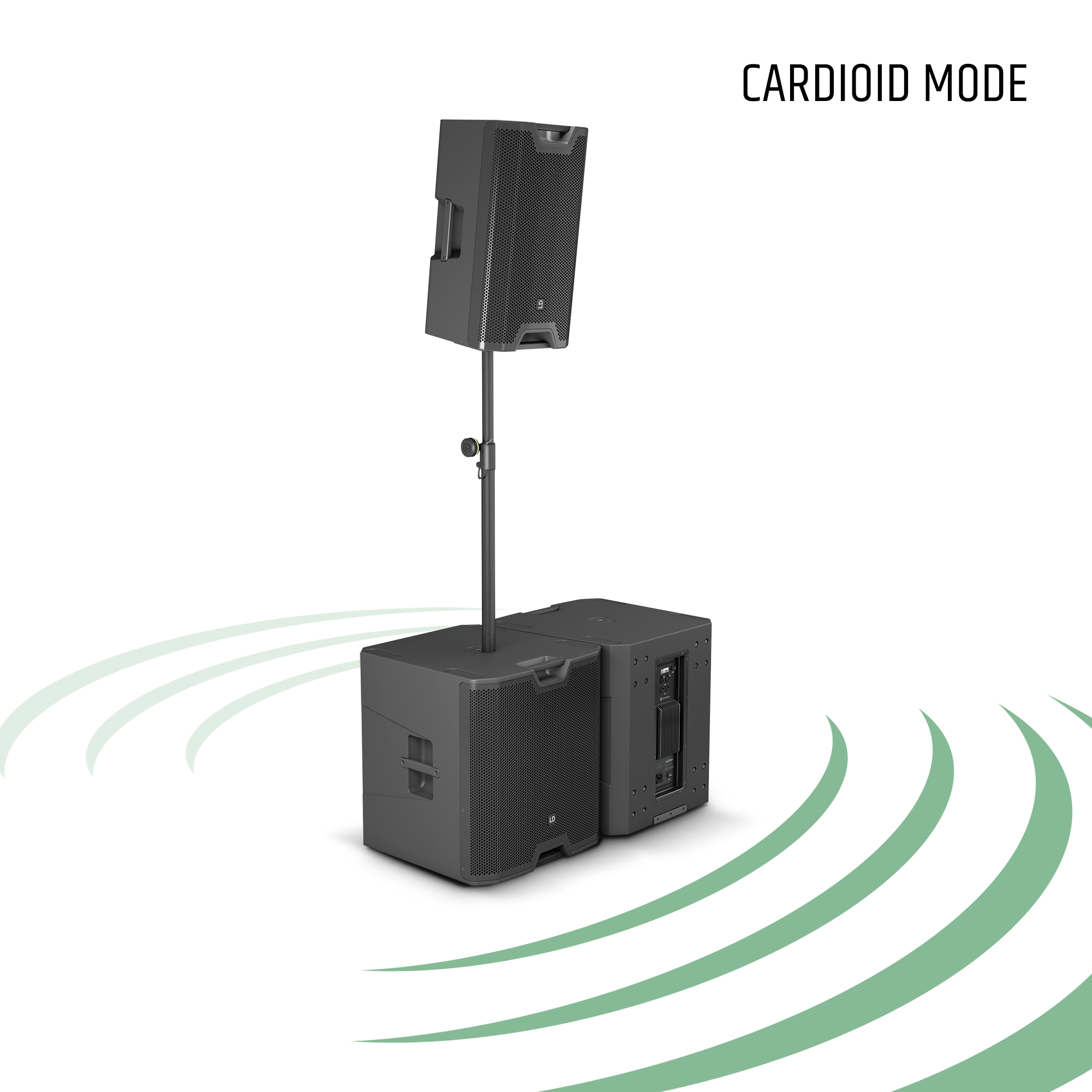

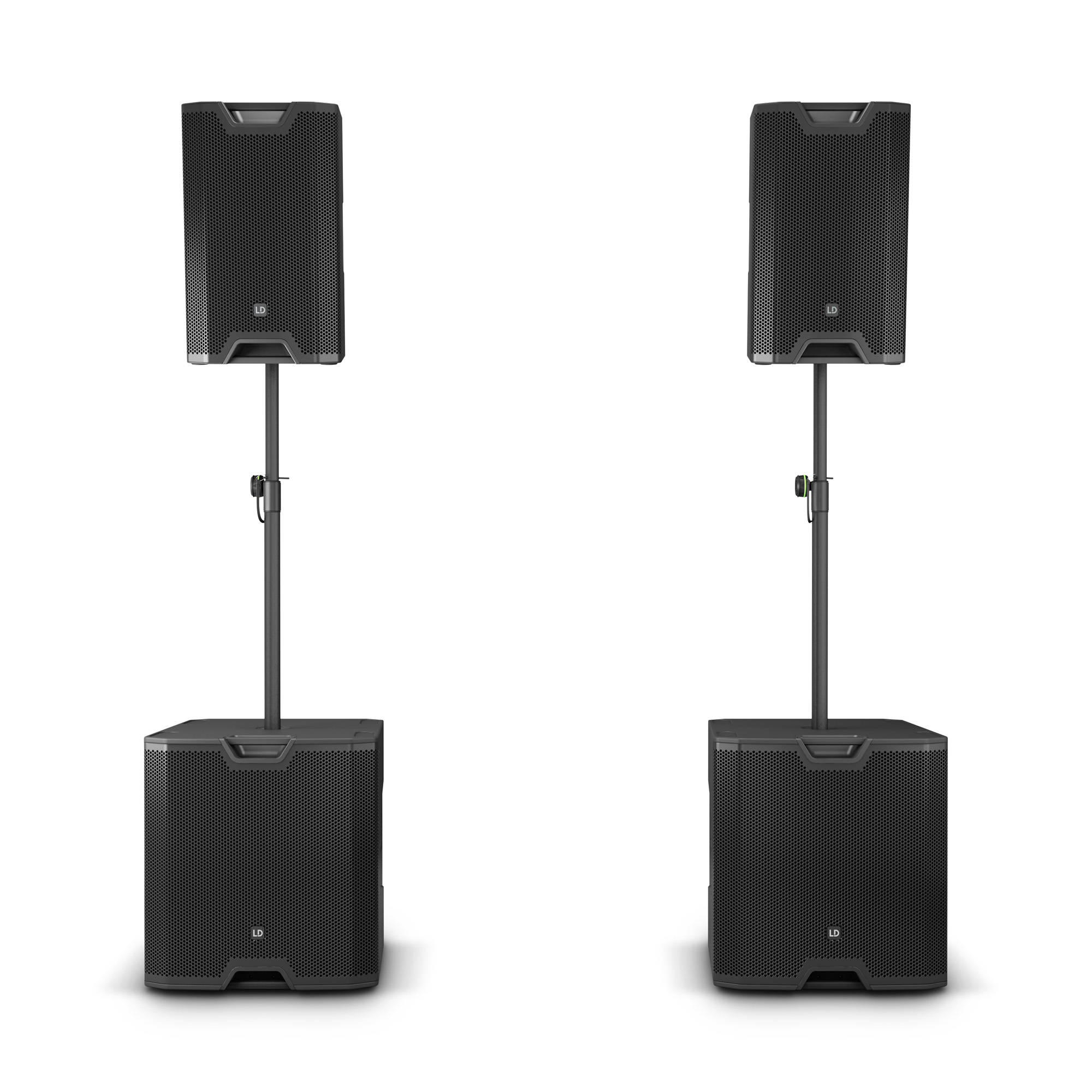

When your needs begin to expand as the venues get bigger, your setup can grow along with you. Simply add more ICOA SUBs, which can be operated in parallel, giving you more and more power. You can also take advantage of the cardioid-preset. Simply position the additional subwoofers next to your ICOA SUB facing to the rear and enable the cardioid-preset to get a quieter and controlled low-end at the back while still keeping the punch at the front.

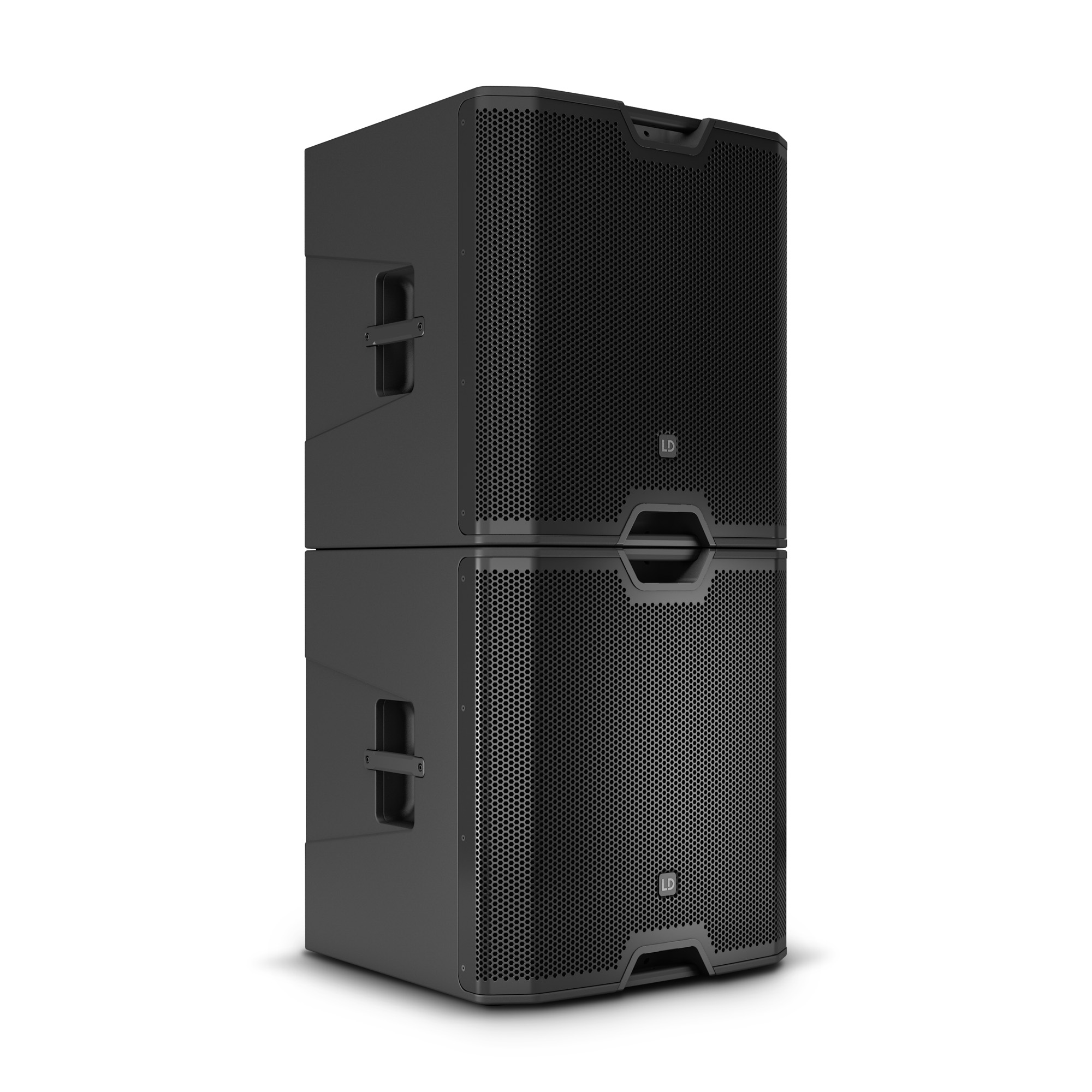

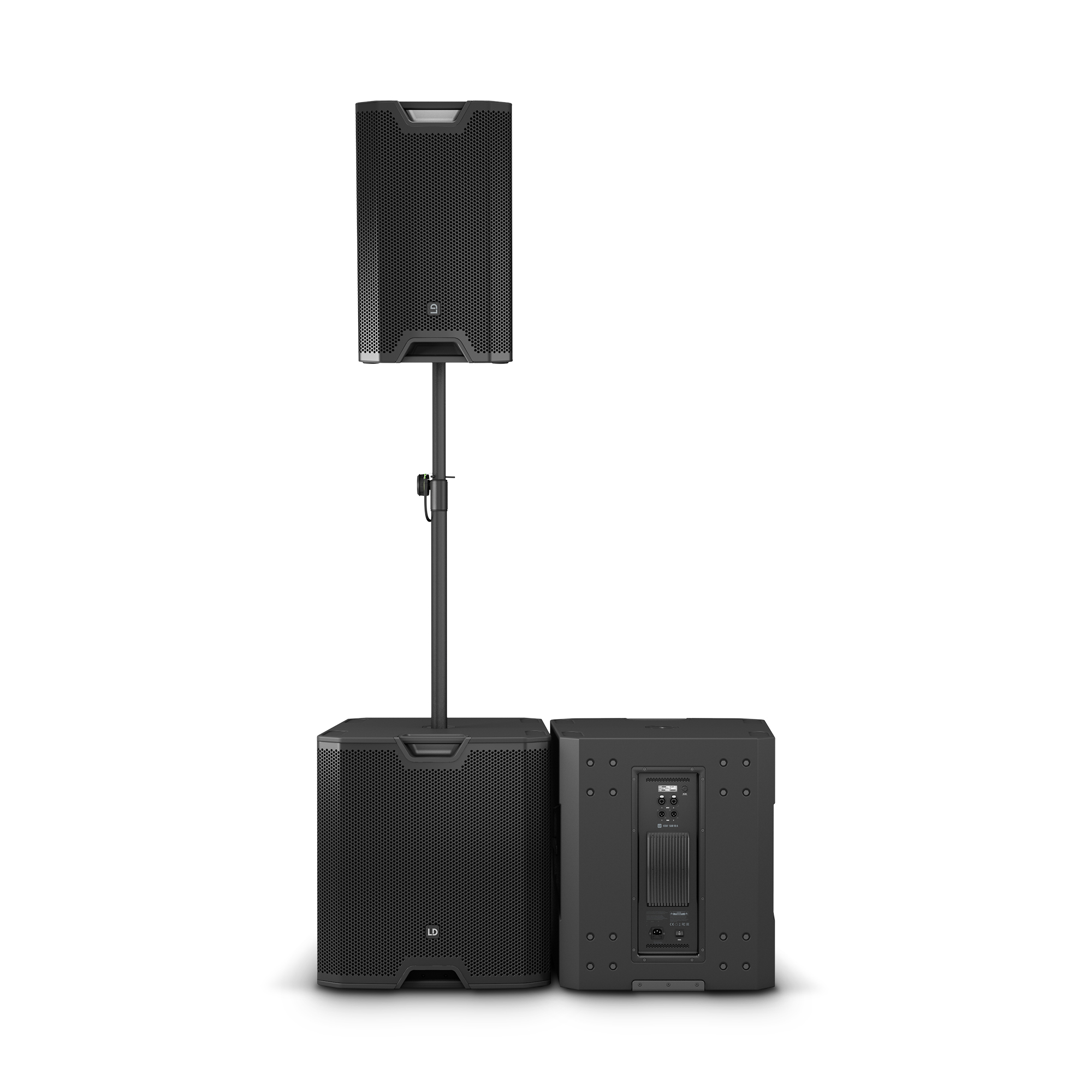

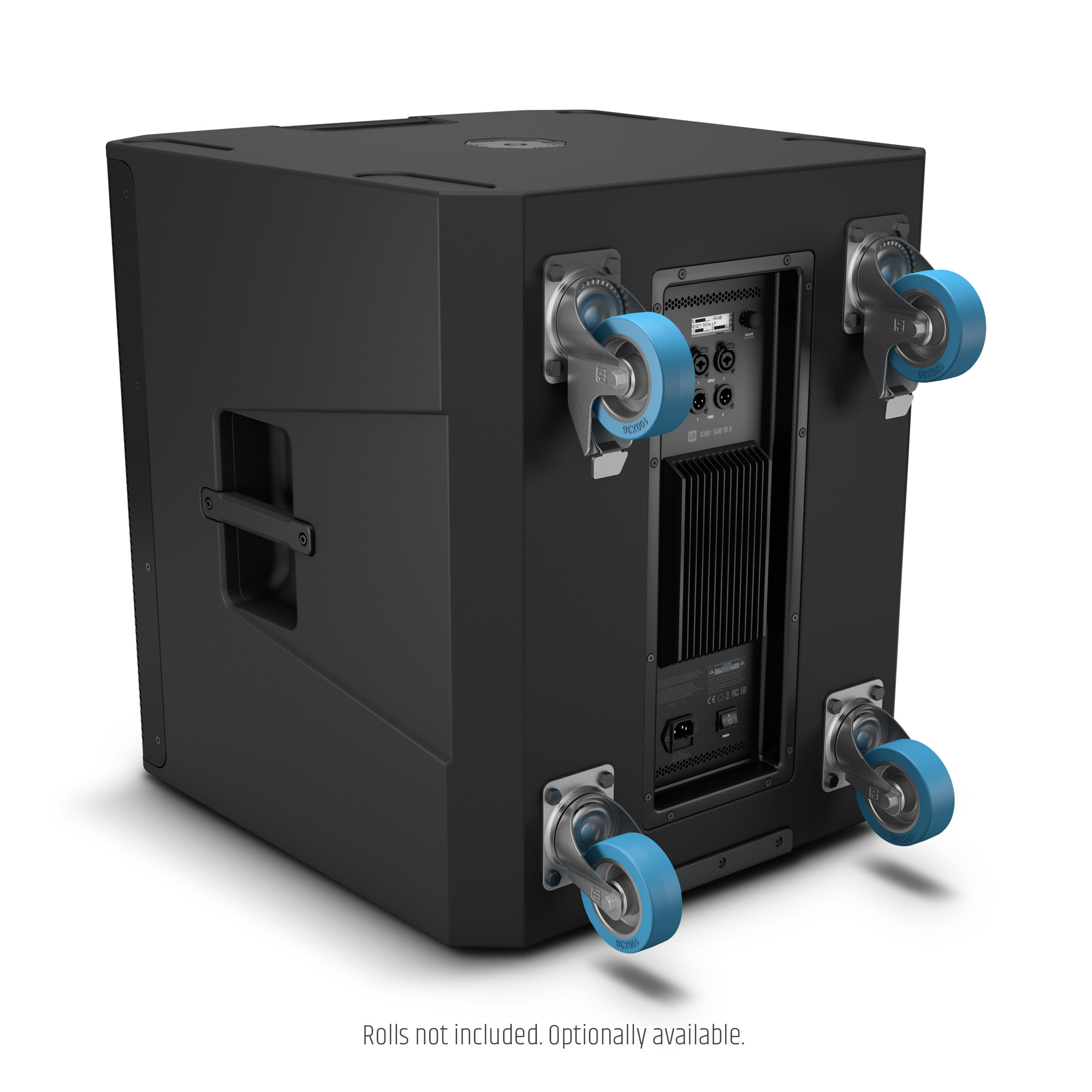

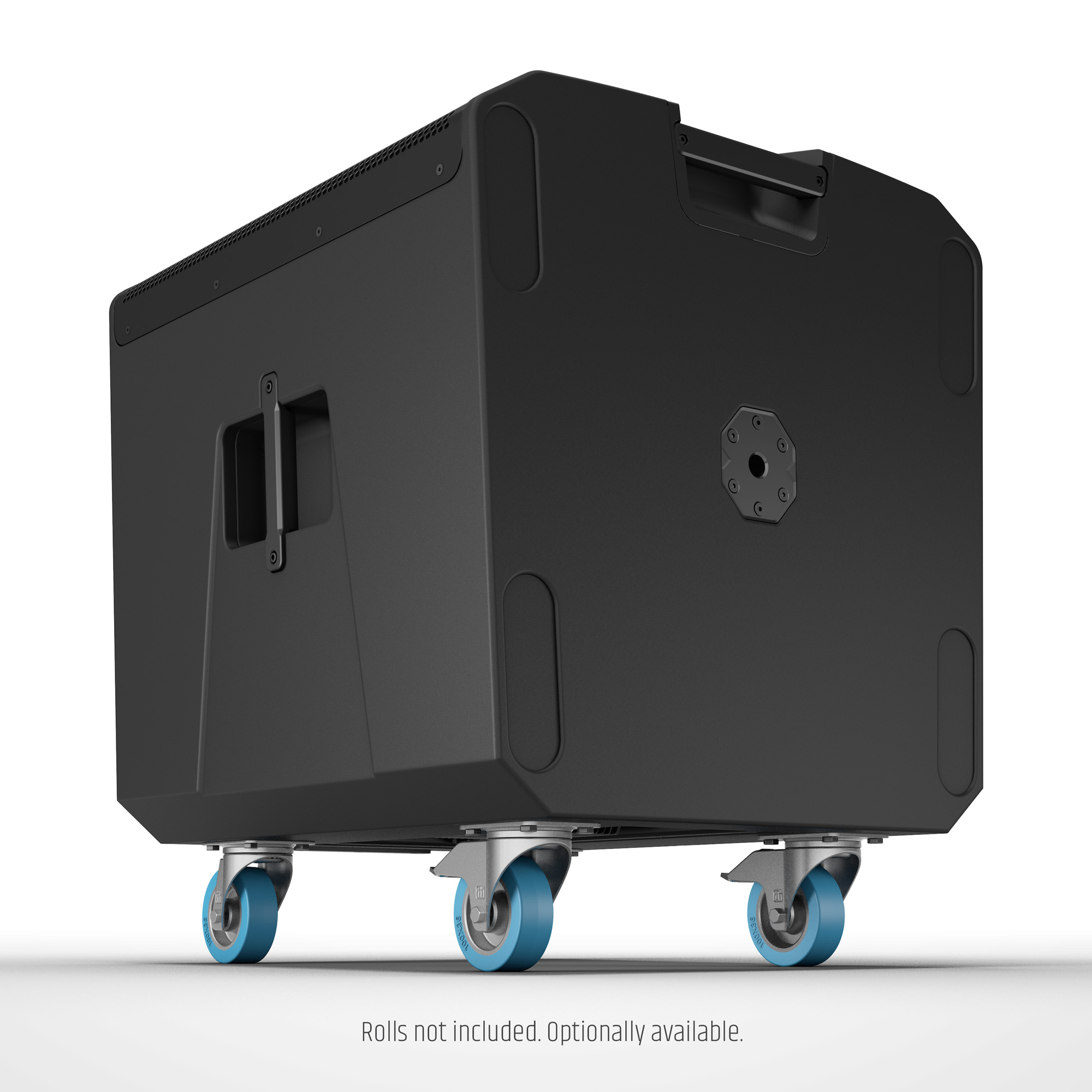

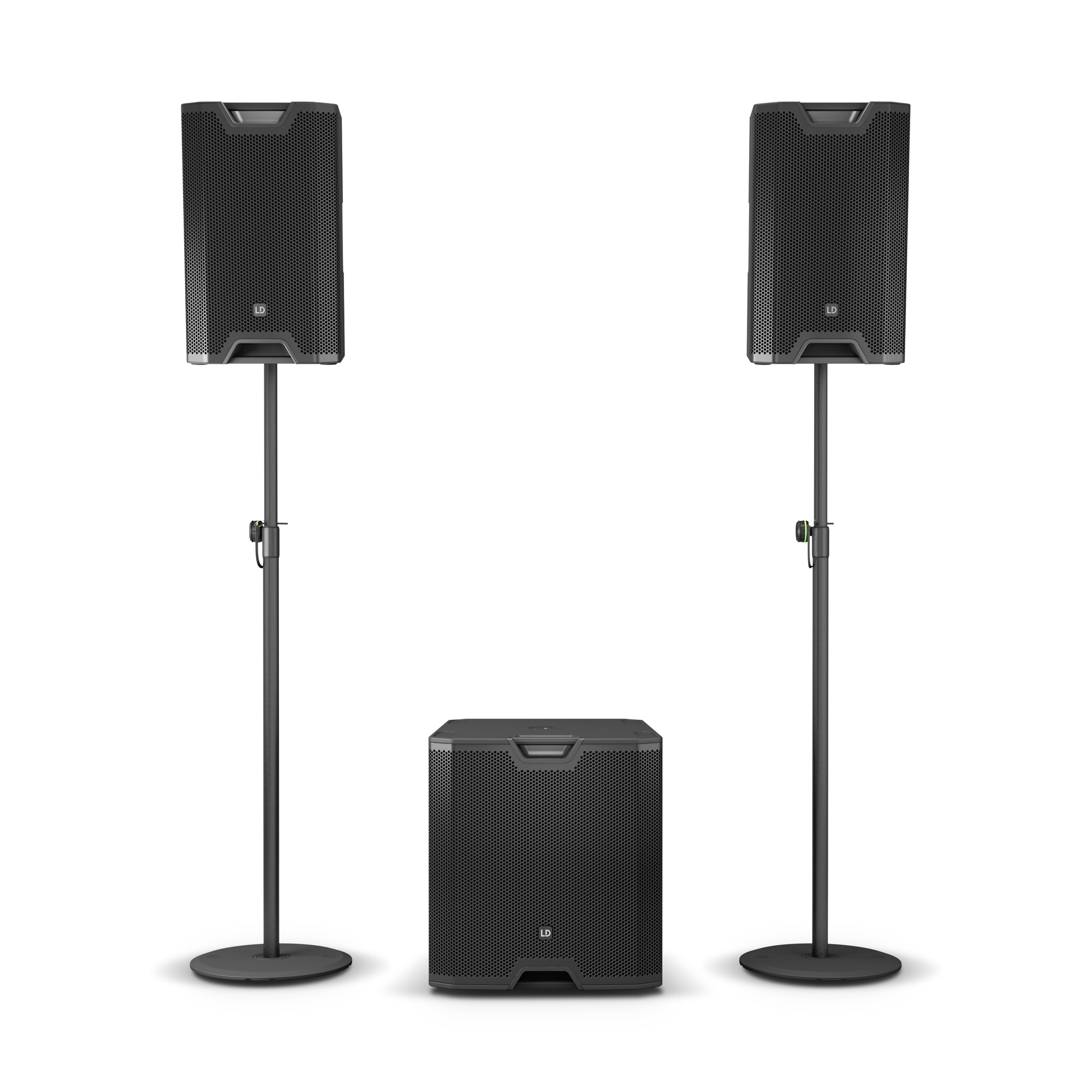

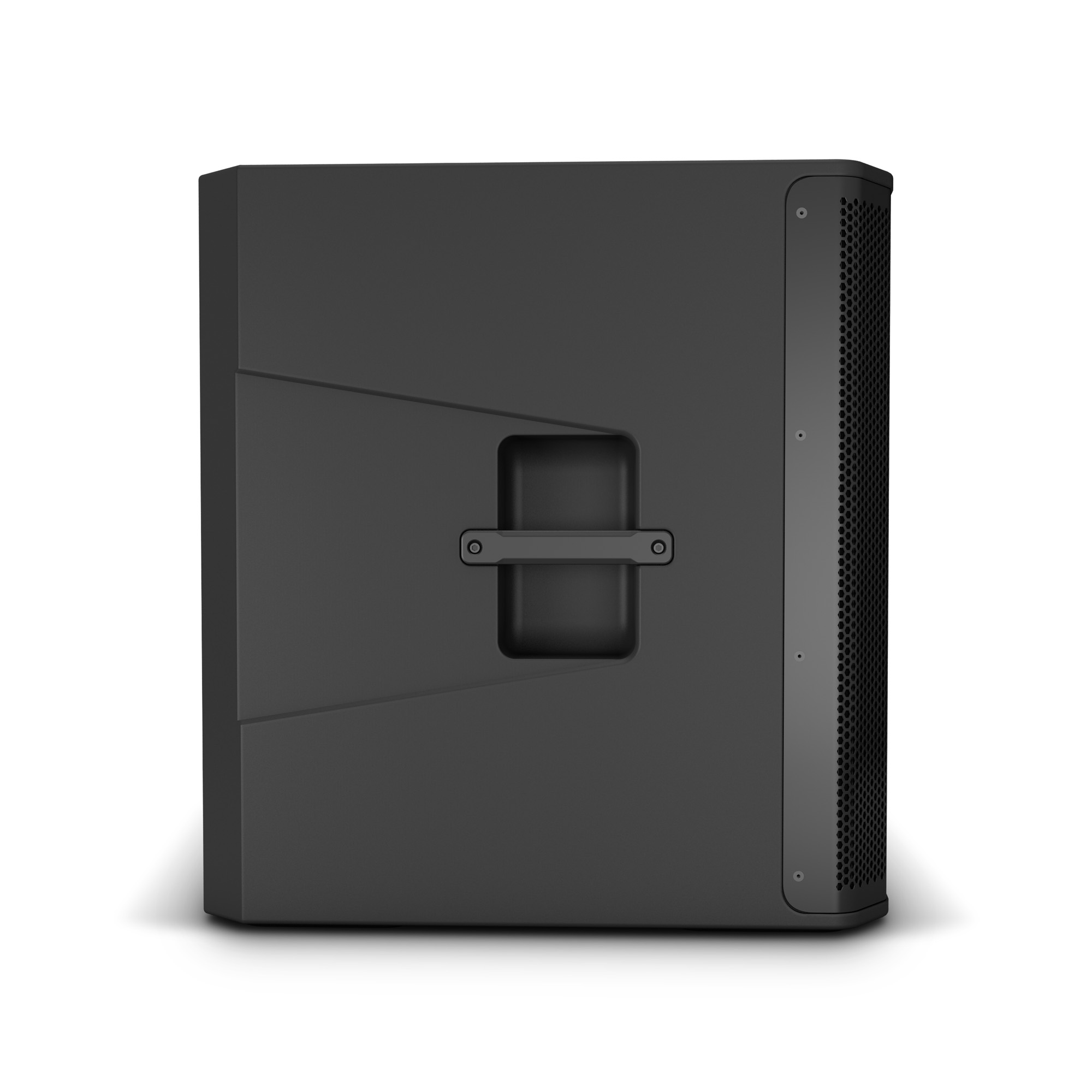

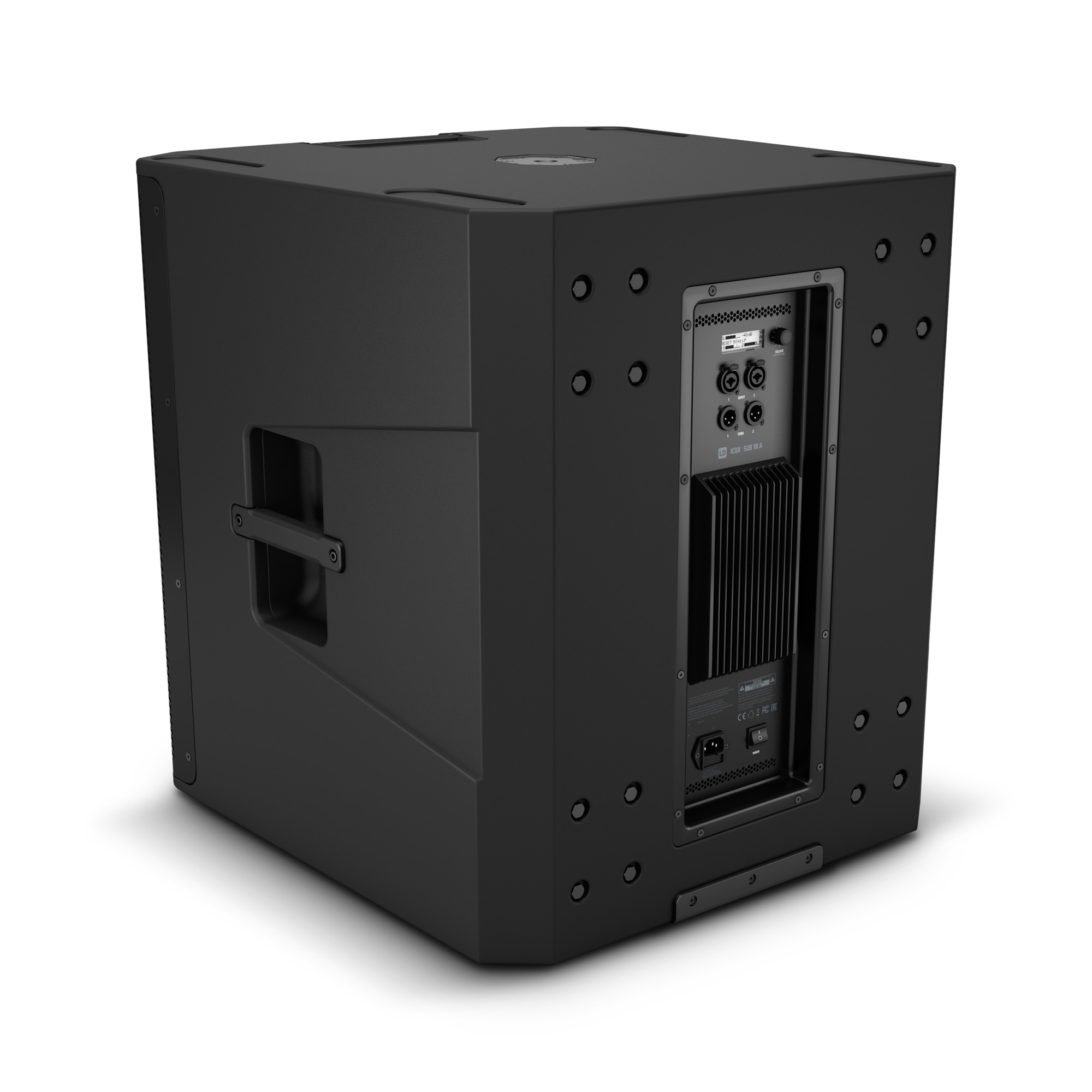

The rugged housings made of 18 mm laminated wood can be stacked, while the M20 thread on top lets you mount the main speakers using a distance pole. Transport is simplified by mounting rollers to the rear. Corner protectors guard the edges during setup. To keep the ICOA SUB from slipping out of your hands, its four aluminium grips are covered in rubber.

Whether you're a DJ, singer-songwriter, rock or party band, the ICOA SUB produces the perfect bass to complement your live music. Lectures and multimedia presentations also benefit from its clarity and powerful presence, giving you the proper support to amplify emotions in your audience.

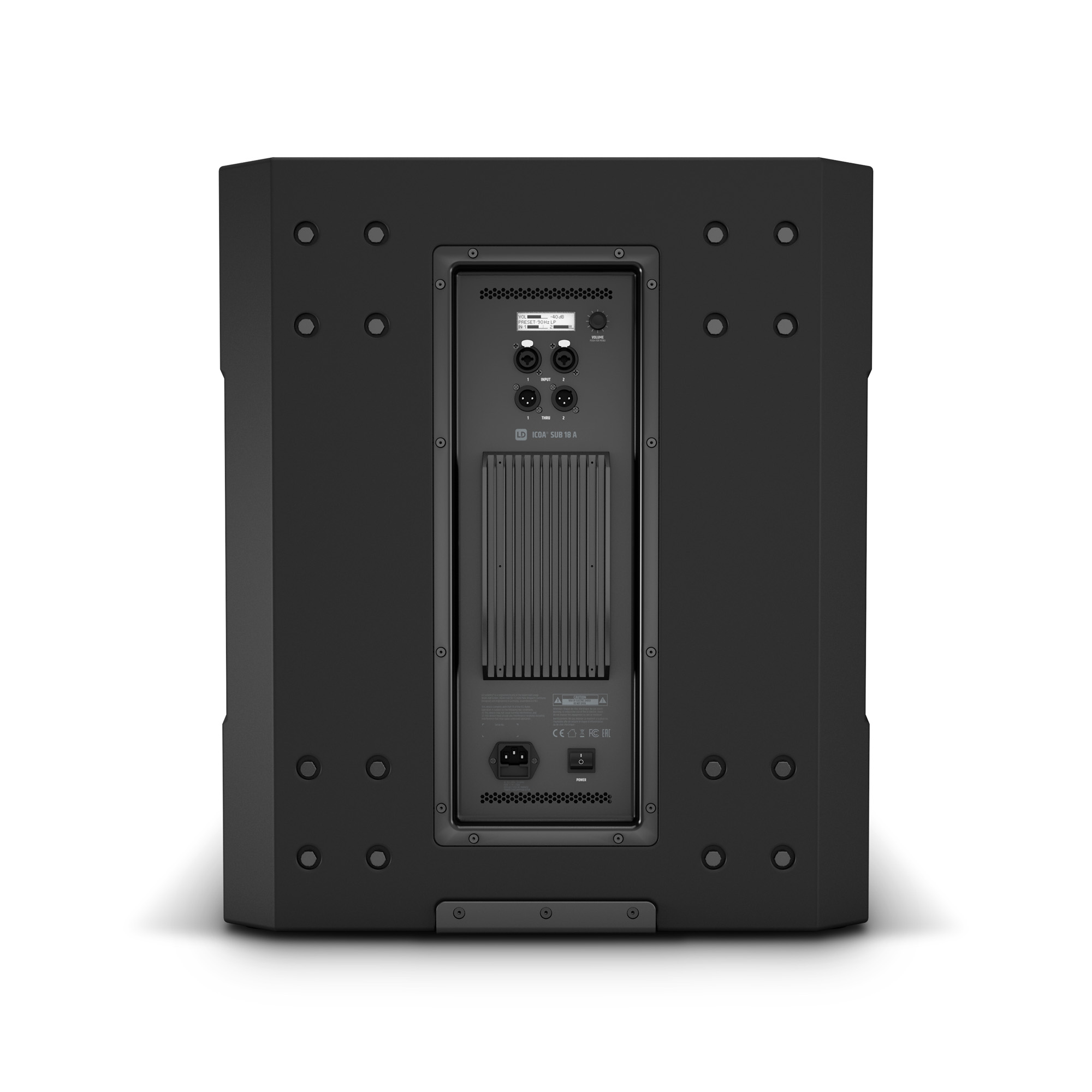

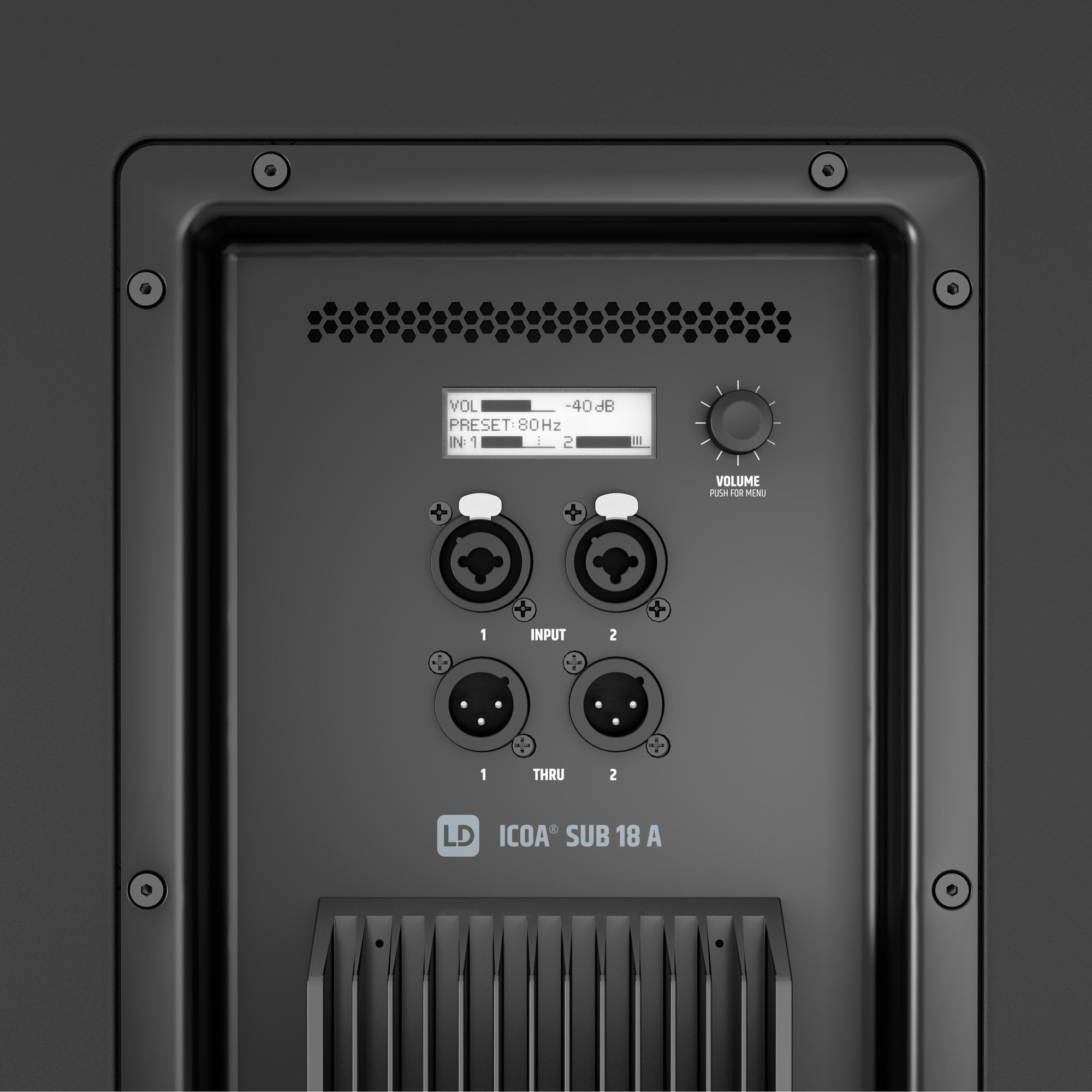

Input connector types: Standard speaker connector 4-pole male & speakON®
Max. SPL peak: 133 dB
Amp class: Class D
Peak output power: 2400 W
Output connector types: XLR 3-pole male
Protection features: Overload, Multiband Limiter, Overvoltage, Overheating
Low frequency limit: 36 Hz
RMS output power: 600 W
Colour: Black
Number of inputs: 2
Number of outputs: 2
Line-In connector type: Standard speaker connector 4-pole male & speakON®
Number of line inputs: 2
Line outputs connector type: XLR 3-pole male
Number of line outputs: 2
Sub output power per channel (RMS): 600 W
Sub output power per channel (Peak): 2400 W

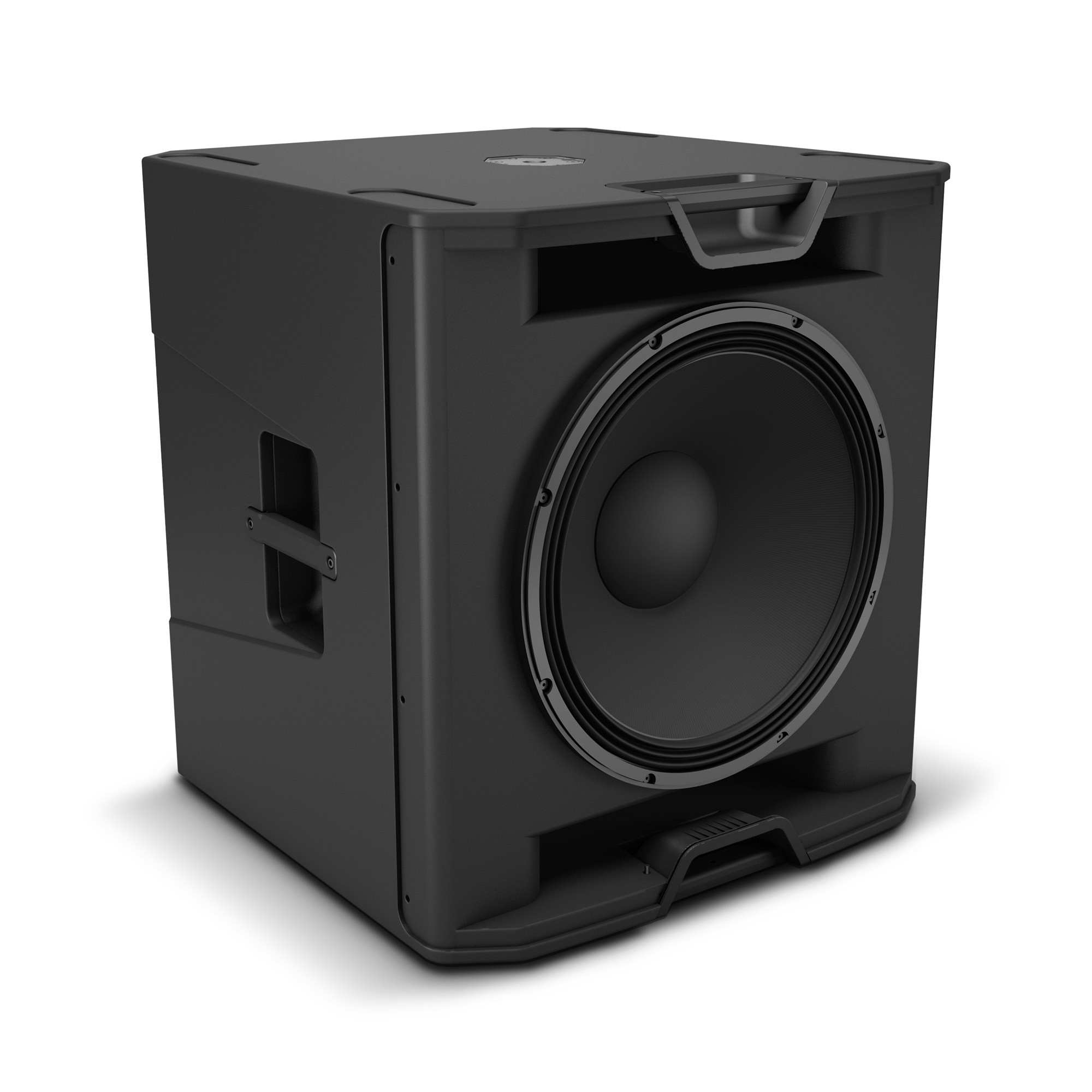

Size: 18 "
Manufacturer: Custom Made
Voice coil: 4 "
Magnet: Ferrite
Rated power: 675 W
Operation voltage: 100 V AC - 240 V AC / 50 - 60 Hz
Mains connector: Mains socket indoor power in male & powerCON®
Power supply type: Switched-mode power supply (SMPS)
Material thickness: 0.71 in
Design: Bass reflex
Number of handles: 4

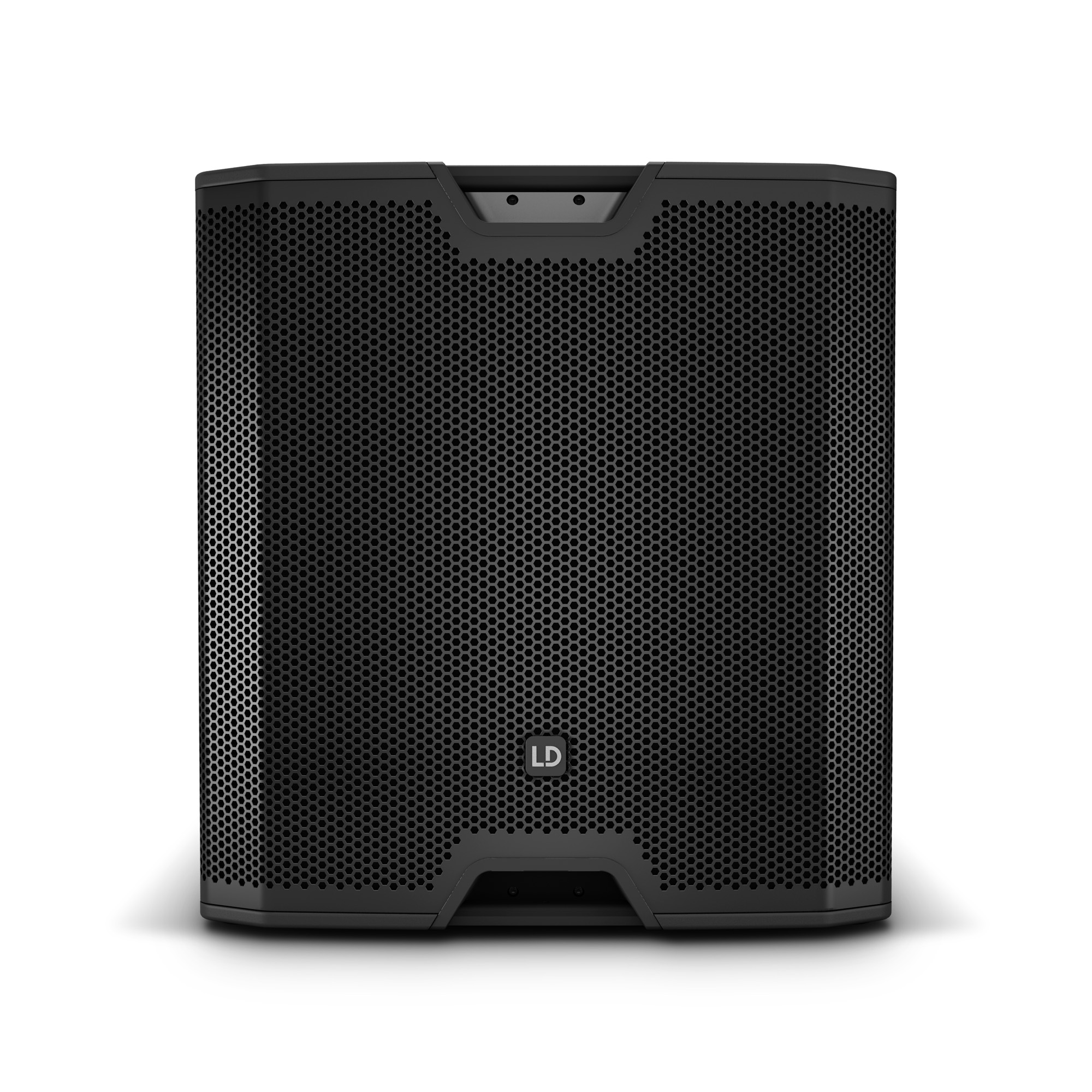

Front grille material: Aluminium
Cabinet material: Birch multiplex
Flange: M20
Ambient temperature: 0 - 40 °C
Maximum air humidity (non-condensing): 60 %
Depth: 25.08 in
Height: 26.46 in
Width: 24.65 in
Weight: 97.66 lbs
Included accessories: Mains cable

0 of 0 reviews

Average rating of 0 out of 5 stars

Leave a review!

Share your experiences with other customers.


Skip product gallery

accessories

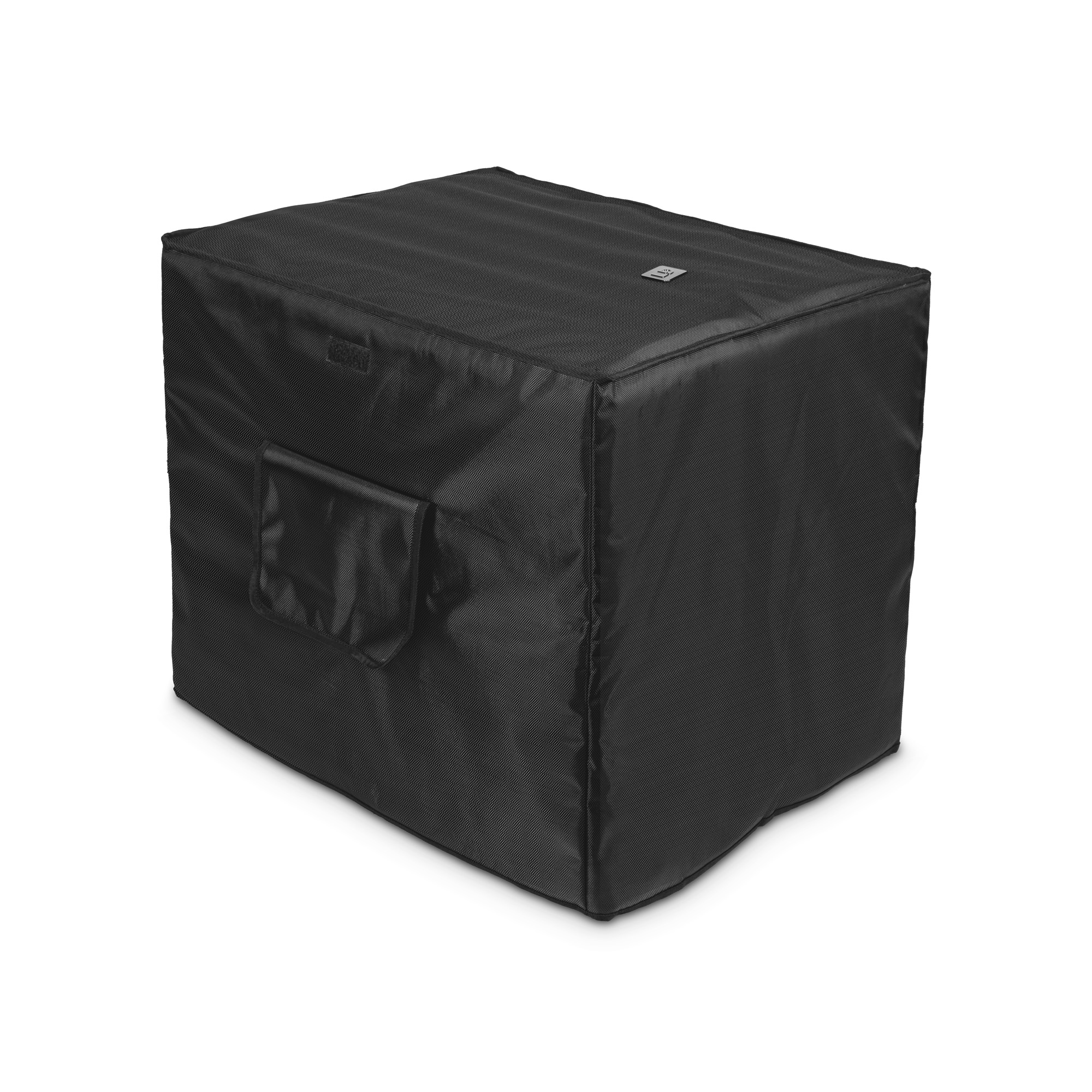

ICOA SUB 18 PC
ICOA SUB 18 PC

You now have an excellent SUB for your ICOA and, of course, you want to keep enjoying it for a long time to come. One way to make sure this happens is to protect your subwoofer using the padded protective cover designed for it, which will keep it from getting scratched up during a hectic tour.But not only that. Made of water-repellent 1680D nylon, the cover also protects your ICOA SUB from splashing liquids.Its spacious outer pocket gives you a place to conveniently keep cables and other accessories.Wishing you a lot of fun and a long life for your ICOA SUB.

$84.99*
ICOA 15 A BT W
ICOA 15 A BT W

This full-range loudspeaker impresses with its outstanding sound, even at low frequencies. The ICOA 15 a BT W A by LD Systems is a genuine all-rounder that offers unparalleled features for its class. Its coaxial design, rotating, BEM-optimised CD horn and extensive and precisely calibrated DynX DSP presets make this powered 15" loudspeaker exceptionally flexible.The outstanding bass reproduction from the horn-loaded woofer makes the LD ICOA 15 A BT W the ideal choice for musicians, bands, entertainers and dance schools. It also allows DJs to play sets without the need for a subwoofer. Deployed vertically, the speaker impresses as a satellite; horizontally, it's excellent in suspended systems or as a floor monitor. The efficient class-D power amplifier delivers 128 dB max. SPL and 1200 W peak performance. Especially the version with white housing and white front grille blends discreetly and unobtrusively into almost any environment.Drawing on DynX DSP technology by LD Systems, the speaker delivers perfect performance with maximum clarity and power under all conditions. 4 presets, a 3-band EQ and a delay function facilitate optimal adjustment of the sound to the venue conditions. The 2 line/mic input channels with individual gain controllers, plus mono mix output, allow a variety of signal sources to be connected.Thanks to its shock-resistant front grille and ideal 55° tilt angle, the LD ICOA 15 A BT W is also outstanding as a floor monitor. Placed vertically, the 36 mm dual tilt stand attachment offers the choice of a 0° or 5° tilt angle for optimally adapting the system to the local acoustic environment.Extensive and smart accessories for installation and transport are optionally available. 4 aluminium handles with an ergonomic rubber surface provide optimal grip when carrying the speaker.

$699.99*
ICOA 12 A BT
ICOA 12 A BT

This full-range loudspeaker impresses with its outstanding sound, even at low frequencies. The ICOA 12 A BT by LD Systems is a genuine all-rounder that offers unparalleled features for its class. Its coaxial design, rotating, BEM-optimised CD horn and extensive and precisely calibrated DynX DSP presets make this powered 12" loudspeaker exceptionally flexible.The outstanding bass reproduction from the horn-loaded woofer makes the LD ICOA 12 A BT the ideal choice for musicians, bands, entertainers and dance schools. It also allows DJs to play sets without the need for a subwoofer. Deployed vertically, the speaker impresses as a satellite; horizontally, it's excellent in suspended systems or as a floor monitor. The efficient class-D power amplifier delivers 126 dB max. SPL and 1200 W peak performance.Drawing on DynX DSP technology by LD Systems, the speaker delivers perfect performance with maximum clarity and power under all conditions. 4 presets, a 3-band EQ and a delay function facilitate optimal adjustment of the sound to the venue conditions. The 2 line/mic input channels with individual gain controllers, plus mono mix output, allow a variety of signal sources to be connected. The BT version offers Bluetooth® streaming and the wireless connection of playback devices - ideal for playing content from a phone or tablet.Thanks to its shock-resistant front grille and ideal 55° tilt angle, the LD ICOA 12 A BT is also outstanding as a floor monitor. Placed vertically, the 36 mm dual tilt stand attachment offers the choice of a 0° or 5° tilt angle for optimally adapting the system to the local acoustic environment.Extensive and smart accessories for installation and transport are optionally available. 4 aluminium handles with an ergonomic rubber surface provide optimal grip when carrying the speaker.

$529.99*
ICOA® 12 A
ICOA® 12 A

This full-range loudspeaker impresses with its outstanding sound, even at low frequencies. The ICOA 12 A by LD Systems is a genuine all-rounder that offers unparalleled features for its class. Its coaxial design, rotating, BEM-optimised CD horn and extensive and precisely calibrated DynX DSP presets make this powered 12" loudspeaker exceptionally flexible.The outstanding bass reproduction from the horn-loaded woofer makes the LD ICOA 12 A the ideal choice for musicians, bands, entertainers and dance schools. It also allows DJs to play sets without the need for a subwoofer. Deployed vertically, the speaker impresses as a satellite; horizontally, it's excellent in suspended systems or as a floor monitor. The efficient class-D power amplifier delivers 126 dB max. SPL and 1200 W peak performance.Drawing on DynX DSP technology by LD Systems, the speaker delivers perfect performance with maximum clarity and power under all conditions. 4 presets, a 3-band EQ and a delay function facilitate optimal adjustment of the sound to the venue conditions. The 2 line/mic input channels with individual gain controllers, plus mono mix output, allow a variety of signal sources to be connected.Thanks to its shock-resistant front grille and ideal 55° tilt angle, the LD ICOA 12 A is also outstanding as a floor monitor. Placed vertically, the 36 mm dual tilt stand attachment offers the choice of a 0° or 5° tilt angle for optimally adapting the system to the local acoustic environment.Extensive and smart accessories for installation and transport are optionally available. 4 aluminium handles with an ergonomic rubber surface provide optimal grip when carrying the speaker.

$489.99*
ICOA 12 A BT W
ICOA 12 A BT W

This full-range loudspeaker impresses with its outstanding sound, even at low frequencies. The ICOA 12 A BT W by LD Systems is a genuine all-rounder that offers unparalleled features for its class. Its coaxial design, rotating, BEM-optimised CD horn and extensive and precisely calibrated DynX DSP presets make this powered 12" loudspeaker exceptionally flexible.The outstanding bass reproduction from the horn-loaded woofer makes the LD ICOA 12 A BT W the ideal choice for musicians, bands, entertainers and dance schools. It also allows DJs to play sets without the need for a subwoofer. Deployed vertically, the speaker impresses as a satellite; horizontally, it's excellent in suspended systems or as a floor monitor. The efficient class-D power amplifier delivers 126 dB max. SPL and 1200 W peak performance. The white version with a white grille blends in subtly into any environment and doesn't distract.Drawing on DynX DSP technology by LD Systems, the speaker delivers perfect performance with maximum clarity and power under all conditions. 4 presets, a 3-band EQ and a delay function facilitate optimal adjustment of the sound to the venue conditions. The 2 line/mic input channels with individual gain controllers, plus mono mix output, allow a variety of signal sources to be connected.Thanks to its shock-resistant front grille and ideal 55° tilt angle, the LD ICOA 12 A BT W is also outstanding as a floor monitor. Placed vertically, the 36 mm dual tilt stand attachment offers the choice of a 0° or 5° tilt angle for optimally adapting the system to the local acoustic environment.Extensive and smart accessories for installation and transport are optionally available. 4 aluminium handles with an ergonomic rubber surface provide optimal grip when carrying the speaker.

$599.99*
ICOA 15 A BT
ICOA 15 A BT

This full-range loudspeaker impresses with its outstanding sound, even at low frequencies. The ICOA 15 A BT by LD Systems is a genuine all-rounder that offers unparalleled features for its class. Its coaxial design, rotating, BEM-optimised CD horn and extensive and precisely calibrated DynX DSP presets make this aktive 15" loudspeaker exceptionally flexible.The outstanding bass reproduction from the horn-loaded woofer makes the LD ICOA 15 A BT the ideal choice for musicians, bands, entertainers and dance schools. It also allows DJs to play sets without the need for a subwoofer. Deployed vertically, the speaker impresses as a satellite; horizontally, it's excellent in suspended systems or as a floor monitor. The efficient class-D power amplifier delivers 128 dB max. SPL and 1200 W peak performance.Drawing on DynX DSP technology by LD Systems, the speaker delivers perfect performance with maximum clarity and power under all conditions. 4 presets, a 3-band EQ and a delay function facilitate optimal adjustment of the sound to the venue conditions. The 2 line/mic input channels with individual gain controllers, plus mono mix output, allow a variety of signal sources to be connected. The BT version offers Bluetooth® streaming and the wireless connection of playback devices - ideal for playing content from a phone or tablet.Thanks to its shock-resistant front grille and ideal 55° tilt angle, the LD ICOA 15 A BT is also outstanding as a floor monitor. Placed vertically, the 36 mm dual tilt stand attachment offers the choice of a 0° or 5° tilt angle for optimally adapting the system to the local acoustic environment.Extensive and smart accessories for installation and transport are optionally available. 4 aluminium handles with an ergonomic rubber surface provide optimal grip when carrying the speaker.

$599.99*
ICOA 12 A W
ICOA 12 A W

This full-range loudspeaker impresses with its outstanding sound, even at low frequencies. The ICOA 12 A W by LD Systems is a genuine all-rounder that offers unparalleled features for its class. Its coaxial design, rotating, BEM-optimised CD horn and extensive and precisely calibrated DynX DSP presets make this powered 12" loudspeaker exceptionally flexible.The outstanding bass reproduction from the horn-loaded woofer makes the LD ICOA 12 A W the ideal choice for musicians, bands, entertainers and dance schools. It also allows DJs to play sets without the need for a subwoofer. Deployed vertically, the speaker impresses as a satellite; horizontally, it's excellent in suspended systems or as a floor monitor. The efficient class-D power amplifier delivers 126 dB max. SPL and 1200 W peak performance. The white version with a white grille blends in subtly into any environment and doesn't distract.Drawing on DynX DSP technology by LD Systems, the speaker delivers perfect performance with maximum clarity and power under all conditions. 4 presets, a 3-band EQ and a delay function facilitate optimal adjustment of the sound to the venue conditions. The 2 line/mic input channels with individual gain controllers, plus mono mix output, allow a variety of signal sources to be connected.Thanks to its shock-resistant front grille and ideal 55° tilt angle, the LD ICOA 12 A W is also outstanding as a floor monitor. Placed vertically, the 36 mm dual tilt stand attachment offers the choice of a 0° or 5° tilt angle for optimally adapting the system to the local acoustic environment.Extensive and smart accessories for installation and transport are optionally available. 4 aluminium handles with an ergonomic rubber surface provide optimal grip when carrying the speaker.

$569.99*
ICOA® 15 A
ICOA® 15 A

This full-range loudspeaker impresses with its outstanding sound, even at low frequencies. The ICOA 15 A by LD Systems is a genuine all-rounder that offers unparalleled features for its class. Its coaxial design, rotating, BEM-optimised CD horn and extensive and precisely calibrated DynX DSP presets make this powered 15" loudspeaker exceptionally flexible.The outstanding bass reproduction from the horn-loaded woofer makes the LD ICOA 15 A the ideal choice for musicians, bands, entertainers and dance schools. It also allows DJs to play sets without the need for a subwoofer. Deployed vertically, the speaker impresses as a satellite; horizontally, it's excellent in suspended systems or as a floor monitor. The efficient class-D power amplifier delivers 128 dB max. SPL and 1200 W peak performance.Drawing on DynX DSP technology by LD Systems, the speaker delivers perfect performance with maximum clarity and power under all conditions. 4 presets, a 3-band EQ and a delay function facilitate optimal adjustment of the sound to the venue conditions. The 2 line/mic input channels with individual gain controllers, plus mono mix output, allow a variety of signal sources to be connected.Thanks to its shock-resistant front grille and ideal 55° tilt angle, the LD ICOA 15 A is also outstanding as a floor monitor. Placed vertically, the 36 mm dual tilt stand attachment offers the choice of a 0° or 5° tilt angle for optimally adapting the system to the local acoustic environment.Extensive and smart accessories for installation and transport are optionally available. 4 aluminium handles with an ergonomic rubber surface provide optimal grip when carrying the speaker.

$549.99*
ICOA® 15 A W
ICOA® 15 A W

This full-range loudspeaker impresses with its outstanding sound, even at low frequencies. The ICOA 15 A W by LD Systems is a genuine all-rounder that offers unparalleled features for its class. Its coaxial design, rotating, BEM-optimised CD horn and extensive and precisely calibrated DynX DSP presets make this powered 15" loudspeaker exceptionally flexible.The outstanding bass reproduction from the horn-loaded woofer makes the LD ICOA 15 A W the ideal choice for musicians, bands, entertainers and dance schools. It also allows DJs to play sets without the need for a subwoofer. Deployed vertically, the speaker impresses as a satellite; horizontally, it's excellent in suspended systems or as a floor monitor. The efficient class-D power amplifier delivers 128 dB max. SPL and 1200 W peak performance. Especially the version with white housing and white front grille blends discreetly and unobtrusively into almost any environment.Drawing on DynX DSP technology by LD Systems, the speaker delivers perfect performance with maximum clarity and power under all conditions. 4 presets, a 3-band EQ and a delay function facilitate optimal adjustment of the sound to the venue conditions. The 2 line/mic input channels with individual gain controllers, plus mono mix output, allow a variety of signal sources to be connected.Thanks to its shock-resistant front grille and ideal 55° tilt angle, the LD ICOA 15 A W is also outstanding as a floor monitor. Placed vertically, the 36 mm dual tilt stand attachment offers the choice of a 0° or 5° tilt angle for optimally adapting the system to the local acoustic environment.Extensive and smart accessories for installation and transport are optionally available. 4 aluminium handles with an ergonomic rubber surface provide optimal grip when carrying the speaker.

$359.99*

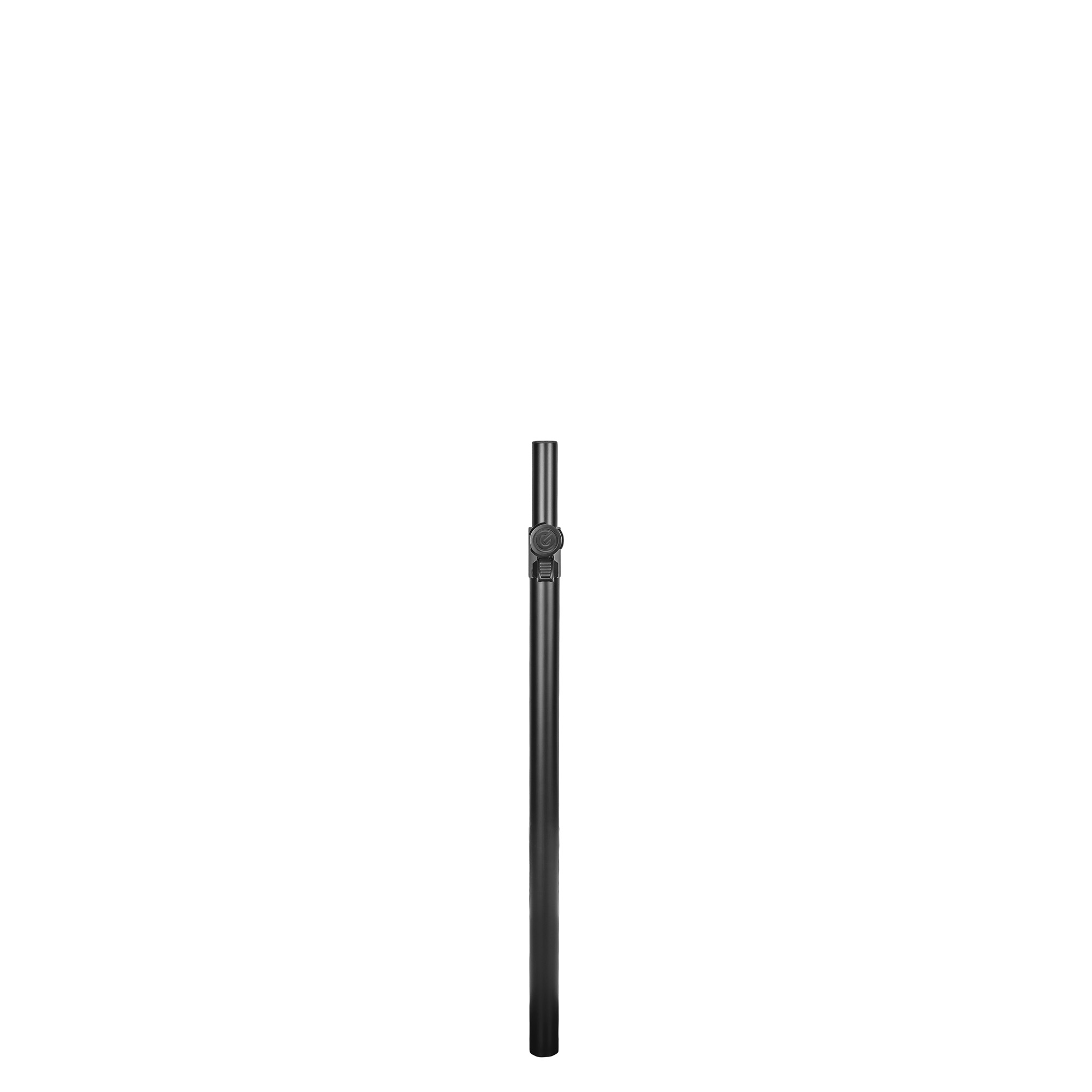

TSP 2332 B
