CURV 500 SLA W
SmartLink Adapter for up to six LD CURV 500® Satellites, white
$89.99
Backordered – More on the Way!
Product information "CURV 500 SLA W"

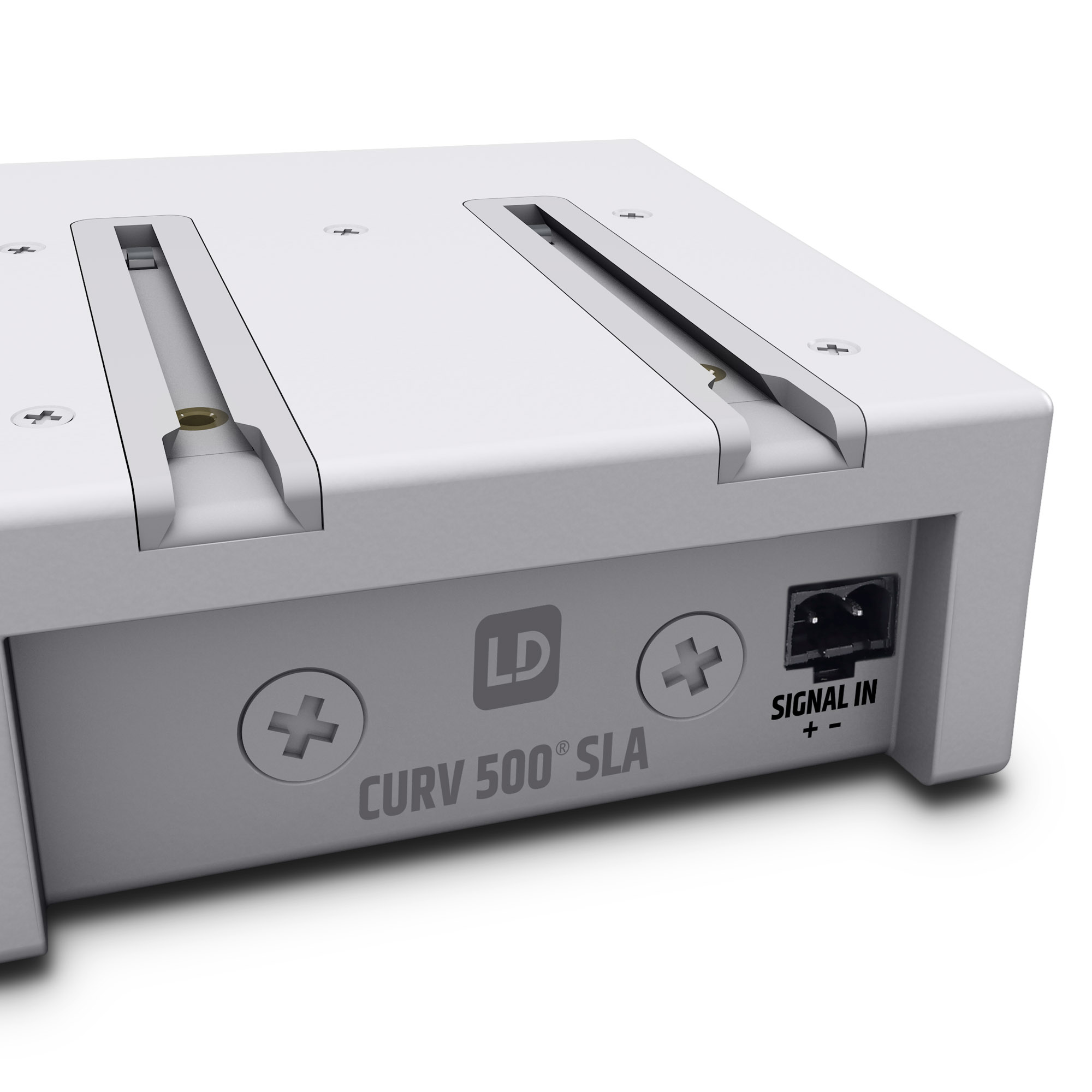

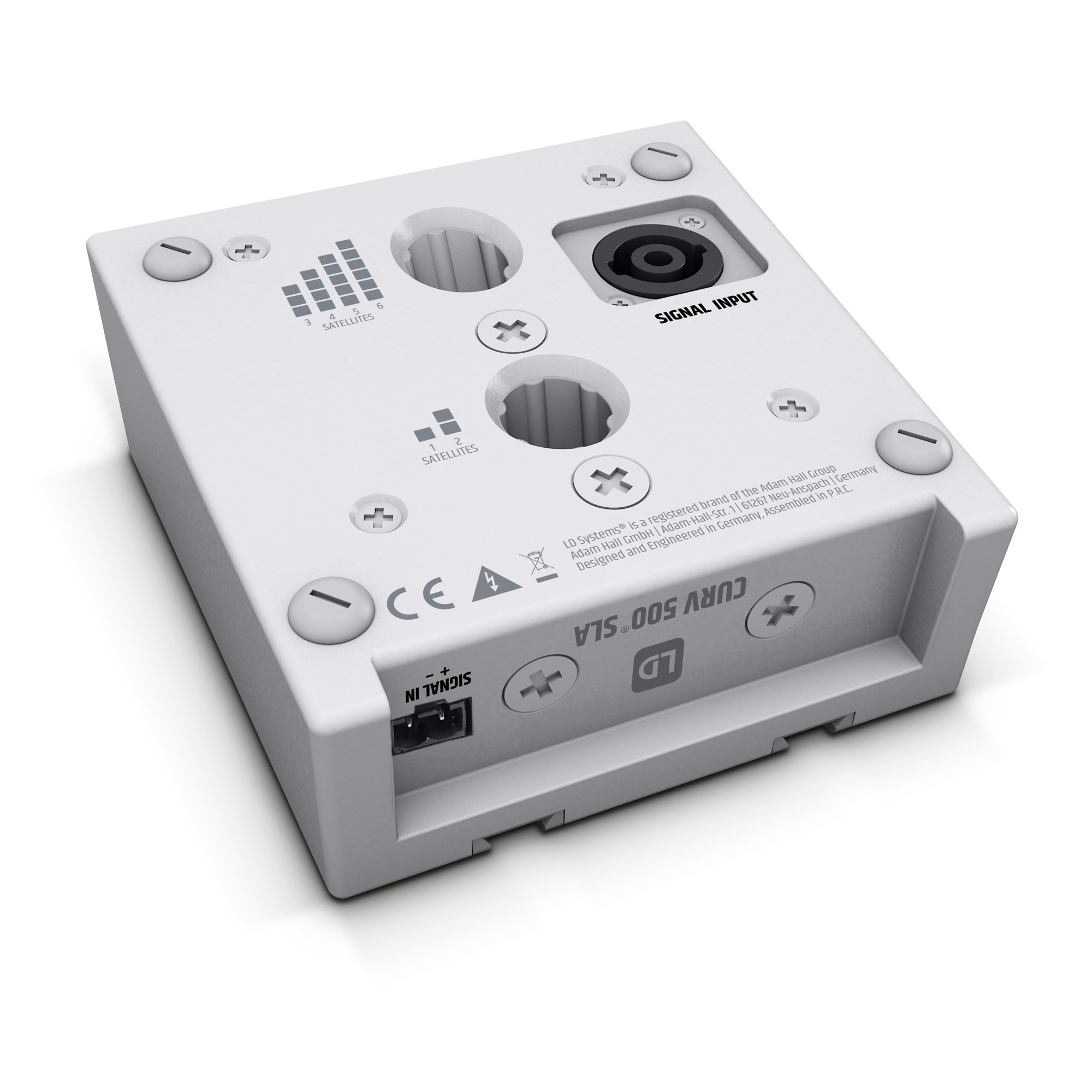

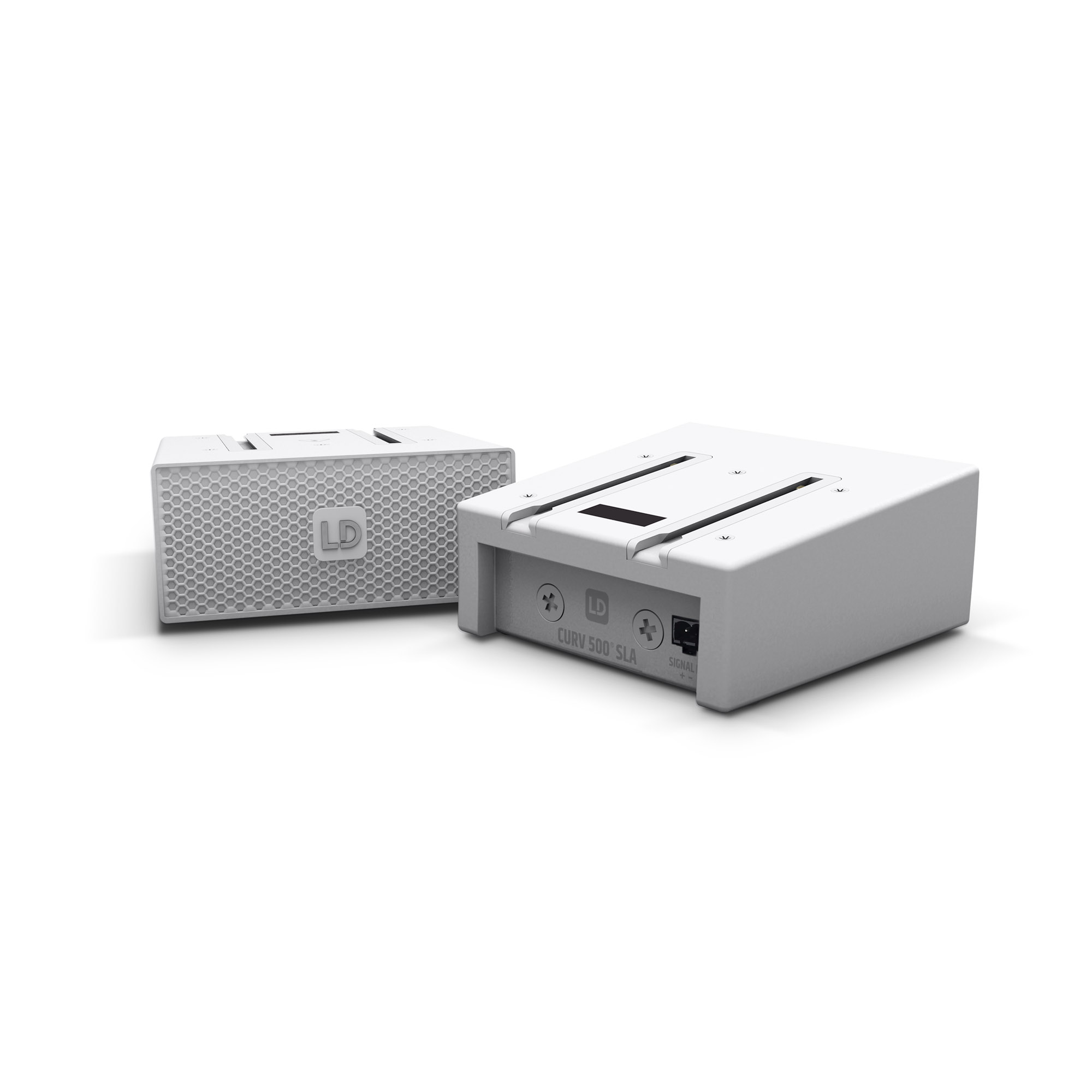

The innovative SmartLink® Adapter is the perfect base for the CURV 500® system. With the patented click mechanism, up to 6 satellites can be connected with each other, without the need for any cables. Two 16 mm flanges allow for different angles on the stand. So, depending on the assembly option, an optimised sound is possible. Four M6 threads for wall mounting, four M3 threads for the ceiling and four rubber feet provide a wide range of possibilities. Thanks to the Speakon-compatible socket and the terminal block, two input variants are available. In case of ceiling mounting, the LD Systems logo simply rotates. The powder-coated cabinet made of die-cast aluminium, with dimensions of 122 x 57 x 122 mm, weighs 0.54 kg.
| Depth: | 2.24 in |
|---|---|
| Width: | 4.8 in |
| Height: | 2.24 in |
| Connectors: | 1x Phoenix, 1x Speakon compatible |
| Material: | Die-cast aluminium |
| Color: | white |
| Features: | 2x M6 thread for optional wall mount, 2 x 16 mm flanges |
| Type: | Smartlink® Adapter |
| Surface: | Powder-coated |
| Product type: | PA Complete Systems Accessories |
Login
accessories
The LD Systems CURV® 500 truss mount set is custom designed to mate with the CURV® 500 SmartLink adapter. Made of powder-coated aluminium, it clamps the adapter and satellite assembly to trusses or crossbars. The set includes a eyebolt to secure the CURV satellites attached to the adapter in accordance with BGV C1.
This accessory package is suitable for extension or addition to an existing CURV 500®. These 12 x 12 cm satellites made with white die-cast aluminium produce excellent sound. This is due to a 4-inch woofer and three 1-inch tweeters. Thanks to the LD Systems-developed WaveAhead® technology, whereby the tweeters are connected vertically before the high-performance full-range speakers, a perfect sound mix and distribution are achieved. The 110 degrees horizontal dispersion angle is very wide and is limited vertically to 10 degrees per satellite - which reduces reflections on ceilings and floors. A passive crossover at 2500 Hz ensures an optimum allocation of the frequency spectrum. The patented SmartLink® coupling mechanism allows you to wirelessly connect up to four array satellites to a unit in seconds. Robust metal grilles with an acoustic material scrim protect the robust satellites’ drivers, each with 16 ohms impedance and a weight of 1.73 kg. The matt-black powder-coated surface is resilient and gives the satellite an elegant look. An M3 screw connection for the safety cable is available for permanent installations.
Providing tightly focused long-throw coverage, the CURV 500® Duplex Satellite expands the system’s configuration options in on-stage applications and fixed installations. The unique unibody enclosure of die cast aluminium features two 4" midrange drivers and six 1" high frequency drivers with patented WaveAhead® technology delivering balanced high-definition audio. The Duplex is primarily intended for creating spiral arrays in combination with multiple standard satellites making up the bottom curvature. This allows you to configure the system for optimum coverage throughout the listening area from front to rear. The CURV 500® Duplex is ready for cableless SmartLink® plug-and-play connection and available in black (LDCURV500DSAT) or white (LDCURV500DSATW).
This custom designed CURV 500® wall mount holds up to six standard CURV 500® satellites or three Touring Set duplex satellites attached to the system’s SmartLink adapter. Providing optimum speaker orientation, the adjustable tilt and swivel construction is made of powder coated steel and and aluminium.
This custom designed CURV 500® wall mount holds up to six standard CURV 500® satellites or three Touring Set duplex satellites attached to the system’s SmartLink adapter. Providing optimum speaker orientation, the adjustable tilt and swivel construction is made of powder coated steel and and aluminium.
This pluggable screw terminal block is a replacement connector for the Curv 500® SmartLink adapter. It is suitable for loudspeaker cables with a maximum conductor cross section of 1.5 mm².
