CURV 500 S2 W

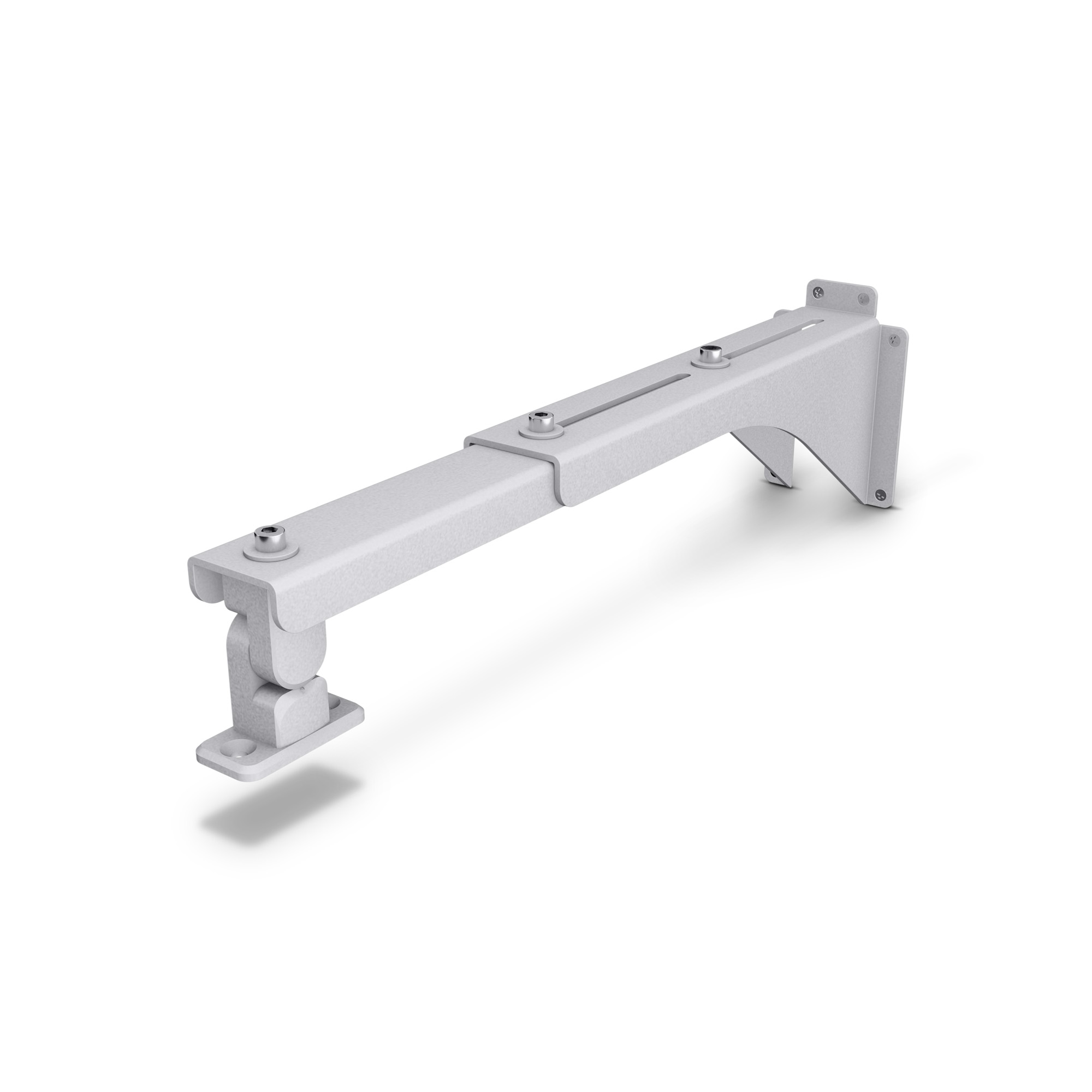

This custom designed CURV 500® wall mount holds up to six standard CURV 500® satellites or three Touring Set duplex satellites attached to the system’s SmartLink adapter. Providing optimum speaker orientation, the adjustable tilt and swivel construction is made of powder coated steel and and aluminium.

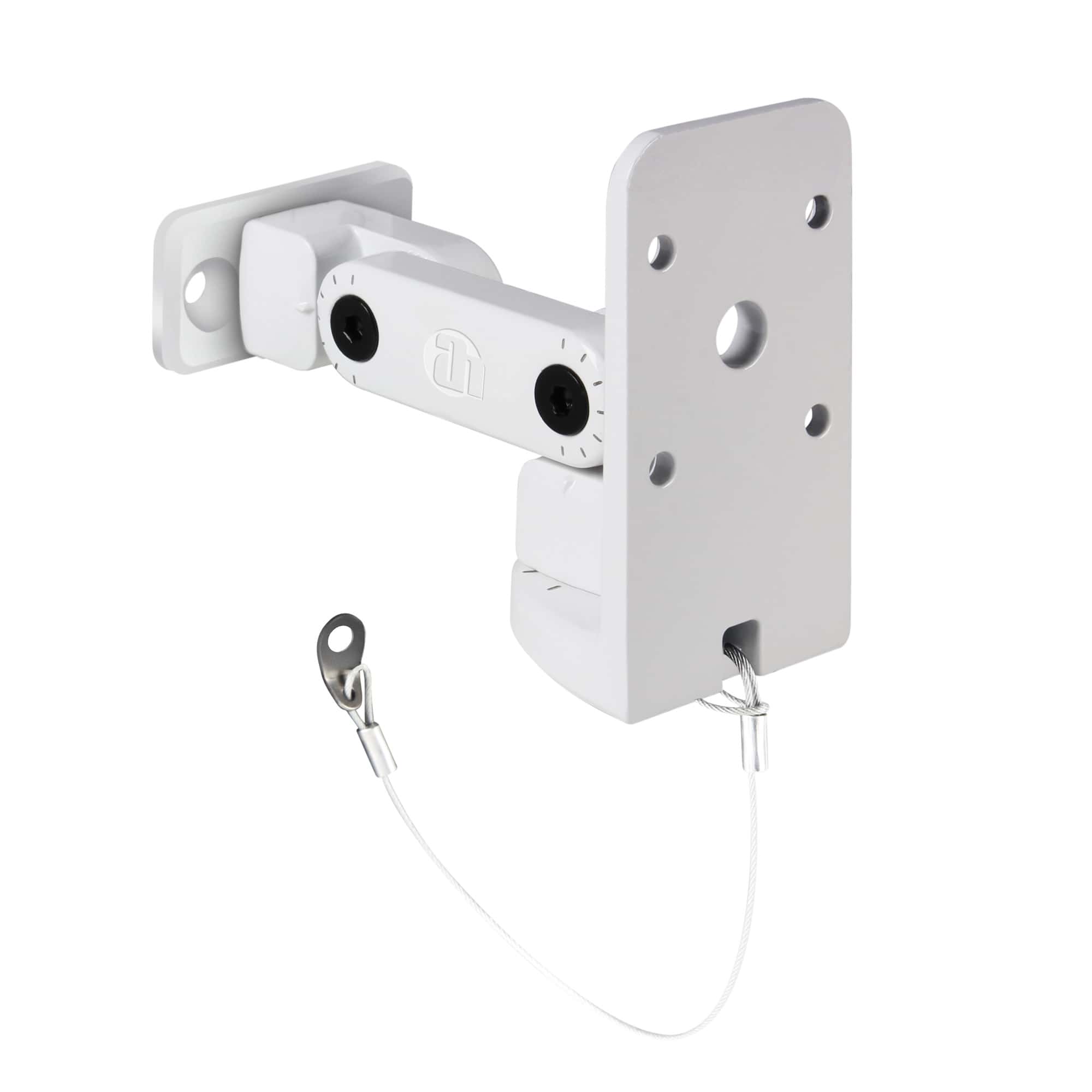

The LD Systems CURV 500® mounting bracket is designed to mate with the CURV 500 SmartLink adapter. It is made of powder coated die cast aluminium, is fully adjustable on all axes and can therefore be individually aligned. It includes a 20 cm steel safety rope to secure the CURV 500® satellites attached to the SmartLink adapter in accordance with BGV C1.Note: Under the statutory provisions (BGV C1 § 7 "Protection against falling objects") speakers must additionally be secured for attachment to a wall bracket by means of a steel rope, for example.

The innovative SmartLink® Adapter is the perfect base for the CURV 500® system. With the patented click mechanism, up to 6 satellites can be connected with each other, without the need for any cables. Two 16 mm flanges allow for different angles on the stand. So, depending on the assembly option, an optimised sound is possible. Four M6 threads for wall mounting, four M3 threads for the ceiling and four rubber feet provide a wide range of possibilities. Thanks to the Speakon-compatible socket and the terminal block, two input variants are available. In case of ceiling mounting, the LD Systems logo simply rotates. The powder-coated cabinet made of die-cast aluminium, with dimensions of 122 x 57 x 122 mm, weighs 0.54 kg.

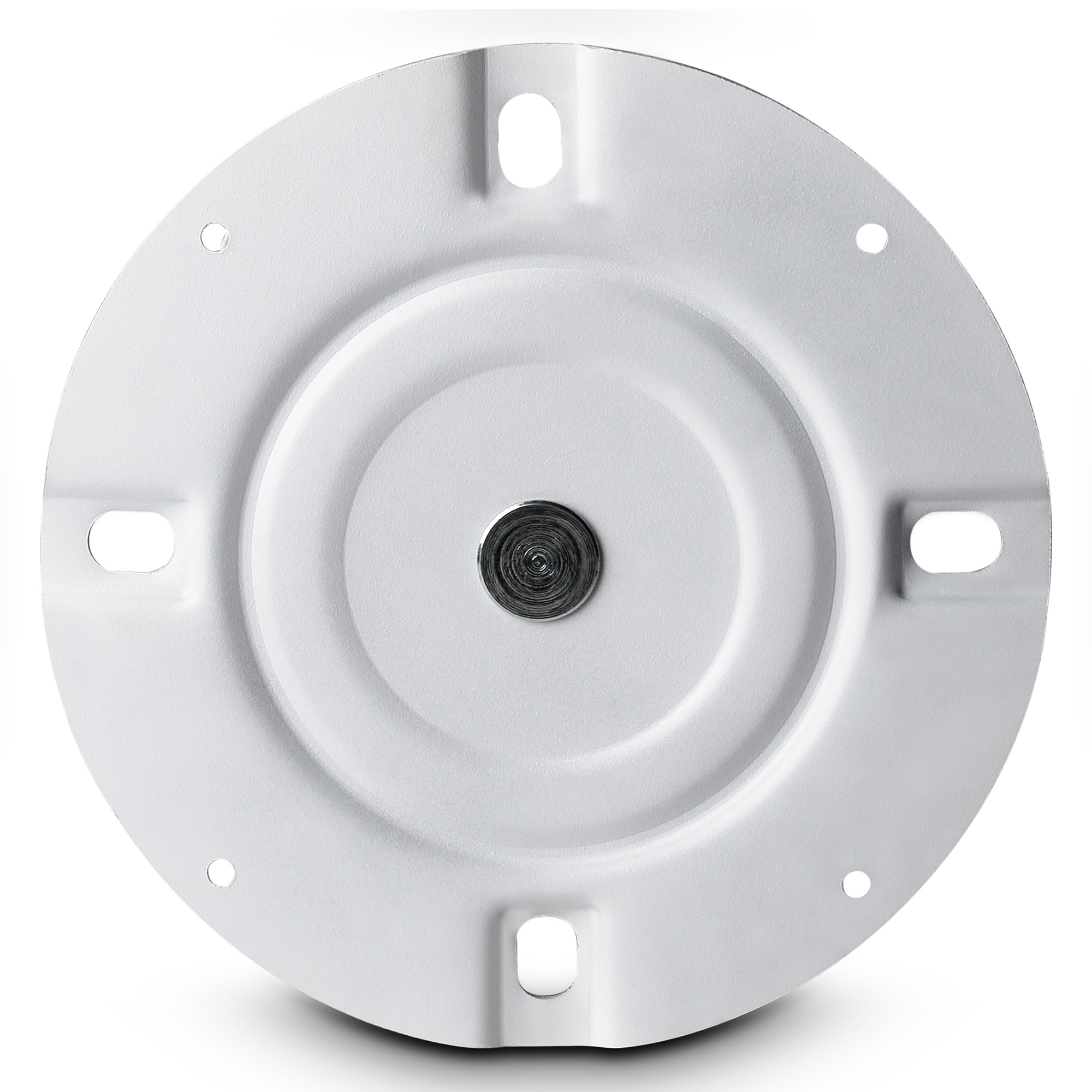

The LD Systems CURV 500® ceiling mount bracket is custom designed to mate with the CURV 500® SmartLink adapter. It is made of powder coated steel, 360° rotatable and allows for a very low ceiling clearance to the speaker (only 15 mm). The bracket comes with a 20 cm safety rope to secure the CURV satellites attached to the adapter in accordance with BGV C1. Available in black or white.Note: Under the statutory provisions (BGV C1 § 7 "Protection against falling objects") speakers must additionally be secured for attachment to a wall bracket by means of a steel rope, for example.

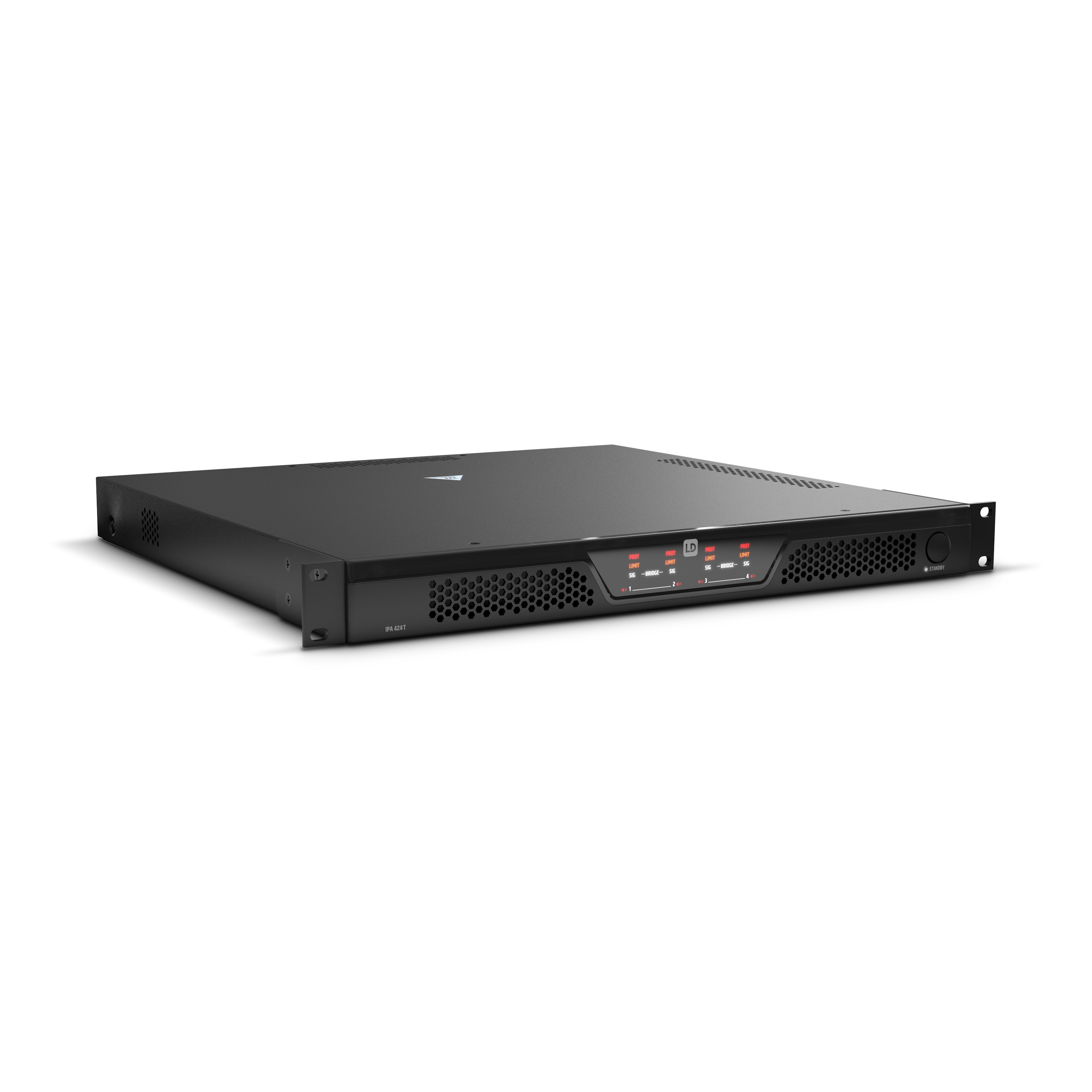

Good sound belongs everywhere - in the hotel lobby, in conference rooms, in schools and houses of worship. Demands are constantly increasing, not only in terms of quality, but also in terms of flexibility. Permanently installed and still flexible? This apparent contradiction can be resolved by the IPA Series DSP-based installation amplifiers.The IPA 424 T is a professional, four-channel installation power amplifier with 4 x 240 watts. While the 70V/100V outputs are equipped with high quality toroidal core transformers, the low impedance 4-Ohm outputs are completely transformerless and guarantee the highest possible audio quality. The DSP functions include, amongst others, a parametric EQ with matching speaker library, dynamic tools, a matrix mixer, priority source selection and delay.Despite this range of functions, the IPA Series power amps are easy to operate. Important functions such as signal, limit, protection and bridge mode are easily visible via the LEDs on the front panel.HPF/LPF presets can be enabled directly on the device via DIP switches. The IPA 424 T is already prepared for remote control using future remote panels and paging microphones from LD Systems. The back-panel slot provides expansion card connectivity for additional future-proofing. The Ethernet card offers comprehensive configurability and management via software. The Ethernet+Dante card also offers Dante audio networking capabilities and connection to a wide range of Dante-enabled devices, in order to integrate the IPA 424 T into the Dante network and resolve more complex tasks.Times are changing; rooms are redivided or rededicated, numbers of attendees increase or decrease based on unforeseen events, but with the IPA Series DSP-supported power amps, your installation is prepared for any situation. Scalability and future-proofing are the biggest advantages of the IPA Series. Its energy efficiency is also ideal thanks to the class-D technology and switchable auto standby.The IPA 412 T variant with 4 x 120 watts is available for smaller installations.

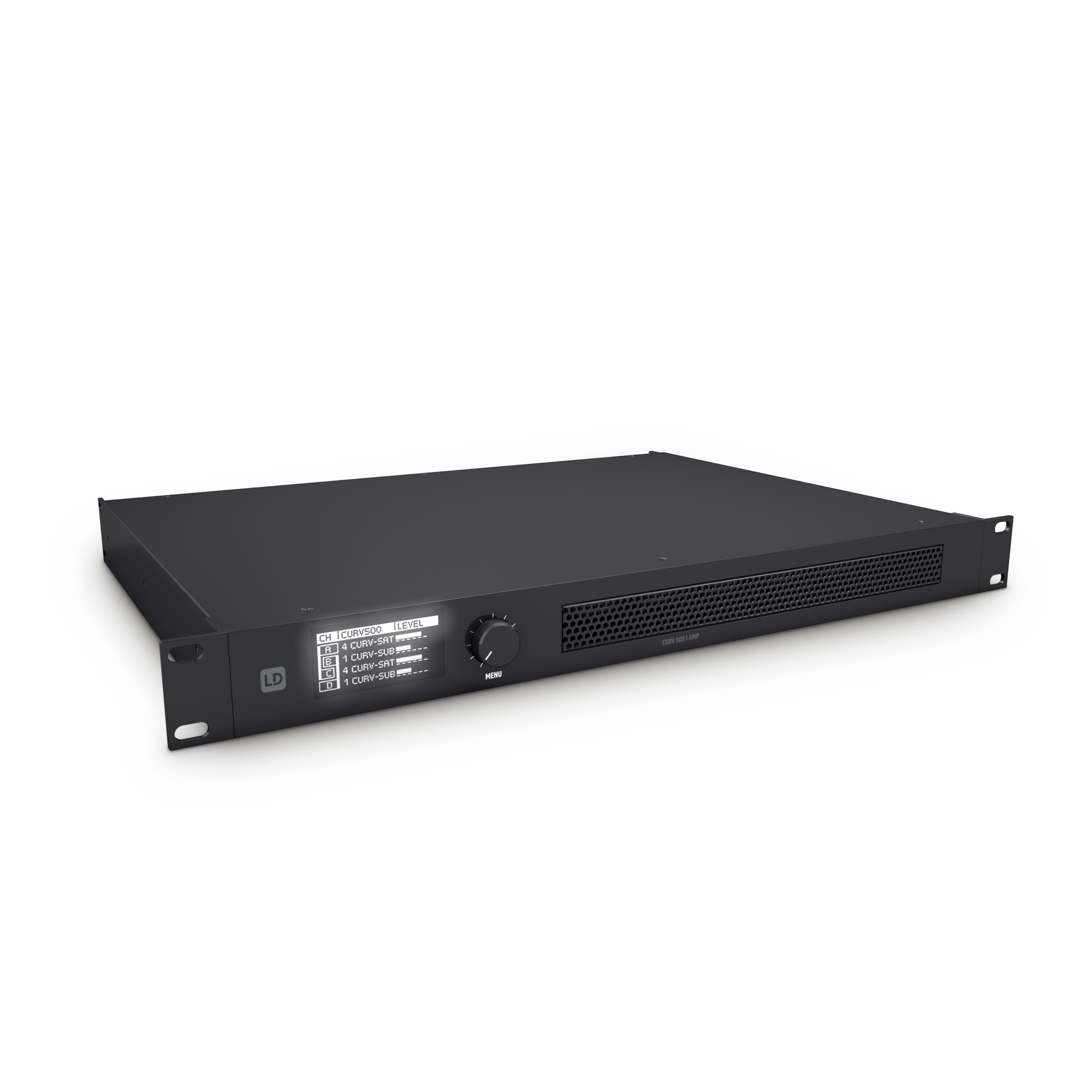

Purpose-designed for CURV 500® installations the I AMP is a low-profile 4-channel Class D rackmount amplifier with high-efficiency switch mode power supply and 10 Hz – 22 kHz frequency response. Sporting DSP control with presets for various satellite and subwoofer configurations, delay and parametric EQ each channel delivers 240 watts RMS at 4 ohms with less than 0.01% THD.Operating the I AMP is simple and intuitive with just a single push encoder and easily readable high-contrast OLED display. It features a soft start circuit, DC, overcurrent, thermal and short circuit protection plus a temperature controlled low- noise fan. Input is on balanced XLR and terminal block connectors. The I AMP is capable of driving up to six CURV 500® satellites or one CURV500ISUB subwoofer per channel providing terminal block and speakON-compatible output connectors.

This version of the SmartLink® adapter allows up to 4 Curv 500® satellites to be operated as an ELA system with 70 or 100 volts per adapter. It has an input for a 2-pin screw connector. The integrated transformer offers a selection of four 10 to 80 W output taps. The adapter is available in black (LDCURV500SLAT) or white (LDCURV500SLAWT); wall and ceiling holders from the Curv 500® accessory range make for straightforward installation.
