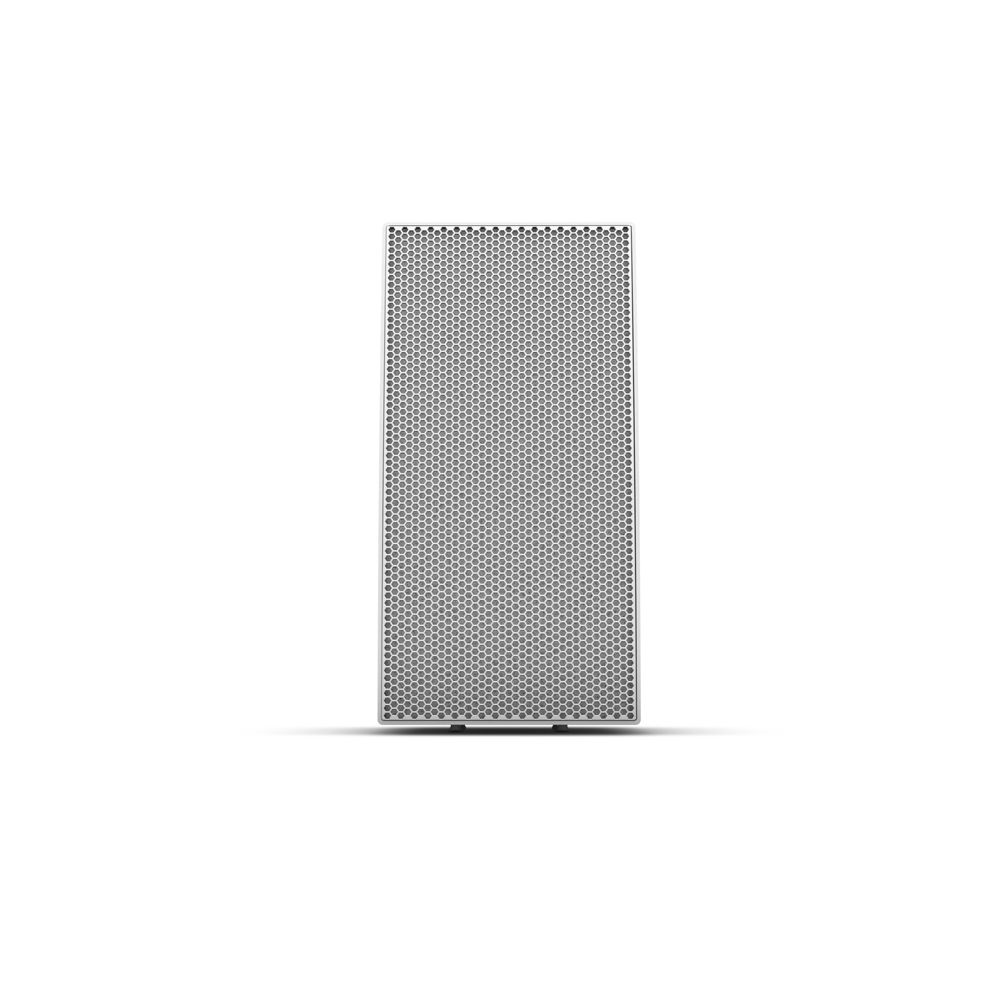

CURV 500 D SAT W
Duplex Satellite White
$299.99
Backordered – More on the Way!
Product information "CURV 500 D SAT W"

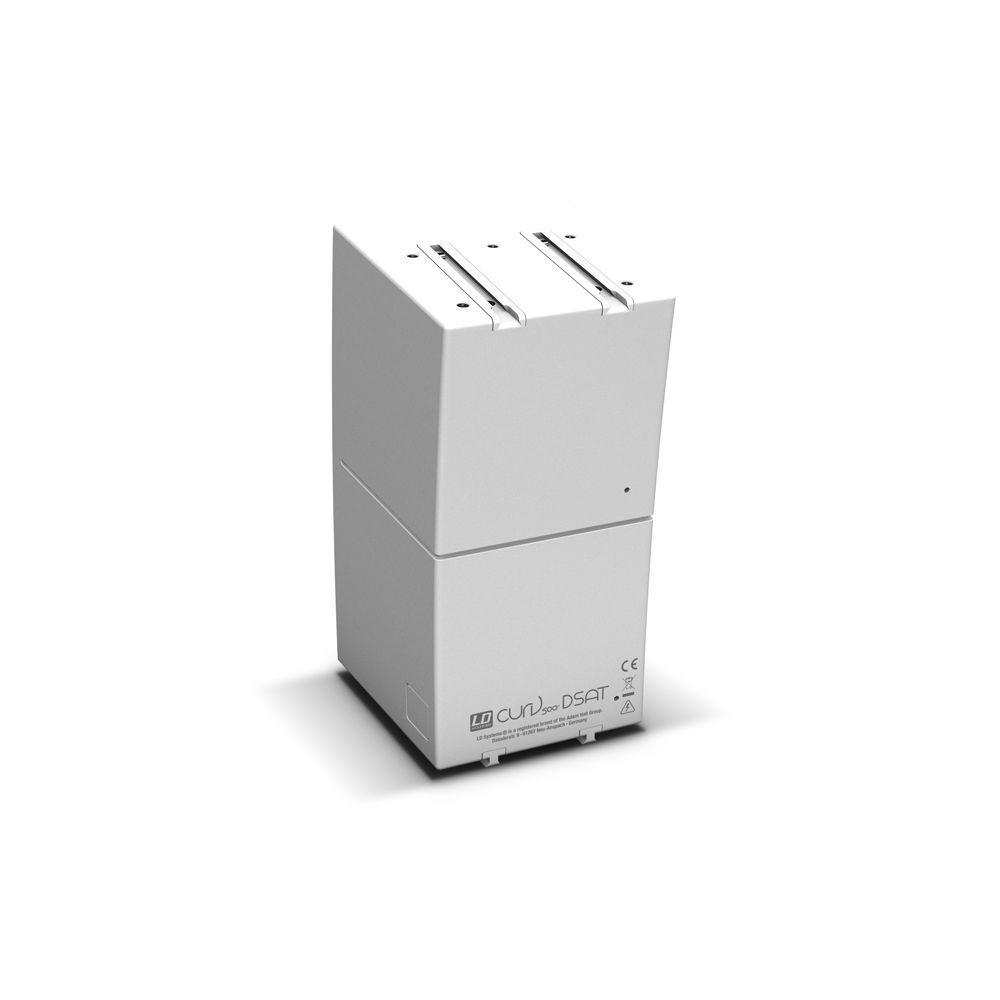

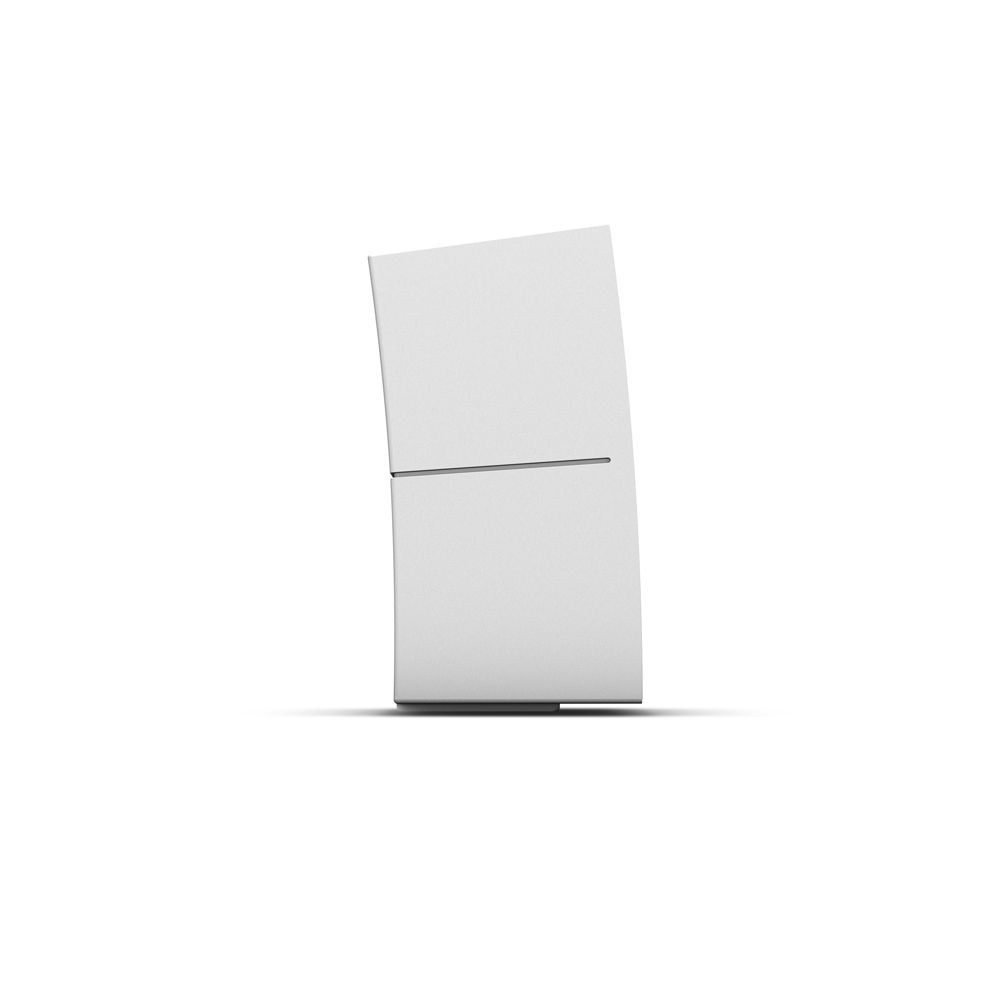

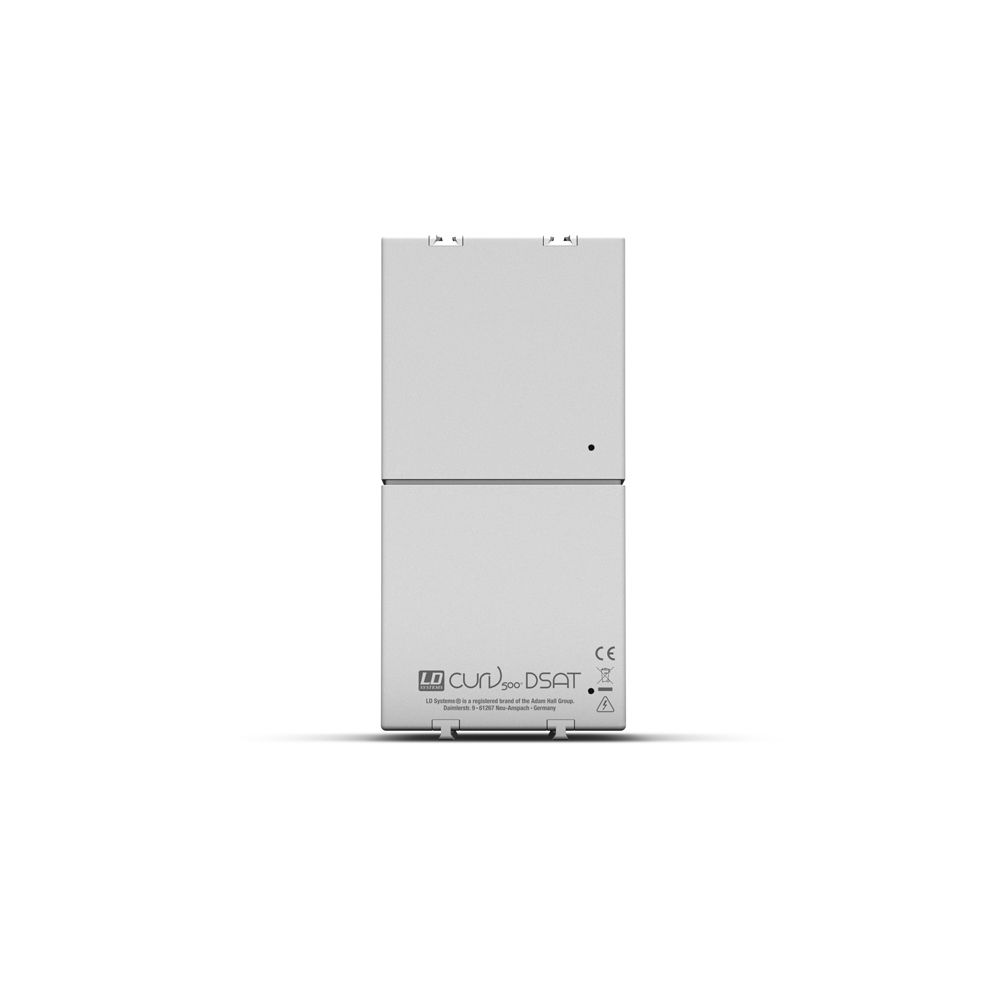

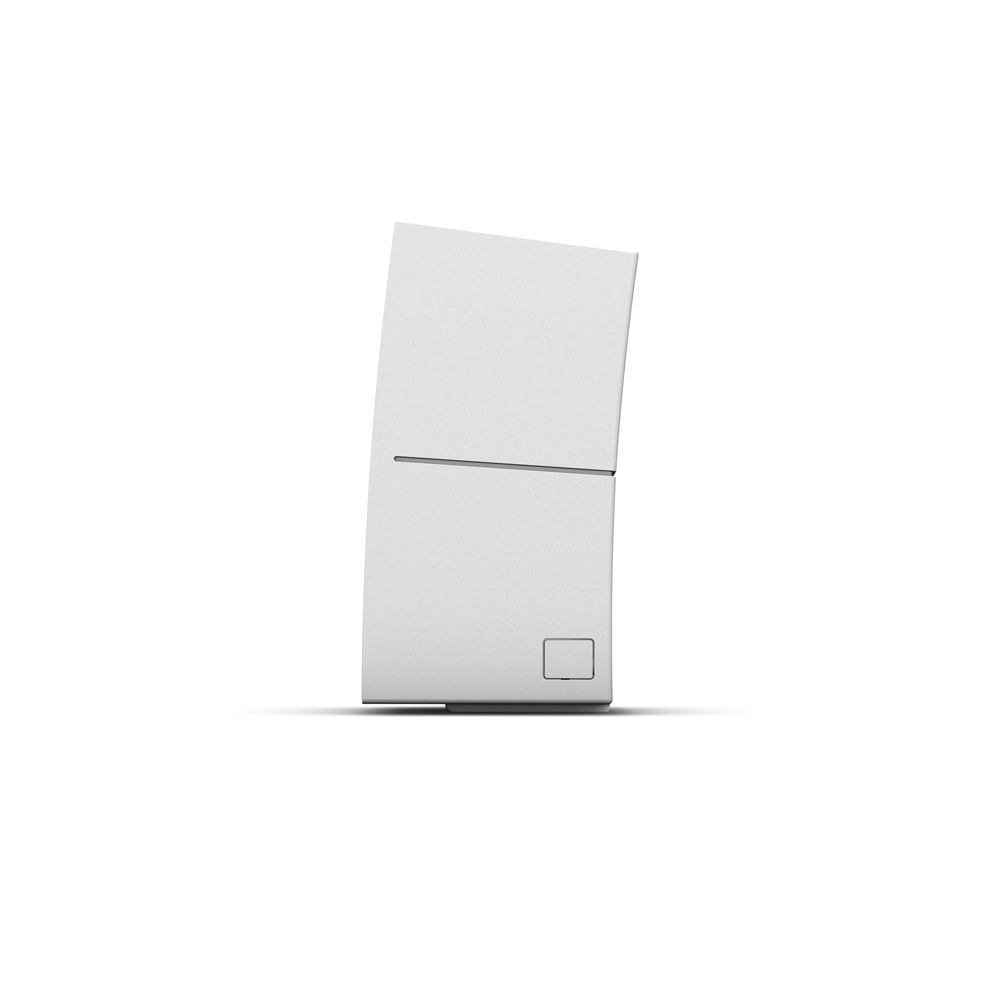

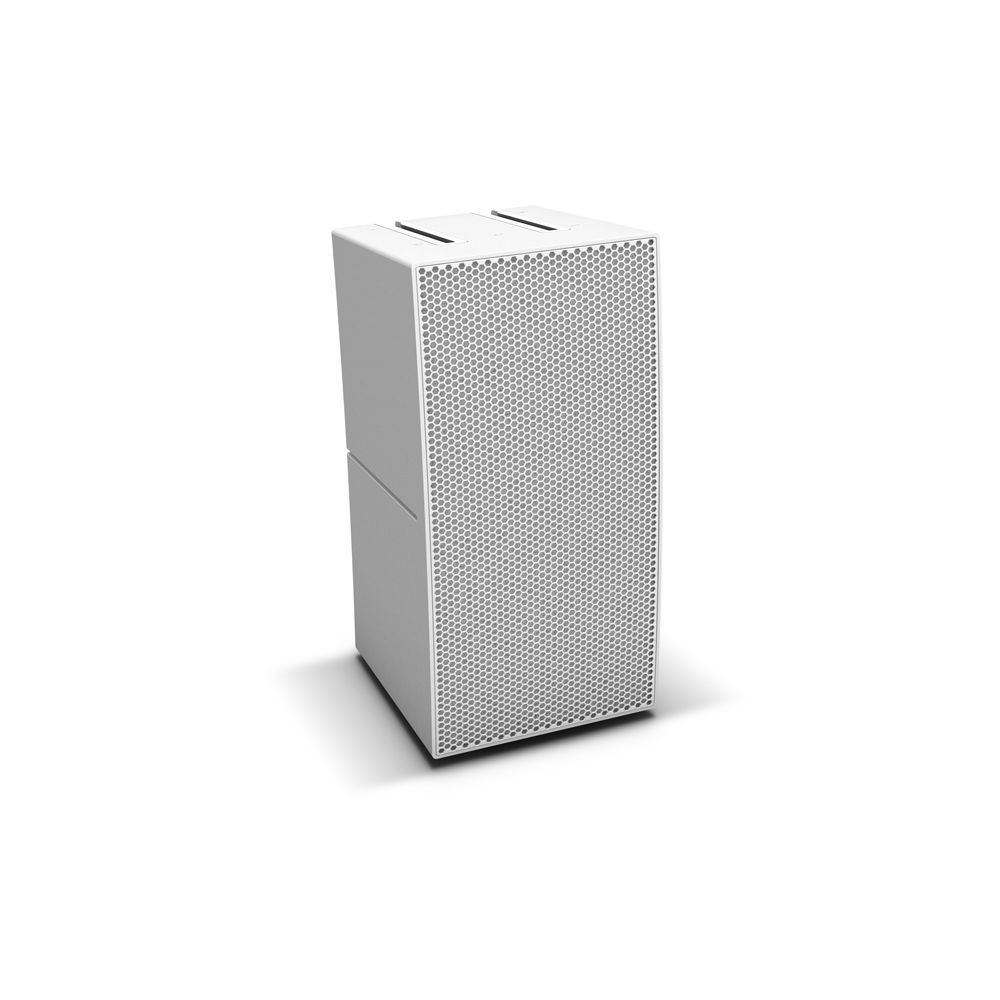

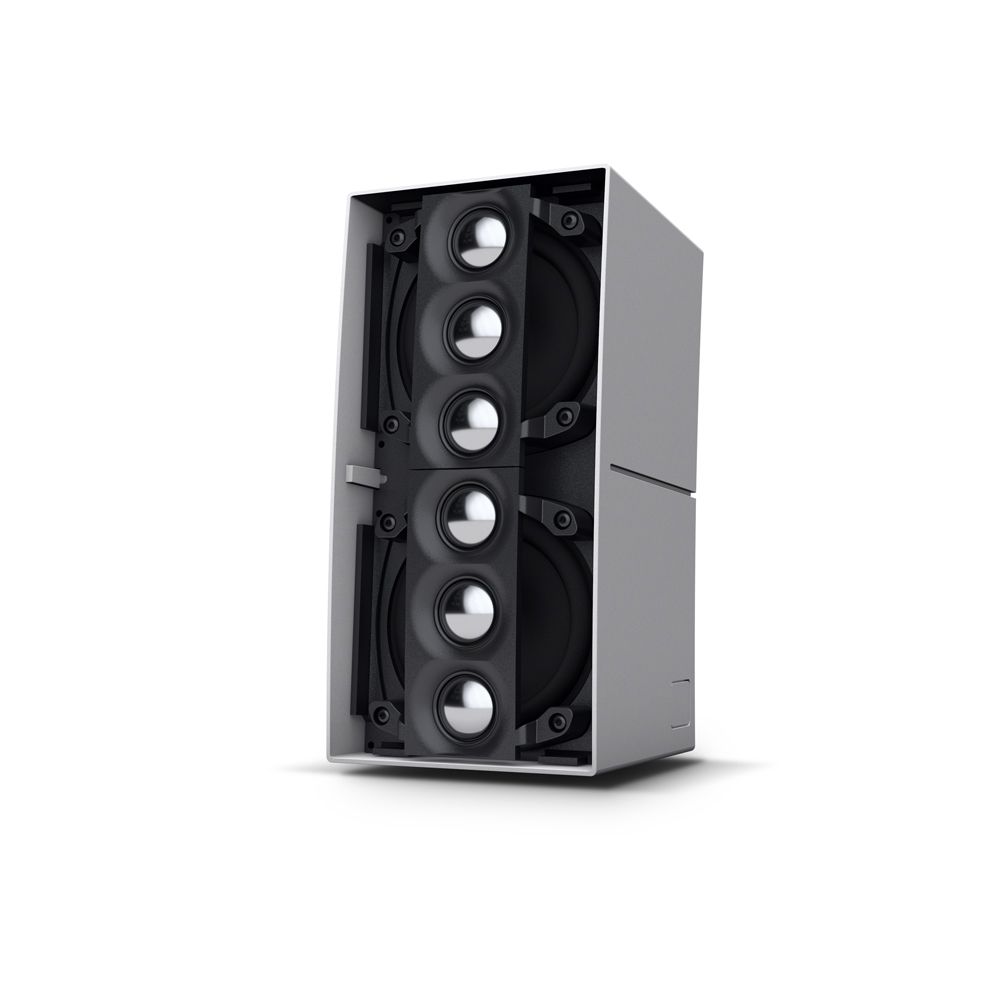

Providing tightly focused long-throw coverage, the CURV 500® Duplex Satellite expands the system’s configuration options in on-stage applications and fixed installations. The unique unibody enclosure of die cast aluminium features two 4" midrange drivers and six 1" high frequency drivers with patented WaveAhead® technology delivering balanced high-definition audio. The Duplex is primarily intended for creating spiral arrays in combination with multiple standard satellites making up the bottom curvature. This allows you to configure the system for optimum coverage throughout the listening area from front to rear. The CURV 500® Duplex is ready for cableless SmartLink® plug-and-play connection and available in black (LDCURV500DSAT) or white (LDCURV500DSATW).
| Beam angle: | Hor.: 110° / Vert.:7° |
|---|---|
| Colour: | White |
| Power handling (Peak): | 160 W |
| Type: | Passive |
| SPL (1 W/1 m): | 91 dB |
| Impedance: | 8 Ω |
| Max. SPL peak: | 110 dB |
| Power handling (RMS): | 80 W |
| Quantity: | 2 |
|---|---|
| Size: | 4 " |
| Quantity: | 6 |
|---|---|
| Driver size: | 0.04 in |
| Cabinet material: | Aluminum continuous casting |
|---|---|
| Coating: | Powder coated |
| Width: | 4.8 in |
|---|---|
| Depth: | 4.96 in |
| Height: | 9.45 in |
| Weight: | 7.28 lbs |
Login
accessories

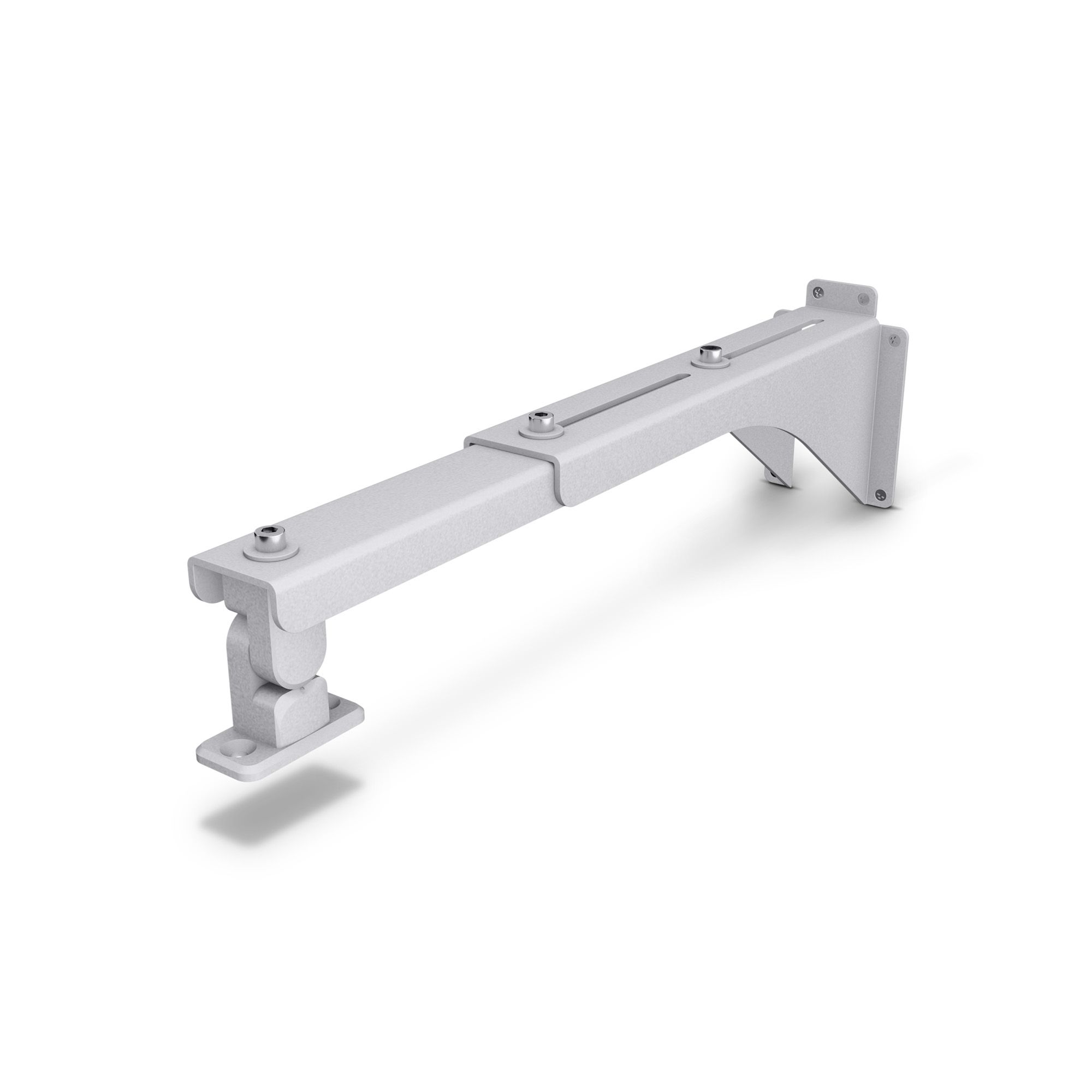

This custom designed CURV 500® wall mount holds up to six standard CURV 500® satellites or three Touring Set duplex satellites attached to the system’s SmartLink adapter. Providing optimum speaker orientation, the adjustable tilt and swivel construction is made of powder coated steel and and aluminium.

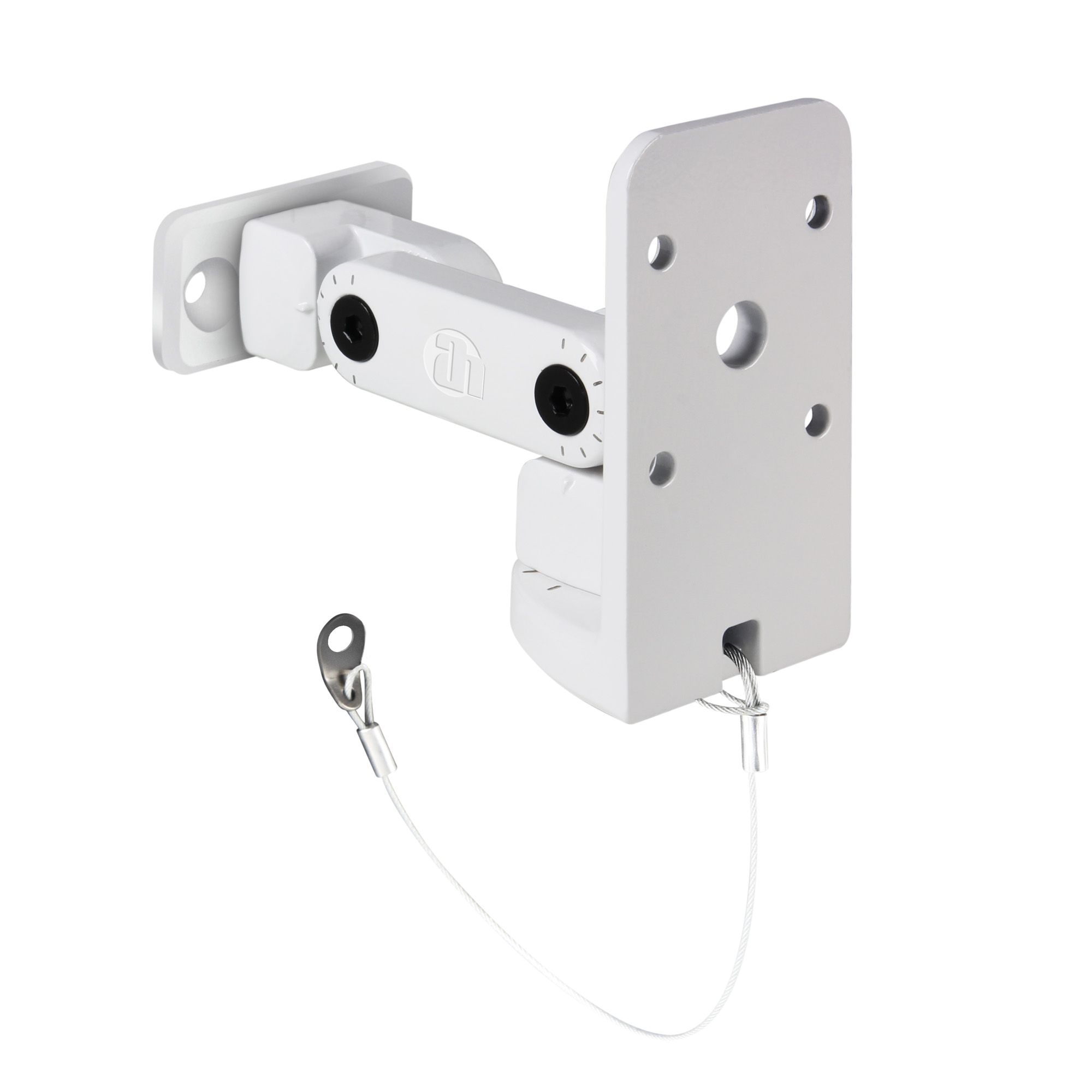

The LD Systems CURV 500® mounting bracket is designed to mate with the CURV 500 SmartLink adapter. It is made of powder coated die cast aluminium, is fully adjustable on all axes and can therefore be individually aligned. It includes a 20 cm steel safety rope to secure the CURV 500® satellites attached to the SmartLink adapter in accordance with BGV C1.Note: Under the statutory provisions (BGV C1 § 7 "Protection against falling objects") speakers must additionally be secured for attachment to a wall bracket by means of a steel rope, for example.

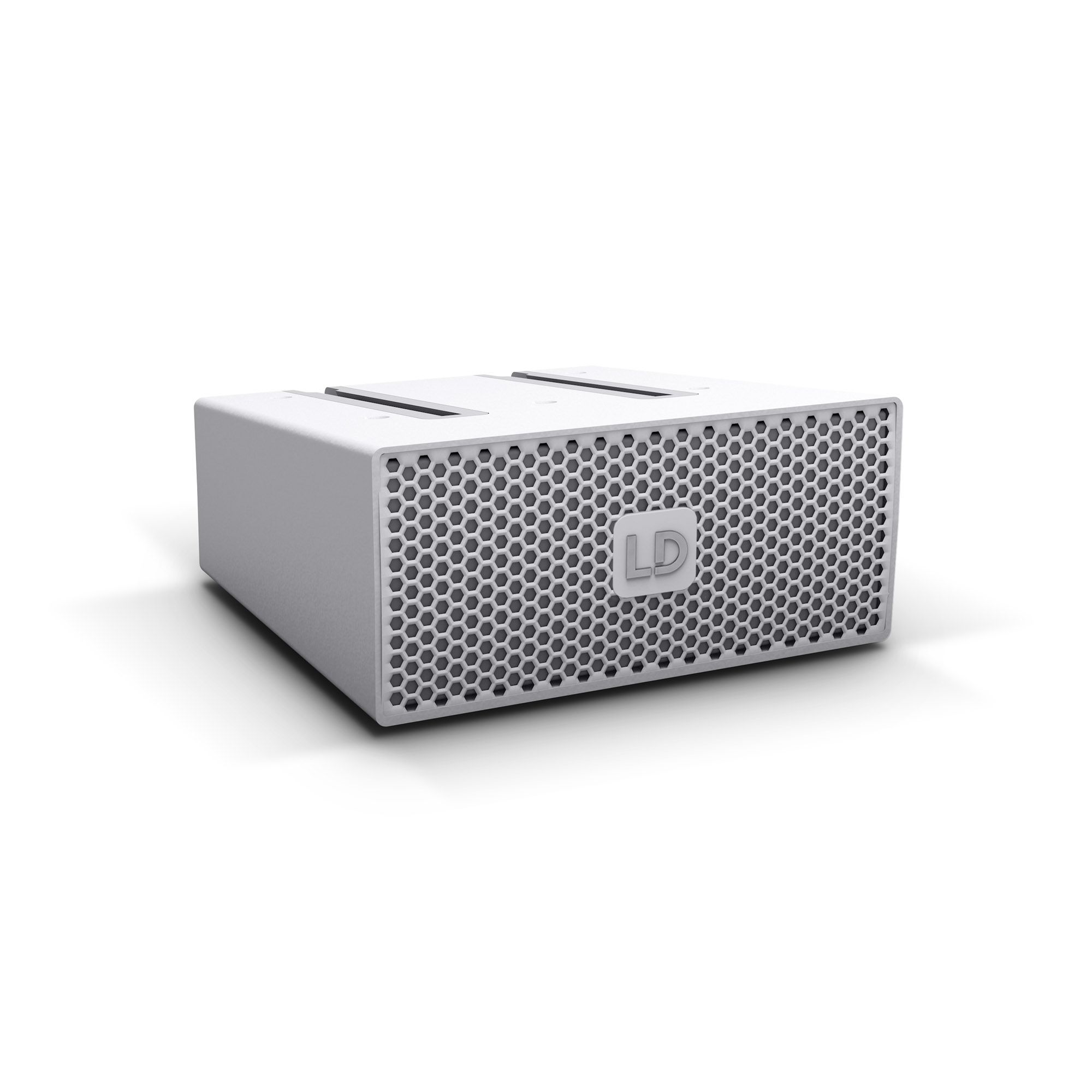

The innovative SmartLink® Adapter is the perfect base for the CURV 500® system. With the patented click mechanism, up to 6 satellites can be connected with each other, without the need for any cables. Two 16 mm flanges allow for different angles on the stand. So, depending on the assembly option, an optimised sound is possible. Four M6 threads for wall mounting, four M3 threads for the ceiling and four rubber feet provide a wide range of possibilities. Thanks to the Speakon-compatible socket and the terminal block, two input variants are available. In case of ceiling mounting, the LD Systems logo simply rotates. The powder-coated cabinet made of die-cast aluminium, with dimensions of 122 x 57 x 122 mm, weighs 0.54 kg.
