VIBZ 12 DC
12 Channel Mixing Console with DFX and Compressor
$449.99
Backordered – More on the Way!
Product information "VIBZ 12 DC"

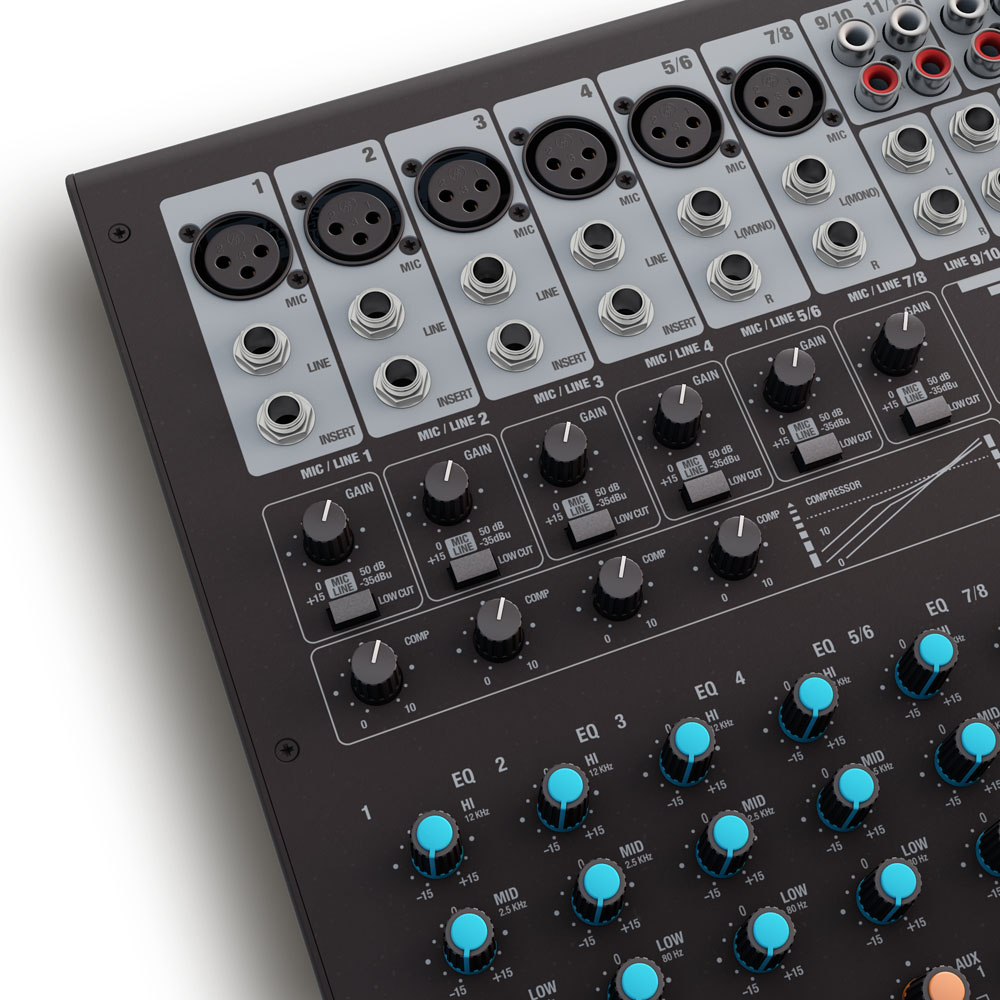

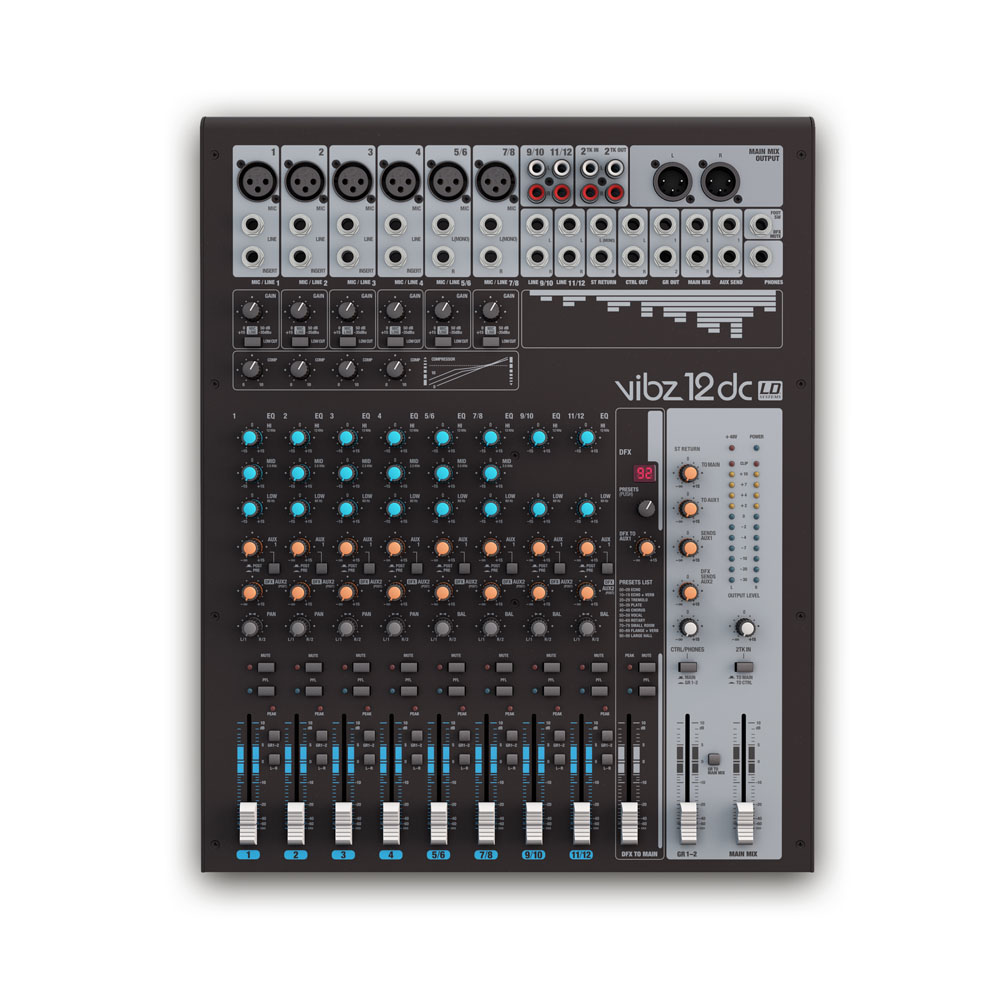

The VIBZ 12 is a versatile mixer with six balanced microphone inputs featuring high quality preamplifiers, a low-cut filter, an effective 3-band EQ with conveniently selected mids and switchable phantom power.
Four microphone channels can be processed separately using the built-in compressor for an effective control of dynamics; two more can alternatively be used as a stereo line channels. The other stereo channels are equipped with 2-band EQs.

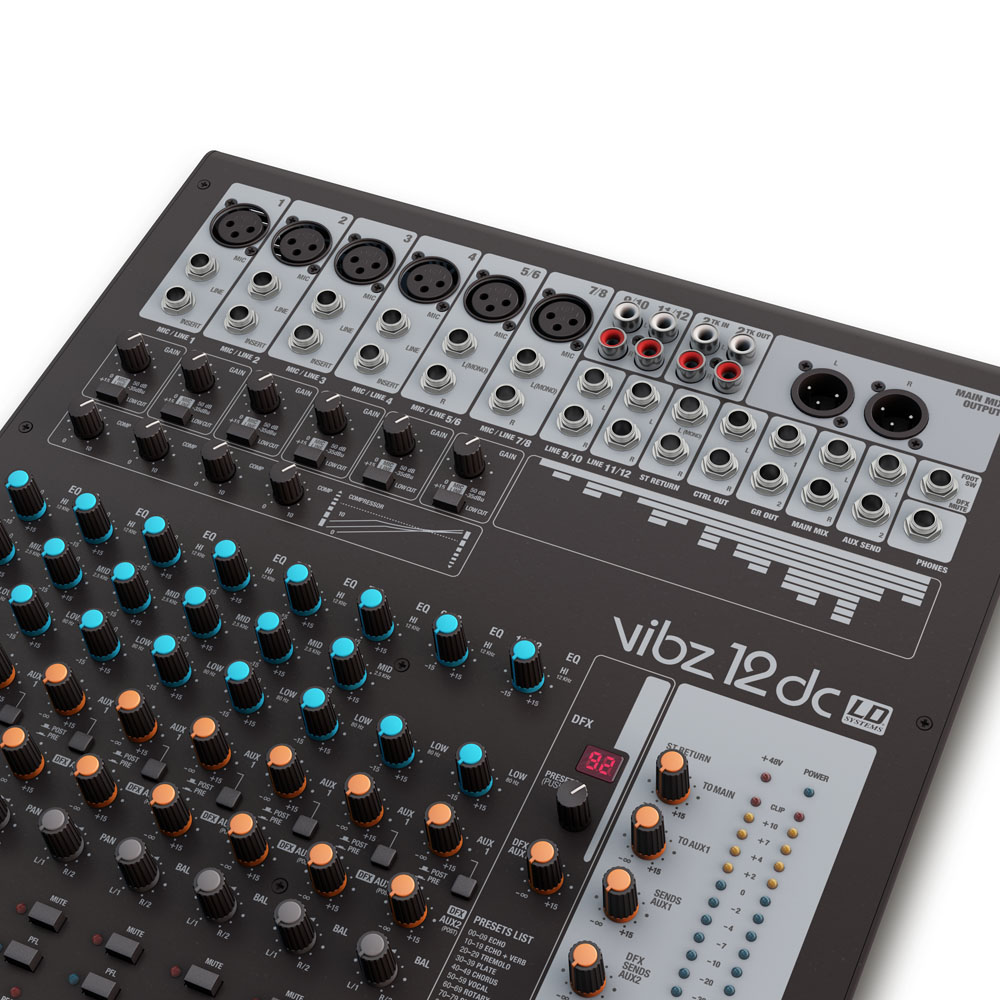

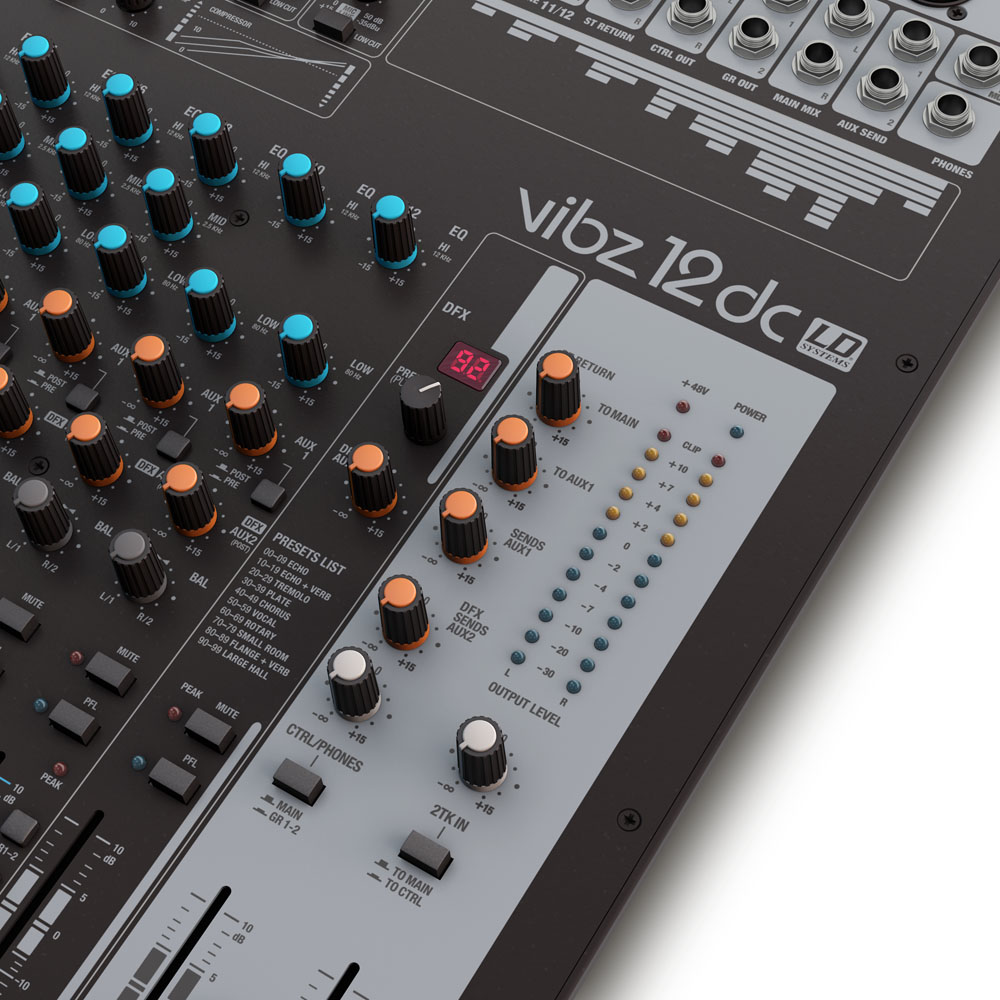

The master section of the mixer includes two effects loops, balanced XLR outputs, group and monitor outputs and a headphone jack. The VIBZ 12 also has RCA connectors for recording and playback devices and a digital Digital Effects Section with 100 presets.
With key features such as the PFL function or the Mute buttons and its natural, transparent sound, the VIBZ 12 is the perfect choice for live performances, installations and demanding home recording applications.
| Type: | Live |
|---|---|
| Channels: | 12 |
| Product type: | Mixers |
| Controls Mono Mic and Line Input Channels: | Compressor, AUX 1 umschaltbar Pre/Post, DFX/AUX 1, AUX 2 (DFX) Post, Gain, Low Cut (75 Hz), 3-band EQ (High, Mid, Low), PFL |
|---|---|
| Mono Mic Input S/N Ratio: | 113 dB |
| Mono Mic Input Input THD-N: | 0.0058% |
| Mono Mic input connectors: | XLR, 6.3 mm TRS |
| Mono Mic and Line Input Channels: | 4 |
| Mono Line Input Frequency Range: | 10 - 45000 Hz |
| Mono Mic Input Impedance: | 4k Ω |
| Mono Mic Input Type: | Electronically balanced |
| Amplification Range mono Mic Input: | 0 - 50 dB |
| Mono Line Input Input THD-N: | 0.0045 % |
| Amplification Range mono Line Input: | 0 - 50 dB |
| Mono Channel Equalizer Mid: | +/- 15 dB @ 2,500 Hz |
| Mono Line Input S/N Ratio: | 116 dB |
| Mono Channel Equalizer High: | +/- 15 dB @ 12000 Hz |
| Mono Line Input Impedance: | 21k Ω |
| Phantom power: | 48 V DC switchable |
| Mono Channel Equalizer Low: | +/- 15 dB @ 80 Hz |
| Mono Mic Input Frequency Range: | 10 - 45000 Hz |
| Mono Line Input Type: | Electronically balanced |
| Stereo channel equalizer treble: | +/- 15 dB @ 12000 Hz |
|---|---|
| Controls Stereo Line Input Channels: | AUX 2 (DFX) Post, 3-band EQ (High, Mid, Low), Channel Volume, Balance, 2-band EQ (High,Low), Gain, AUX 1 umschaltbar Pre/Post, DFX/AUX 1, Low Cut |
| Amplification Range stereo Line Input: | 0 - 50 dB |
| Stereo Line Input Frequency Range: | 10 - 45000 Hz |
| Stereo channel equalizer bass: | +/- 15 dB @ 80 Hz |
| Stereo Line Input Type: | Unbalanced, Electronically balanced |
| Stereo Line Input Channels: | 4 |
| Stereo Line Input Connectors: | RCA, 6.3 mm TRS |
| Stereo Line Input S/N Ratio: | 116 dB |
| Stereo Line Input Impedance: | 3,7k Ω |
| Stereo channel equalizer mids: | +/- 15 dB @ 2500 Hz |
| Stereo Line Input Input THD-N: | 0.0045 % |
| Stereo Control Room Out Connectors: | 6.3 mm TRS |
|---|---|
| Indicators: | DFX Peak, PFL, Power, Phantom Power, DFX to Main |
| Footswitch Connector DFX Mute: | 6.3 mm TRS |
| Main section controls: | Phantom Power, Volume Control CTRL / Phones, Stereo Return to AUX Volume, presets, Power, Master Volume, Group 1-2 assignment to Main MIX, DFX TO AUX Volume, PFL, DFX To Main Volume, CTRL / Phones assignment (Main/Group 1-2), AUX 2 Send Volume, 2-track Assignment (Main, Contr. Room), DFX Mute Schalter, Stereo Return to MAIN Volume, Group 1-2 Volume, 2-track In Volume |
| Height: | 3.86 in |
| Width: | 13.78 in |
| Balanced Stereo Main Out: | 1 |
| Balanced Stereo Main Out Connectors: | XLR |
| AUX / Effects Send Channels: | 2 |
| Stereo Control Room Out: | 1 |

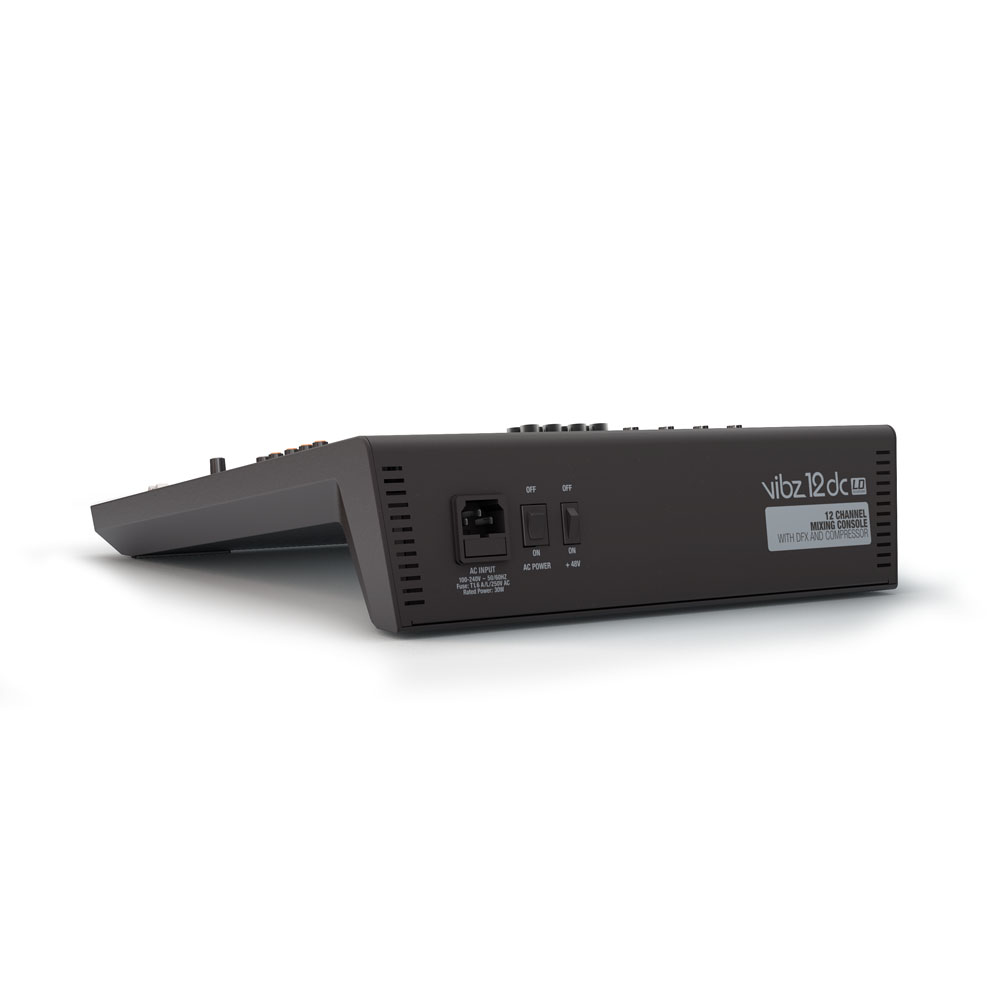

| Power supply: | 100 V AC - 240 V AC, 50 - 60 Hz |
| Number of Presets: | 100 |
| Stereo Tape Out Channel: | 1 x stereo |
| Stereo AUX Return Connectors: | 6.3 mm TRS |
| Stereo Tape In Channel: | 1 x stereo |
| AUX / Effects Send Connectors: | 6.3 mm TRS |
| Stereo AUX Return Channels: | 1 x stereo |
| Digital Effects Processor: | Yes, 24-bit AD/DA Resolution |
| Depth: | 17.32 in |
| Balanced Stereo Main Out Impedance: | 120 Ω |
| Headphones outputs: | 6.3 mm TRS |
| Headphones ouput: | 1 |
| Max. Balanced Stereo Main Out Level: | 23 dBu |
| Stereo Tape Out Connectors: | 2 x RCA (Cinch) |
| Stereo Tape In Connenctors: | 2 x RCA (Cinch) |
Login
accessories
For a singer-songwriter performing on stage or giving a concert in a living room, sound is everything.LD Systems FX 300 will blow you away right from the moment you start your show, even if you've had little to no time to carry out a soundcheck. This small yet handy device not only serves as an effect pedal for altering the sound of your voice and instrument but is also an easy-to-use two-channel mixer. Its best feature by far are the pedals that let you control the mute functions with your feet or hand. And if you've got something to say, you can simply mute all effects with the FX MUTE pedal so your voice can be heard loud and clear without any reverb or delay and everyone in the room can understand your message. To prevent the signal of your microphone or instrument from reaching the outputs, all you need to do is tap the MUTE ALL pedal - a lifesaver during breaks or when wrapping up your set.The FX 300 is outfitted with 16 digital effects presets in 16-bit quality, two inputs with a separate gain setting and a balanced and unbalanced output. The +48 V phantom power provided at the microphone input allows condenser microphones to be used in addition to dynamic microphones. The high-impedance, low-noise instrument input is not only great for acoustic or bass guitars but also for all other instruments. Plenty of headroom ensures you no longer have to worry about distorted signals. And with a 9 V battery that lasts up to five hours, LD Systems FX 300 has got you covered even if there's no outlet in sight.

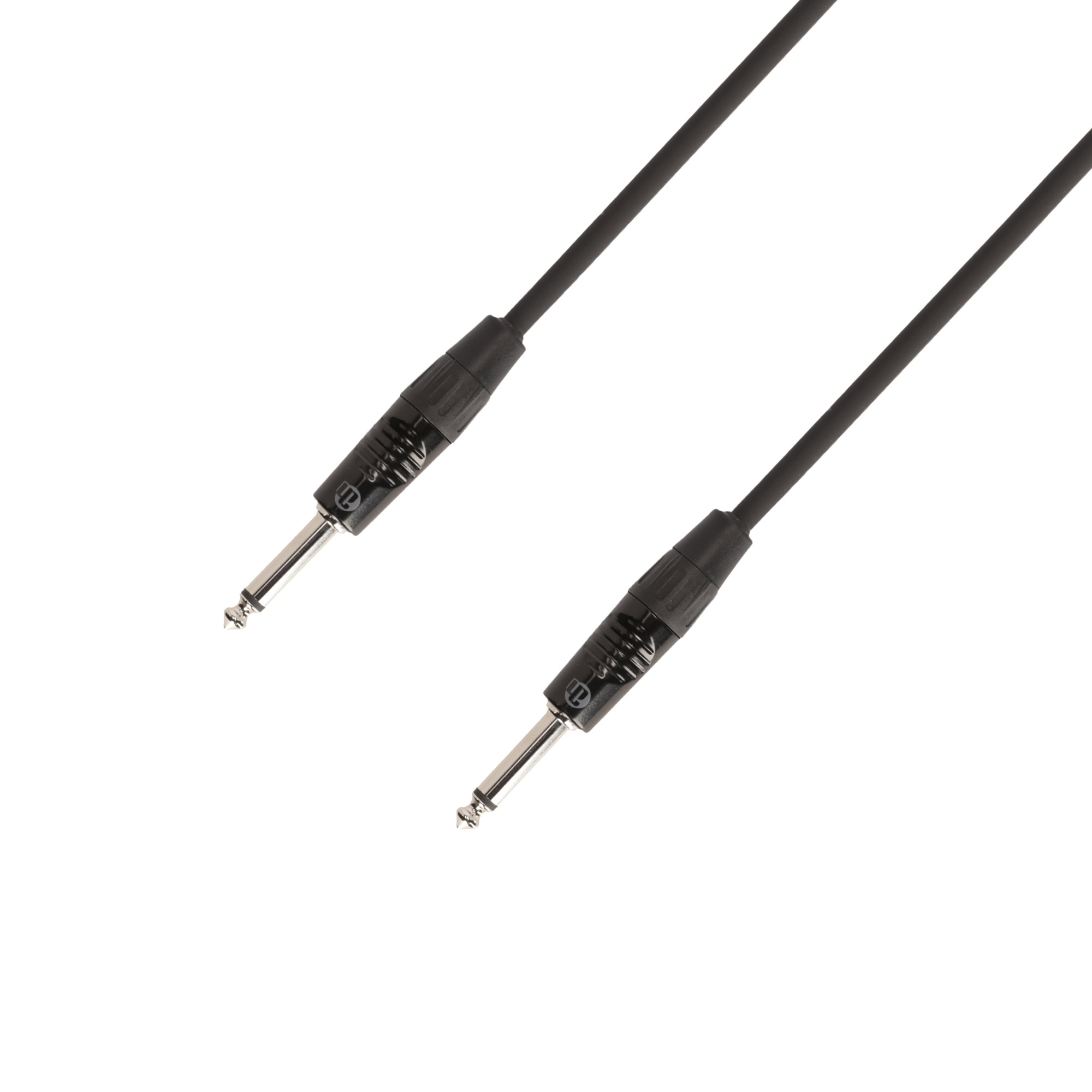

The instrument cable with the perfect price-performance ratio. Manufactured of highly flexible and rugged, double-shielded cable material with REAN © plugs. Practical for live use, making these cables the ideal choice for all patches and connections. Equipped with straight, unbalanced plugs.

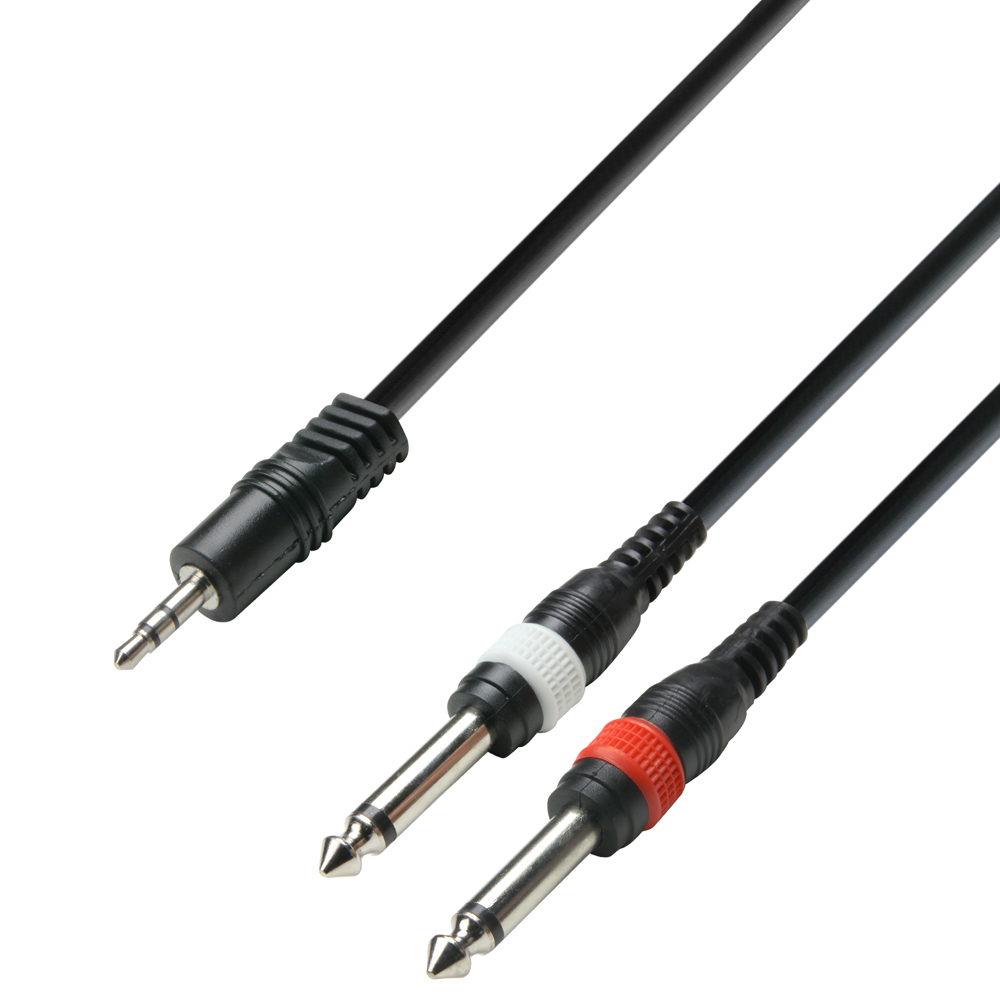

Counterpart of the K3YWCC adapter cable, this time from 3.5 millimetre mini TRS plug to 2x 6.3 millimetre TRS plug. For connecting external signal sources, for example, MP3 players or PC sound cards.

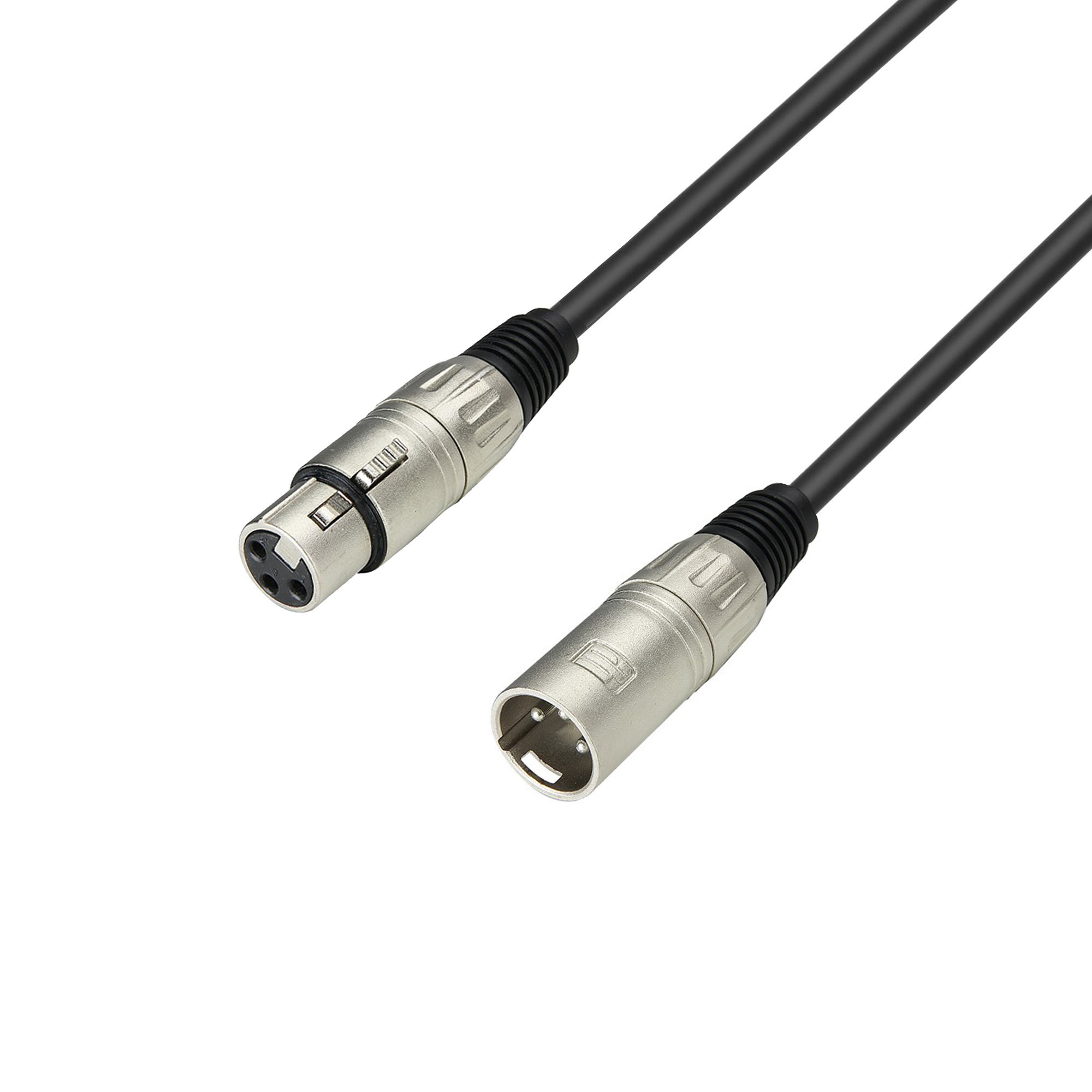

High Quality CableFor users who demand high-quality on stage, in the studio, or in the rehearsal room, we have developed this cable from our 3 STAR SERIES. This product is completely developed in Germany and therefore meets the relevant requirements for users with high-quality standards.

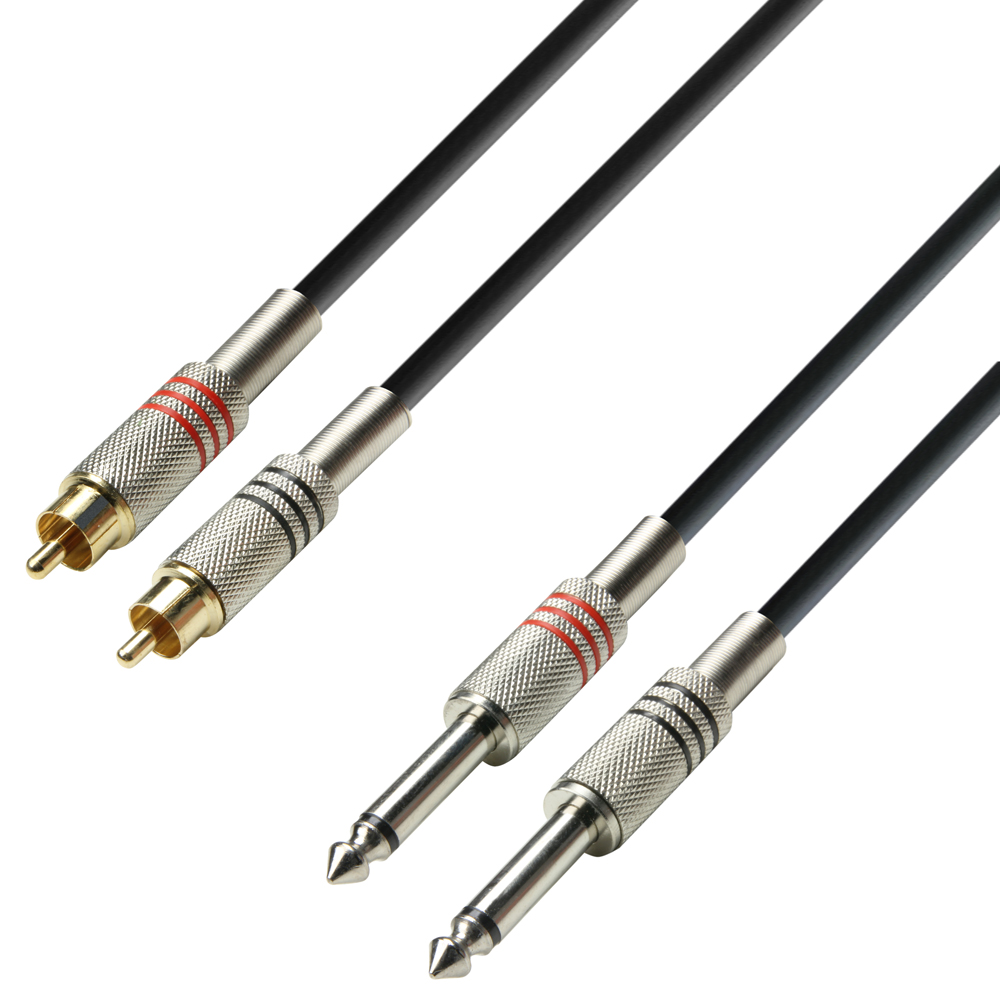

High-quality stereo audio cable with gold-plated RCA plugs and 6.3 millimetre TS plugs. Clear identification of the channels with engraved colour rings, spring strain relief, and high-quality cable material round out the features of this cable. Equally suitable for studio or ambitious hi-fi applications.
