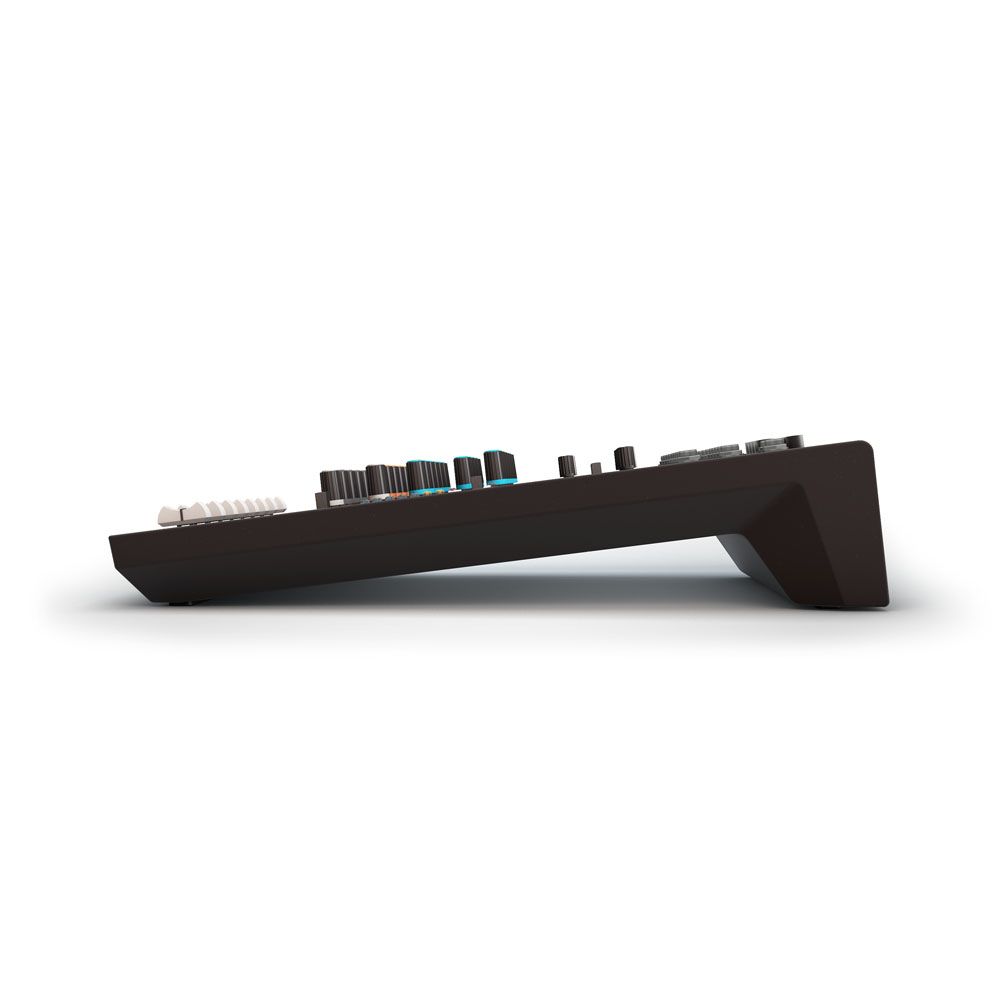

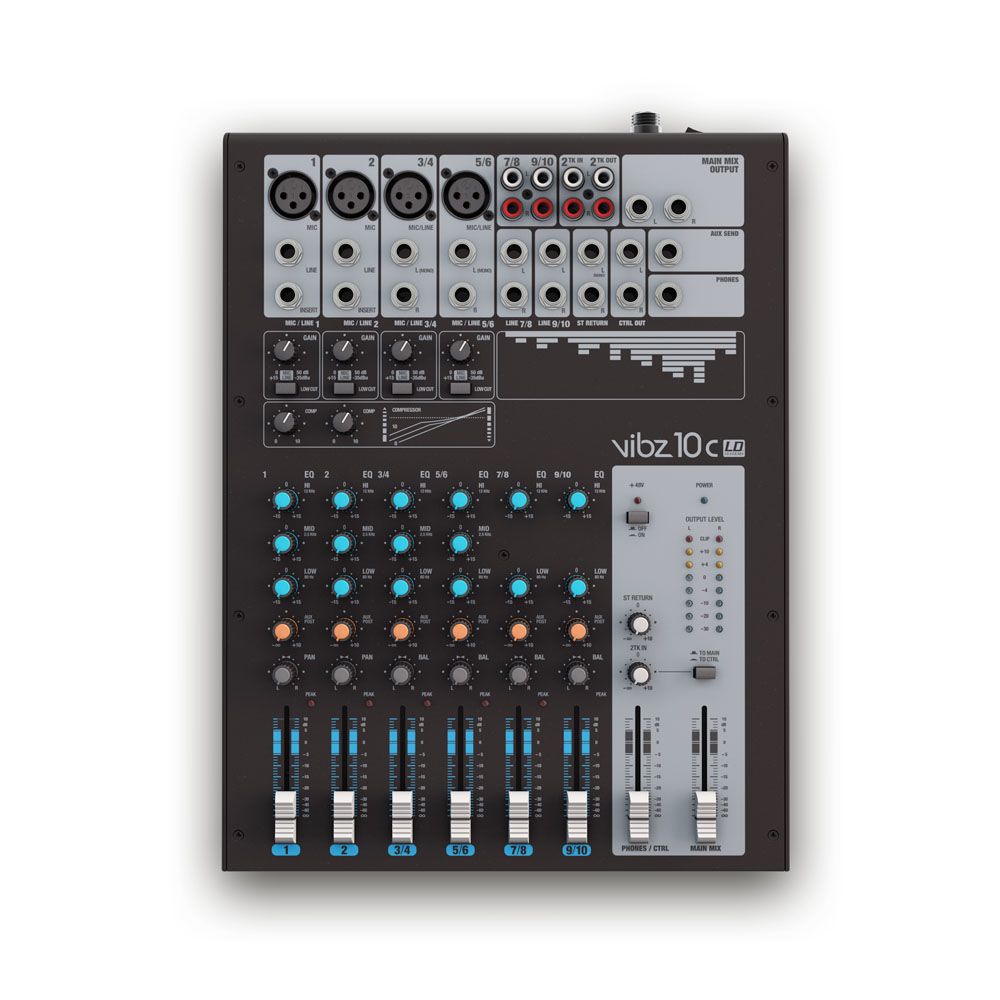

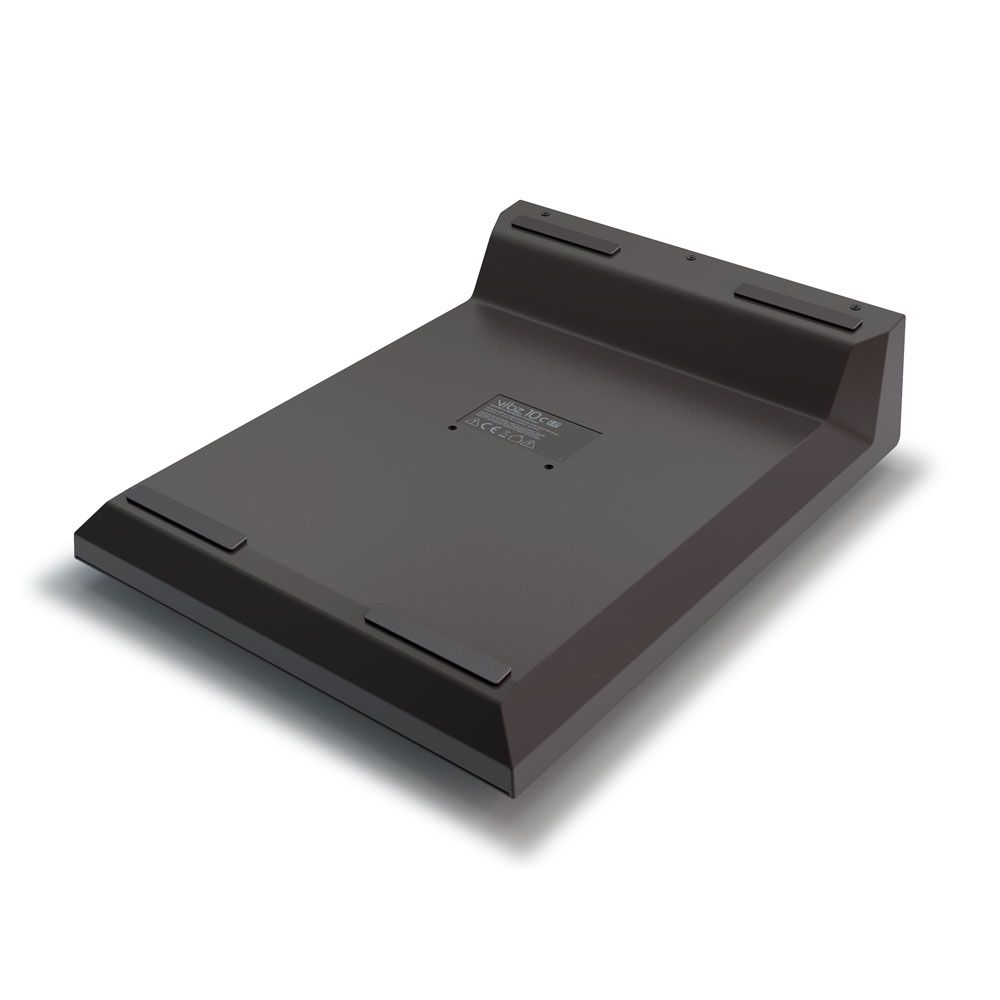

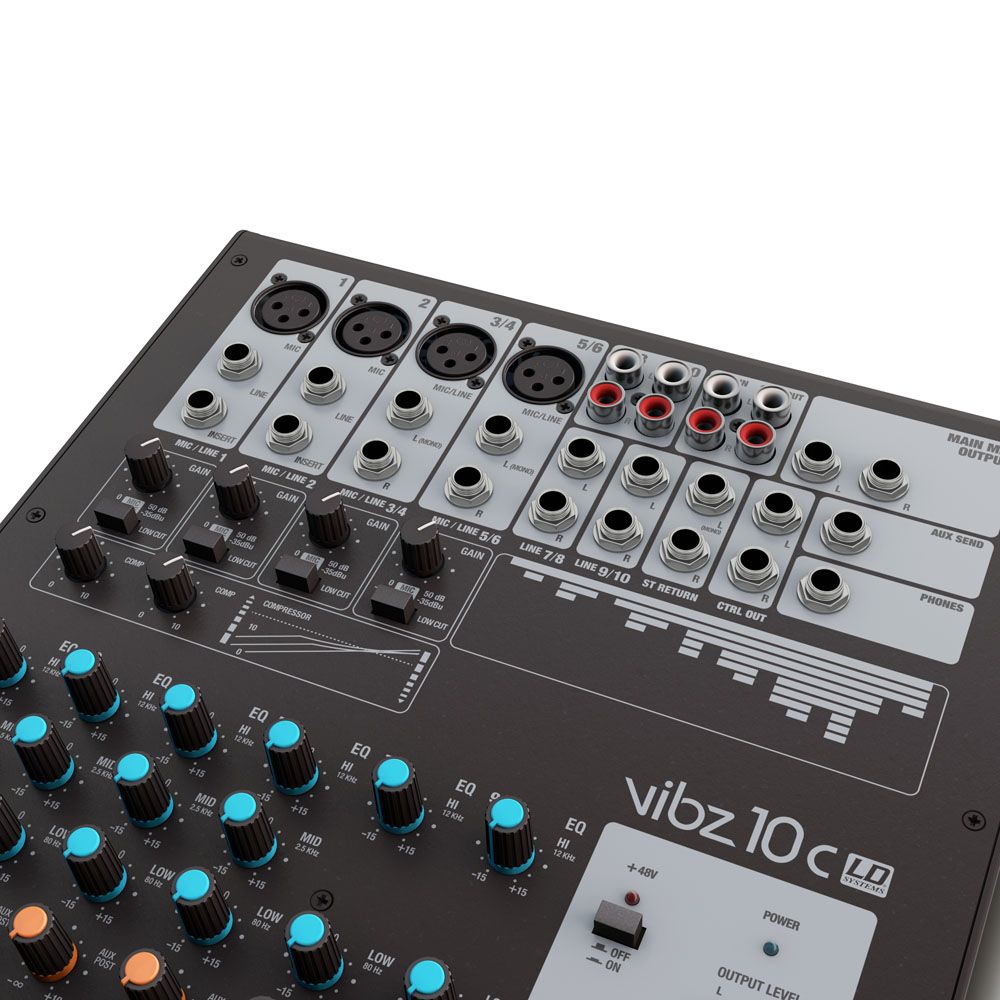

VIBZ 10 C
10 Channel Mixing Console with Compressor
$269.99
Backordered – More on the Way!
Product information "VIBZ 10 C"

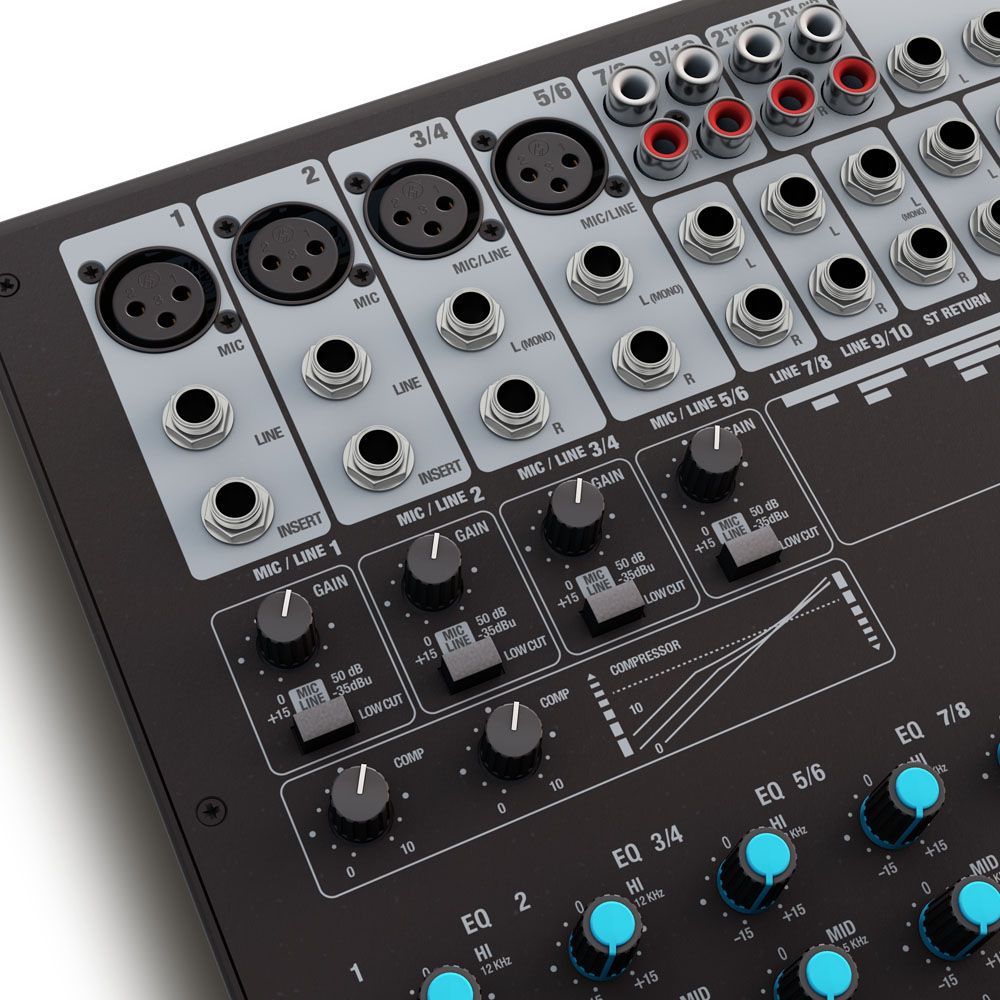

The VIBZ 10 is a versatile mixer with four balanced microphone inputs featuring high quality preamplifiers, a low-cut filter and switchable phantom power. Two microphone inputs are equipped with inserts for individual signal processing, two more can alternatively be used as stereo line channels.
For an effective sound adjustment, the VIBZ 10 has very precise 3-band EQs with conveniently selected mids; two stereo channels can be adjusted with 2-band EQs. The built-in compressor can be continuously adjusted for effective dynamics processing.

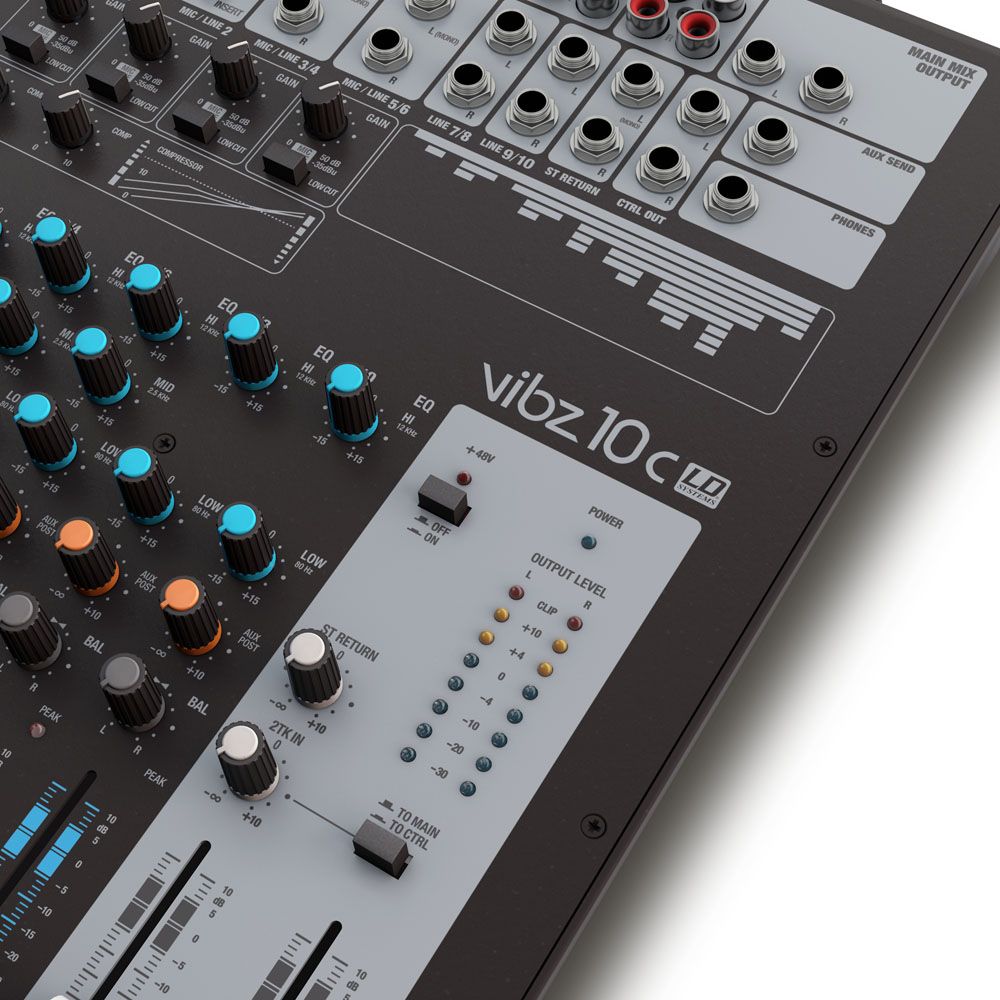

The master section of the mixer has an effects loop, adjustable monitor outputs and a headphone jack. The VIBZ 10 also has inputs and outputs for recording and playback devices; the input signal can be set on the master or monitor output and the volume adjusted.
With its transparent, detailed sound and easy operation, VIBZ 10 is the perfect choice for small bands, installations and home recording or sub mixer applications. It comes with an external power supply that can be tightly secured to the mixer. A foot switch for the effects section and an adapter for mounting the VIBZ 10 on microphone stands are available as accessories.
| Type: | Live |
|---|---|
| Channels: | 10 |
| Product type: | Mixers |
| Controls Mono Mic and Line Input Channels: | Compressor, Channel Volume, Gain, pan, Low Cut (75 Hz), 3-band EQ (High, Mid, Low), AUX (DFX) Post |
|---|---|
| Mono Mic Input S/N Ratio: | 113 dB |
| Mono Mic Input Input THD-N: | 0.0058% |
| Mono Mic input connectors: | XLR, 6.3 mm TRS |
| Mono Mic and Line Input Channels: | 4 |
| Mono Line Input Frequency Range: | 10 - 45000 Hz |
| Mono Mic Input Impedance: | 4k Ω |
| Channel Insert Connectors: | 6.3 mm TRS |
| Mono Mic Input Type: | Electronically balanced |
| Mono Channel Equalizer Mid: | +/- 15 dB @ 2500 Hz |
| Amplification Range mono Mic Input: | 0 - 50 dB |
| Mono Line Input Input THD-N: | 0.0045 % |
| Amplification Range mono Line Input: | 0 - 50 dB |
| Mono Line Input S/N Ratio: | 116 dB |
| Mono Channel Equalizer High: | +/- 15 dB @ 12000 Hz |
| Mono Line Input Impedance: | 21k Ω |
| Phantom power: | 48 V DC switchable |
| Mono Channel Equalizer Low: | +/- 15 dB @ 80 Hz |
| Mono Mic Input Frequency Range: | 10 - 45000 Hz |
| Channel Inserts: | 2 |
| Mono Line Input Type: | Electronically balanced |
| Controls Stereo Line Input Channels: | AUX Post, 3-band EQ (High, Mid, Low), Channel Volume, Balance, 2-band EQ (High,Low), Gain, Low Cut |
|---|---|
| Stereo channel equalizer treble: | +/- 15 dB @ 12000 Hz |
| Amplification Range stereo Line Input: | 0 - 50 dB |
| Stereo Line Input Frequency Range: | 10 - 45000 Hz |
| Stereo channel equalizer bass: | +/- 15 dB @ 80 Hz |
| Stereo Line Input Type: | Unbalanced, Electronically balanced |
| Stereo Line Input Channels: | 4 |
| Stereo Line Input S/N Ratio: | 116 dB |
| Stereo Line Input Connectors: | 6.3 mm TRS |
| Stereo Line Input Impedance: | 3,7k Ω |
| Stereo channel equalizer mids: | +/- 15 dB @ 2500 Hz |
| Stereo Line Input Input THD-N: | 0.0045 % |
| Stereo Control Room Out Connectors: | 6.3 mm TRS |
|---|---|
| Max. Unbalanced Stereo Main Out Level: | 20 dBu |
| Main section controls: | Phantom Power, Master Volume, Stereo Return Volume, Phones / Control Room Volume, 2-track Assignment (Main, Contr. Room), 2-track In Volume |

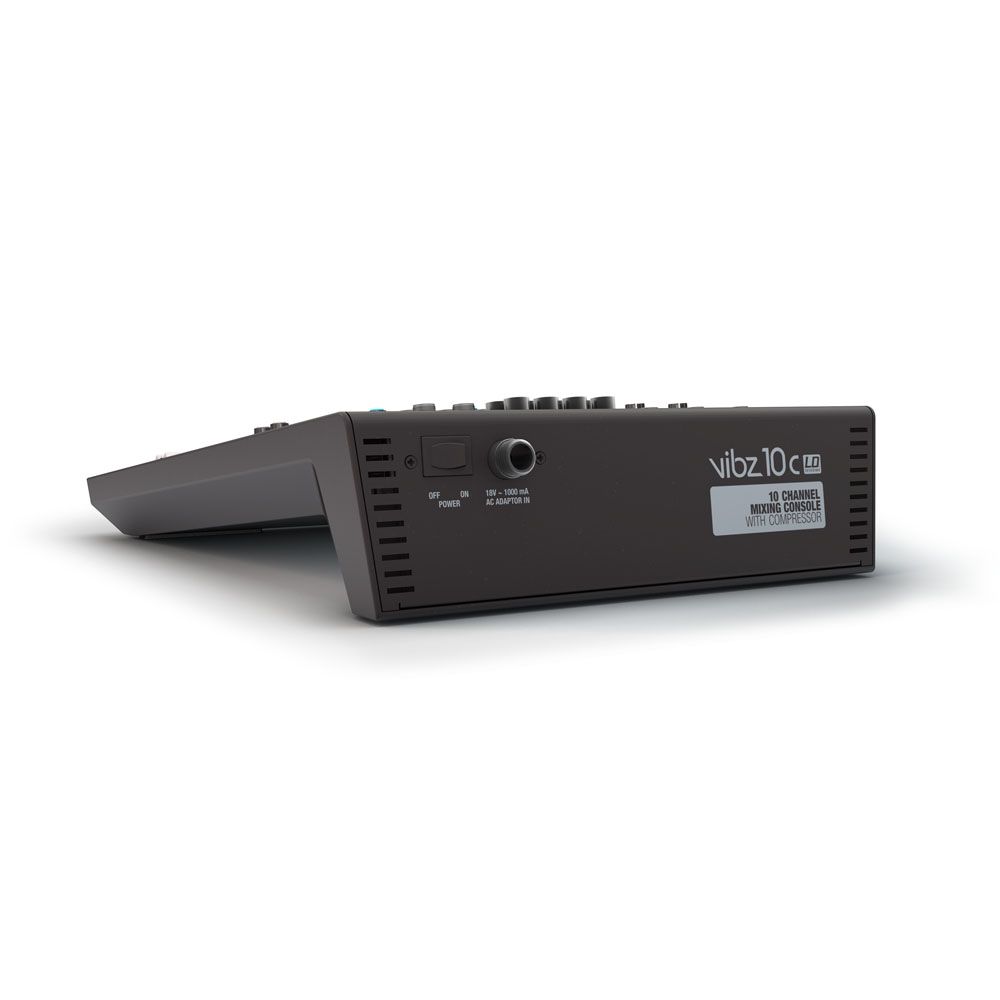

| Power supply: | 18V DC - 1 A, External PSU, 230 V |
| Unbalanced stereo Main Output Connections: | 6.3 mm TRS |
| Height: | 3.07 in |
| Digital Effects Processor: | No |
| Stereo Control Room Out: | 1 |
| Width: | 10.43 in |
| Stereo Tape Out Channel: | 1 x stereo |
| Stereo AUX Return Connectors: | 6.3 mm TRS |
| Depth: | 13.86 in |
| Stereo Tape In Channel: | 1 x stereo |
| AUX / Effects Send Connectors: | 6.3 mm stereo jack unbalanced |
| Stereo AUX Return Channels: | 1 x stereo |
| Unbalanced stereo Main Outputs: | 1 |
| Indicators: | Power, Phantom Power |
| Headphones outputs: | 6.3 mm TRS |
| Headphones ouput: | 1 |
| AUX / Effects Send Channels: | 1 |
| Stereo Tape Out Connectors: | 2 x RCA (Cinch) |
| Stereo Tape In Connenctors: | 2 x RCA (Cinch) |
| Unbalanced Stereo Main Out Impedance: | 120 Ω |
Login
accessories
High Quality CableFor users who demand high-quality on stage, in the studio, or in the rehearsal room, we have developed this cable from our 3 STAR SERIES. This product is completely developed in Germany and therefore meets the relevant requirements for users with high-quality standards.

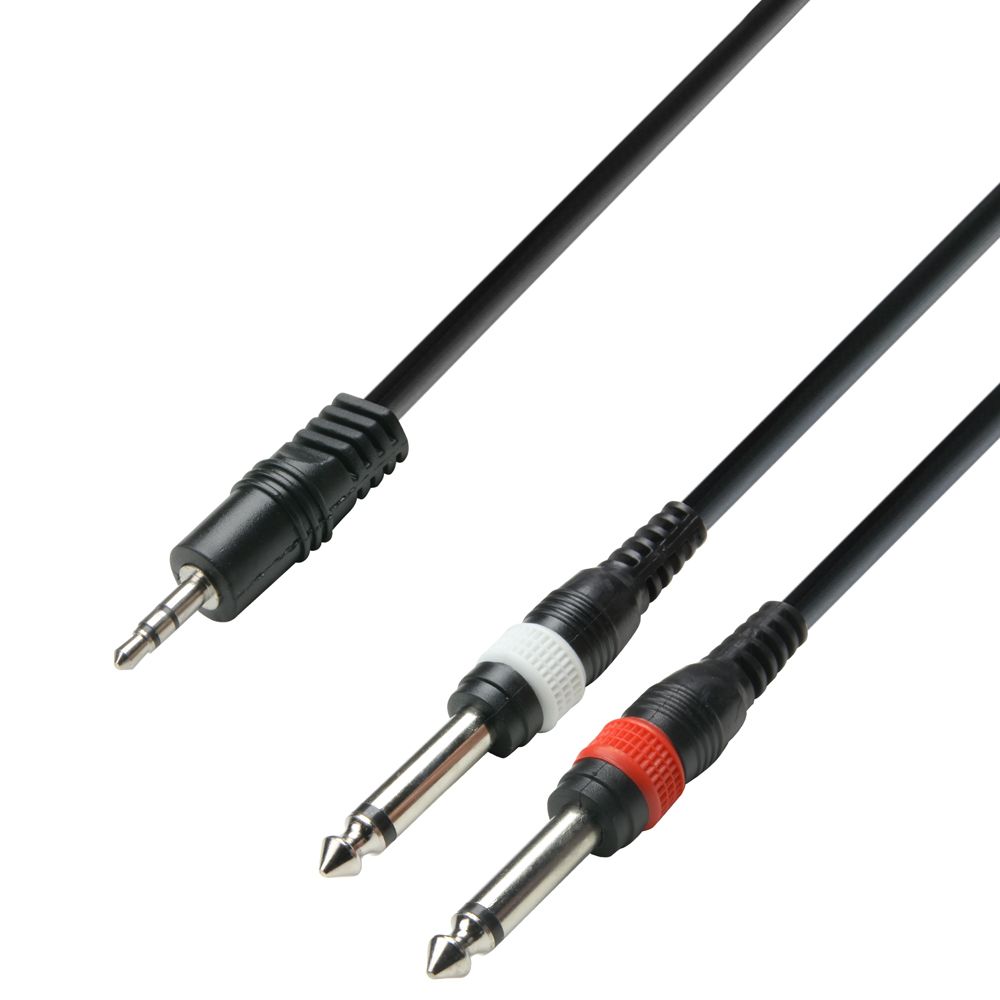

Counterpart of the K3YWCC adapter cable, this time from 3.5 millimetre mini TRS plug to 2x 6.3 millimetre TRS plug. For connecting external signal sources, for example, MP3 players or PC sound cards.
