U505 CS 4
4-Channel Wireless Conference System
$2,198.99
Backordered – More on the Way!
Product information "U505 CS 4"
We have developed the U500® in Germany to meet all of your requirements of a wireless conference system. It offers a professionally equipped solution for effective communication and interaction with advanced technology, excellent speech intelligibility and an elegant appearance. The user-friendly True Diversity UHF system with 60 channels in 6 groups facilitates easier installations and turns conferences, meetings and round tables into successful events.

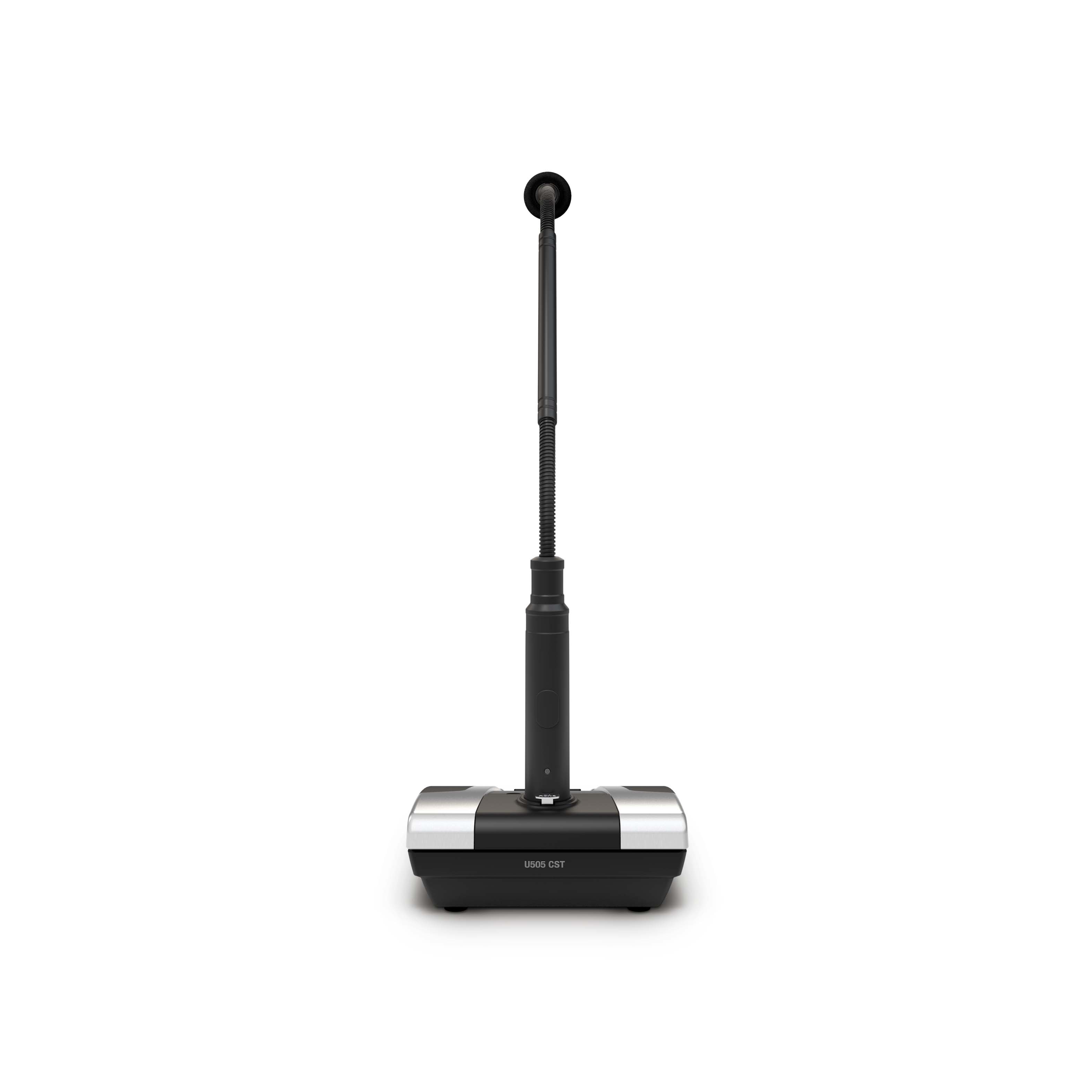

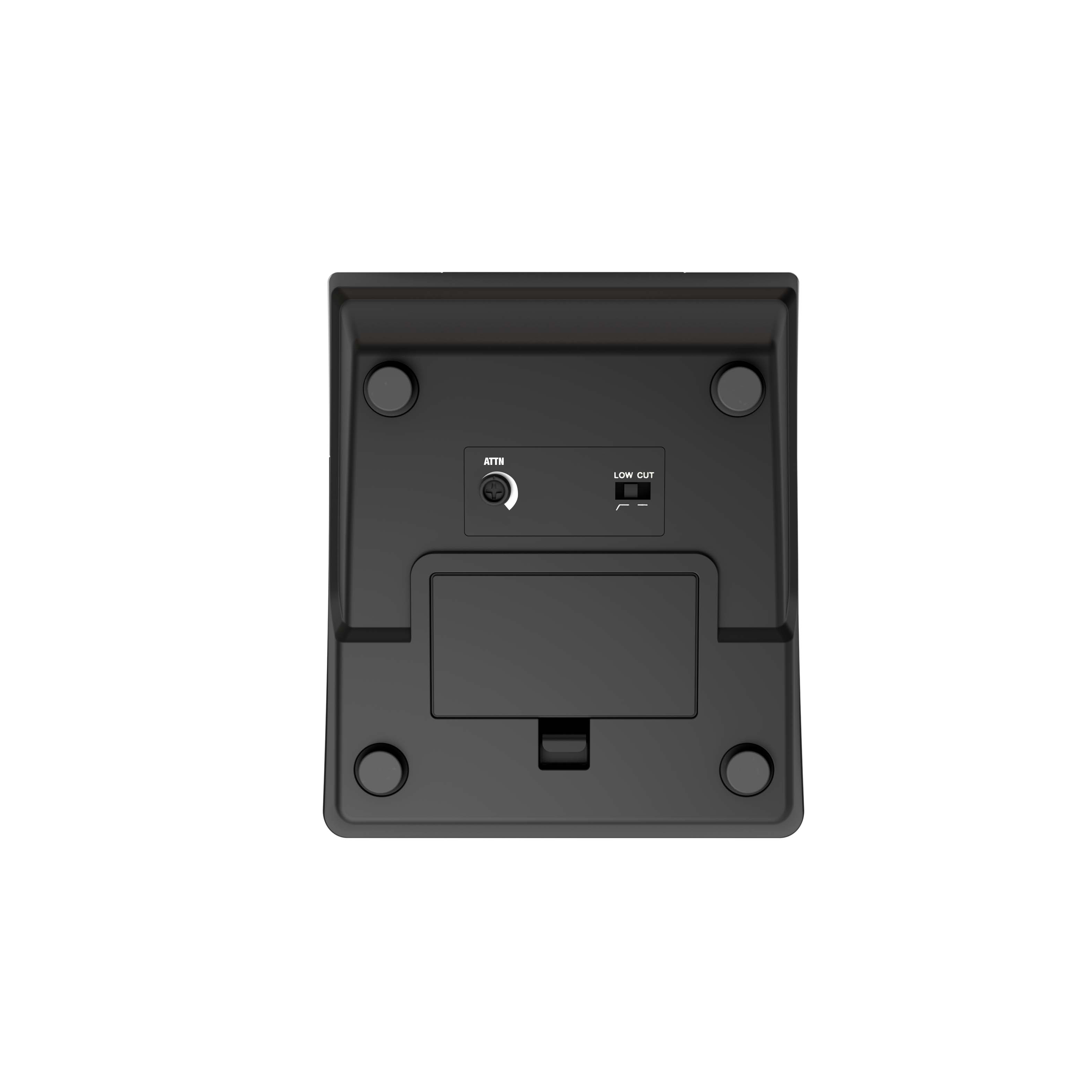

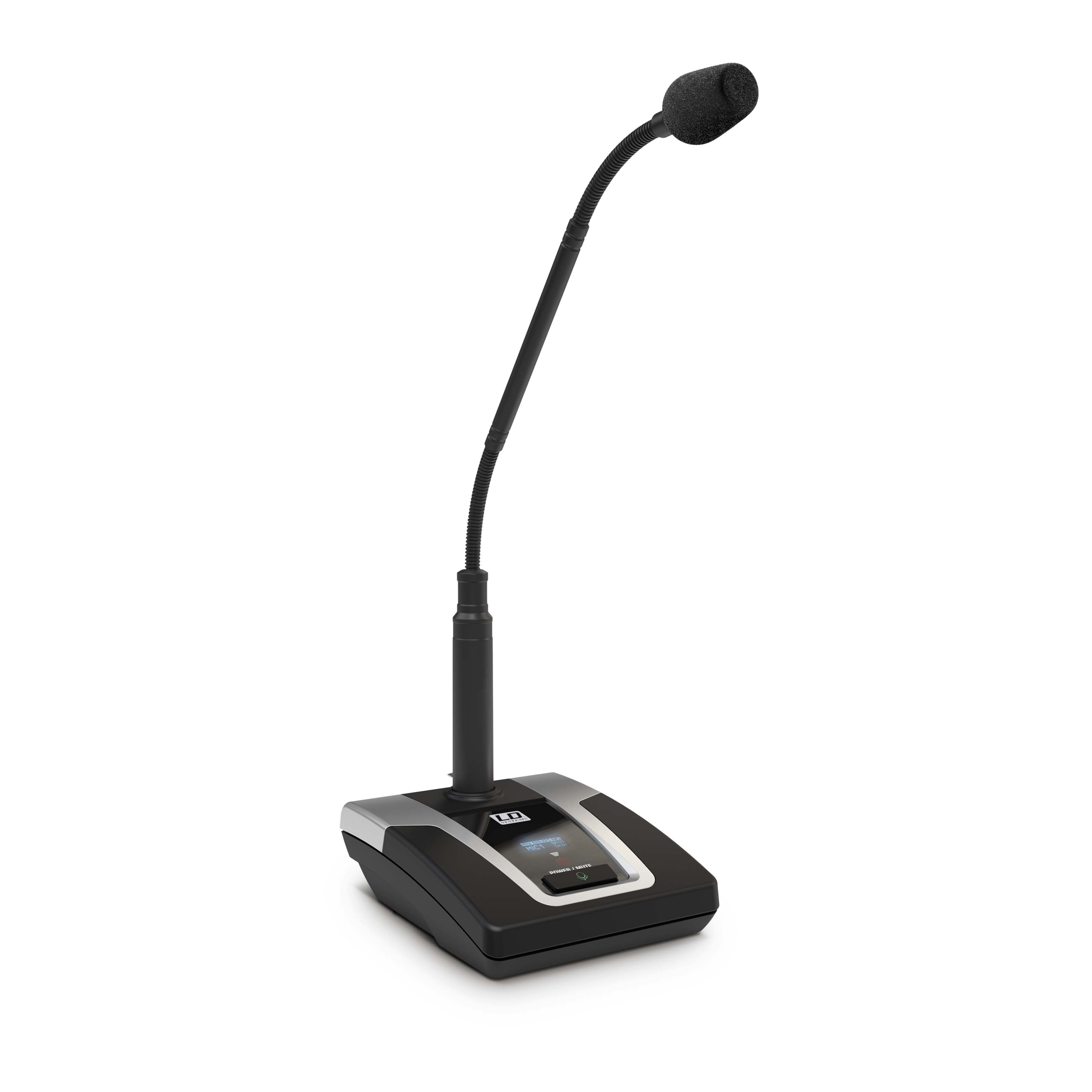

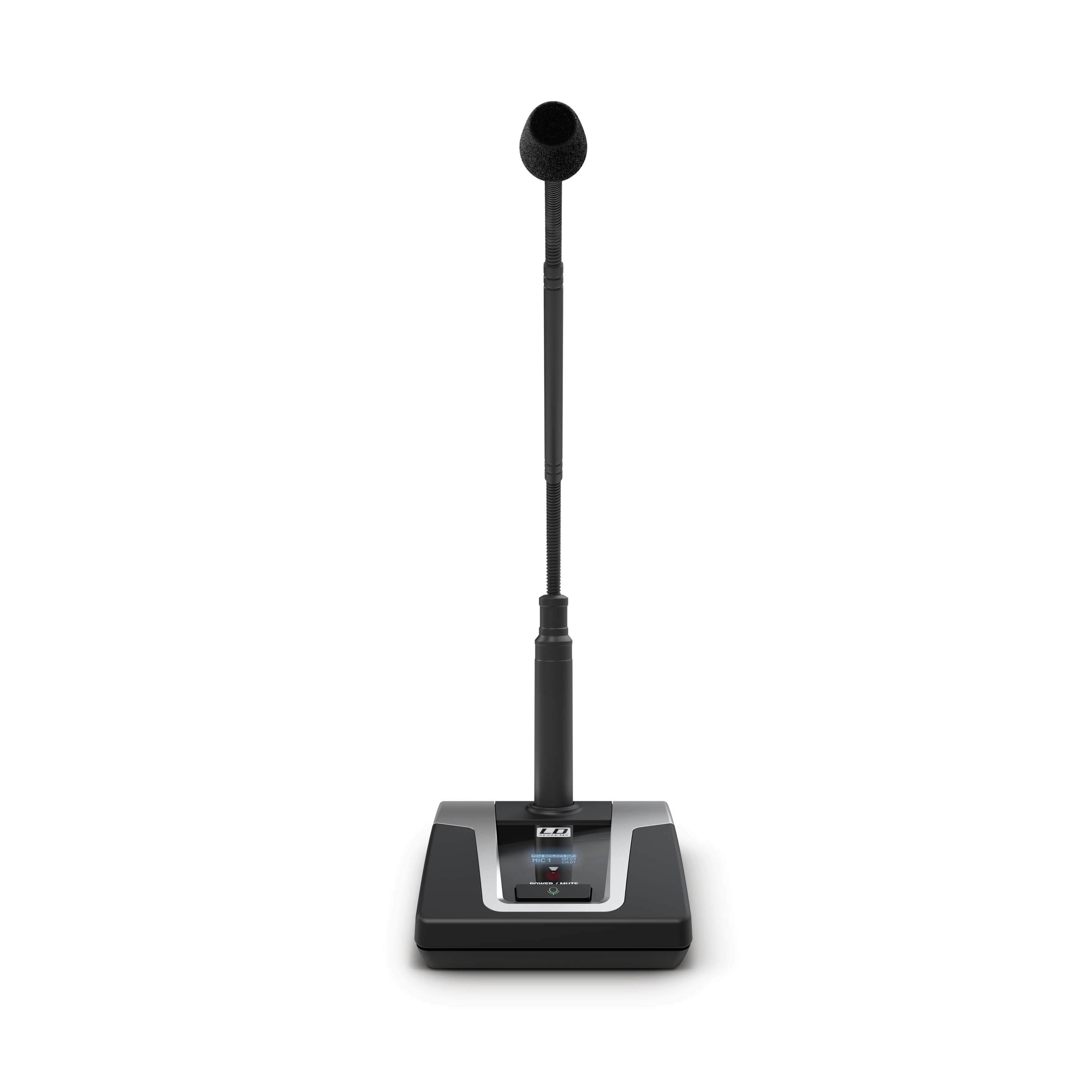

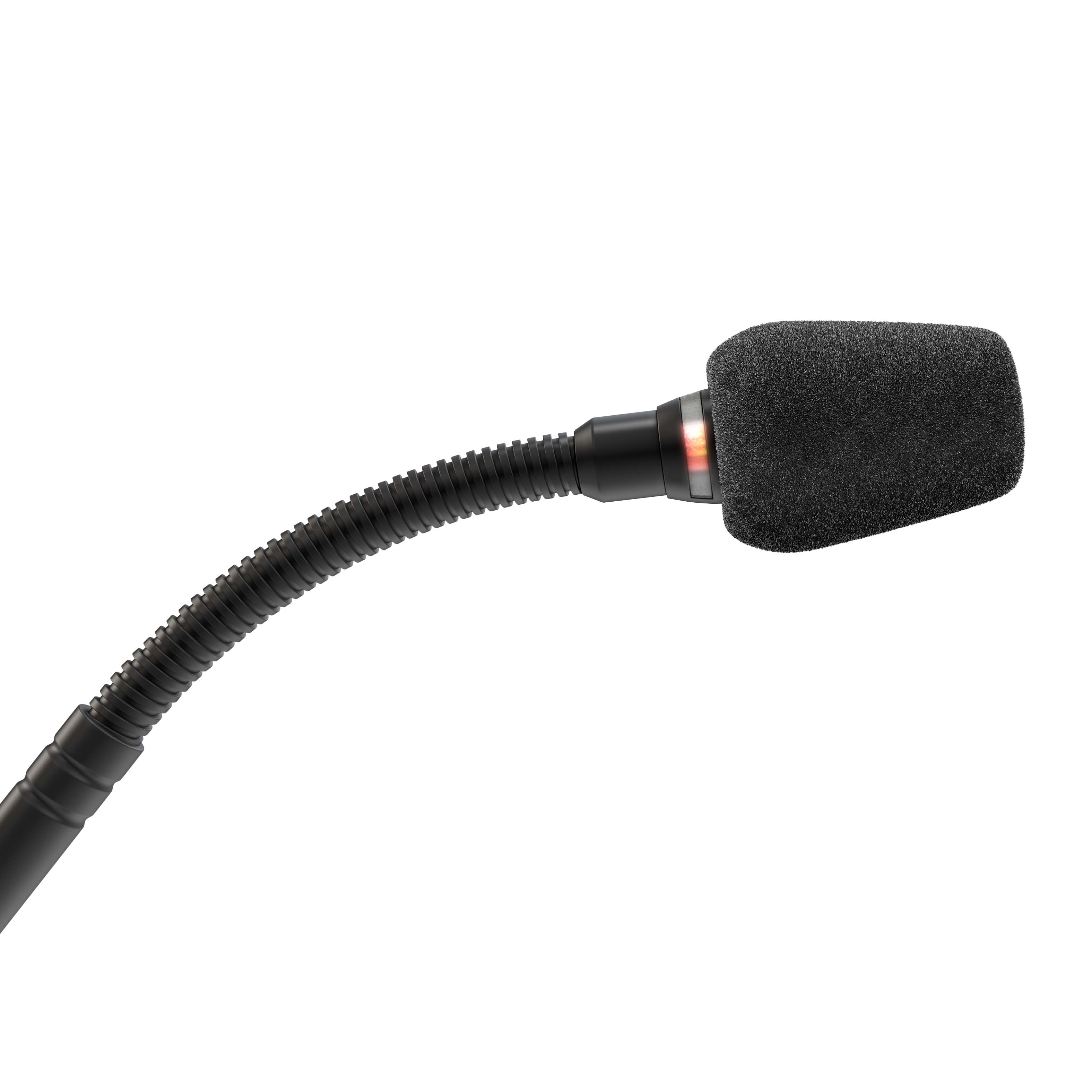

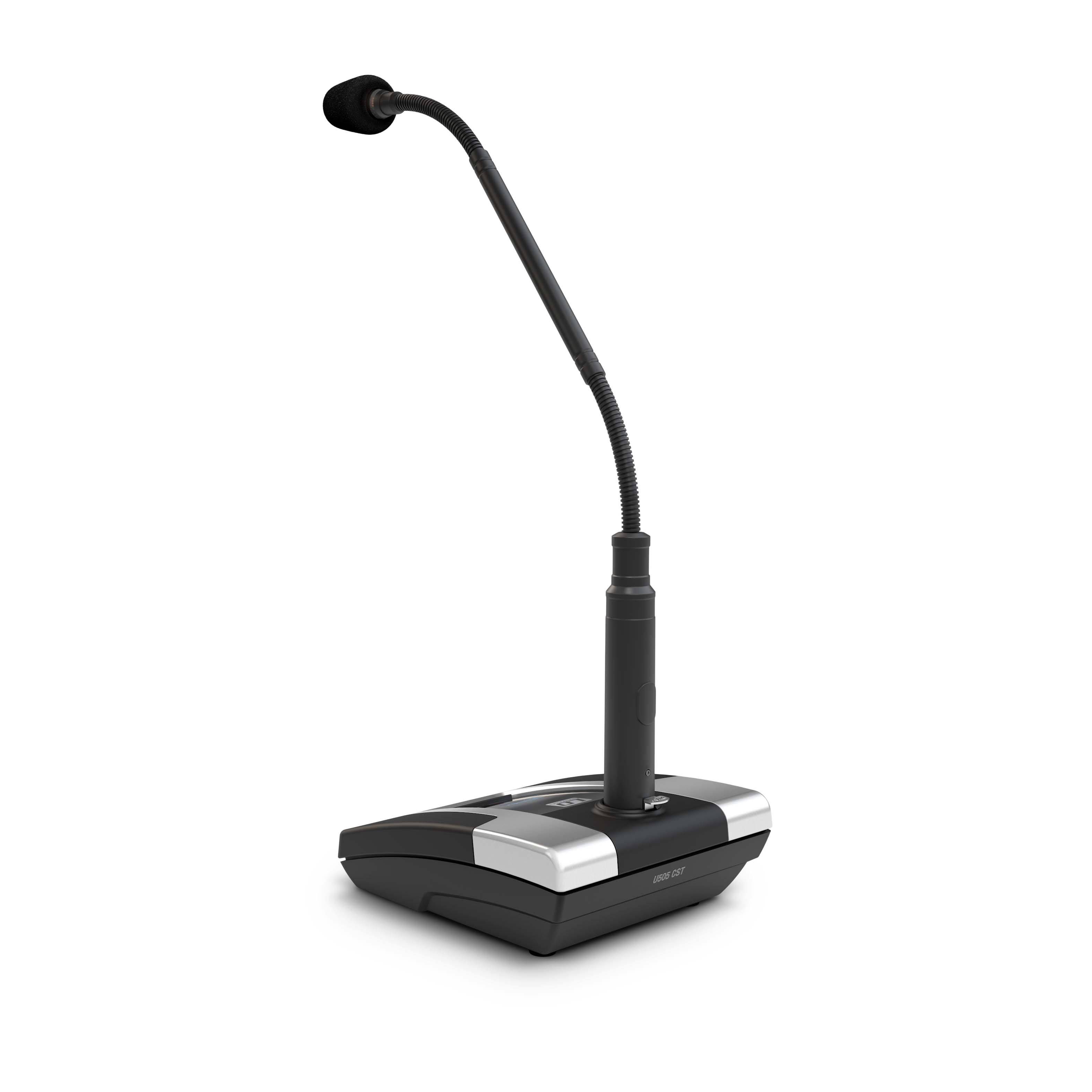

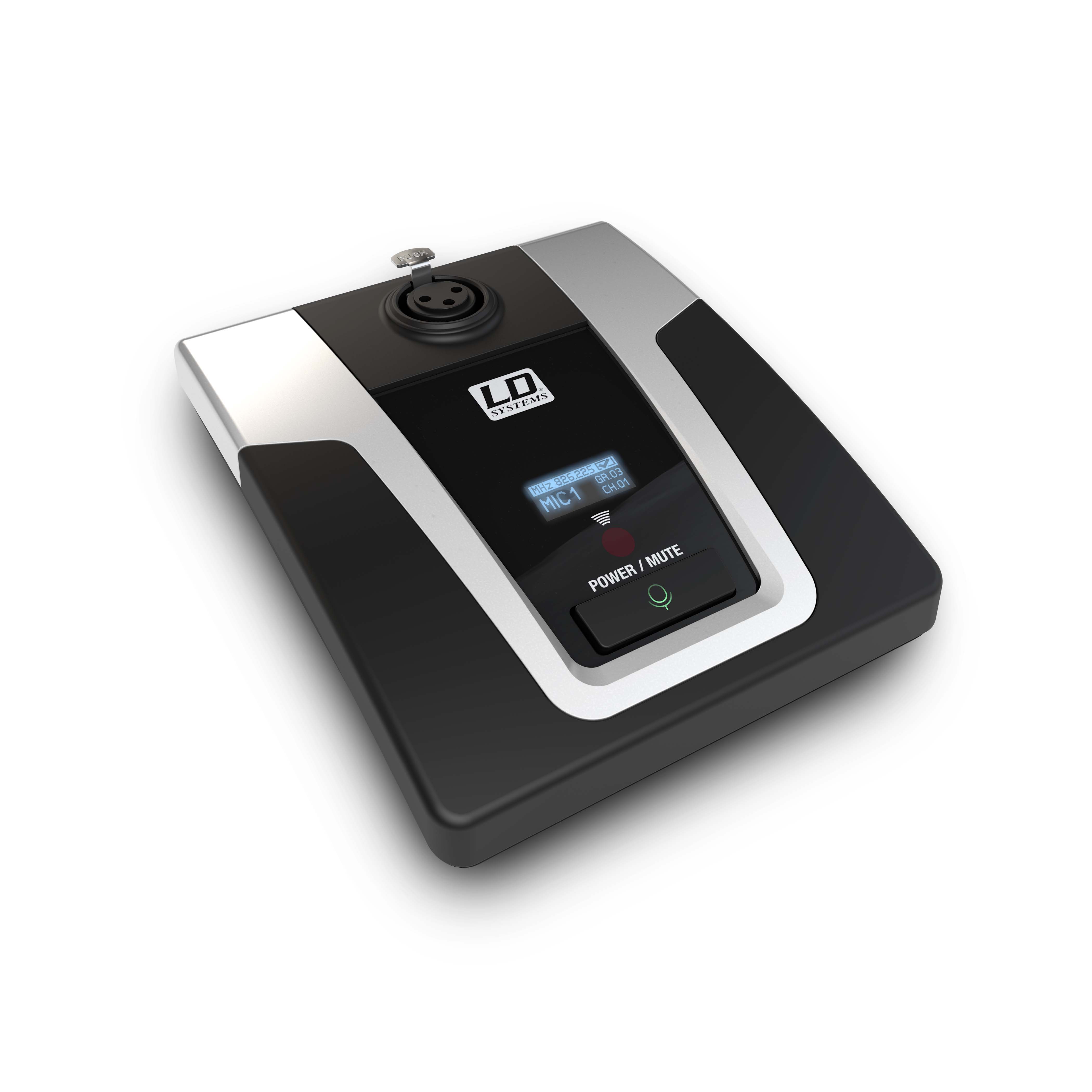

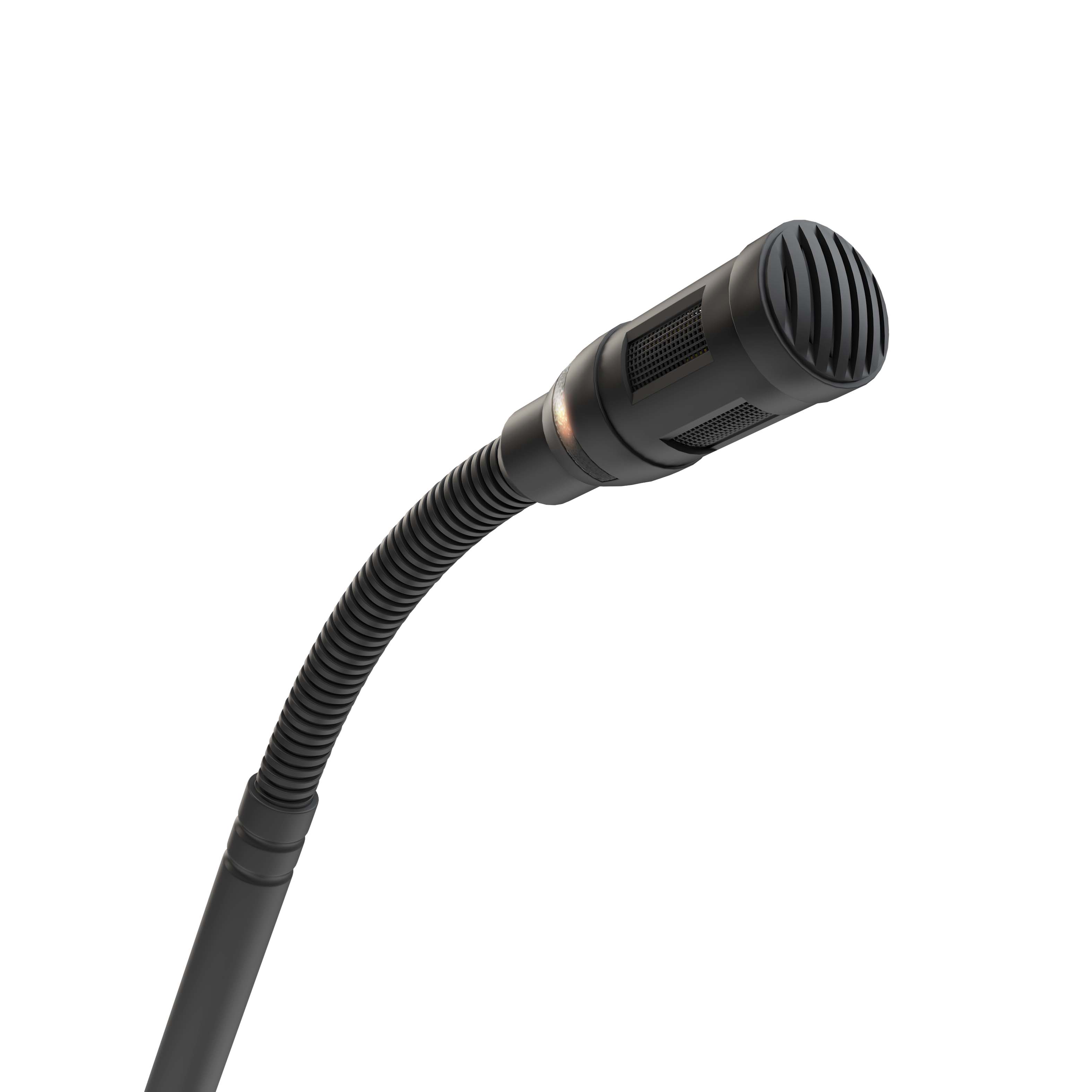

The U500® terminals feature a gooseneck condenser microphone with cardioid characteristic and a light ring to display status. The heavy table stand features an XLR microphone input, 28 V phantom power, an on-off-mute switch, as well as a gain control and a selectable 130 Hz high-pass filter to effectively reduce proximity effect and structure-borne sound. A high-contrast OLED display shows radio frequency, battery status, terminal number, group and channel. The audio transmission range is 60 Hz - 16 kHz.

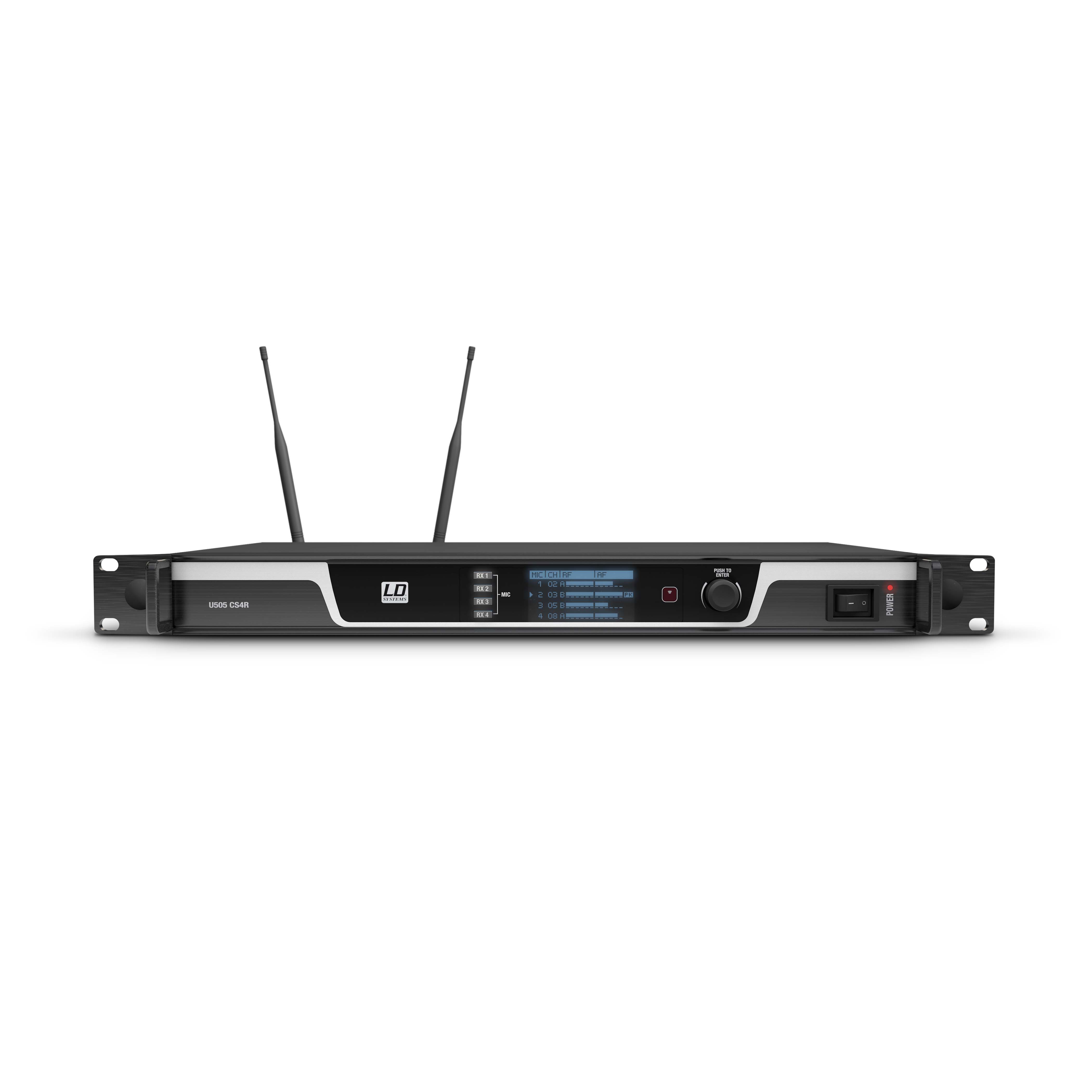

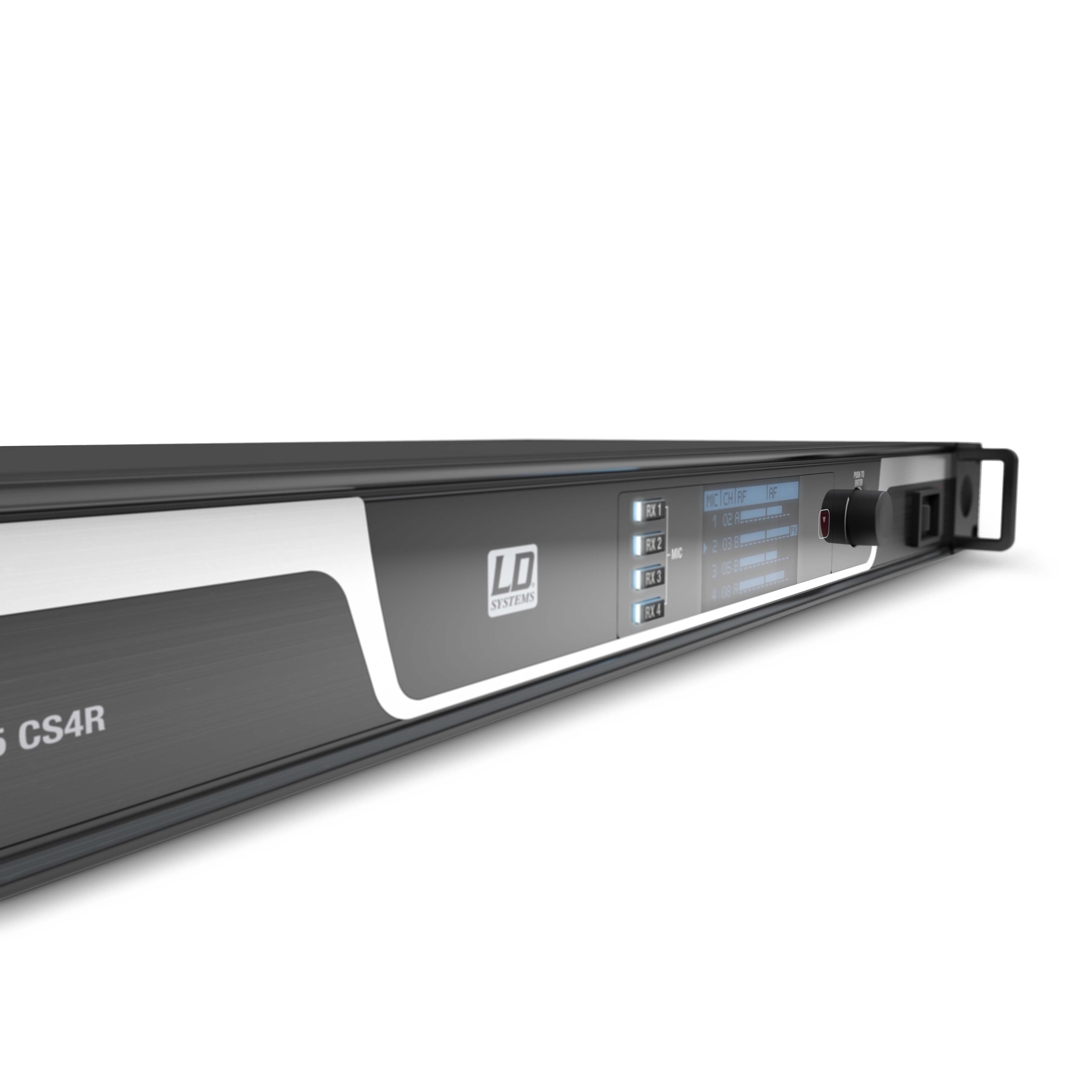

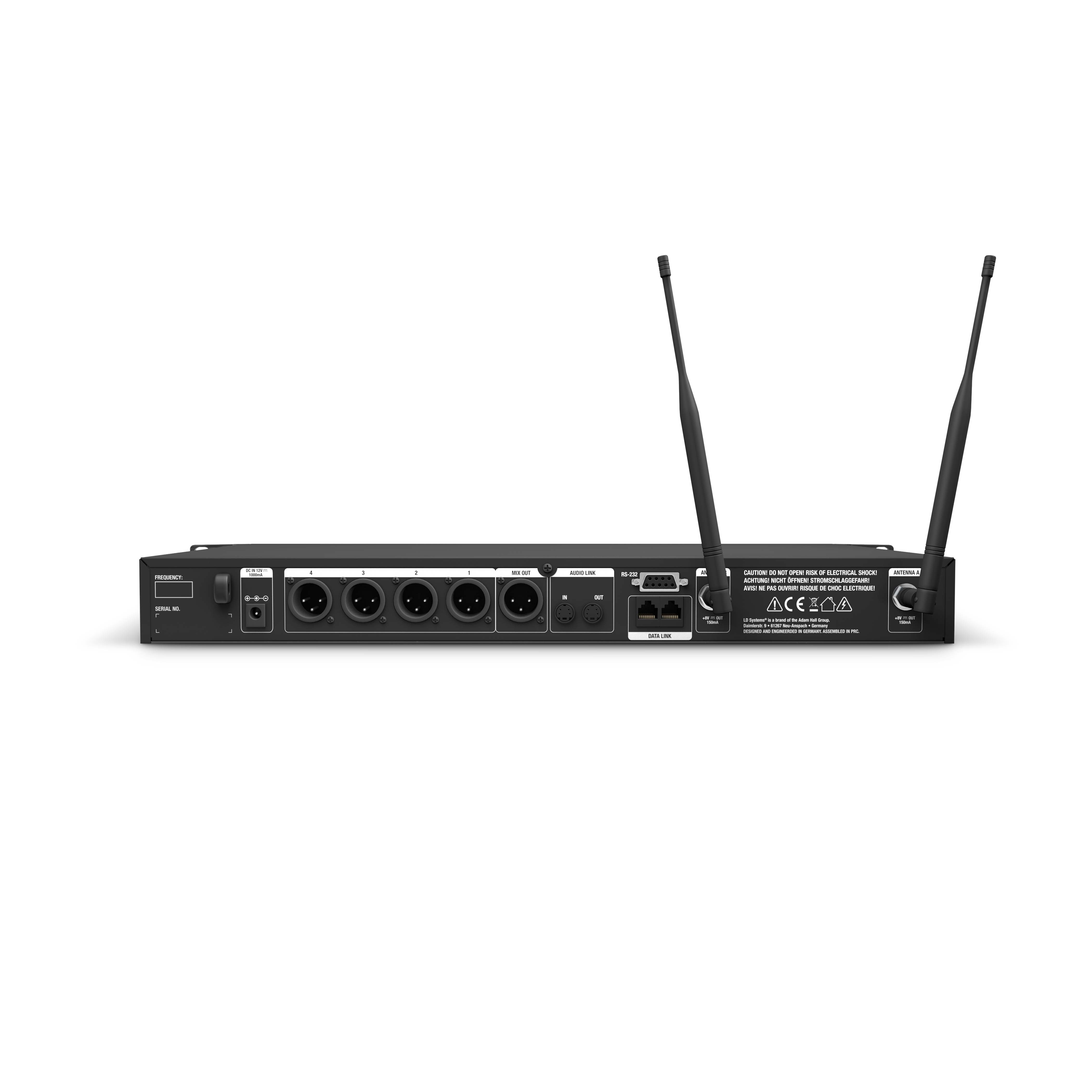

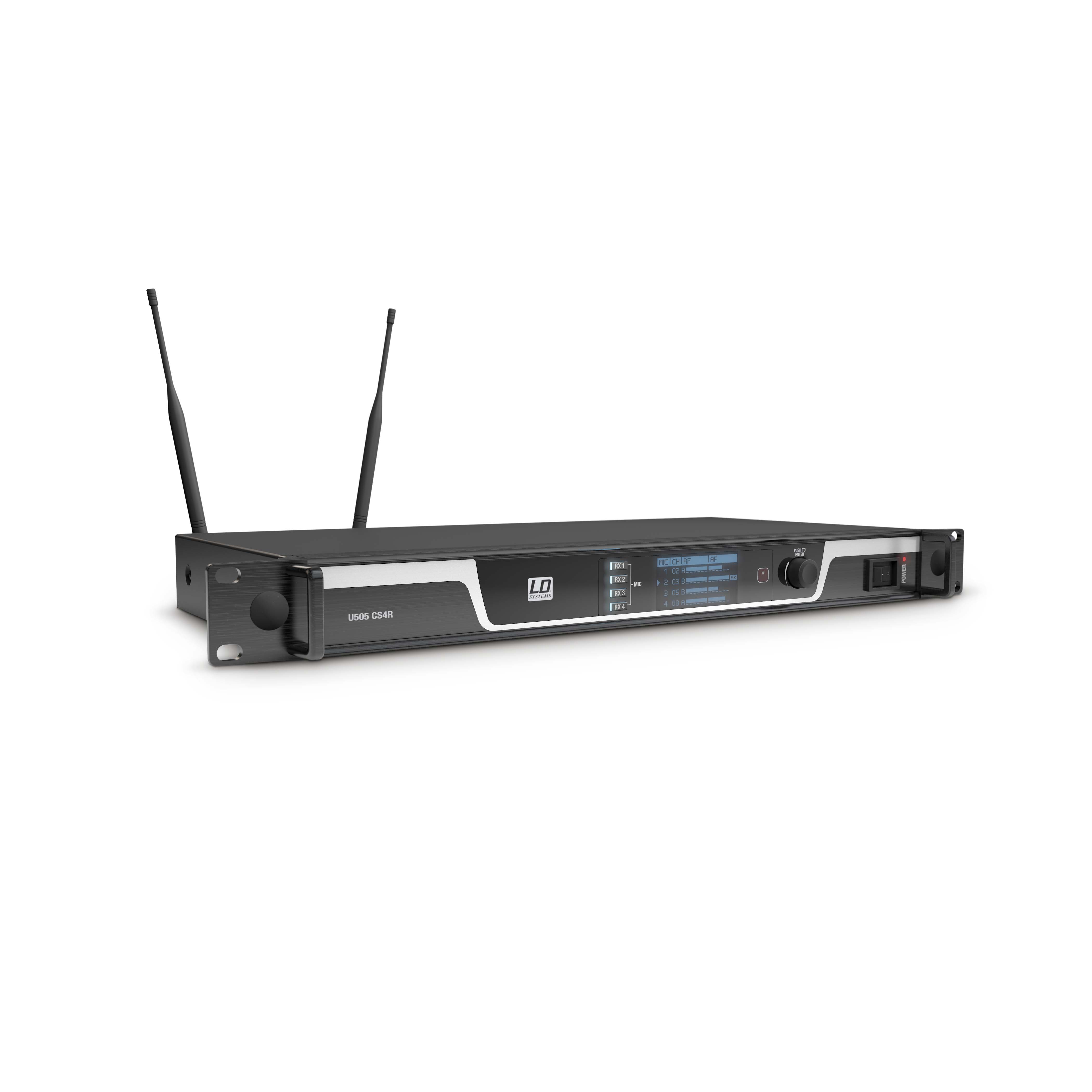

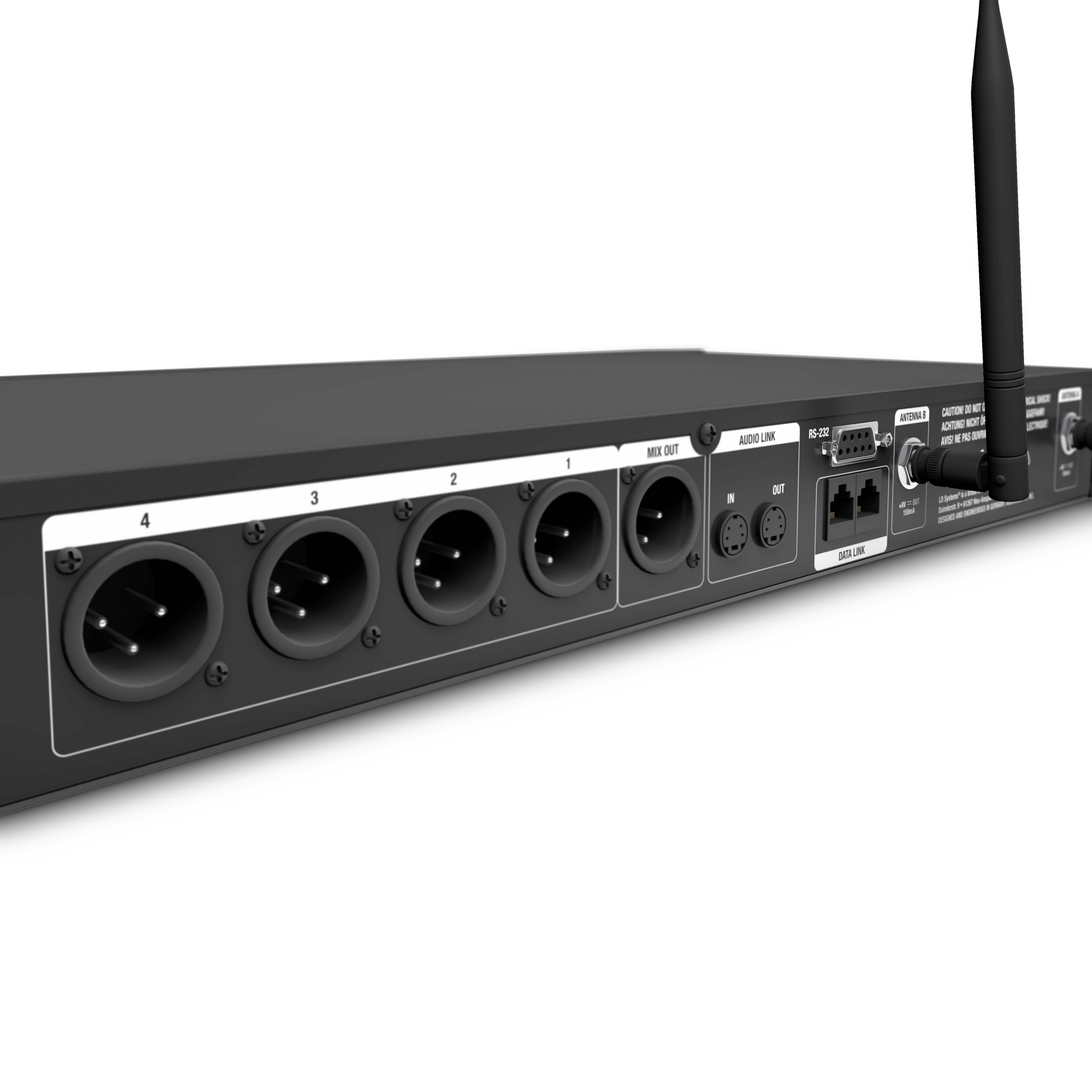

For simple, fast configuration, the 4-channel U500® conference system receiver features automatic frequency and channel scanning, infrared synchronisation, a digital encoder and 4 buttons to directly access the individual channels. The high-contrast OLED display provides a comprehensive overview of all functions and settings such as audio and radio signal strength, and priority and battery status of the terminals. The number of simultaneously-live microphones can be configured in order to eliminate crosstalk, feedback and comb filter effects. Selectable automatic or manual gate settings and a pilot tone ensure that the U500® conference system delivers superb sound quality with excellent noise immunity. In addition to its individual channel outputs, the receiver also has a master output, an access lock to prevent unauthorised adjustment of settings, and the RS-232 interface to facilitate integration into external control systems.
For system expansion, up to five U500® receivers can be cascaded and used in master-slave mode, making a maximum of 20 terminals possible. The U500® conference system is available in three versions which work in the following frequency areas: 554 - 586 MHz, 662 - 694 MHz or 823 - 832 MHz + 863 - 865 MHz
| Controls: | RX 1 - 4 quick access buttons, digital encoder, Power On/Off |
|---|---|
| Transmission frequency range: | 554 - 586 |
| Indicators: | OLED Display |
| Frequency response: | 60 - 16000 |
| Channels: | 150 (10 x 15) |
| Height: | 1.73 in |
| Audio output, balanced: | 4 x XLR |
| Operating voltage: | 12 V DC, 1,000 mA |
| Max. output level: | +12 dBu |
| Scope of delivery: | 4 x Conference System Microphone Base, Receivers, 4 x gooseneck conference microphones |
| Antenna inputs: | 2 |
| Product type: | Conference Systems |
| Depth: | 9.57 in |
| Type: | Installations |
| Total Harmonic Distortion (THD): | < 0.2 % |
| Noise reduction: | Squelch |
| Modulation Type: | FM |
| Signal-to-noise ratio: | > 100 dB |
| Groups: | 10 |
| Audio mix output, balanced: | XLR |
| Width: | 19.06 in |
| Antenna connector: | BNC |
Login
accessories
For professional applications on stage, in the studio or in the rehearsal room, excellent quality is available with our 5 STAR SERIES. This cable is made in the EU and therefore meets the relevant requirements for professional use.Durability and reliability find their master in the hard road everyday life! We have therefore developed a cable that is not only flexible, but also very robust. We use a special soft-PVC compound for all cables of the 5 STAR SERIES, which is friction resistant and bendable. For excellent signal transmission, but is also more abrasion resistance. The cable comes with a cable tie and two transparent, loose heatshrinks for labeling.Engineered in Germany & Made in EU: This stands for precision & quality.
For professional applications on stage, in the studio or in the rehearsal room, excellent quality is available with our 5 STAR SERIES. This cable is made in the EU and therefore meets the relevant requirements for professional use.Durability and reliability find their master in the hard road everyday life! We have therefore developed a cable that is not only flexible, but also very robust. We use a special soft-PVC compound for all cables of the 5 STAR SERIES, which is friction resistant and bendable. For excellent signal transmission, but is also more abrasion resistance. The cable comes with a cable tie and two transparent, loose heatshrinks for labeling.Engineered in Germany & Made in EU: This stands for precision & quality.
High Quality CableFor users who demand high-quality on stage, in the studio, or in the rehearsal room, we have developed this cable from our 3 STAR SERIES. This product is completely developed in Germany and therefore meets the relevant requirements for users with high-quality standards.
High Quality CableFor users who demand high-quality on stage, in the studio, or in the rehearsal room, we have developed this cable from our 3 STAR SERIES. This product is completely developed in Germany and therefore meets the relevant requirements for users with high-quality standards.

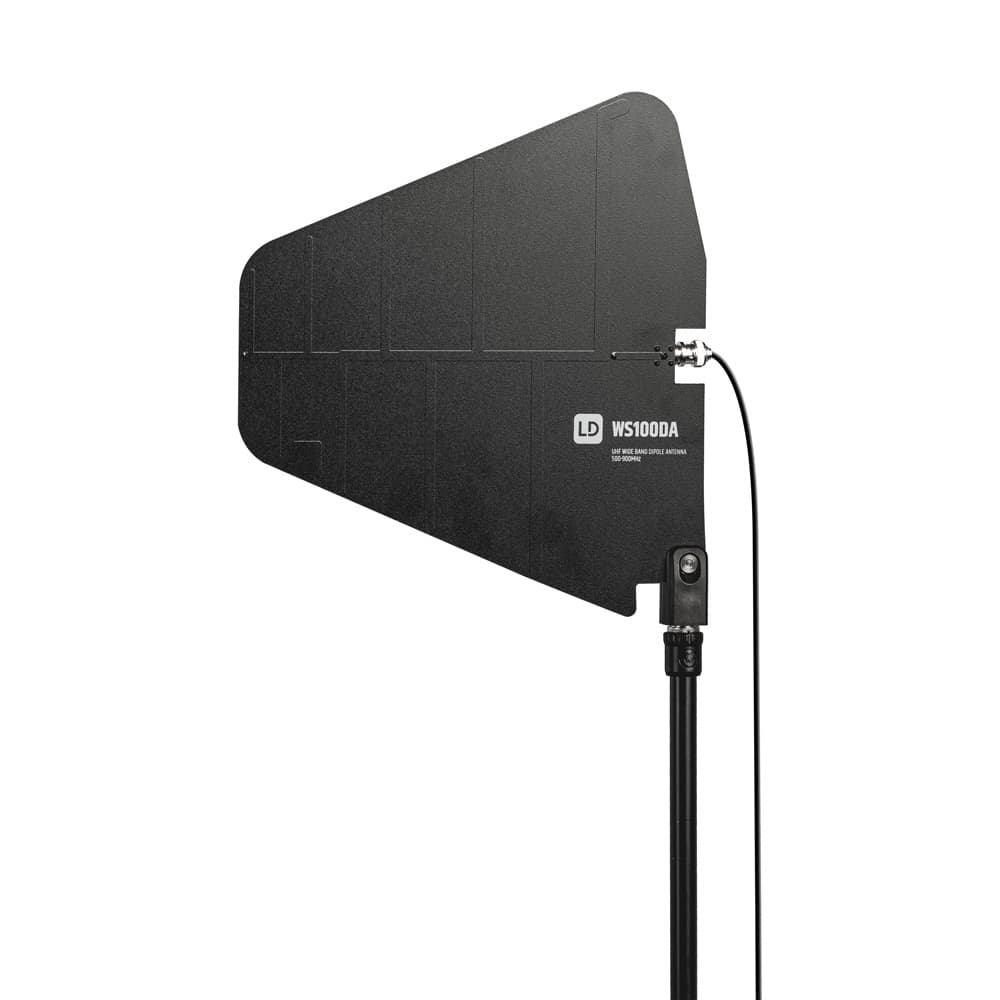

Directional antenna for setting up large systems.Frequency range: 500 ~ 900 MHzSupplied without cable and tripodThis product is compatible with the WIN42 and U500 series.
