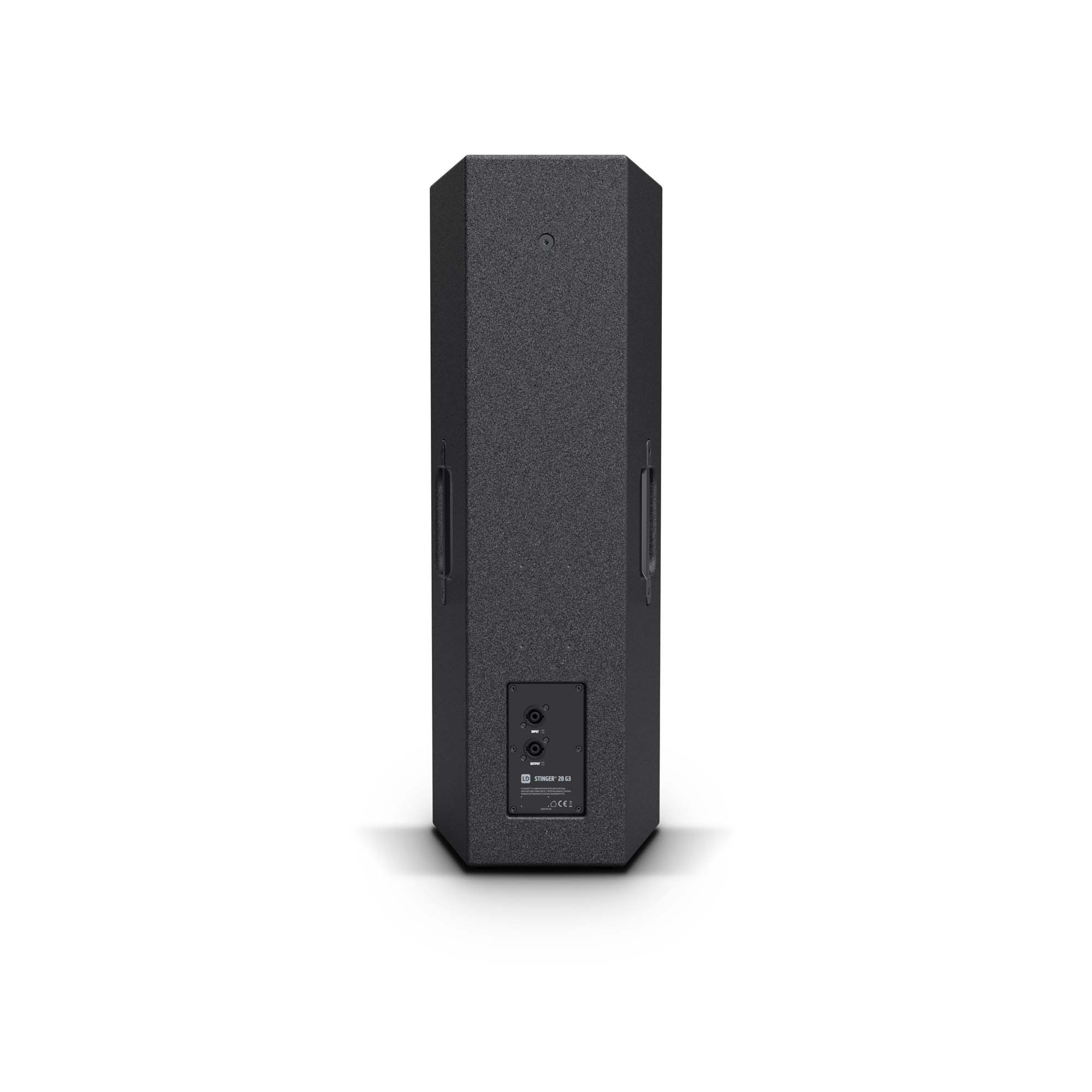

Product information "STINGER 28 G3"

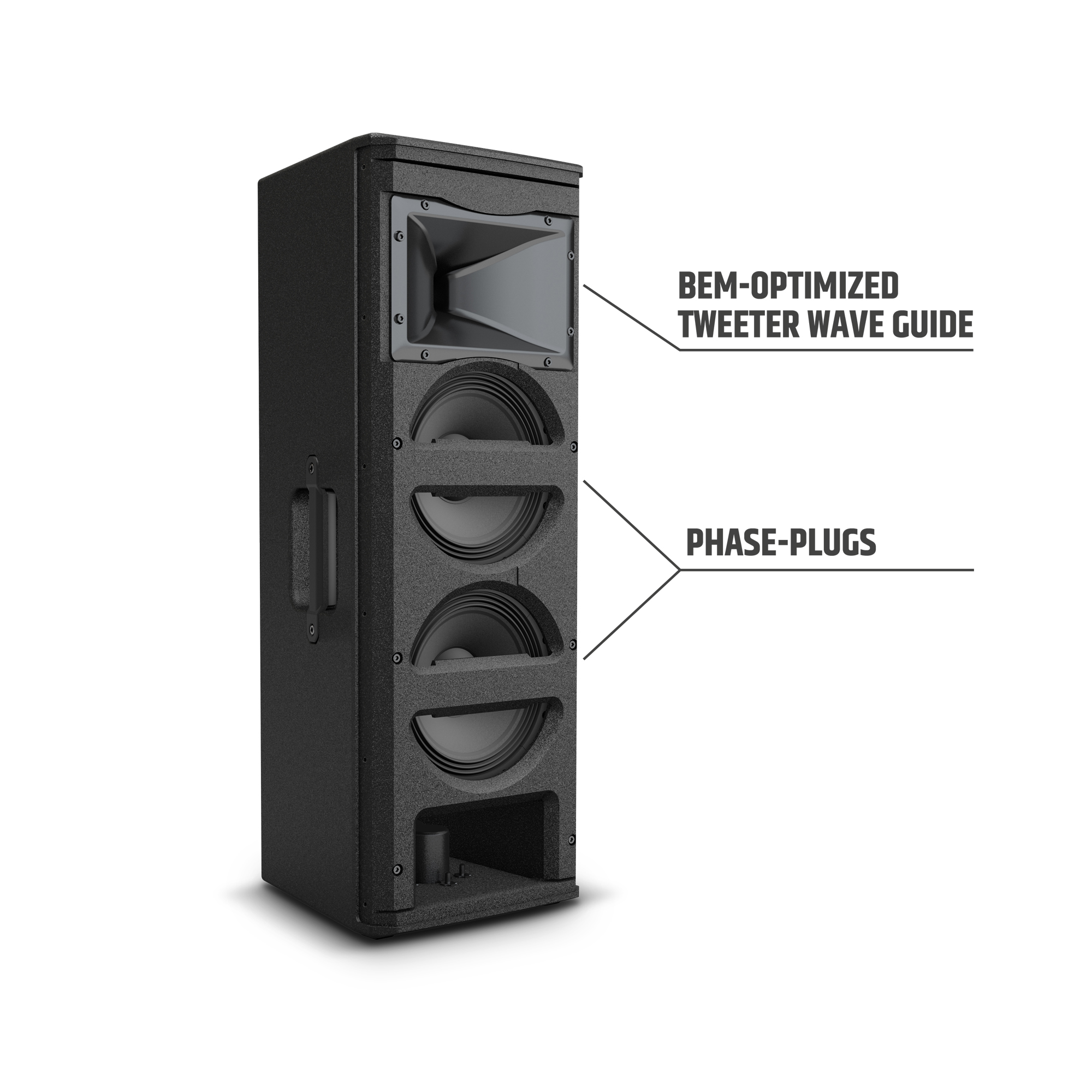

Engineered for rock-solid reliability day in, day out this passive 2-way loudspeaker is a truly professional performer. With its multi-purpose bass reflex construction it is equally suitable for fullrange, satellite or monitor use in live PA systems and permanent installations. The STINGER® 28 G3 boasts a mighty 400 watts RMS power handling and 125 dB maximum sound pressure. It is loaded with dual custom designed 8” woofers and a BMS compression driver delivering a punchy low end and smooth, crisp highs. The HF waveguide has been designed using BEM, the numerical modeling of sound radiation and propagation. It reduces floor and ceiling reflections, effectively eliminates side lobes and achieves a controlled uniform coverage pattern. Situated directly in front of the two 8” woofers, phase plugs ensure that midrange efficiency is increased and harmonic distortion above the crossover frequency is reduced.

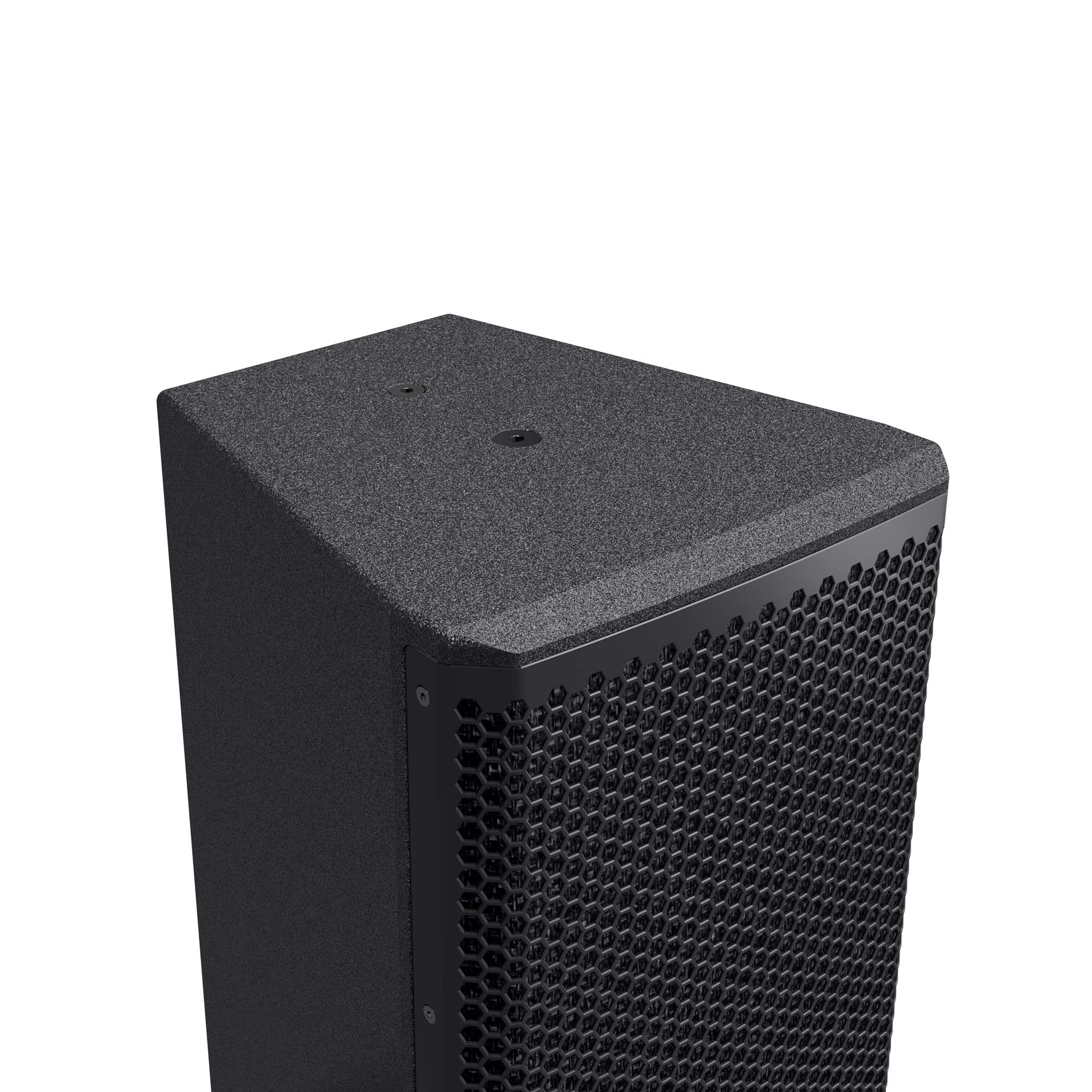

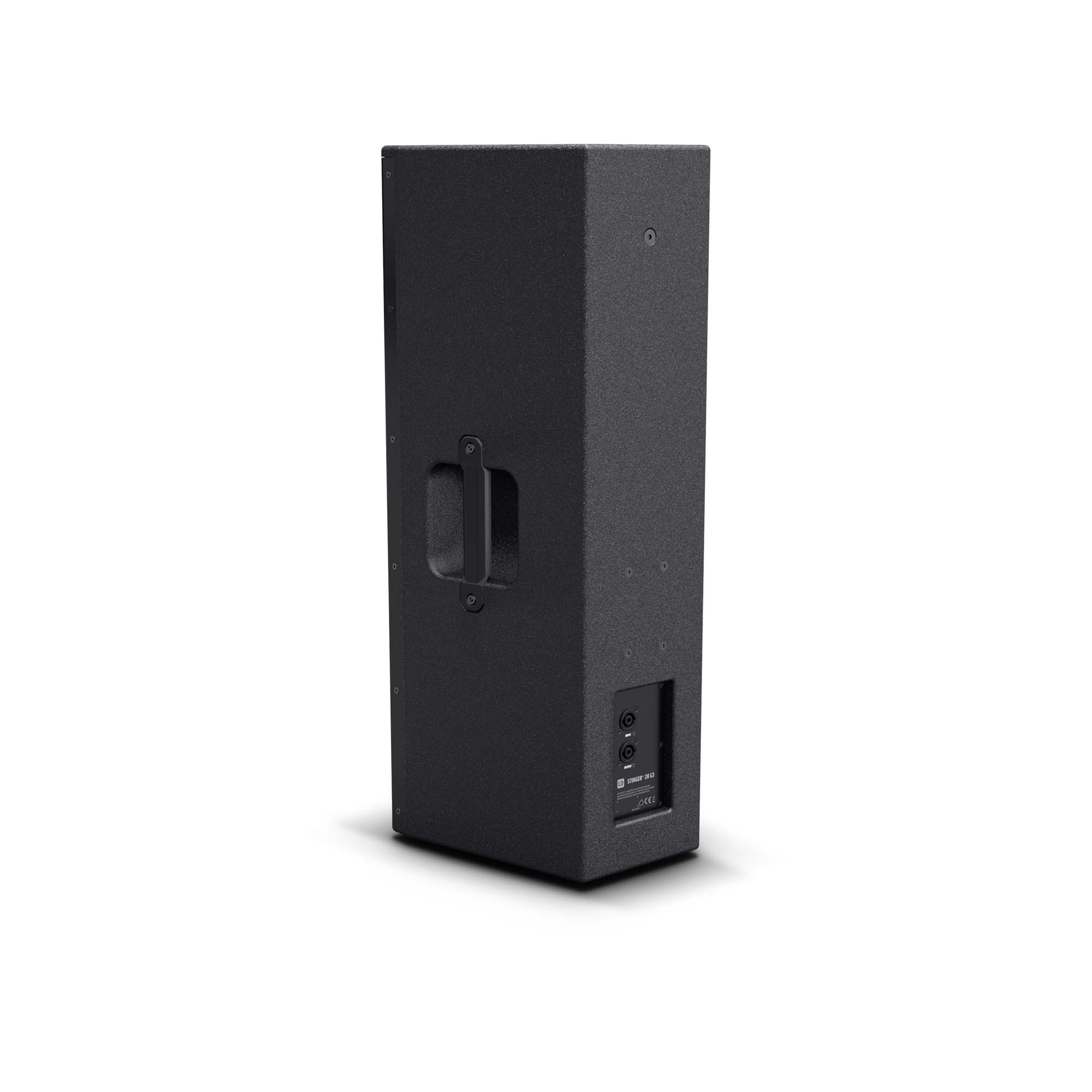

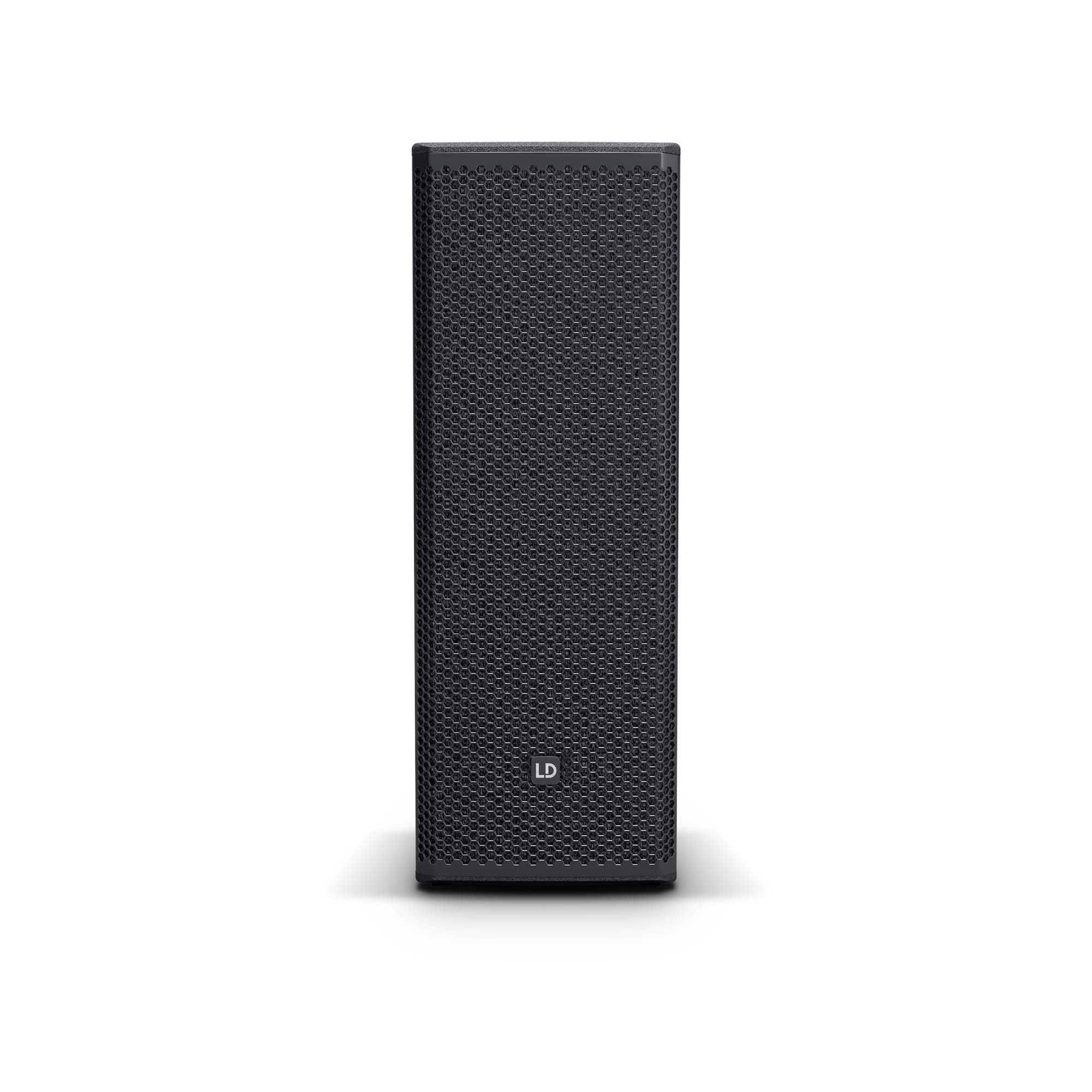

The STINGER® 28 G3 is designed to be a real workhorse throughout. The enclosure is made of rigid birch ply and coated with ultra tough polyurea for extraordinary strength and durability. Sporting a steel front grille, Dual-Tilt pole receptacle, multiple suspension points and ergonomic handles the STINGER® 28 G3 is an attractively priced choice for truly professional sound reinforcement. A large selection of accessories facilitate live and installed applications.

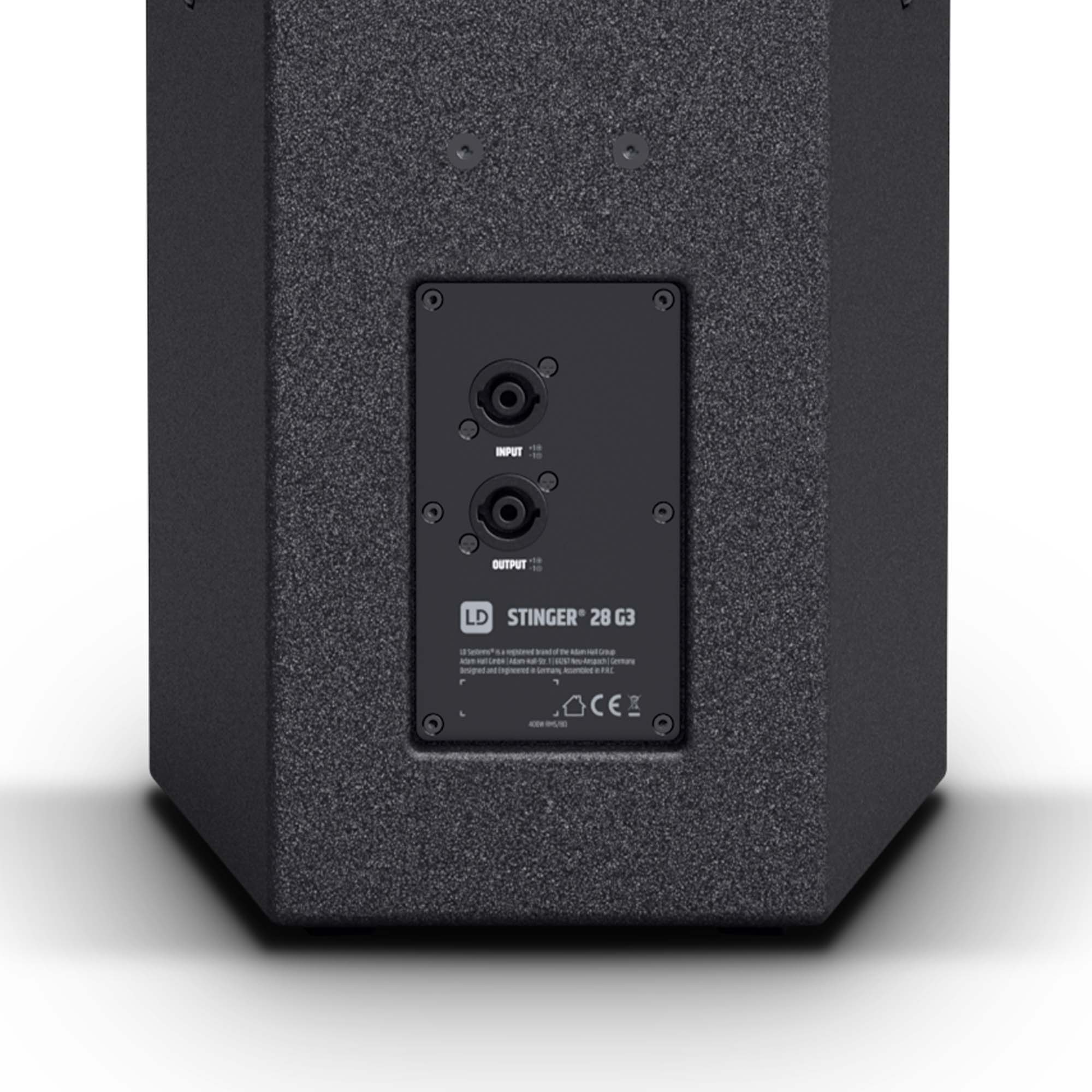

Input connector types: Standard speaker connector 4-pole male & speakON®
Beam angle: Hor.: 90° / Vert.:50°
Power handling (Peak): 800 W
SPL (1 W/1 m): 99 dB
Frequency response: 58 - 20000 Hz
Type: Passive
Output connector types: Standard speaker connector 4-pole male & speakON®
Impedance: 8 Ω
Colour: Black
Speaker system: 2-way system
Number of inputs: 1
Number of outputs: 1
Power handling (RMS): 400 W
Manufacturer: Custom Made
Quantity: 2
Voice coil: 2 "
Size: 8 "
Magnet: Ferrite
Manufacturer: BMS
Driver size: 0.04 in
Voice coil: 0.04 in
Magnet: Ferrite

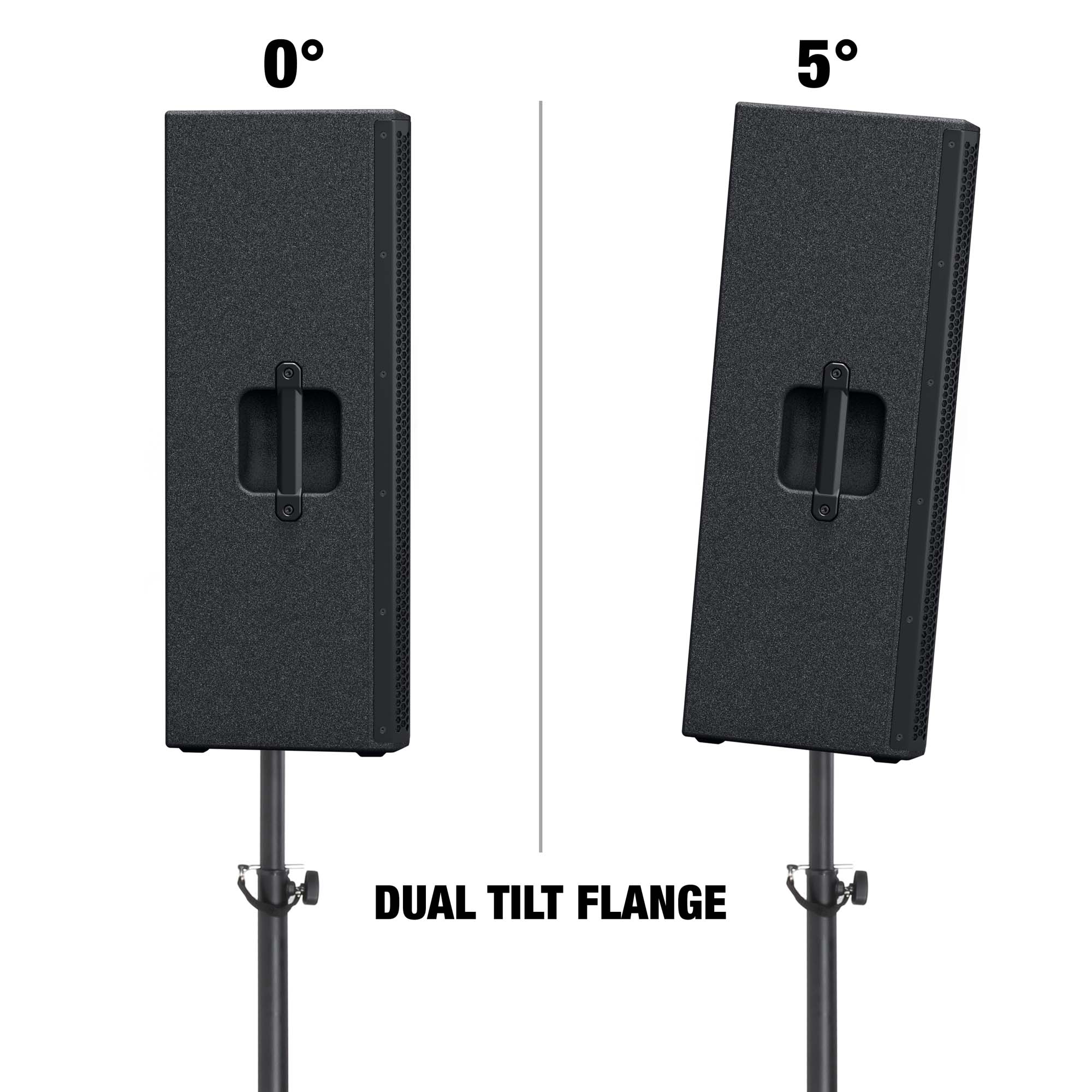

Flange: 36 mm (0°/5°)
Cabinet material: Birch plywood
Number of handles: 2
Design: Bass reflex
Front grille material: Aluminium
Material thickness: 0.47 in

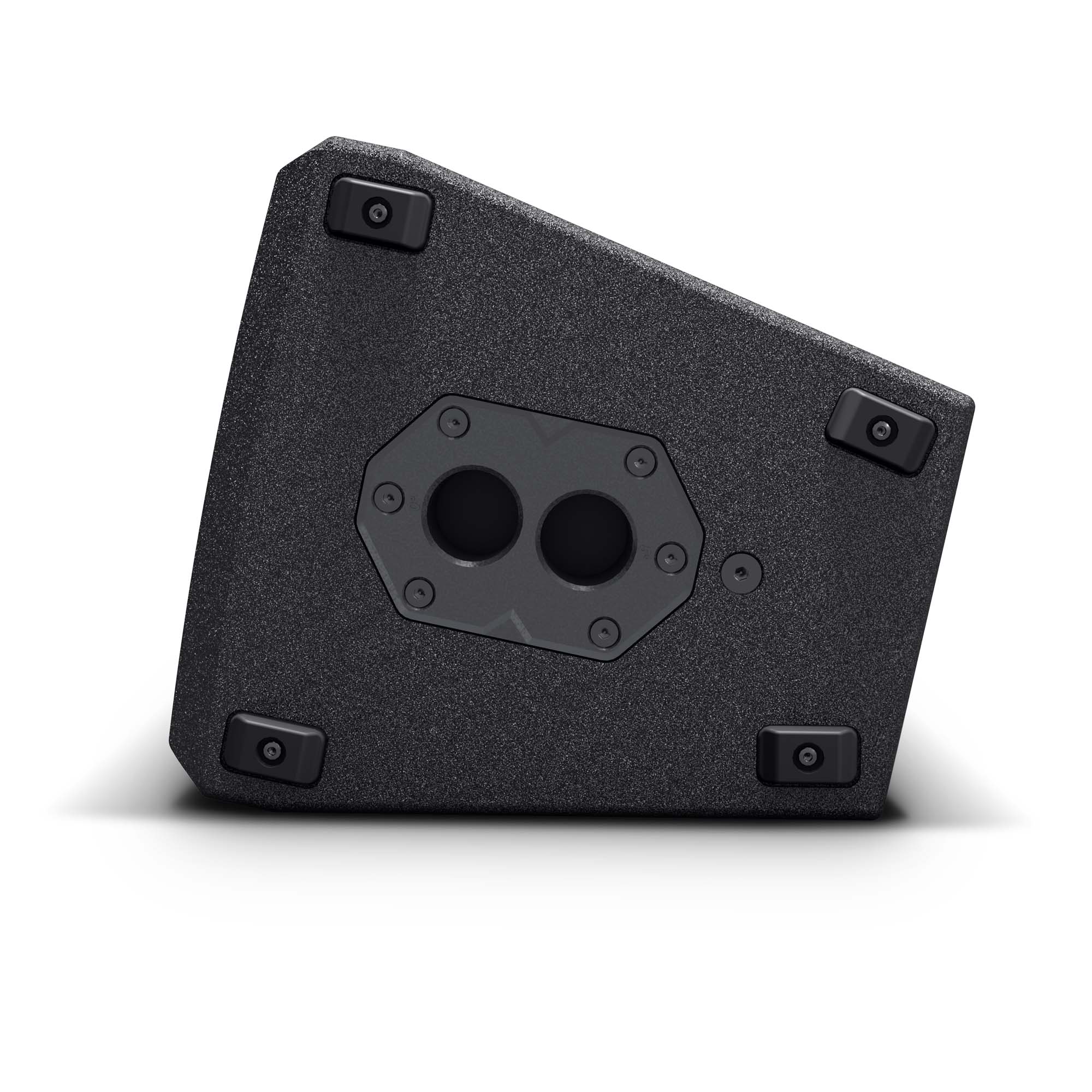

Mounting type: M10 for SuperClamp
Width: 10.63 in
Weight: 42.55 lbs
Depth: 11.42 in
Height: 29.76 in

0 of 0 reviews

Average rating of 0 out of 5 stars

Leave a review!

Share your experiences with other customers.


Skip product gallery

accessories

ADA 8K4
ADA 8K4

As a 4-channel amplifier with DSP & DANTE™, the ADA 8K4 offers maximum power, precise sound and maximum reliability for professional touring and installation applications. With 4 × 2000 W @ 4 Ω, a 24-bit/96 kHz DSP with 32-bit floating point and FIR, IIR and raised-cosine filters, it delivers outstanding audio quality and enables flexible sound processing. Thanks to two Dante™ ports with integrated switch and Armonía Pro Audio Suite™ integration, the amplifier can be seamlessly integrated into networks. Armonía Plus allows LD Systems speaker presets to be managed and updated on the DSP amplifier without the need for complex configurations. Alternatively, individual presets can be created and managed to optimise the system for specific requirements. Versatile connection options with 4 analogue and 4 AES3 inputs as well as 4 analogue, 4 SpeakON and 4 AES3 outputs ensure maximum flexibility. The automatic input backup strategy guarantees uninterrupted operation. The 4.3-inch touch display with rotary-push encoder and virtual metre bridge for monitoring the available headroom ensures intuitive operation. Flexible routing and mixing options enable customised signal routing for individual applications. Comprehensive limiters (peak, RMS, current, TruePower™) and Active DampingControl™ offer reliable system protection. In addition, together with HealthPlus monitoring in Armonía Plus, the LiveImpedance™ function offers comprehensive and detailed system monitoring. The protection system against direct current, overvoltage/undervoltage, short circuits and overheating ensure maximum operational safety, bolstered by signal protection mechanisms such as clipping, VHF and long-term RMS protection. Thanks to an energy-efficient mains adapter with Power Factor Correction (PFC) and intelligent rail management, the amplifier is particularly efficient and reliable, making it ideal for professional use.

$6,999.99*
SP WMBS 30 B
SP WMBS 30 B

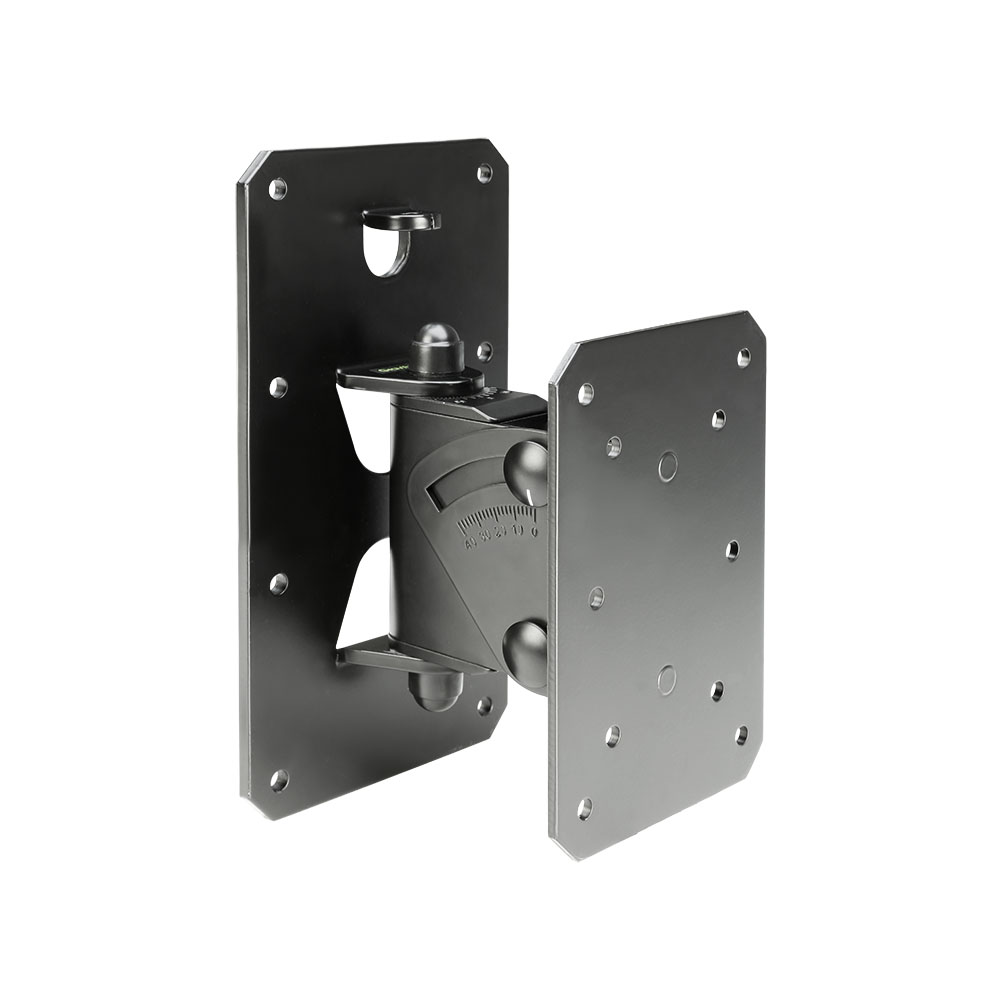

Made of powder-coated steel and providing horizontal plus vertical adjustment for precision aiming, this Gravity wall mount supports loudspeakers up to 30 kg. Side to side swivel is 160° while down tilt is continuously variable to a maximum of 40°. The heavy duty 6 mm wall plate features a safety rope eyelet in accordance with BGV C1. The GSPWMBS 30 comes with a universal plate that attaches to the speaker for easy hook-in mounting. It is available in black (GSPWMBS30B) or white (GSPWMBS30W).
