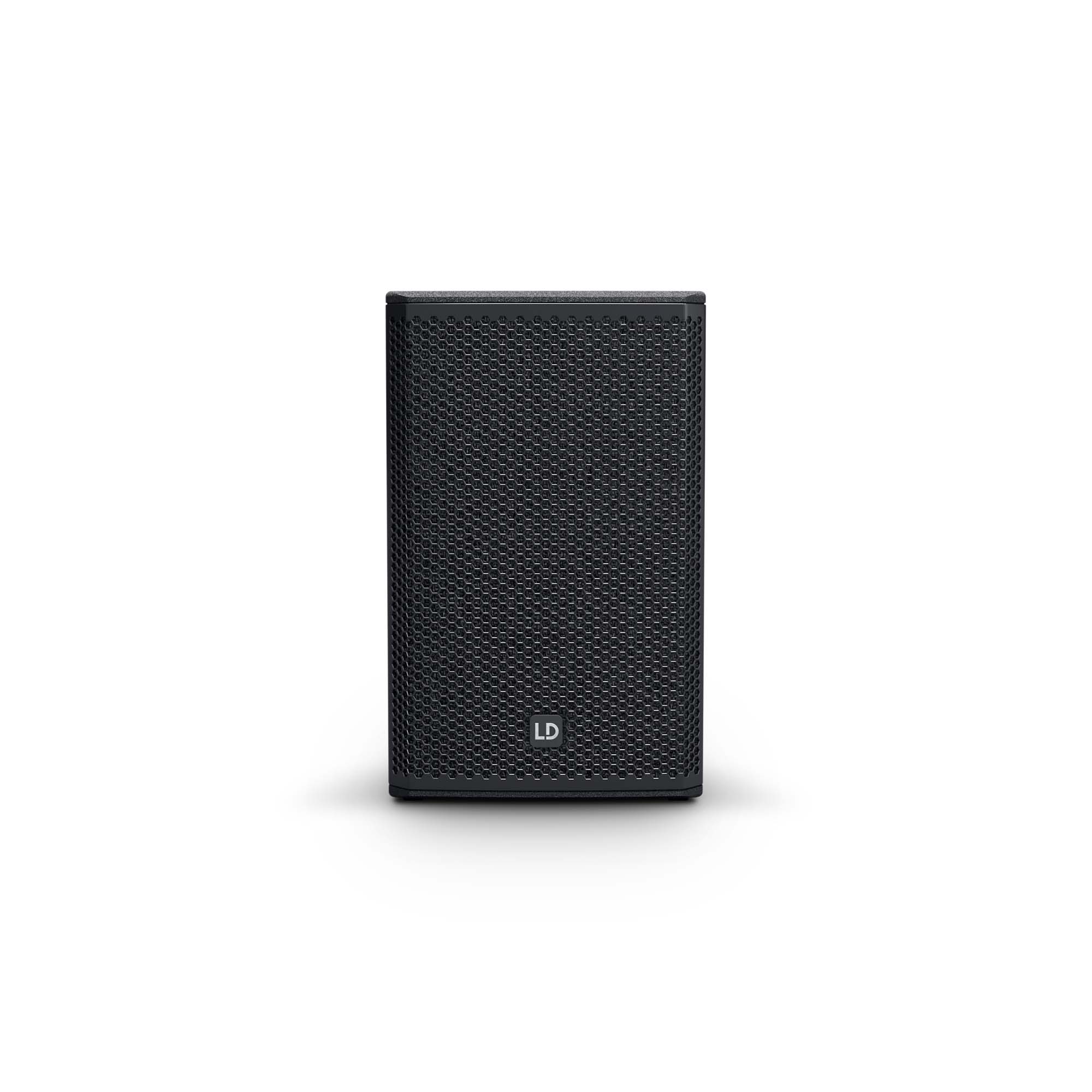

STINGER 10 A G3
Active 10" 2-way bass-reflex PA Loudspeaker
$749.99
Backordered – More on the Way!
Product information "STINGER 10 A G3"

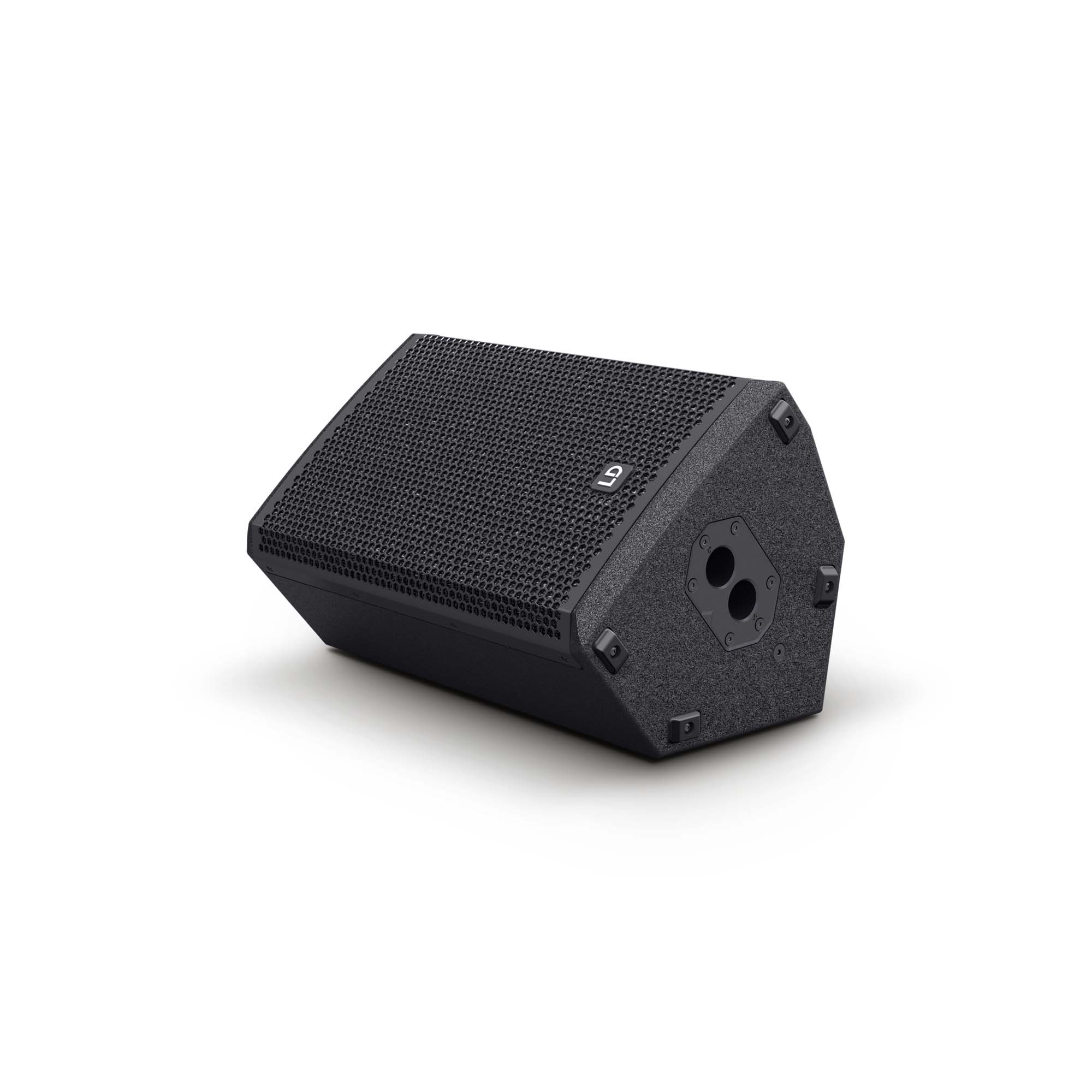

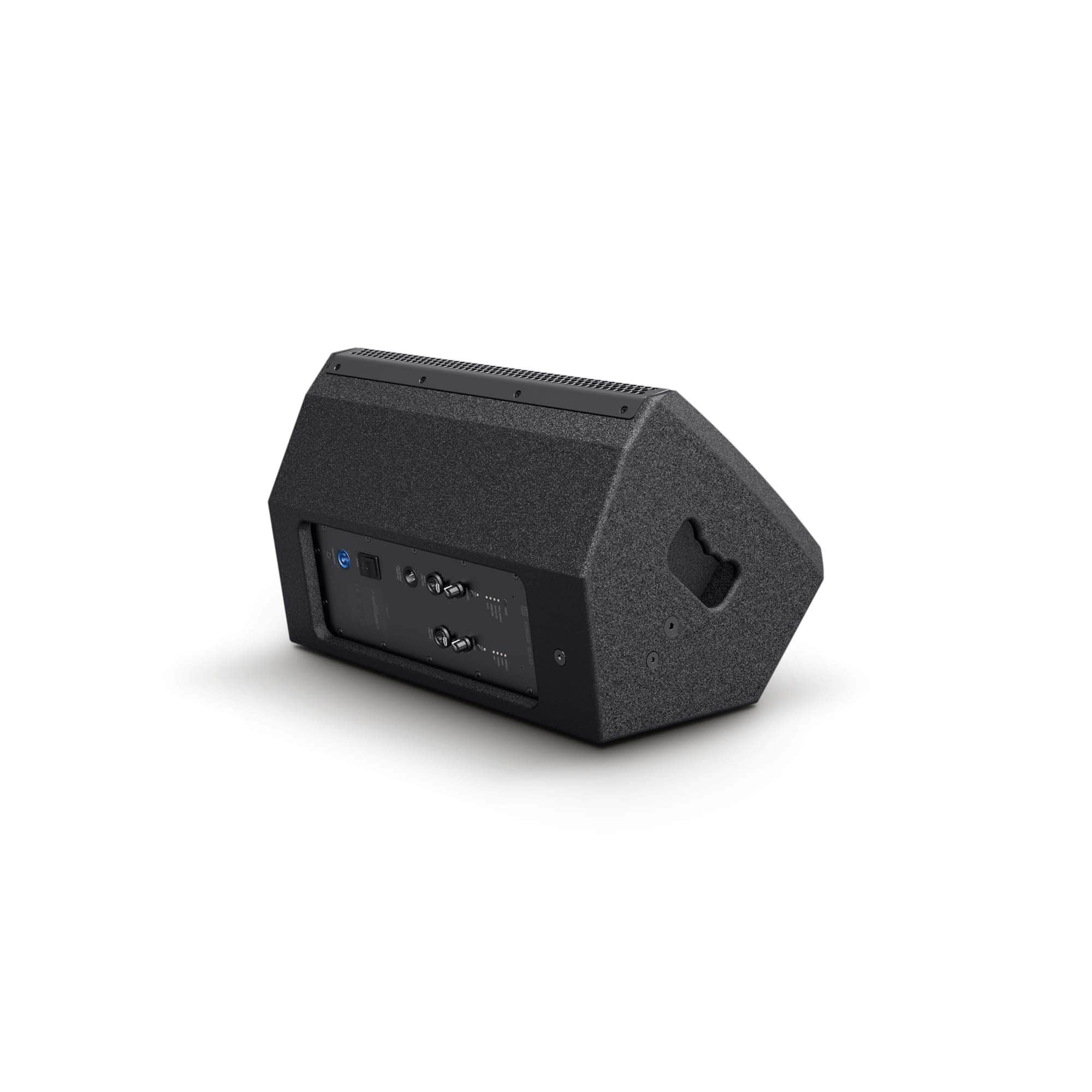

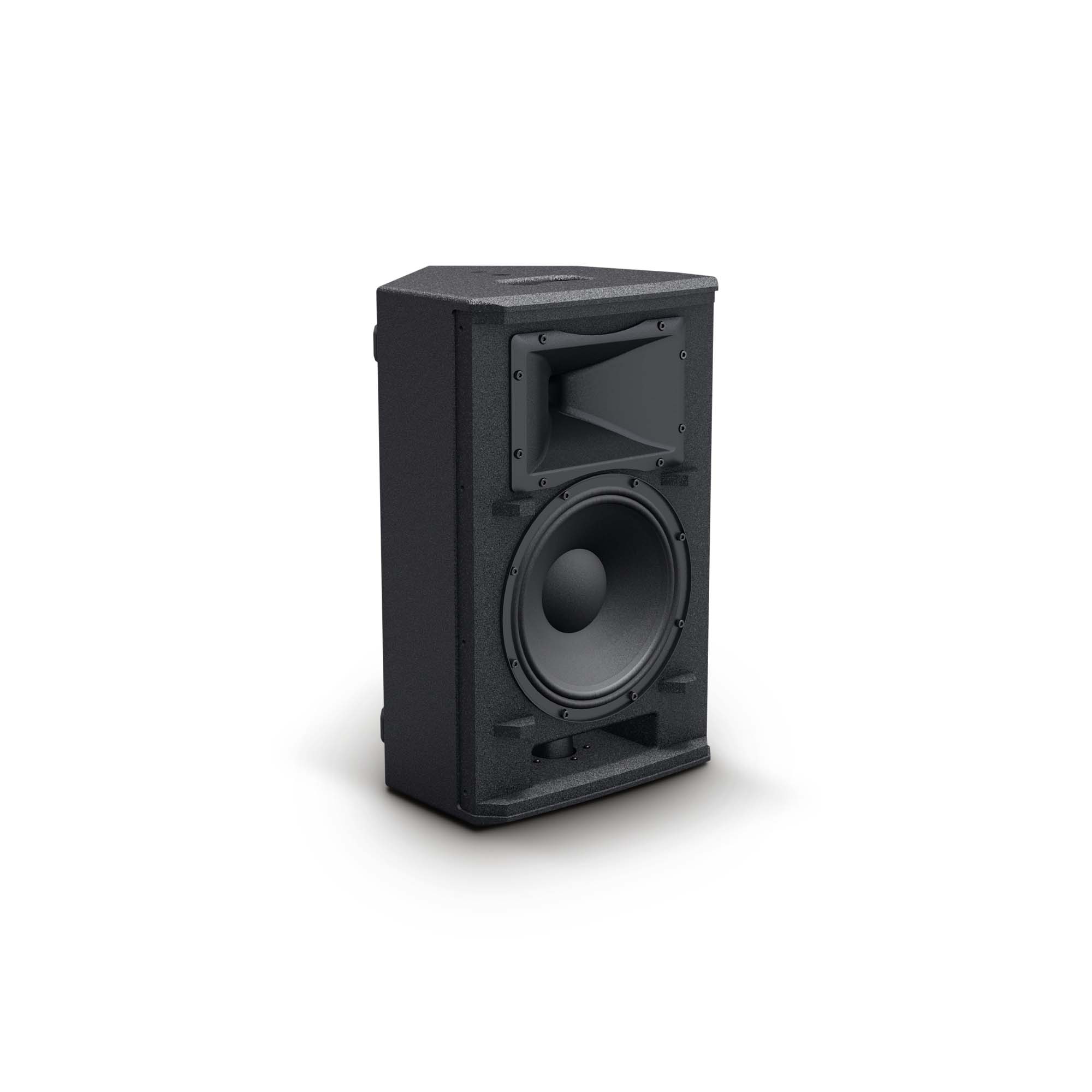

This highly professional 2-way active system is designed for absolute, long-term reliability. With its multi-functional bass reflex housing and finely tuned, user-friendly presets, the speakers are suitable as full-range, box, satellite and floor monitors. The STINGER® 10 A G3 is powered by a highly efficient Class-D amplifier with a powerful 300-watt continuous output. The specially developed 10" woofer and a BMS tweeter driver achieve a powerful bass response and fresh, natural trebles. The wave guide of the tweeter has been developed using the Boundary Element Method (BEM), a numerical simulation of the sound radiation and dispersion. It reduces reflection from floors and ceilings and prevents sidelobe levels, thus achieving controlled and homogeneous dispersion. LD Systems’ proprietary DynX® DSP technology means that the STINGER® 10 A G3 delivers perfect performance with maximum clarity and power under all conditions. The signal processing of the crossover function and the multi-band limiter achieve an optimal runtime and high freedom from distortion. Designed as an all-around workhorse, the housing of the speaker is made of robust birch plywood. An extremely resilient coating of polyurea offers exceptional robustness and durability. The features include a steel front grille, a dual-tilt stand attachment, flight points and ergonomic handles. The STINGER® 10 A G3 is a good value and attractive solution for professional sound systems, with extensive accessories that support usage on the stage and in fixed installations.
| Type: | Active |
|---|---|
| Monitor angle: | 54 ° |
| Frequency response: | 65 - 20000 Hz |

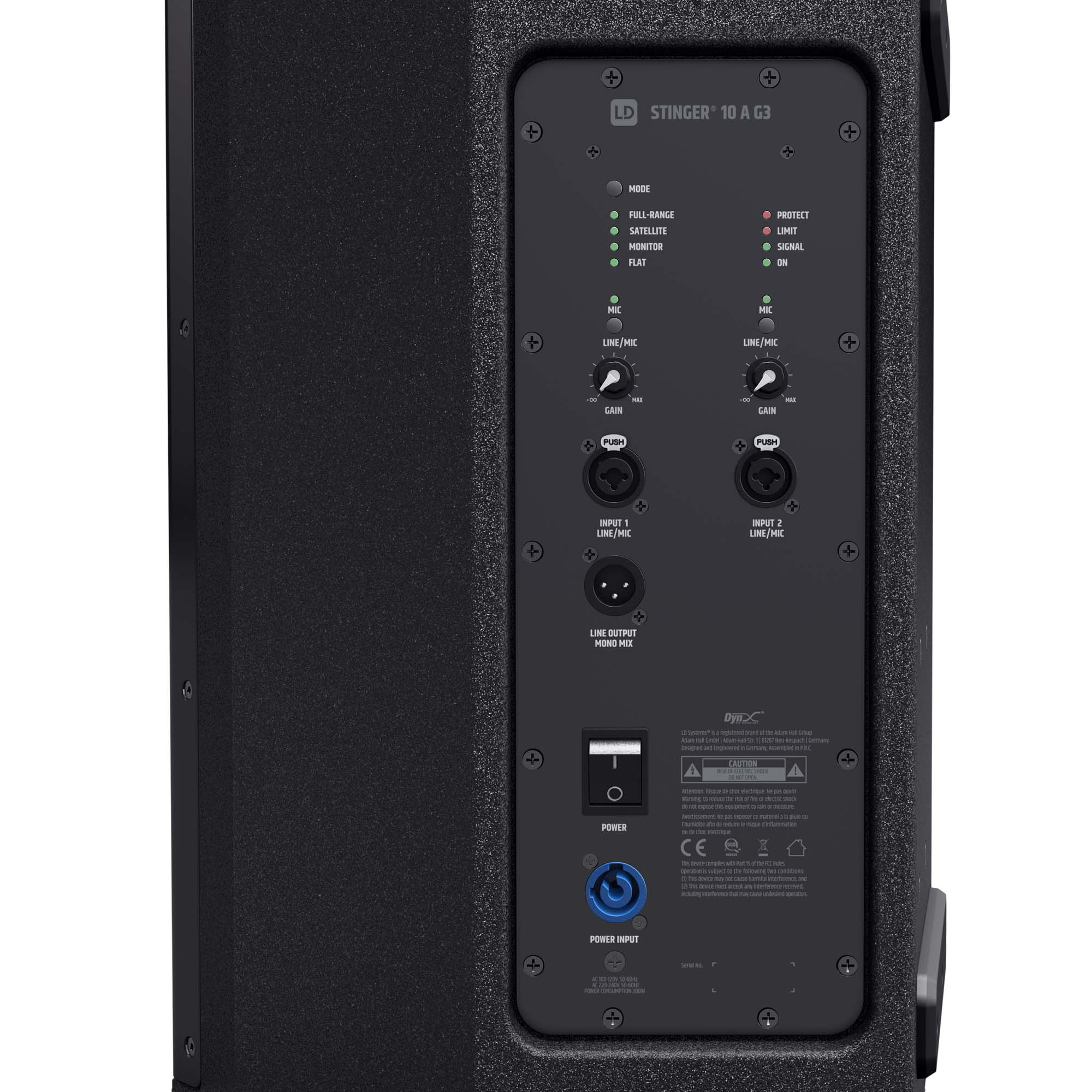

| Input connector types: | XLR combo socket |
| Beam angle: | Hor.: 90° / Vert.:50° |
| Amp class: | Class D |
| Output connector types: | XLR 3-pole male |
| Protection features: | Overload, Multiband Limiter, Overvoltage, Overheating |
| RMS output power: | 300 W |
| Colour: | Black |
| Speaker system: | 2-way system |
| Number of inputs: | 2 |
| Peak output power: | 600 W |
| Number of outputs: | 1 |
| Max. SPL peak: | 127 dB |
| Line-In connector type: | XLR combo socket |
|---|---|
| Number of line inputs: | 2 |
| Nom. Sensitivity (< 1% THD, 1 kHz, max. Gain): | -9 dBu |
|---|
| Number of line outputs: | 1 |
|---|---|
| Line outputs connector type: | XLR 3-pole male |
| Outer diameter: | 10 in |
|---|---|
| Voice coil: | 2 " |
| Manufacturer: | Custom-made |
| Magnet: | Ferrite |
| Size: | 10 " |
| Manufacturer: | BMS |
|---|---|
| Driver size: | 0.04 in |
| Voice coil: | 0.04 in |
| Magnet: | Ferrite |
| Mains connector: | Standard speaker connector 4-pole male & speakON® |
|---|---|
| Operation voltage: | 100 V AC - 240 V AC / 50 - 60 Hz |
| Power supply type: | Switched-mode power supply (SMPS) |

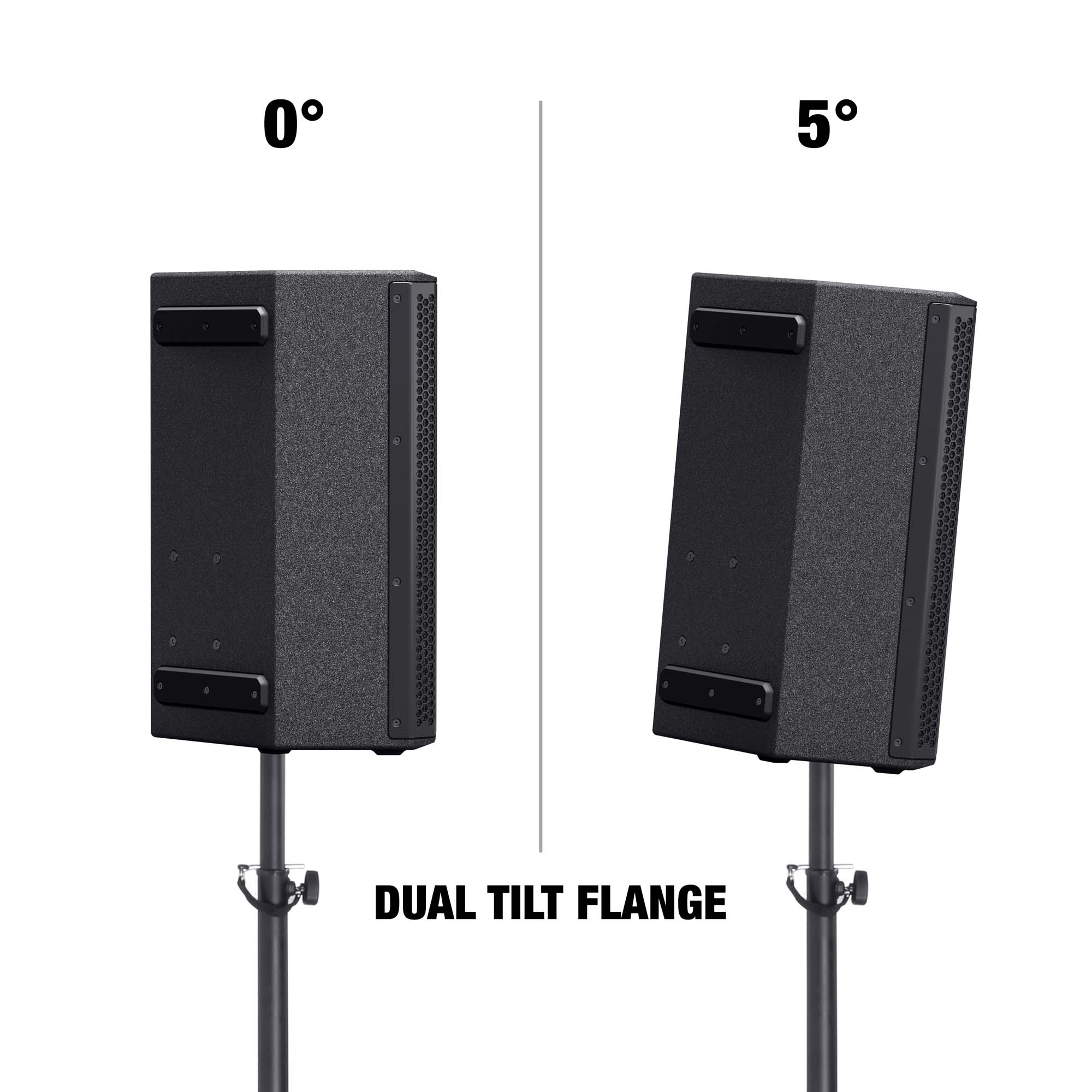

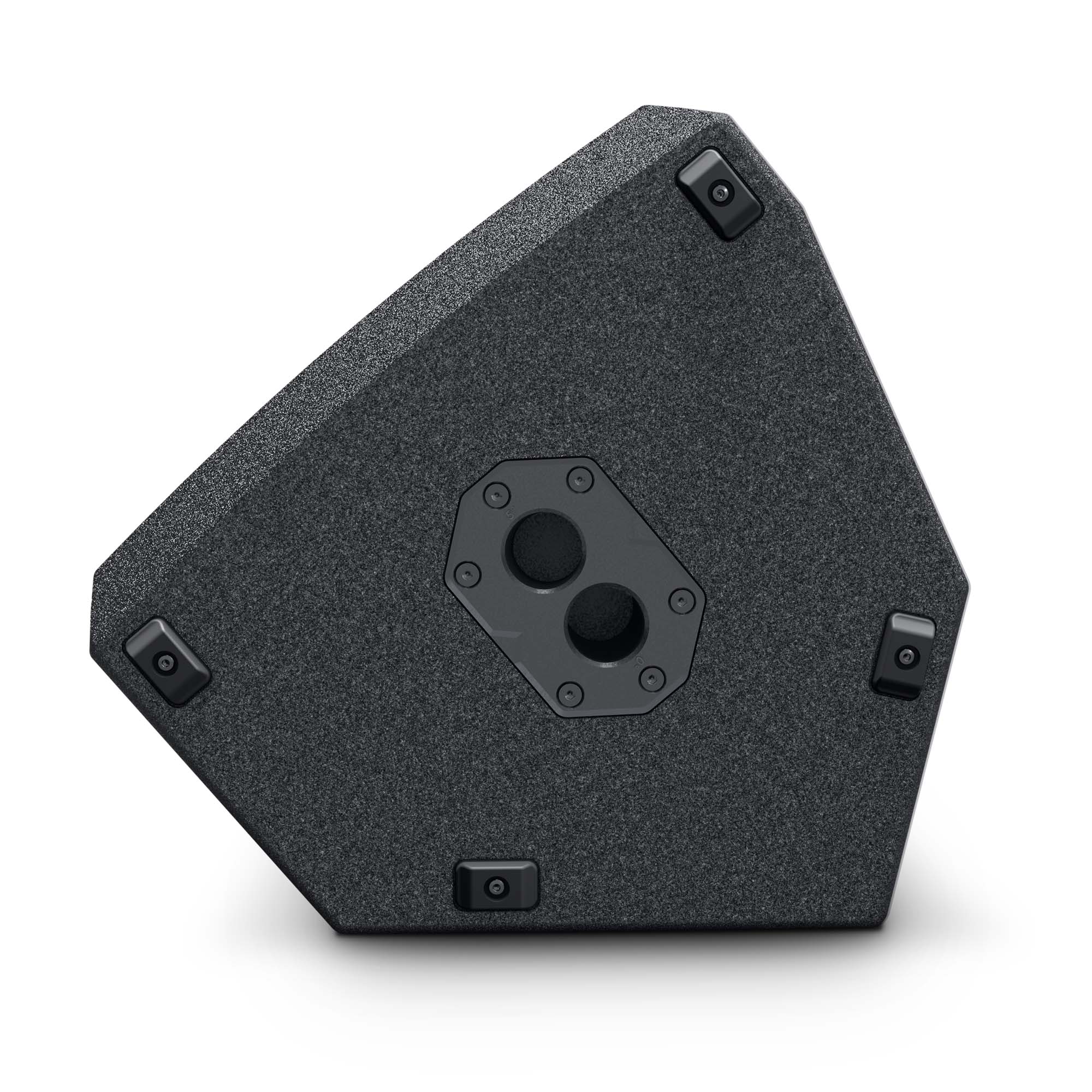

| Flange: | 36 mm (0°/5°) |
|---|---|
| Cabinet material: | Birch plywood |
| Design: | Bass reflex |
| Front grille material: | Aluminium |
| Material thickness: | 0.47 in |

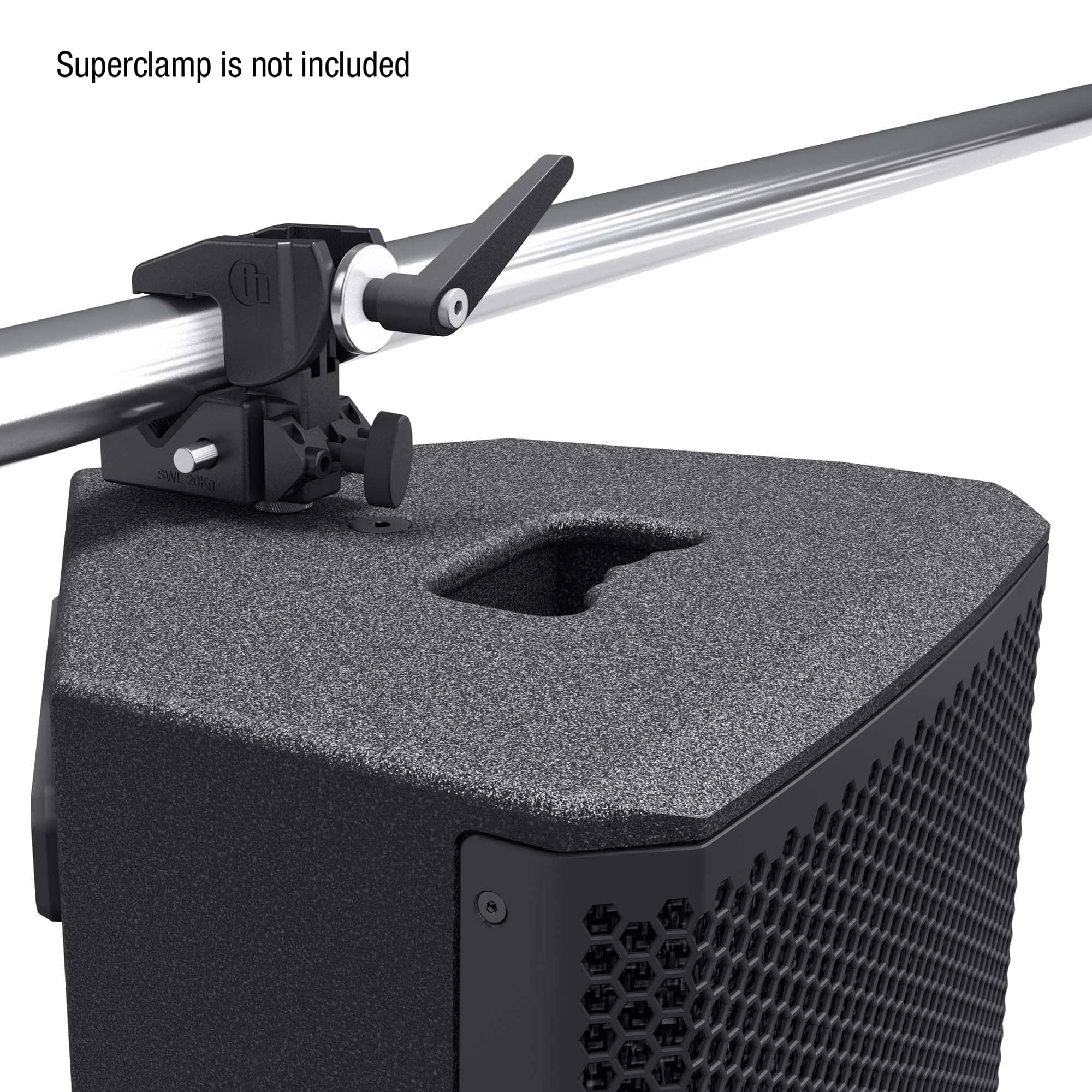

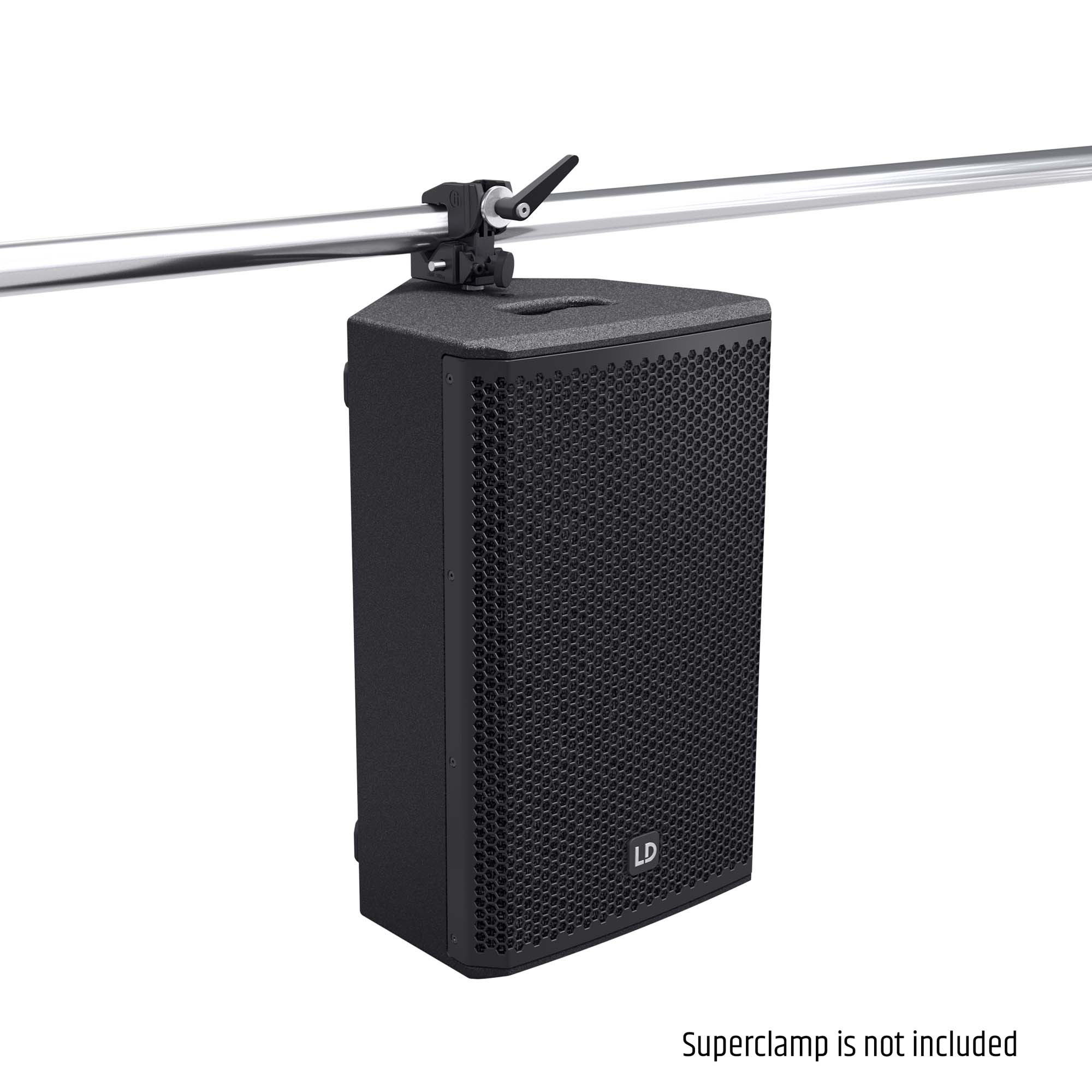

| Mounting type: | M10 for SuperClamp |
| Number of handles: | 1 |
| Maximum air humidity (non-condensing): | 80 % |
|---|---|
| Ambient temperature: | 0 - 40 °C |
| Weight: | 28 lbs |
|---|---|
| Depth: | 12.52 in |
| Height: | 20.75 in |
| Width: | 12.8 in |
| Included accessories: | Mains cable |
|---|
