RIVER naab
Passive 2-channel media DI box
$199.99
Backordered – More on the Way!
Product information "RIVER naab"
If you connect a laptop to a sound system, in many cases the sound quality leaves a lot to be desired. It hums and crackles, sometimes there is also a loss of sound in the low and high frequencies. The Palmer naab, a two-channel media DI box, provides a reliable solution for this situation.
Its best in class isolating transformers and the switchable hard or soft ground lifts prevent any humming. The transformers also ensure a perfect level and impedance adjustment. The result is clean sound without any noise.
If necessary, the Palmer naab can be switched from stereo to mono, which is often very useful in practice. The mono sum signal is then available at both XLR outputs at the same time; this way, the naab can also be used as a split box.
On the input side, there is a wide range of connections: 2 x 6.3 mm jack sockets, which can be balanced or unbalanced, as well as 2x RCA and 1x 3.5mm mini jack (stereo). This eliminates the need for adapter cables - which you always forget to take with you anyway! The outputs are professional XLR sockets; their balanced wiring allows even longer cable runs without any noise.
Due to its passive mode of operation, the Palmer naab does not need a power supply; this makes it extremely failure-proof, especially as the robust metal housing can withstand a lot. The Palmer naab is the ace up the sleeve for every lecture traveller, DJ and sound engineer.
| Output type: | balanced |
|---|---|
| Dimension (H/W/D): | 50 x 140 x 58 mm |
| Output connectors: | XLR |
| Number of outputs: | 2 |
| Additional Features: | Mono summing switch |
| Number of inputs: | 2 |
| Input connectors: | 3.5 mm TRS, RCA, 6.3 mm jack |
| Channels: | 2 |
| Ambient temperature during operation: | -20 - 70 °C |
| Transformer isolated: | Yes |
| input type: | unbalanced |
| Type: | passive |
| Product type: | line isolator |
| Ground lift switch: | Yes |
| Housing: | Aluminium continuous casting |
| Accessories (included): | rubber feet, Inscription label (tour label) |
| Relative Humidity: | < 80 %, not condensing |
| Transformer ratio: | 3.16 : 1 |
|---|---|
| THD (1 kHz, - 10 dBV, unity, unweighted): | < 0,0008 % |
| Output impedance (1 kHz): | 80 Ω |
| THD (30 Hz,-10 dBV, unity, unweighted): | < 0,03 % |
| Frequency response (±0,2dB, relative 1kHz): | 5 Hz - 60 kHz |
| Max. input level (< 1% THD, 1 kHz): | + 32 dBu |
| Input impedance (1 kHz): | 10 KOHM |
| IMD (SMPTE) (60 Hz / 7 kHz, 4:1, +4 dBu): | < 0,002 % |
| Max. input level (< 1% THD, 20 Hz): | + 14 dBu |
Login
accessories

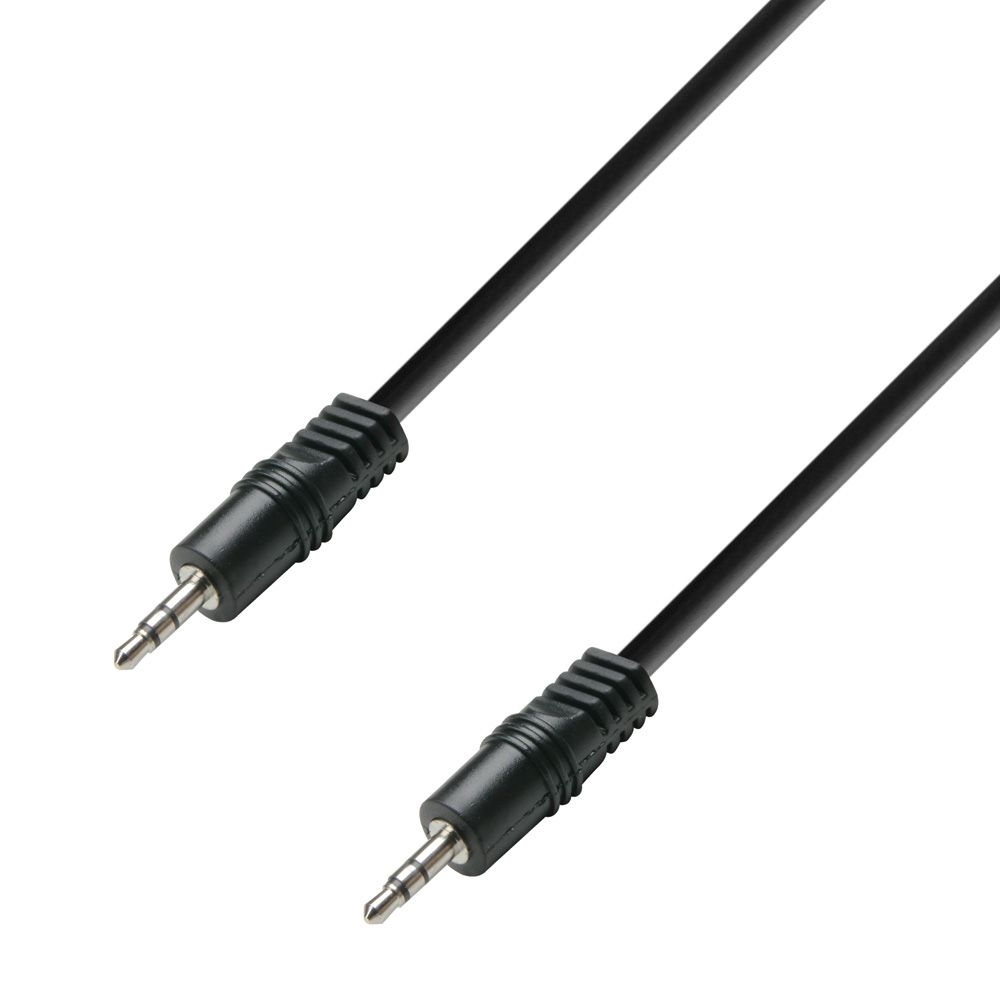

High-quality stereo audio cable with moulded 3,5 mm stereo jack plugs.Equally suitable for studio or ambitious hi-fi applications.
