MONICON M G2
Passive Studio Volume Controller
$145.99
Backordered – More on the Way!
Product information "MONICON M G2"

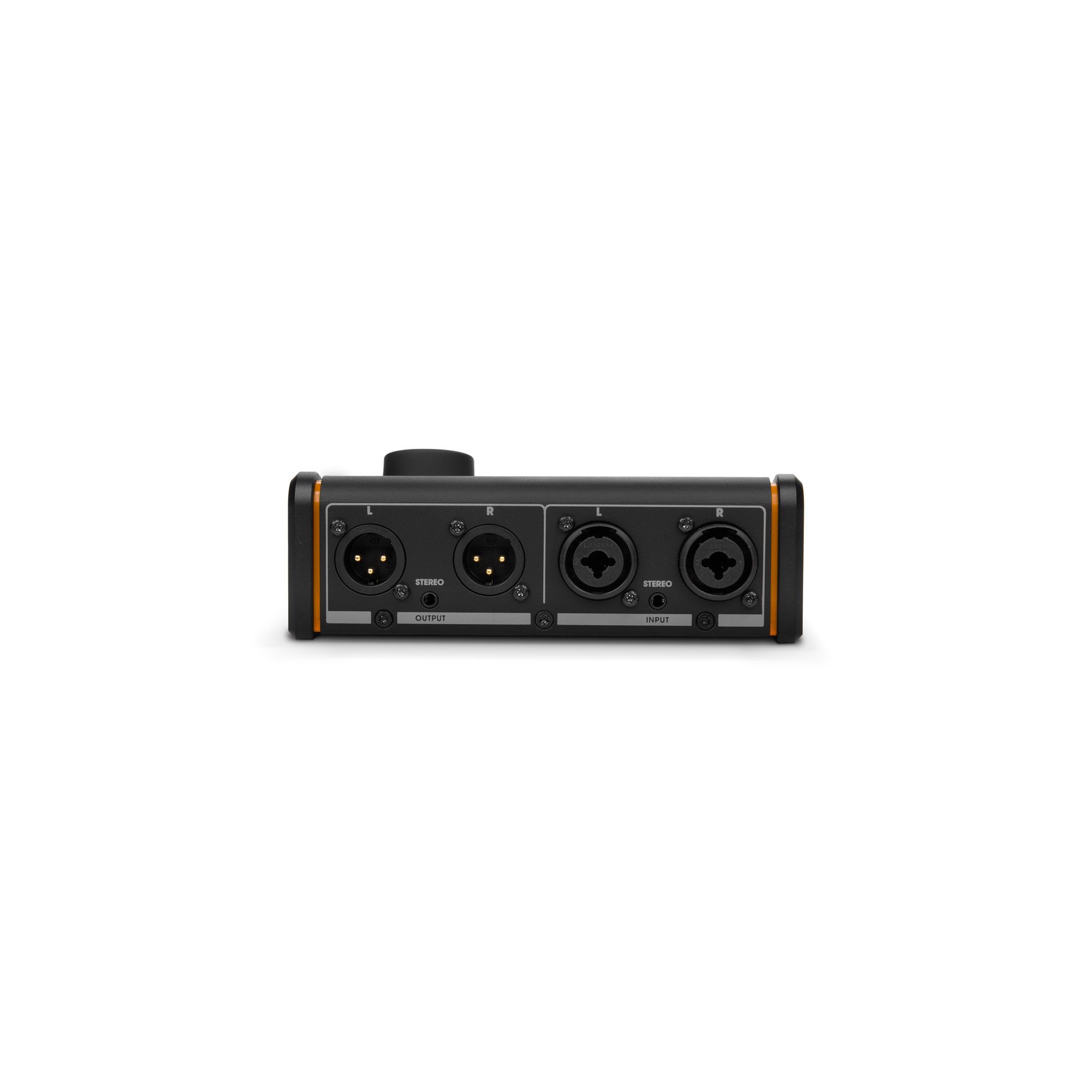

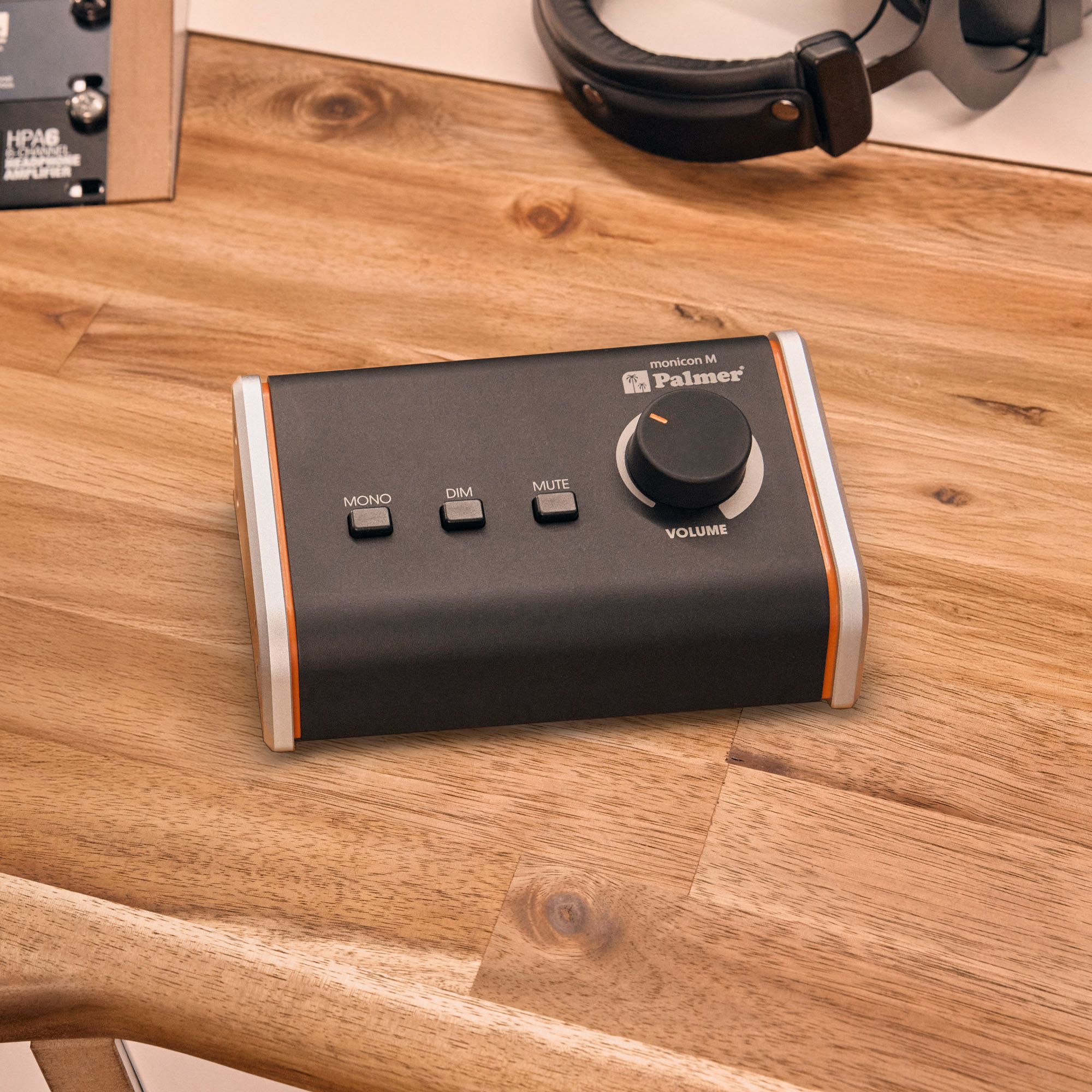

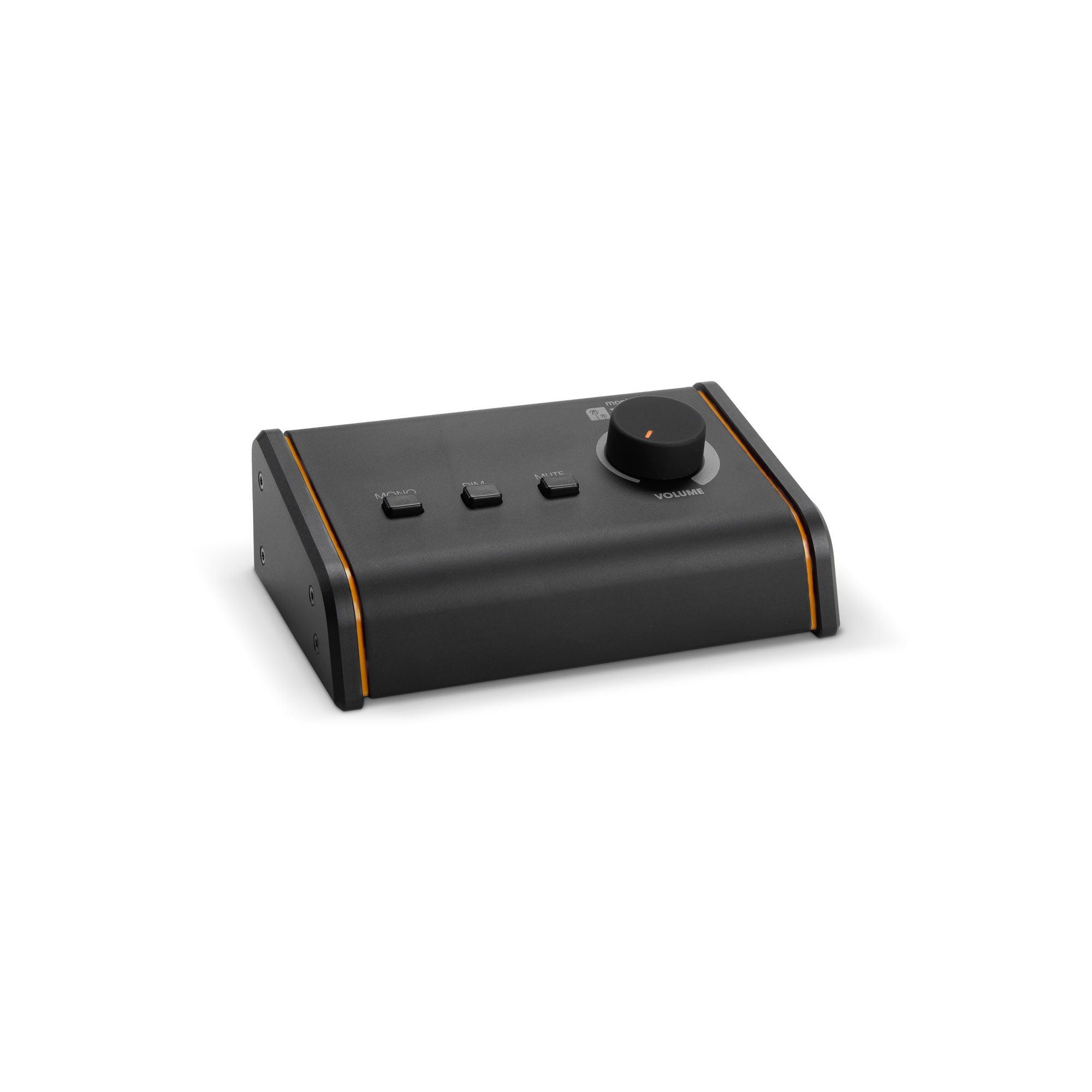

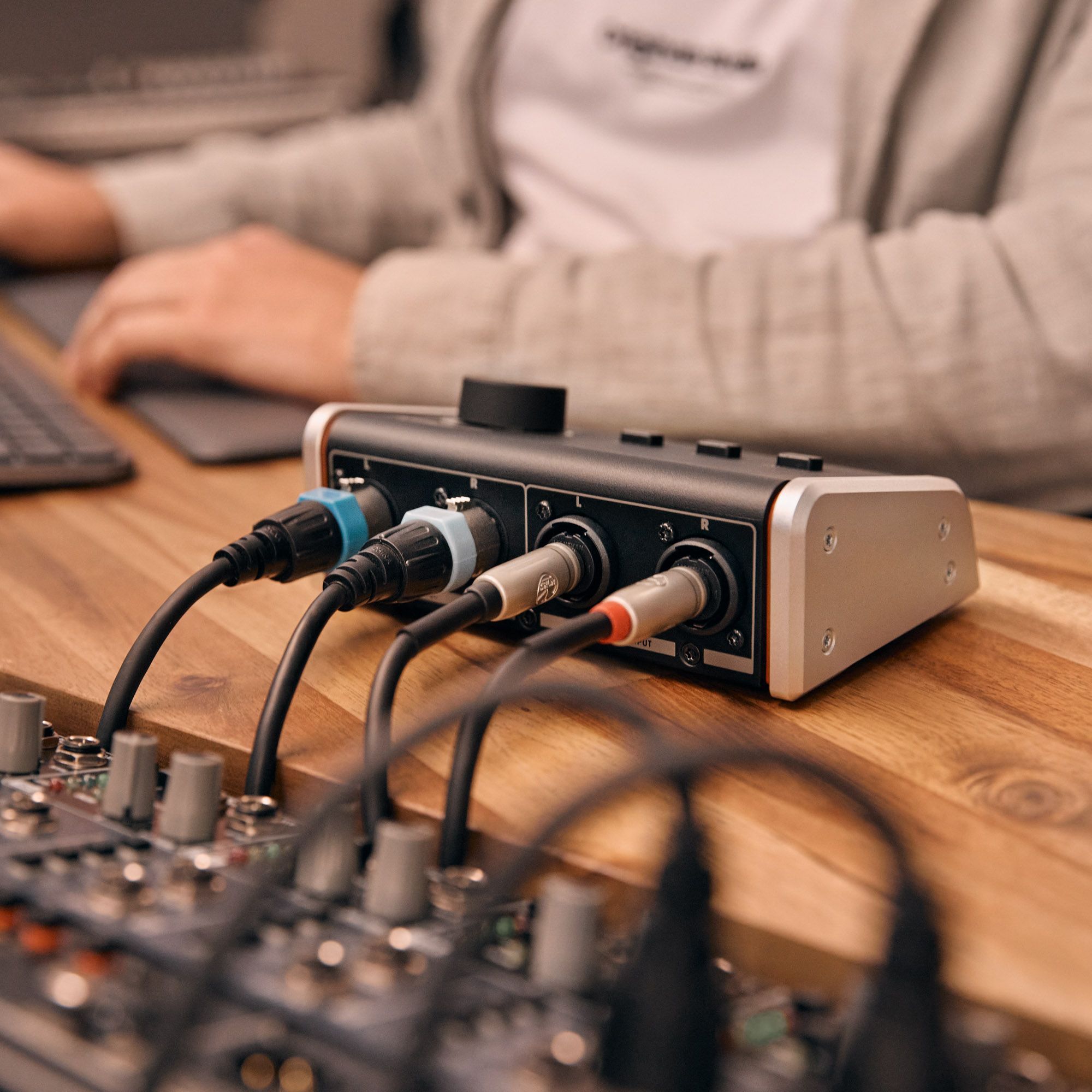

The MONICON M is a compact passive volume controller for flexible studio set-ups. It can be easily connected to audio interfaces, computers, or mobile devices, either via balanced XLR/TRS combo sockets or a 3.5 mm jack input. The output, which is either balanced via XLR or 3.5 mm jack sockets, helps supports both professional studio monitors and compact loudspeaker systems.

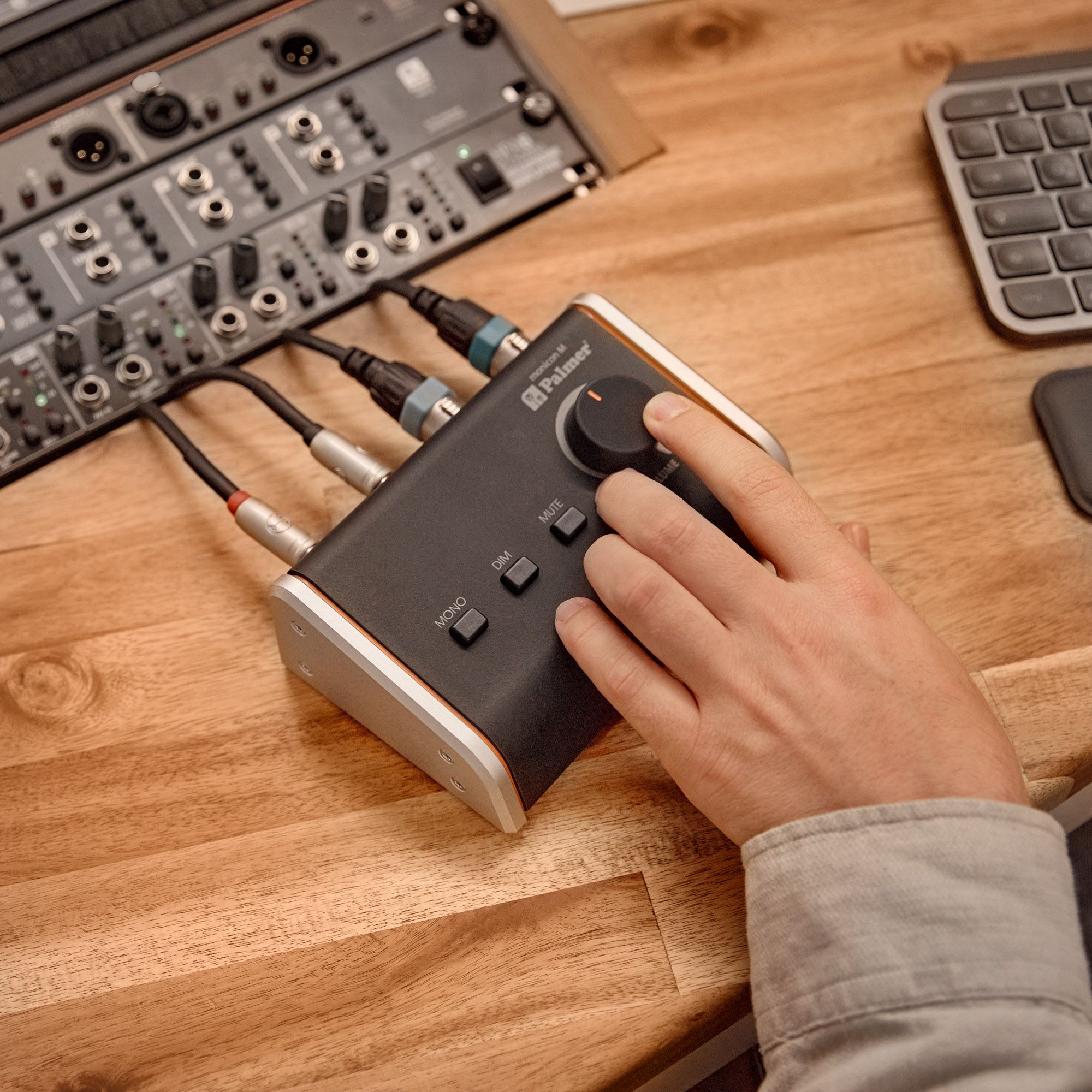

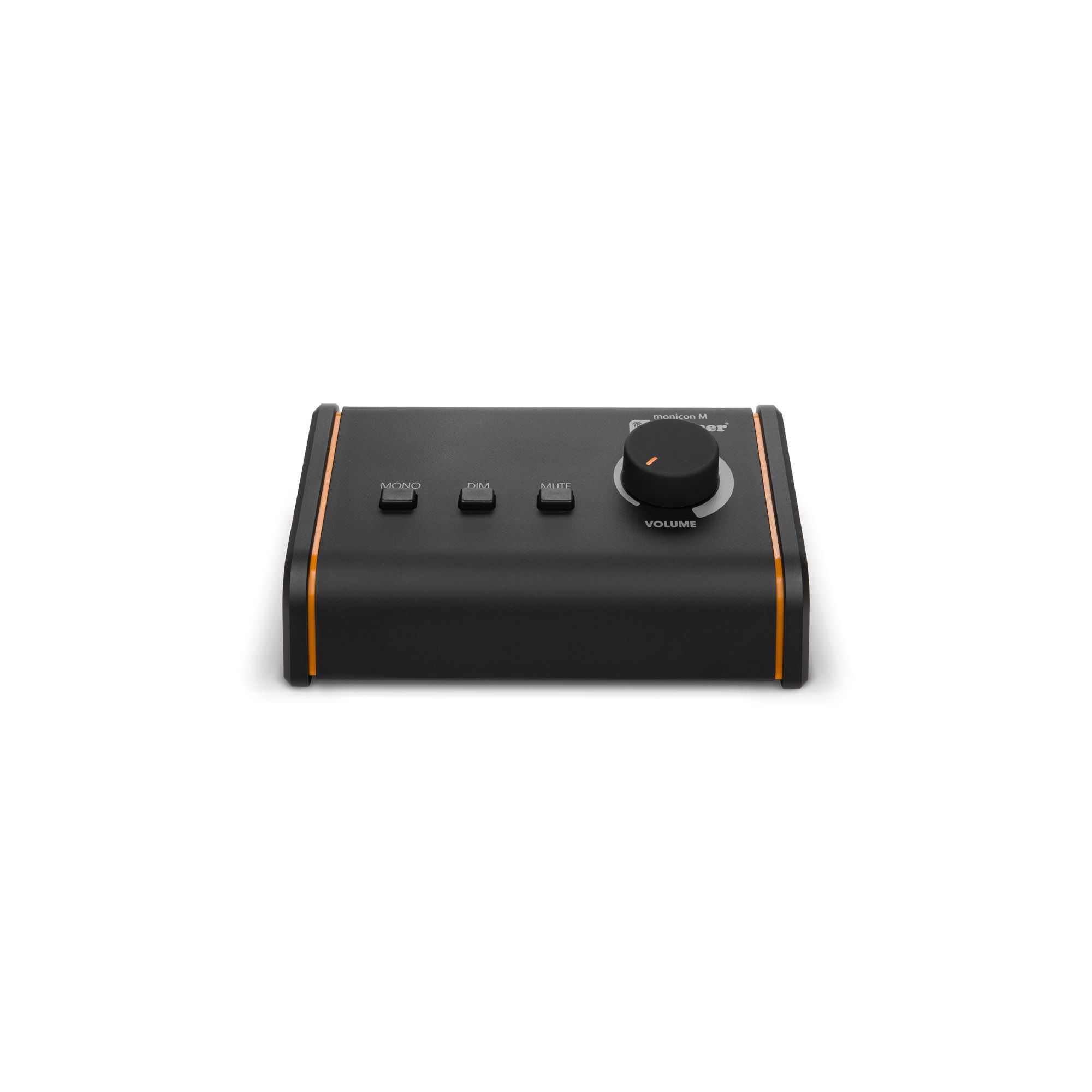

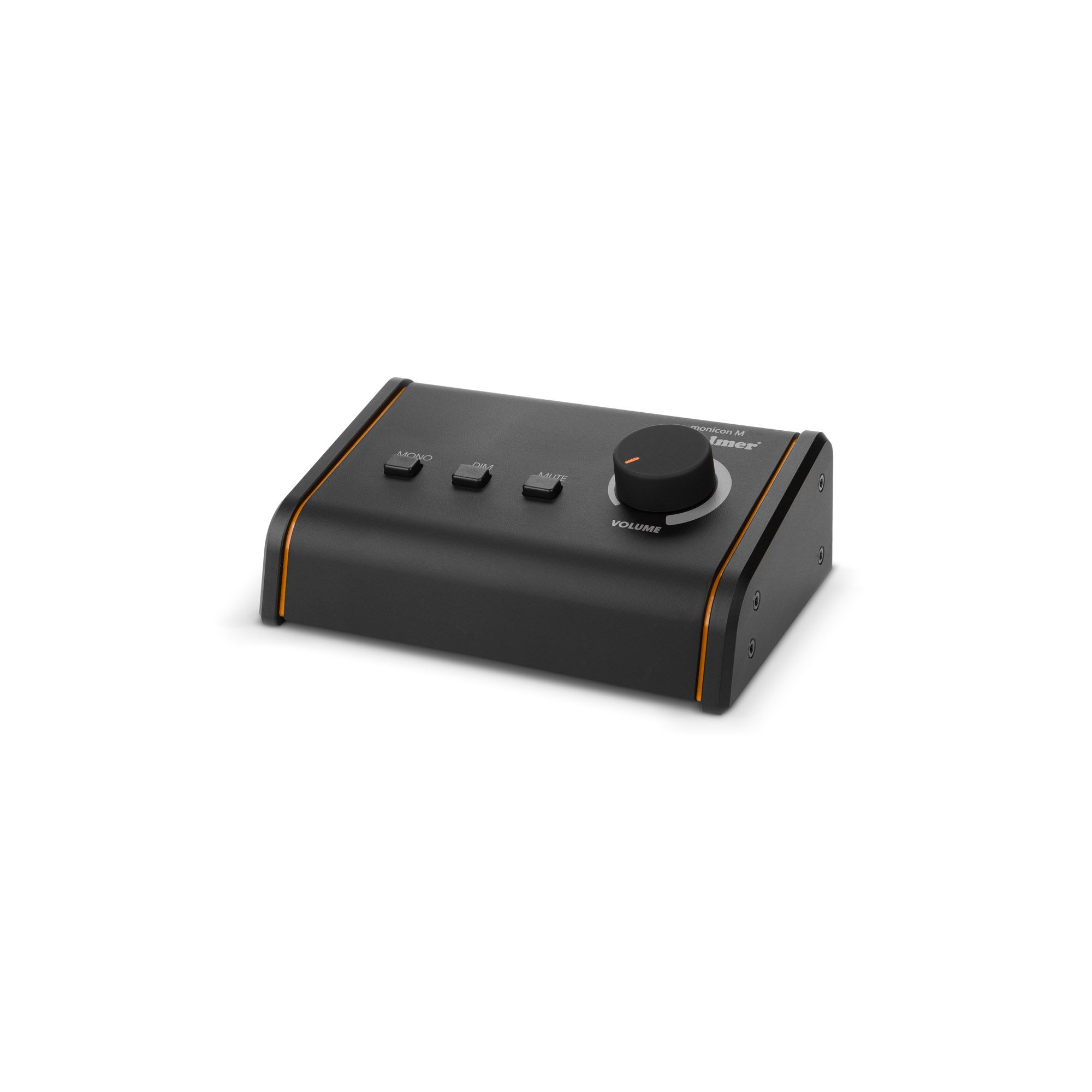

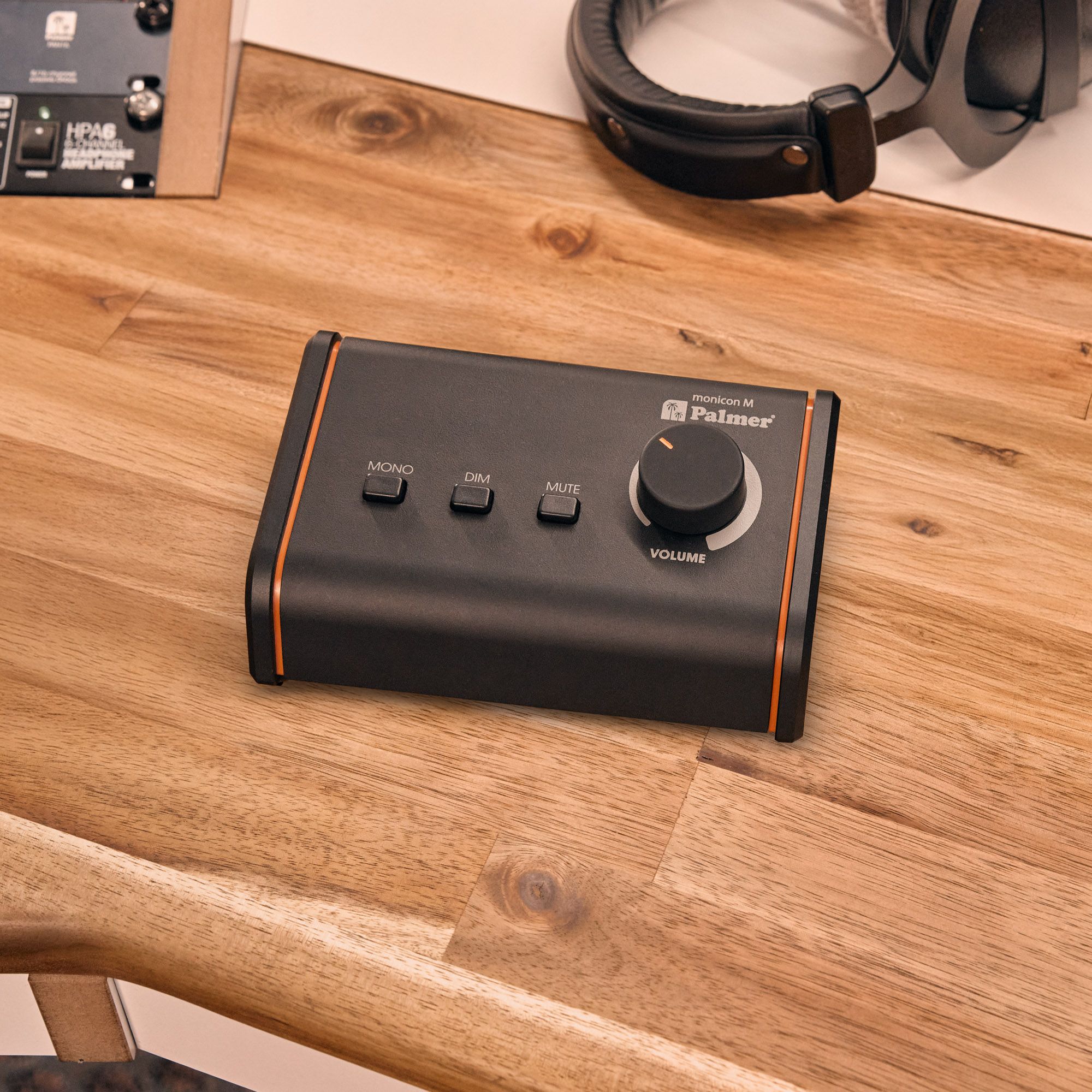

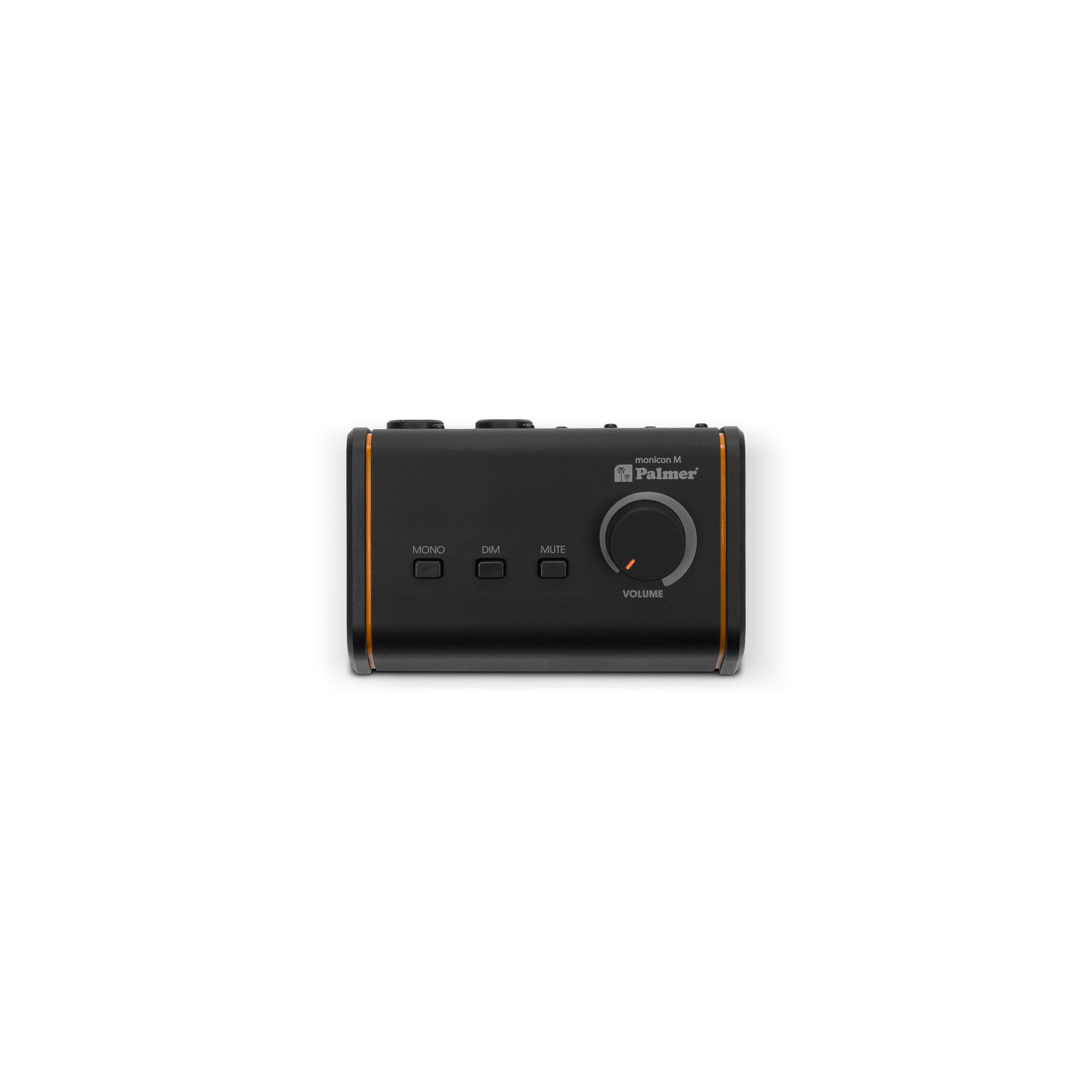

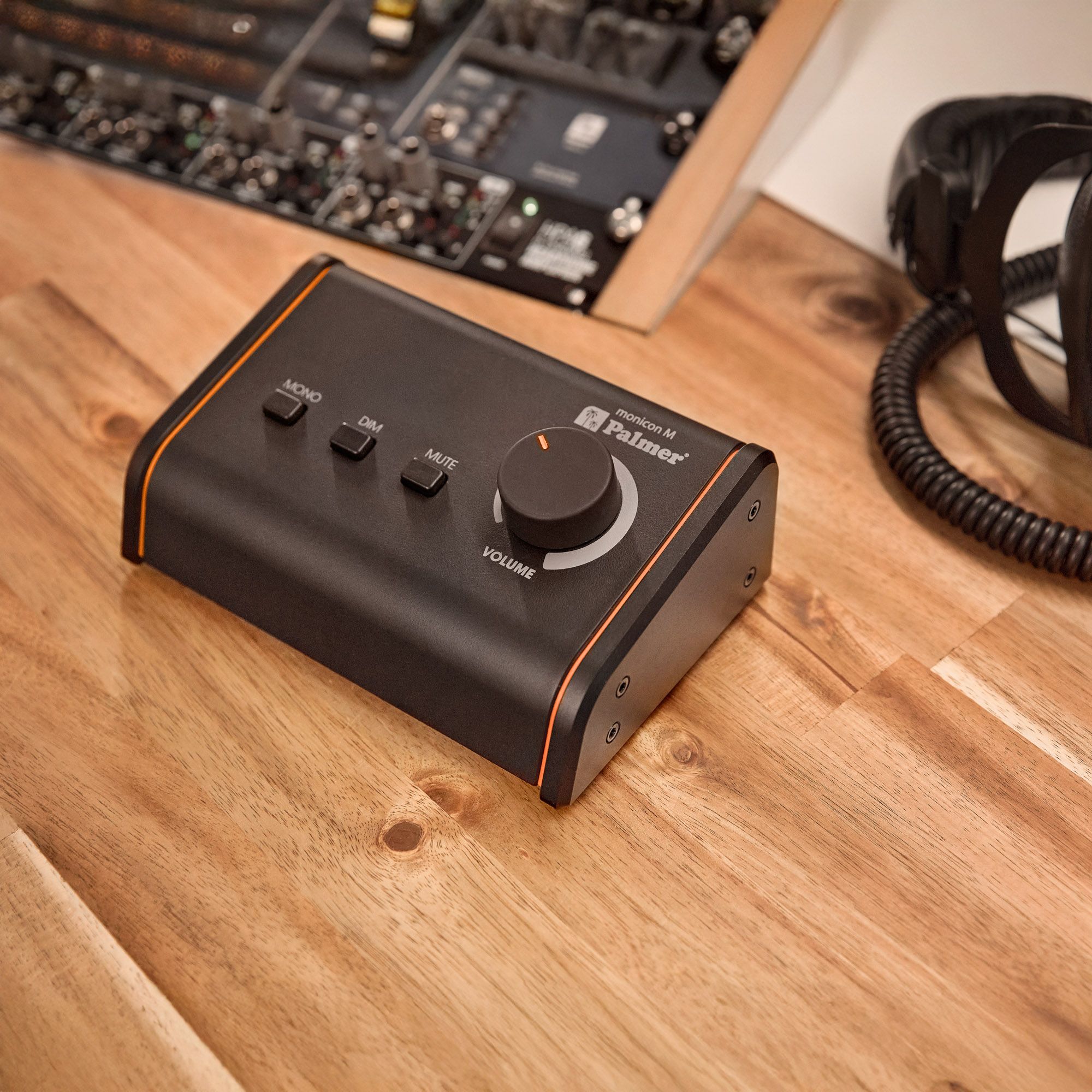

The large analogue volume control makes it possible to precisely control the level of volume without any loss in quality. The signal flow and monitoring situation can be adjusted quickly and intuitively using the “Mono,” “Dim,” and “Mute” buttons.
Thanks to the completely analogue signal path, the sound remains unaltered and latency-free. The MONICON M is the perfect control centre for project studios, editing suites, and multimedia workstations – wherever direct access and precise control are required.
| Material: | Aluminium, Steel sheet |
|---|---|
| Type: | Passive |
| Colour: | Black |
| Frequency response (±0.2 dB, rel. Avg): | 20 - 20000 Hz |
| Balanced Line-In connector type: | XLR combo socket |
|---|---|
| Number of balanced line inputs: | 2 |
| Number of unbalanced line inputs: | 1 |
| Unbalanced Line-In connector type: | 3.5 mm Jack TRS |
| Min. SNR (< 1% THD, 1 kHz, unity, A-weighted): | 112 dB |
|---|---|
| Input impedance (unbalanced): | 10 kΩ |
| Input impedance (balanced): | 20 kΩ |
| Number of balanced line outputs: | 2 |
|---|---|
| Number of unbalanced line outputs: | 1 |
| Unbalanced line outputs connector type: | 3.5 mm Jack TRS female |
| Balanced line outputs connector type: | XLR 3-pole male |
| Crosstalk: | -79 dB |
|---|---|
| Dynamic range (AES17): | > 115 dB |
| Max. output level (<1 % THD, 20 Hz - 20 kHz): | 20 dBu |
| Maximum air humidity (non-condensing): | 80 % |
|---|---|
| Ambient temperature: | 0 - 40 °C |
| Weight: | 1.06 lbs |
|---|---|
| Width: | 6.3 in |
| Depth: | 4.17 in |
| Height: | 2.44 in |
