MONICON L G2
Active / Passive Studio Monitor Controller
$299.99
Backordered – More on the Way!
Product information "MONICON L G2"

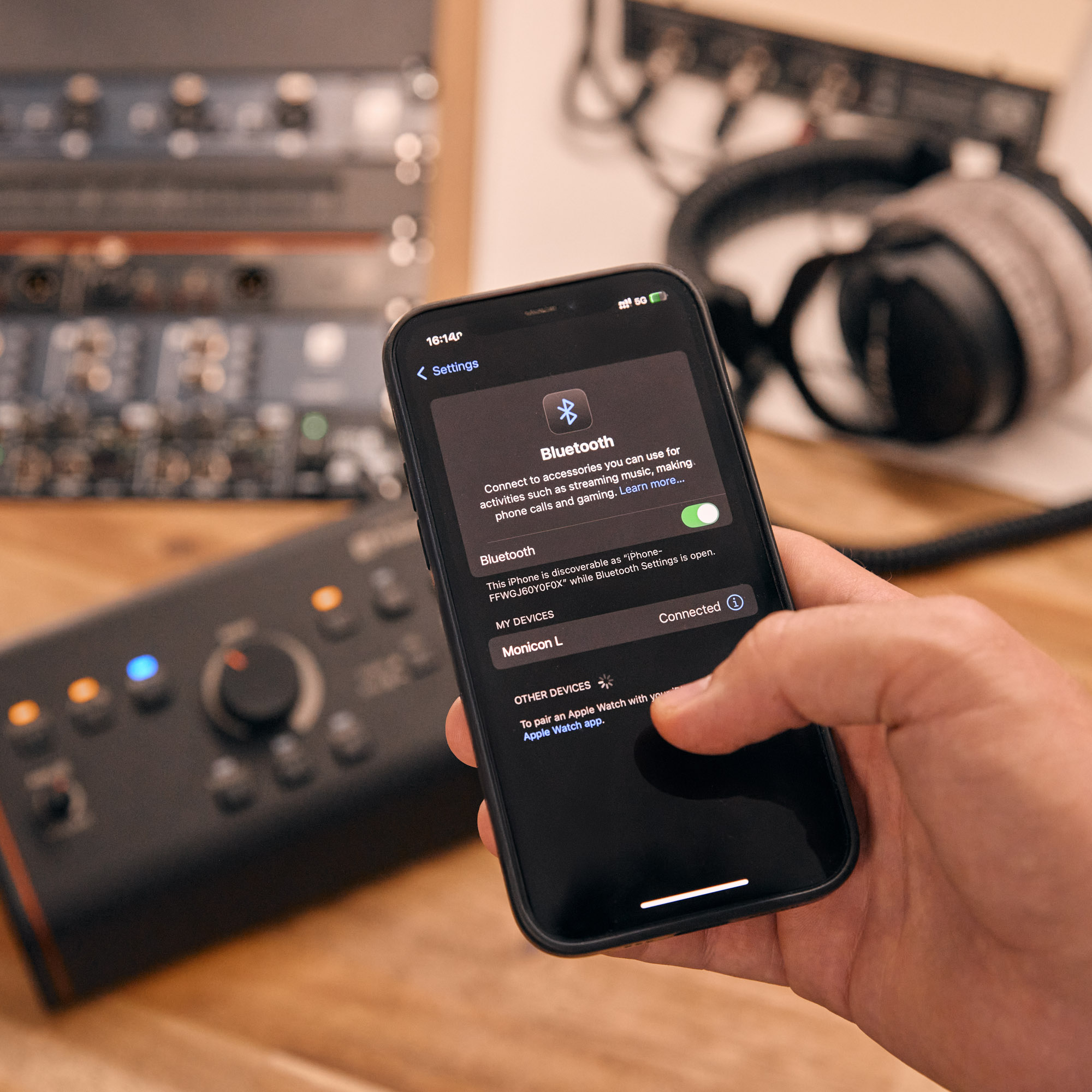

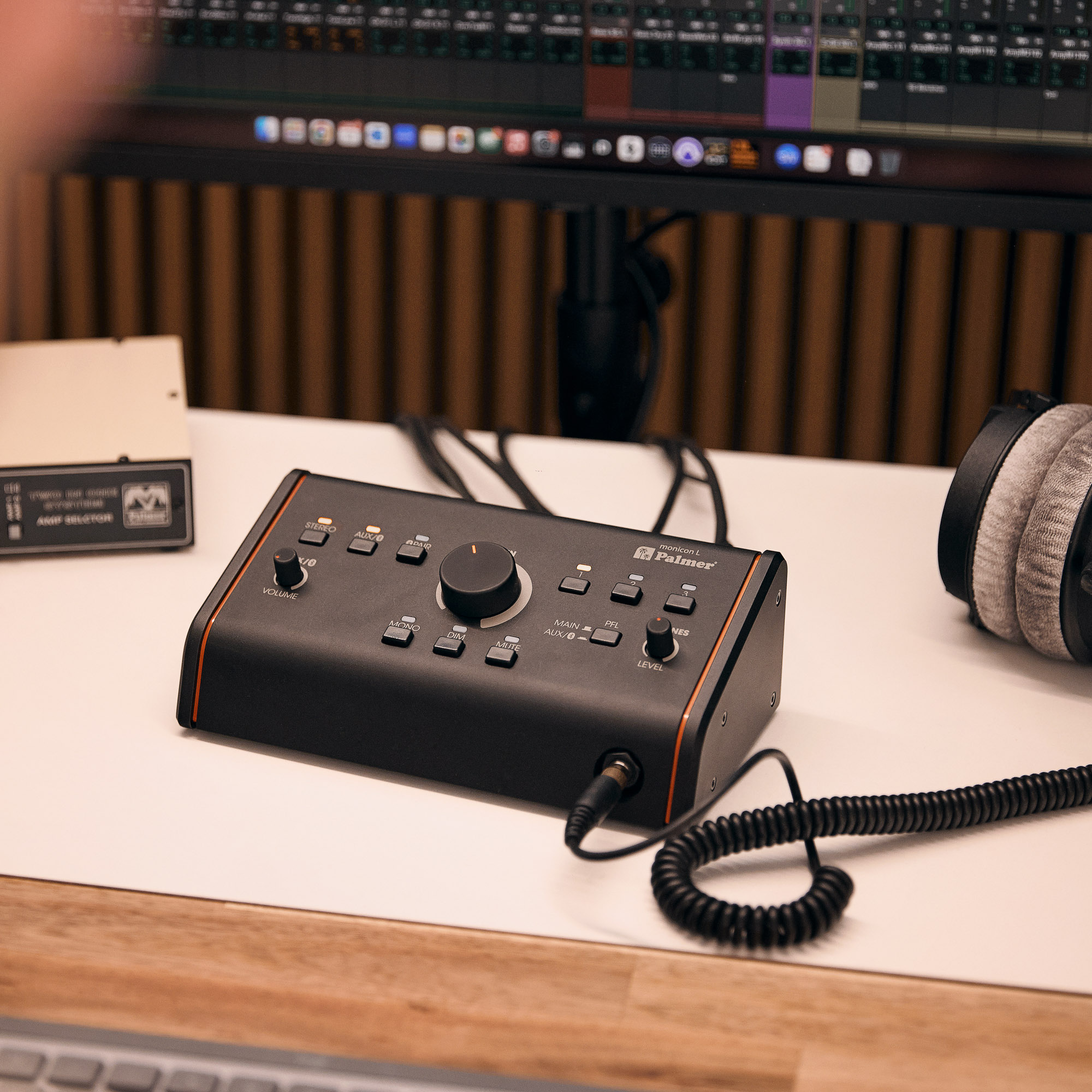

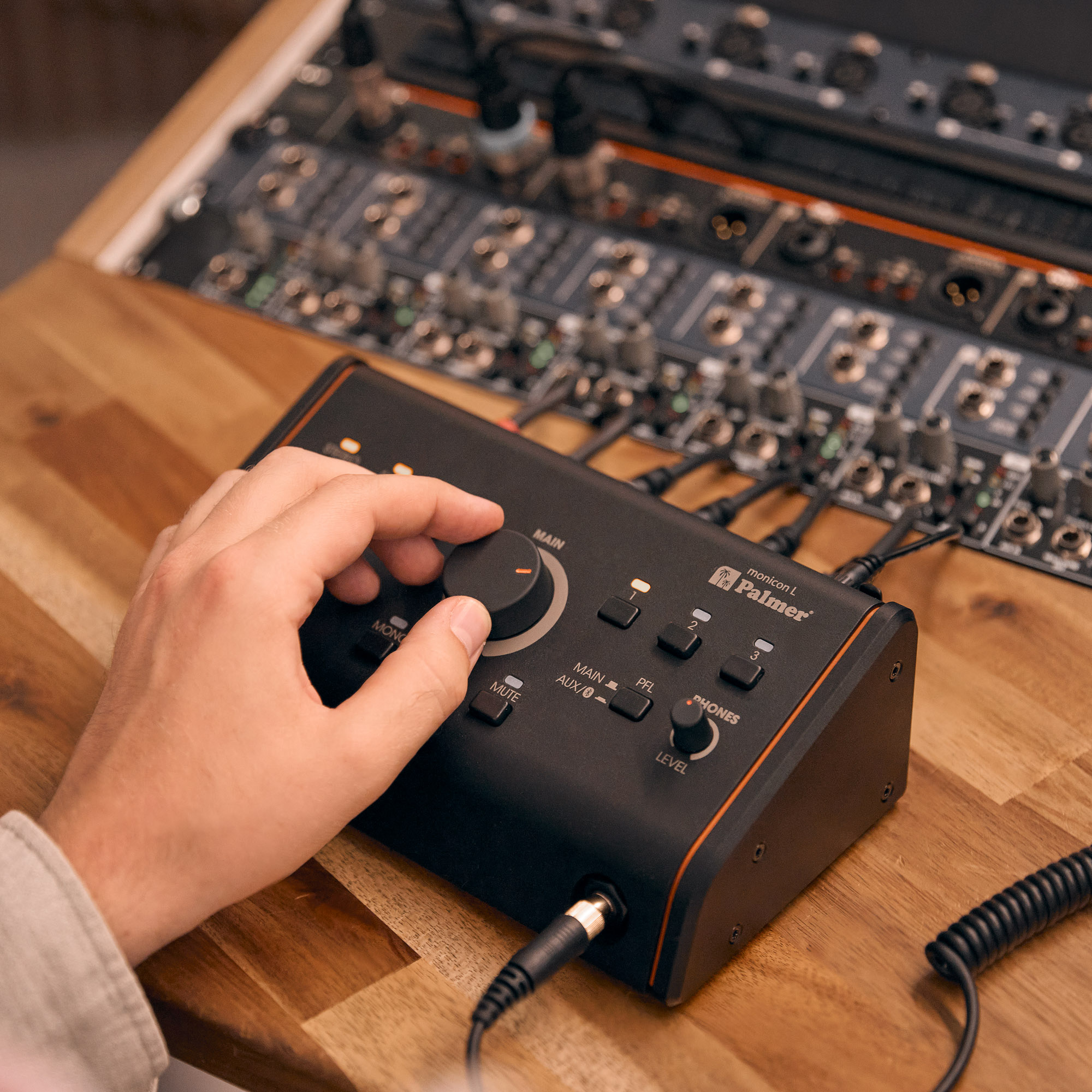

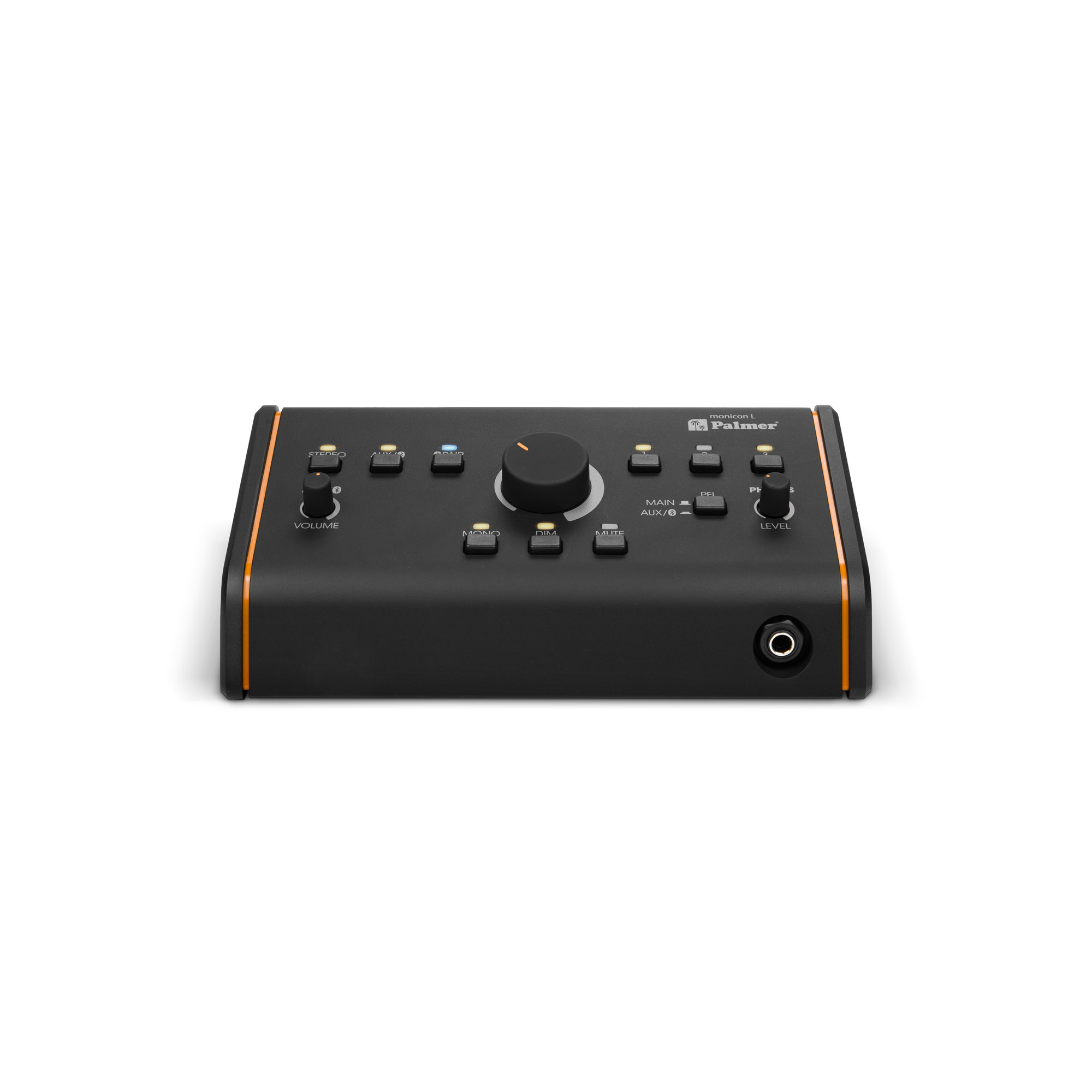

The MONICON L is a versatile, compact studio monitor controller for professional project studios and ambitious home set-ups. It features three inputs for different signal sources: balanced via XLR/TRS combo sockets as well as AUX and Bluetooth for mobile or digital devices. The inputs and outputs can be switched on/off via dedicated buttons with LED status display.

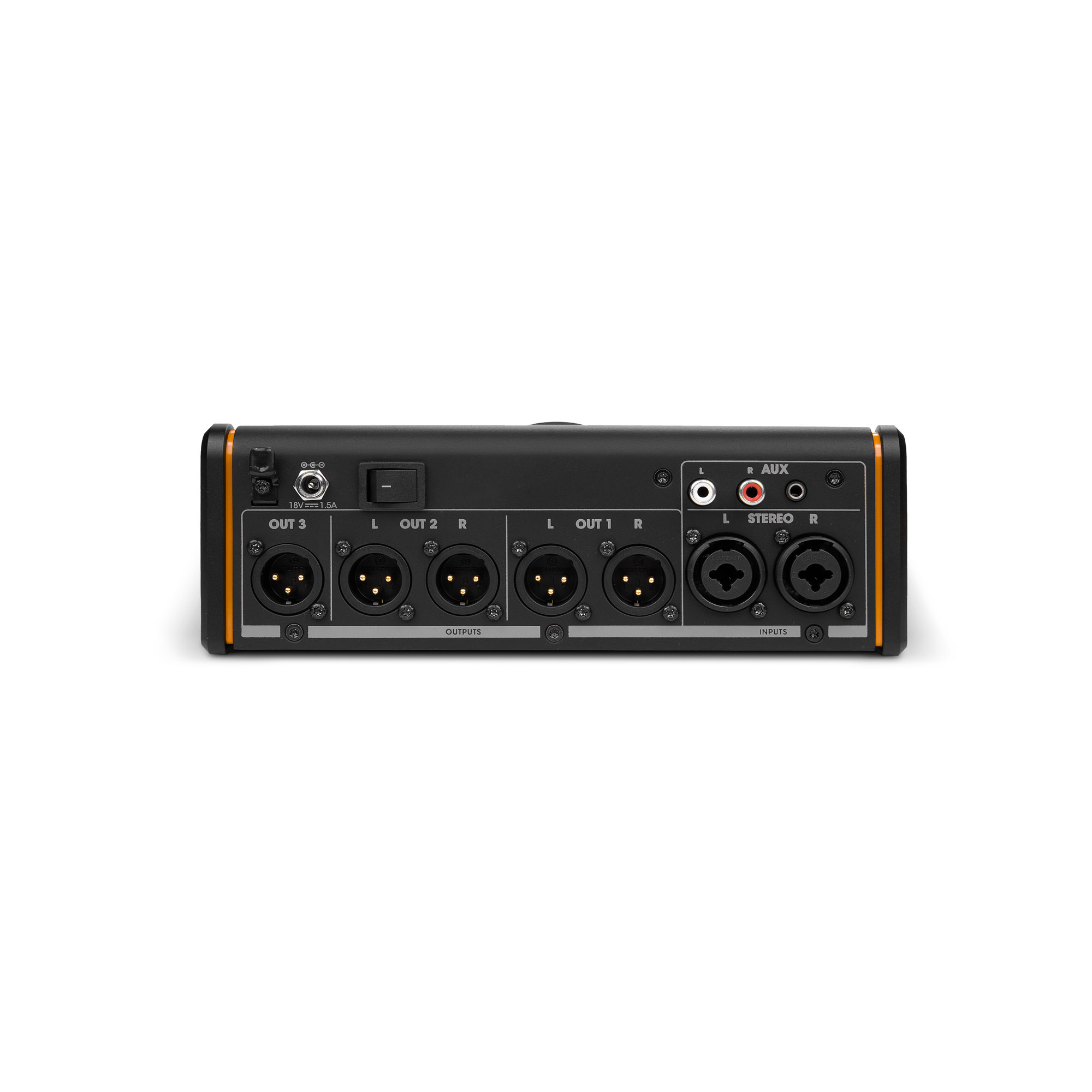

Two stereo outputs and an additional mono output allow flexible control of the speakers, for example, for main monitors, nearfield systems, or subwoofers. The large analogue volume control allows precise control of the output level.

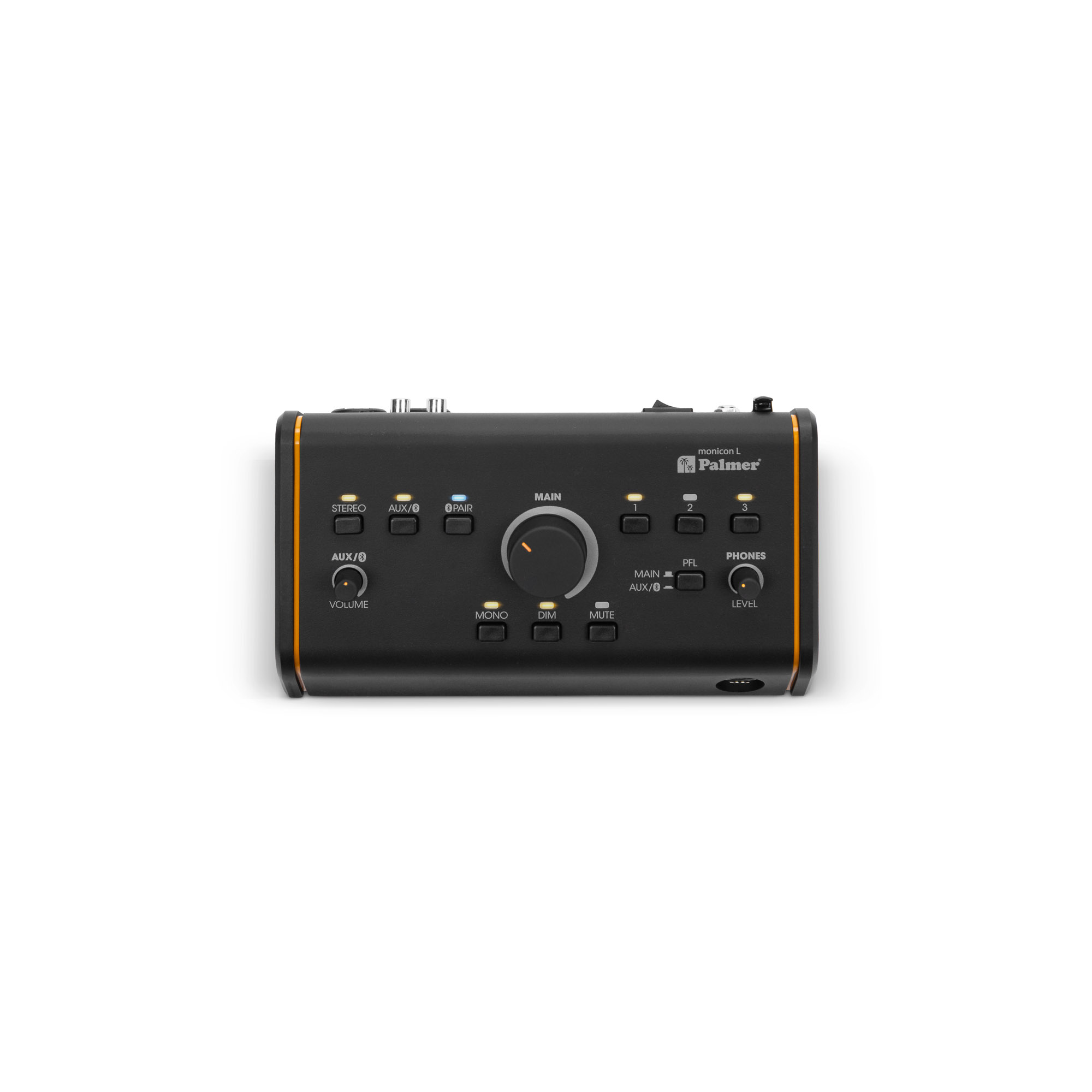

Functions such as “Mono,” “Dim,” and “Mute” support practical monitoring conditions and facilitate quick adjustments in everyday studio life.

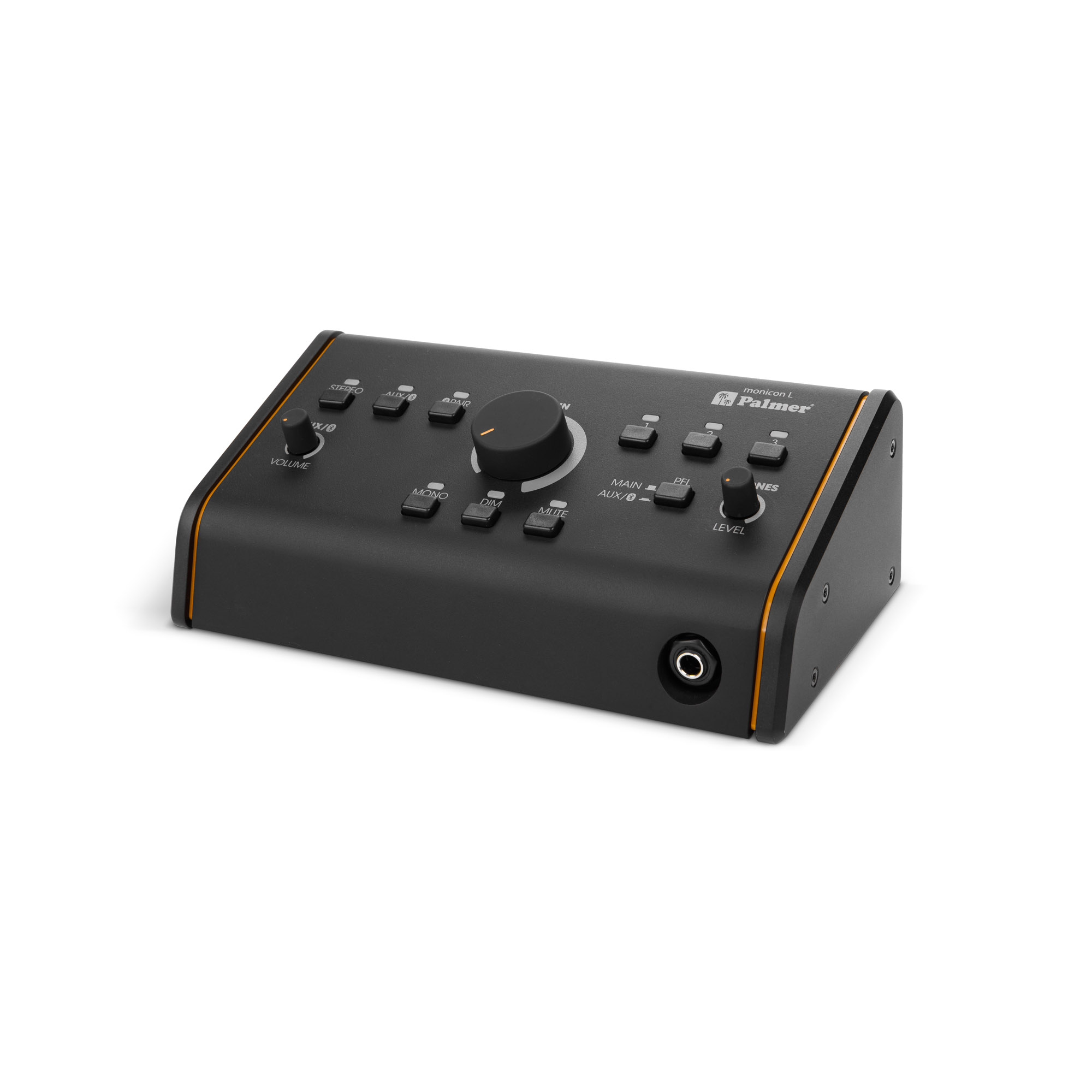

With its own volume control and PFL function, a separate headphone output allows isolated pre-listening to input signals without affecting the main mix.
The integrated power supply provides power to the Bluetooth, the headphone amplifier, and output three. The signal path itself stays entirely analogue, which makes latency-free and pristine audio playback possible. MONICON L stands for reliable signal management, transparent sound control, and intuitive operation.
| Material: | Aluminium, Steel sheet |
|---|---|
| Type: | Passive |
| Colour: | Black |
| Frequency response (±0.2 dB, rel. Avg): | 20 - 20000 Hz |
| Supported audio codecs: | SBC |
|---|
| Balanced Line-In connector type: | XLR combo socket |
|---|---|
| Number of balanced line inputs: | 2 |
| Unbalanced Line-In connector type: | 2 x RCA female (Stereo), 3.5 mm Jack TRS female |
| Number of unbalanced line inputs: | 2 |
| Input signal type: | Balanced & Unbalanced (parallel) |
| THD+N: | ≤ 0.001 % (+4 dBu) |
|---|---|
| Min. SNR (< 1% THD, 1 kHz, unity, A-weighted): | 112 dB |
| Input impedance (unbalanced): | 10 kΩ |
| Nom. input clipping, unbalanced (< 1% THD, 1 kHz, unity): | 15 dBu |
| Nom. input clipping, balanced (< 1% THD, 1 kHz, unity): | 20 dBu |
| Min. CMRR (0 dB below clip, 1 kHz, unity): | 55 dB |
| Input impedance (balanced): | 20 kΩ |
| Output signal type: | Balanced, Headphone |
|---|---|
| Number of balanced line outputs: | 5 |
| Max. headphone out power: | 100 mW |
| Min. headphone impedance: | 10 Ω |
| Balanced line outputs connector type: | XLR 3-pole male |
| Headphone out connector type: | 6.3 mm Jack TRS female |
| Number of Headphone outs: | 1 |
| Balanced output impedance (1 kHz): | 600 Ω |
|---|---|
| Crosstalk: | -79 dB |
| Dynamic range (AES17): | > 115 dB |
| Max. output level (<1 % THD, 20 Hz - 20 kHz): | 20 dBu |

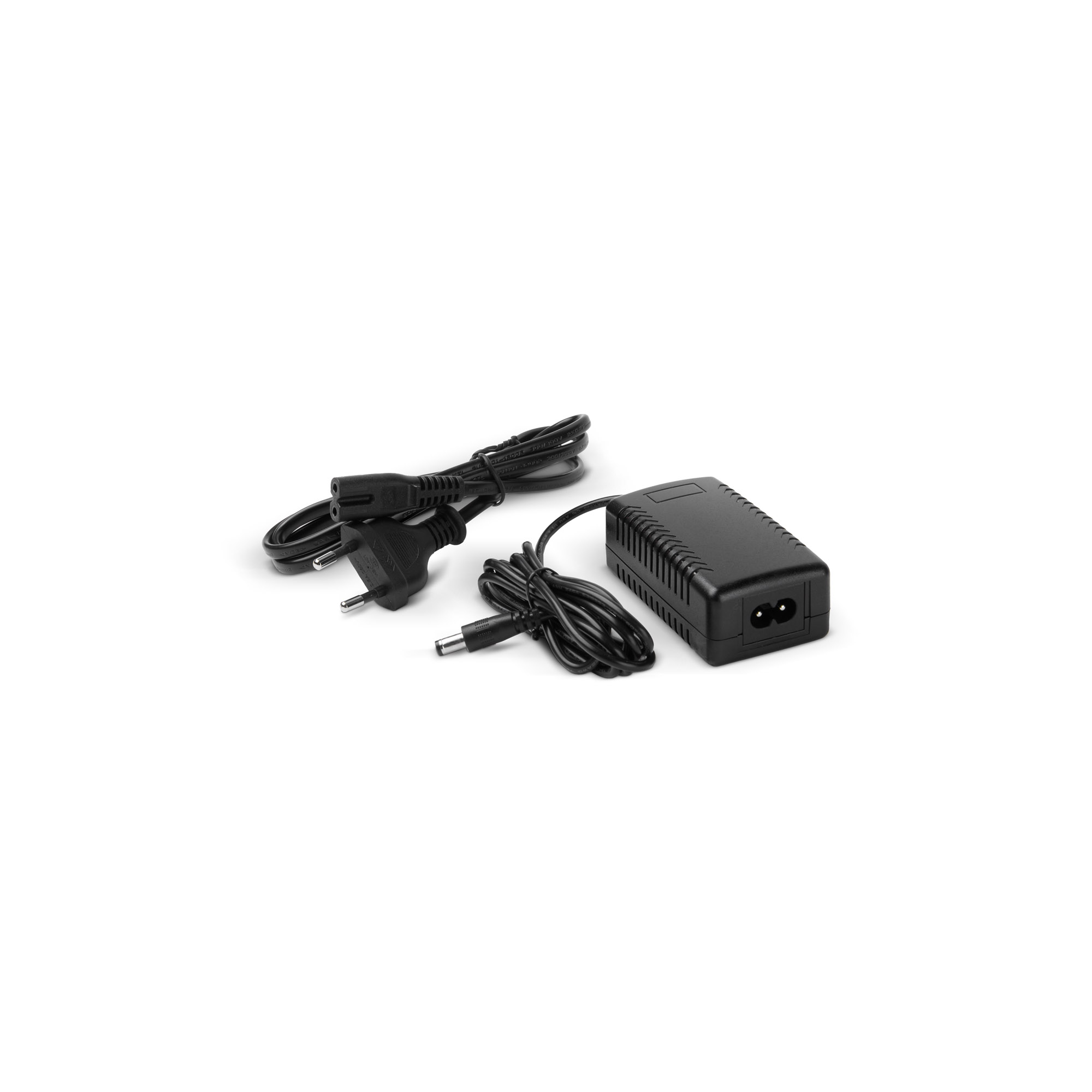

| Power supply type: | External switched-mode power supply (SMPS) |
|---|
| Maximum air humidity (non-condensing): | 80 % |
|---|---|
| Ambient temperature: | 0 - 40 °C |
| Height: | 2.99 in |
|---|---|
| Weight: | 2.01 lbs |
| Depth: | 4.88 in |
| Width: | 8.58 in |
