Product information "MAUI 5 W"

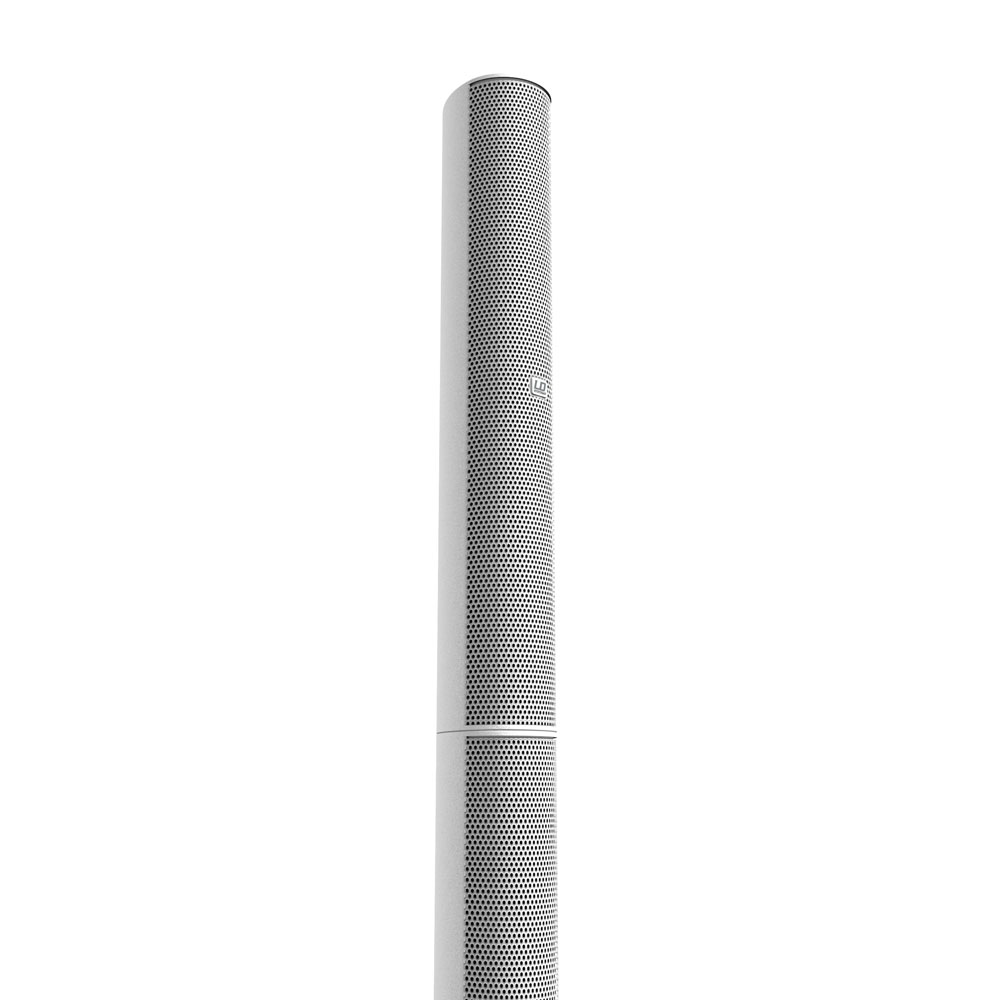

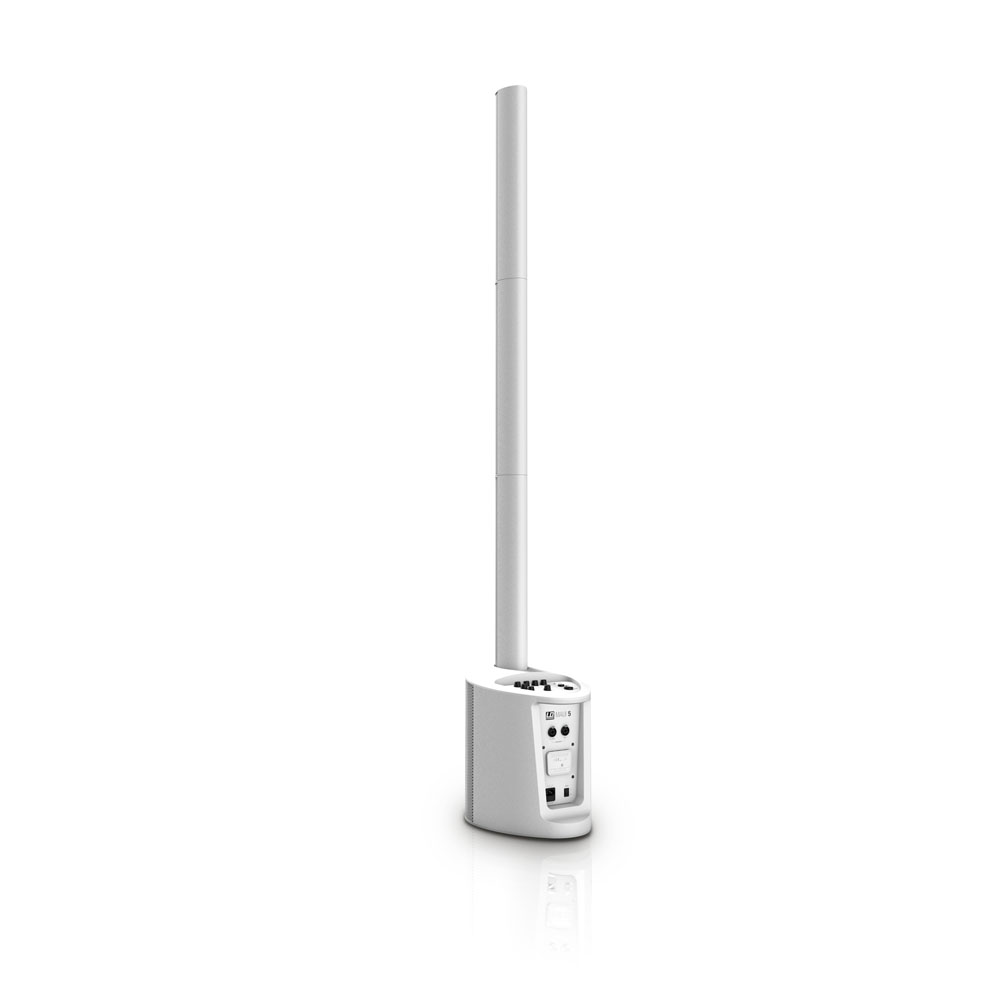

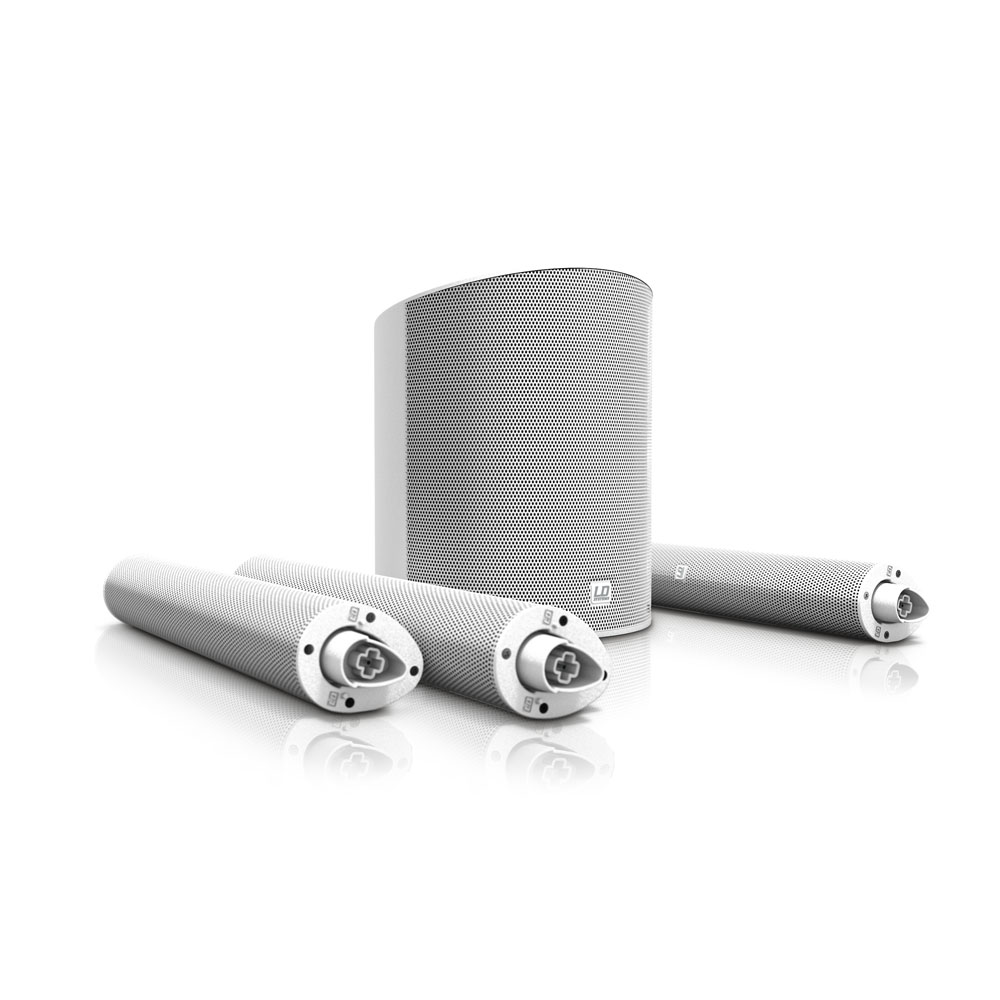

The ultra compact MAUI 5 weighs in at about 11 kg while delivering 800 watts of peak power and a maximum SPL of 120 dB. Providing both sound reinforcement with extended coverage and feedback resistant monitoring the subwoofer base and 3-piece column system assembles in seconds with custom multipin connectors. The junior member of the MAUI family is most easily portable and fits onto any car seat.

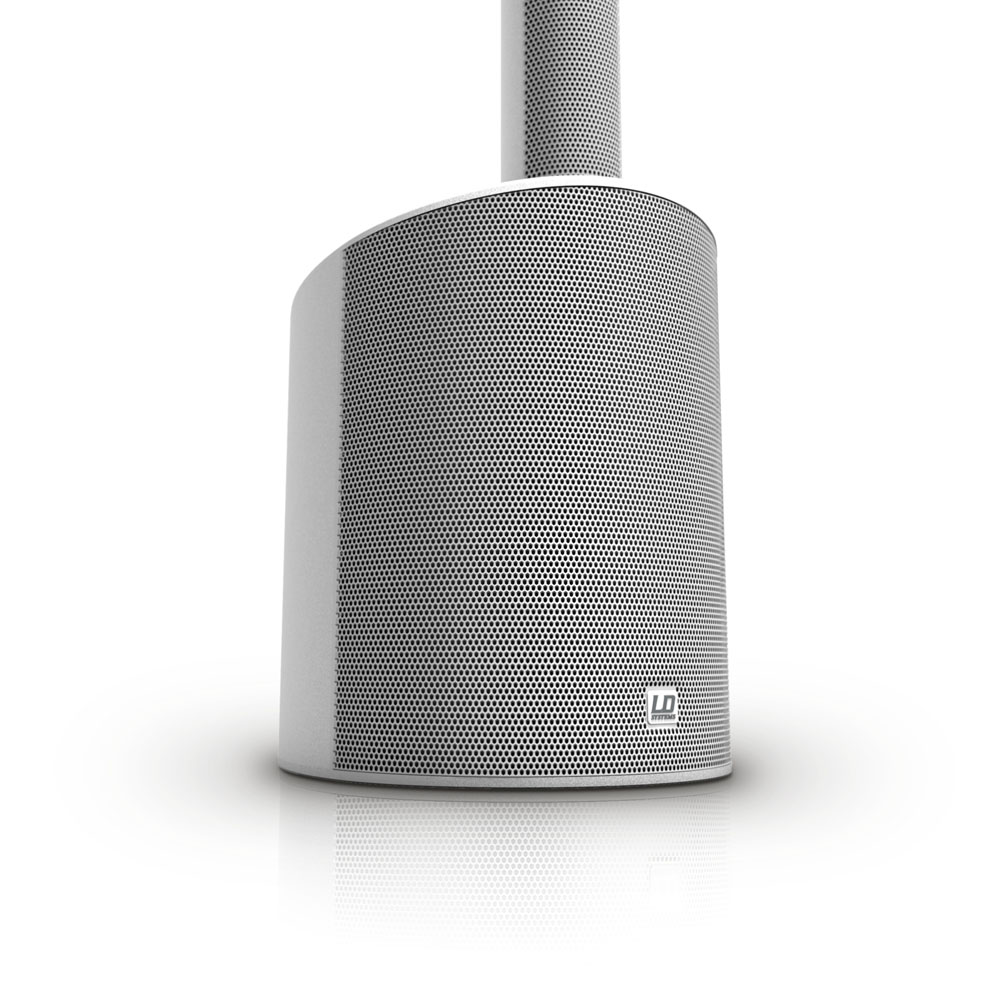

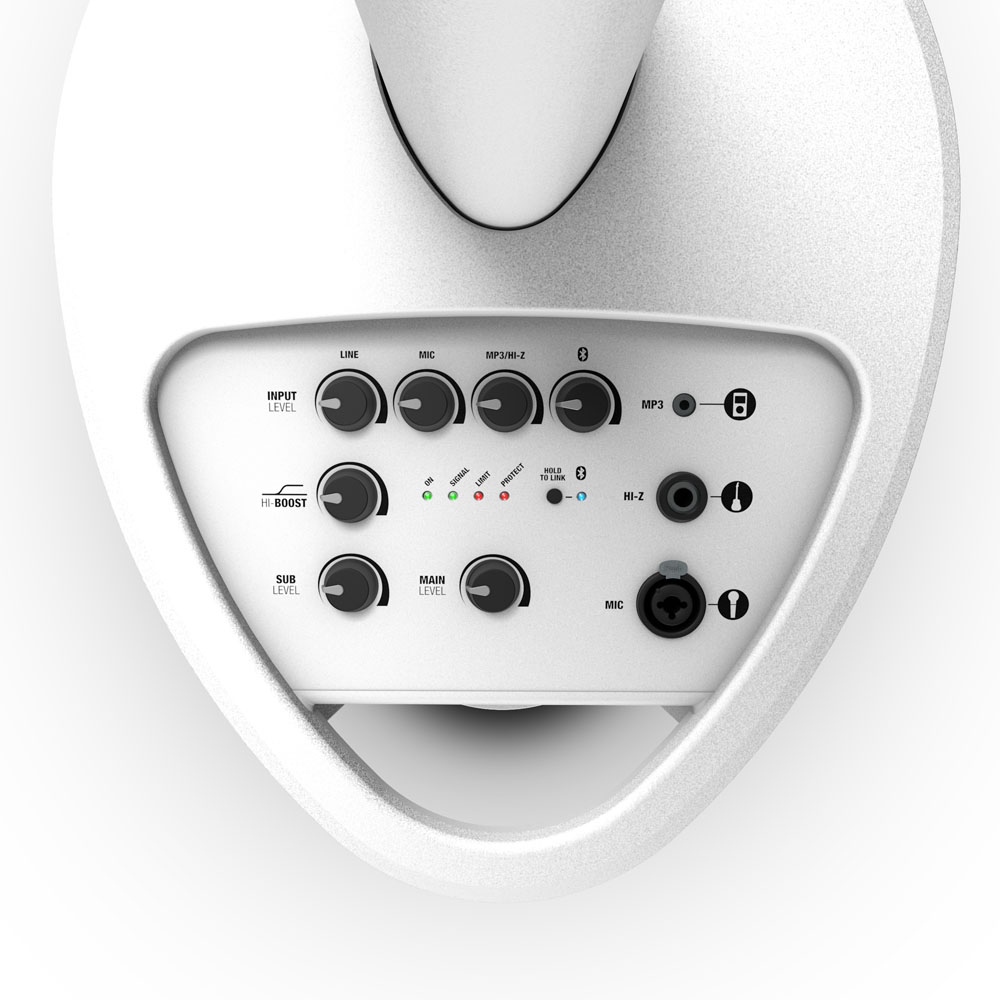

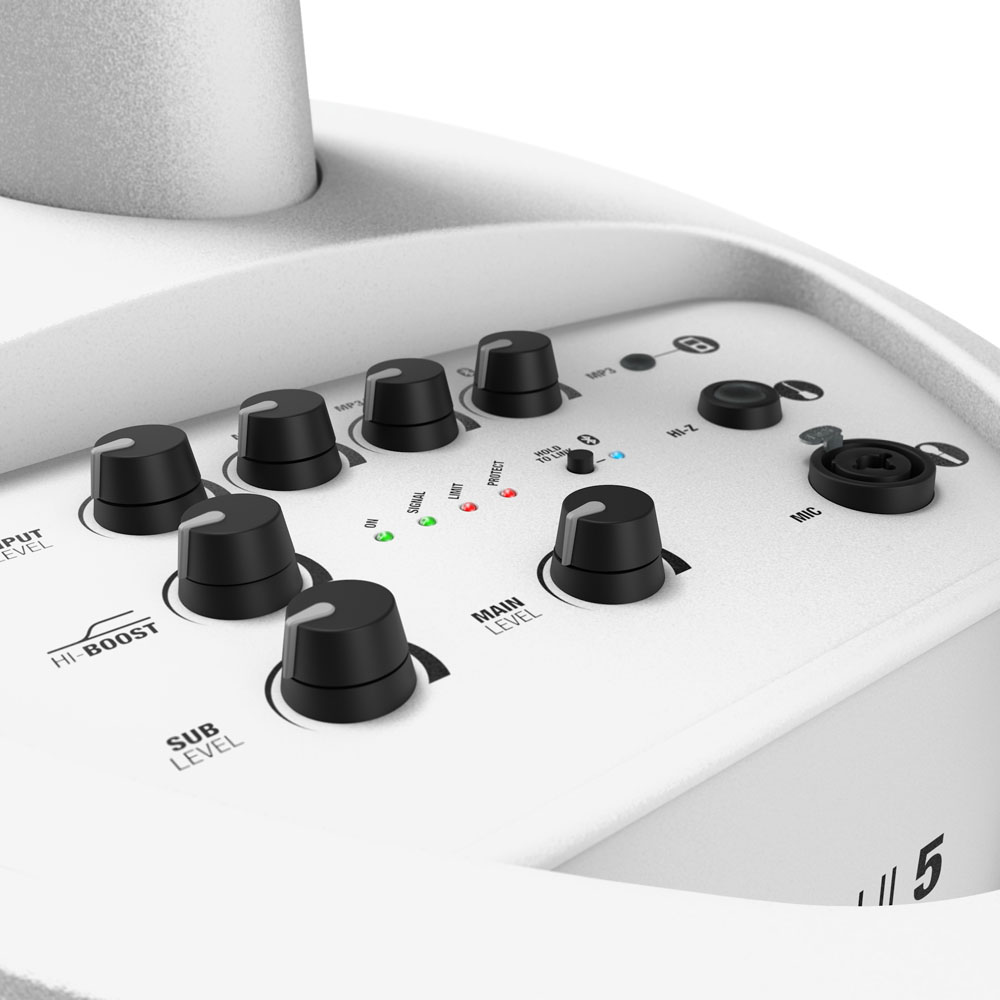

The vented 8" subwoofer also houses the system's Class D amplification with overcurrent, short circuit and thermal protection, LD Systems' proprietary LECC digital processing and a 4-channel mixer. Featuring Bluetooth technology for wireless streaming and microphone, line level and hi-Z inputs which can be used simultaneously the MAUI 5 lets you connect a wide variety of sources including music players and instruments such as keyboards or guitars. Individual level controls, subwoofer and master volumes plus high shelf filtering for room correction enable a perfectly balanced performance. The MAUI 5 is also available in black (LDMAUI5).

Frequency response: 50 - 20000 Hz
Type: Active
Colour: White
Max. SPL peak: 120 dB
Amp class: Class D
Speaker system: 2-way coaxial system
Protection features: Multiband Limiter, Overvoltage, Overheating, Short circuit
Max. SPL average: 114 dB
Beam angle: Hor.: 120° / Vert.:20°
RMS output power: 200 W
Peak output power: 800 W
Bluetooth® range: ≤10 m (Class 2)
Bluetooth® version: Bluetooth® 4.2
Supported audio codecs: SBC
Inst-in connector type: 6.3 mm Jack TS female

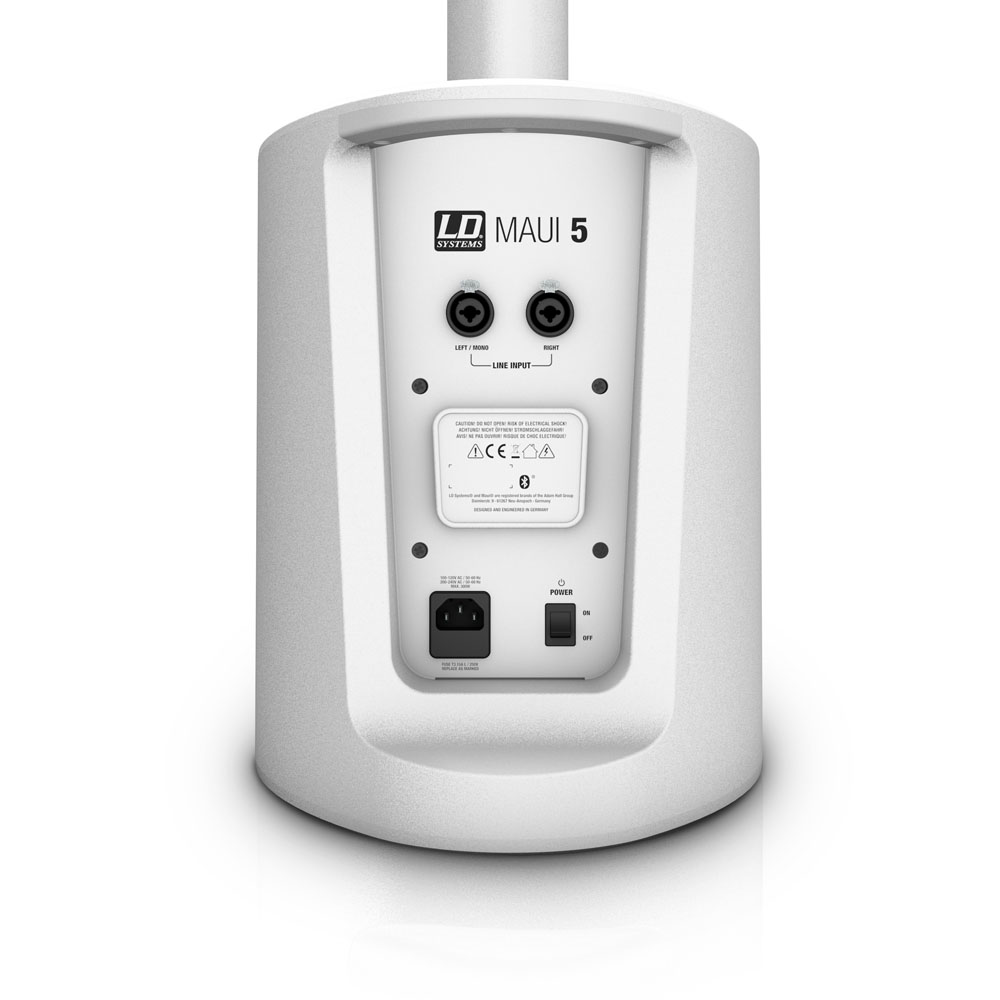

Line-In connector type: XLR combo socket
Music inputs connector types: 3.5 mm Jack TRS female
Number of music inputs: 1
Number of instrument inputs: 1
Number of line inputs: 2
Number of microphone inputs: 1
Mic-in connector type: XLR combo socket
AD/DA converter bit depth: 24 Bit
Audio processing: 3 band EQ (High, Mid, Low)
Mixer channels: 4
Mixer: 1
DSP model: LECC
AD/DA converter sampling rate: 48 kHz
Manufacturer: Custom Made
Voice coil: 2 "
Size: 8 "
Magnet: Ferrite
Magnet: Neodymium
Quantity: 4
Voice coil: 1 "
Size: 3 "
Manufacturer: Custom Made
Mains connector: IEC C14 plug male
Operation voltage: 100 V AC - 120 V AC / 50 - 60 Hz, 220 V AC - 240 V AC / 50 - 60 Hz
Rated power: 300 W
Power supply type: Switched-mode power supply (SMPS)
Cooling system: Convection cooling
Chassis material: ABS
Width: 3.23 in
Depth: 4.13 in
Height: 21.06 in
Design: Closed
Design: Bass reflex
Width: 12.01 in
Depth: 15.55 in
Height: 15.94 in
Number of handles: 1
Maximum air humidity (non-condensing): 80 %
Ambient temperature: 0 - 40 °C
Height: 78.15 in
Weight: 24.91 lbs
Width: 12.01 in
Depth: 15.55 in
Included accessories: Mains cable

0 of 0 reviews

Average rating of 0 out of 5 stars

Leave a review!

Share your experiences with other customers.


Skip product gallery

accessories

MAUI 5 SUB PC
MAUI 5 SUB PC

Protective cover for the MAUI 5 subwoofer made of resistant Nylon 1680D with 8 mm padding and rear zip for easy access to the carrying handle.

$59.99*
MAUI 5 SAT BAG
MAUI 5 SAT BAG

Made of abrasion resistant and water repellent ballistic 1680D nylon, the MAUI 5 column bag is designed for convenient transport and protection. It features a rugged heavy gauge zipper, an accessory compartment for cables etc. and thick 8 mm padding. The bag holds all three MAUI 5 column elements.

$75.99*
4 STAR MMF 0500
4 STAR MMF 0500

Professional Quality CableFor professional applications on stage, in the studio or in the rehearsal room, professional quality is available with our 4 STAR SERIES. THis cable is completely developed in Germany and therefore meets the relevant requirements for professional use.We focus on durability and reliability, and have therefore developed a line of cables that are not only flexible, but also very robust. We use a special soft-PVC compound for all cables of the 4 STAR SERIES which has very good bending abilities. Of course, the jacket is not the only factor that makes a cable great, so we use a dense copper-spiral shielding, for professional transmission values. All these parts make the cable very flexible.

$22.89*

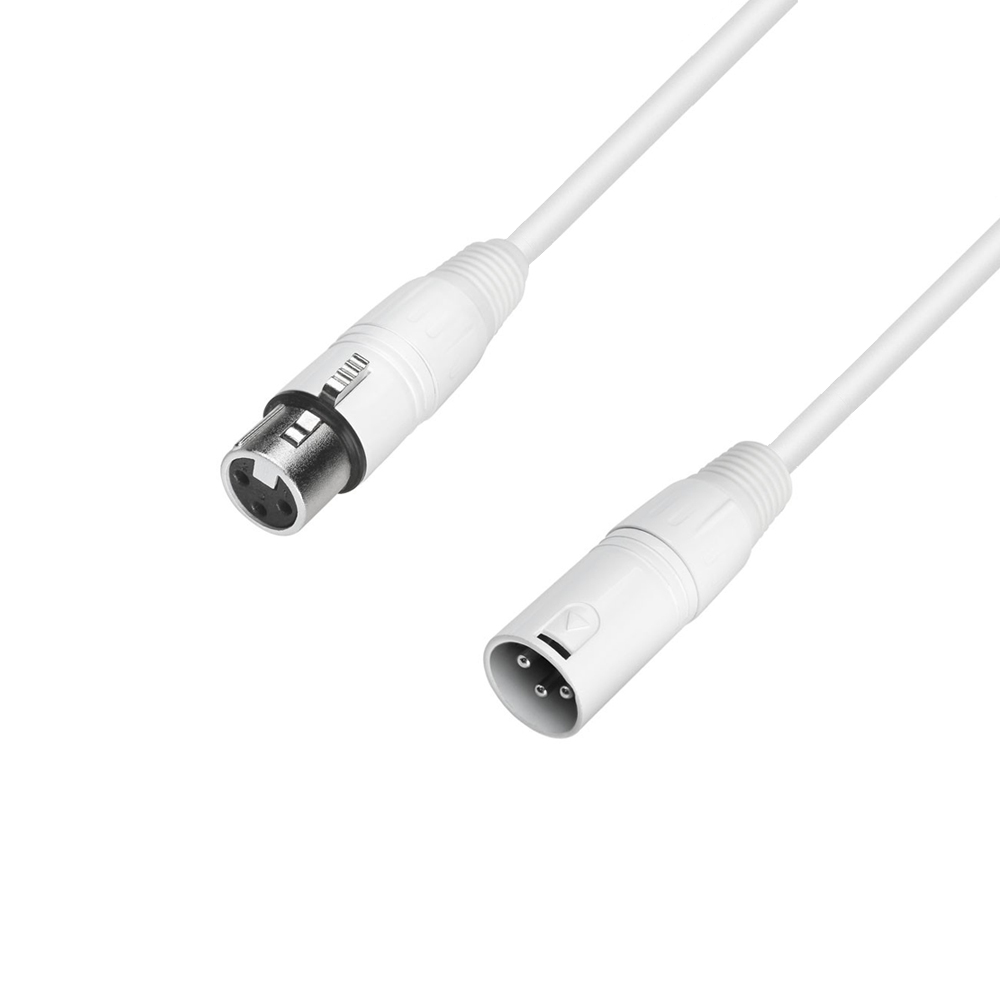

4 STAR MMF 500 SNOW
