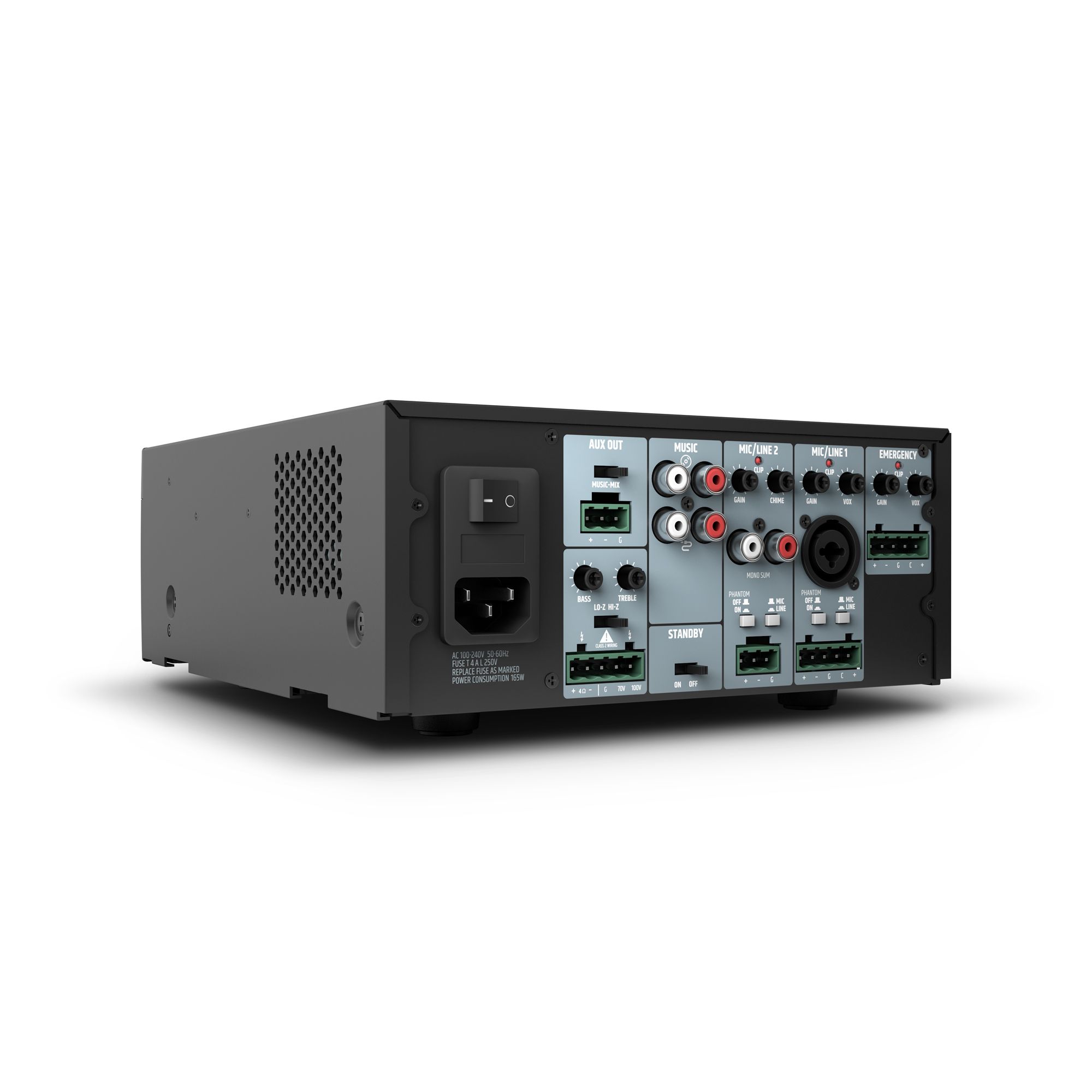

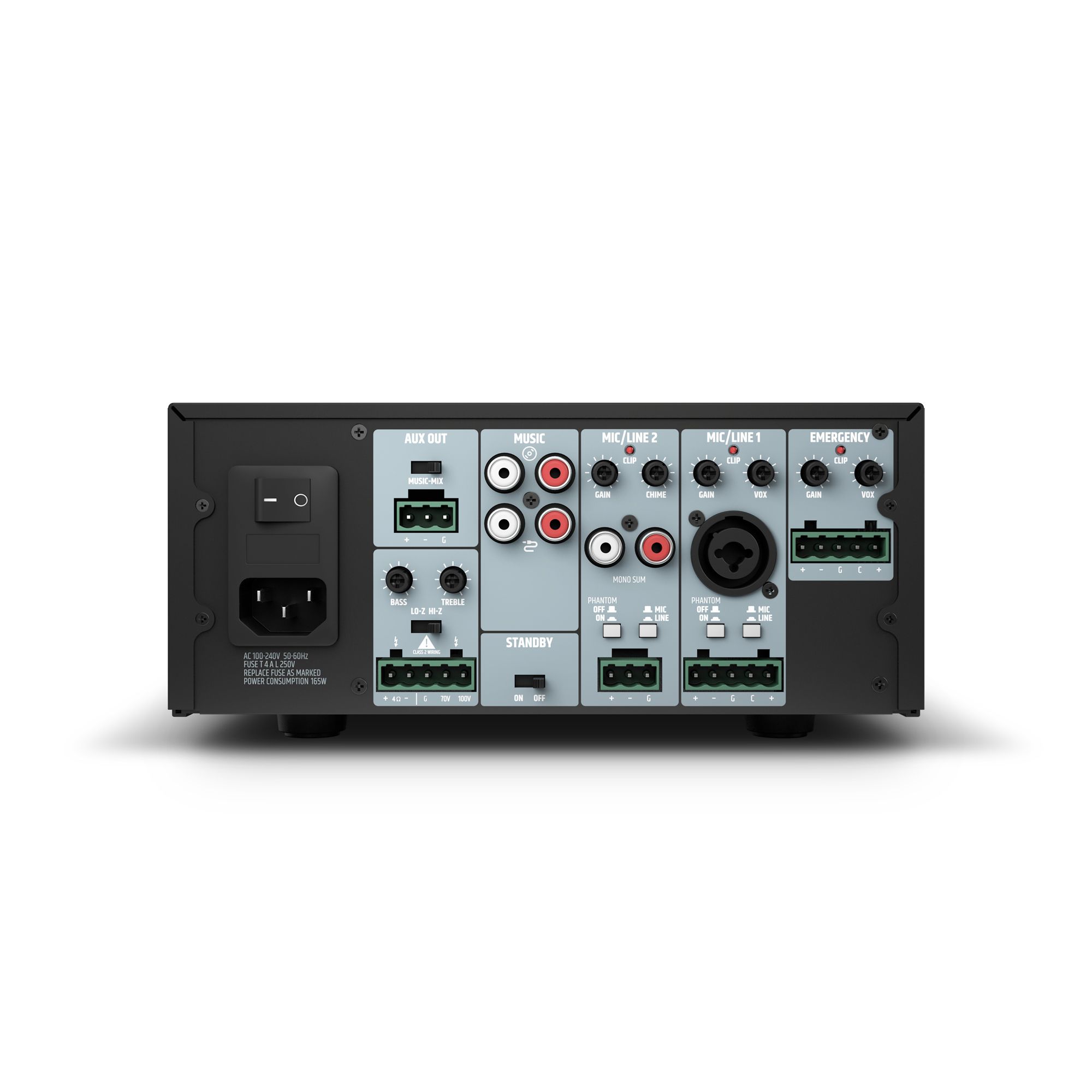

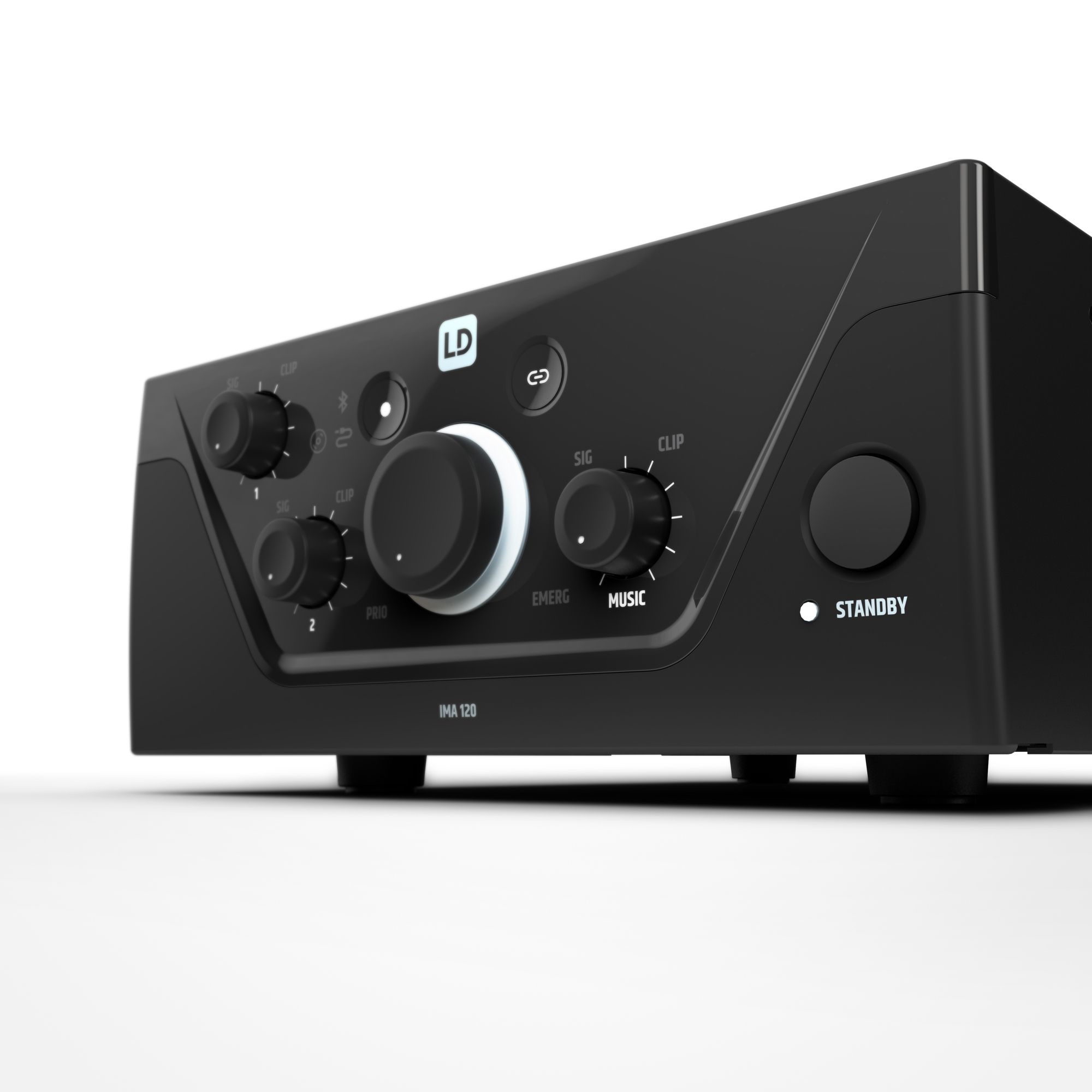

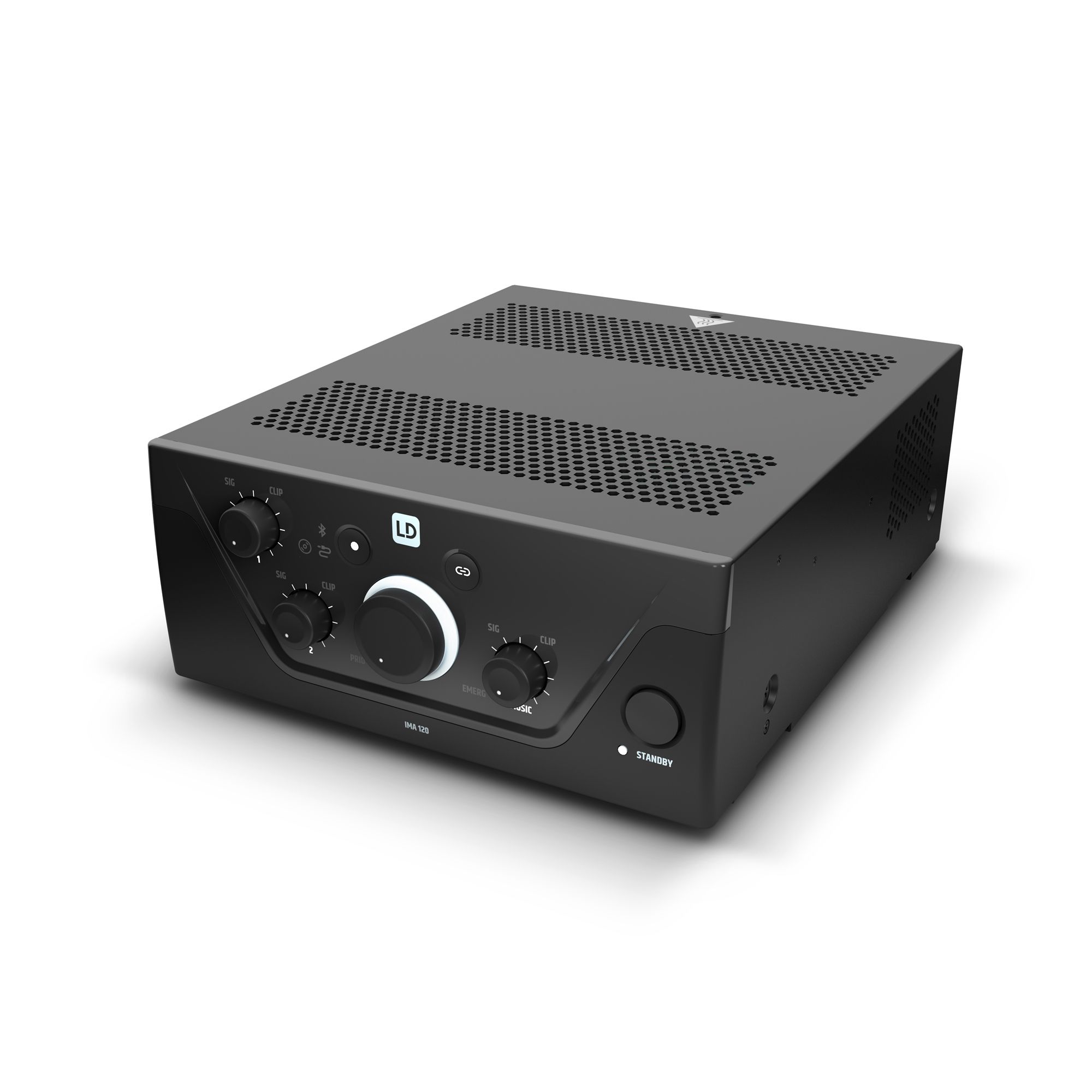

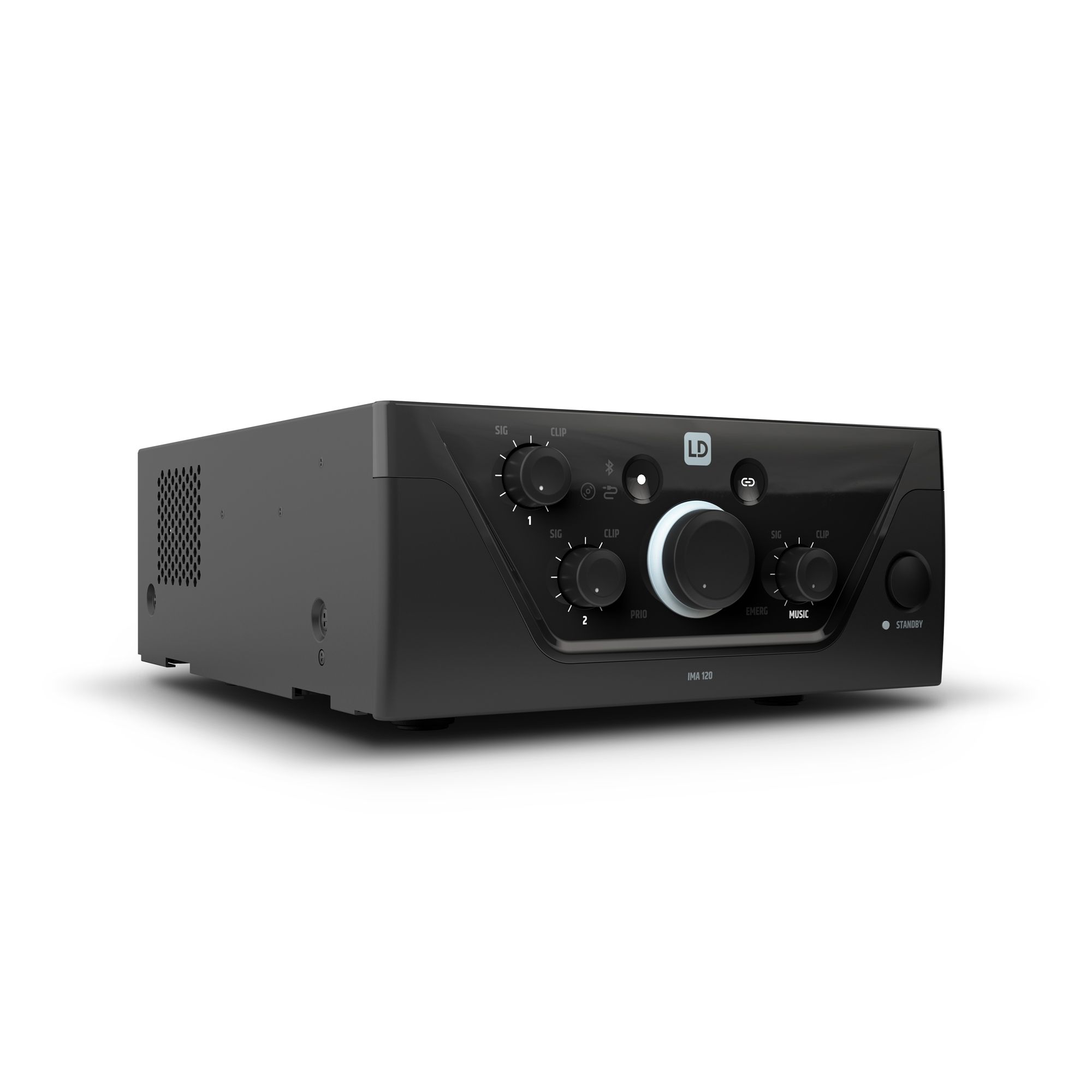

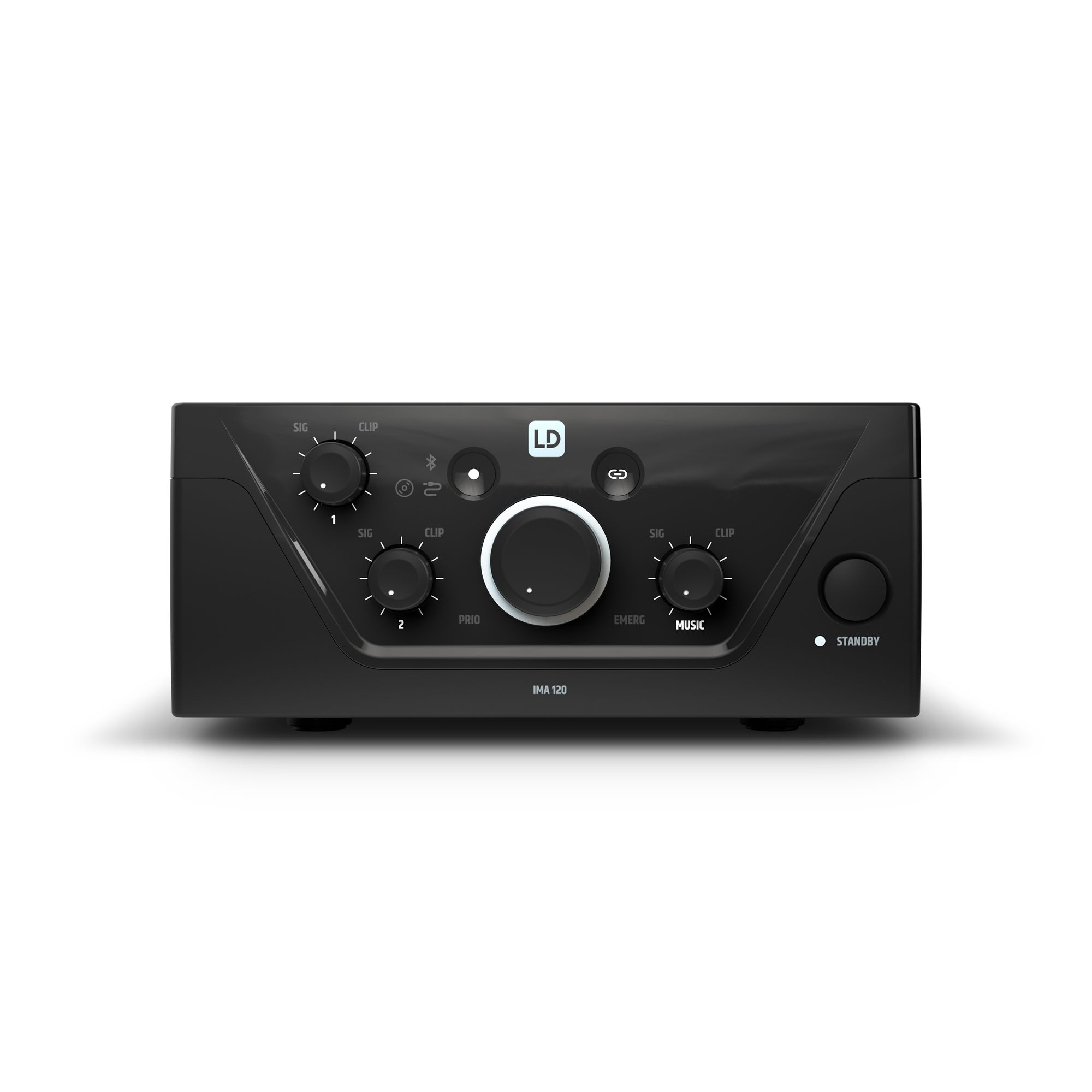

IMA 120

The seven-piece IMA RK rack- and under table mount kit allows you to install the mixing amplifiers of the IMA series or PREST1 into a 19-inch rack, under a shelf, a table or under a counter.The following configurations are possible:One device in a 19-inch rack (2 RU)One device under a table, a shelf, or under a counterTwo devices together in a 19-inch rack (2 RU)The set includes one long rack mount bracket, two short rack / shelf mount brackets, two small plates for the back, two big plates for the bottom side, four M4 flat-headed screws for the rack mount brackets and eight M3 countersunk screws for the bottom plates.

Good sound belongs everywhere - in the hotel lobby, in conference rooms, in schools and houses of worship. Demands are constantly increasing, not only in terms of quality, but also in terms of flexibility. Permanently installed and still flexible? This apparent contradiction can be resolved by the IPA Series DSP-based installation amplifiers.The IPA 412 T is a professional, four-channel installation power amplifier with 4 x 120 watts. While the 70V/100V outputs are equipped with high quality toroidal core transformers, the low impedance 4-Ohm outputs are completely transformerless and guarantee the highest possible audio quality. The versatile DSP functions include, amongst others, a parametric EQ with matching speaker library, dynamic tools, a matrix mixer, priority source selection and delay.Despite this range of functions, the IPA Series power amps are easy to operate. Important functions such as signal, limit, protection and bridge mode are easily visible via the LEDs on the front panel.HPF/LPF presets can be enabled directly on the device via DIP switches The IPA 412 T is already equipped for remote control using future remote panels and paging microphones from LD Systems. The back-panel slot provides expansion card connectivity for additional future-proofing. The Ethernet card offers comprehensive configuration and management via software. The Ethernet+Dante card also offers Dante audio networking capabilities and connection to a wide range of Dante-enabled devices, in order to integrate the IPA 412 T into the Dante network and resolve more complex tasks.Times are changing; rooms are redivided or rededicated, numbers of attendees increase or decrease based on unforeseen events, but with the IPA Series DSP-supported power amps, your installation is prepared for any situation. Scalability and future-proofing are the biggest advantages of the IPA Series. Its energy efficiency is also ideal thanks to the class-D technology and switchable auto standby.The IPA 424 T variant with 4 x 240 watts is available for larger installations.

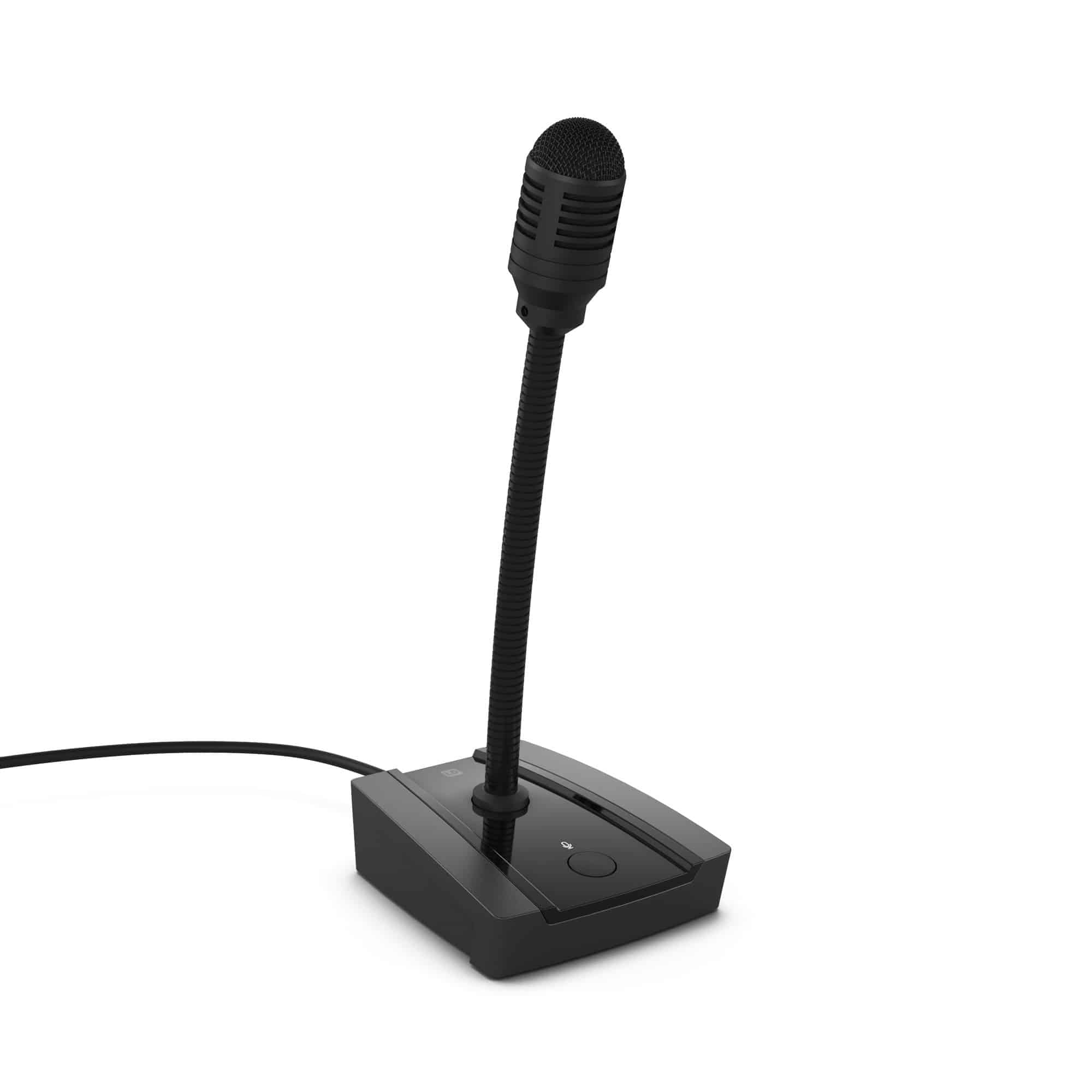

The LD Systems PAM is a high-quality gooseneck table microphone that can be used for general announcements over permanently installed public address systems in retail stores, schools, warehouses or other public areas. Three announcement modes are available via the central, configurable push button: Push-to-Talk, Push-to-Mute, Latch On/OFF. The integrated LED microphone symbol indicates whether the PAM is active, i.e. in use.PAM includes a robust desktop base, which features non-slip long rubber feet on the underside of the housing to ensure a secure stand at all times and minimise the effects of knocks, vibration and structure-borne noise on the microphone.In addition to the balanced audio output, the PAM also features a hard-wired contact closure output that allows priority mutes to be triggered in mixer amplifiers and zone mixers via a MOSFET switch.This makes the paging table microphone perfect for use in combination with the LD Systems mixing amplifiers of the IMA series or the ZONE mixers. At the same time, it is compatible with all third-party devices that have a microphone and contact closure input. For optimal signal transmission, the PAM sends signals with a gain of +5 dB. This also helps to solve sound loss issues with long cable runs.The integrated low-cut filter attenuates frequencies below 100 Hz and ensures transparent speech announcements without annoying, low-frequency background noise, which is usually caused by humming or vibrations during tabletop operation.

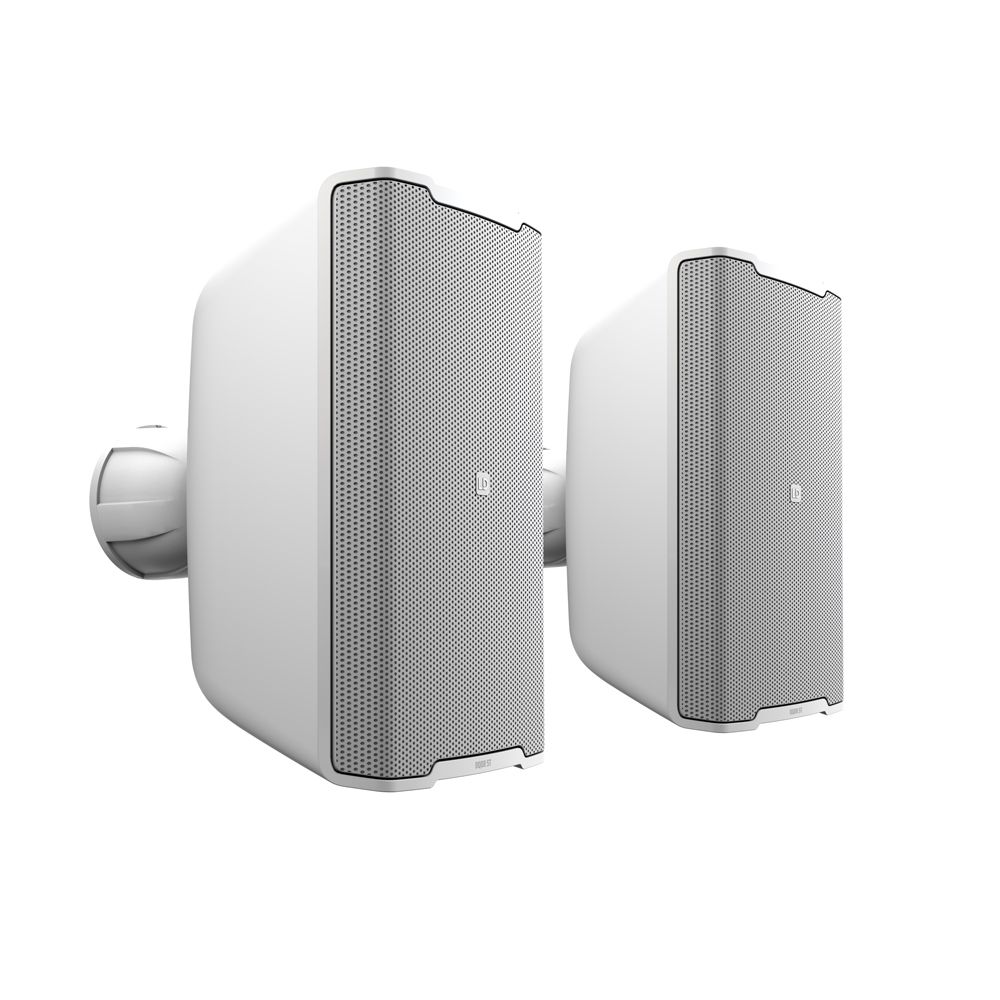

Encourage your customers and guests to linger for longer with great sound. Thanks to their wide coverage angle and balanced sound, DQOR loudspeakers provide an inviting ambience.Whether indoors or outdoors, with its elegant, dynamic design in black or white, the 2-way speaker fits harmoniously into any installation. Thanks to the clever slide-and-lock wall mount with concealed integrated connections, there is no need for unsightly cables. To maintain an elegant and smart look on the long term, the front grille is made of corrosion-resistant aluminum.No restrictions! With a tilt angle of up to 27° and a 45° horizontal swivel angle, DQOR loudspeakers offer flexible positioning to meet your needs.DQOR loudspeakers can also be used in a distributed sound system with numerous speakers and long cable runs. The DQOR 3T, DQOR 5T and DQOR 8T models are equipped with multitap transformers for 70V/100V systems to minimize power loss. Play background music and announcements at the sound level you want: the output power of each speaker can be adjusted with a power tap. Alternatively, the transformer variants can also be operated at conventional low impedance amplifier outputs. Their 16 Ohm impedance allows the parallel connection of up to eight DQOR loudspeakers at 2 Ohm. DQOR series loudspeakers provide superb sound and the sort of feel-good atmosphere which always puts your customers and employees in a great mood, whether in your shop, your hotel lobby, at a beach bar or on a cruise ship.

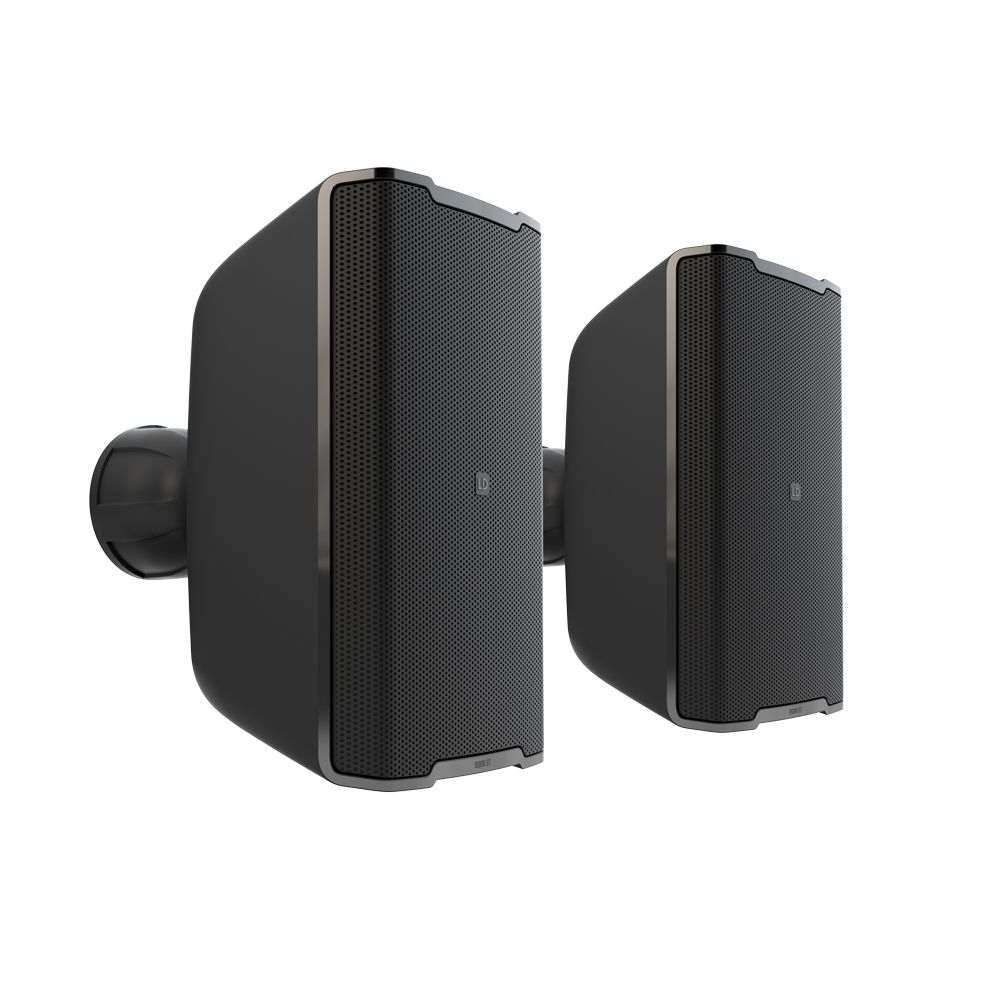

Encourage your customers and guests to linger for longer with great sound. Thanks to their wide coverage angle and balanced sound, DQOR loudspeakers provide an inviting ambience.Whether indoors or outdoors, with its elegant, dynamic design in black or white, the 2-way speaker fits harmoniously into any installation. Thanks to the clever slide-and-lock wall mount with concealed integrated connections, there is no need for unsightly cables. To maintain an elegant and smart look on the long term, the front grille is made of corrosion-resistant aluminum.No restrictions! With a tilt angle of up to 27° and a 45° horizontal swivel angle, DQOR loudspeakers offer flexible positioning to meet your needs.DQOR loudspeakers can also be used in a distributed sound system with numerous speakers and long cable runs. The DQOR 3T, DQOR 5T and DQOR 8T models are equipped with multitap transformers for 70V/100V systems to minimize power loss. Play background music and announcements at the sound level you want: the output power of each speaker can be adjusted with a power tap. Alternatively, the transformer variants can also be operated at conventional low impedance amplifier outputs. Their 16 Ohm impedance allows the parallel connection of up to eight DQOR loudspeakers at 2 Ohm. DQOR series loudspeakers provide superb sound and the sort of feel-good atmosphere which always puts your customers and employees in a great mood, whether in your shop, your hotel lobby, at a beach bar or on a cruise ship.

The LD Systems MIBS is a switchable table stand with LED status indicator for flexible use in meetings, conferences, training and much more. With its sleek and elegant design, the MIBS, which features a robust die-cast zinc alloy, is suitable for businesses, educational institutions, conference centres, educational and administrative facilities or houses of worship.The MIBS tabletop microphone base is compatible with all commercially available gooseneck microphones with XLR3M connectors and offers three operating modes: push-to-talk, push-to-mute and latch ON/OFF. The integrated active audio switching circuitry operates extremely quietly without disturbing the participants in the room.The LED status indicator allows users to see at any time if the microphone is active. When the microphone on the MIBS is muted, the internal attenuation of more than 75 dB ensures that no unwanted information or noise is transmitted. Both the LED display and the active audio circuitry are powered by the 48V phantom power output from a mixing console or preamplifier for the microphone, so they do not require an additional power supply.The integrated low-cut filter takes effect from 100 Hz and ensures transparent speech transmission by reducing annoying low frequency noises - rumbling, humming, vibrations - which typically occur during desktop operation. The non-slip long rubber feet on the underside of the housing also reduce the effects of shocks and vibrations on the microphone. For optimal signal transmission to mixing amplifiers and consoles, the active audio circuitry in MIBS provides an extra+5 dB gain. This also helps to solve audio signal loss issues due to long cable runs.
