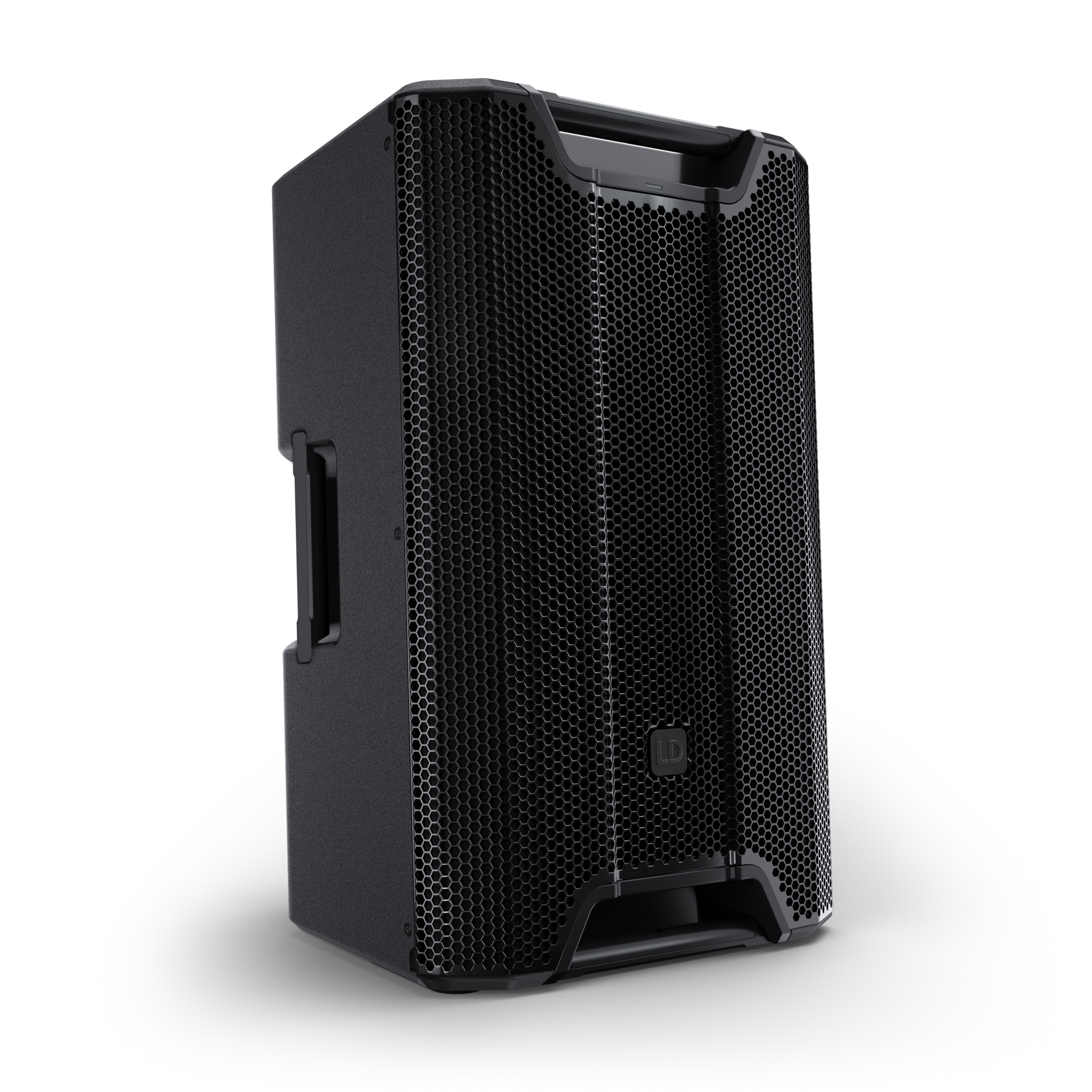

ICOA® PRO 15 A
15" Powered Coaxial High-Performance PA Loudspeaker with Bluetooth and App
$1,499.99
Backordered – More on the Way!
Product information "ICOA® PRO 15 A"

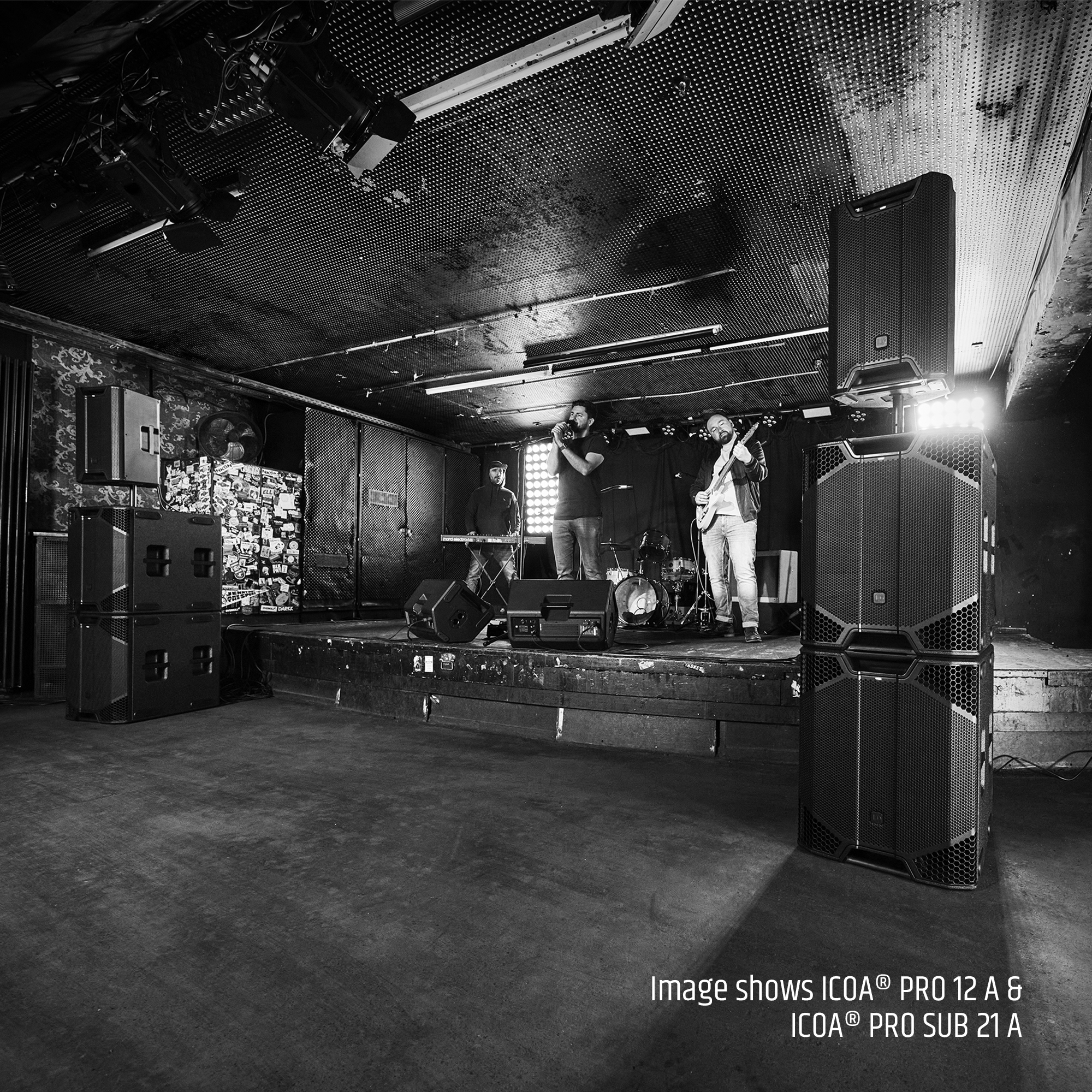

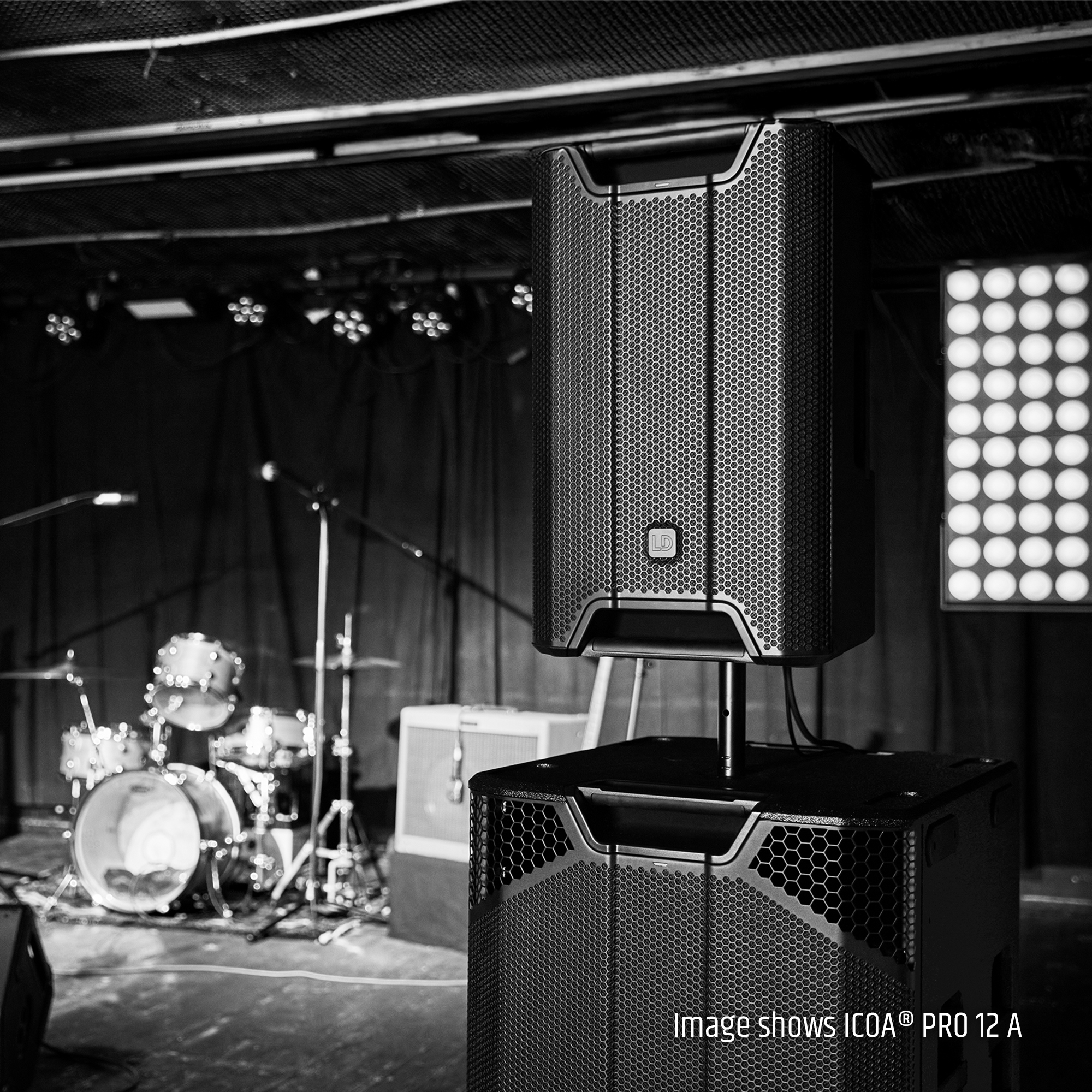

The ICOA PRO 15 A combines the sonic precision of a true coaxial system with the force of a powerful 15ʺ loudspeaker. Its professional full-range performance and robust design make it exceptionally versatile and ideal for a wide range of applications, from club gigs to live events and permanent installations.
The coaxial design combines a specially manufactured 15ʺ woofer with a 3ʺ voice coil and 3ʺ titanium tweeter to create an authentic point source. The common motor design used also ensures the audio signal's improved coherence and time accuracy. The result is a particularly natural and detailed playback.

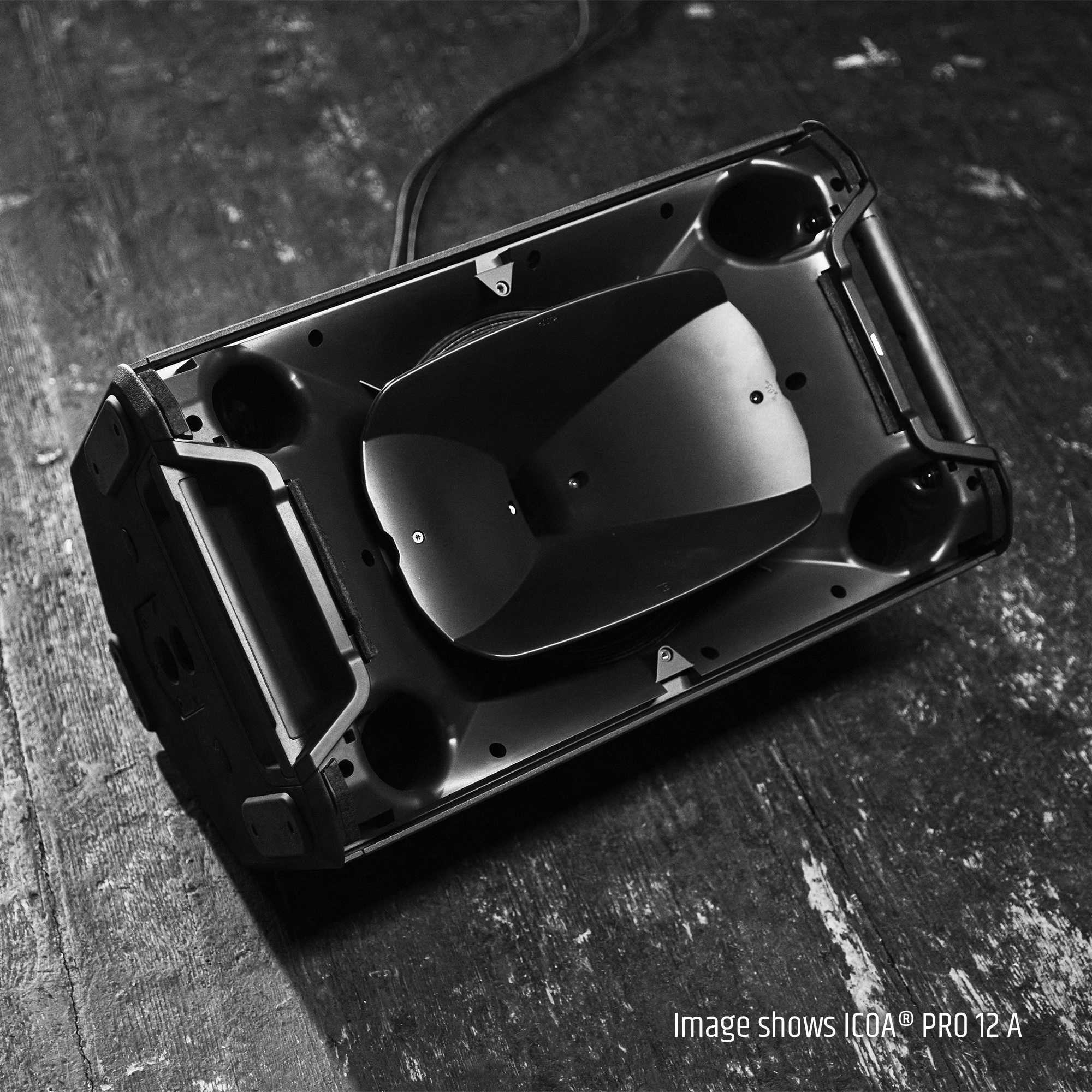

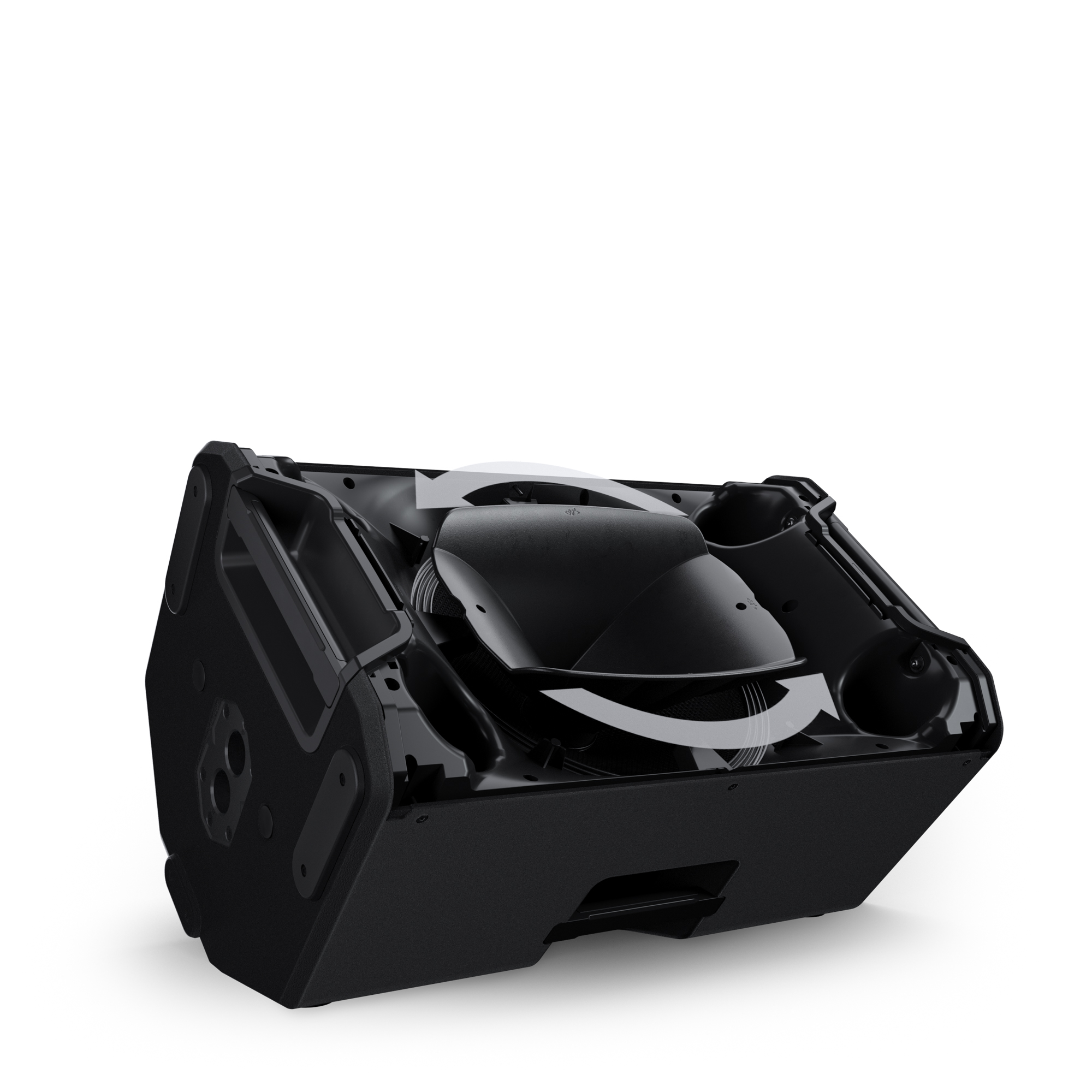

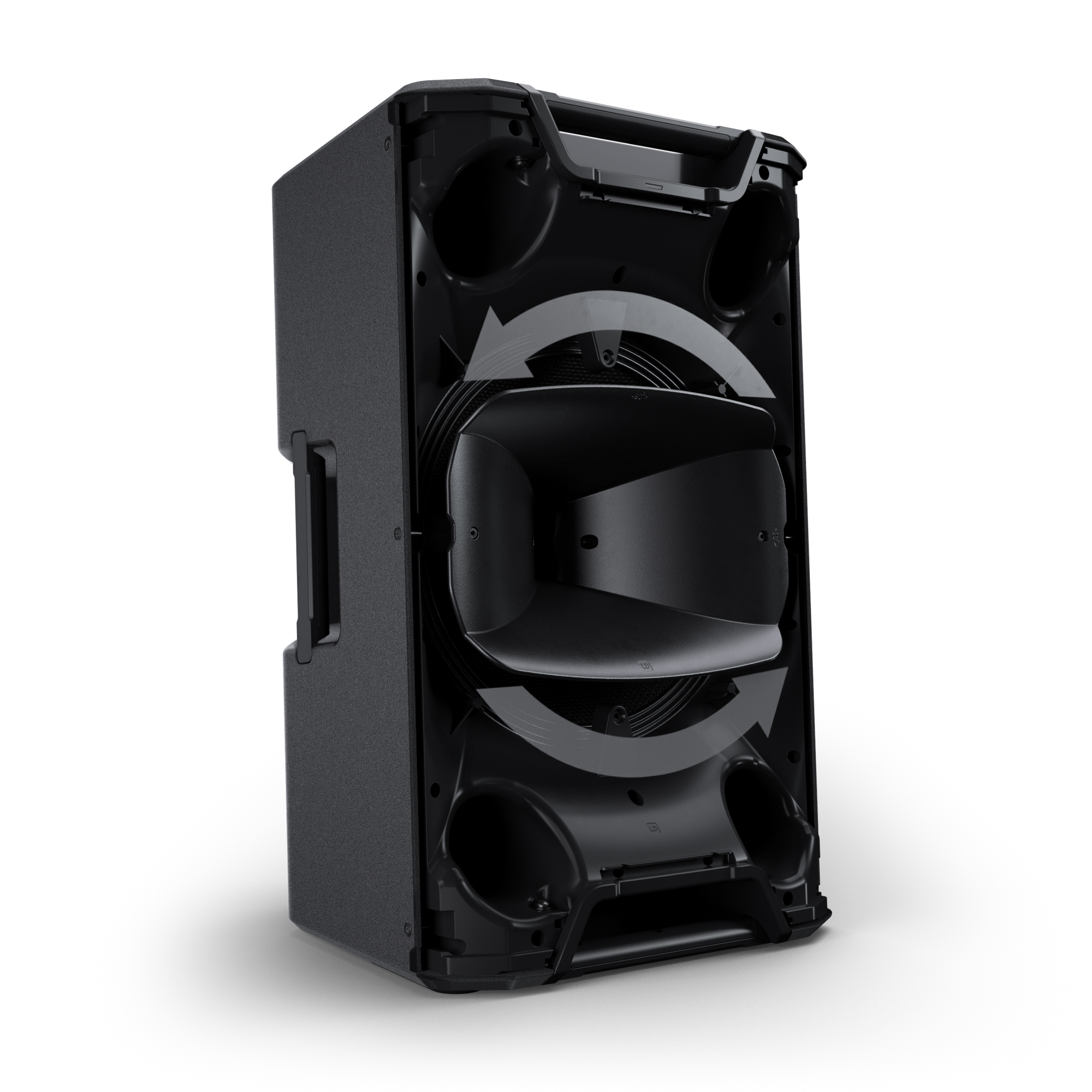

The rotatable, BEM-optimised horn ensures precise dispersion characteristics and simultaneously provides horn loading for the woofer and tweeter. This double horn loading allows the sound waves to be precisely focused deep into the mid-range (approx. 600 Hz) and offers a decisive advantage in acoustically demanding environments, as the sound energy arrives exactly where it is needed.
Thanks to its flow-optimised bass reflex ports, the ICOA PRO 12 A delivers a solid low end up to 53 Hz and thus an impressive full-range experience. The powerful Class D amplifier delivers up to 1500 W RMS (3000 W peak) and 135 dB max. SPL, ensuring sufficient headroom when powerful, distortion-free sound is required.
The modern SysCore DSP with FIR/IIR filters and advanced limiters guarantees distortion-free sound and safe operation with maximum clarity and punch – even at the limits.

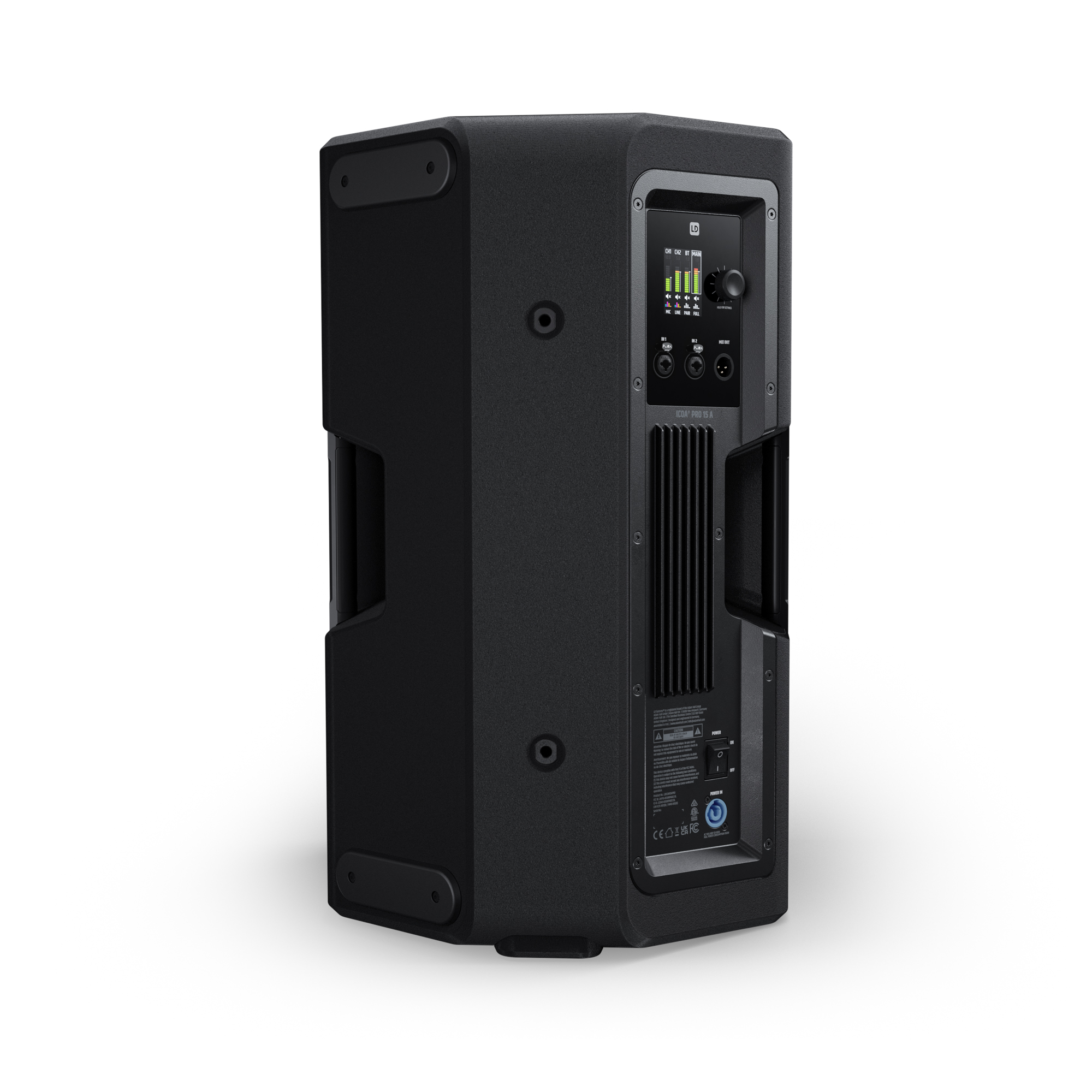

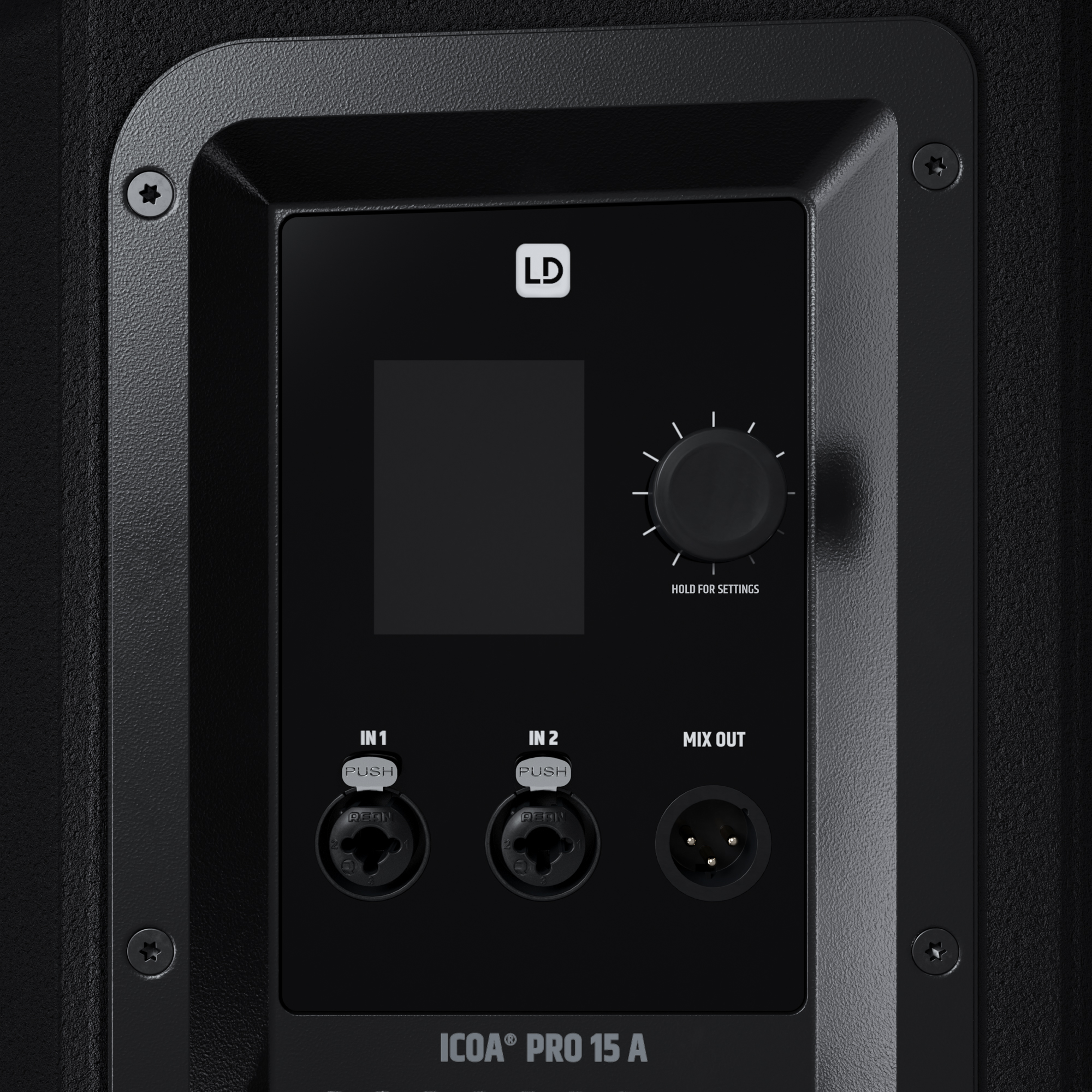

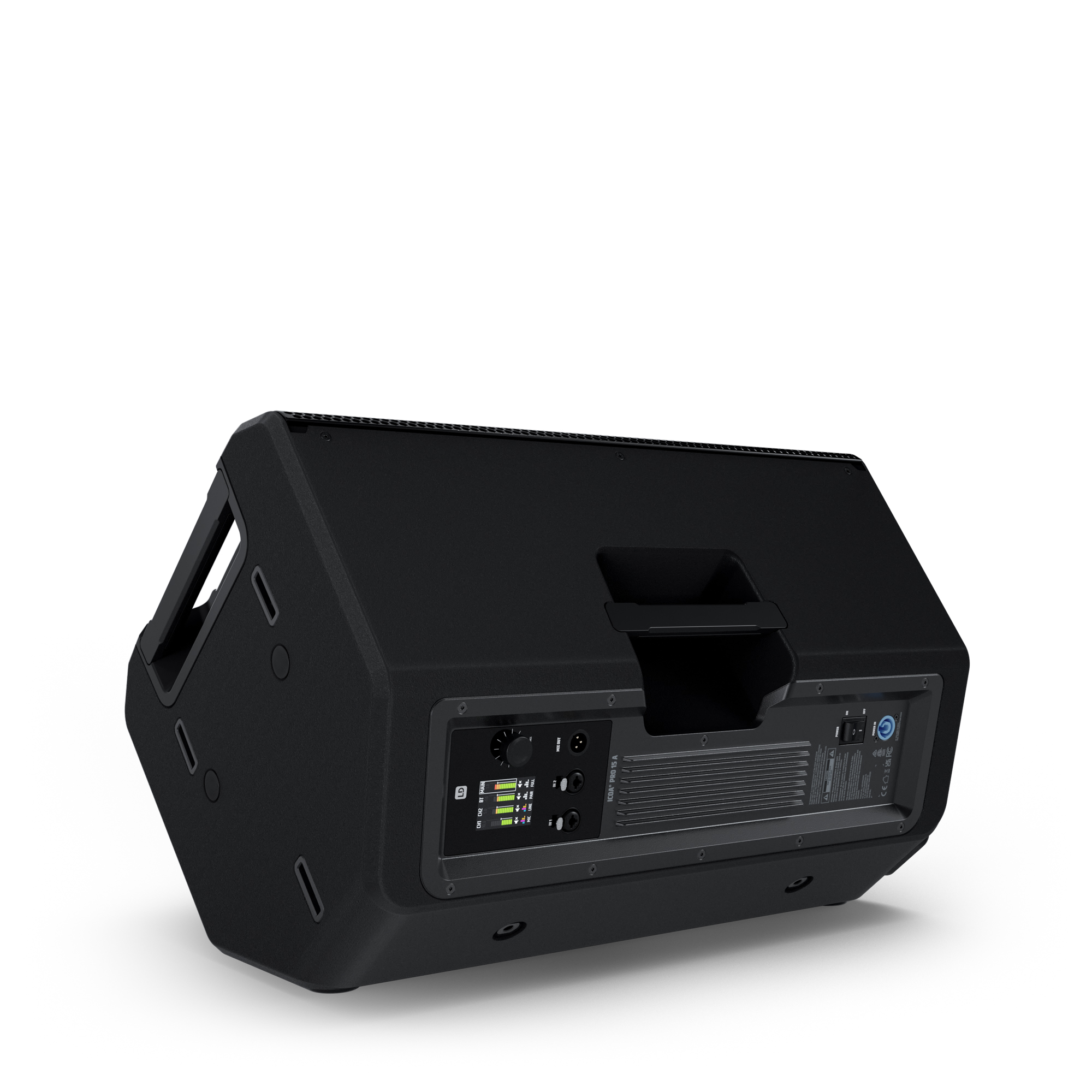

Two line/mic input channels and an XLR mix tap enable various signal sources to be connected and forwarded.
Four application presets (including a low-latency monitor), delay function, and parametric 4-band EQs for the input and master channels enable precise settings.

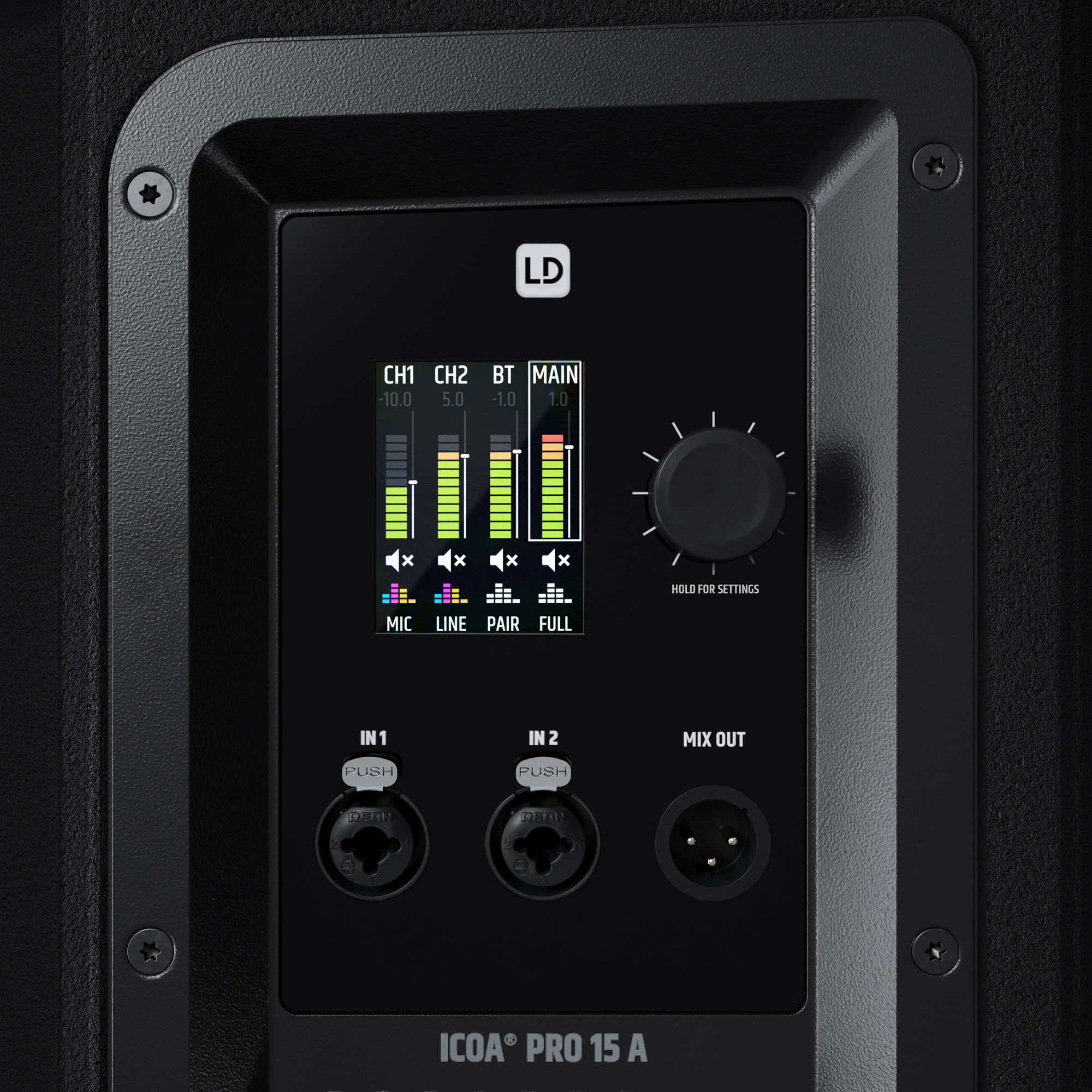

The whole experience is rounded off by an intuitive menu navigated using the colour display with one-knob control and the free ICOA PRO app.

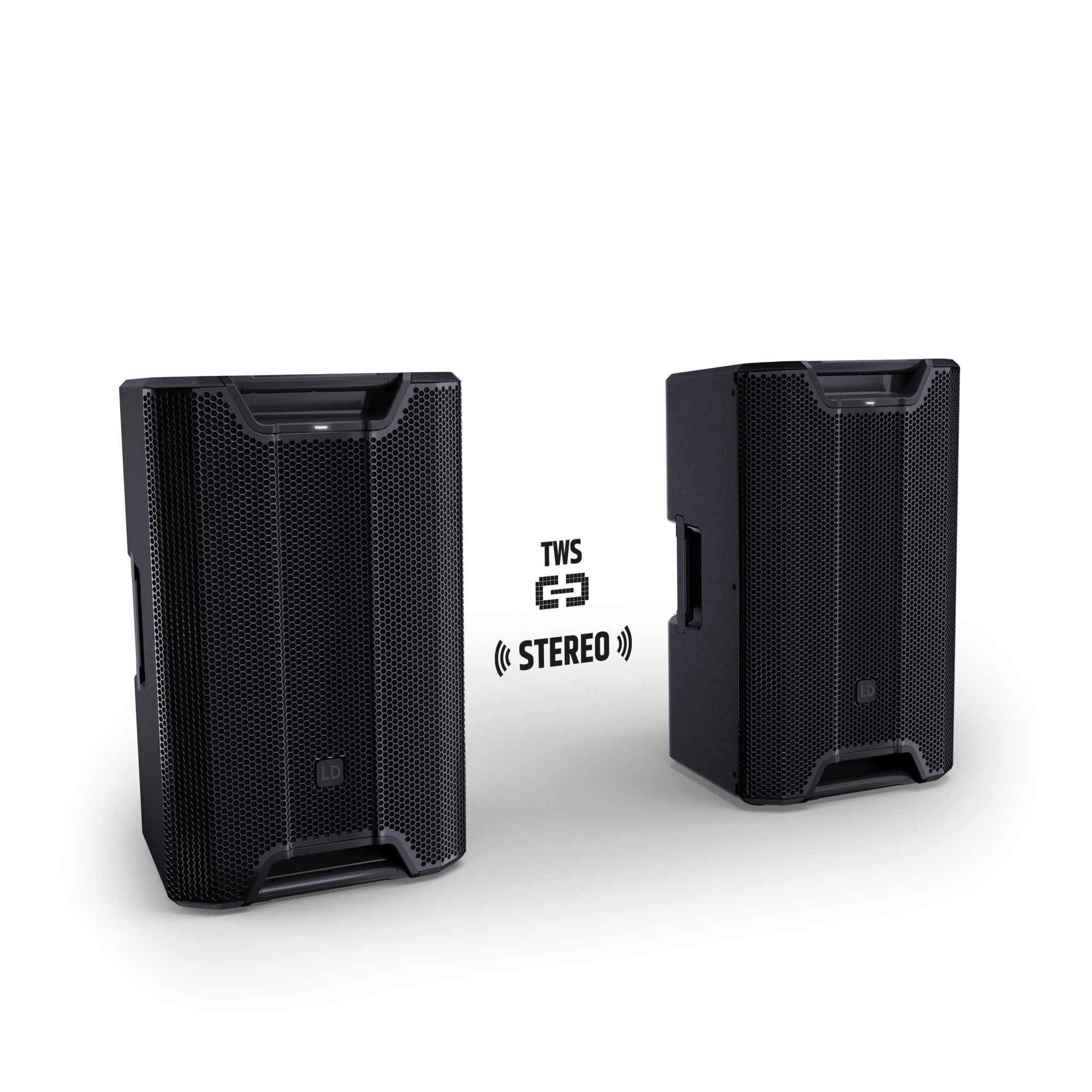

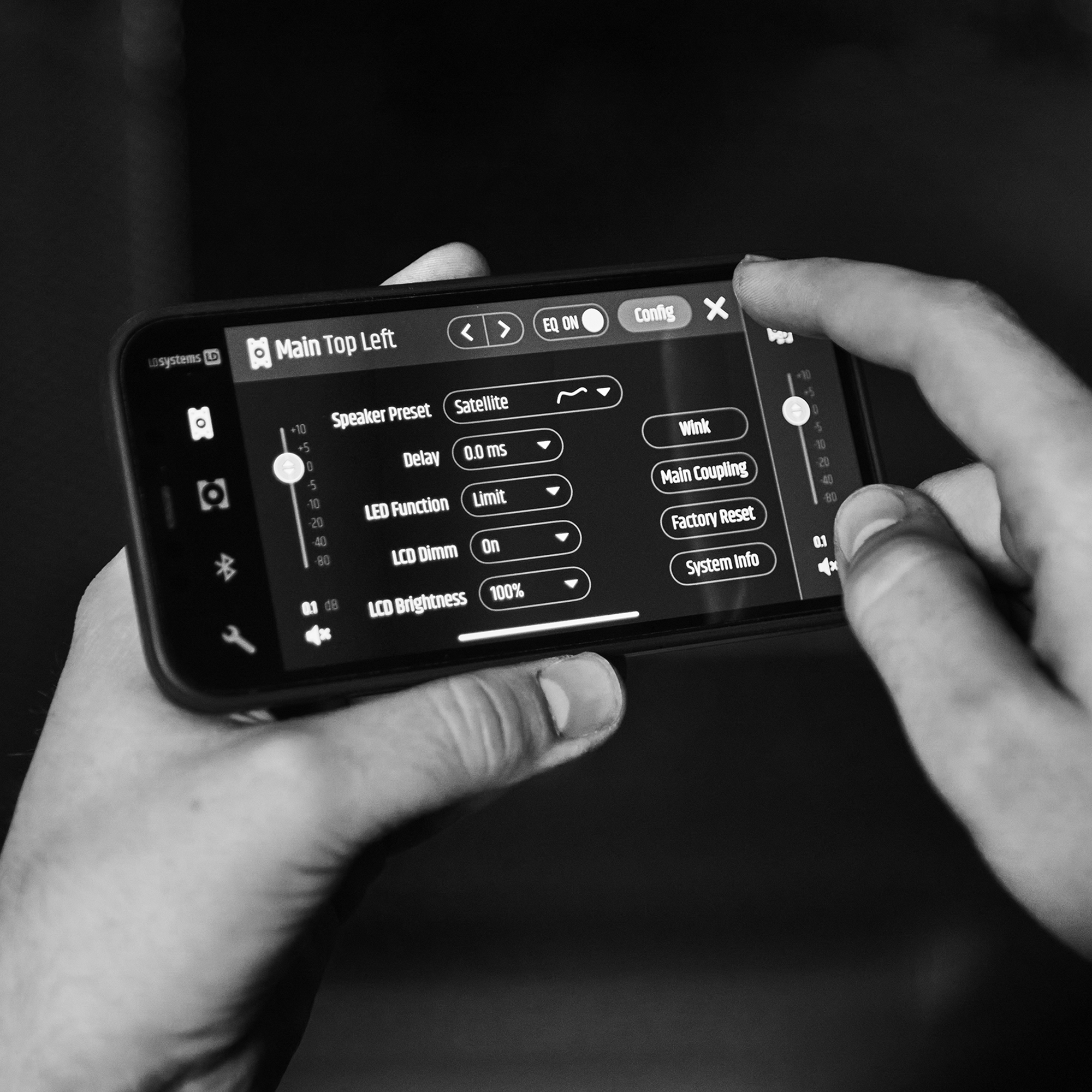

All settings can be adjusted quickly and wirelessly via the app, and multiple speakers can be paired with each other. A stereo setup with up to two tops and four subs, including direct music streaming via Bluetooth 5.1 and TWS, can be created and ready for use in the app in just a few seconds. A status LED on the front of the subwoofer enables easy identification and indicates if the limiter is activated.

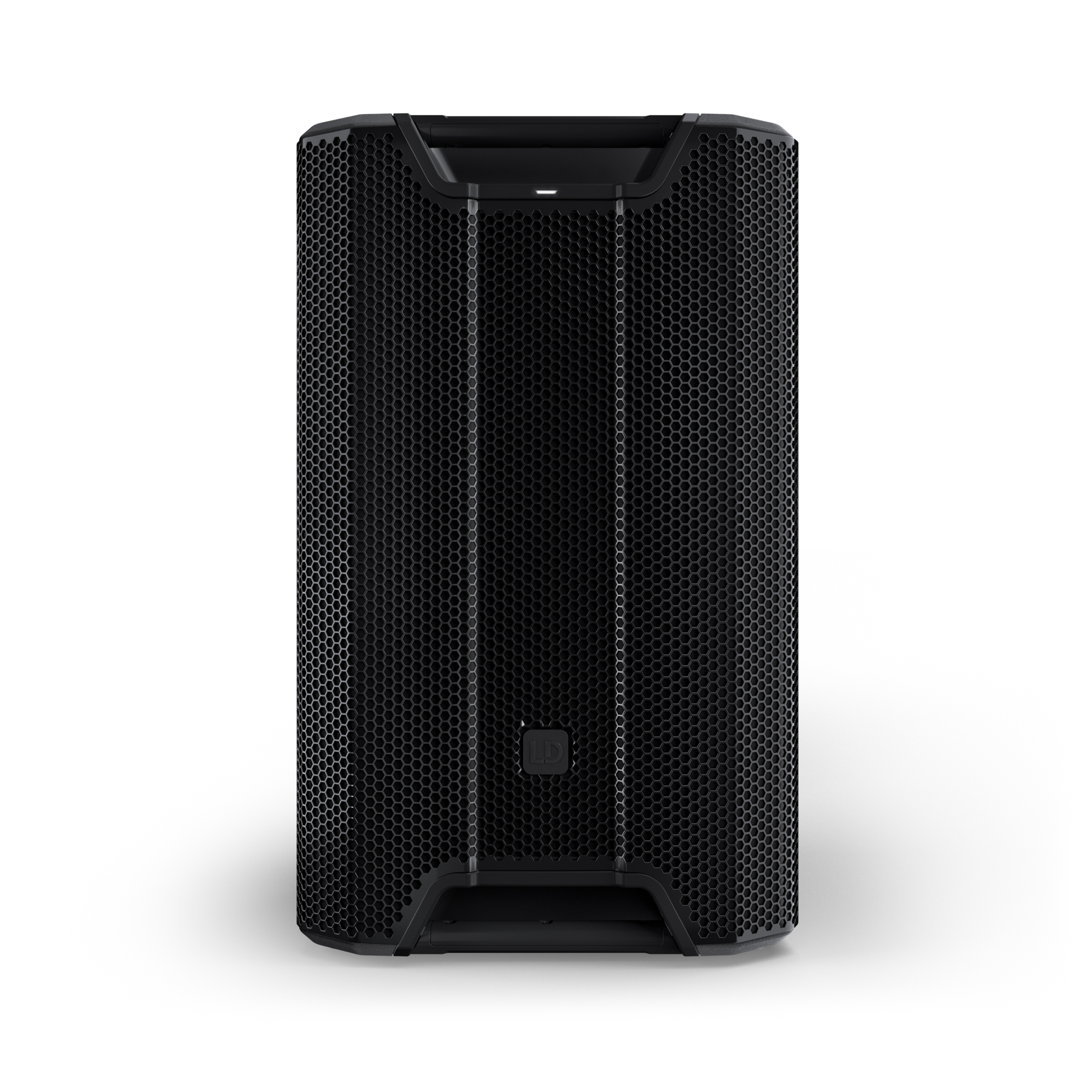

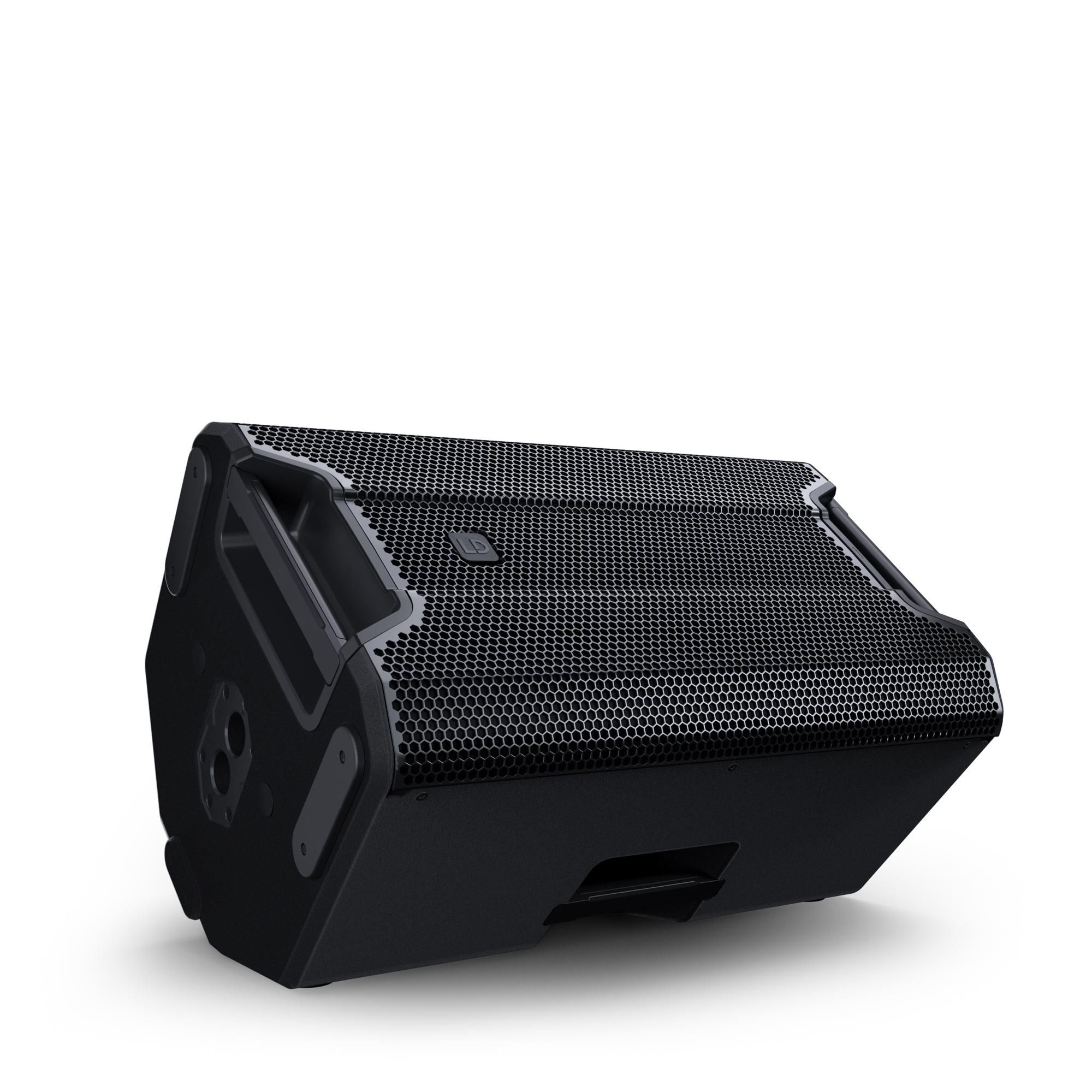

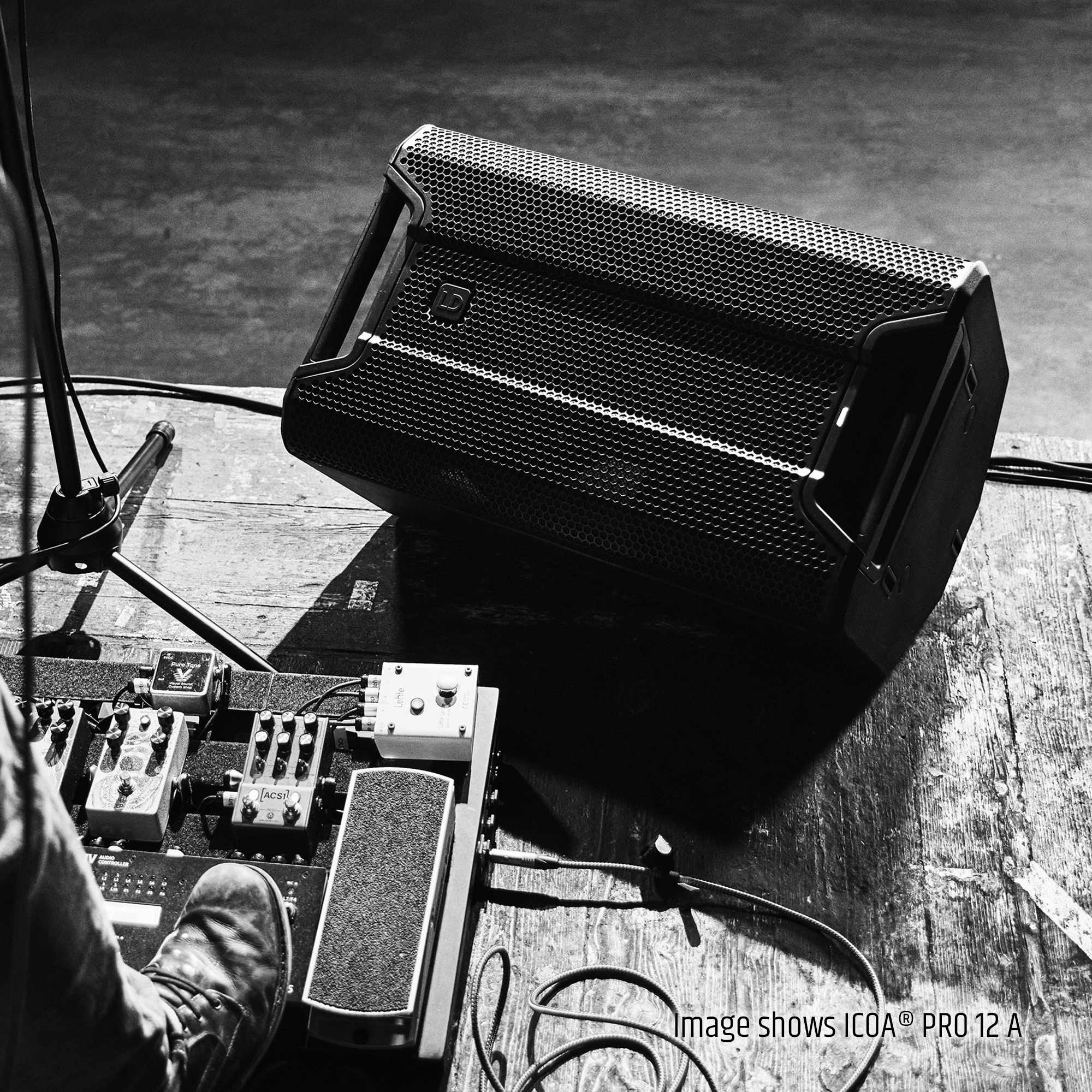

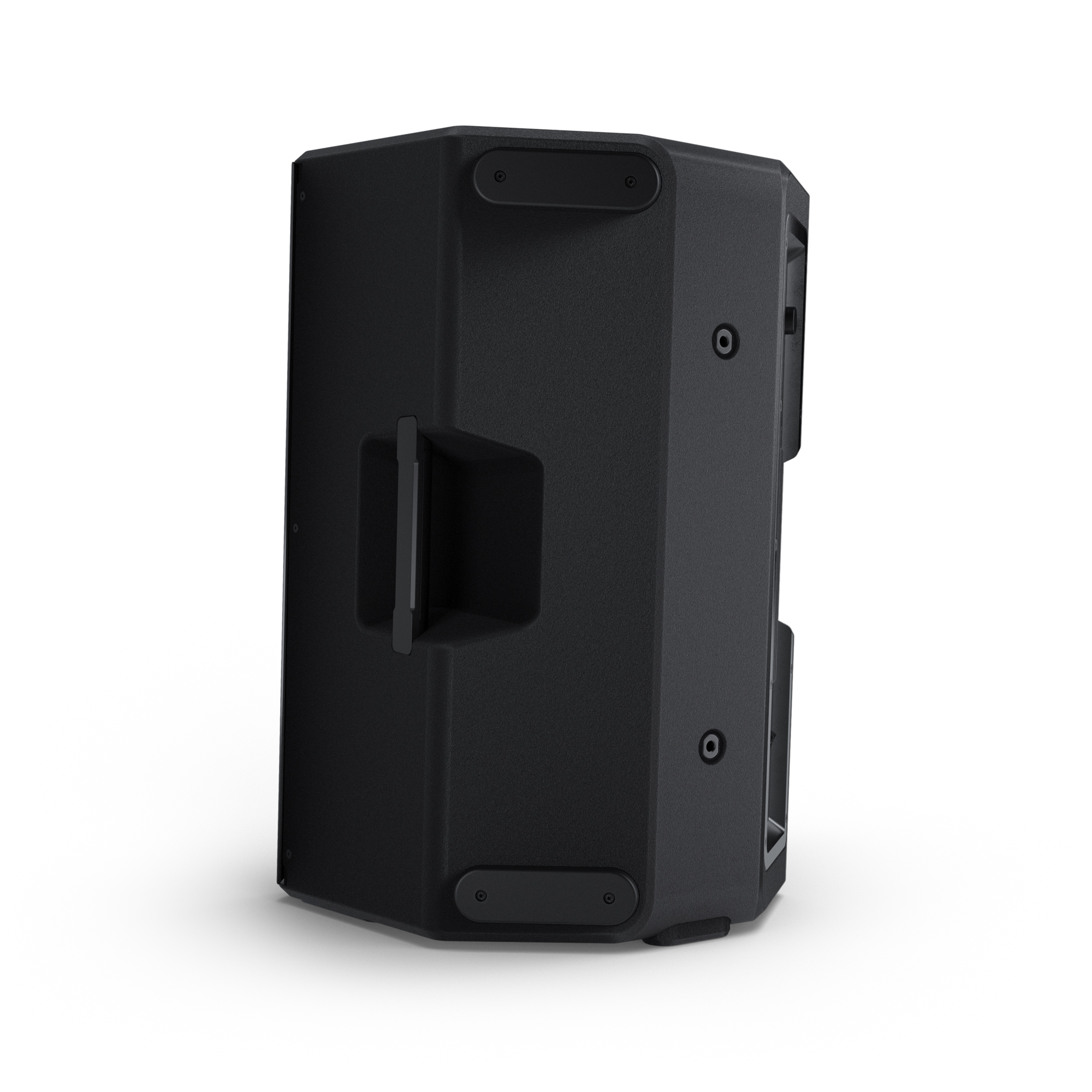

Its robust ABS cabinet with steel reinforcement, sturdy front grille and 50° tilt angle make the ICOA PRO 15 A an excellent floor monitor.
Four ergonomic carrying handles also ensure a secure grip while setting up and dismantling.

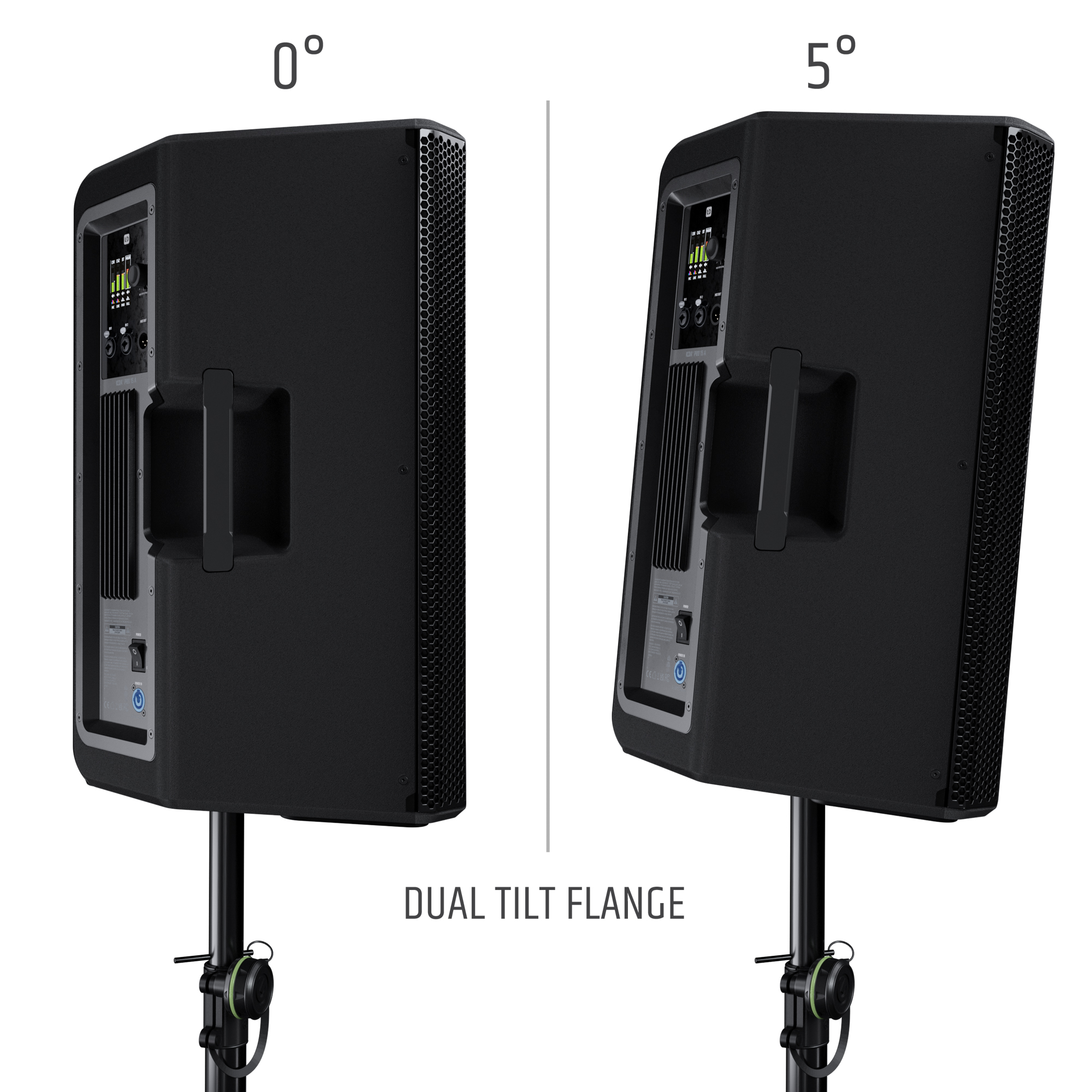

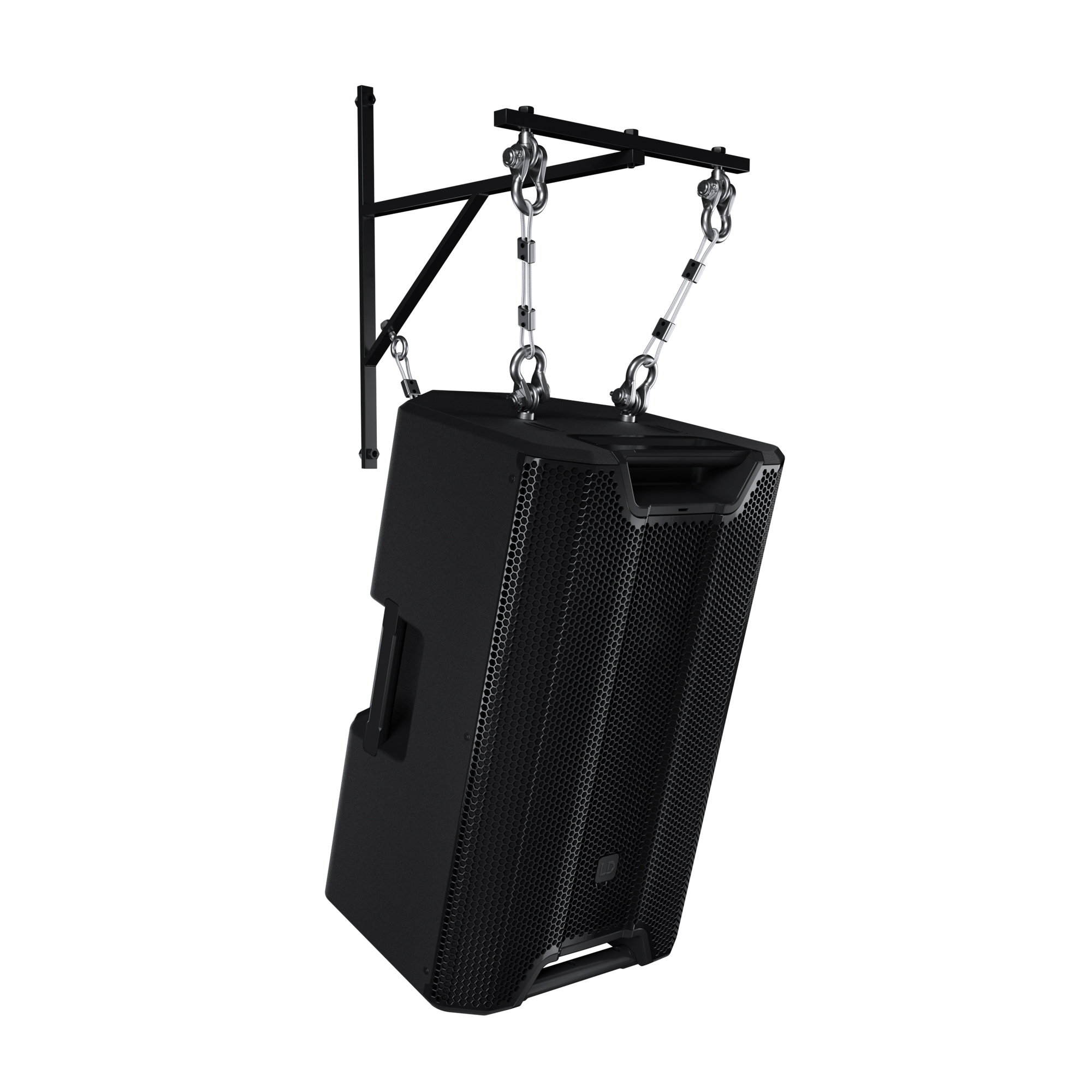

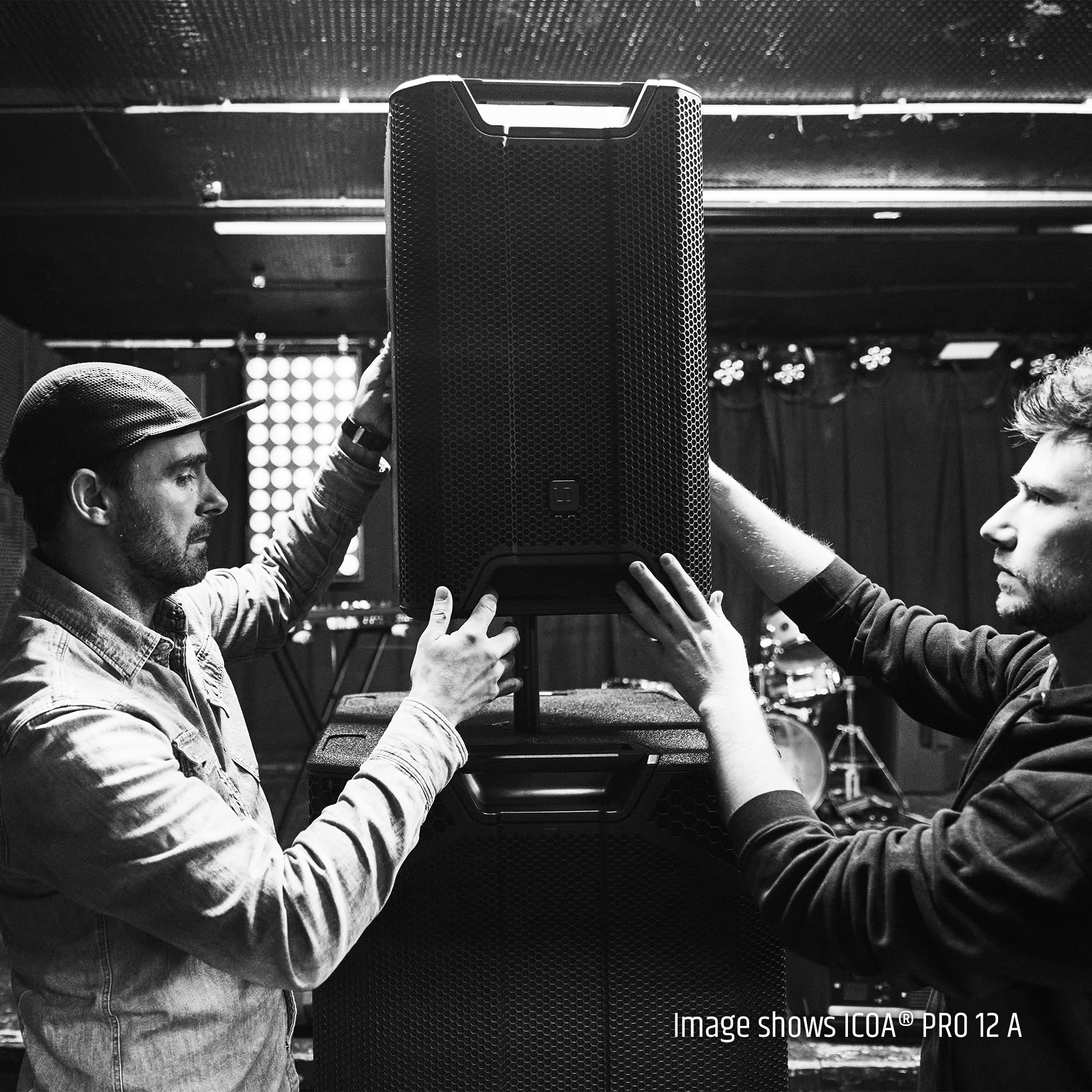

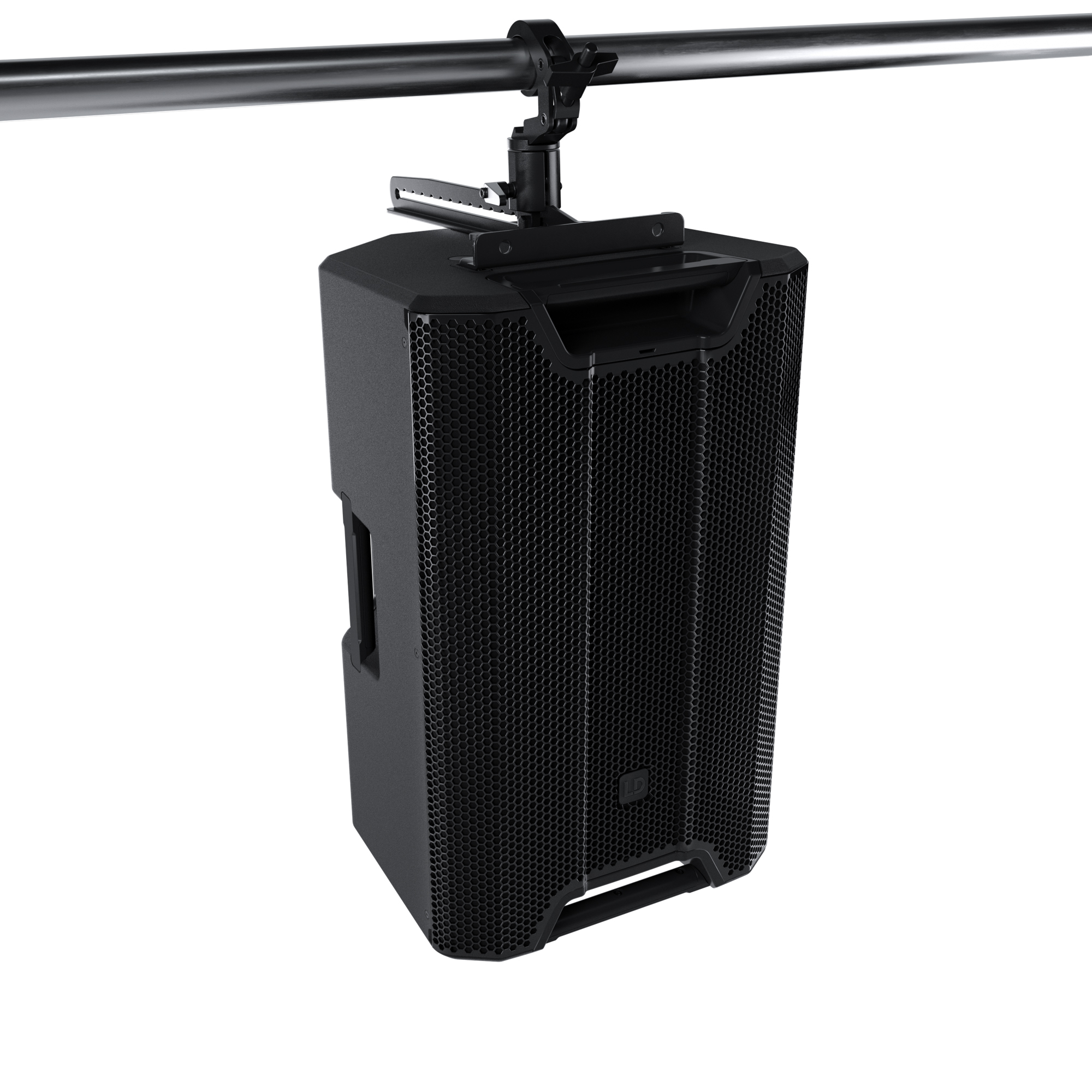

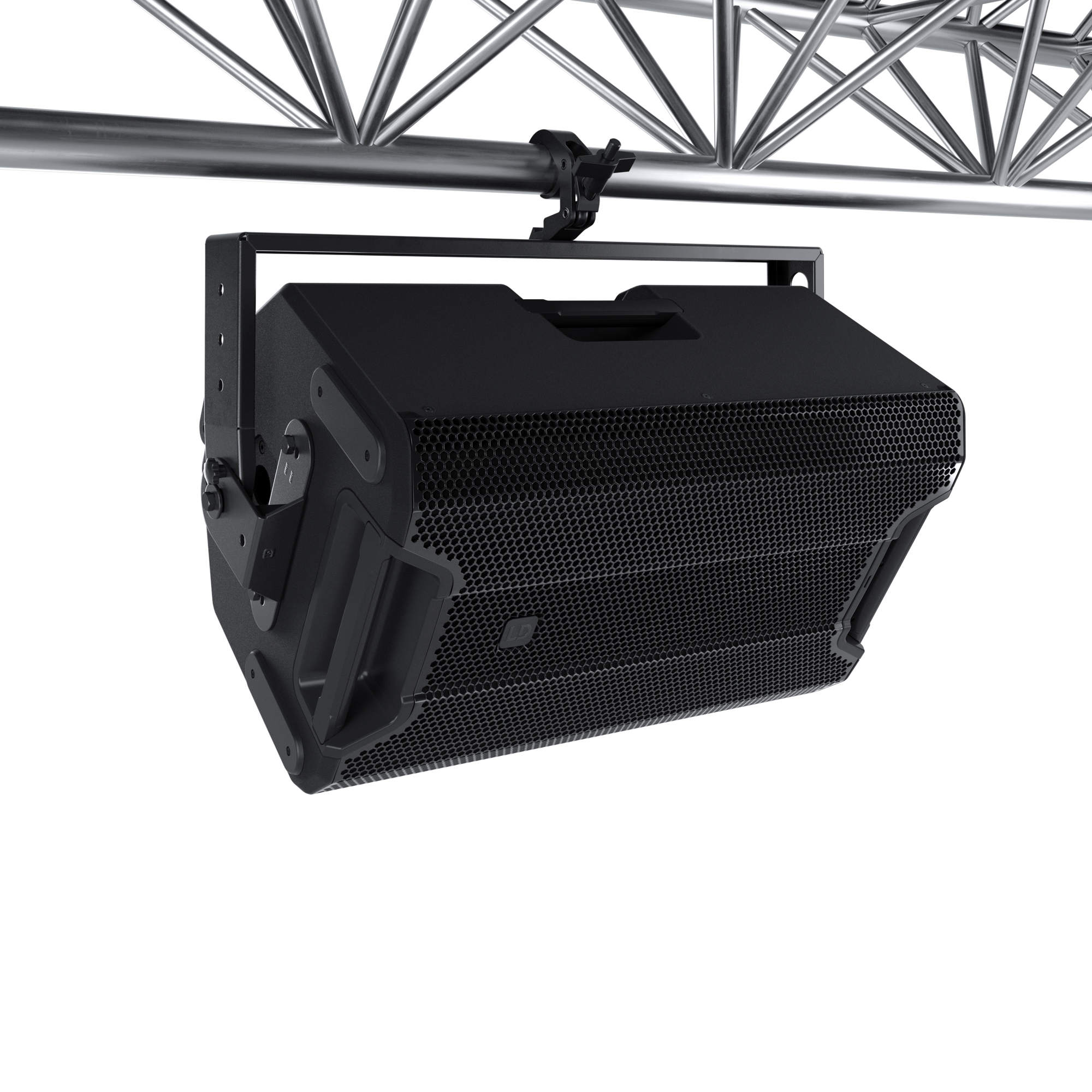

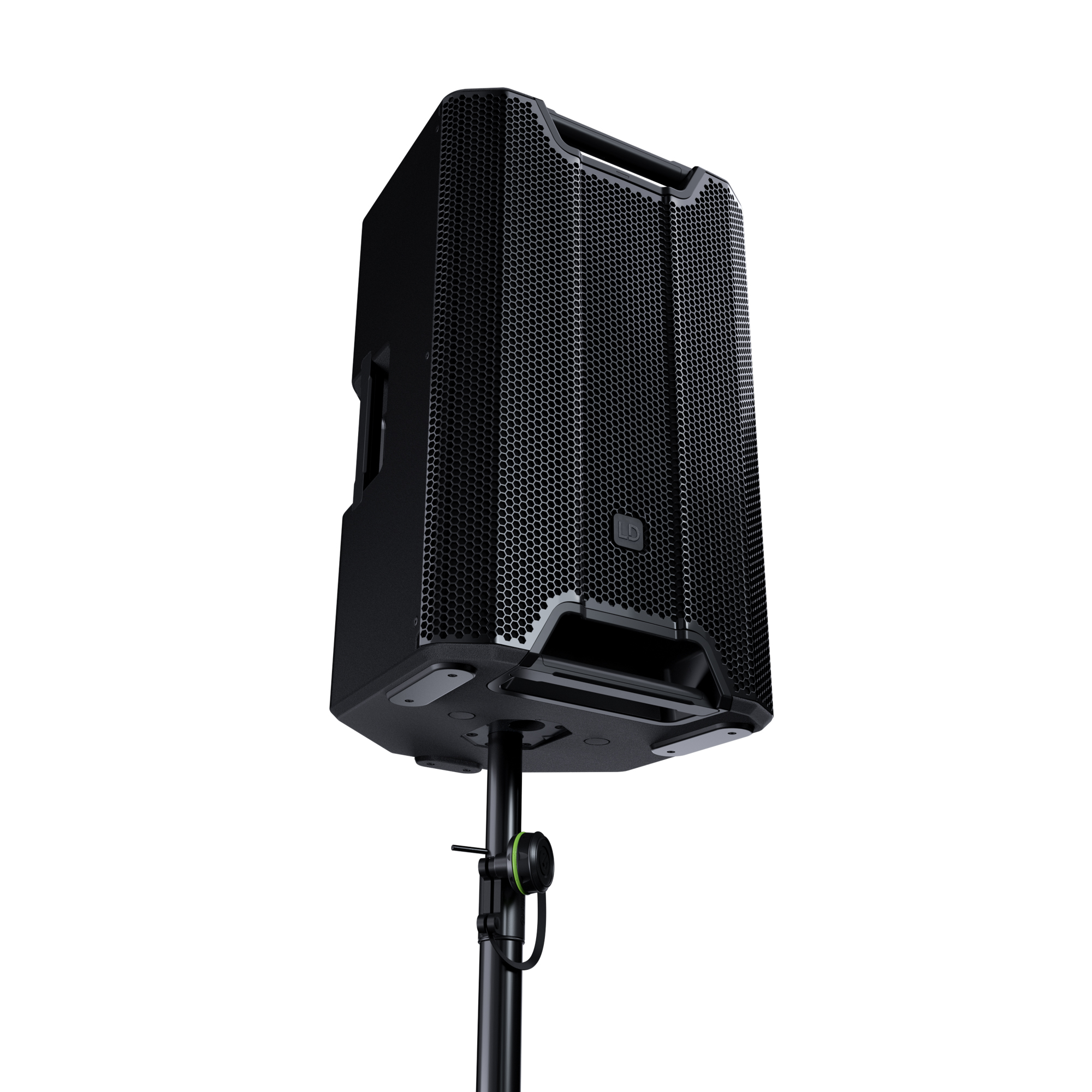

When used with a tripod, a tilt angle of 0° or 5° can be selected.Whether vertical or horizontal, the rotatable horn and the multiple mounting options, such as 6 × M10 flying points and the EasyMount truss mount, mean the loudspeaker can be used flexibly in a wide variety of environments.
This makes the ICOA PRO 15 A the perfect choice as a versatile tool for all event and installation applications.
Padded, water-repellent custom-fit protective covers with additional storage space are available as accessories for safe use and transport.
| Type: | Active |
|---|---|
| Crossover frequency: | 800 Hz |
| Max. SPL average (sine burst, BW, fullspace/1 m, THD≤10 %): | 120 dB |
| Beam angle: | Hor.: 90° / Vert.:50° |
| Peak output power: | 3000 W |
| Amp class: | Class D |
| Protection features: | Multiband Limiter, Overheating, Short circuit |
| RMS output power: | 1500 W |
| Colour: | Black |
| Monitor angle: | 50 ° |
| Max. SPL peak (pink noise, fullspace/1 m, CF 4): | 135 dB |
| Frequency response (-10 dB, rel. Avg): | 50 - 20000 Hz |
| Speaker system: | 2-way coaxial system (Common Motor Design) |
| Max. SPL peak (sine burst, fullspace/1 m, THD≤10 %): | 130 dB |
| Bluetooth® version: | Bluetooth® 5.1 |
|---|---|
| Supported audio codecs: | AAC, SBC |
| Features: | True Wireless Stereo |
| Number of line inputs: | 1 |
|---|---|
| Mic/Line-in connector type: | XLR combo socket |
| Number of mic/line inputs: | 2 |
| Number of line outputs: | 1 |
|---|---|
| Line outputs connector type: | XLR 3-pole male |
| DSP model: | SysCore® |
|---|---|
| AD/DA converter bit depth: | 24 Bit |
| AD/DA converter sampling rate: | 48 kHz |
| Min. Signal-to-noise ratio (SNR): | 108 dB |
| Outer diameter: | 15.21 in |
|---|---|
| Manufacturer: | Celestion Custom Made |
| Size: | 15 " |
| Magnet: | Ferrite |
| Voice coil: | 3 " |
| Driver size: | 3 " |
|---|---|
| Manufacturer: | Celestion Custom Made |
| Voice coil: | 3 " |
| Magnet: | Ferrite |
| Outlet diameter: | 1.44 in |
| Rated power: | 950 W |
|---|---|
| Mains fuse: | T10AH/250 V |
| Operation voltage: | 100 V AC - 240 V AC / 50 - 60 Hz |
| Mains connector: | Mains socket indoor power in male & powerCON® |
| Power supply type: | Switched-mode power supply (SMPS) |
| Flange: | 36 mm (0°/5°) |
|---|---|
| Design: | Bass reflex |
| Number of handles: | 4 |
| Number of mounting points: | 6 |
| Cabinet material: | ABS |
| Cooling system: | Convection cooling |
|---|
| Maximum air humidity (non-condensing): | 80 % |
|---|---|
| Ambient temperature: | 0 - 40 °C |
| Width: | 16.42 in |
|---|---|
| Depth: | 16.33 in |
| Height: | 27.19 in |
| Weight: | 56.88 lbs |
Login
accessories

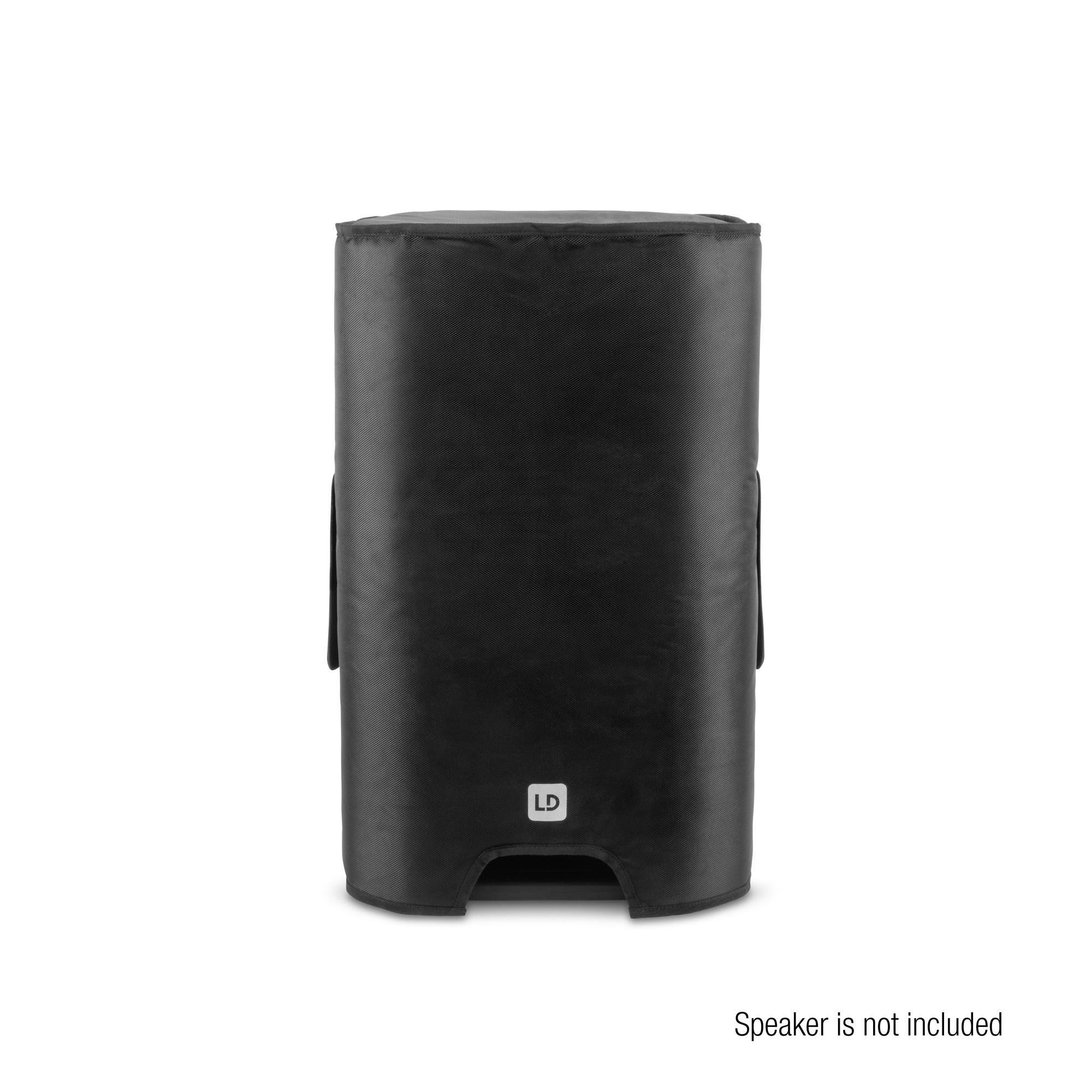

This padded protective cover is made of durable, water-repellent 1680D nylon and lined 8mm thick to protect the ICOA® loudspeaker. The handle cut-outs are reinforced at the edges and are covered by a flap with Velcro fastener. A practical outside pocket offers plenty of space for accessories.

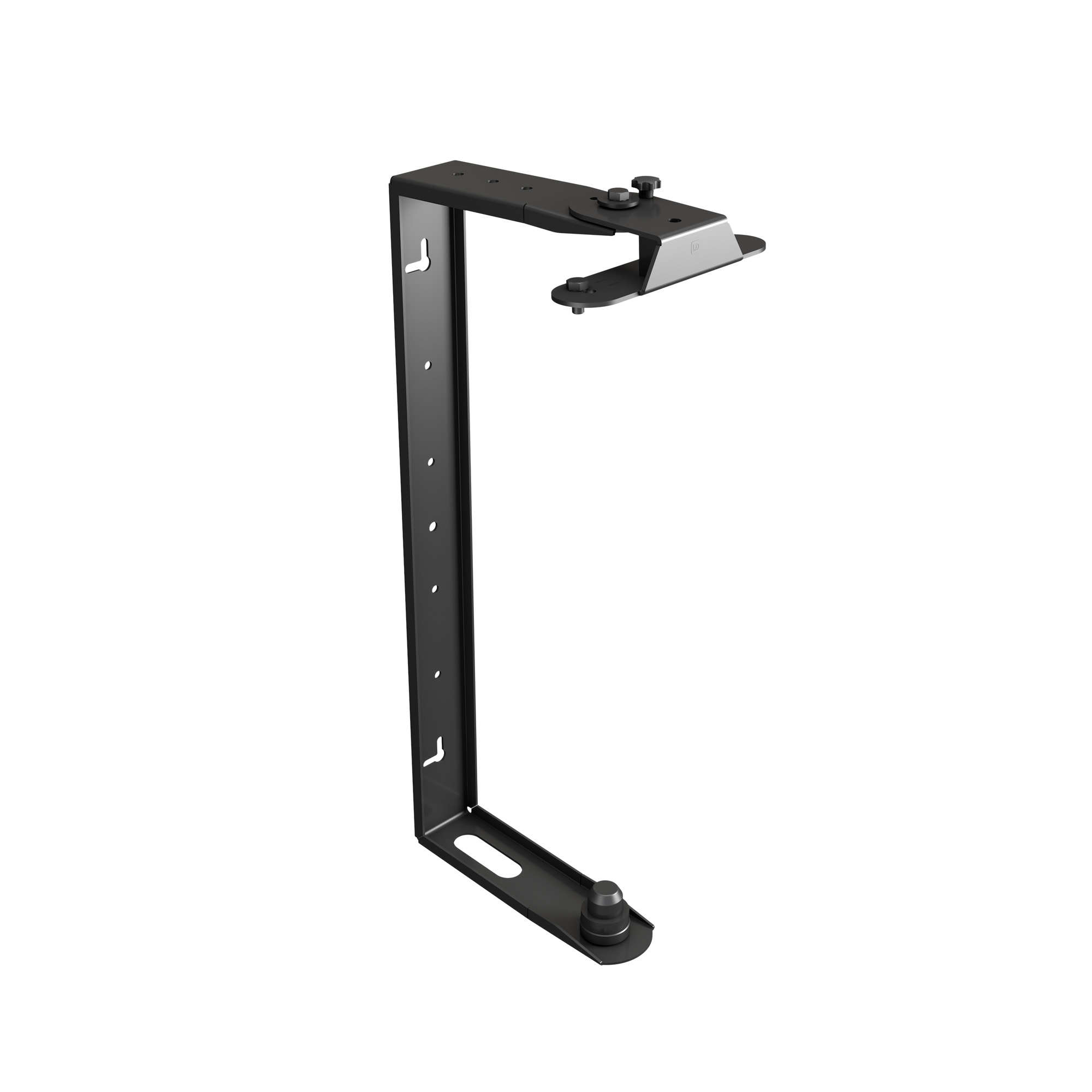

The freedom to achieve the sound you want is the concept behind the ICOA® and its matching U-mounting bracket as well.It gives you complete flexibility to mount the ICOA® in different ways - to the wall, either horizontally or vertically, or to a truss using an optional clamping tool.You can install the bracket on the wall with six screws and quickly and effortlessly "click" your ICOA® into place with the Easy-Click system. All that's left to do is to fasten everything down with a safety screw.The U-bracket's cable feedthrough behind the ICOA® keeps things looking neat and tidy. Once the ICOA® is installed, you can freely swivel it around in 10°-increments up to 180°. Enough flexibility to find your ideal angle.
For professional applications on stage, in the studio or in the rehearsal room, excellent quality is available with our 5 STAR SERIES. This cable is made in the EU and therefore meets the relevant requirements for professional use.Durability and reliability find their master in the hard road everyday life! We have therefore developed a cable that is not only flexible, but also very robust. We use a special soft-PVC compound for all cables of the 5 STAR SERIES, which is friction resistant and bendable. For excellent signal transmission, but is also more abrasion resistance. The cable comes with a cable tie and two transparent, loose heatshrinks for labeling.Engineered in Germany & Made in EU: This stands for precision & quality.
