ICOA 15 W
15" Passive Coaxial PA Loudspeaker, White
$499.99
Backordered – More on the Way!
Product information "ICOA 15 W"

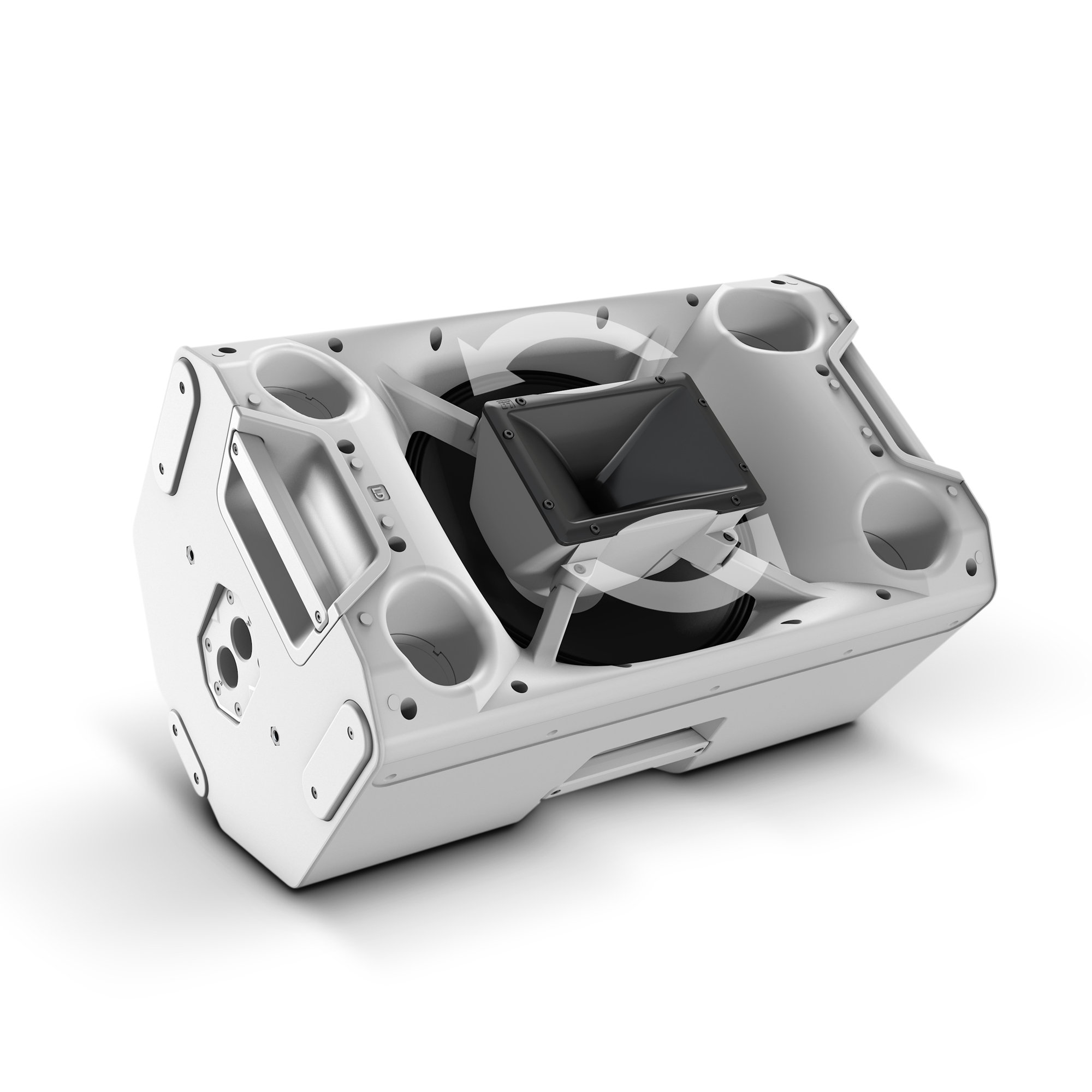

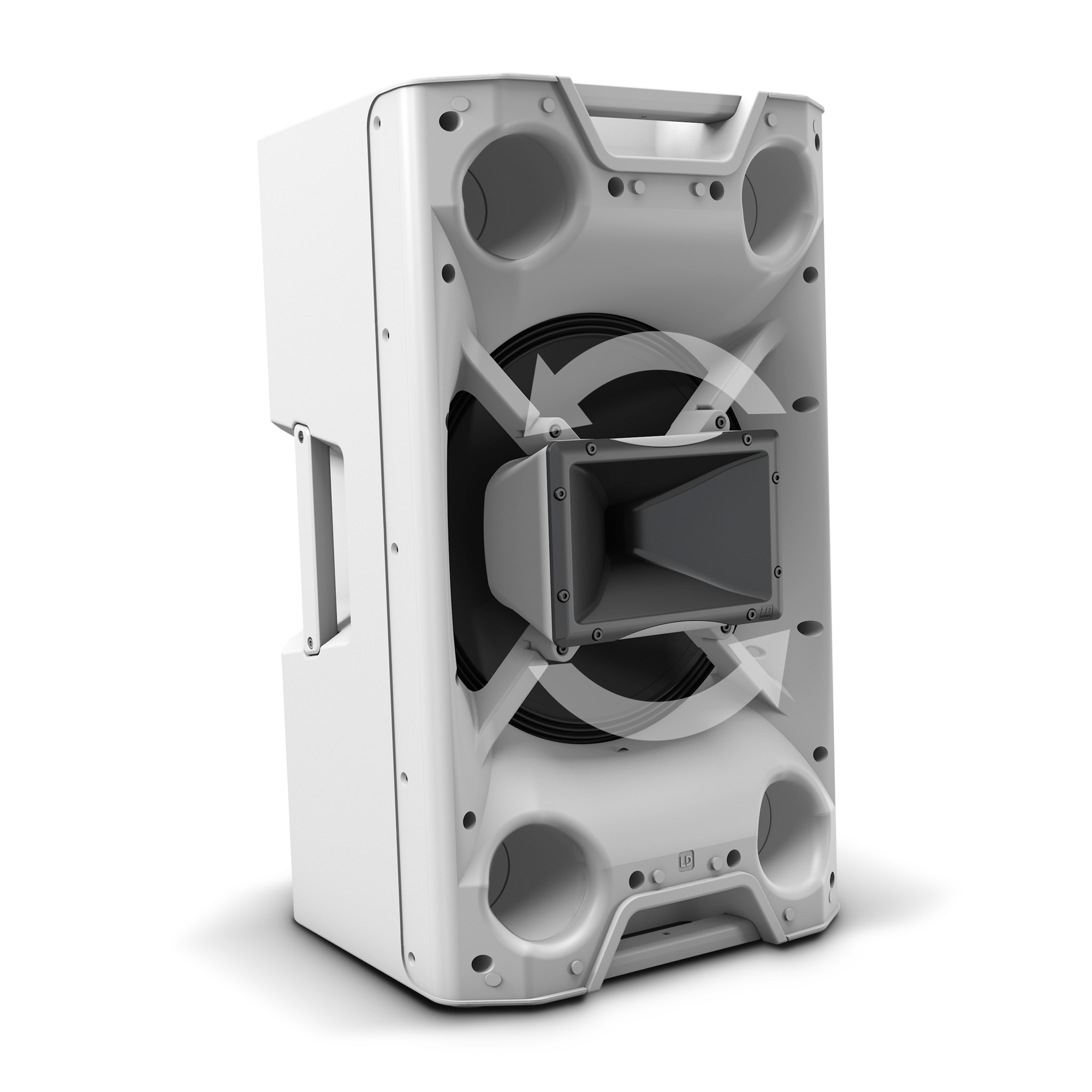

This 15" full-range loudspeaker stands out with impressive sound even at low frequencies. As a jack-of-all-trades, the unpowered ICOA 15 speaker by LD Systems and its design with a coaxial design and rotating, BEM-optimised CD horn means it is extremely flexible.

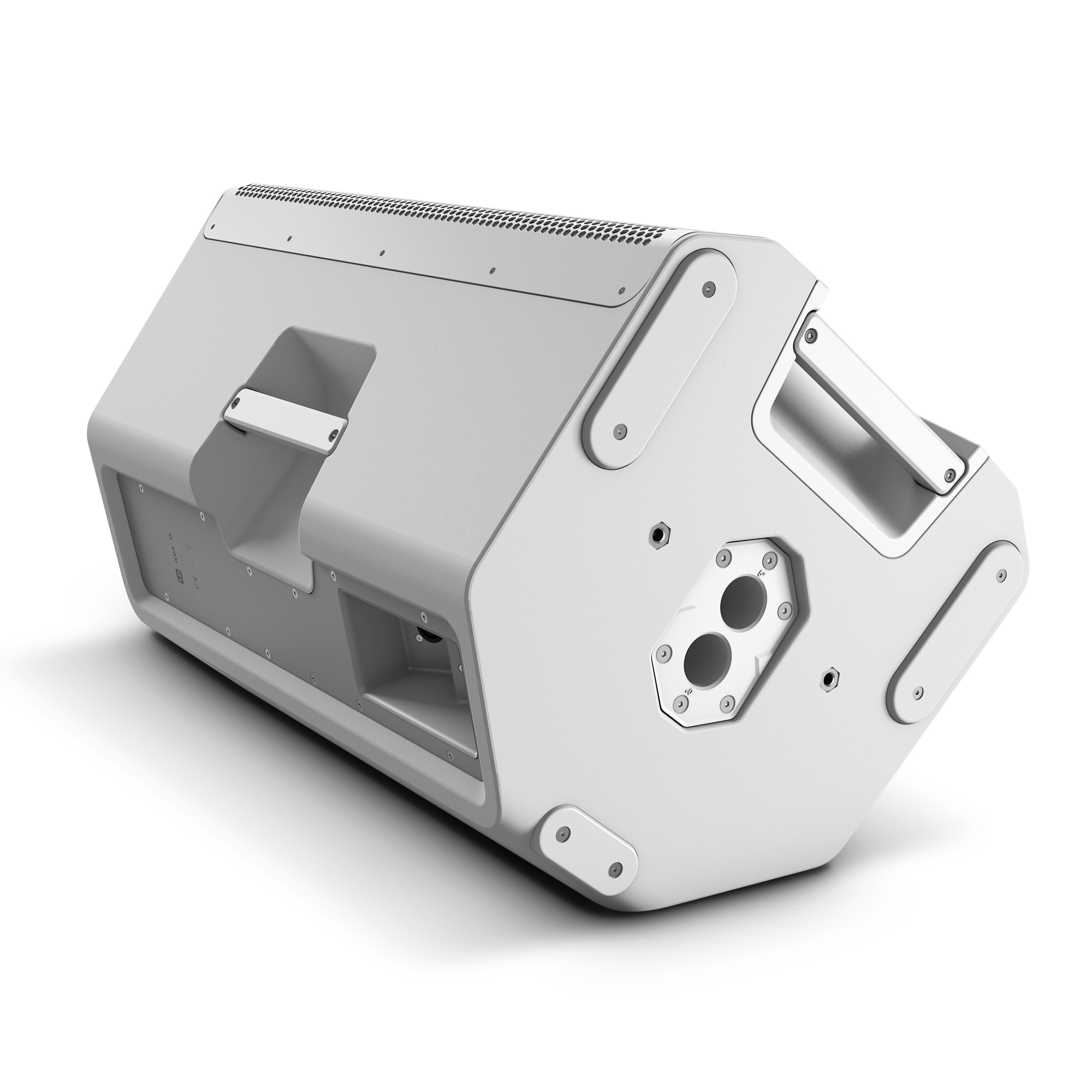

The horn-loaded woofer's outstanding bass reproduction makes the ICOA 15 the ideal choice for dance schools, musicians, bands and entertainers. It also allows DJs to play sets without the need for a subwoofer. The speaker also makes a good impression in fixed installations due to its freedom of flexibility. The white version with a white grille blends in subtly into any environment and doesn't distract.

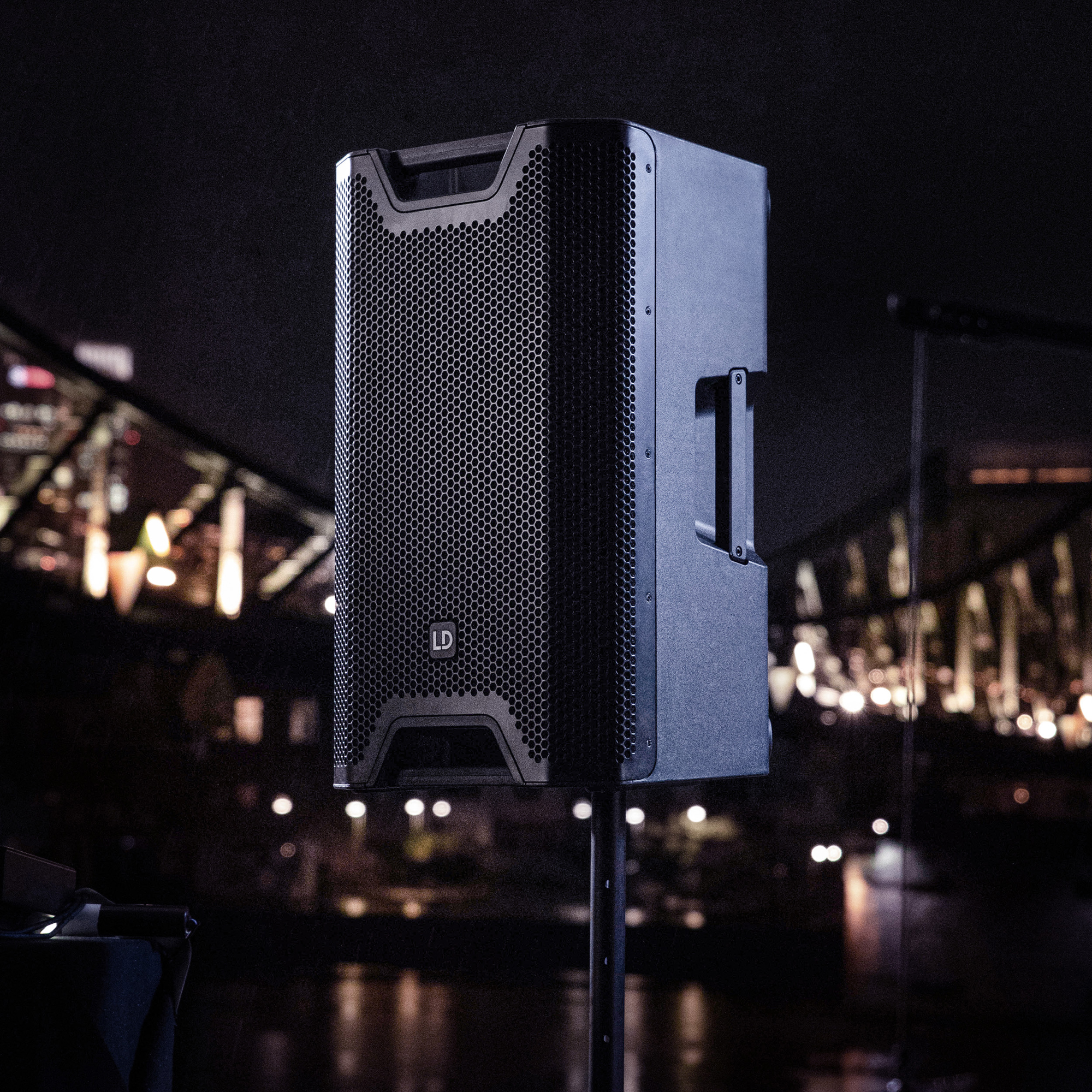

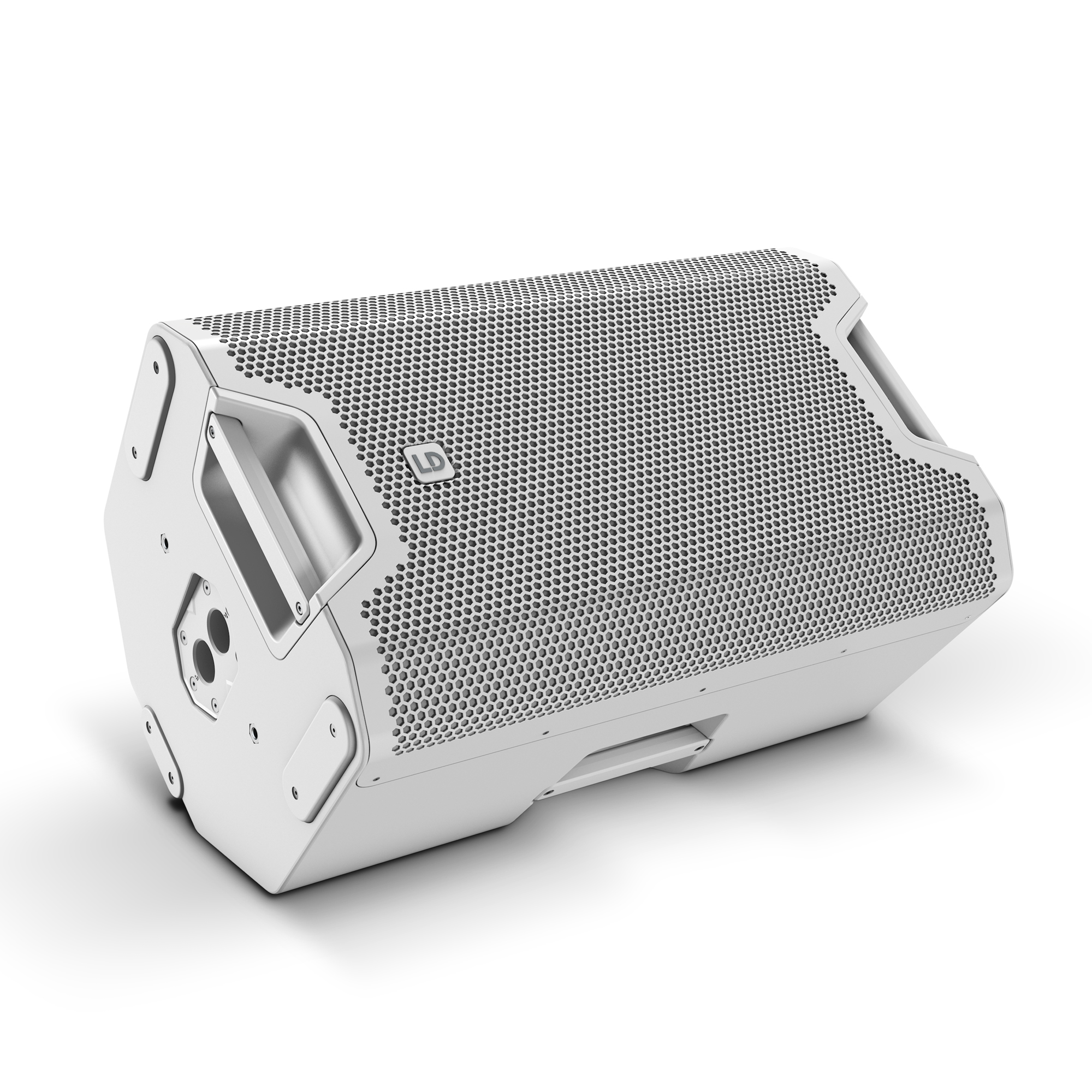

Deployed vertically, the speaker impresses as a satellite; horizontally, it's excellent in suspended systems or as a floor monitor. It Delivers a maximum sound pressure level of 125 dB peak and has 1000 Watt peak performance.

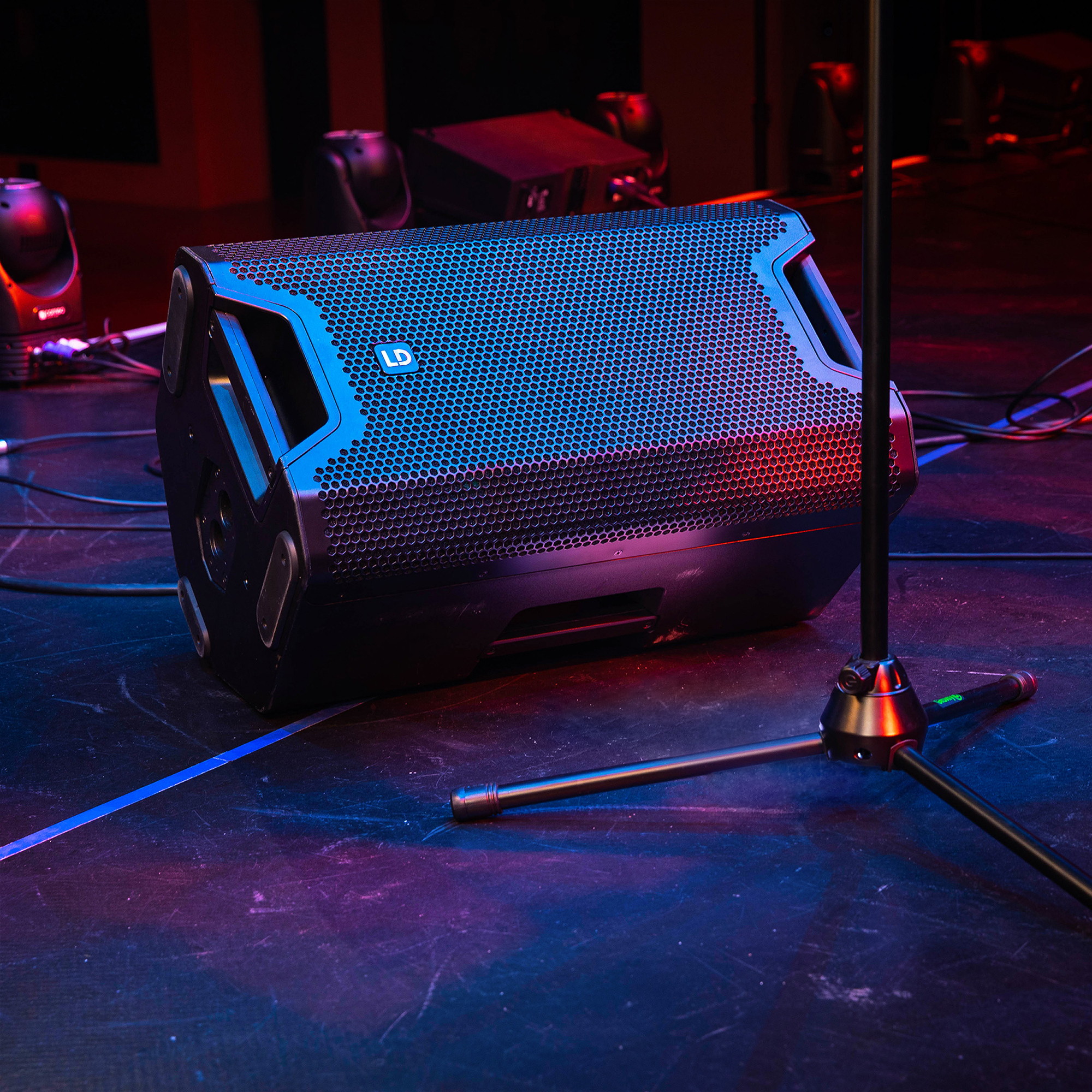

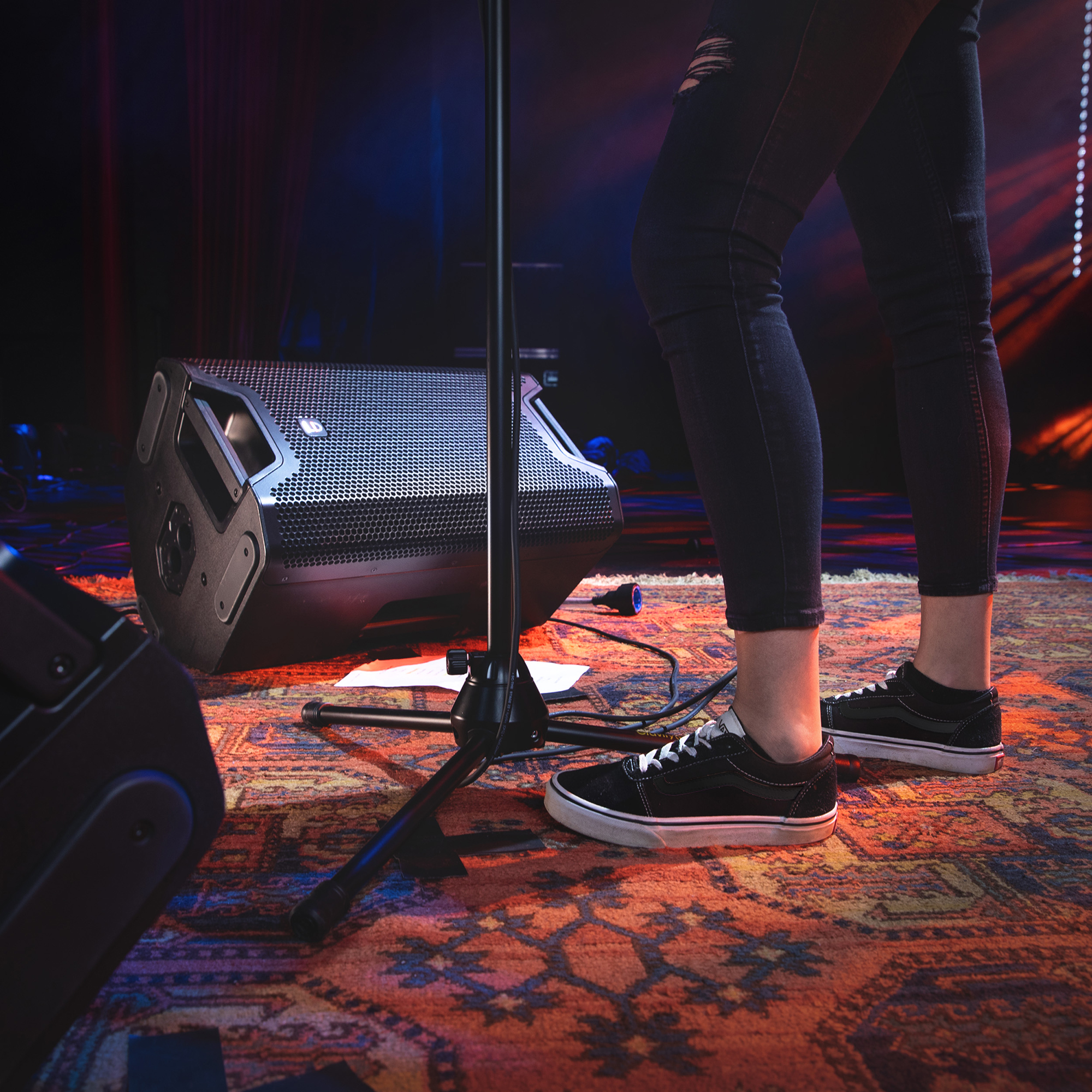

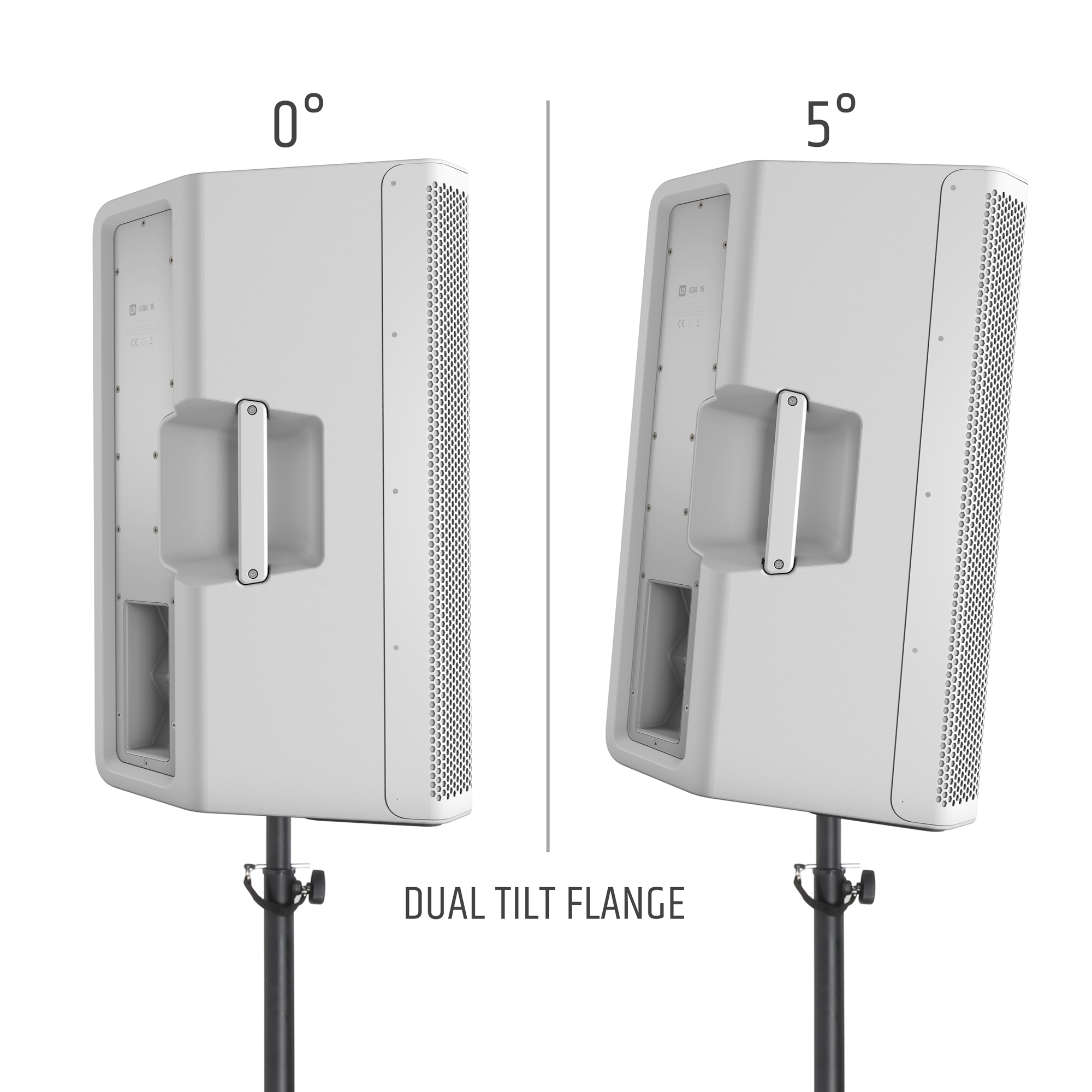

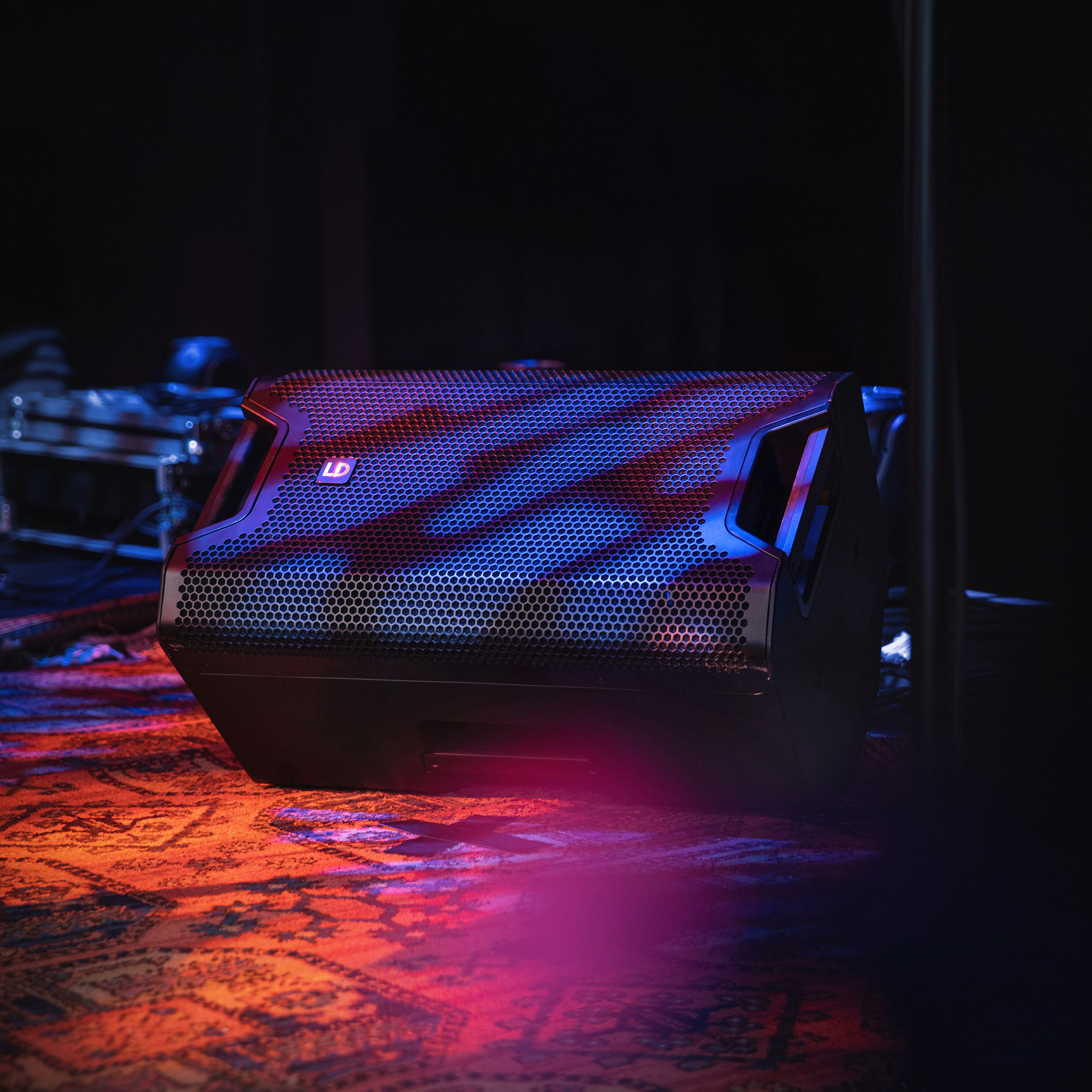

Thanks to its shock-resistant front grille and ideal 55° tilt angle make the ICOA 15 outstanding as a floor monitor. Placed vertically, the 36 mm dual tilt stand attachment offers the choice of a 0° or 5° tilt angle for optimally adapting the system to the local acoustic environment. Extensive and smart accessories for installation and transport are optionally available. Four aluminium handles with an ergonomic rubber surface provide optimal grip when carrying the speaker.
| Monitor angle: | 55 ° |
|---|
| Number of handles: | 4 |
|---|---|
| Type: | Passive |
| Crossover frequency: | 2000 Hz |
| Max. SPL peak (sine burst, fullspace/1 m, THD≤10 %): | 125 dB |
| Beam angle: | Hor.: 90° / Vert.:50° |
| Protection features: | Overload, Overvoltage, Multiband Limiter, Overheating |
| Height: | 27.36 in |
| Depth: | 16.34 in |
| Magnet: | Ferrite |
| Maximum air humidity (non-condensing): | 80 % |
| Frequency response: | 48 - 20,000 Hz |

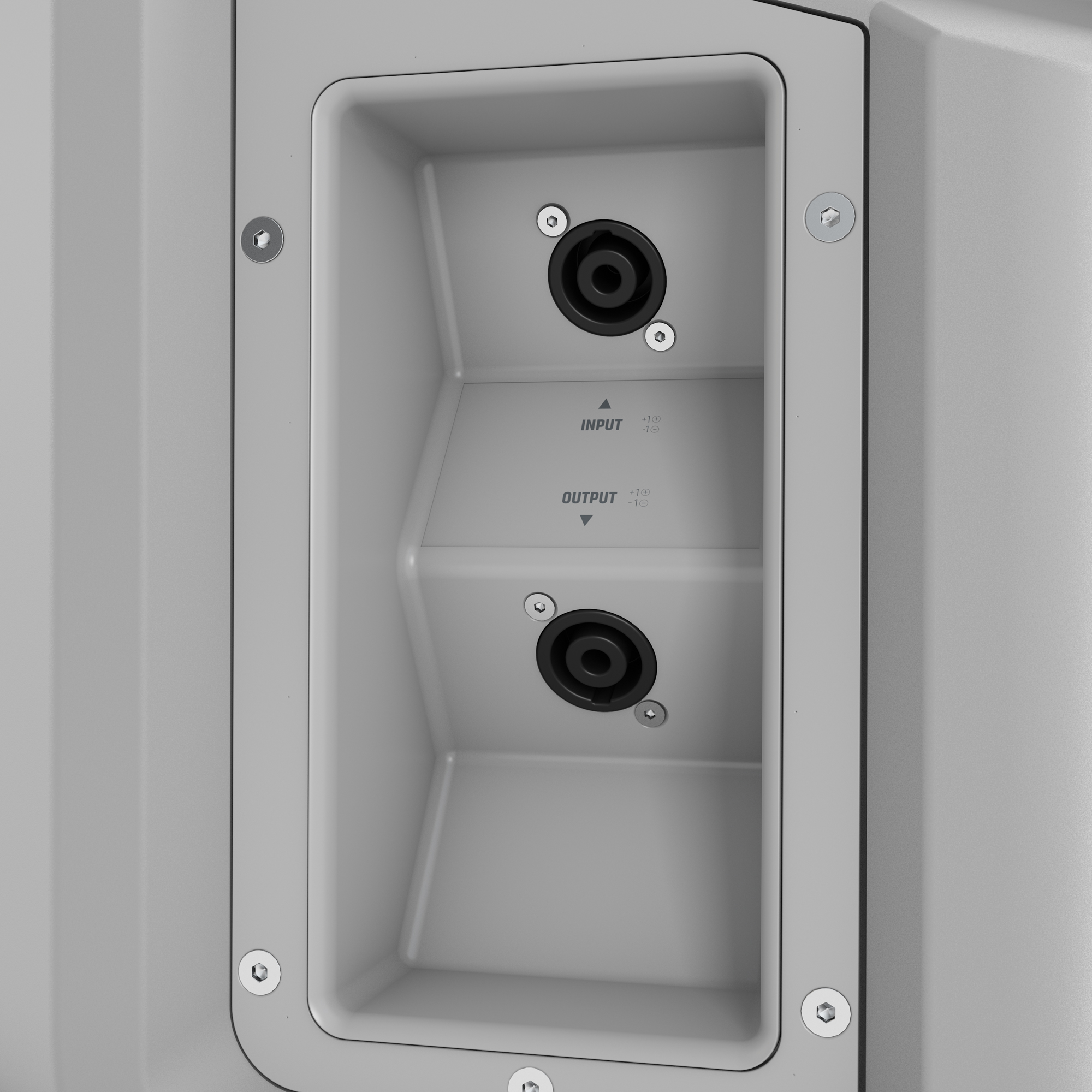

| Input connector types: | Standard speaker connector 4-pole male & speakON® |
| Speaker system: | 2-way coaxial system |
| Mounting type: | M10 flying points |
| Output connector types: | Standard speaker connector 2-pole male & speakON® |
| Colour: | White |
| SPL (1 W/1 m): | 95 dB |
| Magnet: | Ferrite |
| Number of outputs: | 1 |
|---|---|
| Flange: | 36 mm (0°/5°) |
| Power handling (RMS): | 250 W |
| Size: | 15 " |
| Front grille material: | Aluminium |
| Material thickness: | 0.59 in |
| Driver size: | 1 " |
|---|---|
| Design: | Bass reflex |
| Number of mounting points: | 6 |
|---|---|
| Cabinet material: | Polypropylene |
| Impedance: | 8 Ω |
| Included accessories: | Mains cable |
| Width: | 16.38 in |
| Ambient temperature: | 0 - 40 °C |
| Power handling (Peak): | 1000 W |
| Weight: | 54.45 lbs |
|---|---|
| Number of inputs: | 1 |
| Voice coil: | 1.4 " |
|---|
Login
accessories

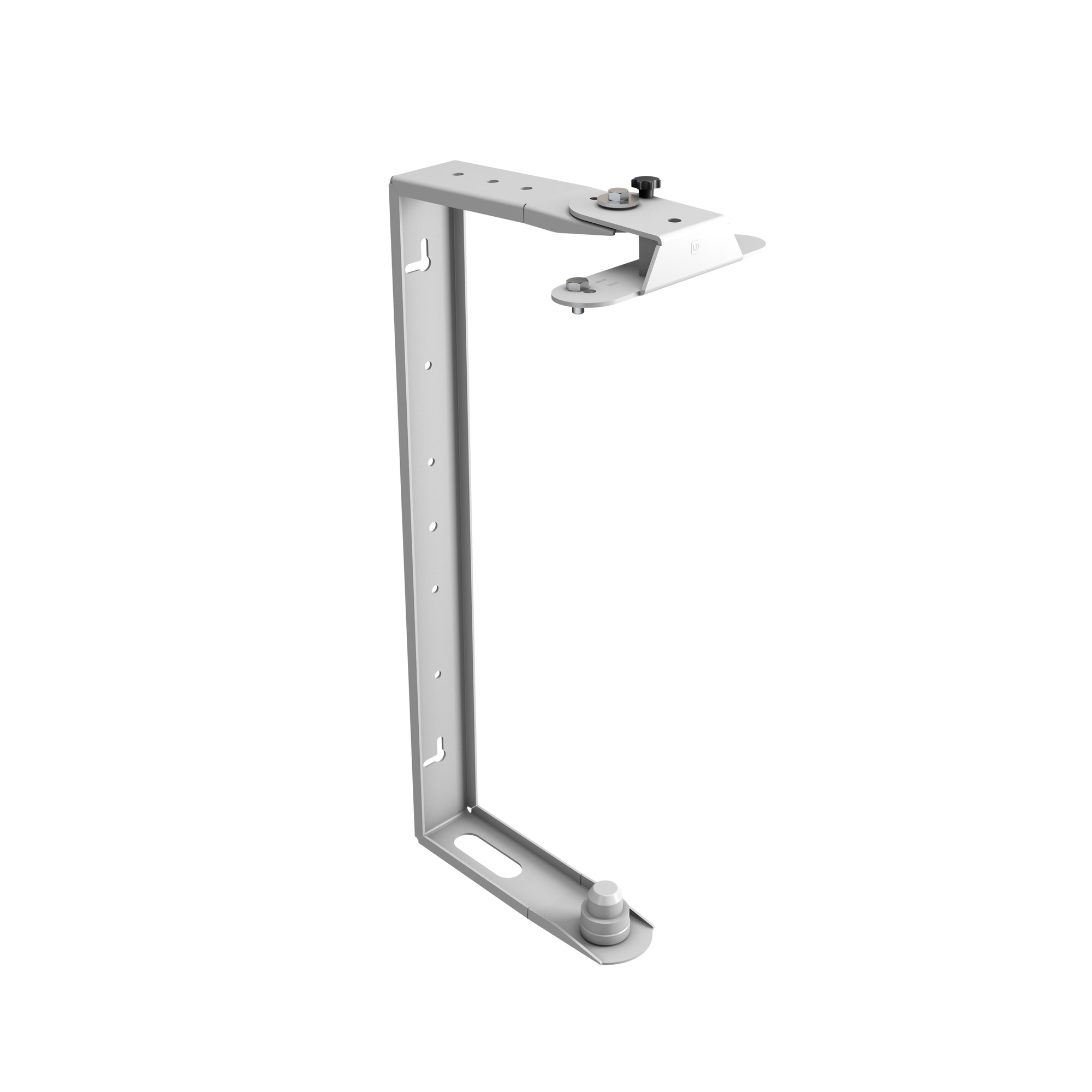

The freedom to achieve the sound you want is the concept behind the ICOA® and its matching U-mounting bracket as well.It gives you complete flexibility to mount the ICOA® in different ways - to the wall, either horizontally or vertically, or to a truss using an optional clamping tool.You can install the bracket on the wall with six screws and quickly and effortlessly "click" your ICOA® into place with the Easy-Click system. All that's left to do is to fasten everything down with a safety screw.The U-bracket's cable feedthrough behind the ICOA® keeps things looking neat and tidy. Once the ICOA® is installed, you can freely swivel it around in 10°-increments up to 180°. Enough flexibility to find your ideal angle.
