ICOA® 12
12“ Passive Coaxial PA Loudspeaker
$399.99
Backordered – More on the Way!
Product information "ICOA® 12"

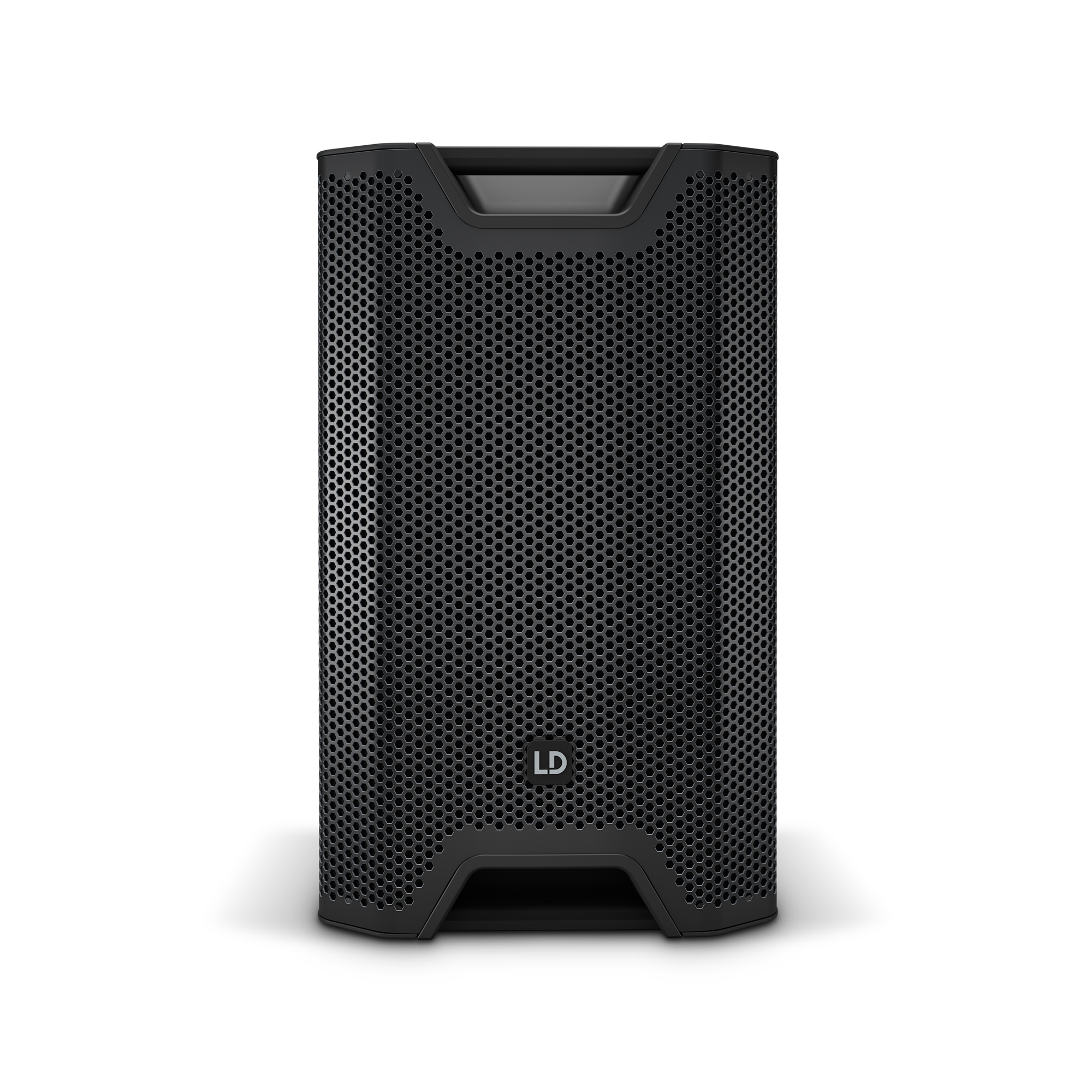

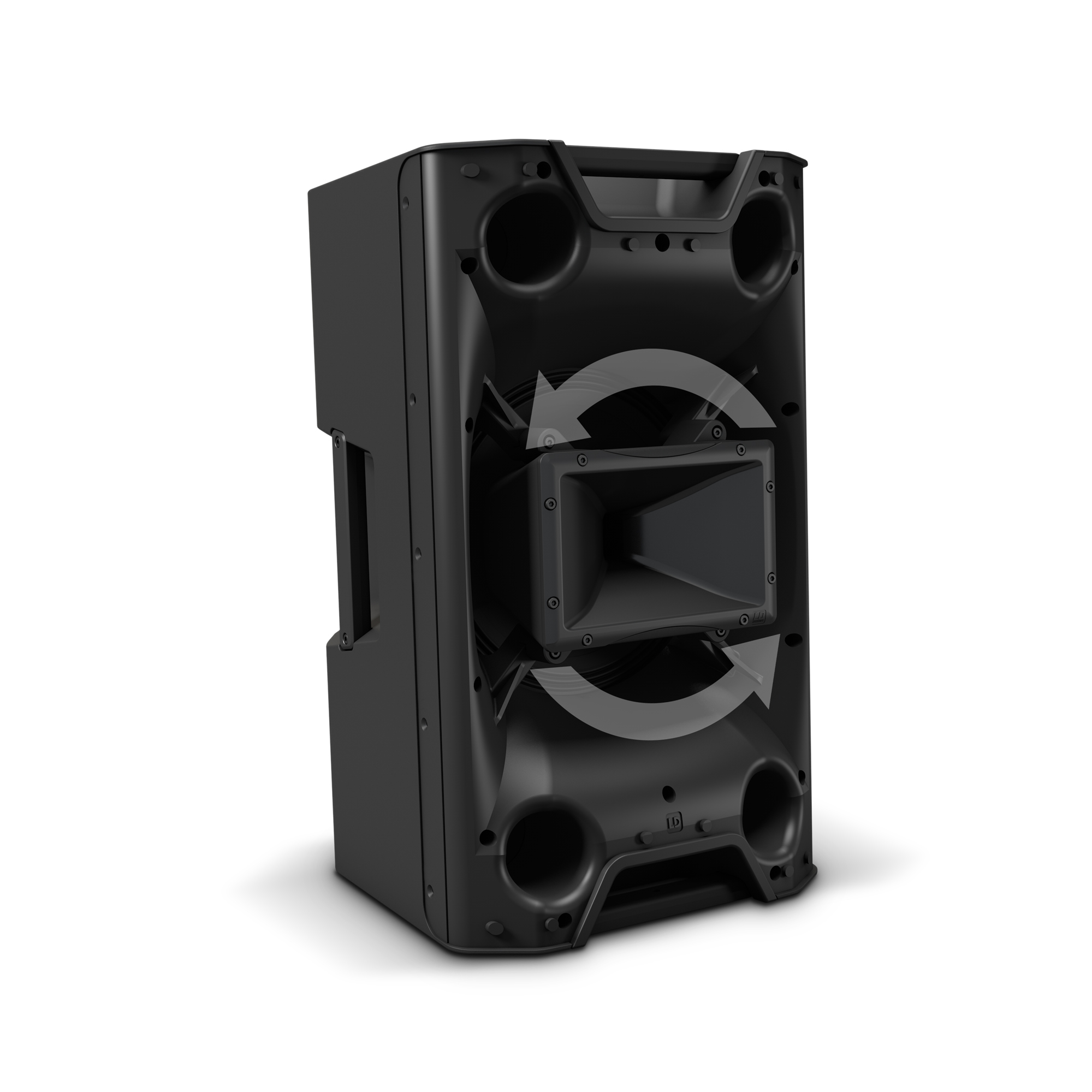

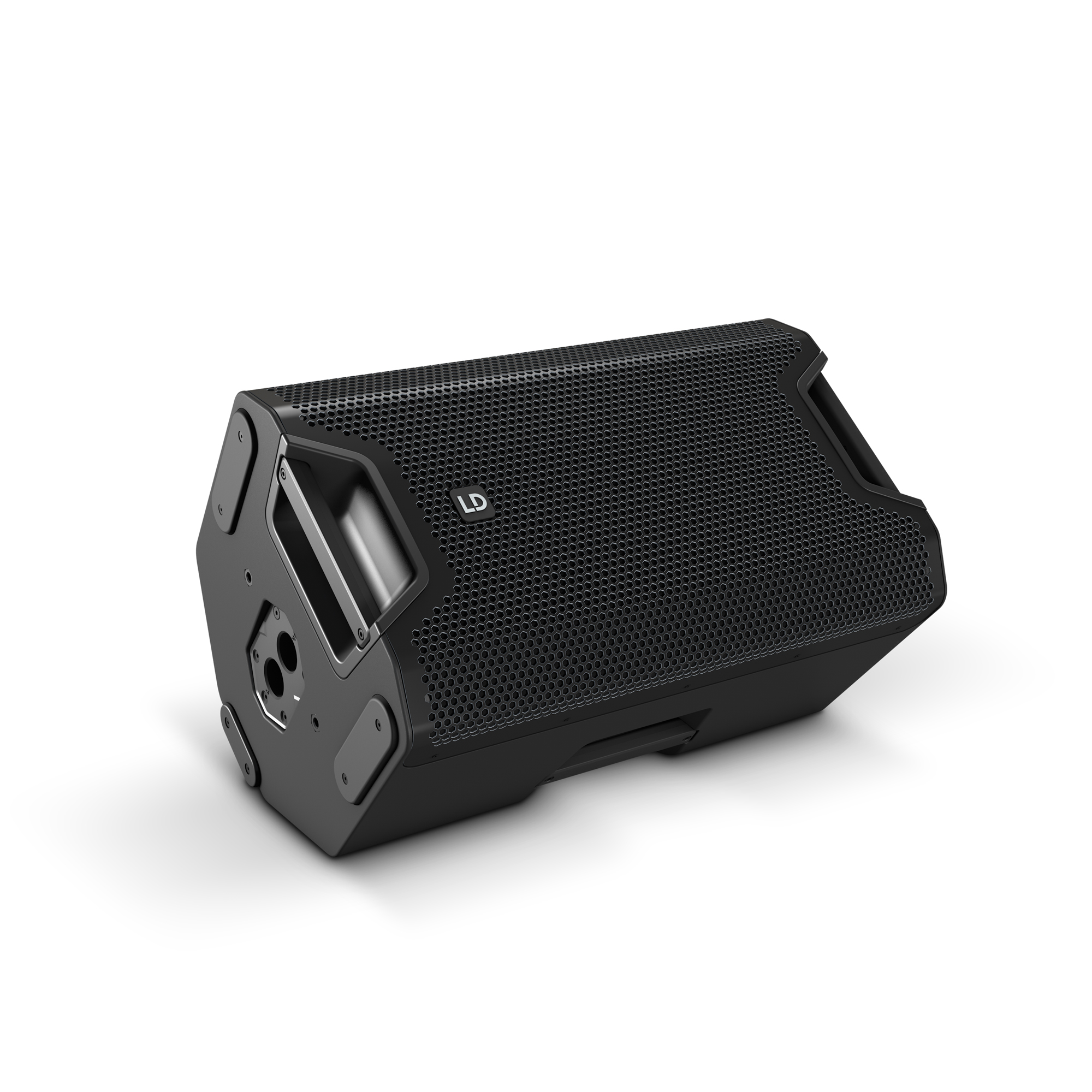

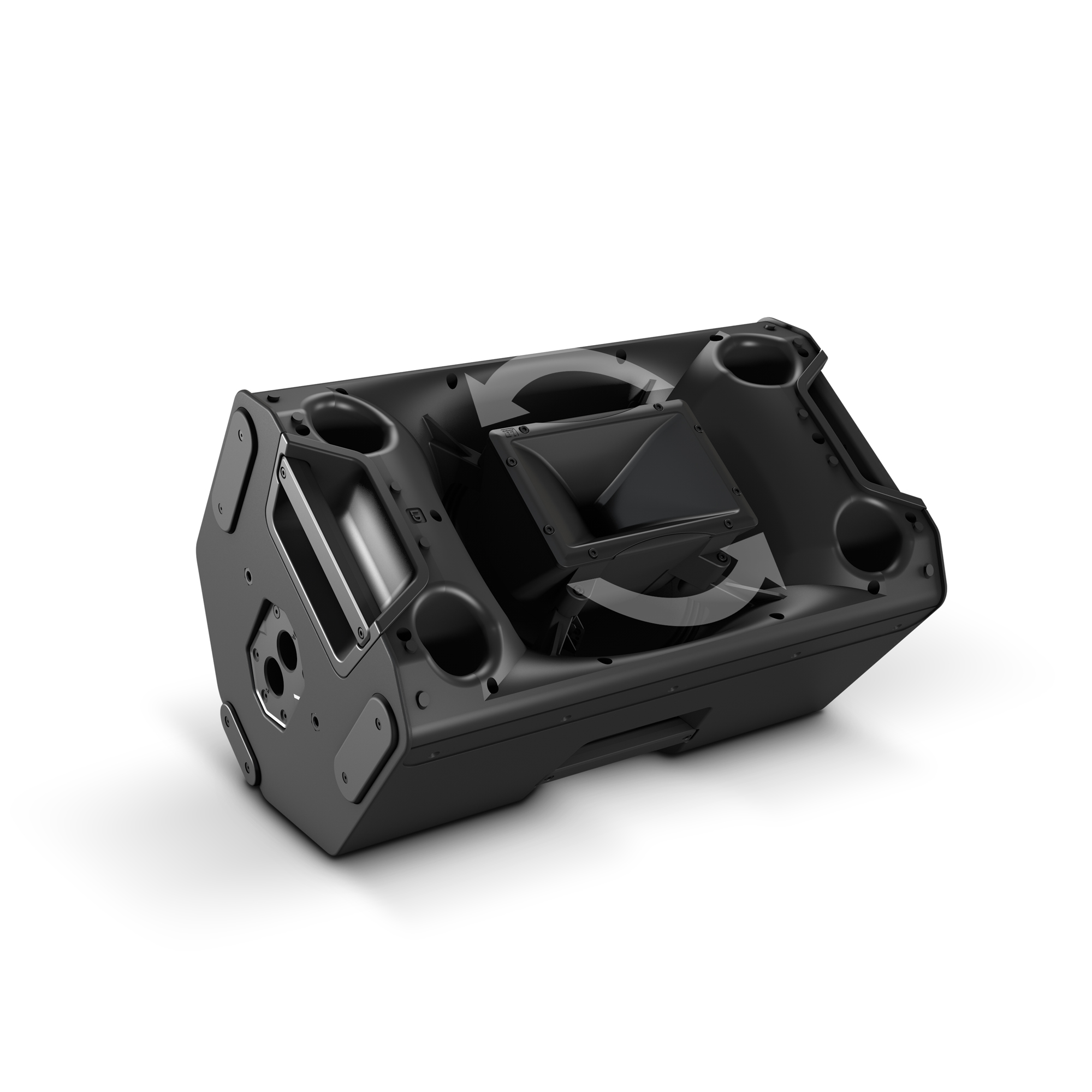

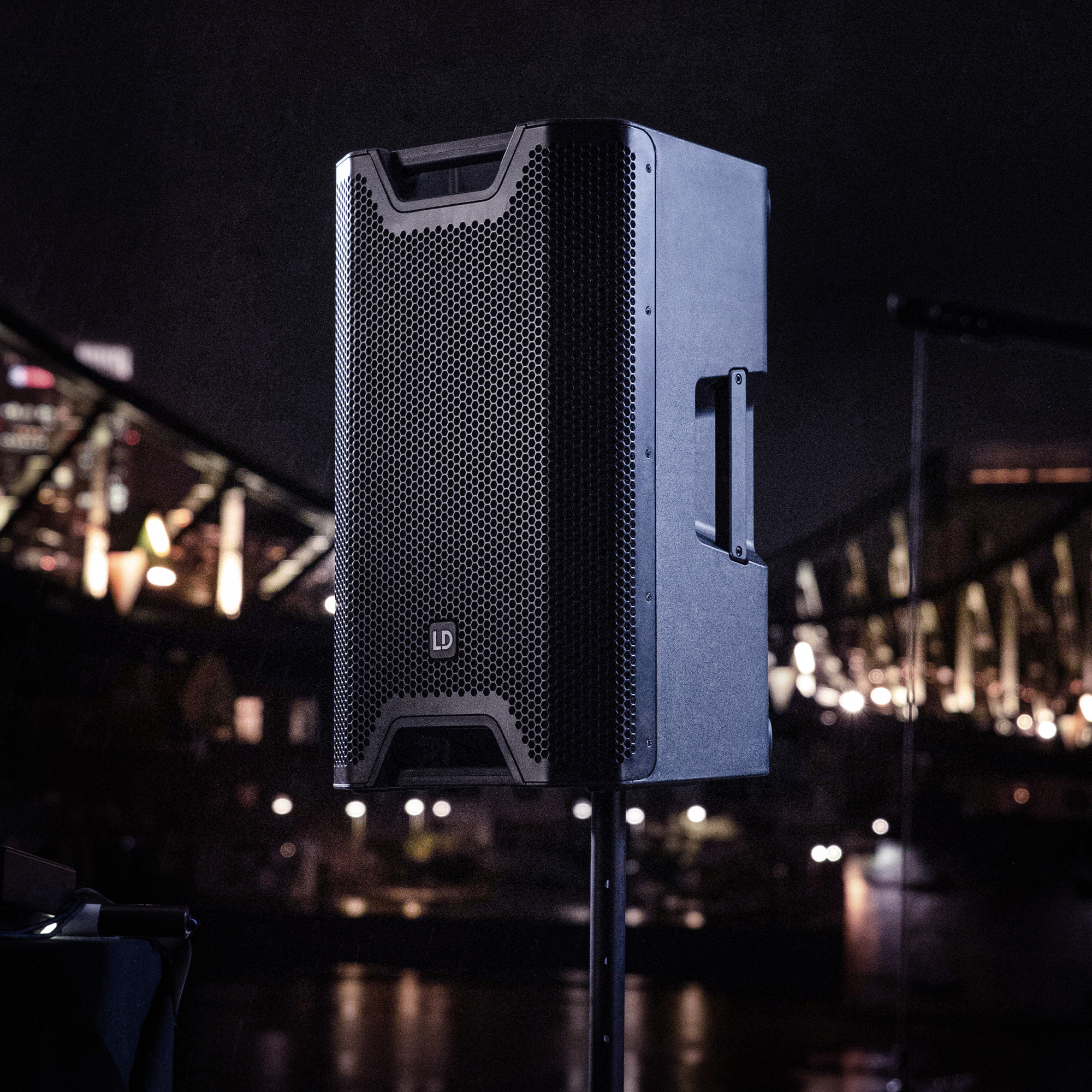

This 12" full-range loudspeaker stands out with impressive sound even at low frequencies. As a jack-of-all-trades, the unpowered ICOA 12 speaker by LD Systems and its design with a coaxial design and rotating, BEM-optimised CD horn means it is extremely flexible.

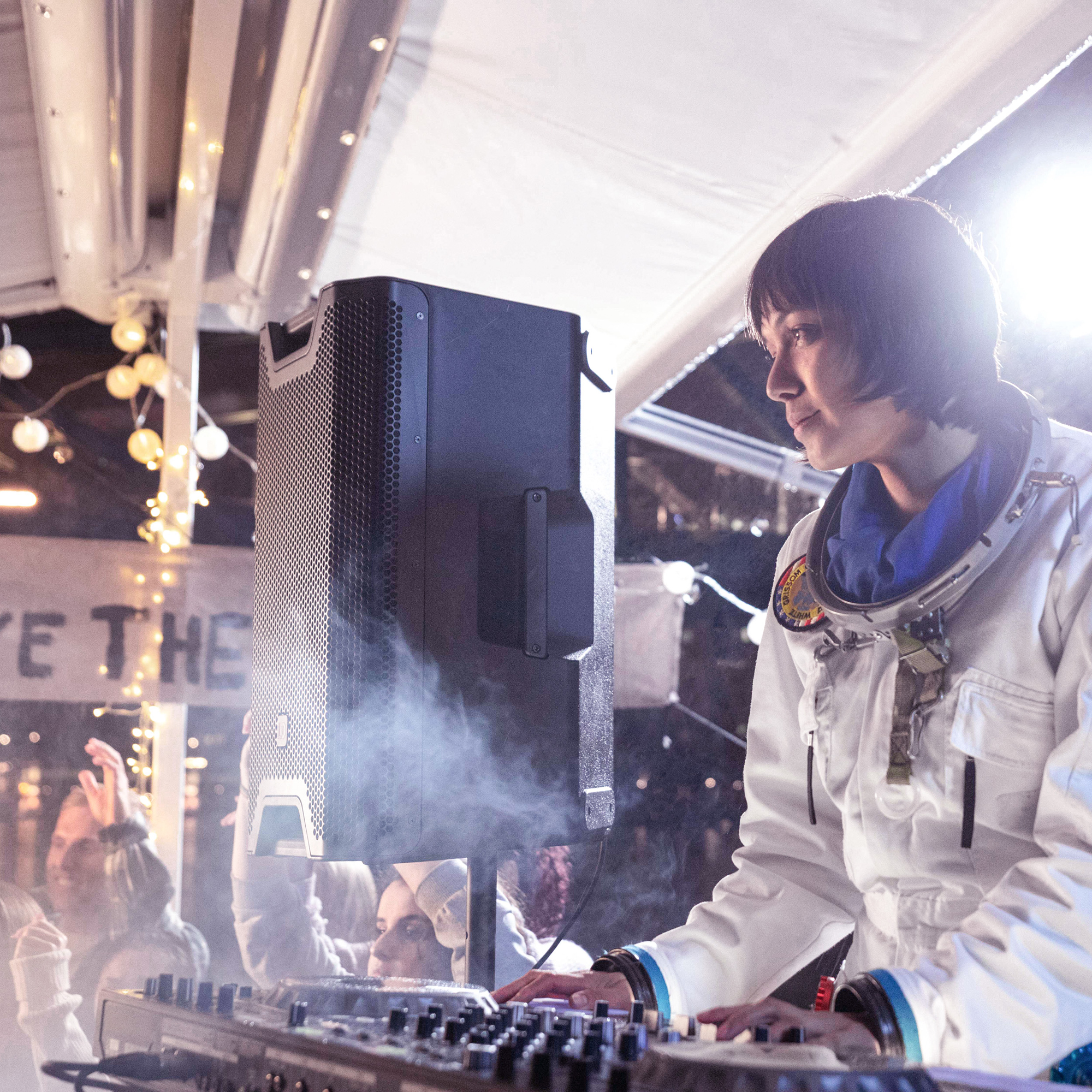

The horn-loaded woofer's outstanding bass reproduction makes the ICOA 12 the ideal choice for dance schools, musicians, bands and entertainers. It also allows DJs to play sets without the need for a subwoofer. The speaker also makes a good impression in fixed installations due to its freedom of flexibility.

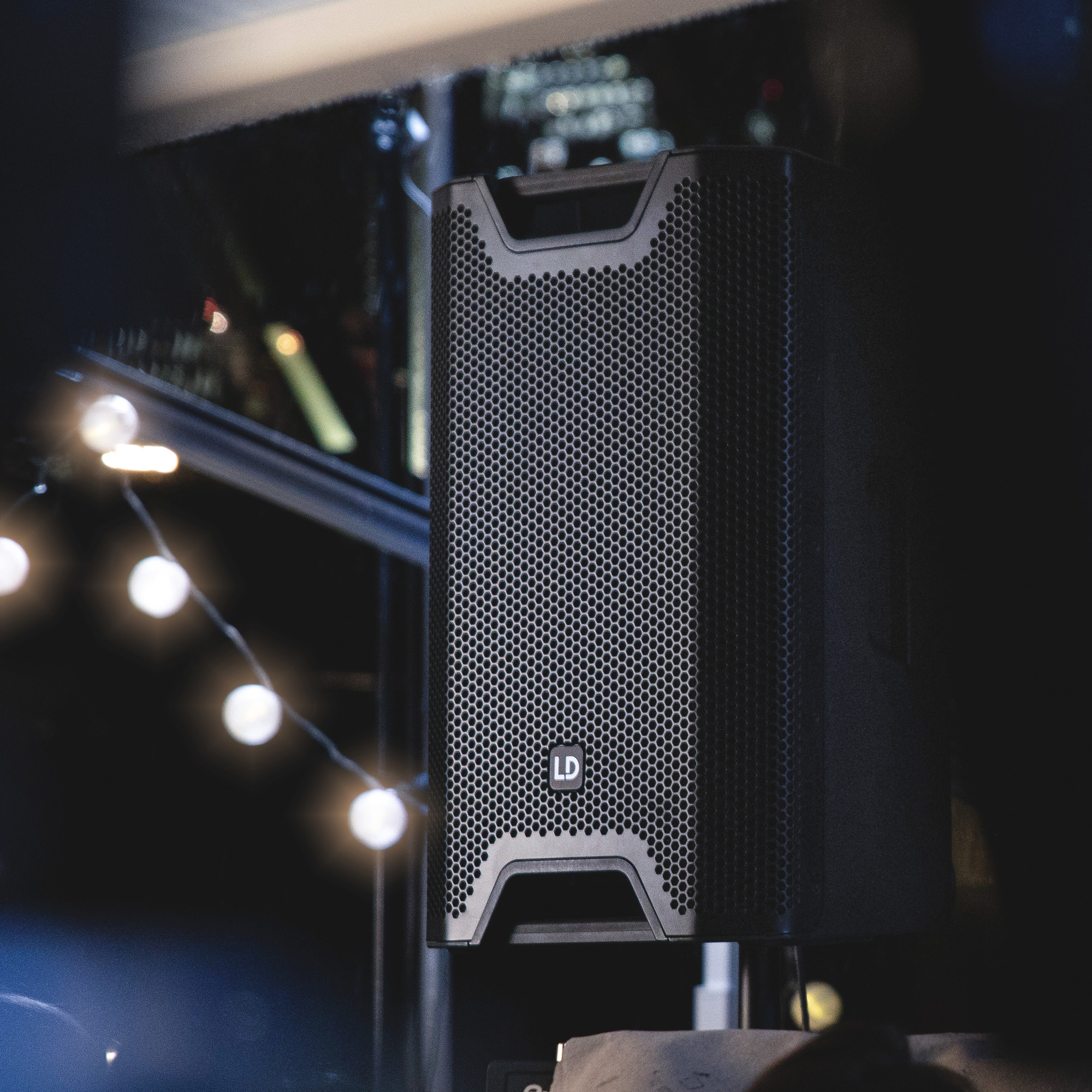

Deployed vertically, the speaker impresses as a satellite; horizontally, it's excellent in suspended systems or as a floor monitor. It Delivers a maximum sound pressure level of 123 dB peak and has 1000 Watt peak performance.

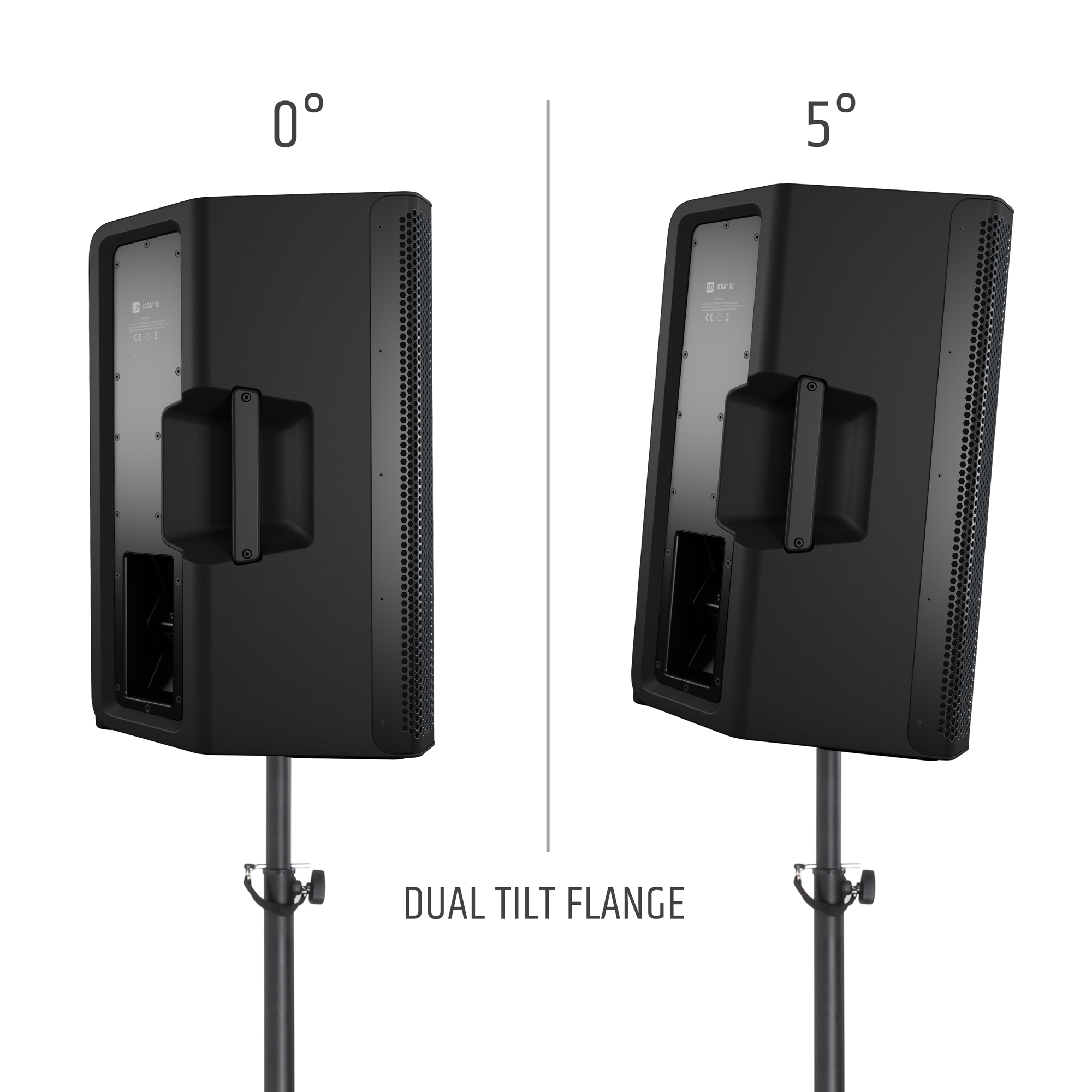

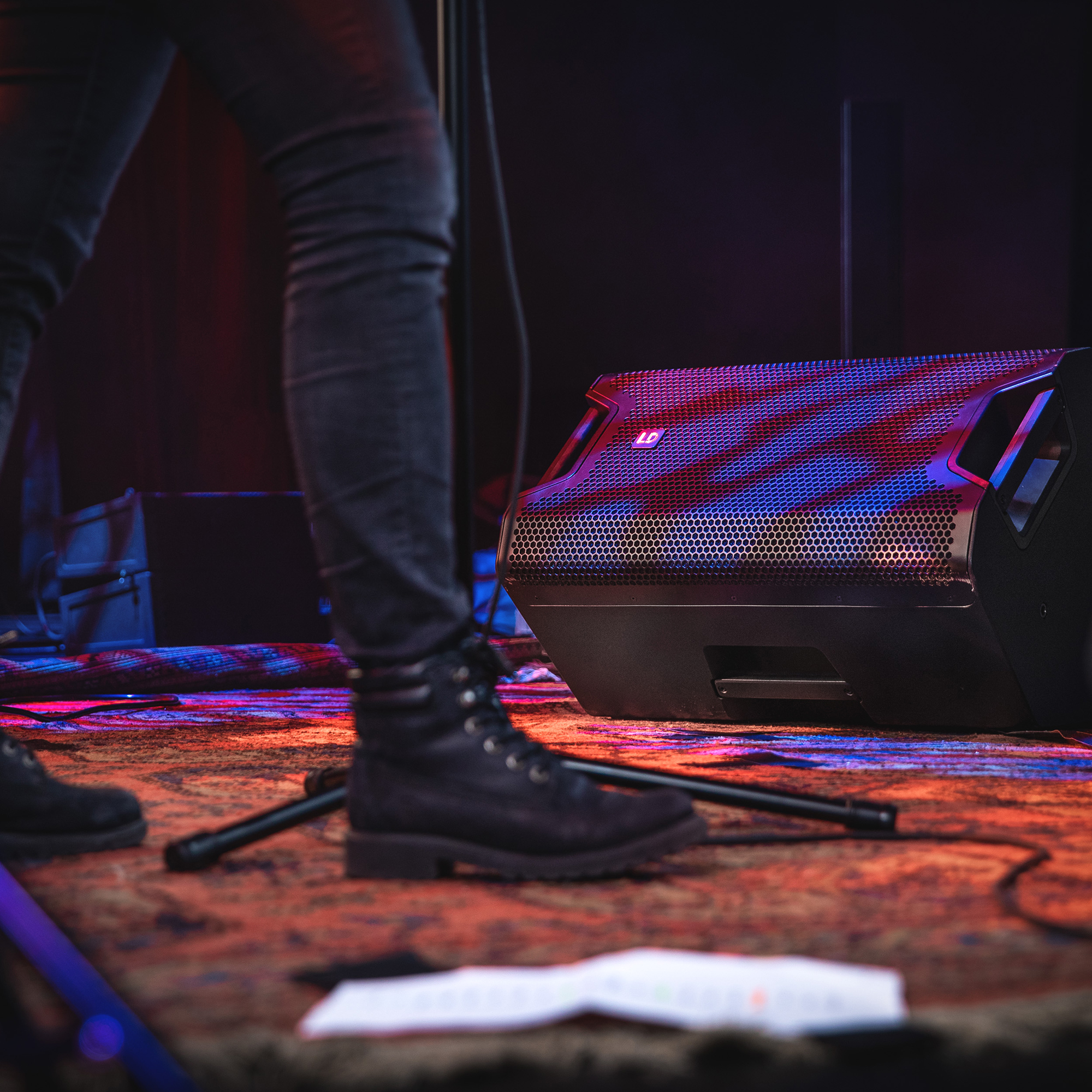

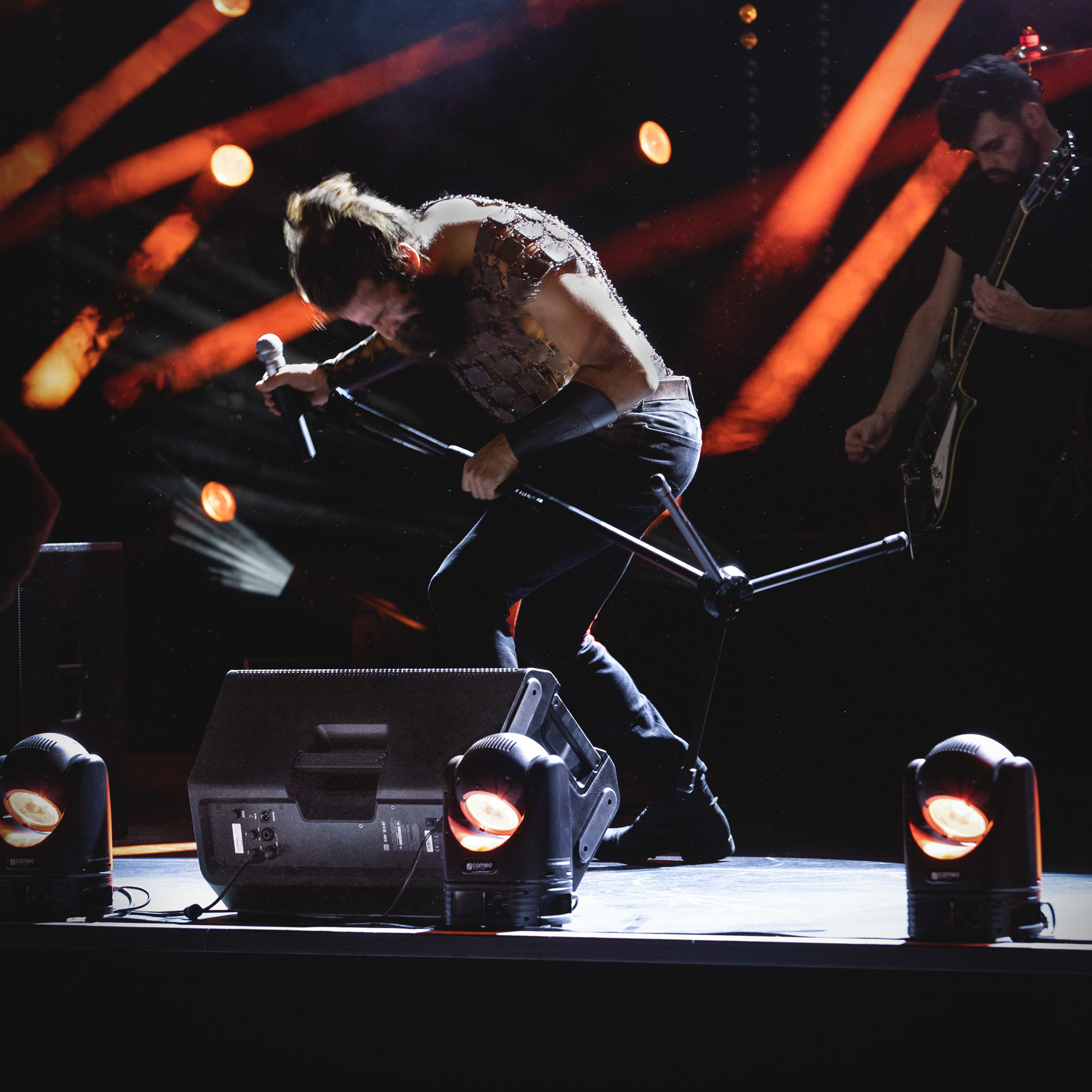

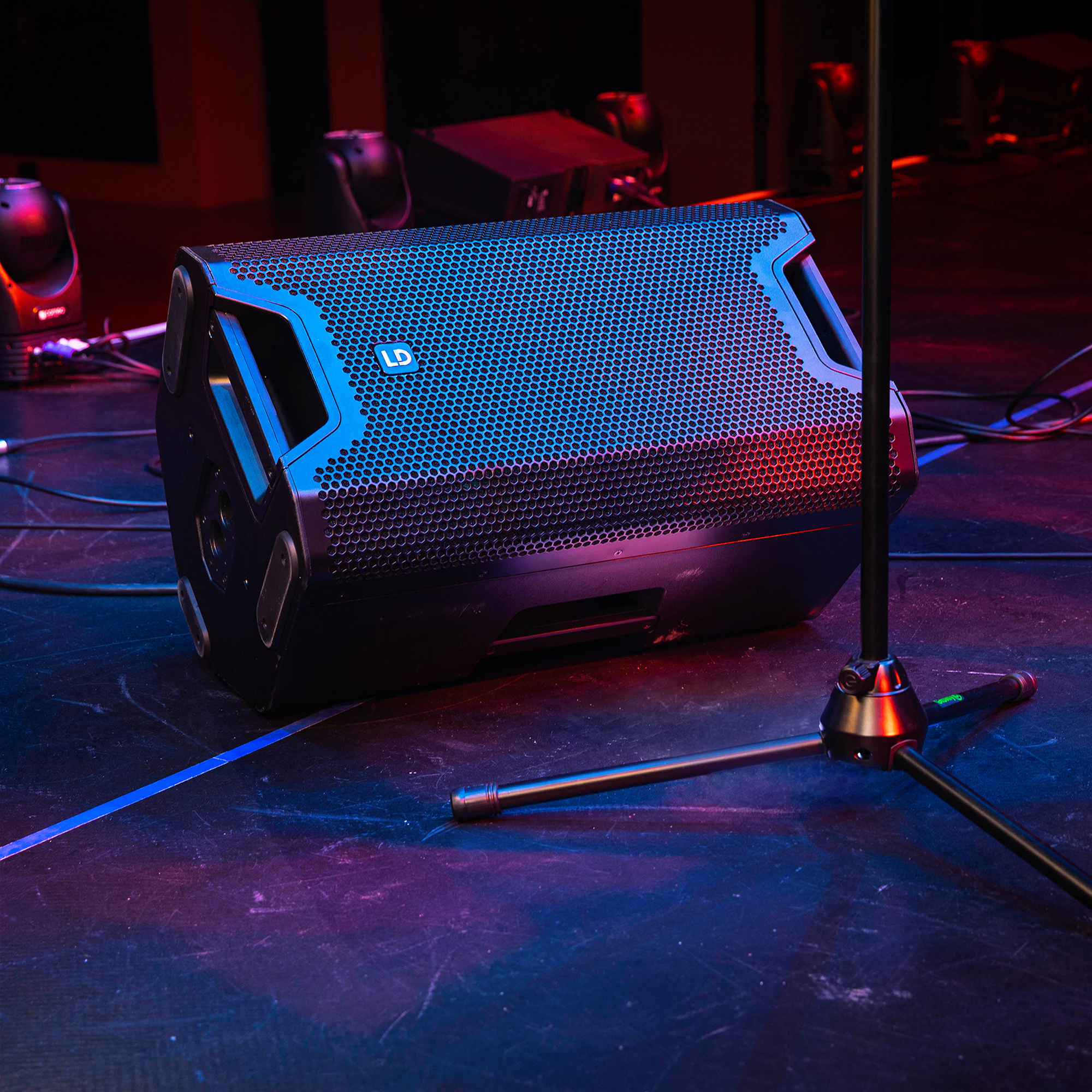

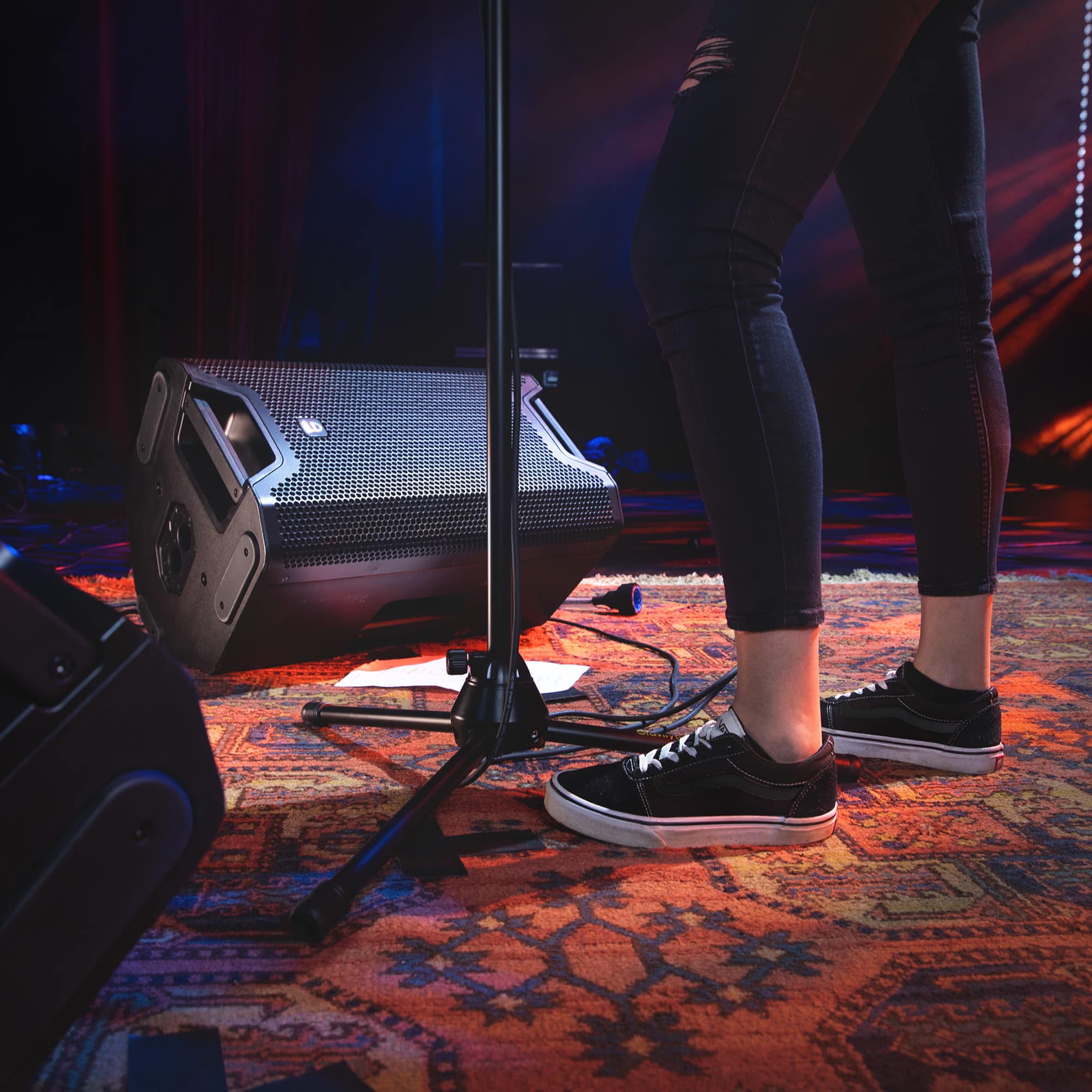

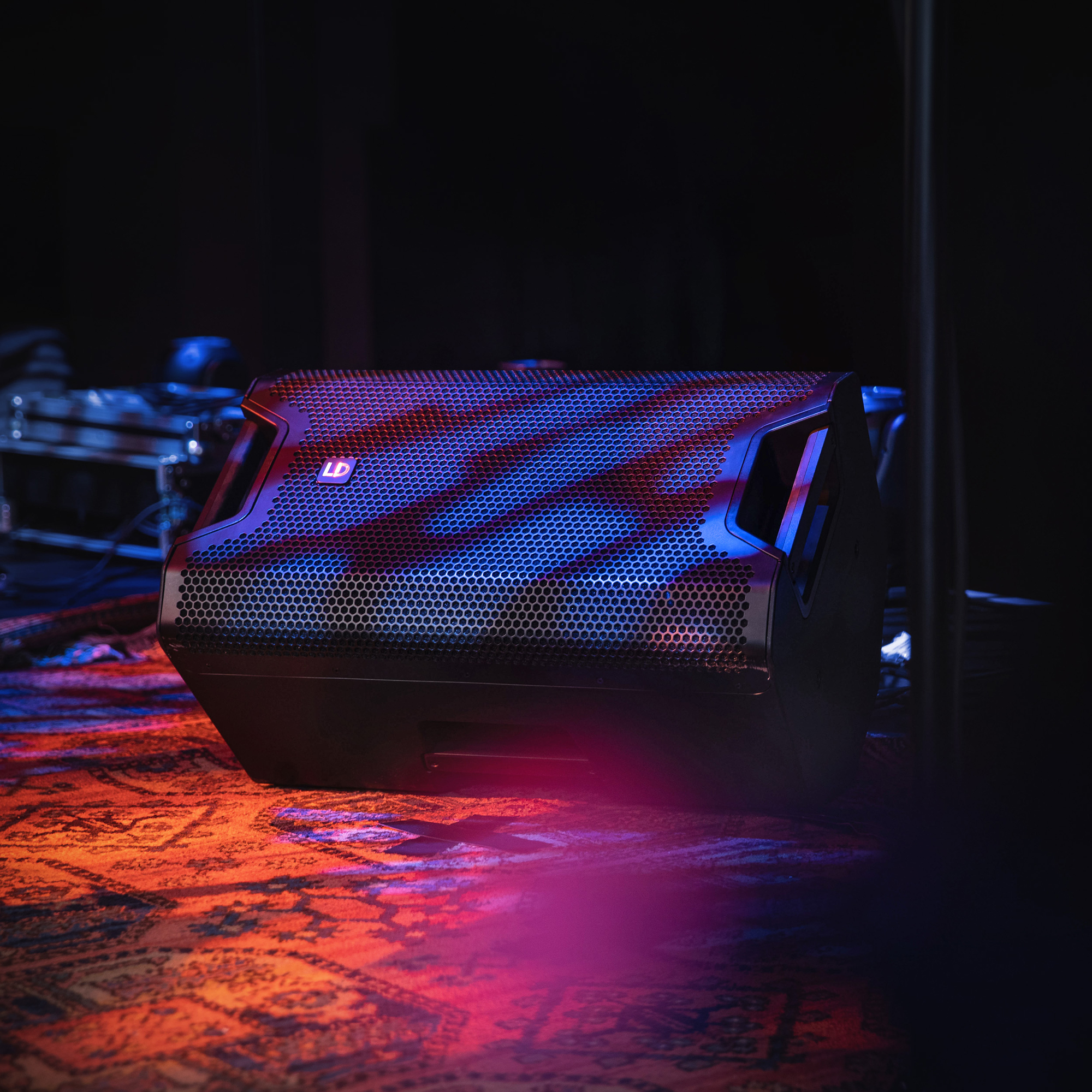

Thanks to its shock-resistant front grille and ideal 55° tilt angle make the ICOA 12 outstanding as a floor monitor. Placed vertically, the 36 mm dual tilt stand attachment offers the choice of a 0° or 5° tilt angle for optimally adapting the system to the local acoustic environment. Extensive and smart accessories for installation and transport are optionally available. Four aluminium handles with an ergonomic rubber surface provide optimal grip when carrying the speaker.

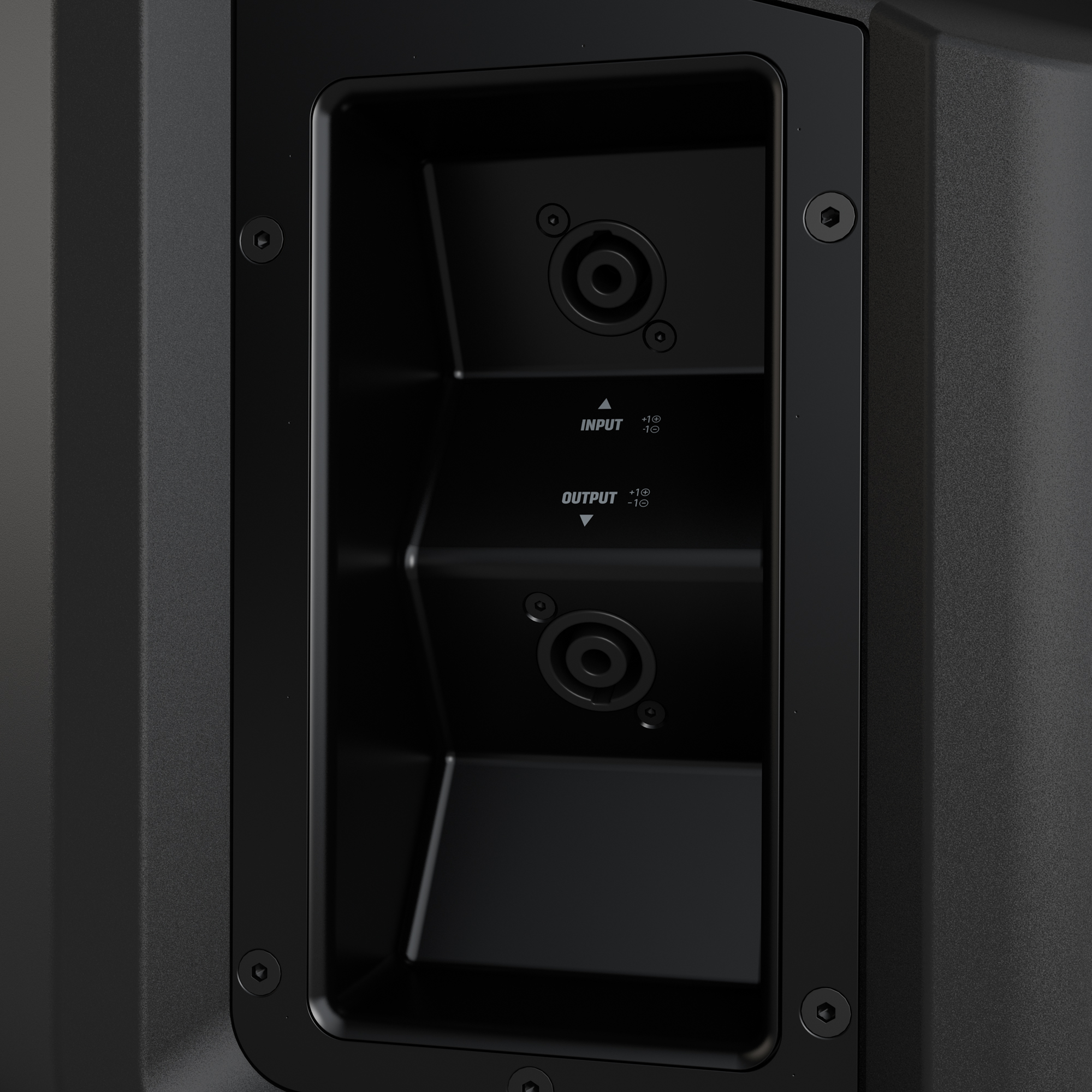

| Input connector types: | Standard speaker connector 4-pole male & speakON® |
|---|---|
| Monitor angle: | 55 ° |
| Max. SPL peak (sine burst, fullspace/1 m, THD≤10 %): | 123 dB |
| Beam angle: | Hor.: 90° / Vert.:50° |
| Speaker system: | 2-way coaxial system |
| Output connector types: | Standard speaker connector 2-pole male & speakON® |
| Type: | Passive |
| Impedance: | 8 Ω |
| Colour: | Black |
| Number of inputs: | 1 |
| SPL (1 W/1 m): | 93 dB |
| Crossover frequency: | 2000 Hz |
| Power handling (RMS): | 250 W |
| Number of outputs: | 1 |
| Power handling (Peak): | 1000 W |
| Frequency response: | 55 - 20000 Hz |
| Manufacturer: | Custom Made |
|---|---|
| Size: | 12 " |
| Magnet: | Ferrite |
| Voice coil: | 1.4 " |
|---|---|
| Driver size: | 0.04 in |
| Magnet: | Ferrite |
| Flange: | 36 mm (0°/5°) |
|---|---|
| Number of handles: | 2 |
| Design: | Bass reflex |
| Number of mounting points: | 6 |
| Front grille material: | Aluminium |
| Cabinet material: | Polypropylene |
| Mounting type: | M10 flying points |
| Material thickness: | 0.59 in |
| Maximum air humidity (non-condensing): | 80 % |
|---|---|
| Ambient temperature: | 0 - 40 °C |
| Width: | 14.76 in |
|---|---|
| Weight: | 43.65 lbs |
| Depth: | 15.59 in |
| Height: | 25 in |
| Included accessories: | Mains cable |
|---|
Login
accessories
The freedom to achieve the sound you want is the concept behind the ICOA® and its matching U-mounting bracket as well.It gives you complete flexibility to mount the ICOA® in different ways - to the wall, either horizontally or vertically, or to a truss using an optional clamping tool.You can install the bracket on the wall with six screws and quickly and effortlessly "click" your ICOA® into place with the Easy-Click system. All that's left to do is to fasten everything down with a safety screw.The U-bracket's cable feedthrough behind the ICOA® keeps things looking neat and tidy. Once the ICOA® is installed, you can freely swivel it around in 10°-increments up to 180°. Enough flexibility to find your ideal angle.
This padded protective cover is made of durable, water-repellent 1680D nylon and lined 8mm thick to protect the ICOA® loudspeaker. The handle cut-outs are reinforced at the edges and are covered by a flap with Velcro fastener. A practical outside pocket offers plenty of space for accessories.
With the padded protective cover made of durable and Water-repellent impregnated 1680D nylon, the ICOA® Loudspeaker is optimally protected against weather influences and other impacts. The 8 mm thickly padded protective cover can be easily slipped over the Loudspeaker.Multiple Velcro- & Zipopenings and a large roll-up front allow full use of the ICOA® Loudspeaker with the protective cover in place.An external pocket on the side of the protective cover offers plenty of space for storing accessories such as mains and XLR cables.
For professional applications on stage, in the studio or in the rehearsal room, excellent quality is available with our 5 STAR SERIES. This cable is made in the EU and therefore meets the relevant requirements for professional use.Durability and reliability find their master in the hard road everyday life! We have therefore developed a cable that is not only flexible, but also very robust. We use a special soft-PVC compound for all cables of the 5 STAR SERIES, which is friction resistant and bendable. For excellent signal transmission, but is also more abrasion resistance. The cable comes with a cable tie and two transparent, loose heatshrinks for labeling.Engineered in Germany & Made in EU: This stands for precision & quality.
This rugged speaker stand has a much smaller footprint than tripods and a 35 mm rod with a high-strength steel sleeve, ergonomic locking screw and safety stud for secure height adjustment. This stand is adjustable from 1.05 to 1.8 m in 7.5 cm increments. It comes with an additional weight disc from our patented VARI-WEIGHT® stability system, ensuring both a more secure footing and more convenient transport of the system as a whole. The flat round base and the additional disc weigh 17.1 kg in total, thereby ensuring excellent stability.
The SP 5211 B is a classic tripod speaker stand made from thick walled, yet lightweight powder coated alumium tubing with a load capacity of 50 kg and 195 cm maximum height.The die cast aluminium leg collar has been completely redesigned to provide superior durability and longevity, the height adjustment collar is made of steel for additional strength and is virtually indestructable. It features a safety pin to securely lock the 35 mm diameter extension pole in place.The ergonomic set screw knobs are made from high grade ABS with a soft touch, non-slip thermoplastic coating for comfortable operation.A set of black coding rings is included with the SP 5211 B, additional ring packs are available in a wide array of colors for instant personalization.
The GLS 431 B lighting stand features a large heavy steel base providing a firm footing and three M20 female threads that allow to mount off-centre. The 35 mm extension with female threaded M10 insert permits a maximum height of 2.4 m. Two integrated base handles facilitate transport.
