DAVE 8 ROADIE
Portable active PA system with 3-Channel mixer
$799.99
Backordered – More on the Way!
Product information "DAVE 8 ROADIE"

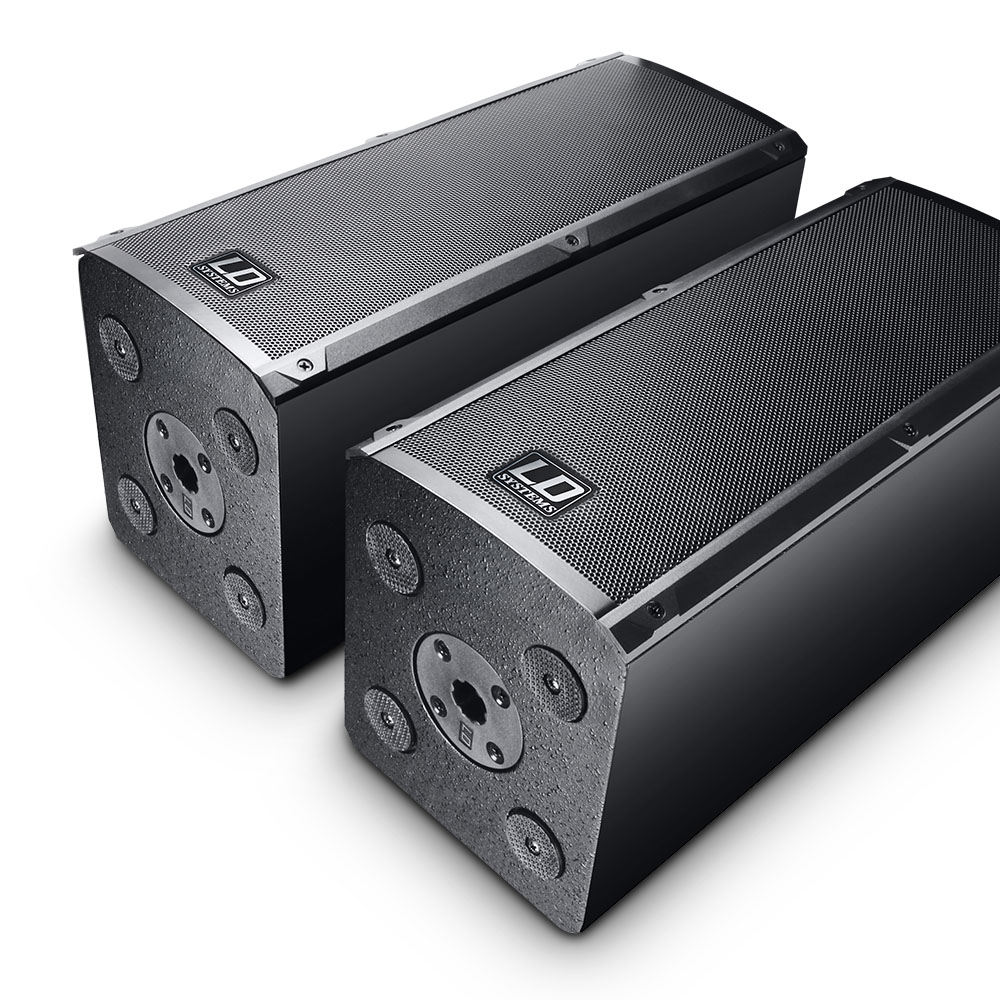

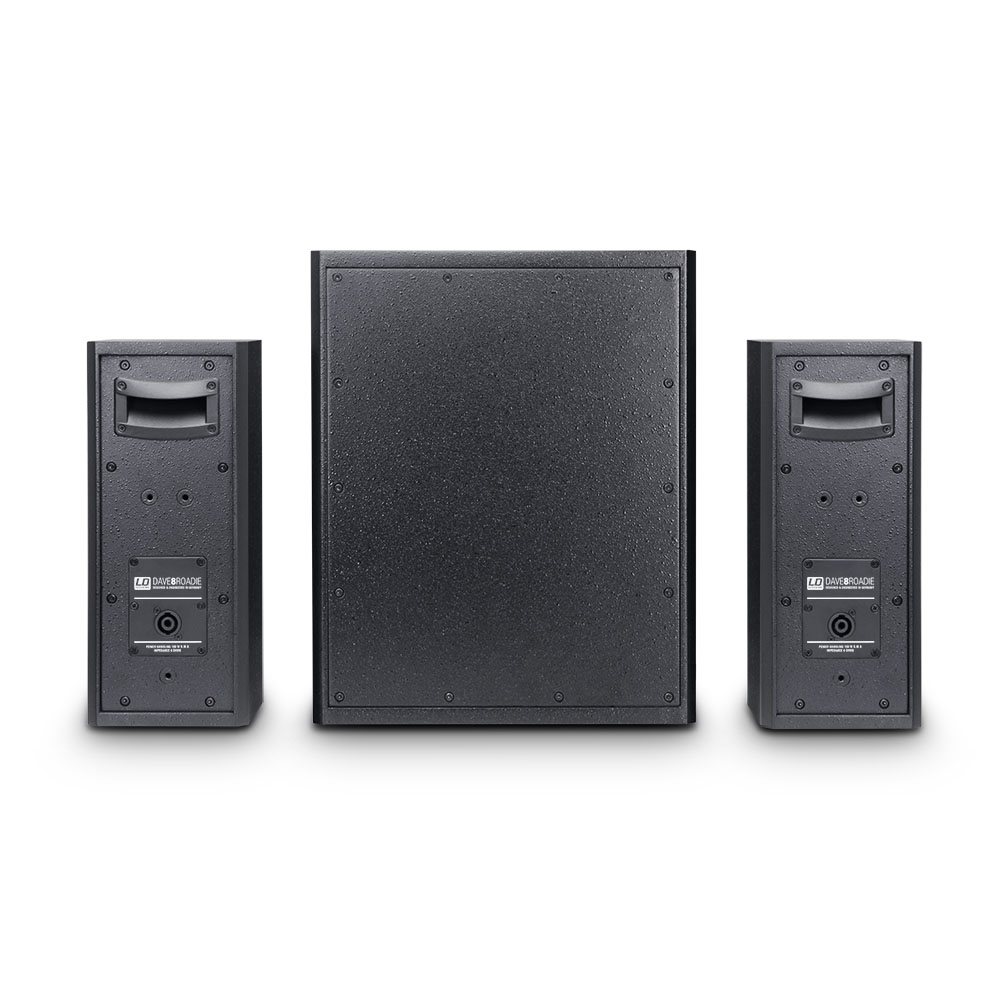

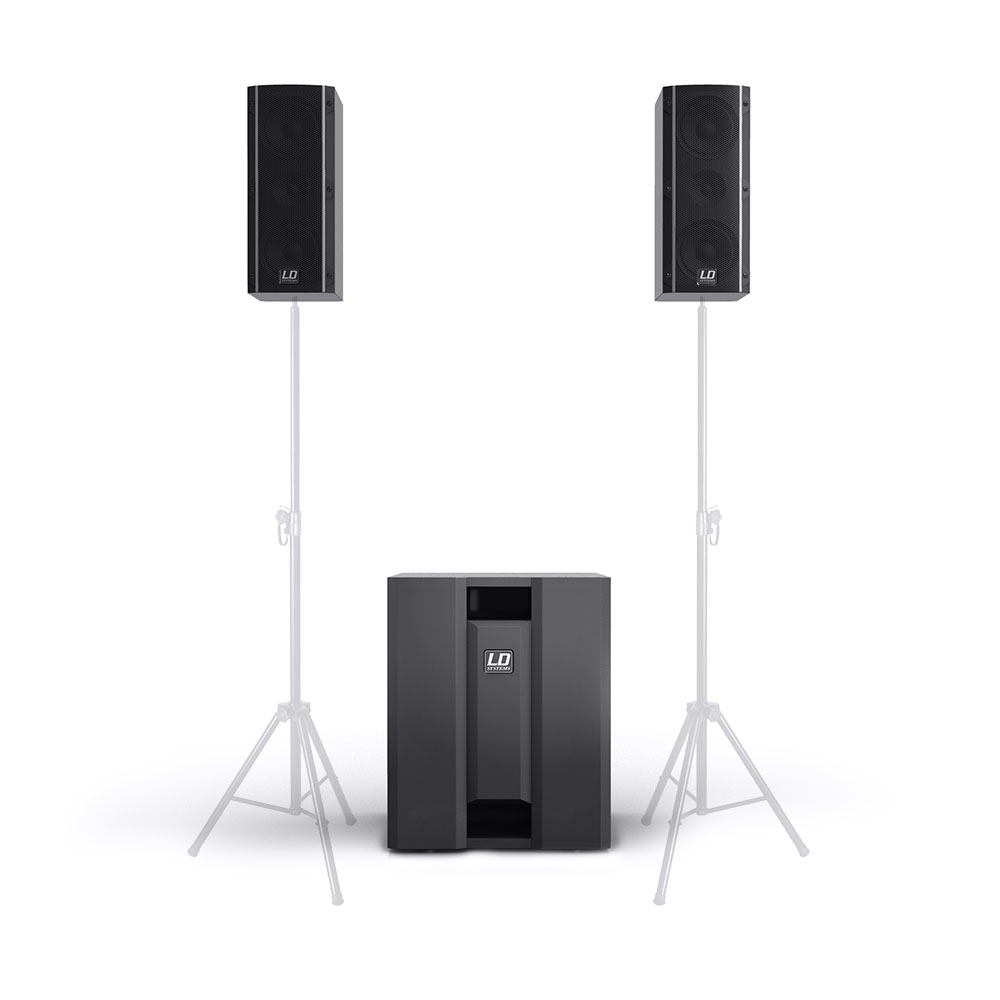

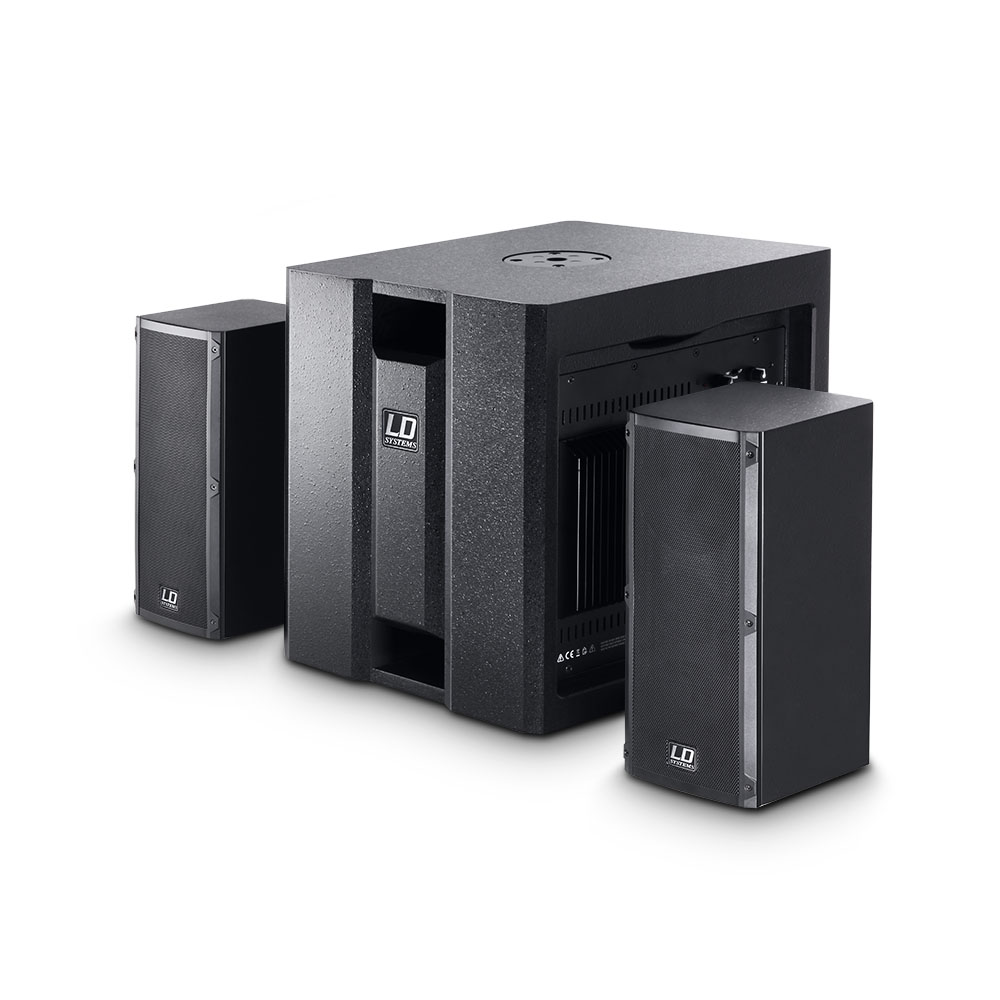

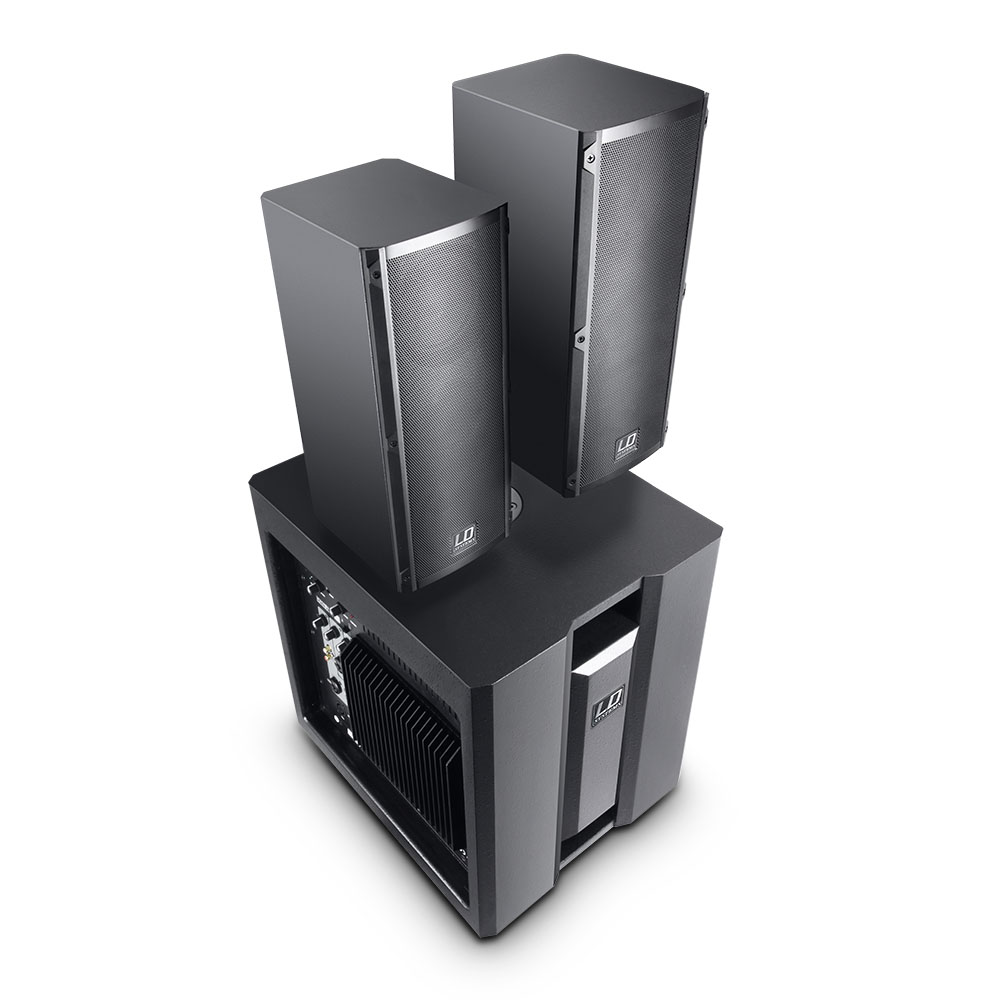

With the DAVE 8 Roadie, LD Systems are successfully implementing their motto "pro audio in motion". This complete PA system with its powerful 1400-watt (Peak) power amp delivers astounding performance for mobile applications. The system is equipped with a high-performance 8" band-pass subwoofer and two satellite speakers (2 x 4" + 1") and was designed as a flexible and portable mini PA system especially for musicians.

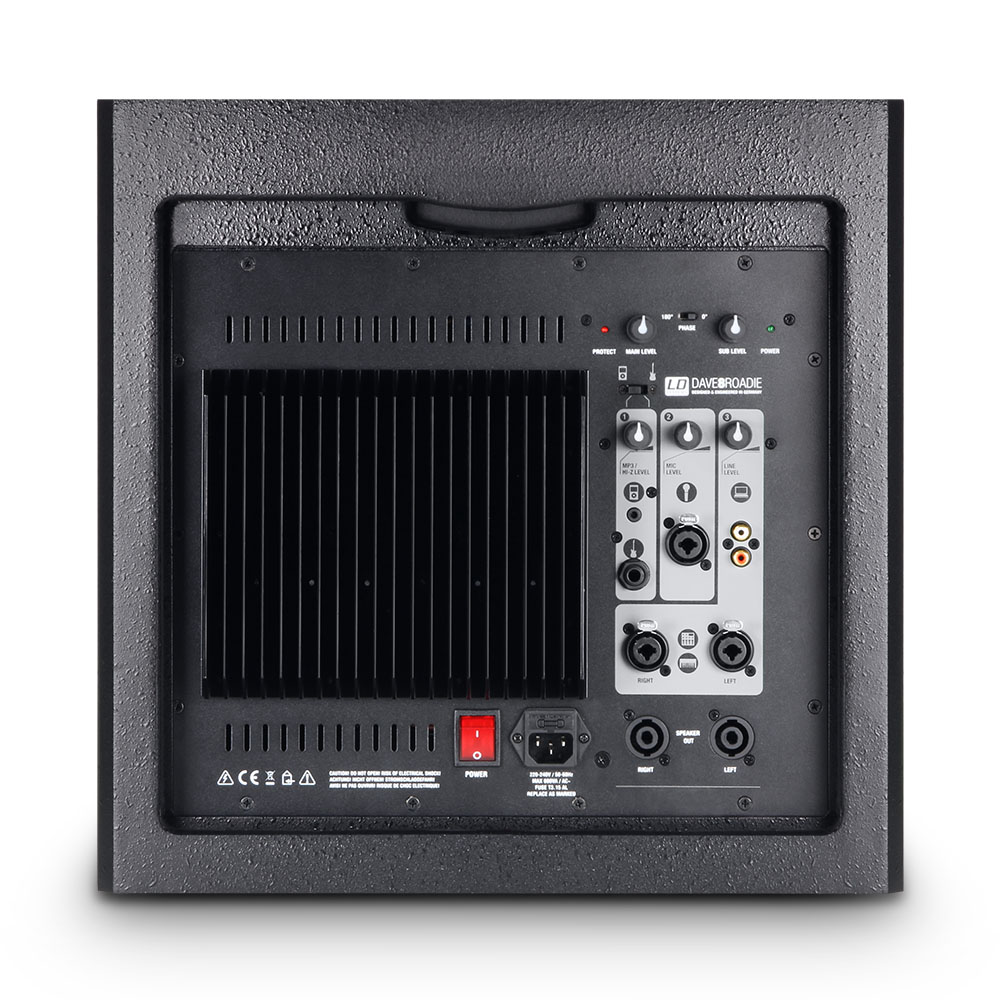

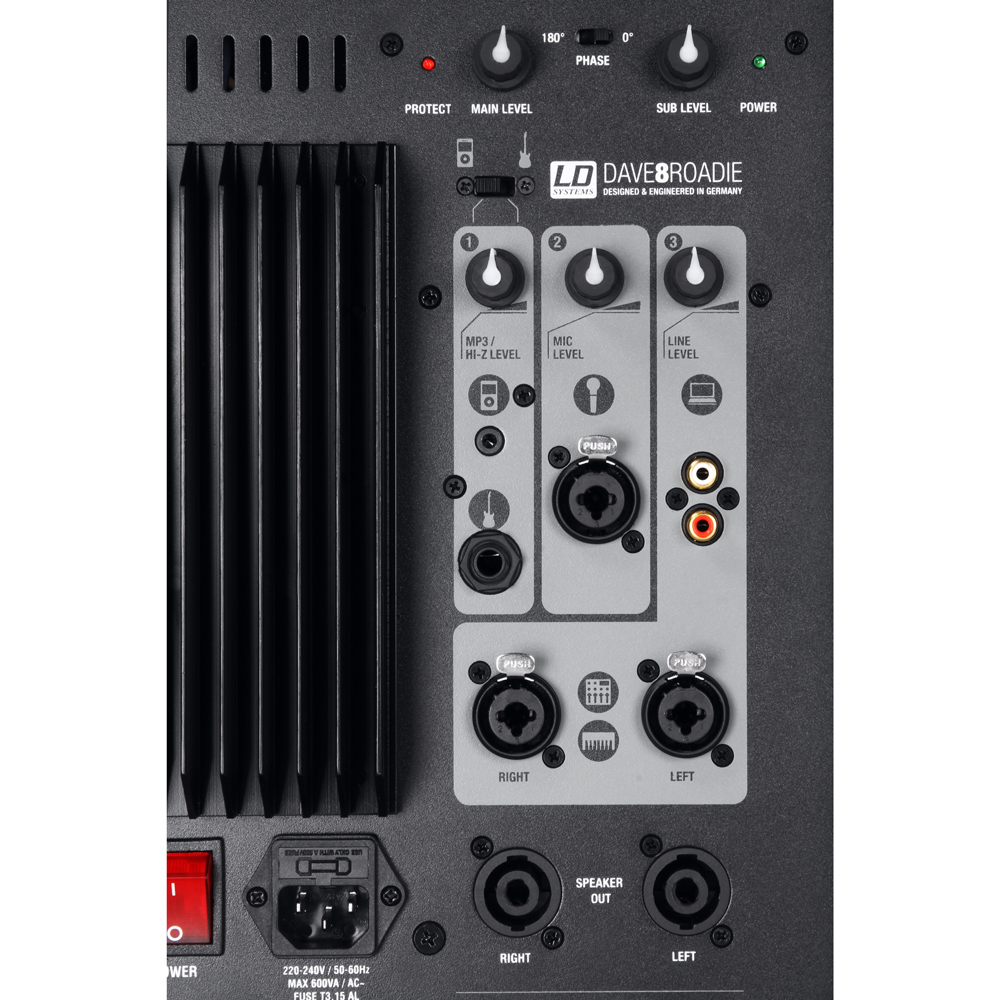

The DAVE 8 Roadie features three different inputs, which can be used simultaneously. One channel has a combo socket (XLR/jack) for dynamic microphones. One channel offers dual RCA connectors for computers as well as a combo socket (XLR/jack) for mixers or keyboards. Finally, the third channel has a 3.5 mm stereo and a 6.3 mm mono jack input for MP3 players or guitars with a switch for selecting the desired input. The high-performance Class A/B power amp module integrated in the subwoofer powers both the subwoofer and the satellites.
The systems features all of the usual protection circuits. The built-in limiter keeps the system safe from overload and ensures a long service life. On the side of the subwoofer, in addition to an ON/OFF switch and a phase reverse switch (180°), there is a separate subwoofer volume knob that allows you to find the perfect mix of brilliant treble, punchy mids, and powerful bass.

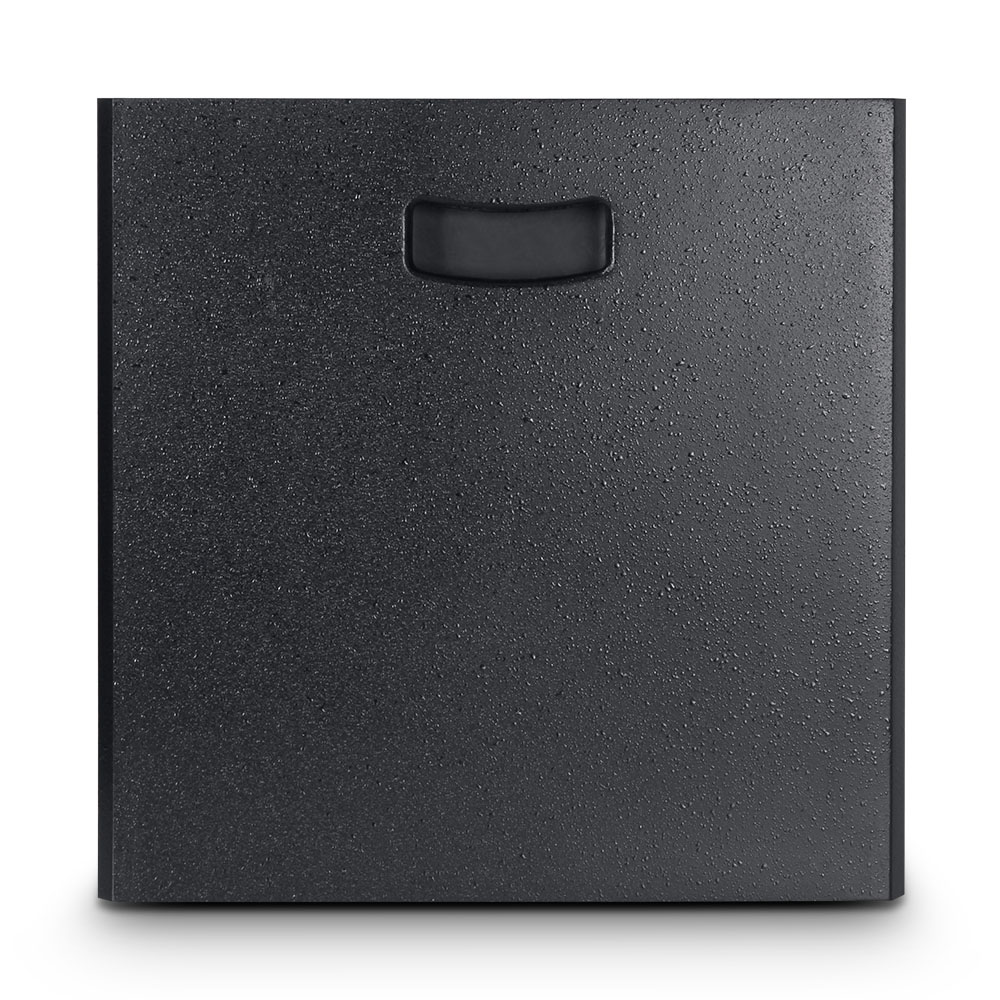

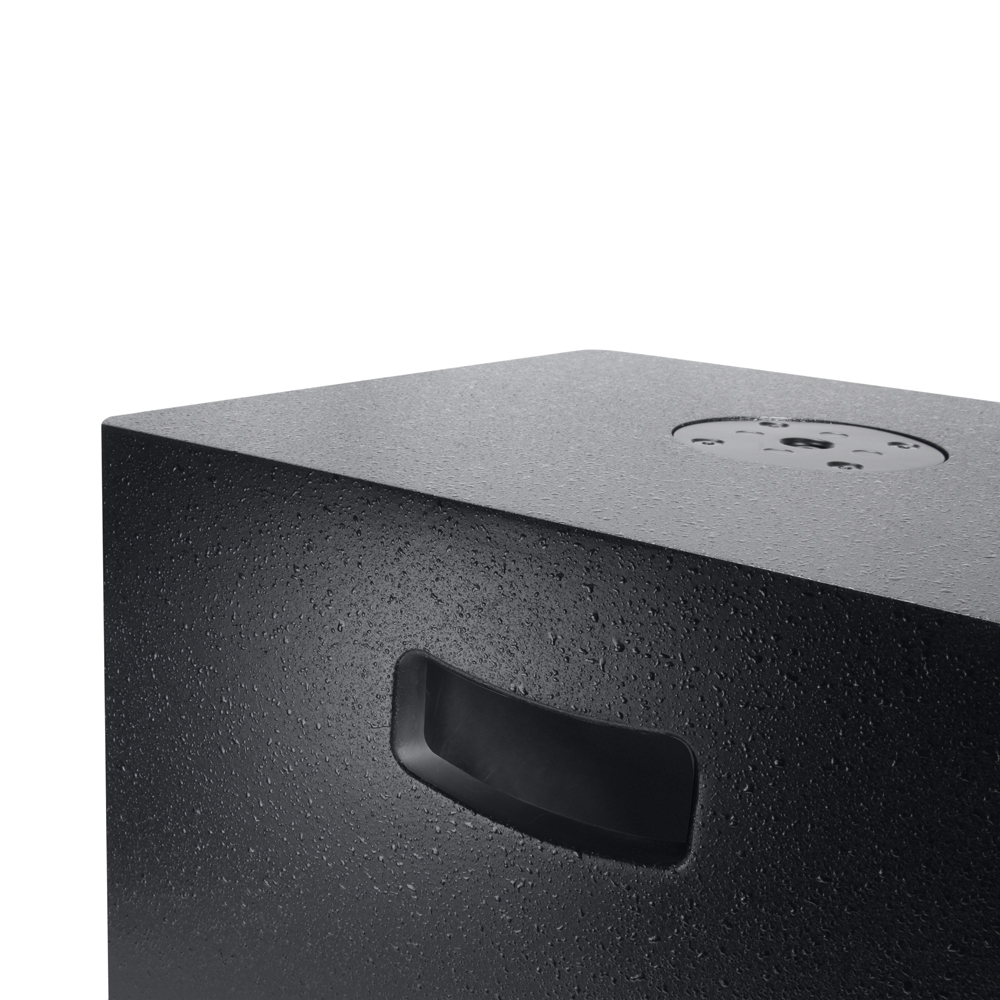

Sturdy front grilles and ergonomic handles on both the subwoofer and the satellites underscore the roadworthiness of the DAVE 8 Roadie and make the system an ideal companion for musicians.
| Type: | Active |
|---|---|
| Output connector types: | XLR combo socket |
| Input connector types: | 6.3 mm Jack TRS female, XLR combo socket, 3.5 mm Jack TRS female, RCA female |
| RMS output power: | 350 W |
| Peak output power: | 1400 W |
| Speaker system: | 2.1 system with d’Appolito satellites |
| Max. SPL peak: | 123 dB |
| Frequency response: | 45 - 19000 Hz |
| Beam angle: | Hor.: 60° / Vert.:60° |
| Number of inputs: | 5 |
| Max. SPL average: | 117 dB |
| Colour: | Black |
| Amp class: | Class A/B |
| Number of outputs: | 2 |
| Line-In connector type: | XLR combo socket, RCA female |
|---|---|
| Music inputs connector types: | 3.5 mm Jack TRS female |
| Number of music inputs: | 1 |
| Number of instrument inputs: | 1 |
| Number of microphone inputs: | 1 |
| Number of line inputs: | 3 |
| Inst-in connector type: | 6.3 mm Jack TRS female |
| Mic-in connector type: | XLR combo socket |
| Number of speaker outputs: | 2 |
|---|---|
| Speaker output connection type: | Standard speaker connector 4-pole male & speakON® |
| Mixer channels: | 3 |
|---|---|
| Audio processing: | 3 band EQ (High, Mid, Low) |
| Mixer: | 1 |
| Manufacturer: | Custom Made |
|---|---|
| Size: | 8 " |
| Voice coil: | 1.5 " |
| Magnet: | Ferrite |
| Quantity: | 2 |
|---|---|
| Magnet: | Ferrite |
| Manufacturer: | Custom Made |
| Size: | 4 " |
| Voice coil: | 1 " |
| Manufacturer: | Custom Made |
|---|---|
| Driver size: | 0.04 in |
| Design: | Softdome tweeter with CD waveguide |
| Voice coil: | 0.04 in |
| Magnet: | Ferrite |
| Mains connector: | IEC C14 plug male |
|---|---|
| Power supply type: | External switched-mode power supply (SMPS) |
| Operation voltage: | 220 V AC - 240 V AC / 50 - 60 Hz |
| Front grille material: | Metal |
|---|
| Cooling system: | Convection cooling |
|---|
| Chassis material: | Medium-density fibreboard MDF |
|---|---|
| Depth: | 6.69 in |
| Height: | 13.78 in |
| Weight: | 9.26 lbs |
| Flange: | 16 mm flange |
| Width: | 5.91 in |
| Front grille material: | Aluminium |
| Housing coating: | Painted |
| Design: | Closed |

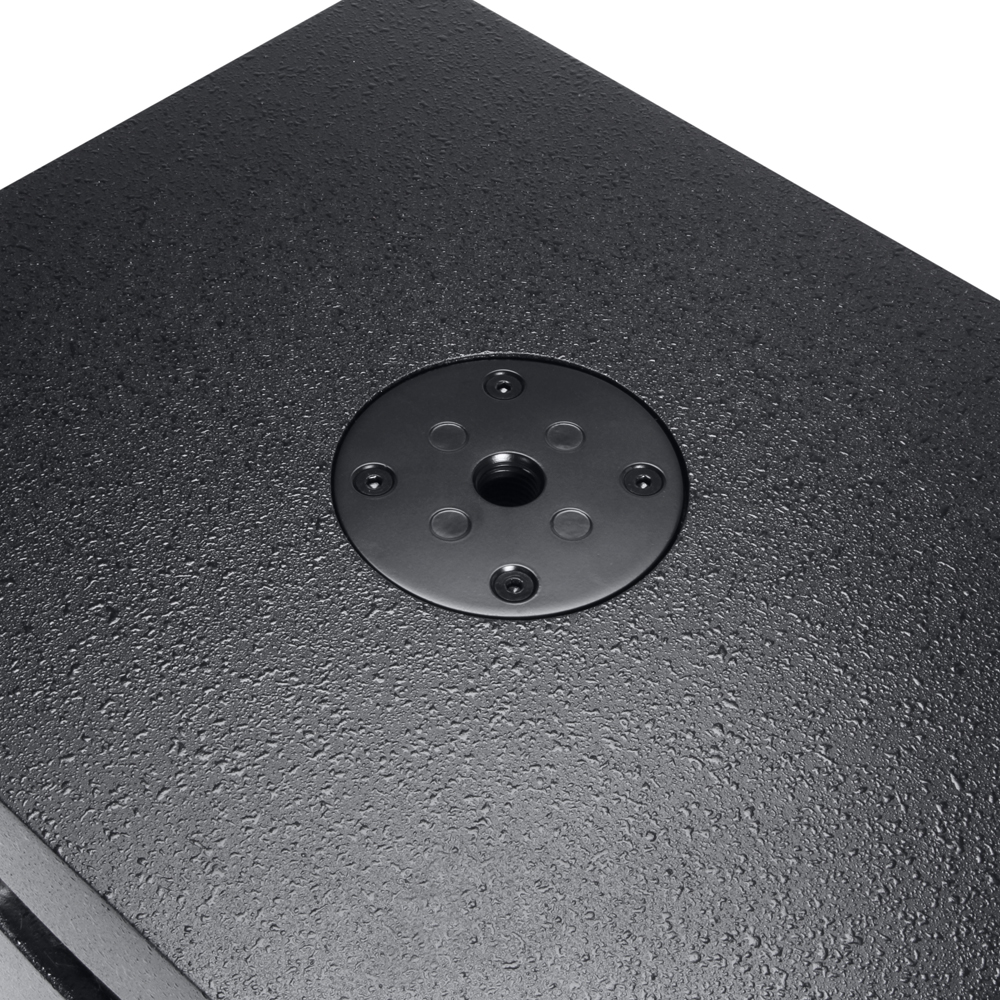

| Flange: | M20 |
|---|---|
| Depth: | 17.09 in |
| Front grille material: | Aluminium |
| Design: | Bandpass |
| Width: | 13.86 in |
| Number of handles: | 1 |
| Material: | Medium-density fibreboard MDF |
| Height: | 16.93 in |
| Surface coating: | Painted |
| Weight: | 64.15 lbs |
|---|
| Included accessories: | Mains cable |
|---|
Login
accessories
For a singer-songwriter performing on stage or giving a concert in a living room, sound is everything.LD Systems FX 300 will blow you away right from the moment you start your show, even if you've had little to no time to carry out a soundcheck. This small yet handy device not only serves as an effect pedal for altering the sound of your voice and instrument but is also an easy-to-use two-channel mixer. Its best feature by far are the pedals that let you control the mute functions with your feet or hand. And if you've got something to say, you can simply mute all effects with the FX MUTE pedal so your voice can be heard loud and clear without any reverb or delay and everyone in the room can understand your message. To prevent the signal of your microphone or instrument from reaching the outputs, all you need to do is tap the MUTE ALL pedal - a lifesaver during breaks or when wrapping up your set.The FX 300 is outfitted with 16 digital effects presets in 16-bit quality, two inputs with a separate gain setting and a balanced and unbalanced output. The +48 V phantom power provided at the microphone input allows condenser microphones to be used in addition to dynamic microphones. The high-impedance, low-noise instrument input is not only great for acoustic or bass guitars but also for all other instruments. Plenty of headroom ensures you no longer have to worry about distorted signals. And with a 9 V battery that lasts up to five hours, LD Systems FX 300 has got you covered even if there's no outlet in sight.
Customized to mount CURV 500 satellites attached to the SmartLink adapter on subwoofers, the CURV 500 speaker rod is made of powder coated steel with an M20 bottom end thread. It features a steel collar with set screw and safety pin for secure height adjustment. The base tube can be disassembled for a transport length of 58 cm only. Also suitable for DAVE 8 series.
The instrument cable with the perfect price-performance ratio. Manufactured of highly flexible and rugged, double-shielded cable material with REAN © plugs. Practical for live use, making these cables the ideal choice for all patches and connections. Equipped with straight, unbalanced plugs.
High Quality CableFor users who demand high-quality on stage, in the studio, or in the rehearsal room, we have developed this cable from our 3 STAR SERIES. This product is completely developed in Germany and therefore meets the relevant requirements for users with high-quality standards.

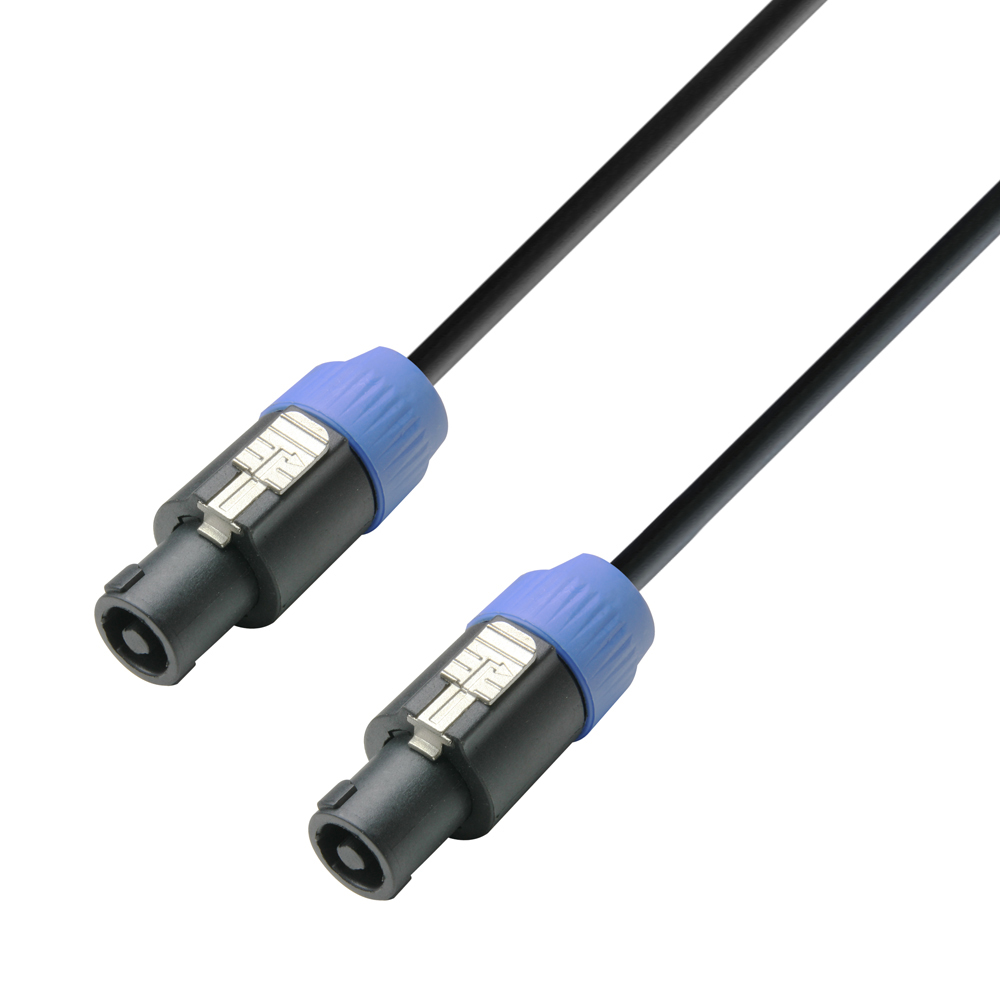

Highly flexible speaker cable with a conductor diameter of 2 x 2.5 mm², equipped with standard 4-pole speaker connectors (2-fold occupancy). Ideally suited for cabling high-power speakers or stage monitors.

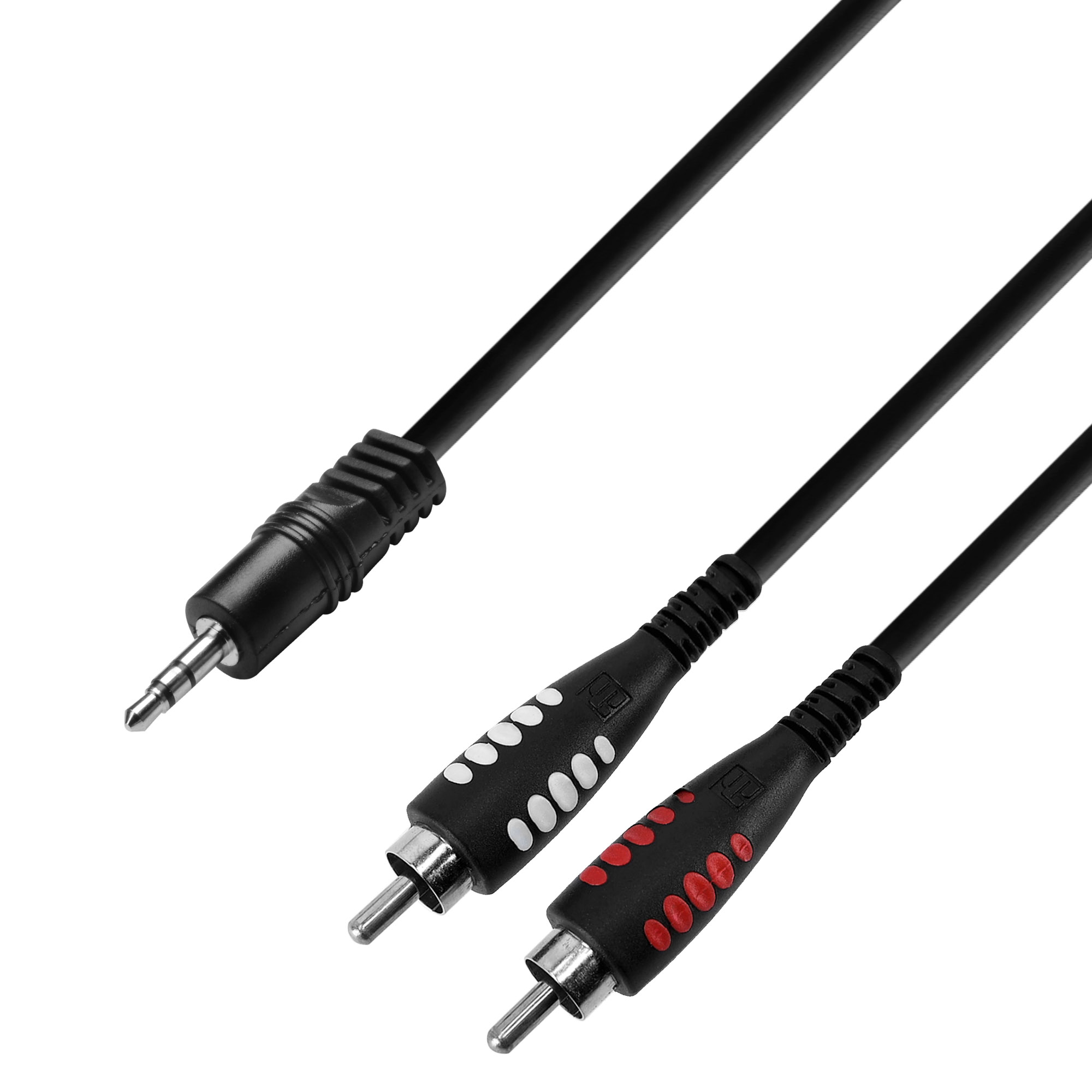

Adapter cable from 3.5 millimetre mini TRS plug to 2 x RCA. For connecting external signal sources, for example, MP3 players or PC sound cards.
