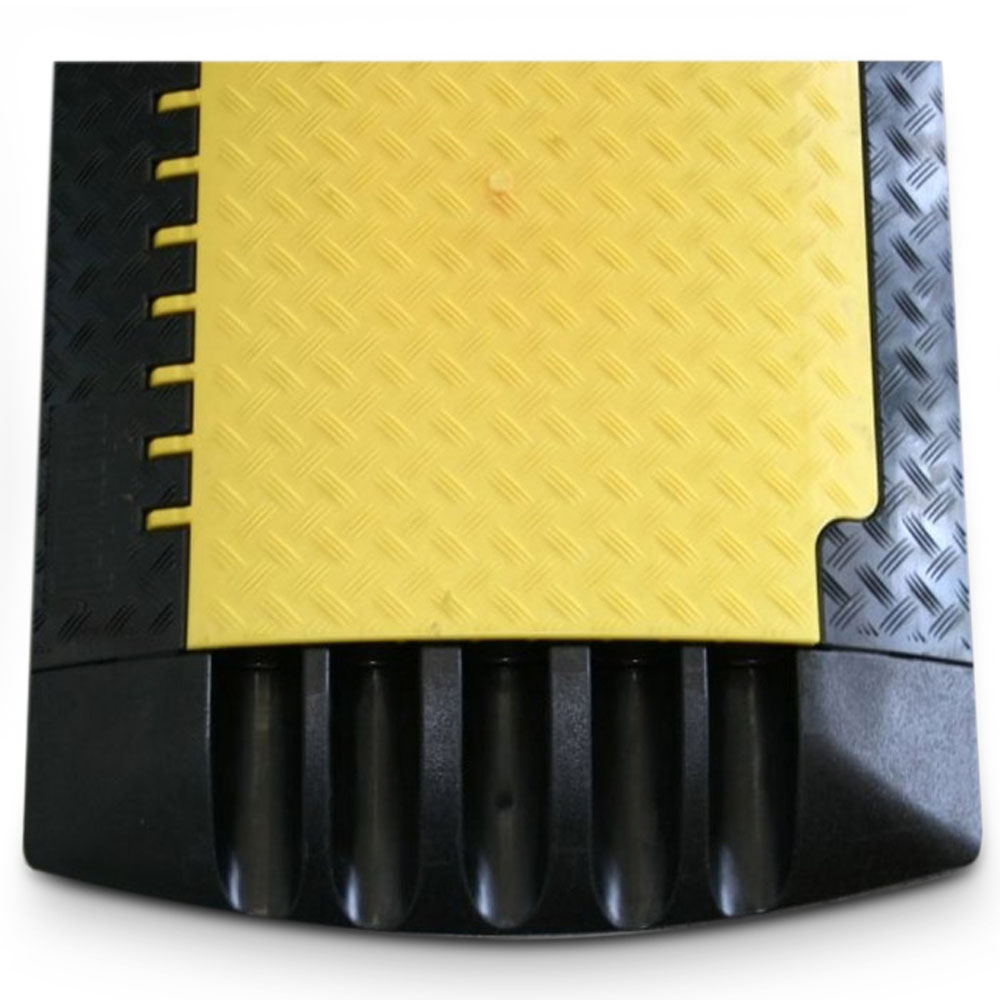

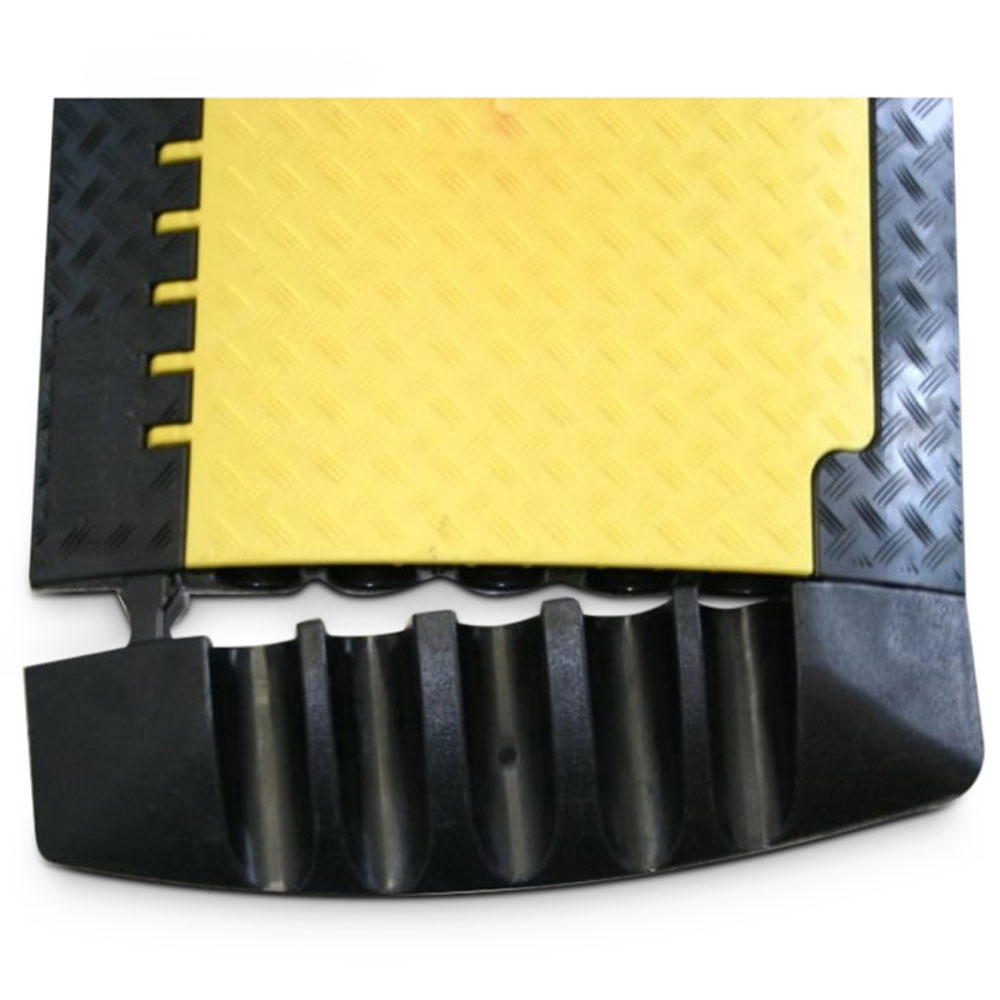

XXL End Ramp
Cable protector 5 channels | end piece with connector | heavy-duty design | height 8.7 cm
$99.99
Backordered – More on the Way!
Product information "XXL End Ramp"
End piece with connector for DEFENDER XXL
| Max. Passing speed: | 7 km/h |
|---|---|
| Chemical resistance: | Oil, Petrol, Solvents (short-term contact) |
| Shape: | Round |
| Colour: | Black |
| Surface structure: | Ribbed |
| Material: | TPU (Thermoplastic polyurethane) |
| Hardness range (±4 Shore A): | 88 Shore A |
| Maximum load (on 25 x 30 cm): | 5 t |
| Load per axle: | 10 t |
| Cable ducts size (W x H): | 60 mm x 59 mm - 62 mm x 63 mm |
|---|---|
| Quantity: | 5 |
| Duct length (effective length): | 27.56 in |
| Inflammability (UL 94): | V-2, HB |
|---|---|
| Fire protection class per DIN 4102-1: | B2 |
| Meets CP65: | 1 |
| Ambient temperature: | -30 - 60 °C |
| Meets TSCA: | 1 |
| Fire protection class per EN 13501-1: | E |
| Height: | 3.43 in |
|---|---|
| Weight: | 6.39 lbs |
| Length: | 7.87 in |
| Width: | 27.4 in |
| Certifications: | Germany: TÜV Süd |
|---|
Login
accessories
5 extra-large channels – the heavy-duty all-rounder Defender® XXL heavy-duty cable crossovers have been developed for extremely high loads and offer 5 large cable/hose channels, three of them for fire C hoses (only up to 62 mm diameter – no couplings) and power cables. Integrated connector plugs enable a quick, easy connection of individual elements to build a stable cable crossover line. The separately available end ramps ensure safe insertion and removal of cables. With a capacity of 5 tonnes on an area of 25 x 30 cm, Defender XXL cable protectors are the ideal solution for heavy vehicle traffic, construction sites, warehouses and trade shows, as well as carnival and music events. Integrated handles for optimum handling. Integrated handles for optimum handling.Label your cable crossovers! All Defender cable protectors can be customised with your company logo from a minimum order of just 30 units per model. The format requirements are available in the download area. Don’t hesitate to contact us.
